基于实测爆破振动计算岩体介质P波品质因子

杨招伟; 卢文波; 陈明; 严鹏; 胡英国; 刘美山; 吴新霞; 冷振东

doi:10.11883/bzycj-2019-0333

基于实测爆破振动计算岩体介质P波品质因子

doi: 10.11883/bzycj-2019-0333

1.
长江科学院水利部岩土力学与工程重点实验室，湖北武汉 430010
2.
武汉大学水资源与水电工程科学国家重点实验室，湖北武汉 430072
3.
中国葛洲坝集团易普力股份有限公司，重庆 401121

基金项目: 国家自然科学基金（51779190，51809016）

详细信息

作者简介:
杨招伟（1992－　），男，博士，yangzw@whu.edu.cn

通讯作者:
卢文波（1968－　），男，博士，教授，博士生导师，wblu@whu.edu.cn

中图分类号: O382
计量
- 文章访问数: 5070
- HTML全文浏览量: 1833
- PDF下载量: 70
- 被引次数: 11
出版历程
- 收稿日期: 2019-08-27
- 修回日期: 2019-11-17
- 刊出日期: 2020-06-01

Calculation of P wave quality factor of rock mass based on measured blasting vibrations

1.
Key Laboratory of Geotechnical Mechanics and Engineering of Ministry of Water Resources, Changjiang River Scientific Research Institute, Wuhan 430010, Hubei, China
2.
State Key Laboratory of Water Resources and Hydropower Engineering Science, Wuhan University, Wuhan 430072, Hubei, China
3.
China Gezhouba Grope Explosive Co. Ltd., Chongqing 401121, China

摘要

摘要: 爆破地震波传播衰减研究对爆破振动预测及安全控制有着重要的指导意义。针对爆破振动实测信号，结合P波、S波的初至识别结果，计算P波、S波在岩体中的传播速度及P波的上升时间，进一步得出岩体介质P波品质因子。结合现场实测振动数据，计算丰宁抽水蓄能电站及舟山绿色石化基地试验区域内岩体介质P波品质因子，计算结果分别为19.02和14.07。结果表明，通过实测地表爆破振动计算得到的P波品质因子远小于经验公式的计算值及一般原岩的品质因子，说明地表疏松层对爆破地震波的传播衰减有较大影响。
- 爆破试验 /
- 爆破振动 /
- 波速 /
- 上升时间 /
- 品质因子
Abstract: Studies on the attenuating characteristic of blasting seismic waves in propagating process are important in prediction and control of blasting vibration effects by engineering blasting. Field blasting tests of single-hole were conducted to study the quality factor of rock mass. The wave propagation velocities and the pulse rise times can be obtained by using the first arrival of P wave and S wave. Finally, based on the rise time method, the P wave quality factor of rock mass can be calculated. By analyzing the measured blasting vibration signals in Fengning hydropower station and Zhoushan large petrochemical industry, the average P wave quality factors in the above two regions are found to be 19.02 and 14.07, respectively. The experimental results show that the values derived by measuring blasting vibrations are far less than the values predicted by the empirical formulas and measured by the original rock mass. This results indicate that the soft covering layer has great influence on the seismic waves propagation induced by blasting.
- blast field tests /
- blasting vibration /
- propagation velocity /
- pulse rise time /
- quality factor

HTML全文

图 1 爆破振动监测点布置

Figure 1. Arrangement of monitoring points of blast vibration

下载: 全尺寸图片幻灯片

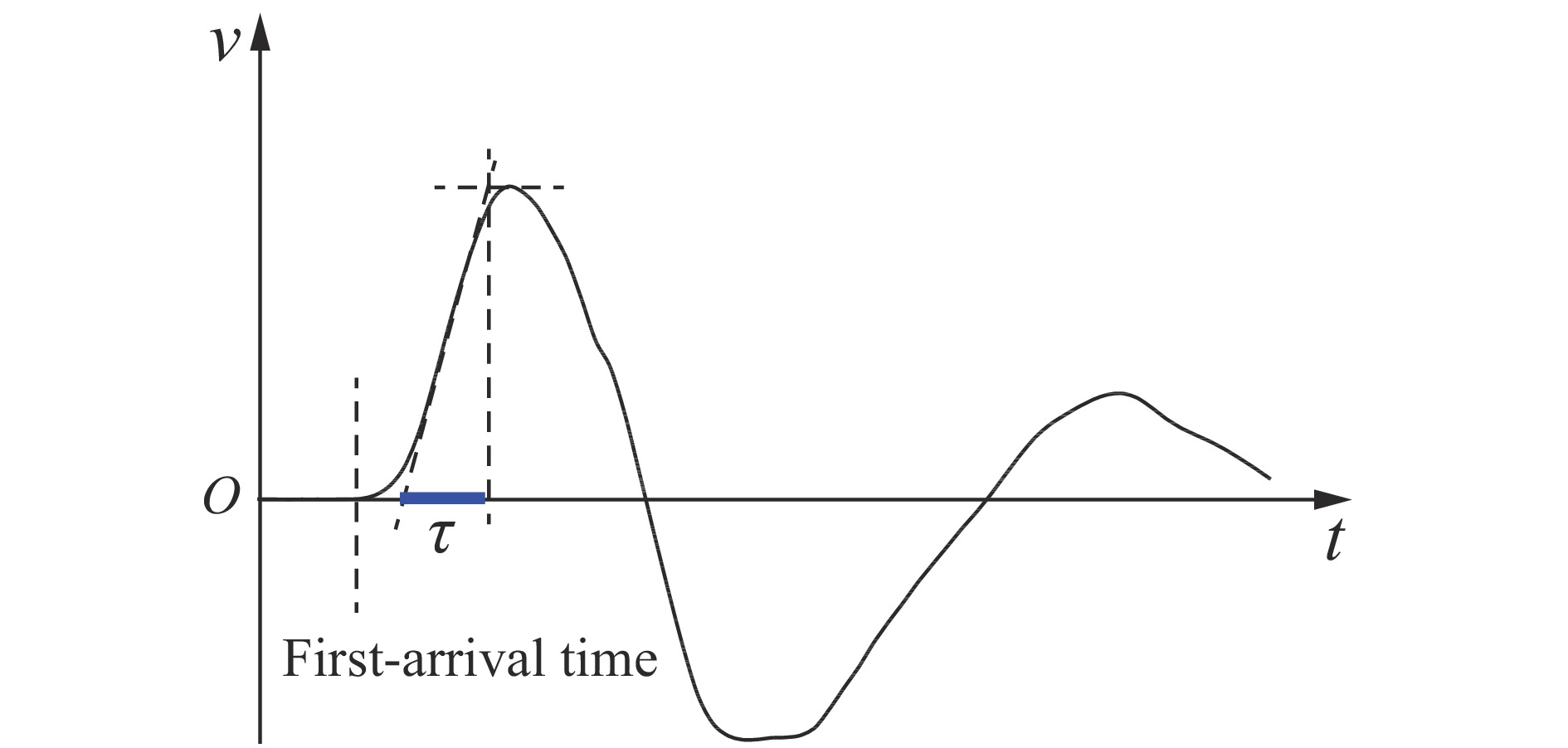

图 2 上升时间计算

Figure 2. Calculation of the rise time

下载: 全尺寸图片幻灯片

图 3 爆破试验现场及仪器布置

Figure 3. Filed tests and arrangement of monitoring points

下载: 全尺寸图片幻灯片

图 4 炮孔及振动测点布置（单位：m）

Figure 4. Arrangement of testing points and blasting holes (Unit: m)

下载: 全尺寸图片幻灯片

图 5 实测典型爆破振动时程曲线

Figure 5. Measured blasting vibration velocity curves

下载: 全尺寸图片幻灯片

图 6 $\ln (xA(x))$ 与 $\ln \tau$ 线性拟合结果

Figure 6. Results of linear regression between $\ln (xA(x))$ and $\ln \tau$

下载: 全尺寸图片幻灯片

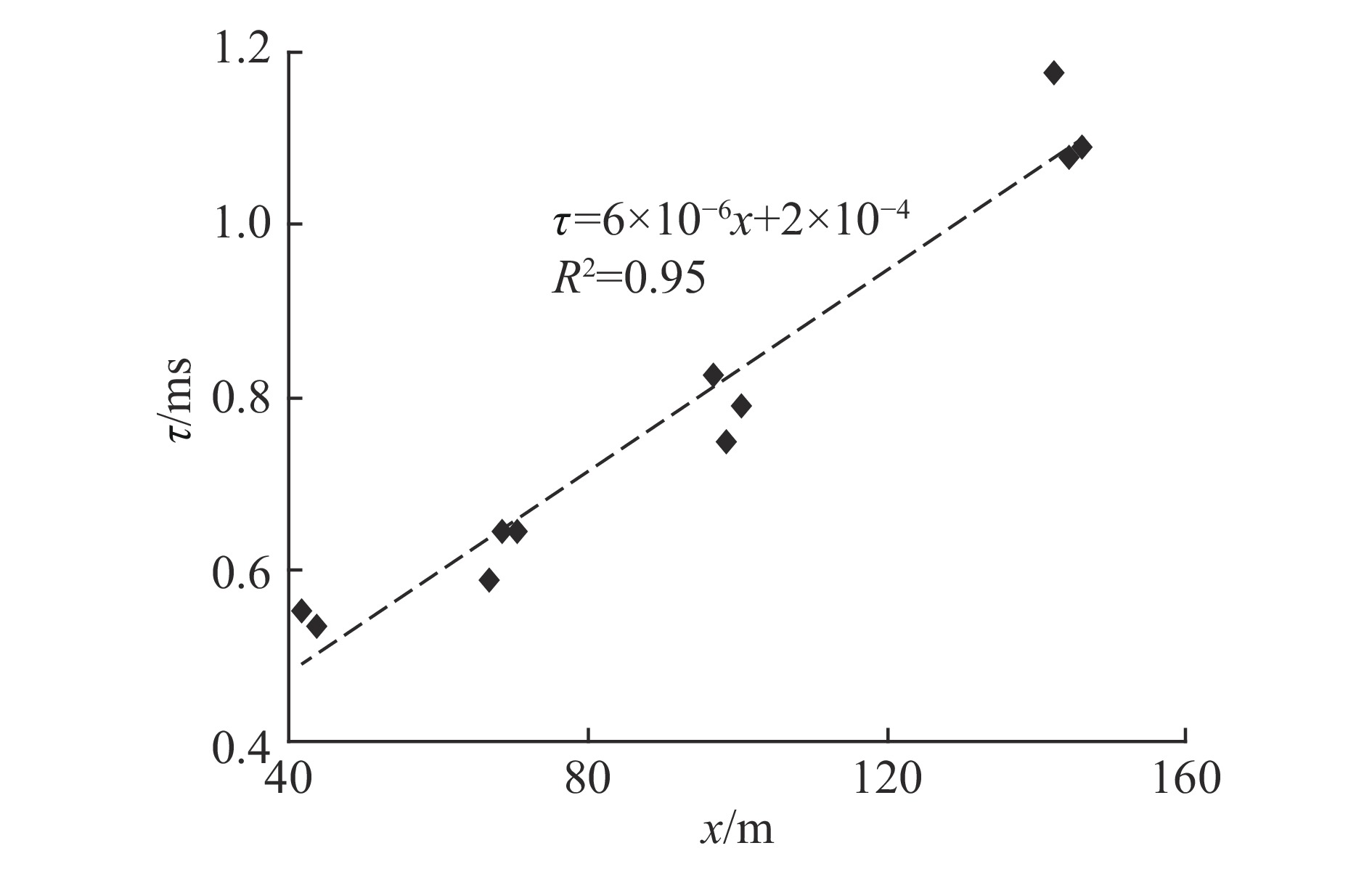

图 7 上升时间 $\tau$ 与爆心距 $x$ 线性拟合

Figure 7. Results of linear regression between $\tau$ and $x$

下载: 全尺寸图片幻灯片

图 8 单孔爆破试验现场

Figure 8. Field photographs of blasting tests

下载: 全尺寸图片幻灯片

图 9 典型测点振动曲线

Figure 9. Typical measured curves of blasting vibration velocity versus time

下载: 全尺寸图片幻灯片

图 10 $\ln (xA(x))$ 与 $\ln \tau$ 线性拟合结果

Figure 10. Results of linear regression between $\ln (xA(x))$ and $\ln \tau$

下载: 全尺寸图片幻灯片

图 11 上升时间 $\tau$ 与爆心距 $x$ 线性拟合

Figure 11. Results of linear regression between $\tau$ and $x$

下载: 全尺寸图片幻灯片

表 1 竖直钻孔爆破实验参数表

Table 1. Parameters of blasting design of the field experiment

炮孔	起爆位置	孔径/mm	孔深/cm	药卷直径/mm	装药长度/cm	堵塞长度/cm	单响药量/kg
1	上、底部	76	800	50	600	200	12.0
2	底部	76	800	50	600	200	12.0
3	中部	76	600	50	420	180	8.4
4	底部	76	600	50	420	180	8.4
5	中部	76	450	50	270	180	5.4
6	底部	76	450	50	270	180	5.4

下载: 导出CSV

表 2 实测振动波形P波初至识别结果

Table 2. P wave first arrivals identification results

炮孔	P波初至震相到时/ms
炮孔	1#	2#	3#	4#	5#	6#
1	429.25	−0.38	−0.63	−0.63	−1.25	−8.25
2	897.13	467.50	467.00	467.13	466.50	459.13
3	1 531.50	1 101.88	1 101.13	1 101.13	1 100.25	1 093.25
4	1 628.75	1 199.13	1 198.38	1 198.50	1 197.00	1 190.63
5	2 583.13	2 153.50	2 153.00	2 153.13	2 153.13	2 145.00
6	3 053.00	2 623.25	2 622.63	2 622.75	2 621.13	2 614.75

下载: 导出CSV

表 3 实测振动波形S波初至识别结果

Table 3. S wave first arrivals identification results

炮孔	S波初至震相到时/ms
炮孔	1#	2#	3#	4#	5#	6#
1	431.63	3.25	5.50	8.75	12.13	11.25
2	899.50	471.13	473.13	476.50	479.88	478.63
3	1 533.63	1 105.13	1 107.00	1 110.25	1 113.38	1 112.50
4	1 630.88	1 202.50	1 204.25	1 207.50	1 210.13	1 209.88
5	2 585.00	2 156.50	2 158.50	2 161.88	2 164.00	2 164.13
6	3 054.88	2 626.38	2 628.25	2 631.63	2 634.00	2 633.75

下载: 导出CSV

表 4 各测点上升时间计算结果

Table 4. Calculating results of rise time for various monitoring points

炮孔	3#测点		4#测点		5#测点		6#测点
炮孔	$\tau$ /ms	v_max/(cm·s⁻¹)	$\tau$ /ms	v_max/(cm·s⁻¹)	$\tau$ /ms	v_max/(cm·s⁻¹)	$\tau$ /ms	v_max/(cm·s⁻¹)
2	0.55	2.51	0.59	1.30	0.83	0.75	1.18	0.23
4	0.53	2.20	0.64	1.05	0.75	0.60	1.08	0.16
6	0.80	1.24	0.64	0.58	0.79	0.34	1.09	0.09

下载: 导出CSV

表 5 实测振动波形P波、S波初至识别结果

Table 5. Identification results of P and S wave first arrivals

测点	爆心距/m	初至时间/ms
测点	爆心距/m	P波	S波
6#	23.6	18.90	22.67
8#	40.0	18.70	25.11
9#	54.6	18.70	27.44
12#	160.9	18.90	44.65
13#	225.6	18.60	54.71

下载: 导出CSV

表 6 各测点上升时间计算结果

Table 6. Calculating results of rise times for various monitoring points

测点	$\tau$ /ms	v_max/(cm·s⁻¹)
6#	1.54	7.18
8#	1.65	2.63
9#	1.70	1.32
12#	2.61	0.30
13#	2.50	0.19

下载: 导出CSV

参考文献(24)

[1]	卢文波, 赖世骧, 朱传云, 等. 三峡工程岩石基础开挖爆破震动控制安全标准 [J]. 爆炸与冲击, 2001, 21(1): 67–71. LU W B, LAI S X, ZHU C Y, et al. Safety standards of blast vibrations adopted in rock base excavation of the three gorge project [J]. Explosion and Shock Waves, 2001, 21(1): 67–71.
[2]	YAN P, ZOU Y, ZHOU J, et al. Assessment of seismic impact on residences during blasting excavation of a large-scale rock slope in China [J]. Environmental Earth Sciences, 2016, 75(11): 949. DOI: 10.1007/s12665-016-5747-6.
[3]	王振宇, 梁旭, 陈银鲁, 等. 基于输入能量的爆破震动安全评价方法研究 [J]. 岩石力学与工程学报, 2010, 29(12): 2492–2499. WANG Z Y, LIANG X, CHEN Y L, et al. Study of safety evaluation method of blasting vibration based on input energy [J]. Chinese Journal of Rock Mechanics and Engineering, 2010, 29(12): 2492–2499.
[4]	李彰明, 冯强. 岩质边坡中应力波衰减规律探讨 [J]. 岩石力学与工程学报, 1996, 15(S1): 460–463. LI Z M, FENG Q. Study on attenuation law of stress wave for rock slopes [J]. Chinese Journal of Rock Mechanics and Engineering, 1996, 15(S1): 460–463.
[5]	李洪涛, 卢文波, 舒大强, 等. 爆破地震波的能量衰减规律研究 [J]. 岩石力学与工程学报, 2010, 29(S1): 3364–3369. LI H T, LU W B, SHU D Q, et al. Study of energy attenuation law of blast-induced seismic wave [J]. Chinese Journal of Rock Mechanics and Engineering, 2010, 29(S1): 3364–3369.
[6]	范勇, 卢文波, 杨建华, 等. 深埋洞室开挖瞬态卸荷诱发振动的衰减规律 [J]. 岩土力学, 2015, 36(2): 541–549. DOI: 10.16285/j.rsm.2015.02.033. FAN Y, LU W B, YANG J H, et al. Attenuation law of vibration induced by transient unloading during excavation of deep caverns [J]. Rock and Soil Mechanics, 2015, 36(2): 541–549. DOI: 10.16285/j.rsm.2015.02.033.
[7]	周俊汝, 卢文波, 张乐, 等. 爆破地震波传播过程的振动频率衰减规律研究 [J]. 岩石力学与工程学报, 2014, 33(11): 2171–2178. DOI: 10.13722/j.cnki.jrme.2014.11.002. ZHOU J R, LU W B, ZHANG L, et al. Attenuation of vibration frequency during propagation of blasting seismic wave [J]. Chinese Journal of Rock Mechanics and Engineering, 2014, 33(11): 2171–2178. DOI: 10.13722/j.cnki.jrme.2014.11.002.
[8]	毕卫国, 石崇. 爆破振动速度衰减公式的优化选择 [J]. 岩土力学, 2004, 25(S1): 99–102. BI W G, SHI C. Optimization selection of blasting vibration velocity attenuation formulas [J]. Rock and Soil Mechanics, 2004, 25(S1): 99–102.
[9]	叶根喜, 姜福兴, 郭延华, 等. 煤矿深部采场爆破地震波传播规律的微震原位试验研究 [J]. 岩石力学与工程学报, 2008, 27(5): 1053–1058. DOI: 10.3321/j.issn:1000-6915.2008.05.022. YE G X, JIANG F X, GUO Y H, et al. Experiment research on seismic wave attenuation by field microseismic monitoring in deep coal mine [J]. Chinese Journal of Rock Mechanics and Engineering, 2008, 27(5): 1053–1058. DOI: 10.3321/j.issn:1000-6915.2008.05.022.
[10]	FRANKEL A, MCGARR A, BICKNELL J, et al. Attenuation of high-frequency shear waves in the crust: measurements from New York state, south Africa, and southern California [J]. Journal of Geophysical Research Solid Earth, 1990, 95(B11): 17441–17457. DOI: 10.1029/JB095iB11p17441.
[11]	CHUNG T W, SATO H. Attenuation of high-frequency P and S waves in the crust of southeastern south Korea [J]. Bulletin of the Seismological Society of America, 2001, 91(6): 1867–1874. DOI: 10.1785/0120000268.
[12]	YOSHIMOTO K, SATO H, OHTAKE M. Frequency-dependent attenuation of P and S waves in the Kanto area, Japan, based on the coda-normalization method [J]. Geophysical Journal International, 1993, 114(1): 165–174. DOI: 10.1111/j.1365-246X.1993.tb01476.x.
[13]	JONGMANS D, CAMPILLO M. The determination of soil attenuation by geophysical prospecting and the validity of measured Q, values for numerical simulations [J]. Soil Dynamics and Earthquake Engineering, 1993, 12(3): 149–157. DOI: 10.1016/0267-7261(93)90042-p.
[14]	WANG Q C, GAO J C, ZHENG S H, et al. Attenuation of ground motion in central and north area of north China [J]. Journal of Disaster Pnevention and Mitigation Engineering, 2004, 24(3): 313–319.
[15]	刘学伟, 邰圣宏, 何樵登. 一种考虑噪声干扰的地表风化层Q值反演方法 [J]. 石油地球物理勘探, 1996, 31(3): 367–373. LIU X W, TAI S H, HE J D. Weathered-layer Q-value inversion method with consideration of noise [J]. Oil Geophysical Prospecting, 1996, 31(3): 367–373.
[16]	卢文波, 董振华, 朱传云. 爆破地震波传播过程中衰减参数的确定 [J]. 工程爆破, 1997, 3(4): 12–16. LU W B, DONG Z H, ZHU C Y. Calculating of attenuation parameters of rock mass during the propagation of blasting seismic wave [J]. Engineering Blasting, 1997, 3(4): 12–16.
[17]	彭府华, 李庶林, 程建勇, 等. 中尺度复杂岩体应力波传播特性的微震试验研究 [J]. 岩土工程学报, 2014, 36(2): 312–319. DOI: 10.11779/CJGE201402007. PENG F H, LI S L, CHENG J Y, et al. Experimental study on characteristics of stress wave propagation in mesoscale and complex rock mass by microseismic monitoring [J]. Chinese Journal of Geotechnical Engineering, 2014, 36(2): 312–319. DOI: 10.11779/CJGE201402007.
[18]	杨招伟, 卢文波, 高启栋, 等. 爆破地震波中S波识别方法及其应用 [J]. 爆炸与冲击, 2018, 38(1): 28–36. DOI: 10.11883/bzycj-2017-0178. YANG Z W, LU W B, GAO Q D, et al. A S-wave phase picking method for blasting seismic waves and its application in engineering [J]. Explosion and Shock Waves, 2018, 38(1): 28–36. DOI: 10.11883/bzycj-2017-0178.
[19]	FUTTERMAN W I. Dispersive body waves [J]. Journal of Geophysical Research, 1962, 67(13): 5279–5291. DOI: 10.1029/JZ067i013p05279.
[20]	陈顒, 黄庭芳, 刘恩儒. 岩石物理学[M]. 合肥: 中国科技大学出版社, 2009: 64–68.
[21]	GLADWIN M T, STACEY F D. Anelastic degradation of acoustic pulses in rock [J]. Physics of the Earth and Planetary Interiors, 1974, 8(4): 332–336. DOI: 10.1016/0031-9201(74)90041-7.
[22]	KJARTANSSON E. Constant Q-wave propagation and attenuation [J]. Journal of Geophysical Research: Solid Earth, 1979, 84(B9): 4737–4748. DOI: 10.1029/JB084iB09p04737.
[23]	KAVETSKY A, CHITOMBO G P F, MCKENZIE C K, et al. A model of acoustic pulse propagation and its application to determine Q, for a rock mass [J]. International Journal of Rock Mechanics and Mining Sciences & Geomechanics Abstracts, 1990, 27(1): 33–41. DOI: 10.1016/0148-9062(90)92891-H.
[24]	李庆忠. 走向精确勘探的道路[M]. 北京: 石油工业出版社, 1994: 31–39.
