高熵合金冲击变形行为研究进展

陈海华; 张先锋; 刘闯; 林琨富; 熊玮; 谈梦婷

doi:10.11883/bzycj-2020-0414

高熵合金冲击变形行为研究进展

doi: 10.11883/bzycj-2020-0414

南京理工大学机械工程学院，江苏南京 210094

基金项目: 国家自然科学基金重大项目（11790292）；国家自然科学基金委员会与中国工程物理研究院联合基金（U1730101）

详细信息

作者简介:
陈海华（1994－　），男，博士研究生，chhzxy201609@njust.edu.cn

通讯作者:
张先锋（1978－　），男，教授，lynx@njust.edu.cn

中图分类号: O382; TJ410
计量
- 文章访问数: 2063
- HTML全文浏览量: 988
- PDF下载量: 310
- 被引次数: 0
出版历程
- 收稿日期: 2020-11-11
- 修回日期: 2021-01-21
- 网络出版日期: 2021-04-14
- 刊出日期: 2021-04-14

Research progress on impact deformation behavior of high-entropy alloys

Department of Mechanical Engineering, Nanjing University of Science and Technology, Nanjing 210094, Jiangsu, China

摘要

摘要: 高熵合金作为一种多主元合金，突破了传统合金单主元的设计思想，体现出不同于传统合金的优异性能，特别在高温、高压、高应变率等极端环境中有着良好的应用前景。从微观、细观与宏观尺度分析高熵合金的冲击变形特性对于其工程应用具有重要的指导作用，主要涉及元素效应、细观结构以及高温高应变率条件对高熵合金冲击损伤演化、微观结构变化和冲击变形演化过程的影响机制。元素效应主要讨论了原子半径差异较大的金属与非金属元素对高熵合金冲击变形行为的影响；根据细观结构不同，将高熵合金分为单相与多相结构，单相高熵合金为塑性较好的面心立方（face centered cubic，FCC）结构、强度较高的体心立方（body centered cubic，BCC）与密排六方（hexagonal close-packed，HCP）结构。多相高熵合金的细观结构为这三种单相结构或者与其他相的组合，多相高熵合金的协同变形能够使其获得更为优异的综合力学性能。高温与高应变率作为外部条件对高熵合金的影响与其他金属相似，高温促进材料软化而高应变率促进材料硬化，部分高熵合金在高温下具有更优异的抗变形能力。针对高熵合金的冲击特性，总结了目前高熵合金在国防工程冲击领域的应用，归纳了高熵合金冲击变形行为研究存在的问题，并进一步对高熵合金在极端条件下的应用进行了展望。
- 高熵合金 /
- 动态力学行为 /
- 冲击破坏 /
- 损伤演化 /
- 微观变形
Abstract: As a kind of multi-principal component alloy, high-entropy alloy breaks through the design idea of traditional single-principal component alloys, and shows excellent properties different from traditional alloy. It has a good application prospect in extreme environments including high temperature, high pressure and high strain rate. Analyzing the impact deformation characteristics of high entropy alloy from micro, meso and macro scale is of great importance for its engineering application, which includes the influences of the element effect, macrostructure and high temperature and high strain rate conditions on the impact damage evolution, microstructure change and impact deformation evolution process of high entropy alloys. In terms of the effect of elements on the mechanical properties of high entropy alloys, the effect of the great difference between the atomic radius of metal and nonmetal elements on the impact deformation is mainly discussed. According to the micro scale structure, the high entropy microstructure of single-phase alloy can be divided into face centered cubic (FCC) structure with better plasticity and body centered cubic (BCC) and hexagonal close-packed (HCP) structure with higher strength. The microstructure of multiphase high entropy alloy is the combination of these three single-phase structures and other phases. The cooperative deformation of multiphase high entropy alloy ensures it to obtain more excellent comprehensive mechanical properties. High temperature and high strain rate as external conditions exhibit similar effect on the high-entropy alloy and other metals. High temperature promotes material softening, while the high strain rate promotes material hardening. Some high entropy alloys have better mechanical properties at high temperature. According to the impact characteristics of high-entropy alloy, the applications of high-entropy alloy in the field of national defense engineering impact are summarized. The existing problems in the research of impact deformation behavior of high-entropy alloy are analyzed, and the applications of high-entropy alloy in extreme conditions are prospected.
- high-entropy alloy /
- dynamic mechanical behavior /
- impact failure /
- damage evolution /
- micro-deformation

HTML全文

当冲击作用于不同密度或不同可压缩性2种物质的扰动界面时产生Richtmyer-Meshkov不稳定性(RMI)。这种不稳定性理论上由Richtmyer发现并描述^[1], 由Meshkov从实验中证实^[2]。该界面不稳定性问题在许多自然现象及科学和工程领域中起着重要作用^[3-8], 如超新星爆炸、磁化等离子体、磁约束、太阳磁化层、地下盐矿、火山岛及外壳与内部流体混合导致中子收益降低的激光驱动惯性约束聚变和冲击波与火焰相互作用导致的爆燃转爆轰等。此外, RMI也可能从受冲击的金属表面产生喷射物。

RMI的演化通常经历由不稳定模式的振幅h_k和波长λ=2π/k描绘的若干阶段。对于kh_k≪1, 扰动随kUt呈正比例增长, U为激波作用后的界面运动速度。当kh_k达到某一值, 非线性使增长率降低, 驱动模式耦合, 且增长率随着扰动谱宽的增大而减小。然后, 由于尖钉下落(重流体进入轻流体)比气泡上升(轻流体进入重流体)快, 界面变得不对称。对于宽的不稳定谱, 非线性最终导致产生湍流混合层。RMI的脉冲性质令问题复杂, 使得RMI定性上与常见的Rayleigh-Taylor不稳定性(RTI)不同。由于冲击的可压缩性、复杂的物质特性以及后期的非线性运动直至湍流混合, RMI演化的计算是困难的。当然, 随着计算机技术的迅猛发展, 这可以采用多维高分辨率流体力学模拟来进行, 但它们计算强度大, 无法用于工程设计优化研究。因此, 目前实际应用中通常采用捕捉较低分辨率时不稳定流动主要特征的简化“混合模型”^[9]。杨玟等^[10-11]对此进行了尝试, 将传统的k-ε模型应用于界面不稳定性引起的混合, 取得了令人满意的结果。

但是, 由于与RMI相关的其它物理过程非常复杂, 较复杂的混合模型(如k-ε)也难以直接应用到工程设计中。目前, 很多实际应用中对RMI诱发混合现象的处理都非常简单, 假设混合层宽度以指数形式t^θ_i增长。而大量实验研究表明该比例关系仍不确定^[3-6], 因为考虑压缩性的计算是困难的, 它们与实验不符。即使指数律粗略满足, 但不同工况下θ_i的差别也很大, 它显著依赖于初始扰动谱。由此可见, 工程设计中对RMI诱发混合现象的处理过于粗糙。

本文中, 在简单介绍描述作用于混合层中产生的气泡和尖钉的浮阻力模型基础上, 采用该模型对激波管低压缩情况和激光加载高压缩情况下的RMI诱发混合层宽度(气泡与尖钉宽度之和)进行计算, 验证模型和选取参数的有效性。

1. 模型介绍

目前, 典型的浮阻力模型可写为如下形式^[12]:

$\left.\left(\rho_{i}+C_{\mathrm{a}} \rho_{j}\right) \frac{\mathrm{d} v_{i}}{\mathrm{~d} t}-\beta\left(\rho_{i}-\rho_{j}\right) a(t)\right] V_{i}=-C_{\mathrm{d}} \rho_{i} v_{i}\left|v_{i}\right| A_{i} \quad i, j=1, 2 ; i \neq j$

(1)

式中：下角标i, j表示2种不同的流体，下角标为1时表示重流体(尖钉)，为2时表示轻流体(气泡)；ρ_i为重流体/轻流体的密度；v_i是尖钉/气泡的渗透速度，且v_i=dh_i/dt，h_i表示尖钉/气泡的瞬时宽度；C_a是附加质量力系数；β是浮力产生的模型常数；C_d是阻力系数；a(t)为激波脉冲加速度；V_i为尖钉/气泡的体积，A_i为尖钉/气泡的截面积。方程左端第一项为惯性力，第二项为浮力，右端为阻力。关于模型的详细论述可参考文献[13-14]，这里不再重复。对于Richtmyer-Meshkov不稳定性，通常认为冲击简单地给予界面上的气泡和尖钉一个脉冲，则它们随后的运动可以由惯性力和阻力相等来得到(加速度为零)。因此脉冲加速度情况是有启发性的，可以用来研究不稳定性的惯性特性。

本文所求解的模型方程是一组二阶常微分方程, 将它们简化为一阶微分方程:dh_i/dt=v_i; dv_i/dt= -f_iC_dv_i|v_i|/h_i。采用四阶Runge-Kutta方法进行求解。

2. 结果分析与讨论

采用上述模型和数值方法, 对关注的激波管低压缩情况和激光加载高压缩情况下模型的性能进行了考察。这2种工况下RMI产生的机理不同:对于弱冲击, 主要贡献来自于压力梯度和密度梯度不重合引起的旋涡沉积; 对于强冲击, 存在激波在经折射后产生了显著的反射, 这产生增长率的振荡, 但它们最终衰减。

2.1 激波管低压缩的情况下的模拟

首先采用上述模型对4种不同激波脉冲加速度情况下气泡和尖钉宽度进行了计算。图 1给出了所采用的4种加速度曲线，g为重力加速度。脉冲加速度a约为150g，持续时间t₀约为10 ms。这些曲线为LANL的Dimonte等LEM(Linear Electric Motor)实验的测量曲线^[15]。实验中流体和脉冲加速度的性质参数见表 1，其中R为密度比，R=(1+A)(1-A)，A为Atwood数，A=(ρ₂-ρ₁)(ρ₂+ρ₁)，We为韦伯数，Re为雷诺数。对于每一种情况，通过调整阻力系数C_d和初始振幅h_i0来使随时间变化的解与实验数据相符。但是，数值实验发现：在大多数情况下h_i0对结果的影响远小于C_d的影响。

图 1 计算采用的4种不同脉冲加速度曲线

Figure 1. Four kinds of impulsive accelerations used in the calculation

下载: 全尺寸图片幻灯片

表 1 实验中采用的流体和脉冲加速度性质参数

Table 1. Fluid combinations and characteristics for impusive accerleration experiments

No.	流体1	流体2	ρ₁/(g·cm^-3)	ρ₂/(g·cm^-3)	R	A	We	Re
1	H₂O	CCl₂F₂	1.000	1.57	1.57	0.22	4 000	2 600
2	SF₆	C₄H₁₀	0.067	0.81	12.10	0.85	1 100	8 000
3	SF₆	CCl₂F₂	0.067	1.57	23.40	0.92	11 000	23 000
4	SF₆	CCl₂F₂	0.032	1.57	49.10	0.96	6 000	25 000

下载: 导出CSV

| 显示表格

给出了4种加速度驱动下气泡和尖钉宽度随位移Z的变化, $Z=\iint a \mathrm{~d} t^{\prime} \mathrm{d} t$ , 激波作用时Z≈Ut。由图可见, 4种加速度情况下计算的气泡和尖钉宽度与实验基本吻合。计算中阻力系数C_d的取值为3.67±0.73, 与文献[16]中分析得到的C_d的不确定度1.2接近。从图中还可看出:气泡和尖钉的不对称性随着密度比R的增大而增大。此外, 本文中还对实验结果按指数律h_i=h_i0t^θ_i进行了拟合, 其中h_i0的取值范围为0.5~1.0 cm。R=49.1时, θ₁≈0.85, θ₂≈0.33; R=23.4时, 指数迅速下降, θ₁≈0.45, θ₂≈0.24; R=1.57时, θ₁≈0.28, θ₂≈0.22。由此可见, 指数θ_i随密度比变化而变化, 但具体变化规律还未从数值模拟和实验中最终确定, 这主要是由于θ_i对实验初始条件敏感, 需要计算和实验之间更直接的比较。

图 2 气泡和尖钉宽度随位移的变化

Figure 2. The width of bubble and spike with displacement

下载: 全尺寸图片幻灯片

2.2 激光加载高压缩情况下的模拟

为了考察模型在高压缩情况下的性能，我们进一步对Nova激光器上马赫数Ma>10的实验进行了模拟。实验采用一靶丸装置在Nova激光器上进行^[17]。流体1由厚度为125 μm、初始密度为1.7 g/cm³的铍烧蚀层组成。流体2是未压缩密度为0.12 g/cm³的泡沫。波速为46 km/s的入射冲击与界面相互作用产生反射稀疏波和速度为3 km/s的透射激波。界面经加速后速度为56 km/s，物质被压缩后，ρ₁=2 g/cm³，ρ₂=0.5 g/cm³，A=-0.6。这些参数通过对比热比γ₁=1.8和γ₂=1.45的流体求解理想的黎曼问题得到。

图 3给出了Nova实验中计算的加速度曲线。由图可见，激光驱动在4 ns后停止，这导致泡沫减压，由于A < 0而产生Rayleigh-Taylor(RT)分量，因此冲击压缩后流动是亚音速的，本文模型是适用的。图 4给出了混合区总宽度H随位移Z的变化(由于实验不能分辨气泡和尖钉，因此给出了总振幅H)。从图中可看出：混合区总宽度的计算值与实验值吻合，而且C_d=2.0和C_d=5.36的曲线之间包括了全部的实验数据。但是，阻力系数C_d的不确定度约为3.36，明显大于低压缩情况的值(约为1.46)。此外，拟合得到总的混合宽度以指数为0.5的指数律增长，这超过了激波管低压缩时得到的指数，推测其原因可能是：(1)激光驱动随时间减小，使得压力降低、界面减速，这导致扰动膨胀，并引入RT分量(因为Aa>0)。这些影响可能显著增加推测的指数；(2) A=0.6时Nova上的初始扰动比激波管上的更对称，如果指数对初始条件敏感，这可能导致不同的指数。

图 3 Nova实验中的加速度曲线

Figure 3. Acceleration history for Nova experiment

下载: 全尺寸图片幻灯片

图 4 混合区宽度随位移的变化

Figure 4. Variaion of total width with displacement

下载: 全尺寸图片幻灯片

3. 结论

采用浮阻力模型对激波管低压缩和激光加载高压缩情况下Richtmyer-Meshkov不稳定性诱发的物质渗透边界的演化过程进行了计算, 计算结果与实验吻合得较好。这表明本研究中模型参数的选取、方程中现象学比例因子的添加和模型假设是合适的。但是由于实验测量的局限性, 模型中的一些问题仍然是突出的, 包括阻力项的大小和形式、压缩的影响、“附加质量”的描述等。为了更好地评估模型, 需要一些实验上的完善。首先, 气泡和尖钉必须单独分辨, 因为它们的表现相当不同, 尤其在A较大的情况。其次, 实验持续时间应当延长至足以揭示模型的差别为止。尽管如此, 本文模型仍明显优于当前实际应用中所采用的经验公式(本研究也显示指数θ_i随工况的不同而显著变化)。

图 1 FeNiCoCr高熵合金静动态力学性能^[16]

Figure 1. Static and dynamic mechanical properties of FeNiCoCr high-entropy alloy^[16]

下载: 全尺寸图片幻灯片

图 2 AlCoCrFeNi高熵合金静动态力学性能^[18]

Figure 2. Static and dynamic mechanical properties of AlCoCrFeNi high-entropy alloy^[18]

下载: 全尺寸图片幻灯片

图 3 FeNiCoCrMn高熵合金动态力学性能^[19]

Figure 3. Dynamic mechanical properties of FeNiCoCrMn high-entropy alloy^[19]

下载: 全尺寸图片幻灯片

图 4 FeNiCoCrMn与FeNiCoCrAl高熵合金冲击性能对比^[20]

Figure 4. Impact performance comparison between FeNiCoCrMn and FeNiCoCrAl high-entropy alloy^[20]

下载: 全尺寸图片幻灯片

图 5 变形与未变形样品TEM显微结构特征^[20]

Figure 5. TEM images showing different microstructural features in the deformed and undeformed samples^[20]

下载: 全尺寸图片幻灯片

图 6 CrMnFeCoNi与CrFeCoNiPd高熵合金的对比^[7]

Figure 6. Comparison of CrMnFeCoNi with CrFeCoNiPd HEA^[7]

下载: 全尺寸图片幻灯片

图 7 Fe_40.4Ni_11.3Mn_34.8Al_7.5Cr₆高熵合金的工程应力应变曲线^[21]

Figure 7. Typical true stress as a function of true strain for carbon-doped Fe_40.4Ni_11.3Mn_34.8Al_7.5Cr₆ HEAs^[21]

下载: 全尺寸图片幻灯片

图 8 室温下AlFeCoNiC_x（x=0、0.02、0.04、0.08和0.17）合金的压缩真应力应变曲线^[23]

Figure 8. Compressive true stress-strain curves of the AlFeCoNiC_x (x = 0, 0.02, 0.04, 0.08, and 0.17) alloys at room temperature^[23]

下载: 全尺寸图片幻灯片

图 9 AlFeCoNiC_x高熵合金断口扫描电镜显微图像^[23]

Figure 9. SEM micrographs of fracture surface of the AlFeCoNiC_x high-entropy alloys^[23]

下载: 全尺寸图片幻灯片

图 10 CoCrFeNiMn高熵合金室温压缩工程应力应变曲线^[24]

Figure 10. Room-temperature compressive engineering stress-strain curves of CoCrFeNiMn HEA and CoCrFeNiMnN_0.1 HEA^[24]

下载: 全尺寸图片幻灯片

图 11 反极图显示样品CD平面上的形变孪晶^[26]

Figure 11. Inverse pole figure maps showing deformation twinning on the CD planes of samples^[26]

下载: 全尺寸图片幻灯片

图 12 透射电镜图像的位错与交叉滑移现象^[7]

Figure 12. Dislocation and cross-slip phenomenon of TEM^[7]

下载: 全尺寸图片幻灯片

图 13 Nb₂₅Mo₂₅Ta₂₅W₂₅和V₂₀Nb₂₀Mo₂₀Ta₂₀W₂₀合金在1 400 ℃压缩变形后的扫描电镜背散射图像^[11]

Figure 13. SEM backscatter images of the Nb₂₅Mo₂₅Ta₂₅W₂₅ and V₂₀Nb₂₀Mo₂₀Ta₂₀W₂₀ alloys after compressive deformation at 1 400 °C^[11]

下载: 全尺寸图片幻灯片

图 14 纳米压痕引起的位错^[8]

Figure 14. Dislocations induced by nanoindentation^[8]

下载: 全尺寸图片幻灯片

图 15 TRIP双相高熵合金的变形顺序^[28]

Figure 15. Sequence of micro-processes in the TRIP-DP-HEA^[28]

下载: 全尺寸图片幻灯片

图 16 扫描电镜图像显示了AlCoCrFeNi_2.1高熵合金中的BCC(B2)相的不同断裂模式^[32]

Figure 16. SEM images showing different fracture modes of the BCC (B2) phase in AlCoCrFeNi_2.1 alloy^[32]

下载: 全尺寸图片幻灯片

图 17 双相钢的显微组织与力学特性^[33]

Figure 17. Microstructure and tensile properties of the dual-phase steel^[33]

下载: 全尺寸图片幻灯片

图 18 80%金属丝复合材料的断裂形态^[35]

Figure 18. Fracture morphology of 80% wire composites^[35]

下载: 全尺寸图片幻灯片

图 19 体积分数50%钨颗粒与体积分数80%钨丝增强的Zr₅₇Nb₅Al₁₀Cu_15.4Ni_12.6非晶合金准静态压缩后的断裂表面SEM微观图像^[36]

Figure 19. SEM micrograph of the quasi-static compressive fracture surface Zr₅₇Nb₅Al₁₀Cu_15.4Ni_12.6 reinforced with volume fraction 50% W particles and with volume fraction 80% W wire^[36]

下载: 全尺寸图片幻灯片

图 20 钨丝增强非晶合金长杆弹残余弹体头部纵剖面金相照片^[39]

Figure 20. Metallographic photos of the longitudinal section of residual WF/MG composite rod nose^[39]

下载: 全尺寸图片幻灯片

图 21 样本裂缝的扫描电子显微照片^[42]

Figure 21. Scanning electron micrographs of the cracks in the specimen^[42]

下载: 全尺寸图片幻灯片

图 22 两个不同区域的屈服强度随应变率的变化^[43]

Figure 22. Variation of yielding strength with strain rate for two distinct regions^[43]

下载: 全尺寸图片幻灯片

图 23 屈服强度和0.05偏移应变时的流动应力是压缩载荷下应变率对数的函数^[46]

Figure 23. The yield strength and the flow stress at 0.05 offset strain as a function of the logarithm of the strain rate applied in compression loading^[46]

下载: 全尺寸图片幻灯片

图 24 两种不同区域下屈服强度随应变速率的变化^[18]

Figure 24. Variation of yield strength with strain rate in two distinct regions^[18]

下载: 全尺寸图片幻灯片

图 25 高熵合金的屈服强度是对数应变率的函数^[26]

Figure 25. The yield strength as a function of the logarithmic strain rate for the CoCrFeMnNi high-entropy alloys^[26]

下载: 全尺寸图片幻灯片

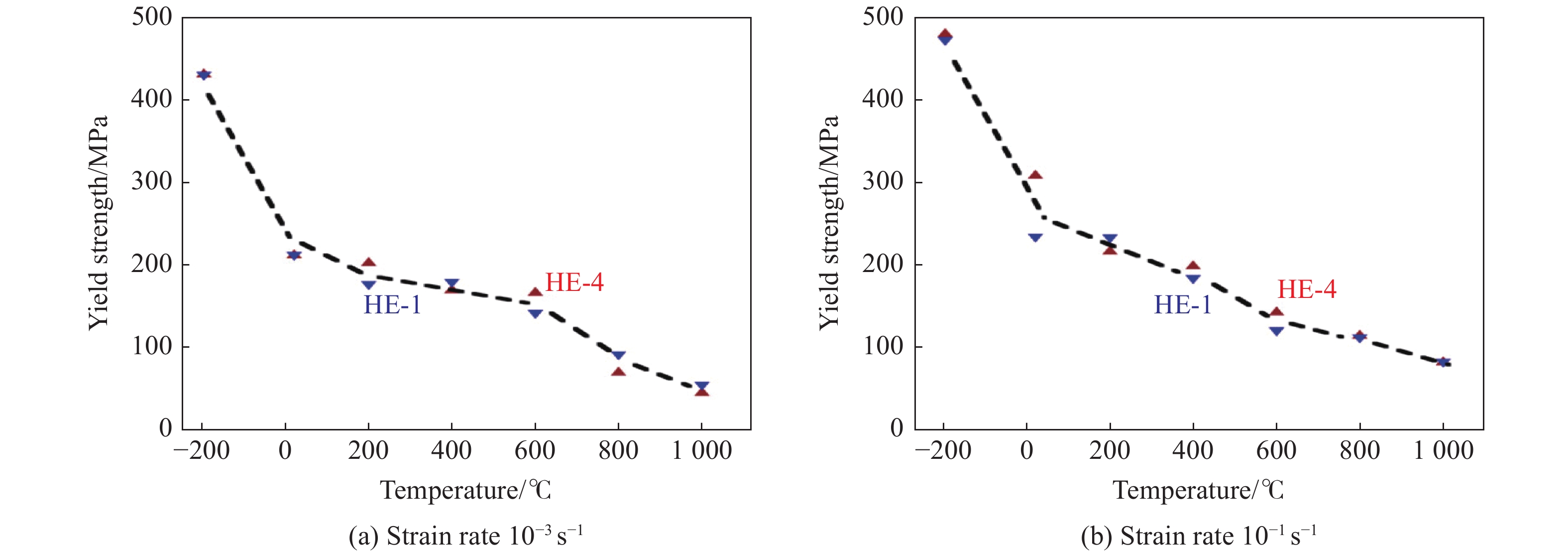

图 26 不同工程应变率下CrMnFeCoNi(HE-1)和CrFeCoNi(HE-4)合金0.2%偏移屈服强度的温度依赖性^[14]

Figure 26. Temperature dependencies of the 0.2% offset yield strengths of the CrMnFeCoNi (HE-1) and CrFeCoNi (HE-4) alloys tensile tested at different engineering strain rates^[14]

下载: 全尺寸图片幻灯片

图 27 不同温度下TaNbHfZrTi工程应力应变压缩曲线^[52]

Figure 27. Engineering stress vs engineering strain compression curves of the TaNbHfZrTi alloy at different temperatures^[52]

下载: 全尺寸图片幻灯片

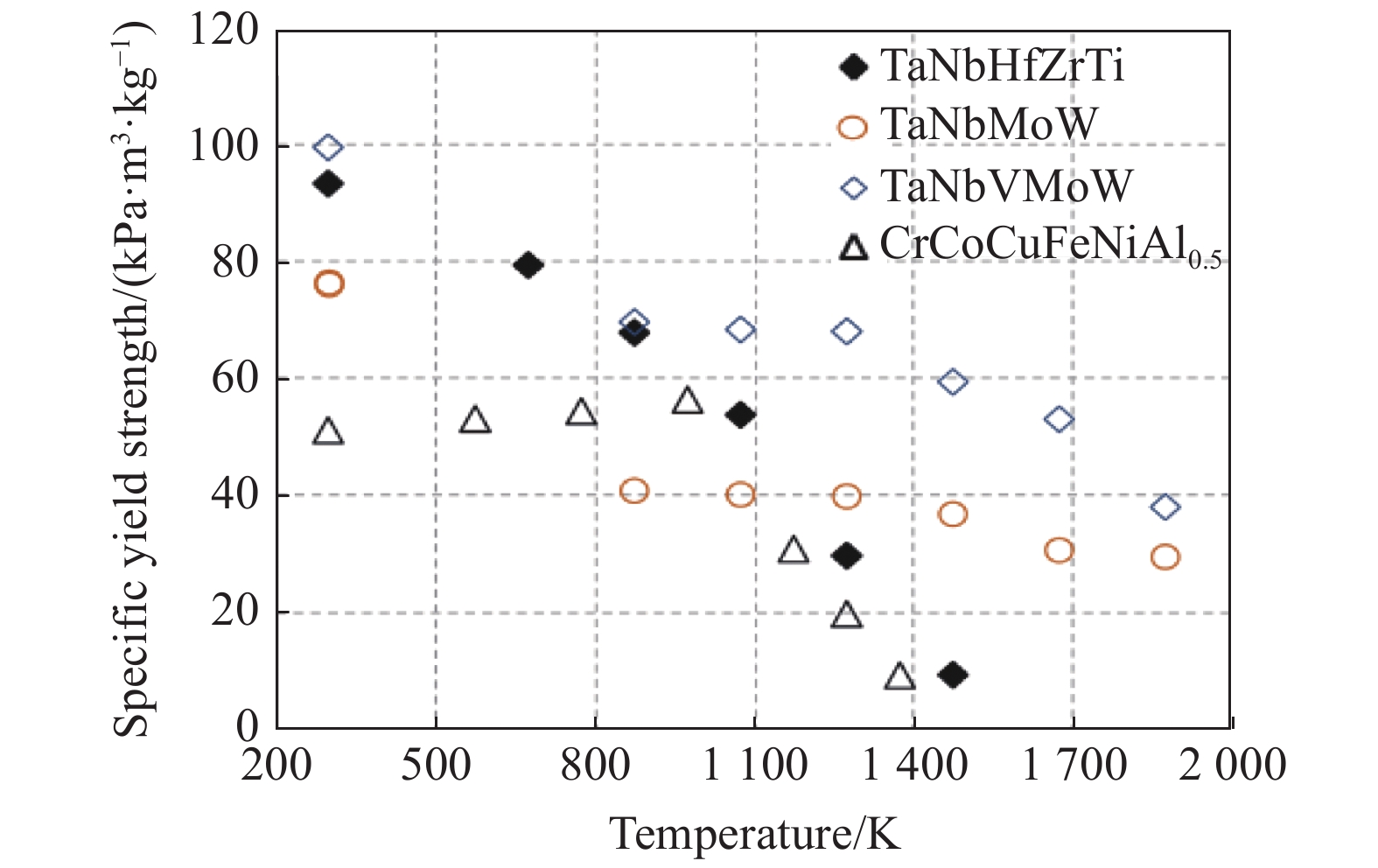

图 28 TaNbHfZrTi屈服强度的温度依赖性^[52]

Figure 28. The temperature dependence of the specific yield strength of the TaNbHfZrTi alloy^[52]

下载: 全尺寸图片幻灯片

图 29 从不同应变率下的等温压缩试验得到的CoCrFeMnNi高熵合金的真实应力应变曲线^[53]

Figure 29. The true stress-strain curves for the CoCrFeMnNi HEA obtained from isothermal compression tests at various strain rates^[53]

下载: 全尺寸图片幻灯片

图 30 Al4Nb4-HEA在拉伸应变作用下的高温应力应变曲线^[54]

Figure 30. High-temperature stress-strain curves of the Al4Nb4 HEA subjected to tensile strain^[54]

下载: 全尺寸图片幻灯片

图 31 不同合金拉伸屈服强度随温度变化的屈服强度（YS）和最终拉伸强度（UTS）的比较^[54]

Figure 31. Comparison of the YS and UTS as a function of temperature with the tensile YS of different alloys^[54]

下载: 全尺寸图片幻灯片

图 32 HfZrTiTa_0.53高熵合金不同速度下穿靶爆燃过程的高速摄影^[9]

Figure 32. High-speed video frames of deflagration process of HfZrTiTa_0.53 HEA at different speeds^[9]

下载: 全尺寸图片幻灯片

图 33 WFeNiMo高熵合金在不同速度下穿靶爆燃过程的高速摄影^[57]

Figure 33. High-speed video frames of deflagration process of WFeNiMo HEA at different speeds^[57]

下载: 全尺寸图片幻灯片

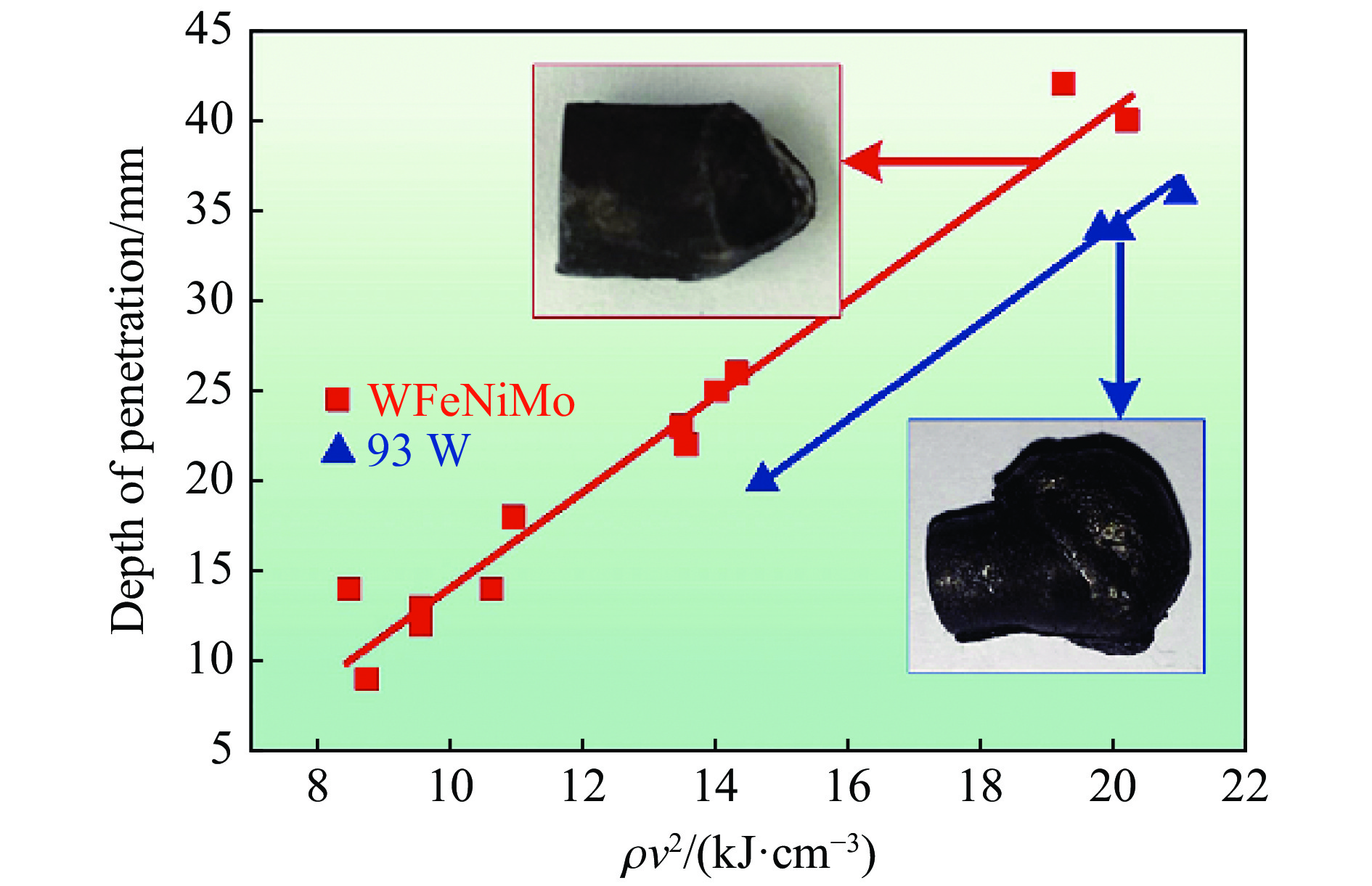

图 34 WFeNiMo和93W长杆弹侵彻深度与动能的关系^[58]

Figure 34. Depth of penetration of WFeNiMo rod and 93 W rod versus kinetic energy^[58]

下载: 全尺寸图片幻灯片

图 35 WFeNiMo断裂面附近区域的放大扫描电镜图像^[58]

Figure 35. Magnified SEM images of regions near the fracture surface of WFeNiMo remnant^[58]

下载: 全尺寸图片幻灯片

图 36 防弹盒^[59]

Figure 36. Ballistic Package^[59]

下载: 全尺寸图片幻灯片

图 37 7.62 mm×39 mm钢芯穿甲燃烧弹后的高熵合金靶板^[60]

Figure 37. HEA plate after the firing of a 7.62 mm×39 mm steel core incendiary armour-piercing bullet^[60]

下载: 全尺寸图片幻灯片

图 38 铸态Al_0.1CoCrFeNi高熵合金弹道试验^[61]

Figure 38. Ballistic test of as-cast Al_0.1CoCrFeNi HEA^[61]

下载: 全尺寸图片幻灯片
