固体介质中的冲击极化效应研究进展

常孟周; 范飞高; 唐恩凌; 贺丽萍; 郭凯; 崔化鹏; 陈闯; 韩雅菲; 王睿智; 曹洪祥

doi:10.11883/bzycj-2023-0473

固体介质中的冲击极化效应研究进展

doi: 10.11883/bzycj-2023-0473

辽宁省瞬态物理力学与能量转换材料重点实验室，沈阳理工大学，辽宁沈阳 110159

基金项目: 国家自然科学基金（12172232）；

详细信息

作者简介:
常孟周（1990－　），男，博士，副教授，changmengzhou@163.com

通讯作者:
唐恩凌（1971－　），男，博士，教授，tangenling@126.com

中图分类号: O383; O481
计量
- 文章访问数: 100
- HTML全文浏览量: 11
- PDF下载量: 52
- 被引次数: 0
出版历程
- 收稿日期: 2023-12-29
- 修回日期: 2024-05-20
- 网络出版日期: 2024-05-21

Research progress of shock induced polarization effect in solid mediums

Key Laboratory of Transient Physical Mechanics and Energy Conversion Materials of Liaoning Province, Shenyang Ligong University, Shenyang 110159, Liaoning, China

摘要

摘要: 冲击波在固体介质内传播时，内部电荷随冲击波作用向两极迁移形成电势差并对外输出电压/电流的极化效应称作冲击极化效应。针对晶体、金属、陶瓷以及聚合物等典型固体介质的冲击极化效应进行了系统梳理；总结了现阶段发展的冲击极化测试方法，分析了落锤/摆锤、SHPB、轻气炮以及炸药爆轰等加载方式诱发固体介质极化响应的差异；概述了有限元方法、分子动力学、近场动力学方法以及相场分析方法在固体介质冲击极化数值模拟领域的应用；围绕Allison理论、张裕恒理论、冲击挠曲电理论以及冲击波相关理论，总结了固体介质冲击极化的宏观唯象理论，并从固体介质微观结构、载流子输运模式、输运模型、迁移率以及态密度等方面说明了冲击极化的微观机理；分析了冲击极化效应在传感器、俘能器以及致动器等领域的应用前景，对固体介质冲击极化效应的发展趋势和需求进行了展望。
- 冲击极化 /
- 固体介质 /
- 载流子 /
- 冲击波
Abstract: When shock waves propagate in solid mediums, the internal charge carriers migrate to the electrodes under the action of shock waves to form electric potential and output voltage/current - shock induced polarization effect (SIP). The development of SIP effect has challenged the traditional understanding of physical response of solid medium. In this paper, the SIP effects of typical solid mediums such as crystals, metals, ceramics and polymers are systematically reviewed. The SIP test methods developed at present are also summarized, and the characteristics of SIP induced by different loading methods such as drop hammer/pendulum, SHPB, light gas gun and explosive detonation are analyzed. The applications of finite element method, molecular dynamics, peridynamic and phase field analysis in the numerical simulation of SIP of solid mediums are summarized. The macroscopic phenomenology theories of SIP of solid mediums are summarized based on Allison theory, Zhang Yuheng theory, shock flexoelectric theory and shock wave theory, and the microscopic mechanism of SIP is explained considering the microstructure of solid medium, carrier transport mode, transport model, mobility and state density. Furthermore, the application prospect of SIP effect in sensors, energy harvesters and actuators are analyzed, also, the development trend and demand of SIP in solid media are also prospected.
- shock induced polarization /
- solid medium /
- charge carriers /
- shock wave

HTML全文

图 1 不同厚度和电极形状6061Al的极化强度(P)与应变梯度^[13]

Figure 1. Polarization strength (P) and strain gradient of specimens with different thickness and electrodes^[13]

下载: 全尺寸图片幻灯片

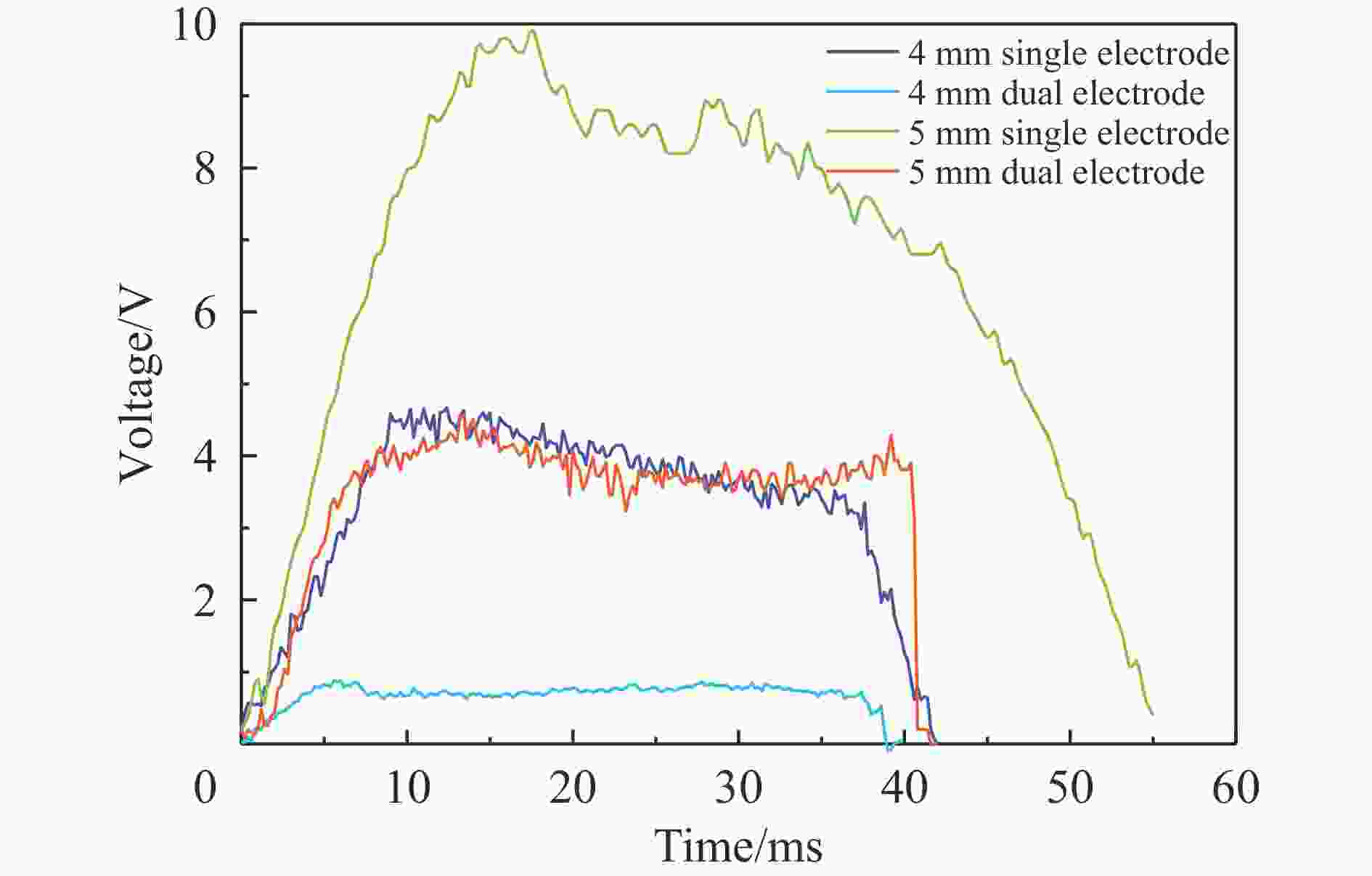

图 2 6061Al薄板的冲击极化电压时程^[14]

Figure 2. Time history curves of SIP voltages of 6061Al thin plate^[14]

下载: 全尺寸图片幻灯片

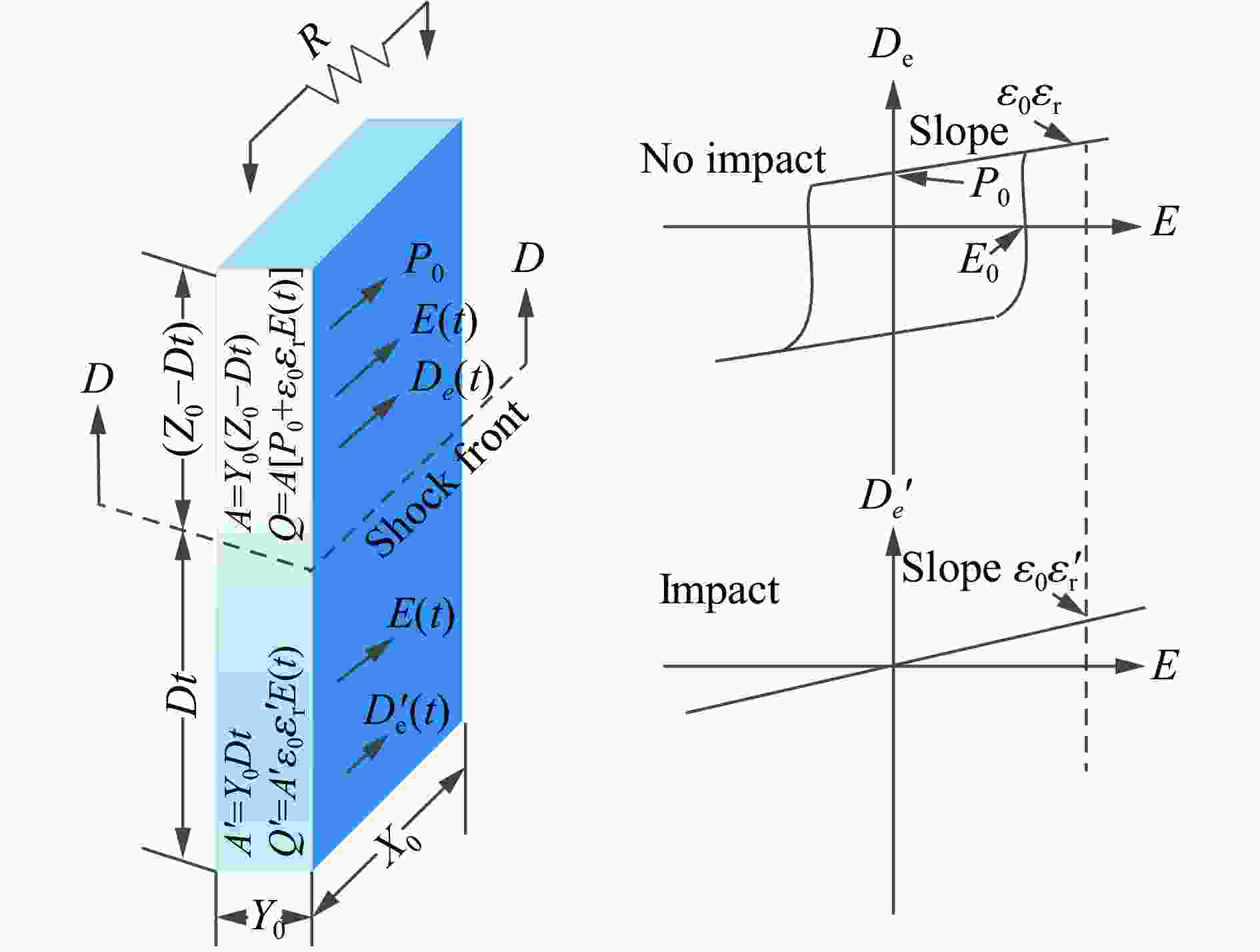

图 3 冲击波前/后的电力特性^[17]

Figure 3. Electric conditions before and after the shock wave^[17]

下载: 全尺寸图片幻灯片

图 4 简正模式下矩形PZT铁电陶瓷的去极化示意图^[21]

Figure 4. Schematic diagram depolarization of rectangular PZT under normalized mode^[21]

下载: 全尺寸图片幻灯片

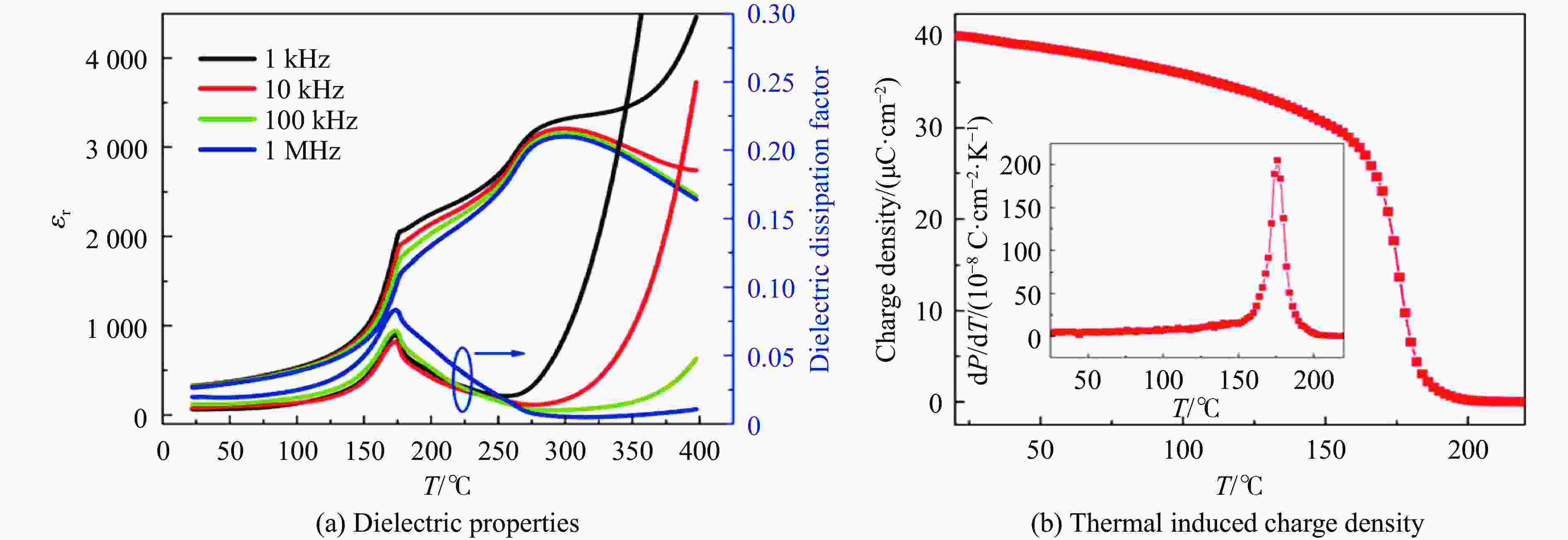

图 5 极化BNT-BA-0.01NN陶瓷的介电特性和热感应电荷密度与温度的关系^[25]

Figure 5. The temperature-dependent dielectric properties and thermal induced charge density of poled BNT-BA-0.01NN ceramics^[25]

下载: 全尺寸图片幻灯片

图 6 未极化BNT-BA-0.01NN陶瓷在70 ℃时的极化特性^[25]

Figure 6. Polarization characteristics of non-polarized BNT-BA-0.01NN ceramics at 70 °C^[25]

下载: 全尺寸图片幻灯片

图 7 PMMA薄板的相对介电常数-应变曲线与极化电压时程^[14]

Figure 7. Relative dielectric constants and time history curves of SIP voltages of PMMA thin plate^[14]

下载: 全尺寸图片幻灯片

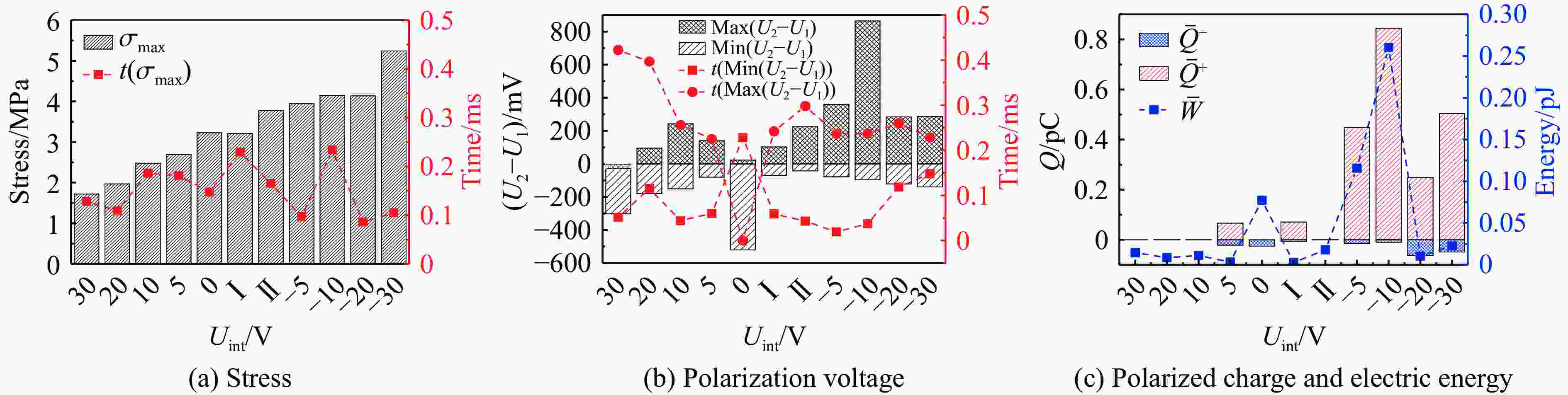

图 8 层内电压U_int对PDMS冲击力电响应的影响^[33]

Figure 8. Effect of U_int on the electromechanical characteristics of PDMS^[33]

下载: 全尺寸图片幻灯片

图 9 多脉冲下PDMS的极化电压^[33]

Figure 9. Polarization voltages of PDMS under multiple pulses^[33]

下载: 全尺寸图片幻灯片

图 10 试件结构与支撑^[39]

Figure 10. Specimen structure and support^[39]

下载: 全尺寸图片幻灯片

图 11 GFRP冲击极化实验示意图^[38]

Figure 11. Schematic of SIP of GFRP^[38]

下载: 全尺寸图片幻灯片

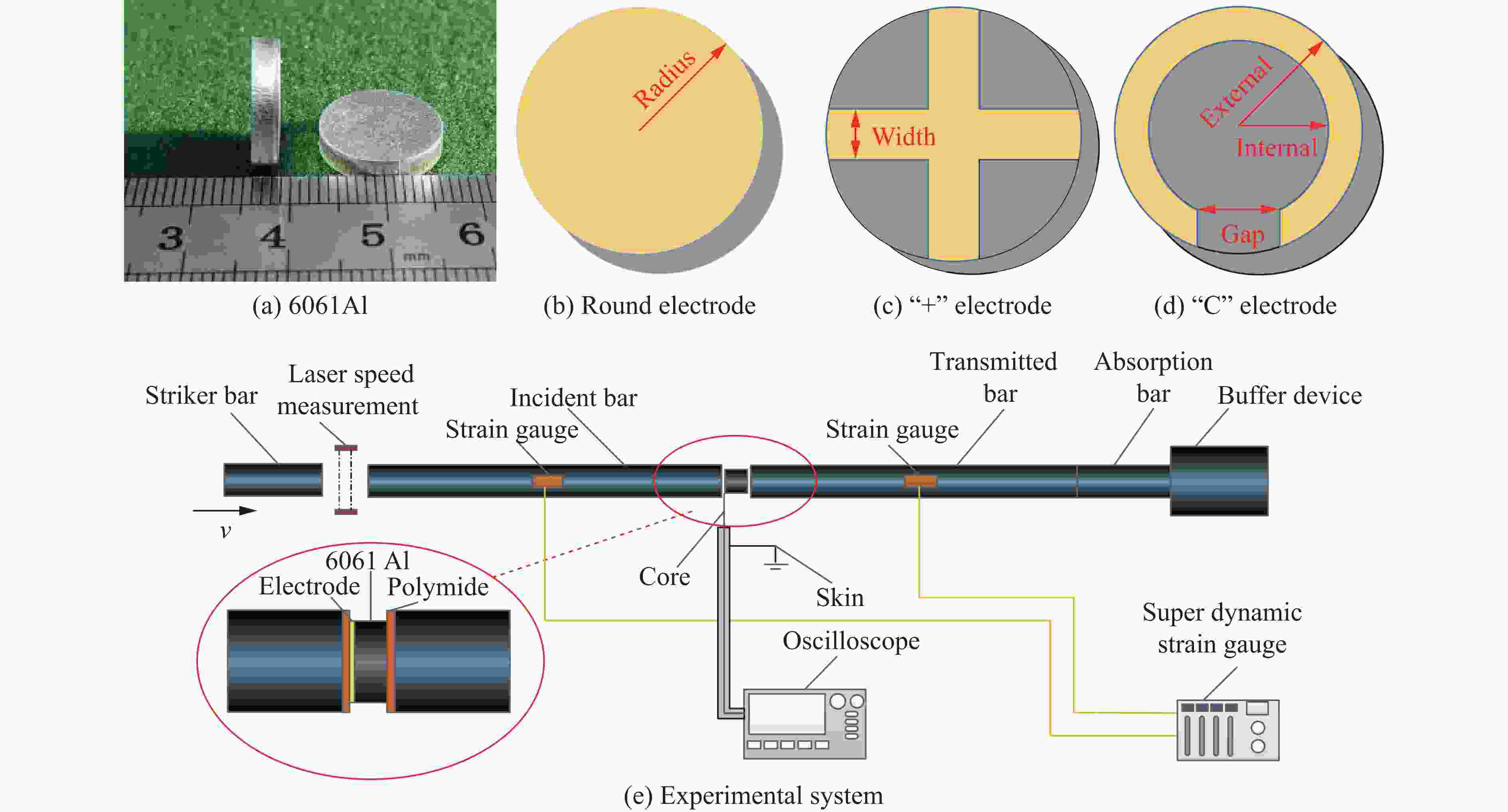

图 12 6061Al试件与实验系统^[13]

Figure 12. Schematic diagram of physical object and experimental system of 6061Al specimen^[13]

下载: 全尺寸图片幻灯片

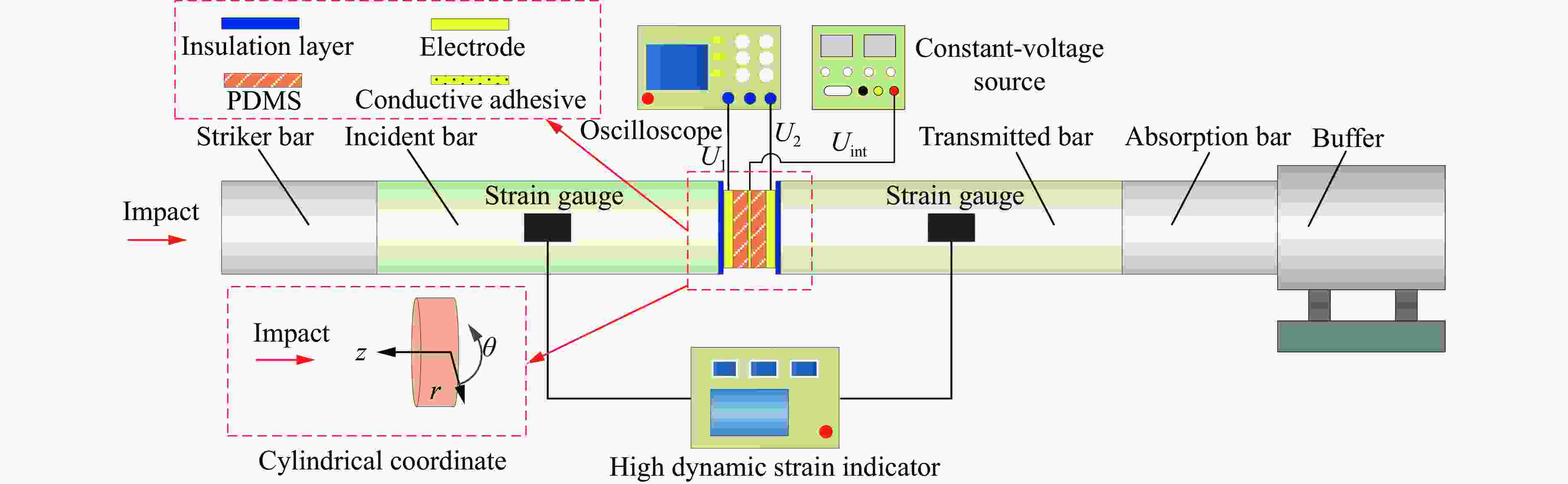

图 13 PDMS动态力电响应测试系统

Figure 13. Dynamic electromechanical response testing system of PDMS

下载: 全尺寸图片幻灯片

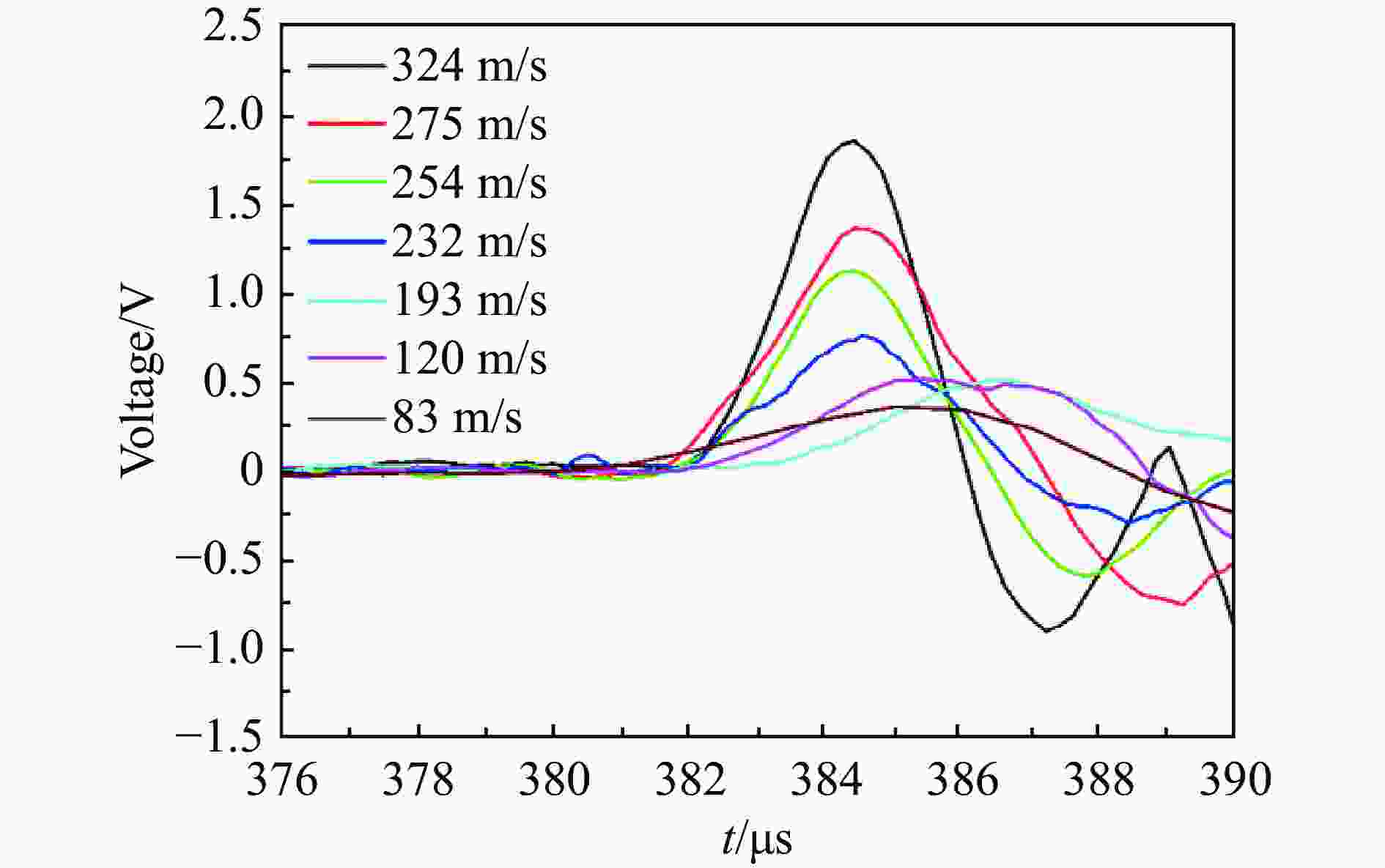

图 14 不同冲击速度下BT块体的电压时程^[40]

Figure 14. Voltage time histories for BT bulk samples induced by the shock wave at different velocities^[40]

下载: 全尺寸图片幻灯片

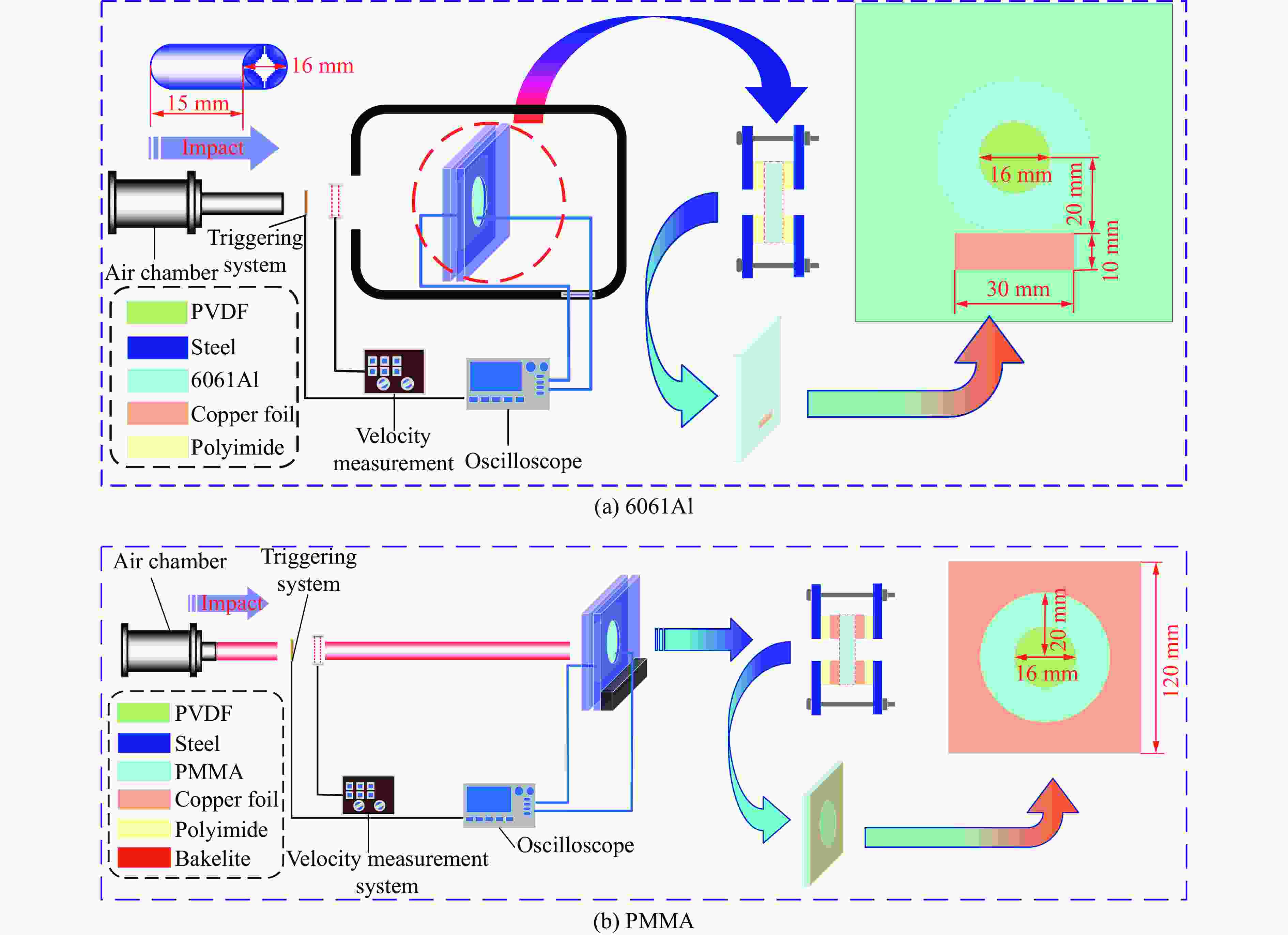

图 15 基于一级轻气炮加载的固体介质极化特性测试系统^[14]

Figure 15. Polarization characteristic test system of solid medium based on first stage light gas gun^[14]

下载: 全尺寸图片幻灯片

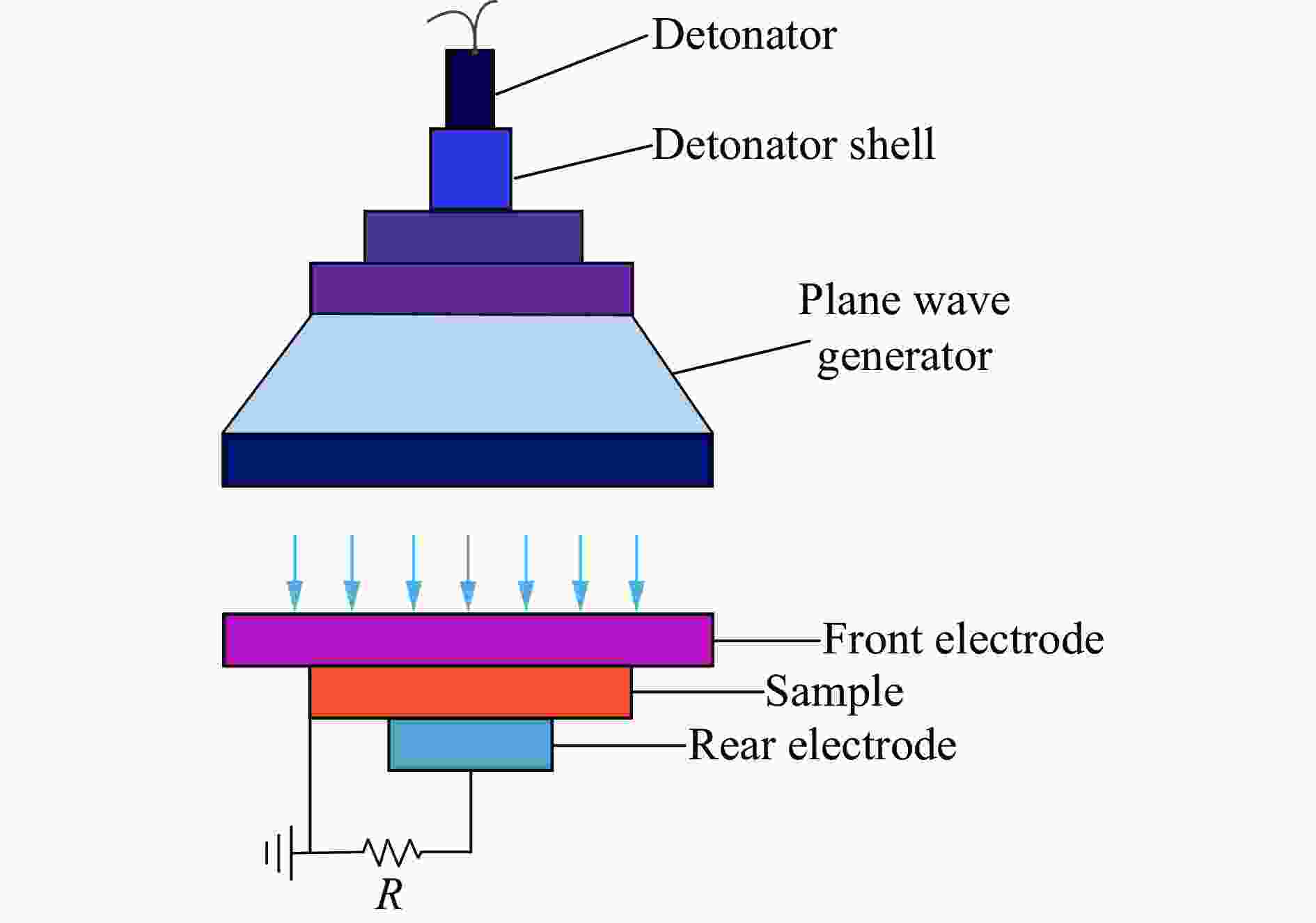

图 16 平面实验法原理示意图^[32]

Figure 16. Schematic diagram of the experimental principle of the planar test method^[32]

下载: 全尺寸图片幻灯片

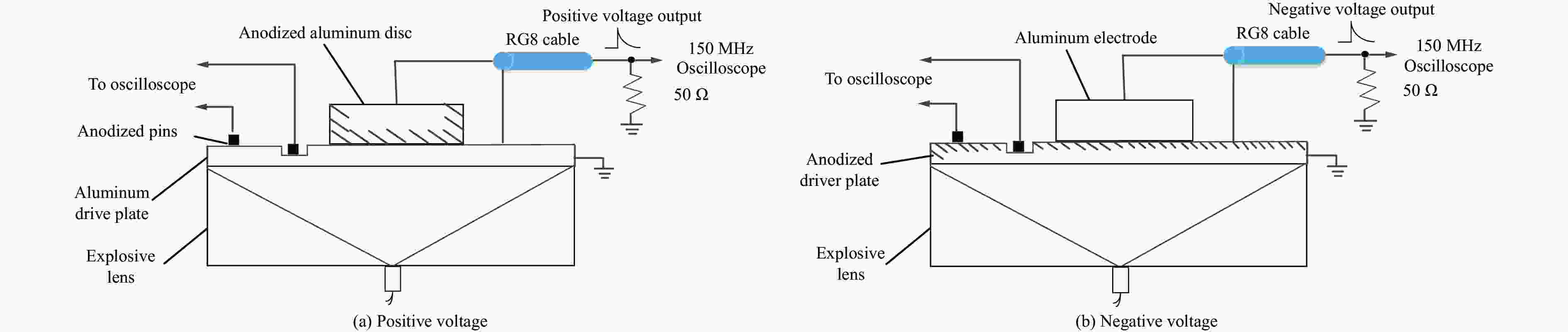

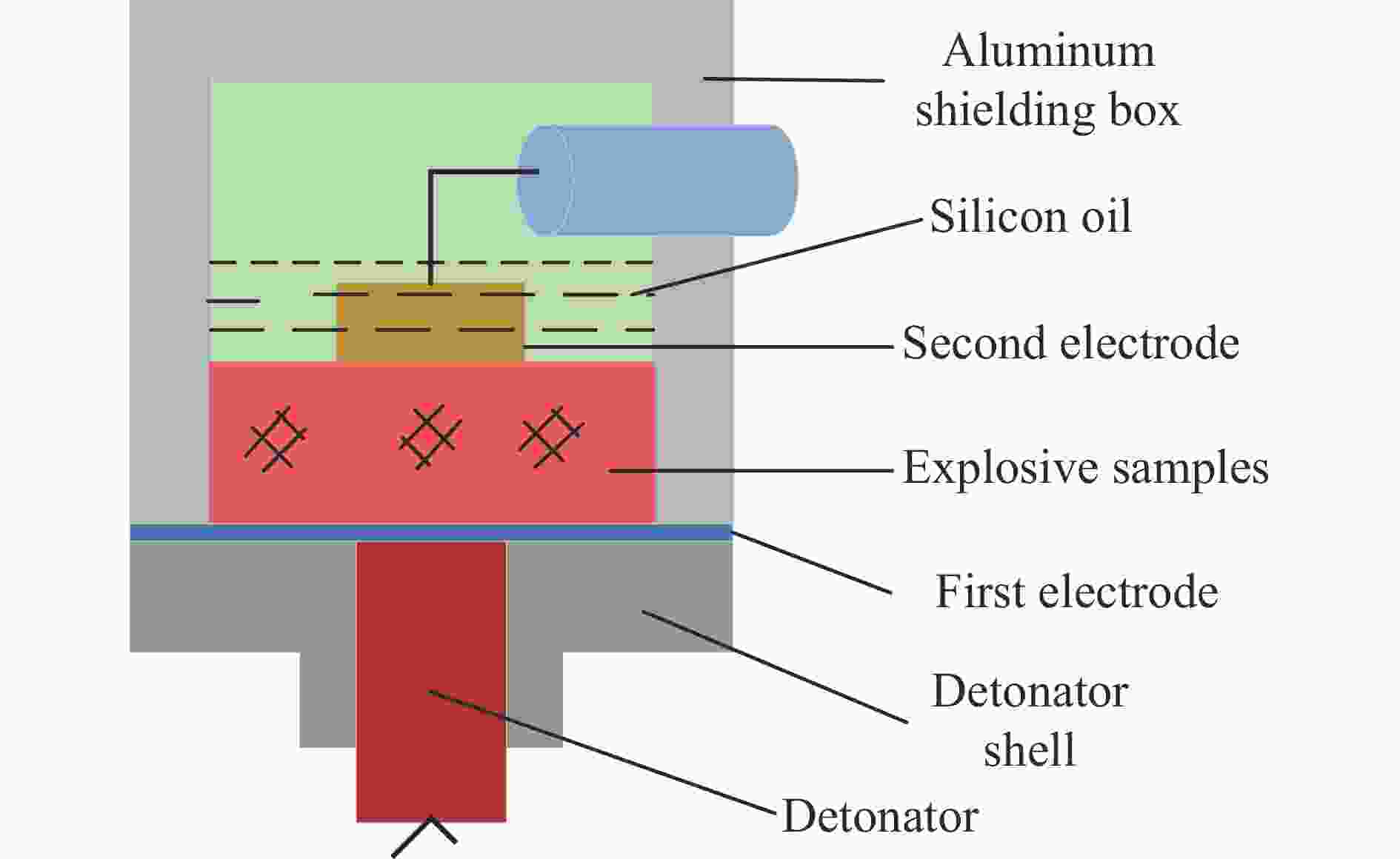

图 17 爆炸冲击下铝的电输出特性测试装置^[41]

Figure 17. Test device for electrical output characteristics of aluminum under explosion impact^[41]

下载: 全尺寸图片幻灯片

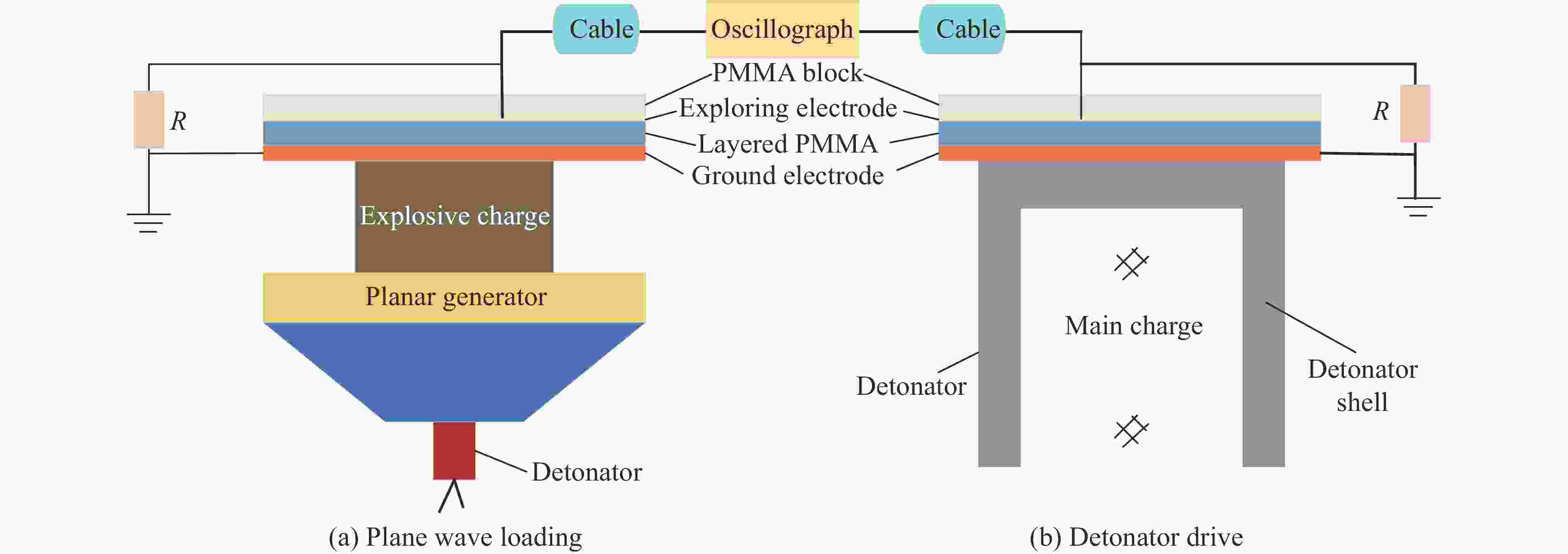

图 18 层状PMMA的冲击极化效应测试装置^[42]

Figure 18. SIP test device of layered PMMA^[42]

下载: 全尺寸图片幻灯片

图 19 改进型冲击极化实验装置^[43]

Figure 19. Improved experimental device for SIP^[43]

下载: 全尺寸图片幻灯片

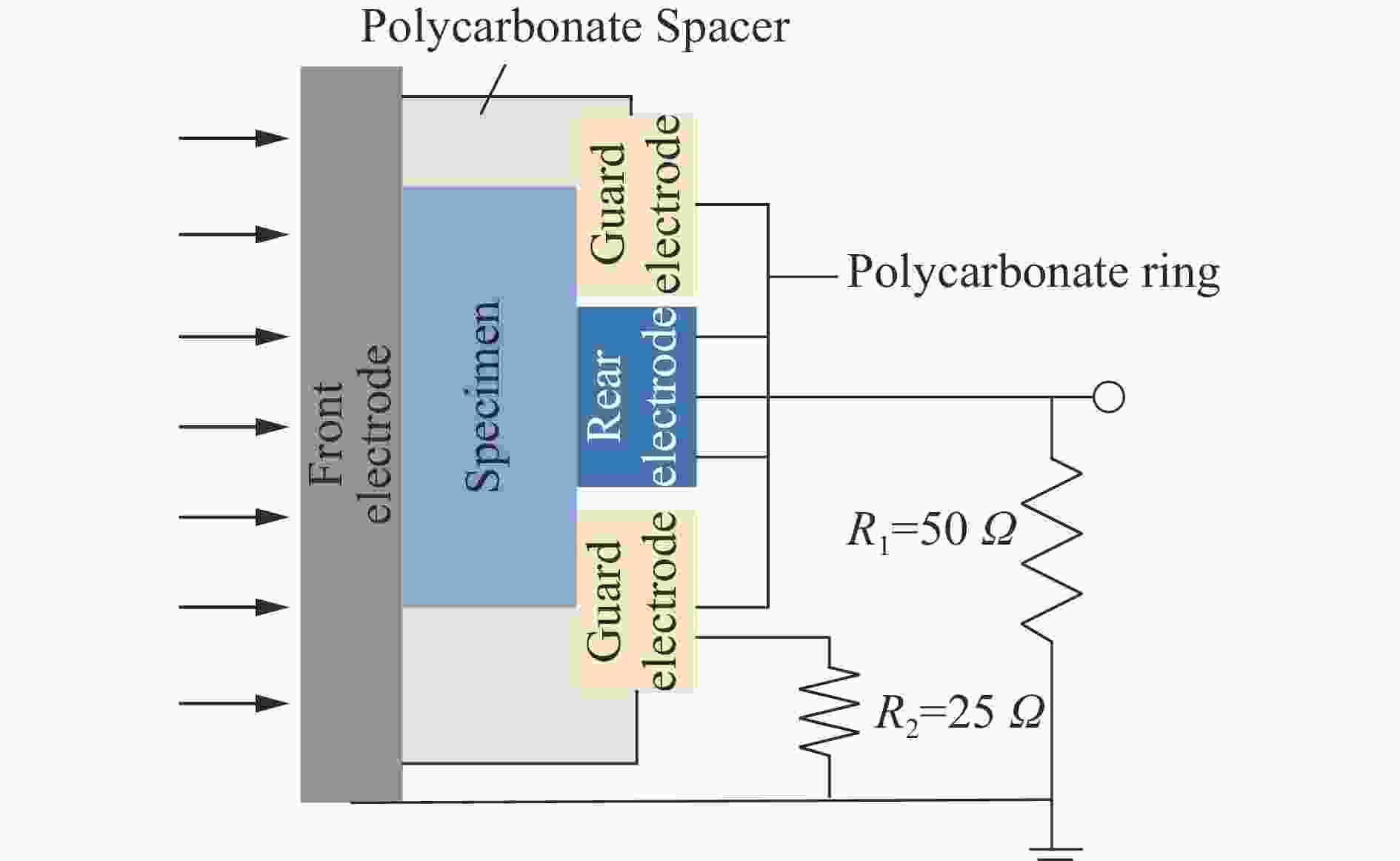

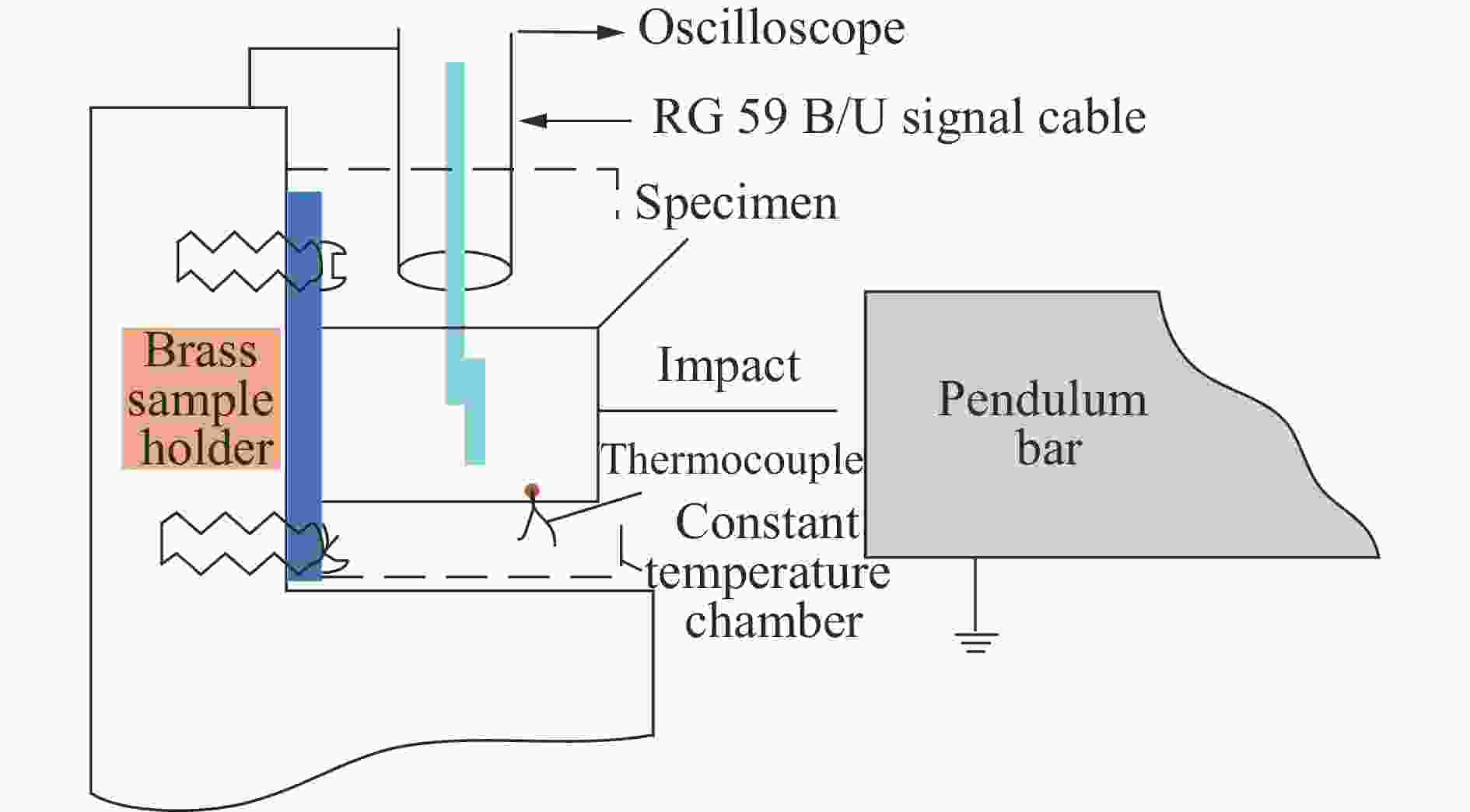

图 20 试件与测试电路^[44]

Figure 20. Specimen and test circuit^[44]

下载: 全尺寸图片幻灯片

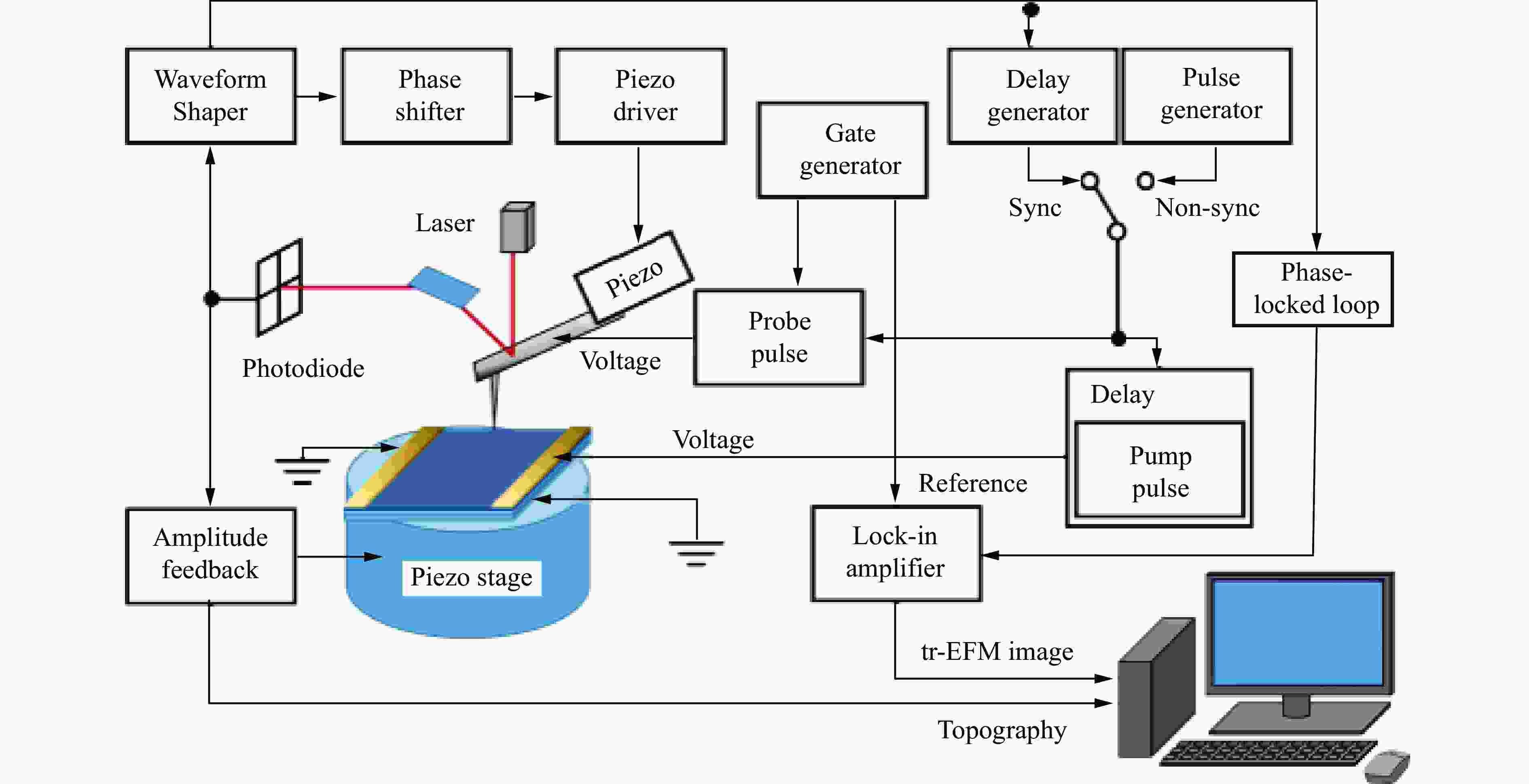

图 21 基于泵浦-探针法的EFM测量装置原理图^[46]

Figure 21. Schematic diagram of the tip-synchronized pump-probe tr-EFM apparatus^[46]

下载: 全尺寸图片幻灯片

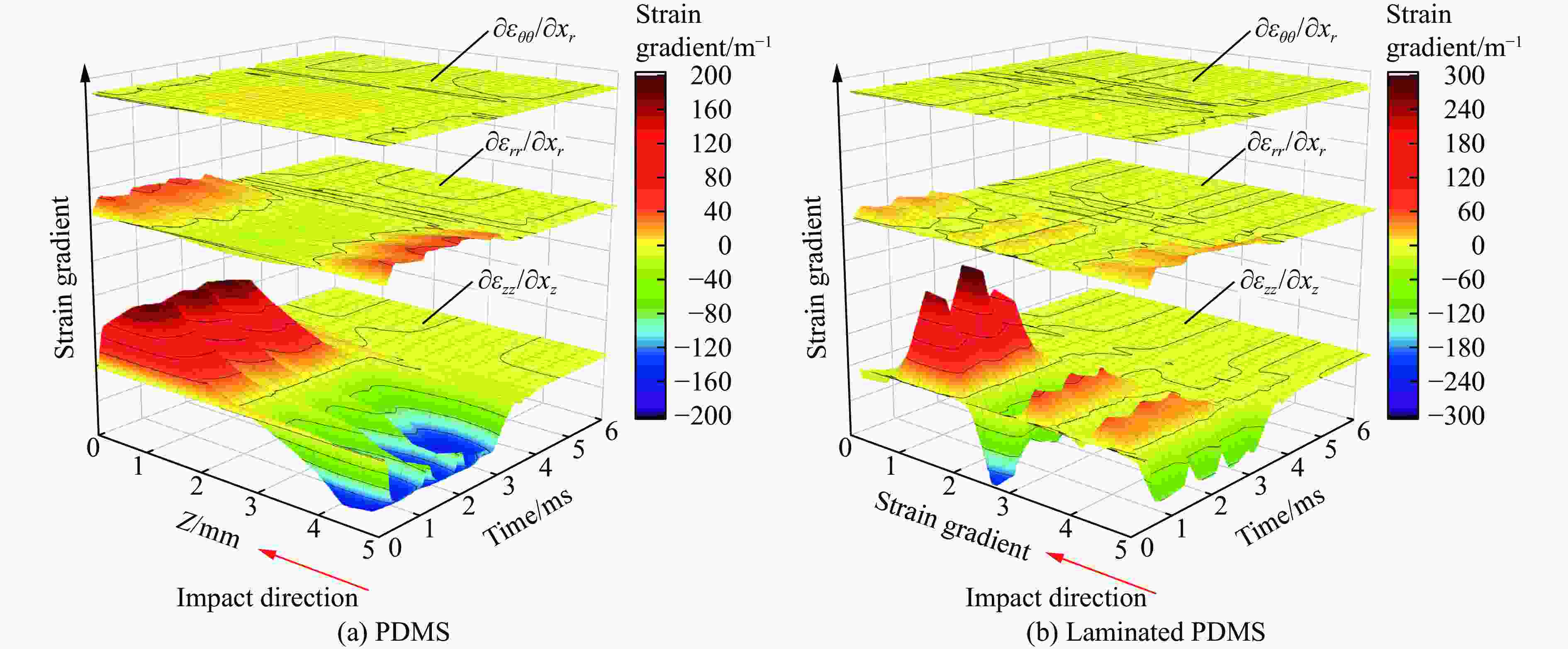

图 22 平均应变梯度的时空分布规律

Figure 22. Spatial and temporal distribution of average strain gradient

下载: 全尺寸图片幻灯片

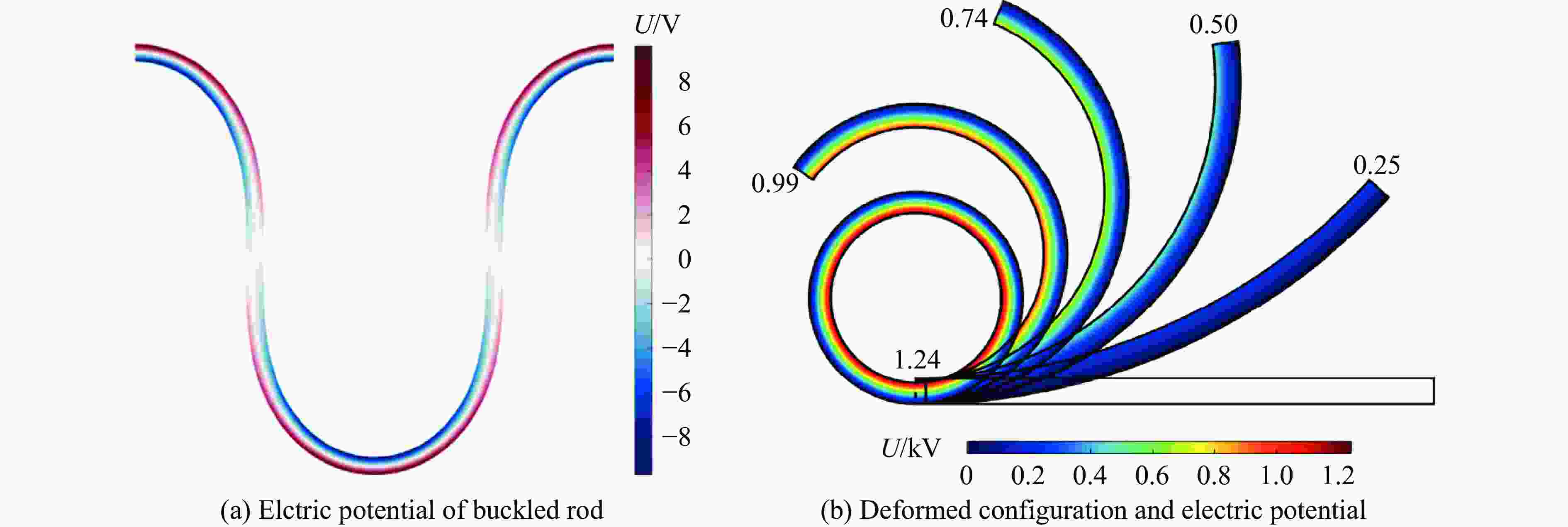

图 23 棒体的力电耦合特性数值模拟^[47]

Figure 23. Numerical simulation of electromechanical coupling characteristics of rods^[47]

下载: 全尺寸图片幻灯片

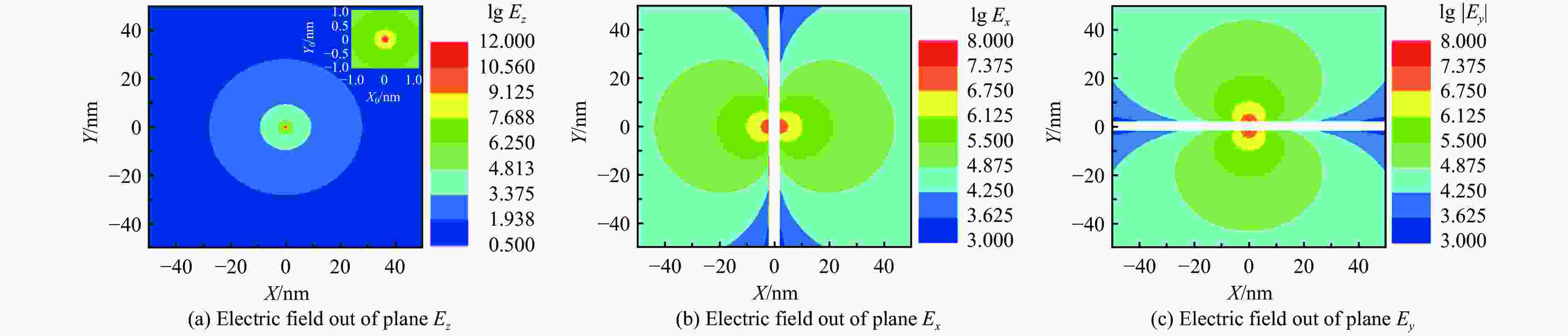

图 24 PFM中压电材料BT产生的电弹性场^[45]

Figure 24. The electroelastic field generated by PFM acting on piezoelectric material BT^[45]

下载: 全尺寸图片幻灯片

图 25 不同电场下载流子迁移率^[48]

Figure 25. Carrier mobility under different electric fields^[48]

下载: 全尺寸图片幻灯片

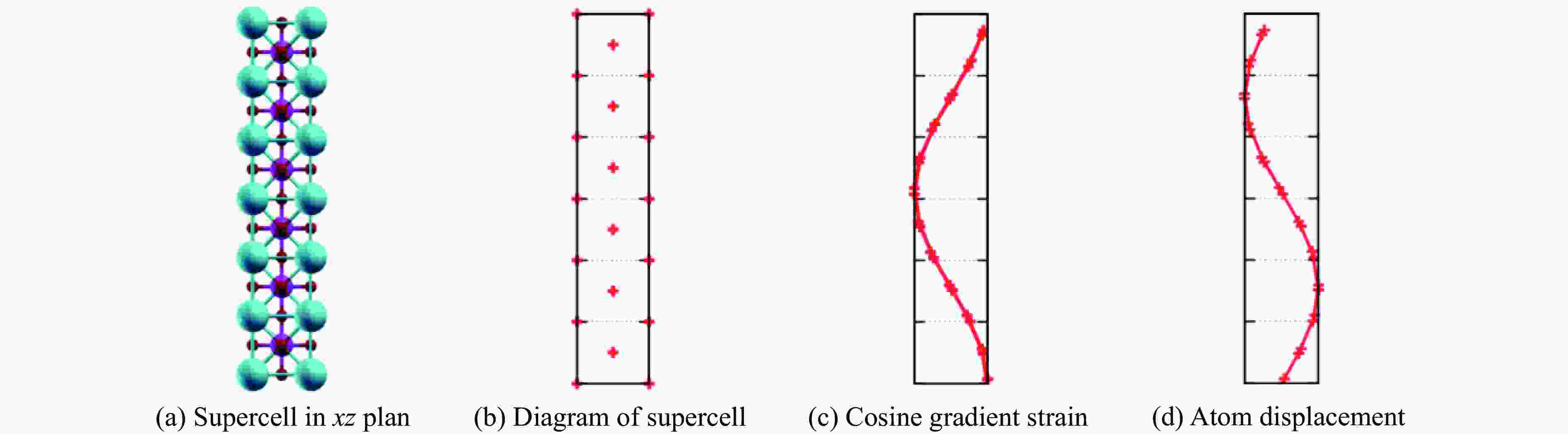

图 26 计算中使用的超晶胞单元与应变剖面^[49]

Figure 26. Supercell and strain profile used in the calculations^[49]

下载: 全尺寸图片幻灯片

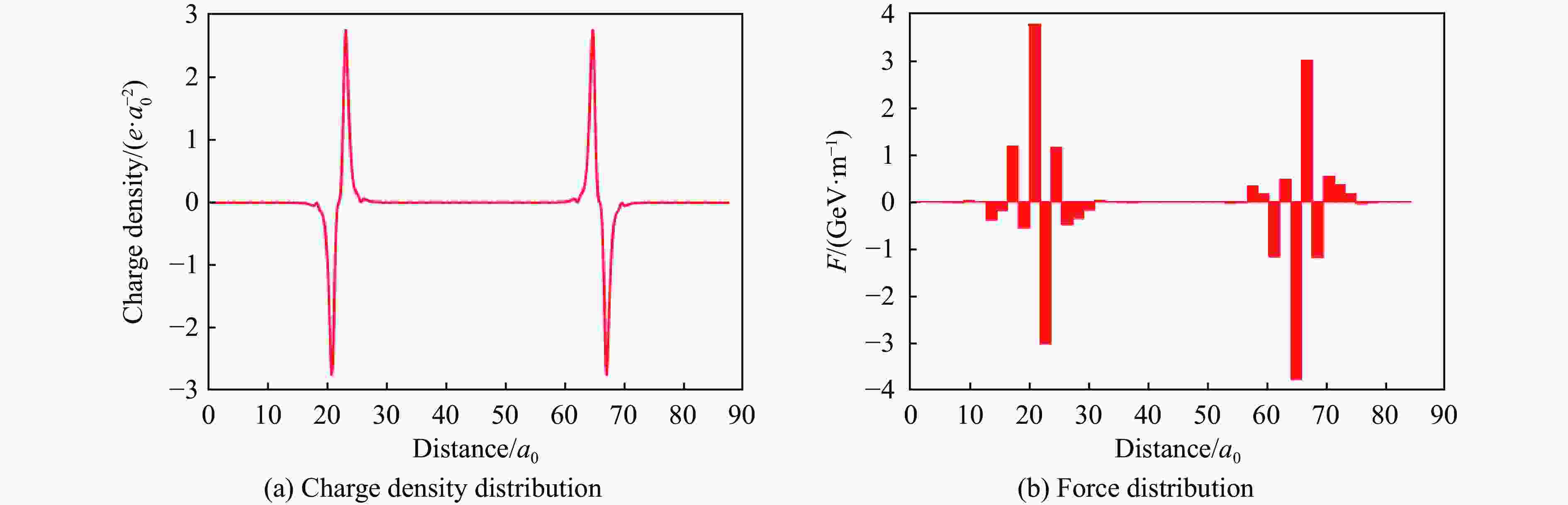

图 27 固定D_e条件下STO超晶胞中的电荷分布与力分布^[51]

Figure 27. Charge-density distribution and force distribution in STO supercell at fixed D_e^[51]

下载: 全尺寸图片幻灯片

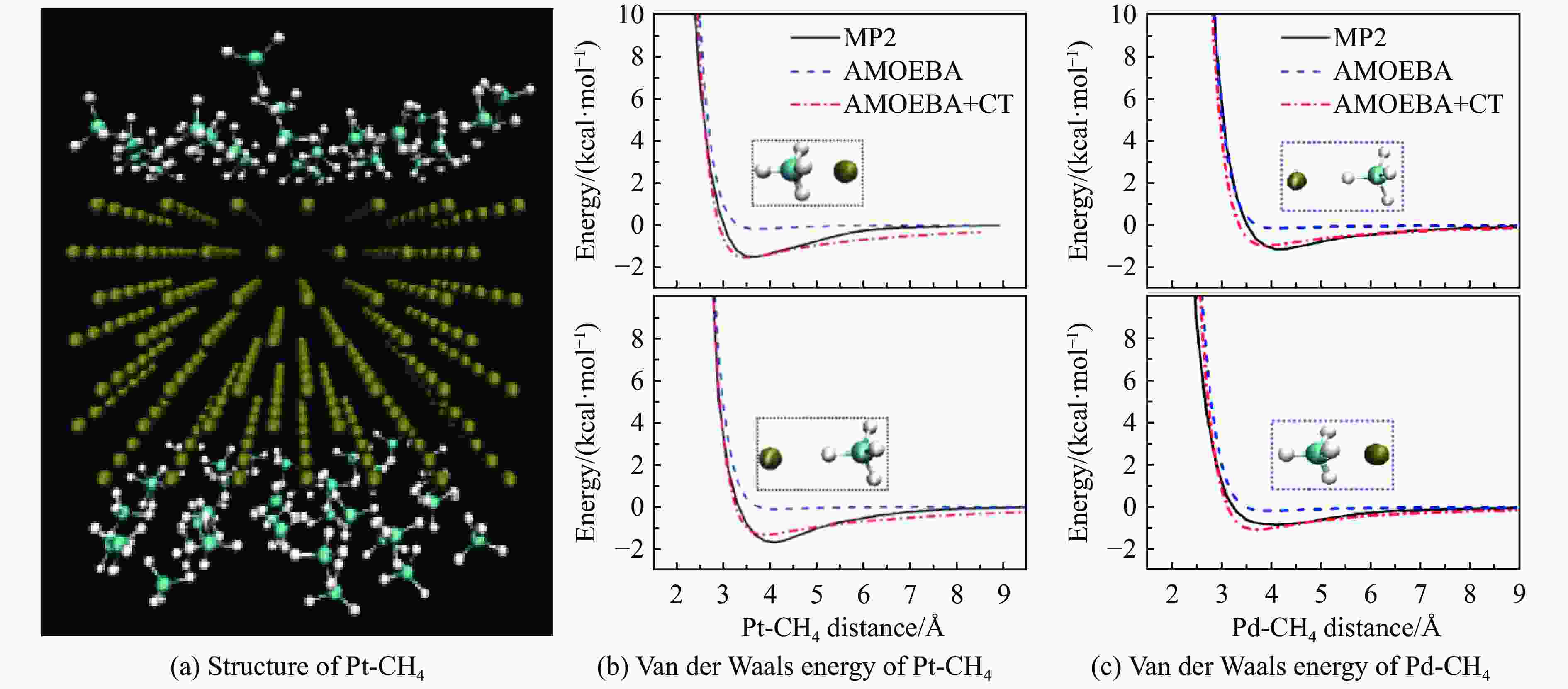

图 28 金属Pt/Pd-甲烷分子结构及范德华能-距离曲线^[52]

Figure 28. Vander Waals energy-distance curves and structures of metal Pt/Pd-CH₄^[52]

下载: 全尺寸图片幻灯片

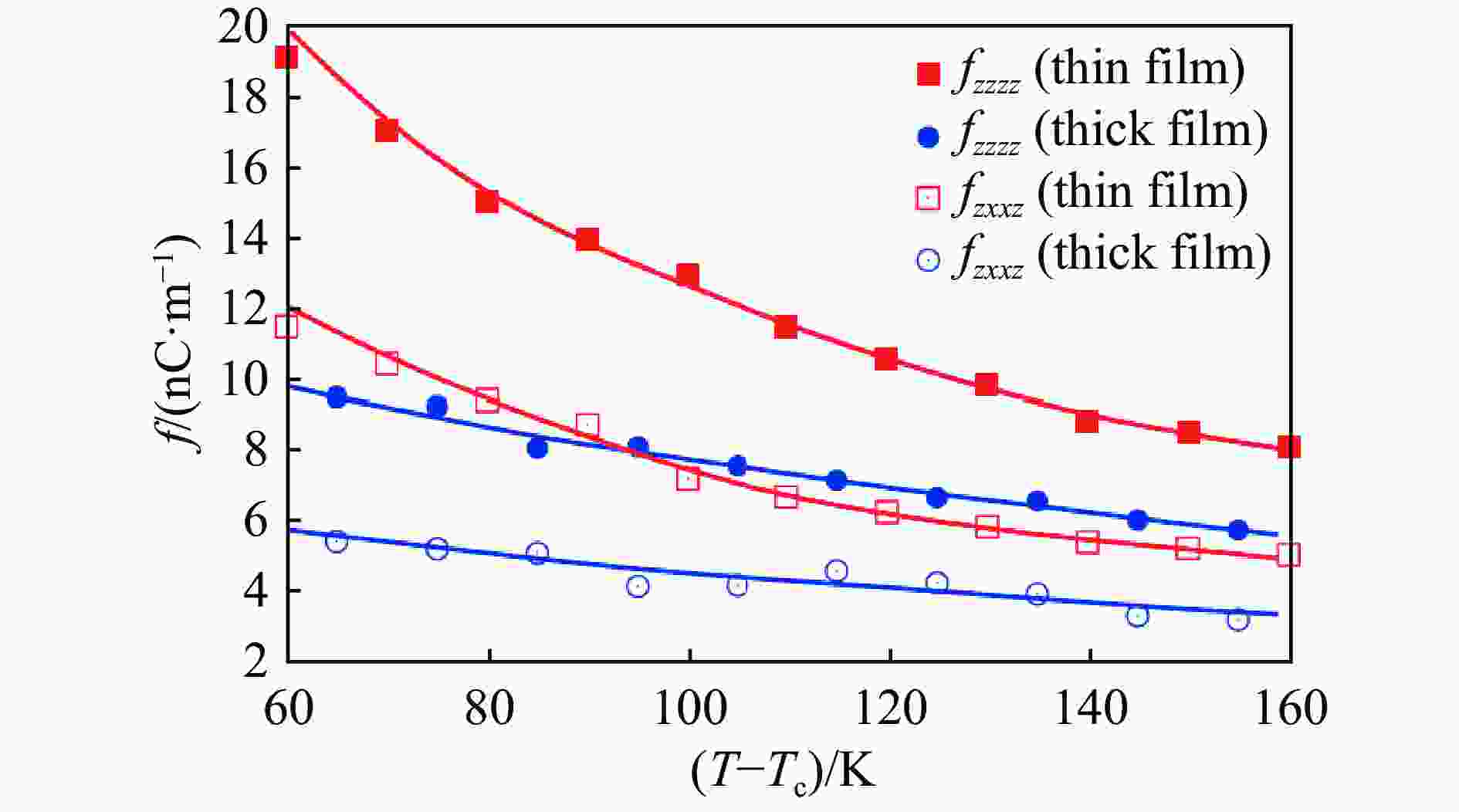

图 29 薄膜和厚膜挠曲电系数的温度依赖性^[53]

Figure 29. Temperature dependency of the flexoelectric coefficients in the thin and thick films^[53]

下载: 全尺寸图片幻灯片

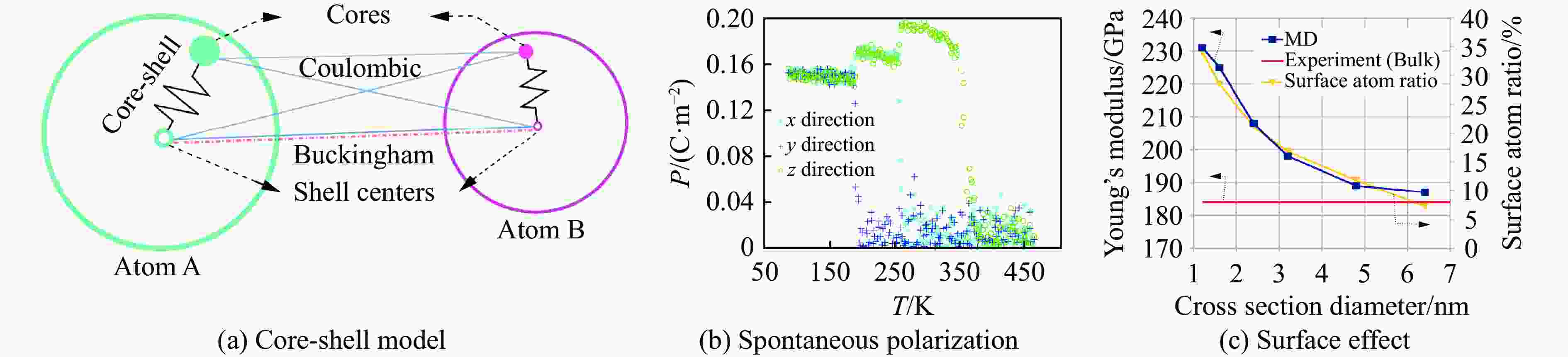

图 30 基于核壳模型的分子动力学模拟结果^[57]

Figure 30. Molecular dynamics simulation results based on core-shell model^[57]

下载: 全尺寸图片幻灯片

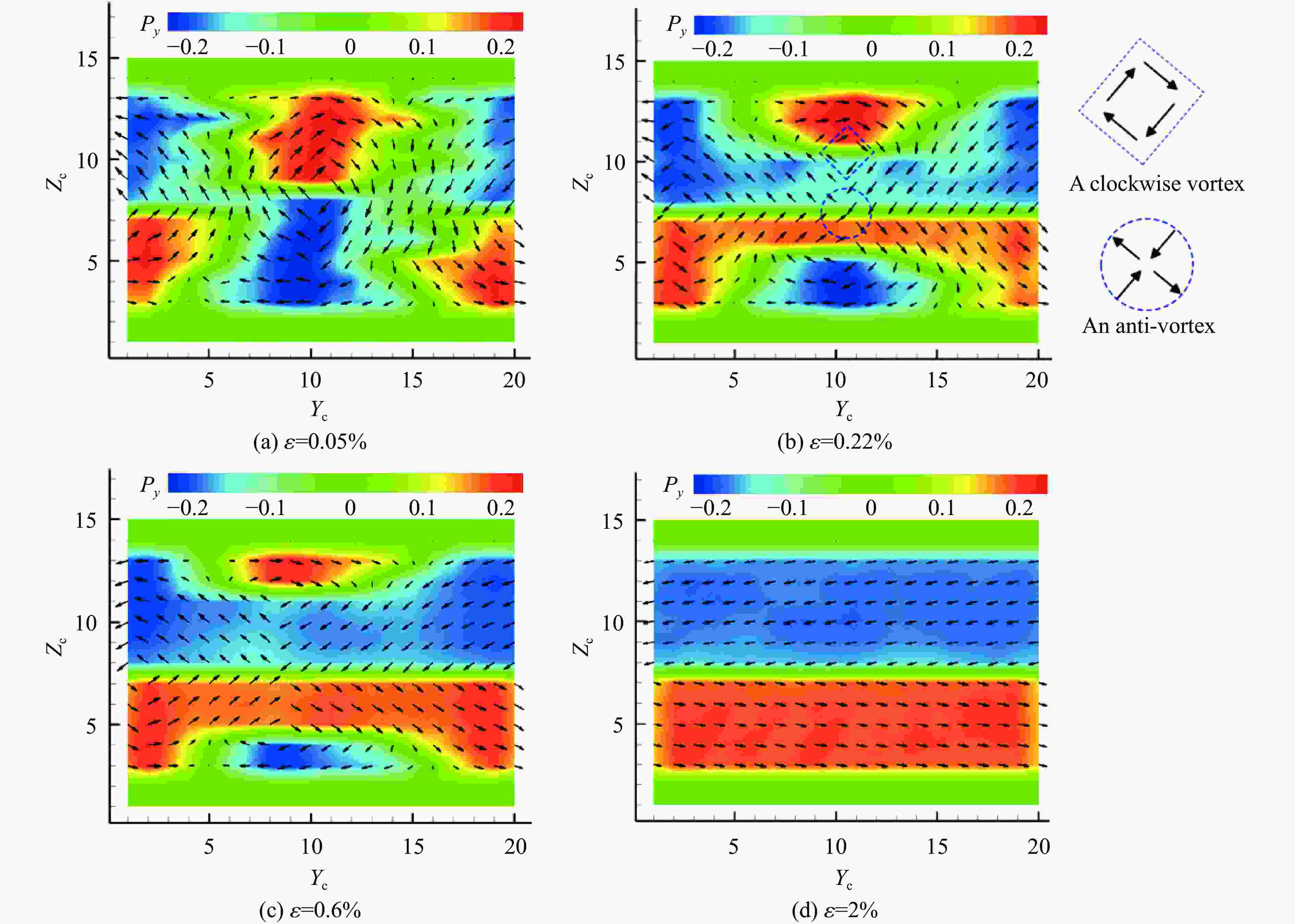

图 31 不同应变下极化分布图^[58]

Figure 31. The polarization distribution map of BT under different strain^[58]

下载: 全尺寸图片幻灯片

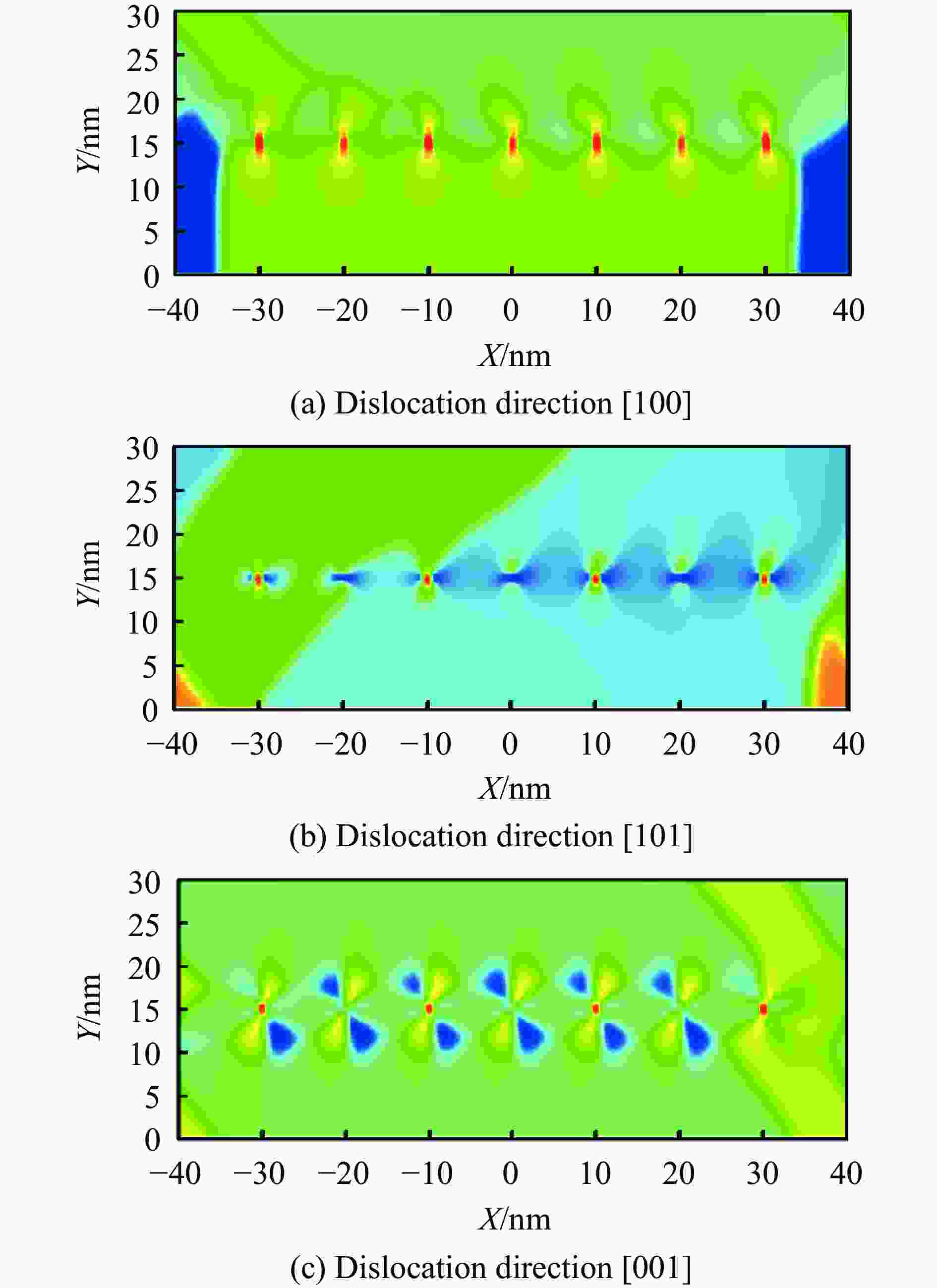

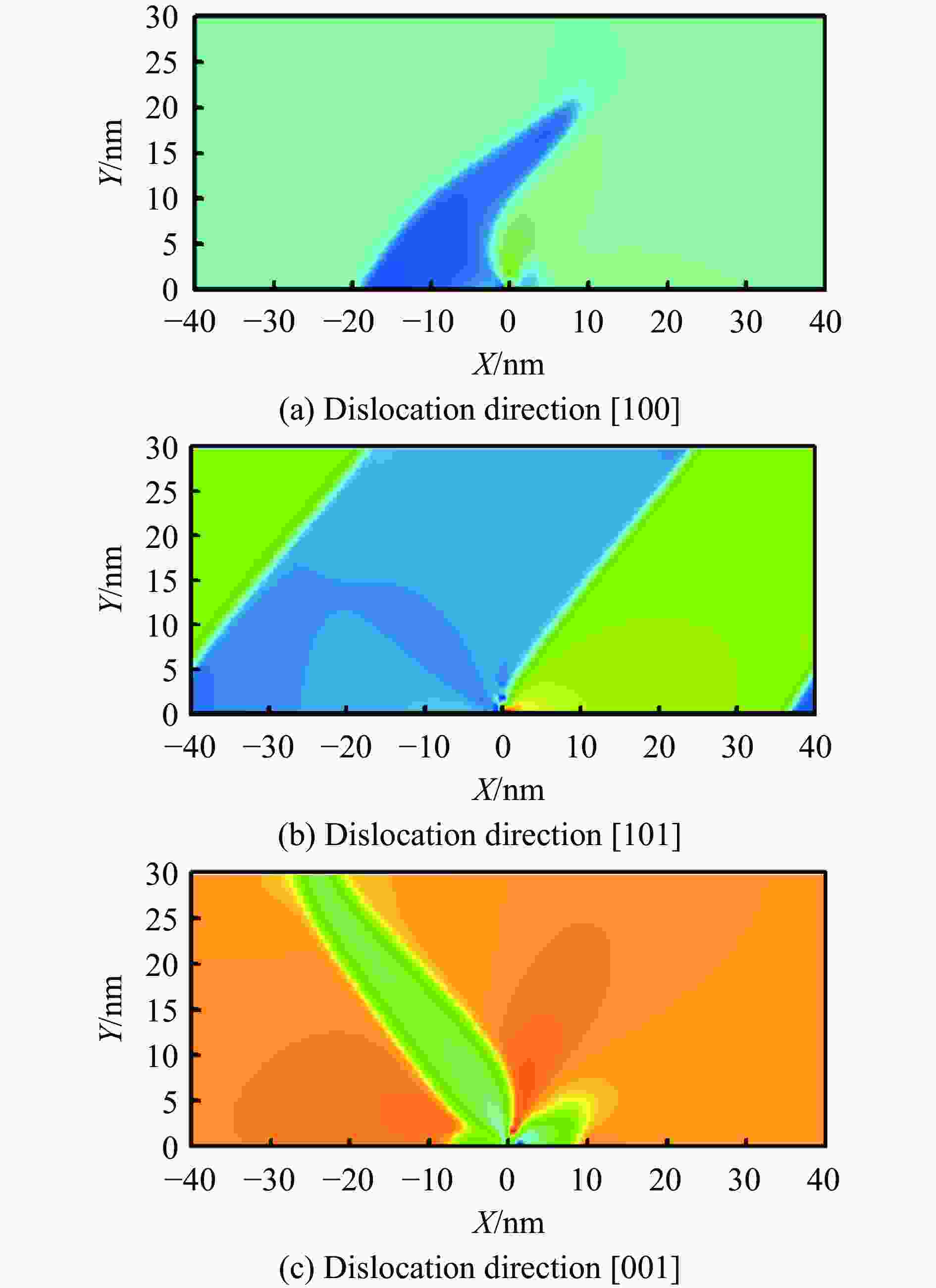

图 32 考虑挠曲电效应时薄膜界面处不同取向的单位错对单畴结构的影响^[62]

Figure 32. The influence of single dislocations with different orientations at the film interface on the single domain structure when considering the flexoelectric effect^[62]

下载: 全尺寸图片幻灯片

图 33 考虑挠曲电效应时各构型畴中不同取向周期位错对90º畴结构影响示意图^[62]

Figure 33. Schematic diagram of the influence of dislocations with different orientations in each configuration domain on the 90º domain structure considering the flexoelectric effect^[62]

下载: 全尺寸图片幻灯片

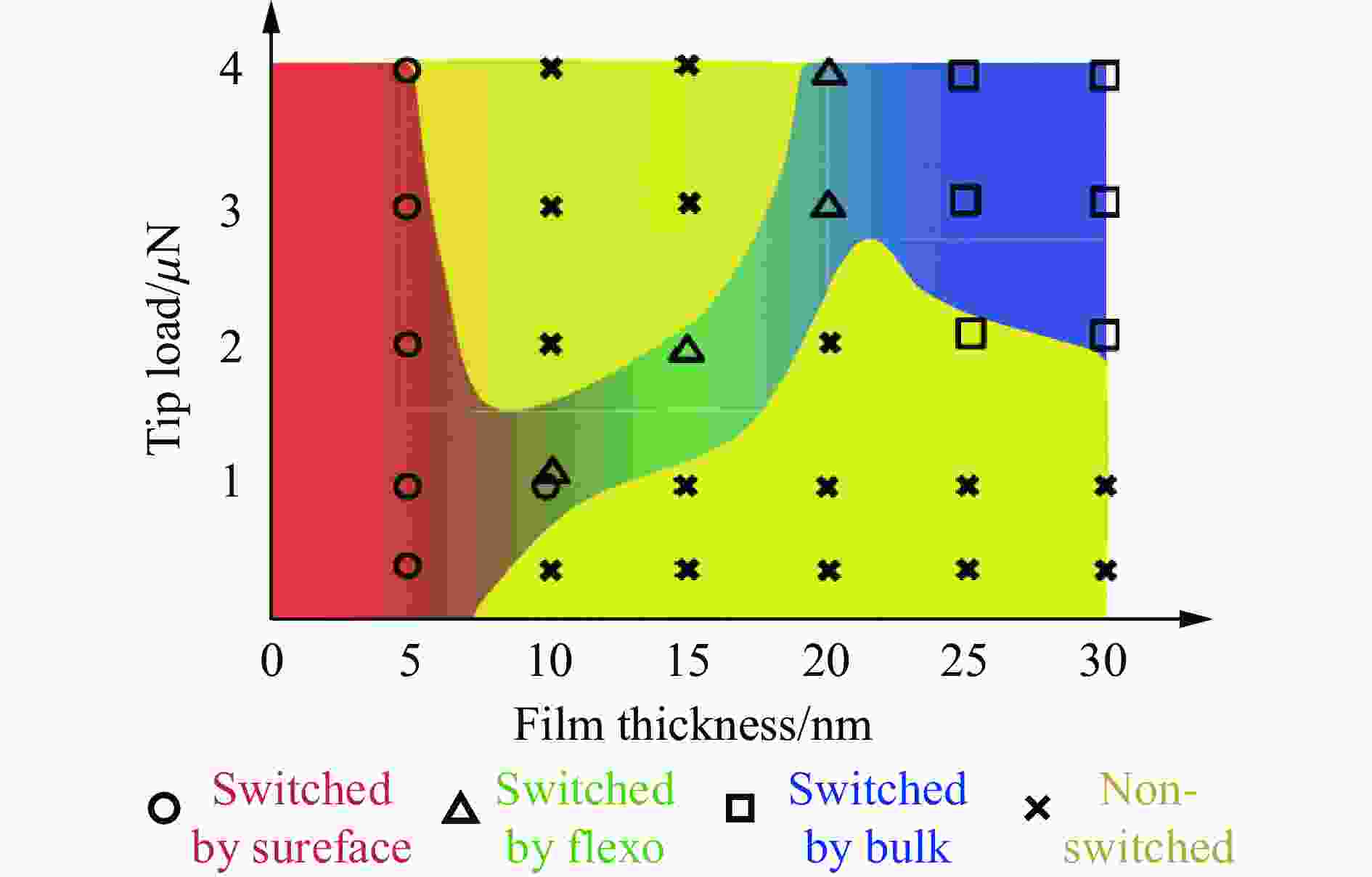

图 34 多种效应下PZT铁电薄膜电畴变化的阈值^[63]

Figure 34. Threshold of domain change in PZT ferroelectric thin films under multiple effects^[63]

下载: 全尺寸图片幻灯片

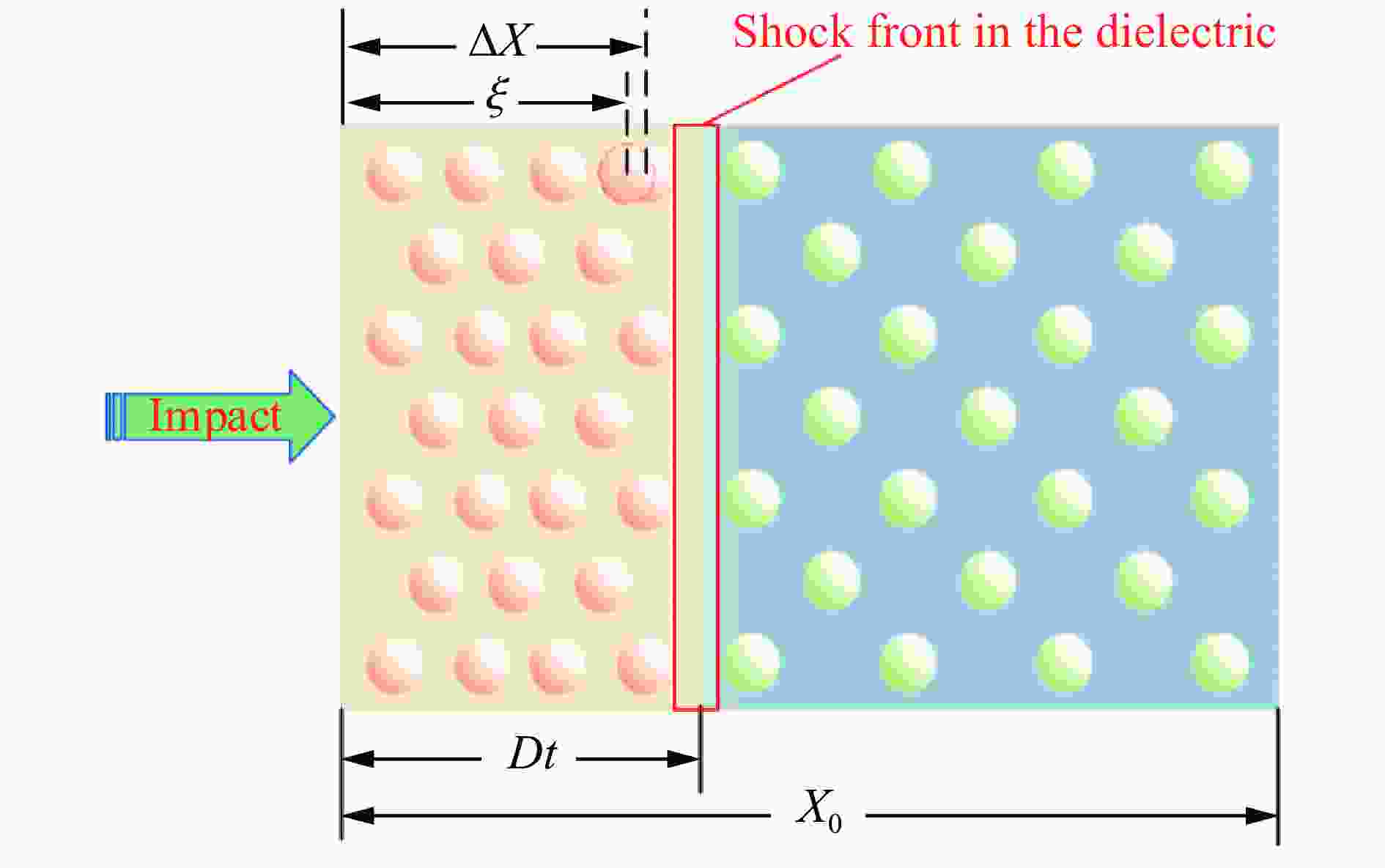

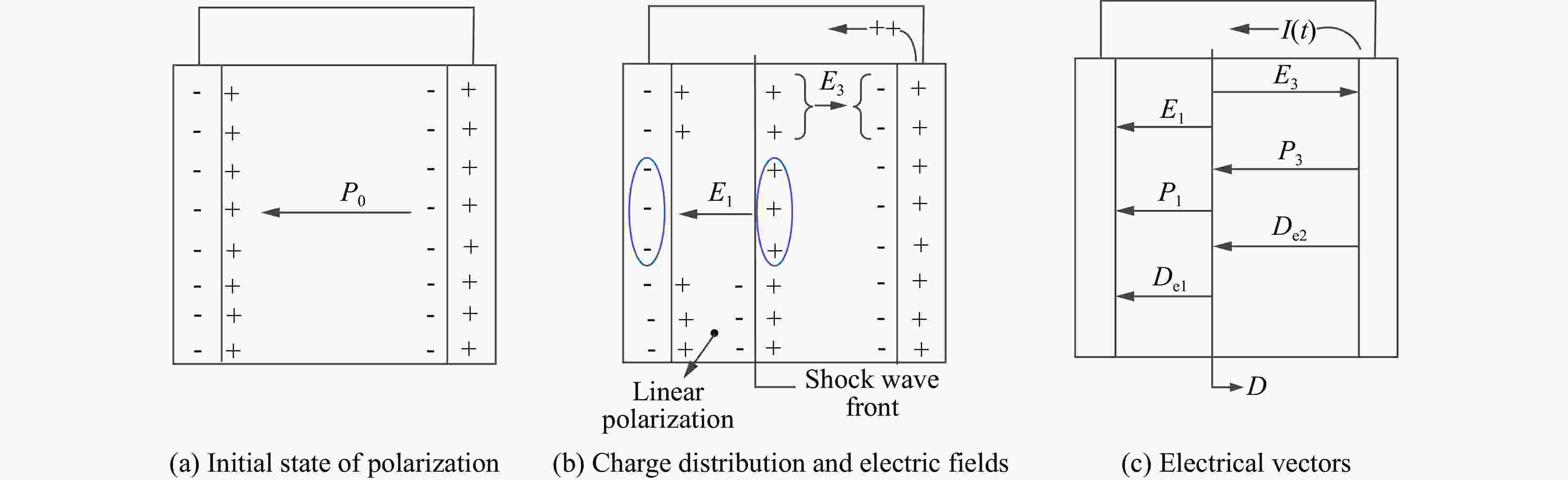

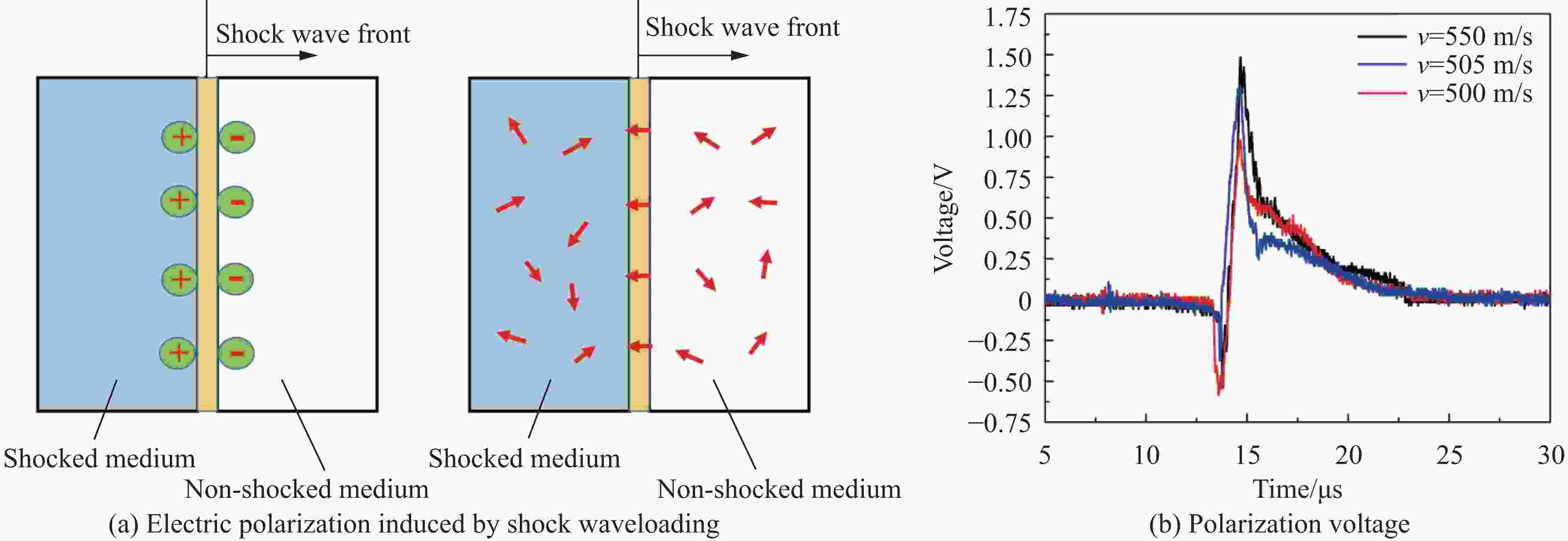

图 35 冲击诱发电位移原理图^[66]

Figure 35. Schematic diagram of shock induced electric displacement^[66]

下载: 全尺寸图片幻灯片

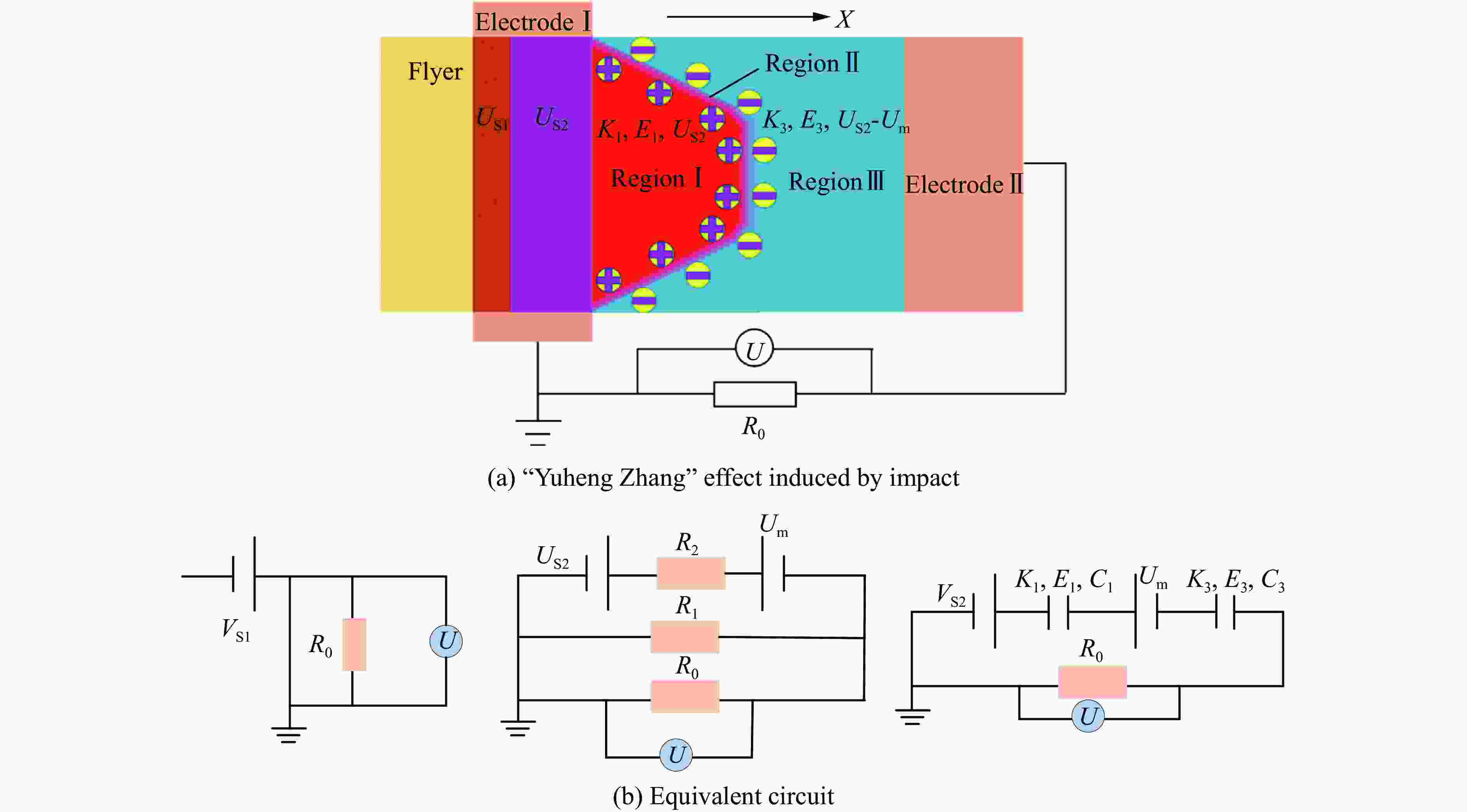

图 36 基于张裕恒理论的冲击极化机理^[70]

Figure 36. The mechanism of SIP based on "Zhang Yuheng" theory^[70]

下载: 全尺寸图片幻灯片

图 37 冲击载荷诱发BT电极化机理示意图与实验结果^[74]

Figure 37. The mechanism and experimental results of SIP of BT^[74]

下载: 全尺寸图片幻灯片

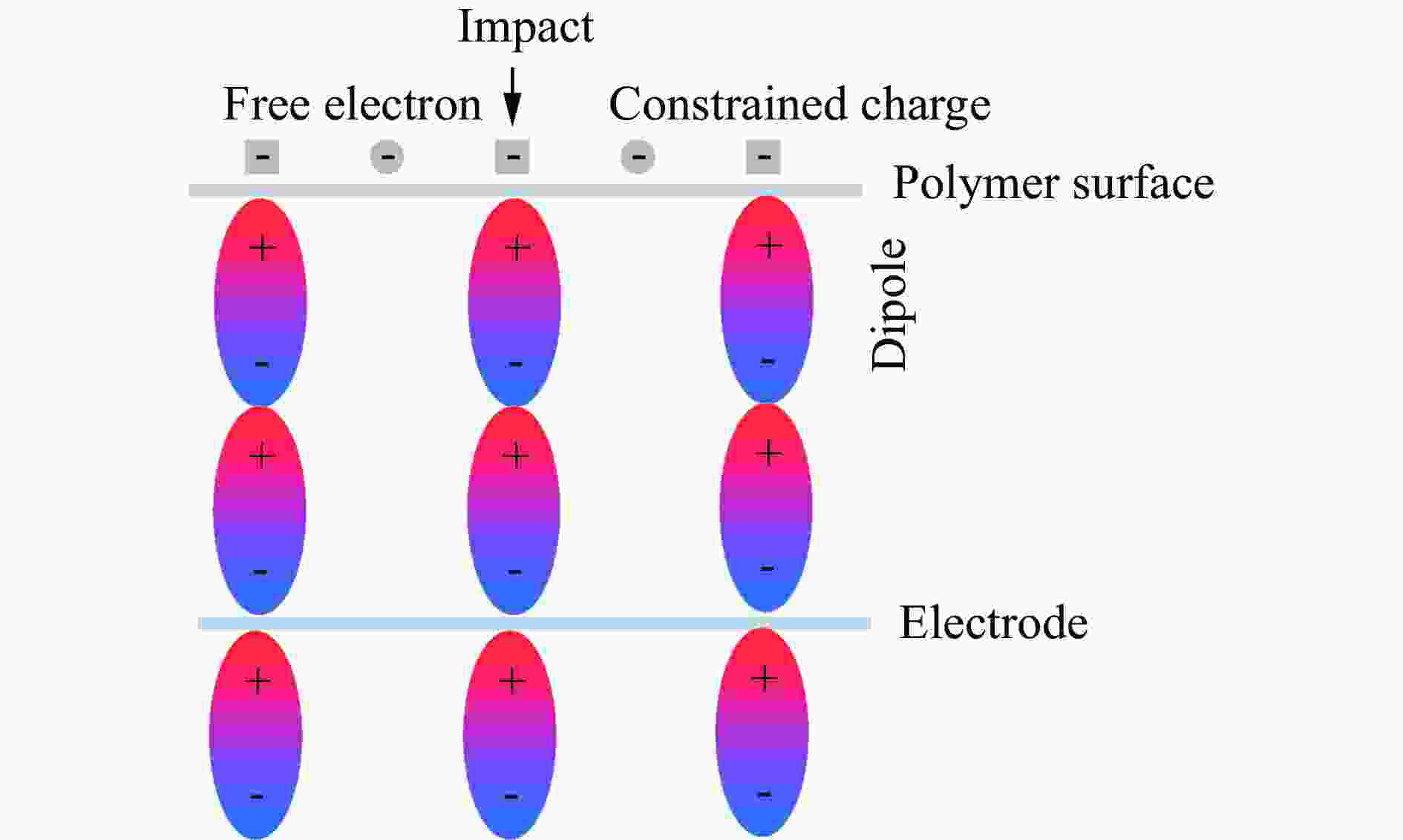

图 38 冲击下偶极子极化示意图^[75]

Figure 38. Diagram of dipole polarization under impact^[75]

下载: 全尺寸图片幻灯片

图 39 铁电材料的冲击过程^[16]

Figure 39. Schematic diagram of the ferroelectric materials under impact^[16]

下载: 全尺寸图片幻灯片

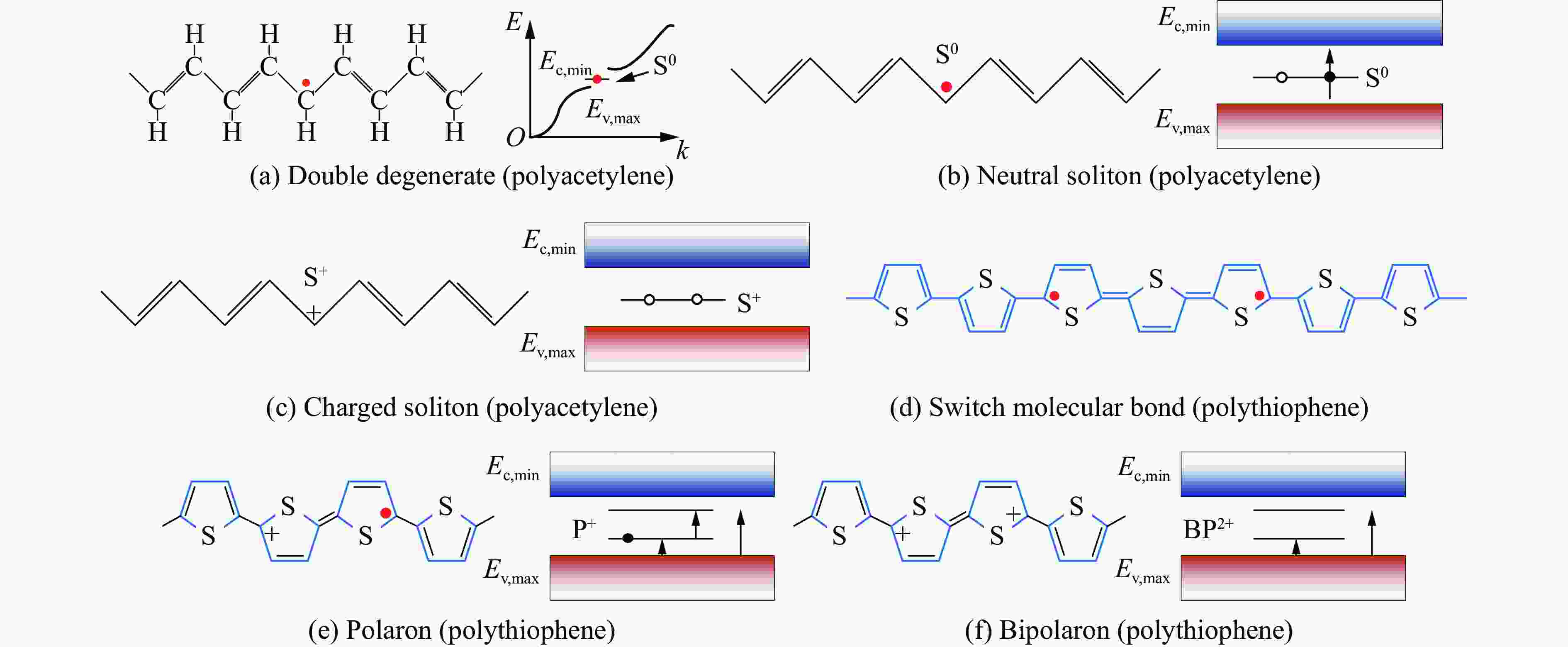

图 40 孤子、极化子以及双极化子结构示意图^[83]

Figure 40. Schematic diagram of the structure of solitons, polarons and bipolaron^[83]

下载: 全尺寸图片幻灯片

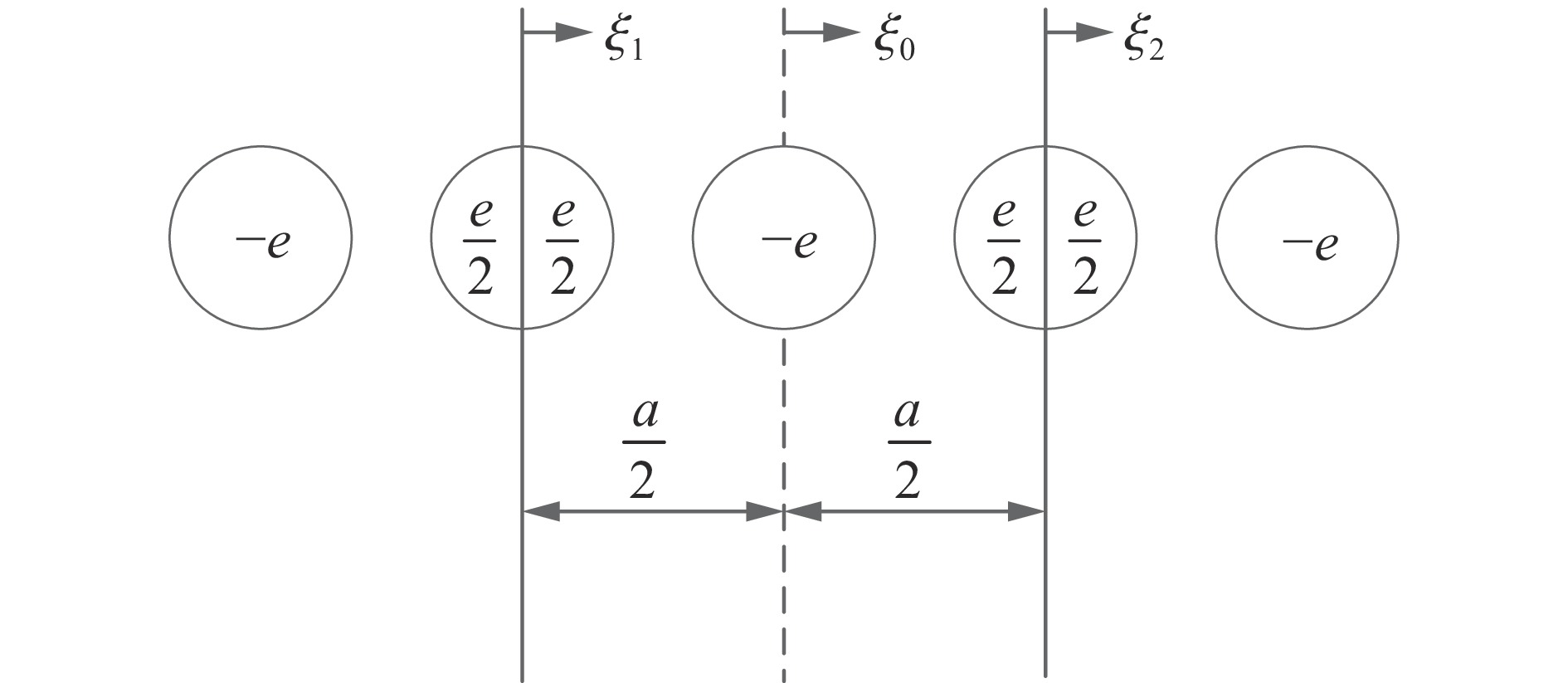

图 41 线性离子链

Figure 41. Linear ionic chain

下载: 全尺寸图片幻灯片

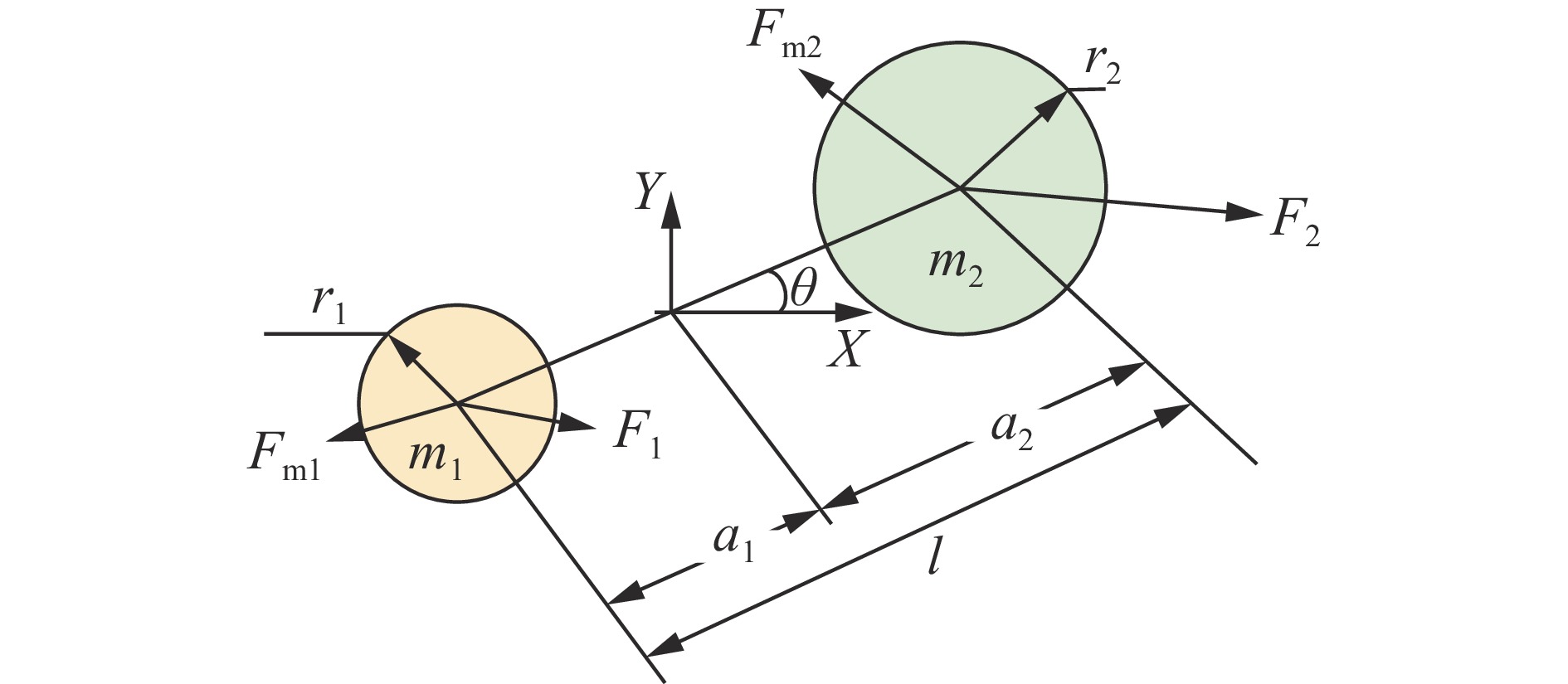

图 42 包含粘性介质的有效偶极子（哑铃）模型^[76]

Figure 42. Effective dipole (dumbbell) model with viscous medium^[76]

下载: 全尺寸图片幻灯片

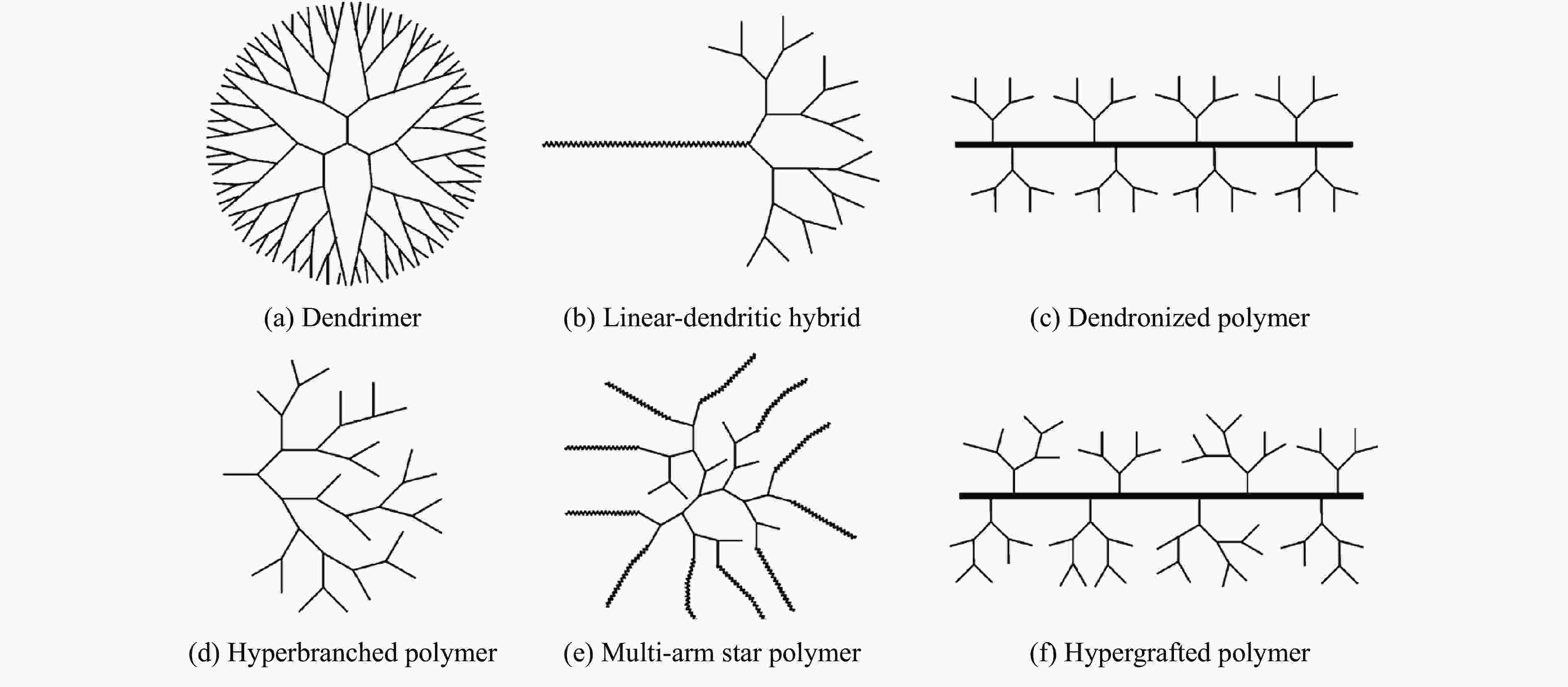

图 43 分支聚合物结构示意图^[86]

Figure 43. Structure diagram of branching polymer^[86]

下载: 全尺寸图片幻灯片

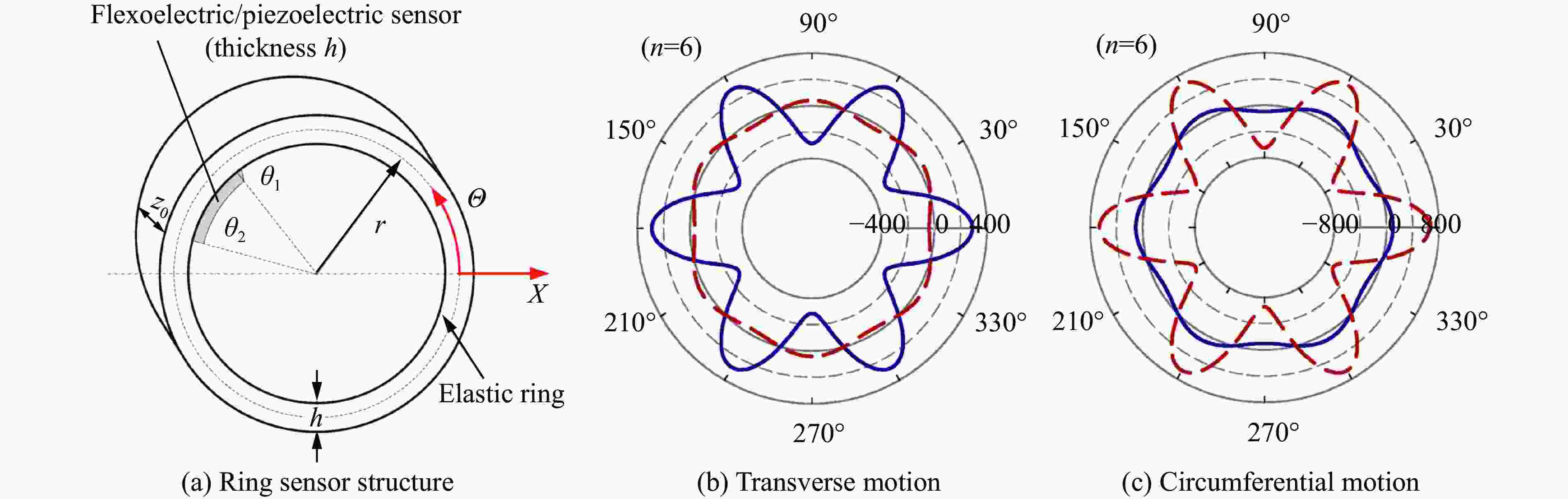

图 44 压电/挠曲电环形传感器结构与动态响应^[102]

Figure 44. Structure and dynamic response of piezoelectric/flexoelectric ring sensor^[102]

下载: 全尺寸图片幻灯片

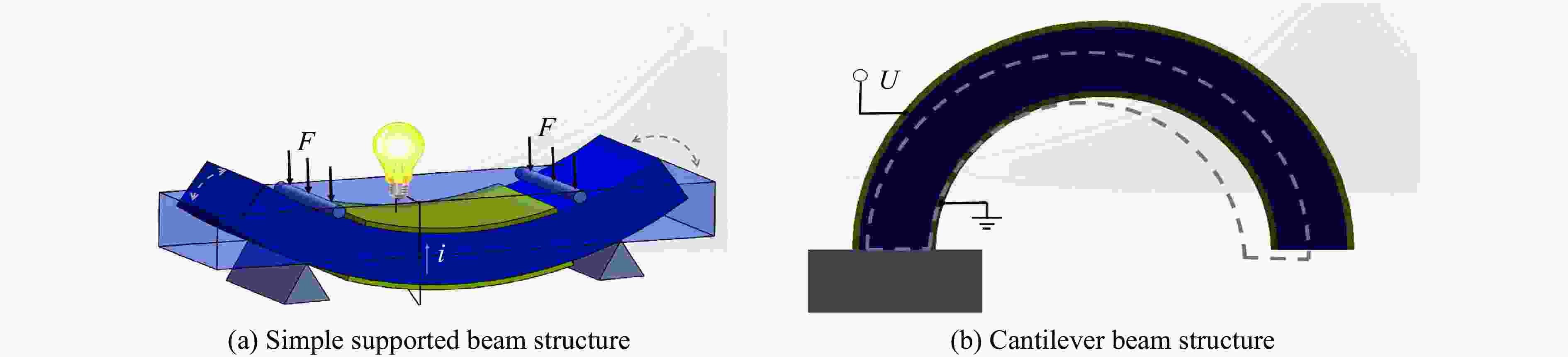

图 45 挠曲电效应传感器的典型结构^[103]

Figure 45. Typical structure of flexoelectric effect sensor^[103]

下载: 全尺寸图片幻灯片

图 46 俘能器结构示意图^[104]

Figure 46. Schematic diagram of the energy harvester structure^[104]

下载: 全尺寸图片幻灯片

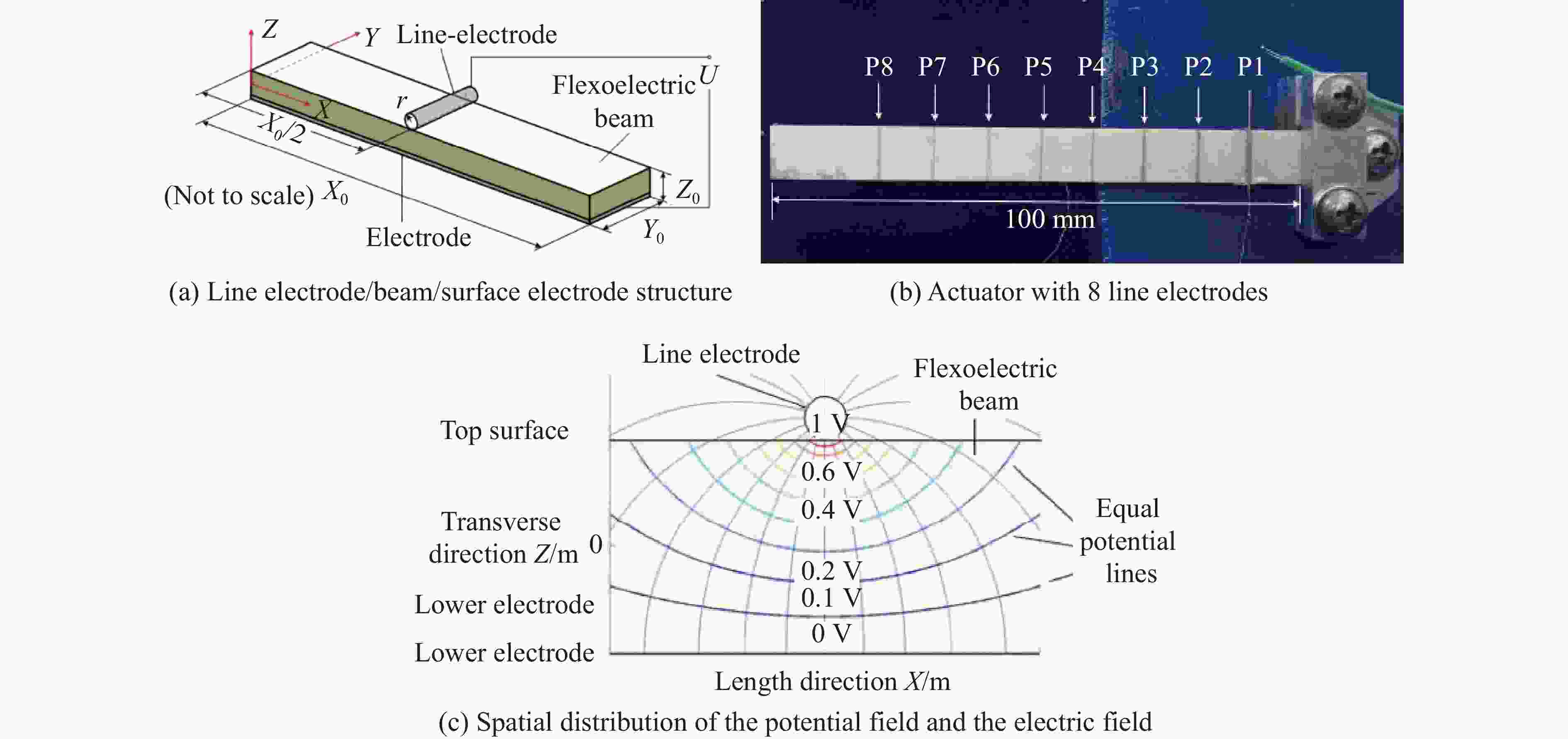

图 47 线电极/梁/面电极致动器^[105]

Figure 47. Actuator with line electrode/beam/surface electrode structure^[105]

下载: 全尺寸图片幻灯片

表 1 典型动态加载技术的特点

Table 1. Characteristics of typical dynamic loading technology

实验方法	应变率/s⁻¹	响应特性	主要应用
落锤/摆锤	1～10²	弹塑性变形，伴随损伤破坏	测定抗冲击强度，变形与吸能
SHPB	10²～10⁴	弹塑相变，粘性与应变率效应明显	确定动态本构模型
轻气炮	10⁴～10⁶	出现流体性态，考虑密度与可压缩性	确定状态方程
爆轰	>10⁶	呈流体力学状态，伴有熔融与汽化	可计算爆轰波，确定状态方程

下载: 导出CSV
