基于深度学习算法预测燃爆的临界淬熄直径

聂仲恒; 汪丽; 高伟; 姜海鹏

doi:10.11883/bzycj-2025-0218

基于深度学习算法预测燃爆的临界淬熄直径

doi: 10.11883/bzycj-2025-0218

聂仲恒^{1, 2,},
汪丽²,
高伟¹,
姜海鹏^1, ,

1.
大连理工大学化工学院，辽宁省大连市 116024
2.
中国航天科技集团有限公司航天推进技术研究院北京航天试验技术研究所，北京 100074

基金项目: 国家重点研发计划青年科学家项目（2024YFC3082600）；国家自然科学基金（52574230）

详细信息

作者简介:
聂仲恒（2000－　），男，硕士，nzh2490823579@163.com

通讯作者:
姜海鹏（1990－　），男，博士，副教授，jhp@dlut.edu.cn

中图分类号: X932
计量
- 文章访问数: 286
- HTML全文浏览量: 31
- PDF下载量: 61
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-14
- 修回日期: 2026-03-28
- 网络出版日期: 2026-04-09

Prediction of critical quenching diameter for deflagration and detonation based on deep learning algorithms

NIE Zhongheng^{1, 2
,},
WANG Li²,
GAO Wei¹,
JIANG Haipeng^{1
, ,}

1.
Dalian University of Technology, Dalian, Liaoning Province, 116024, China
2.
Beijing Institute of Aerospace Testing Technology, Beijing 100074, China

摘要

摘要: 聚焦密闭管道可燃气体燃爆火焰淬熄的安全防护需求，基于燃气组分、管道几何、初始条件及多孔介质结构参数构建了九维特征空间，建立了多孔介质临界淬熄直径预测模型。为突破传统经验公式的精度不足问题与应用局限性，通过系统性的超参数优化与模型验证，深入对比并证实了Transformer架构在临界淬熄直径预测问题上的显著优越性：其预测性能（平均绝对误差δ_MAE=0.068，均方误差δ_MSE=0.008，相关系数R²=0.928）显著超越了广泛应用的卷积神经网络（convolutional neural network，CNN）模型（δ_MAE=0.079，δ_MSE=0.012，R²=0.906），不仅整体误差更低，且对离群点的鲁棒性更强。深入分析发现，Transformer模型的核心优势源于其自注意力机制对淬熄过程中关键临界特征的精准捕获与高效建模能力。在数据归一化敏感性验证中，Transformer模型展现出优异的鲁棒性，这归功于其层归一化机制所赋予的特征解耦与稳定表示能力。基于上述系统性评估，最终确立Transformer模型为预测多孔介质临界淬熄直径的最优模型，为燃爆安全防控策略的量化制定及管道阻火器安全性能的精细化设计提供了强大的、可操作的决策支持工具，具有重要的理论指导意义。
- 管道爆炸 /
- 深度学习 /
- 临界淬熄直径预测 /
- 阻火器
Abstract: The research addresses the safety imperative of preventing flammable gas explosions in enclosed pipelines by establishing a predictive model for the critical quenching diameter within porous media flame arresters. A novel predictive framework was developed based on a comprehensive nine-dimensional feature space incorporating gas composition parameters (e.g., hydrogen equivalence ratio), pipeline geometry dimensions (length-to-diameter ratio), initial thermodynamic conditions (pressure), and porous medium structural characteristics (thickness, material thermal conductivity). A systematic investigation was conducted to identify the optimal hyperparameter configurations for both convolutional neural network (CNN) and Transformer architectures. Rigorous validation demonstrated that the Transformer model exhibits statistically significant superiority over the CNN model across all key performance metrics. Specifically, the model achieved a δ_MAE (mean absolute error, MAE) of 0.068, a δ_MSE (mean squared error, MSE) of 0.008, and an coefficient of determination R² of 0.928. The performance notably surpassed the CNN results (δ_MAE=0.079, δ_MSE=0.012, R²=0.906). Beyond evaluation indicators, detailed error distribution analysis confirmed the Transformer's enhanced predictive accuracy and reduced susceptibility to outliers. The superior performance is attributed to the Transformer’s intrinsic self-attention mechanism, which excels at dynamically identifying and weighting critical interdependencies among the diverse input features governing the complex quenching process. The capability enables more precise capture of the nonlinear phenomena defining the quenching limit. Furthermore, robustness testing involving diverse data normalization schemes revealed that the Transformer model exhibits greater stability. This resilience stems from its inherent layer normalization mechanism, which effectively decouples feature dependencies and mitigates sensitivity to input scaling variations. Consequently, the Transformer architecture is established as the definitive optimal model for this critical safety prediction task. Its significant advantage lies in the minimal data preprocessing required before deployment, a feature that greatly enhances its practical utility. The model provides robust quantitative decision-making support essential for formulating effective gas explosion mitigation strategies and optimizing the safety design parameters of pipeline flame arresters. By accurately predicting the critical quenching diameter across various scenarios, this work delivers a valuable tool for enhancing inherent safety in industries handling combustible gases within confined pipeline systems.
- Pipeline explosion /
- Deep learning /
- Critical quenching diameter prediction /
- Flame arrester

HTML全文

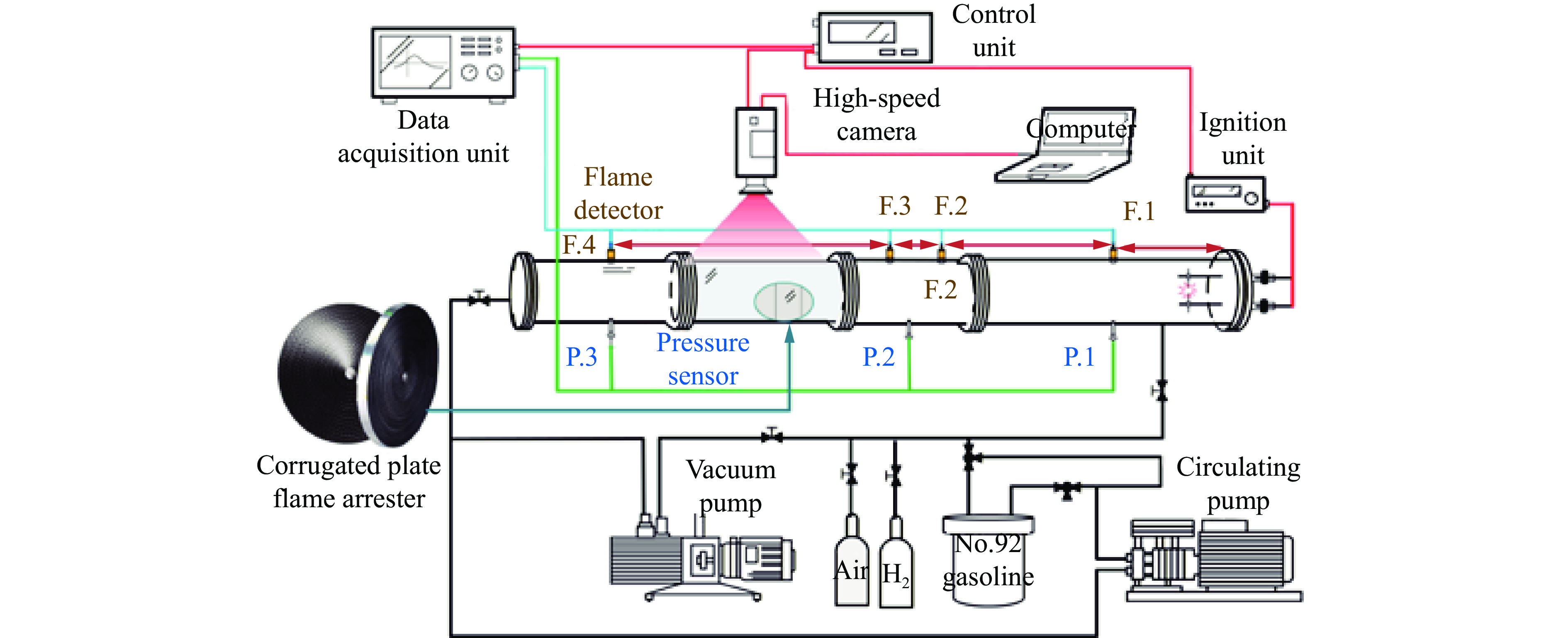

图 1 管道可燃气燃爆阻火实验平台

Figure 1. Pipeline combustible gas explosion and flame quenching test platform

下载: 全尺寸图片幻灯片

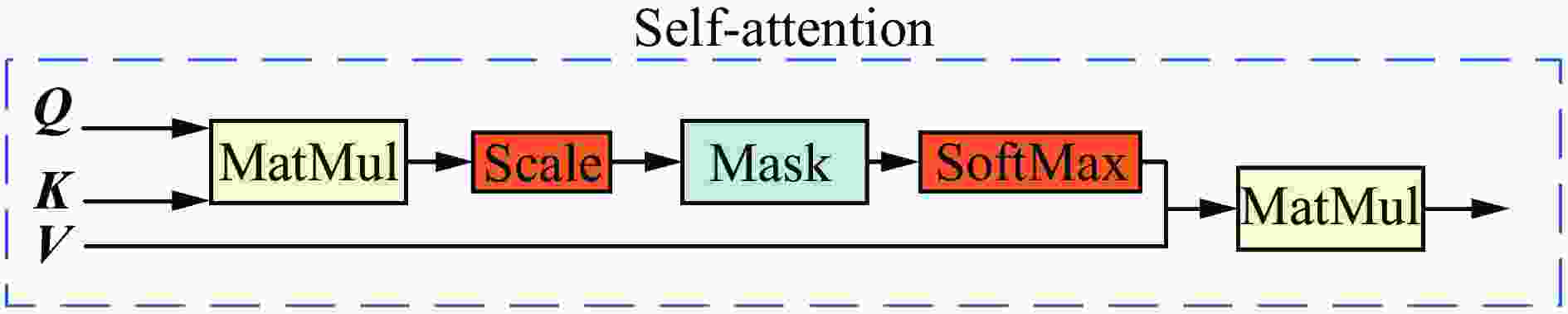

图 2 Transformer模型的核心架构

Figure 2. Core architecture of the Transformer model

下载: 全尺寸图片幻灯片

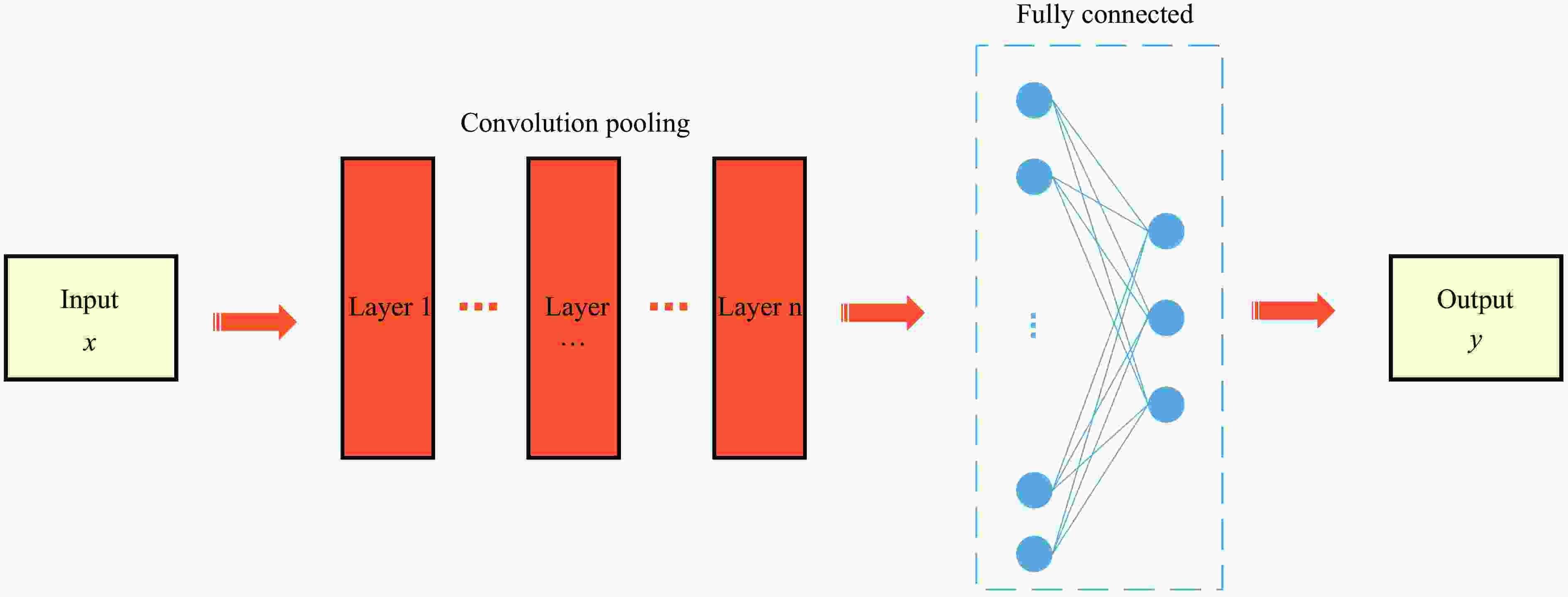

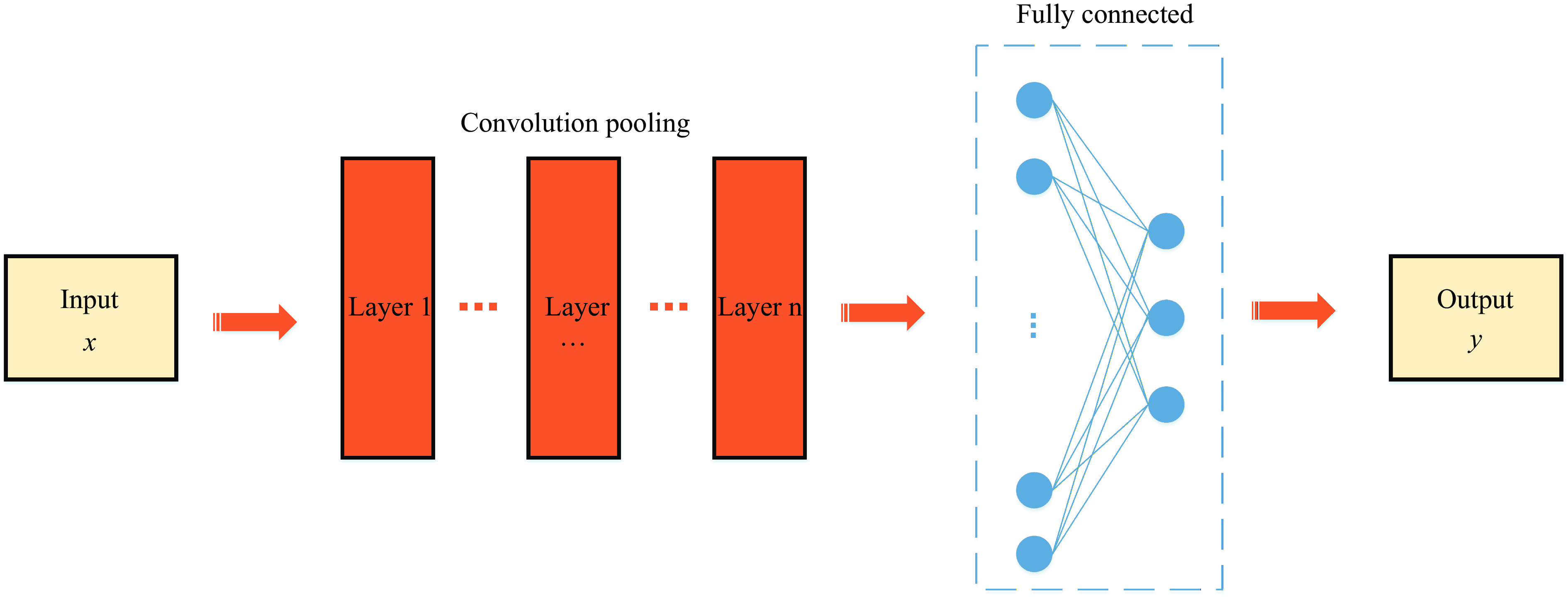

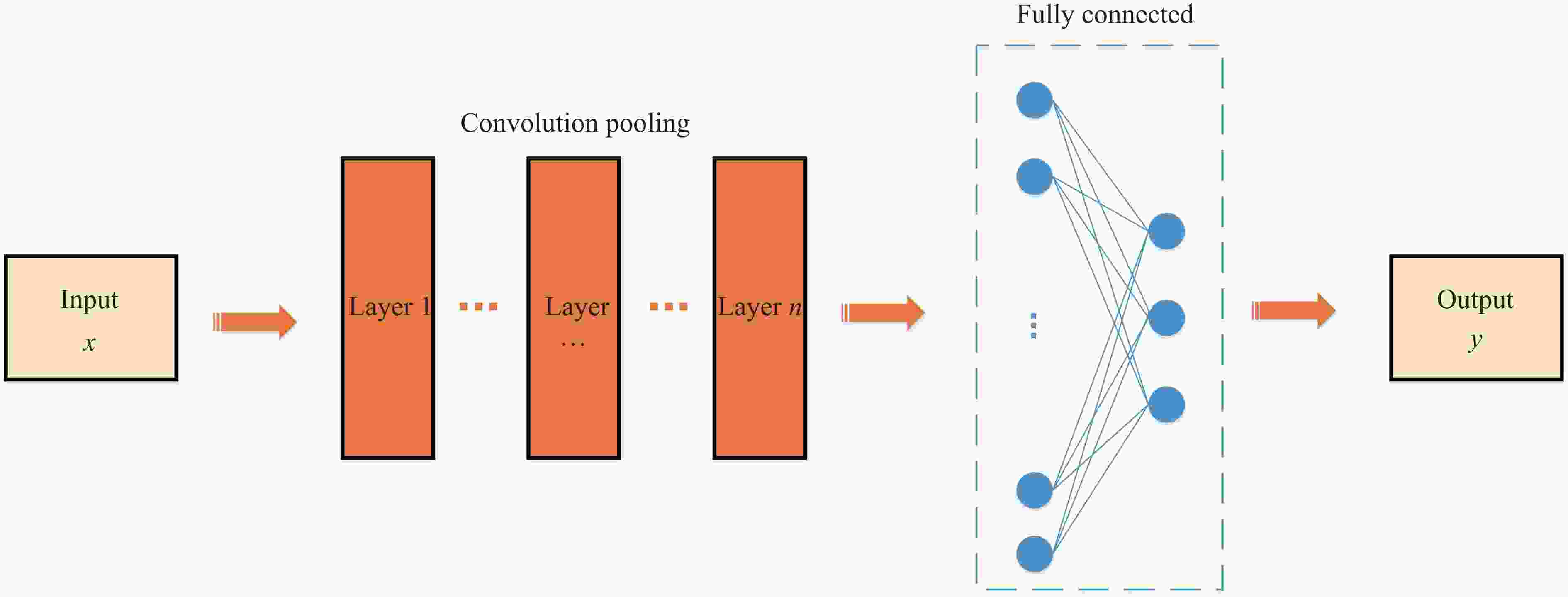

图 3 CNN模型的核心架构

Figure 3. Core architecture of the CNN model

下载: 全尺寸图片幻灯片

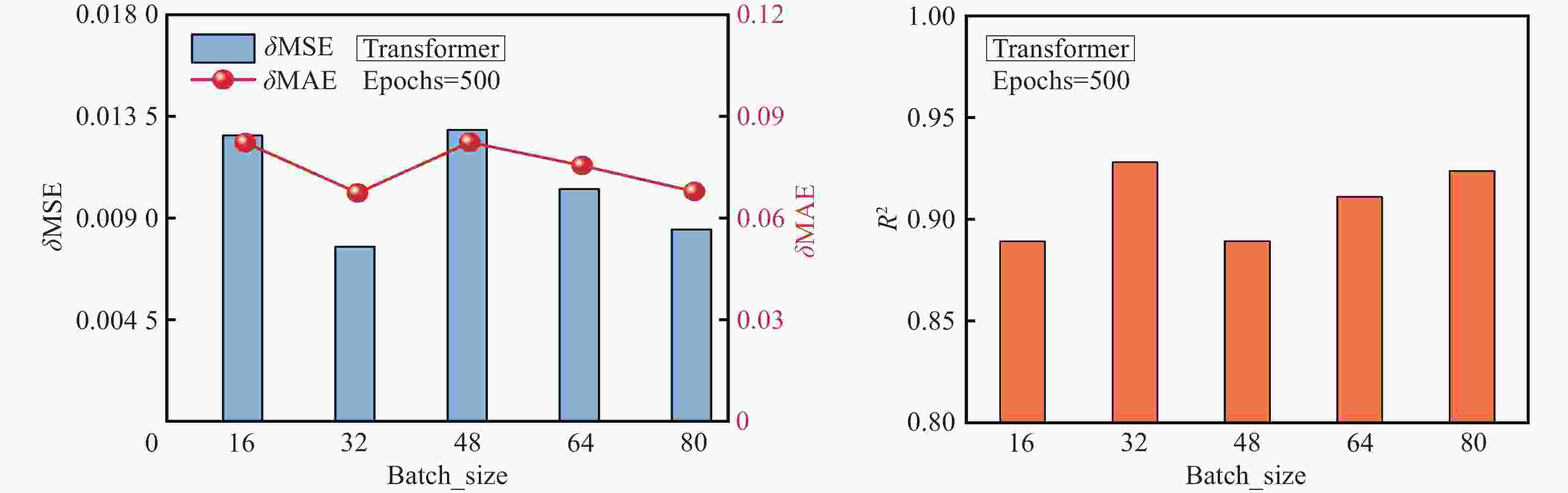

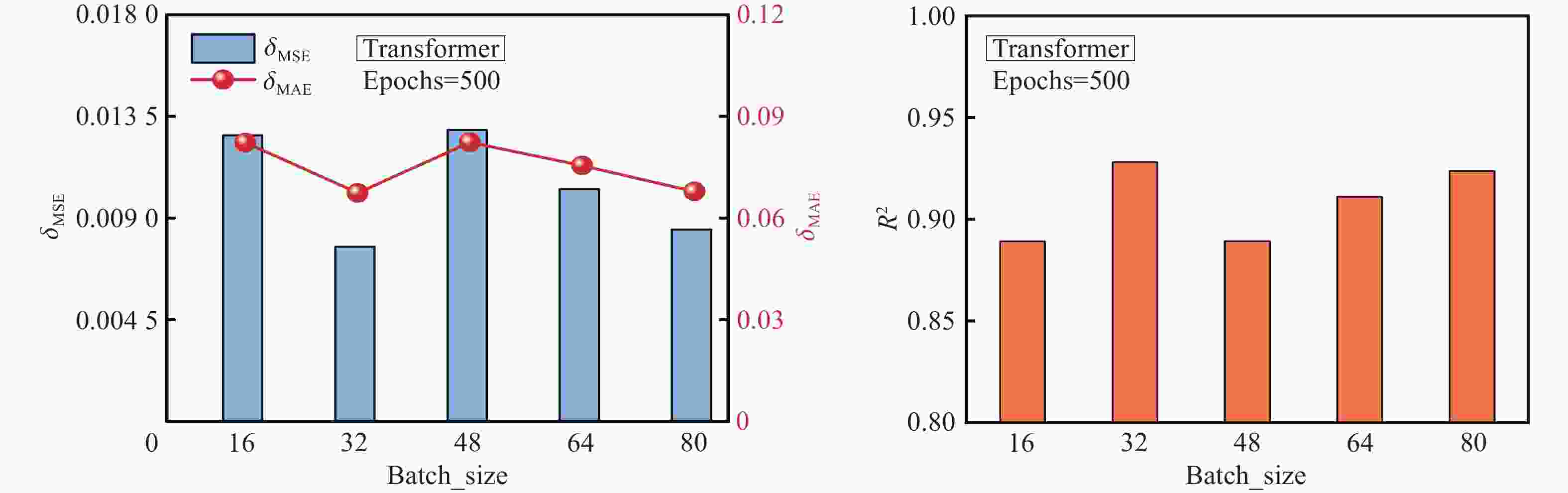

图 4 不同批量大小对Transformer模型性能的影响

Figure 4. The impact of different batch_size on Transformer model performance

下载: 全尺寸图片幻灯片

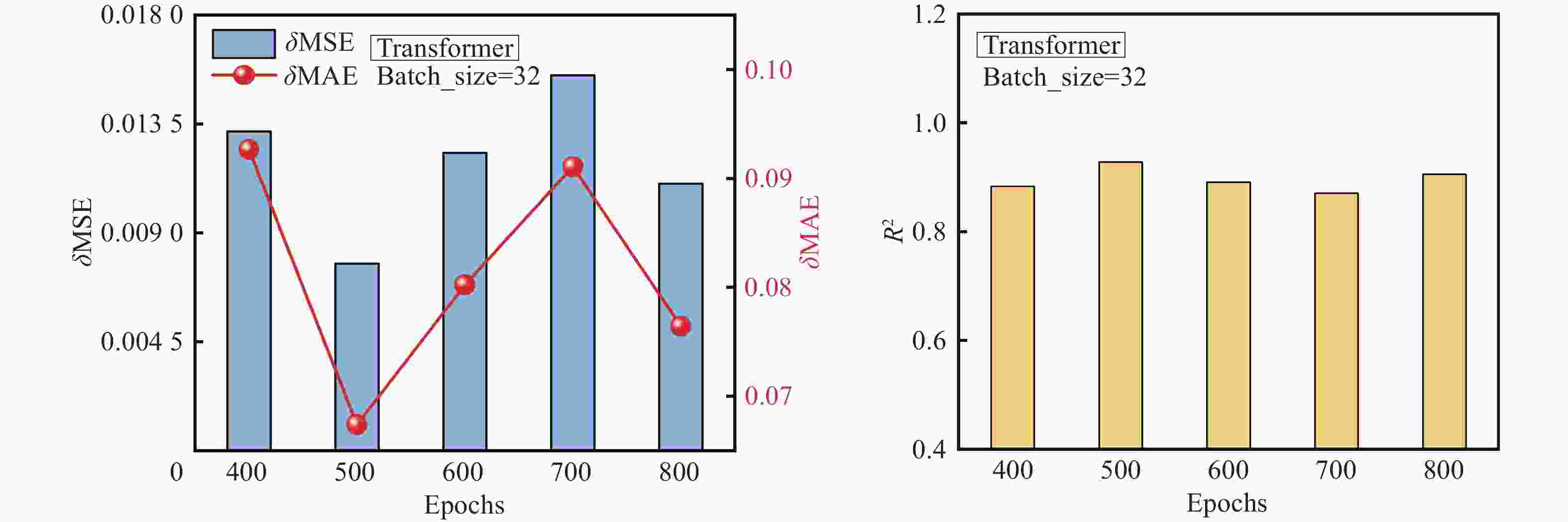

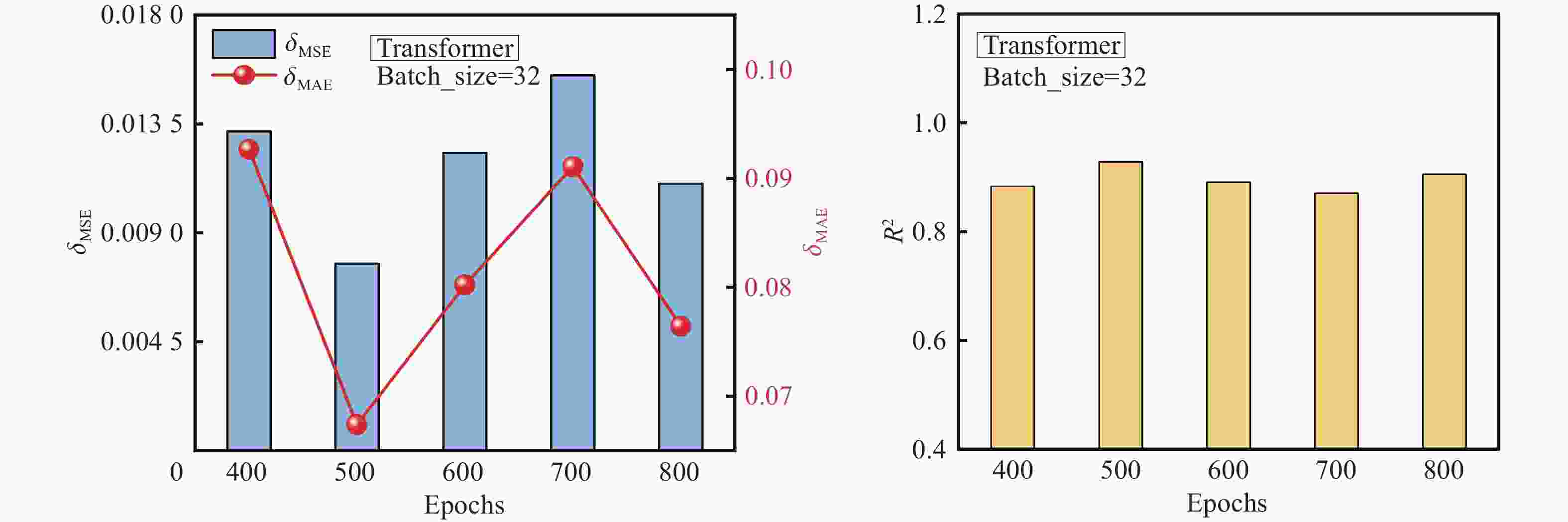

图 5 不同训练轮次对Transformer模型性能的影响

Figure 5. The impact of different epochs on the performance of Transformer models

下载: 全尺寸图片幻灯片

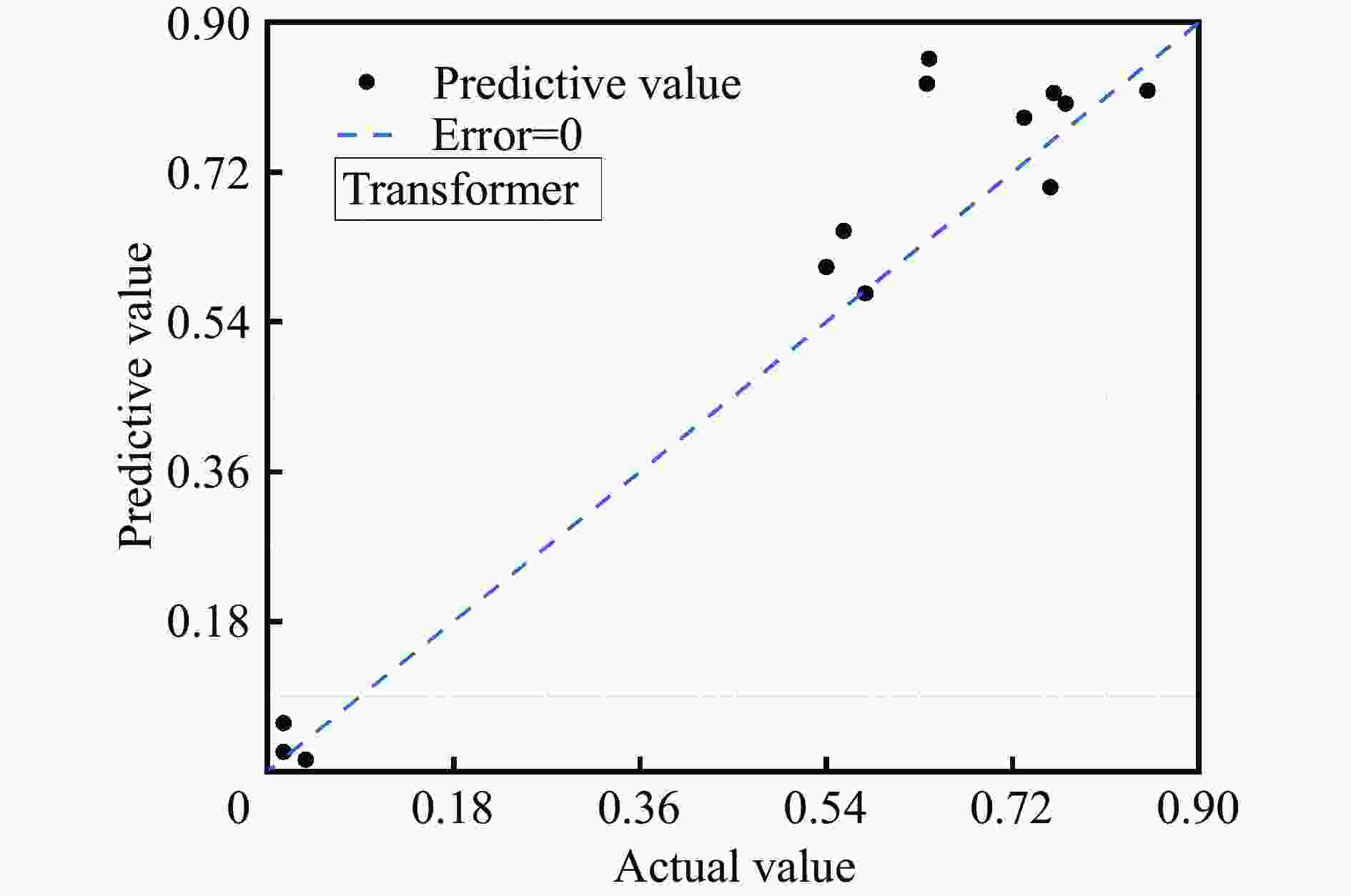

图 6 Transformer模型预测值与真实值比较

Figure 6. Comparison of Transformer model predictions and actual values

下载: 全尺寸图片幻灯片

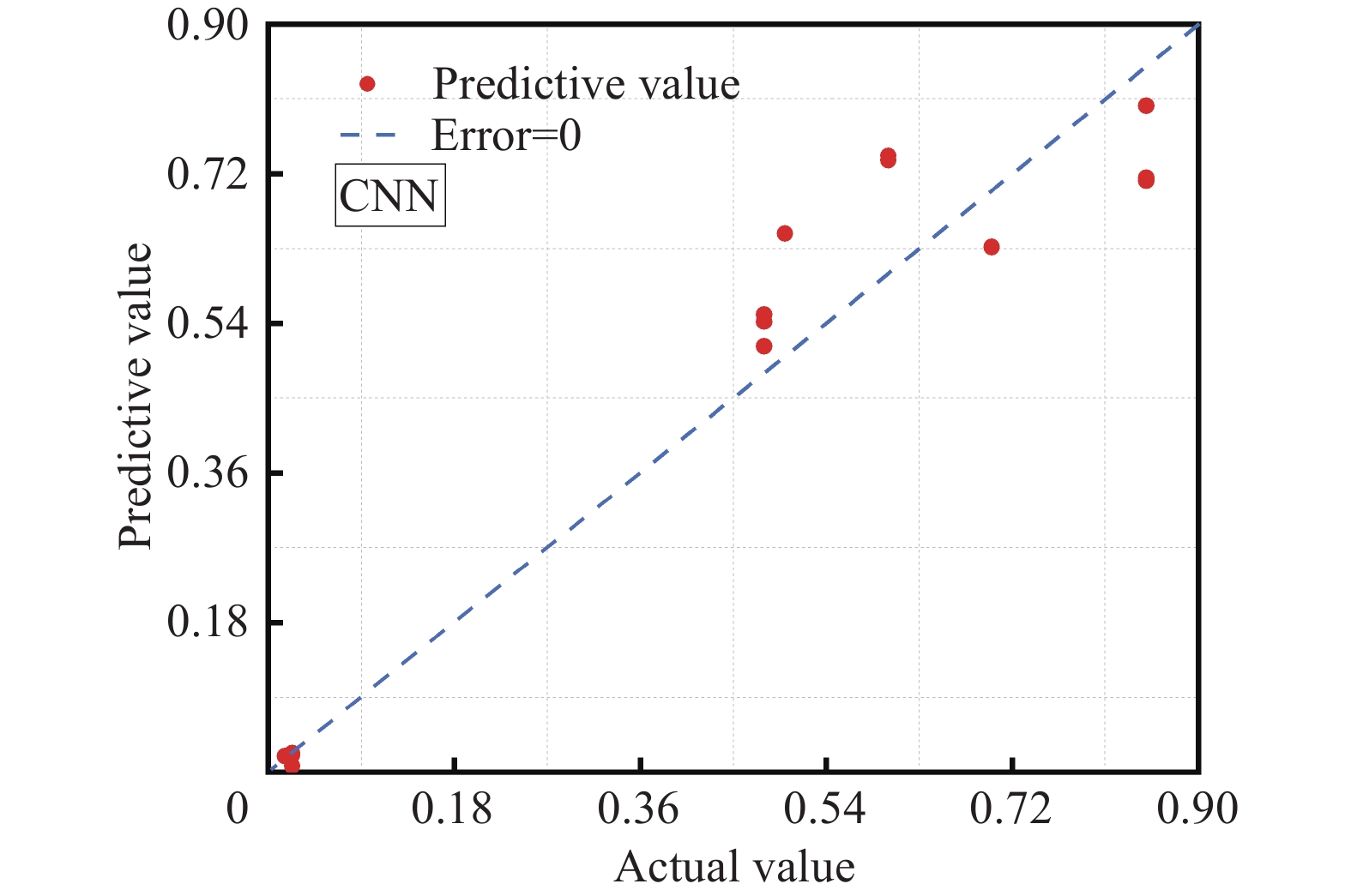

图 7 CNN模型预测值与真实值比较

Figure 7. Comparison of CNN model predictions and actual values

下载: 全尺寸图片幻灯片

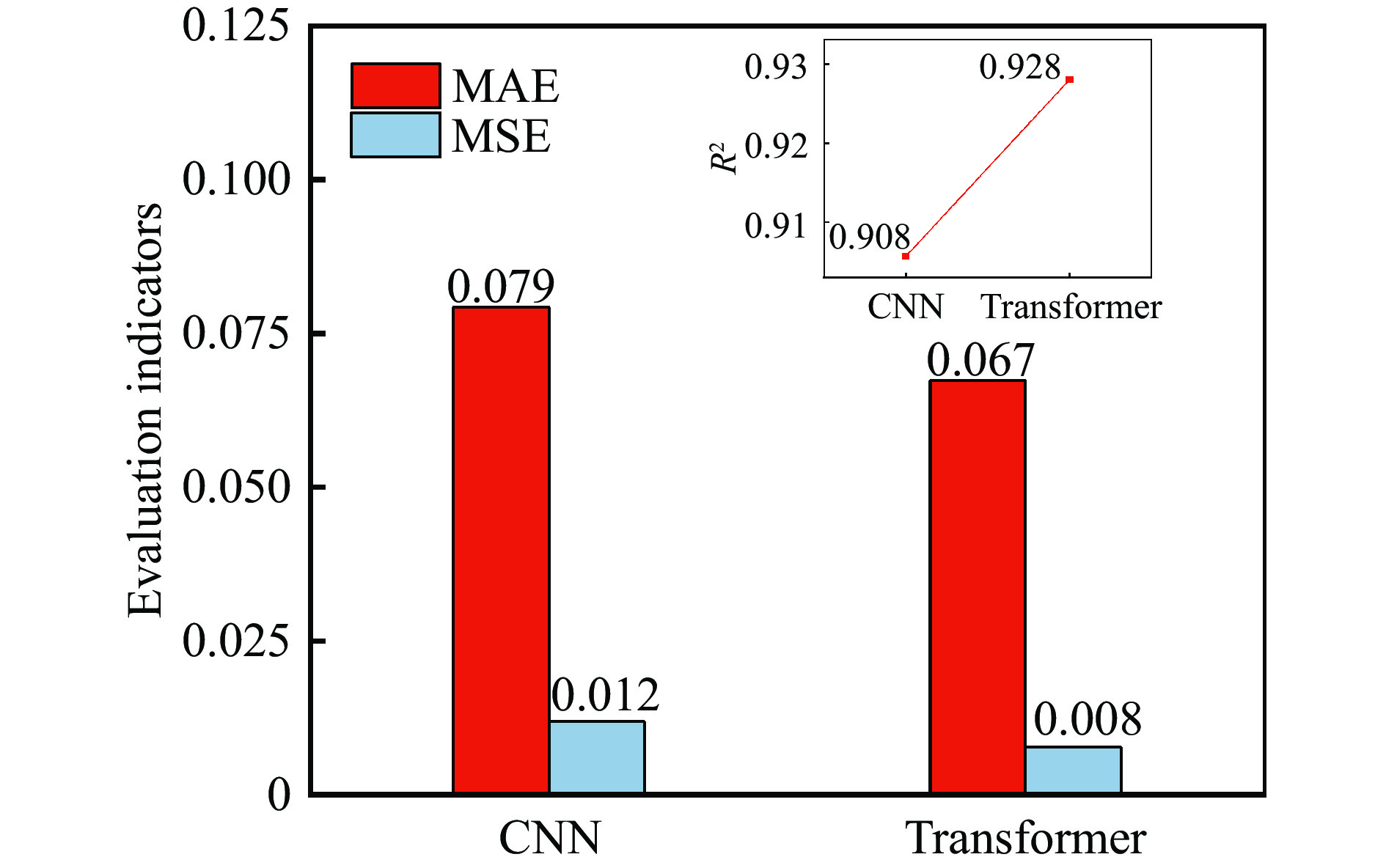

图 8 两种模型的评估指标分布

Figure 8. Distribution of evaluation indicators for the CNN and Transformer models

下载: 全尺寸图片幻灯片

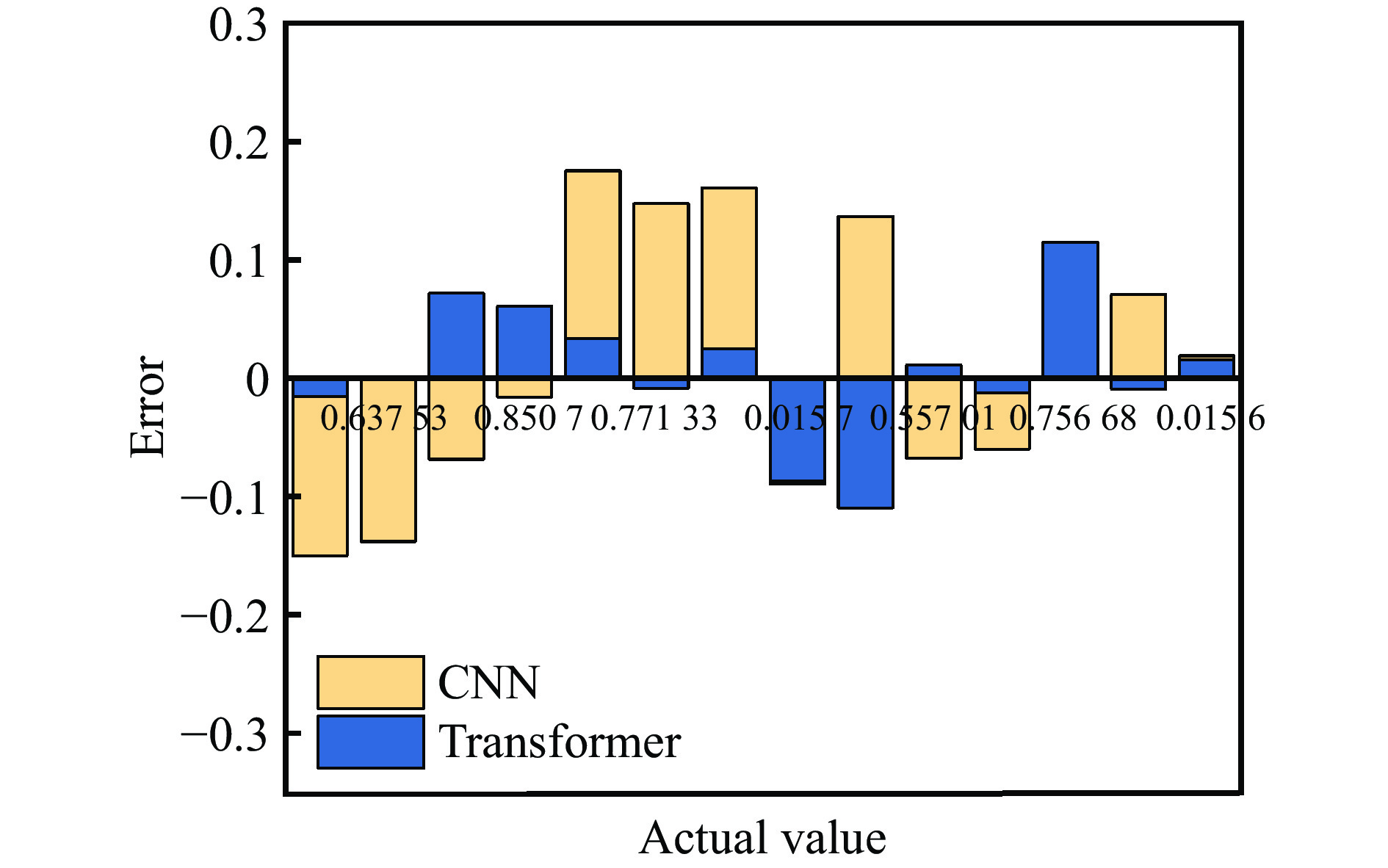

图 9 两种模型的实验值和误差值比较

Figure 9. Comparison of experimental values and error values between the CNN and Transformer models

下载: 全尺寸图片幻灯片

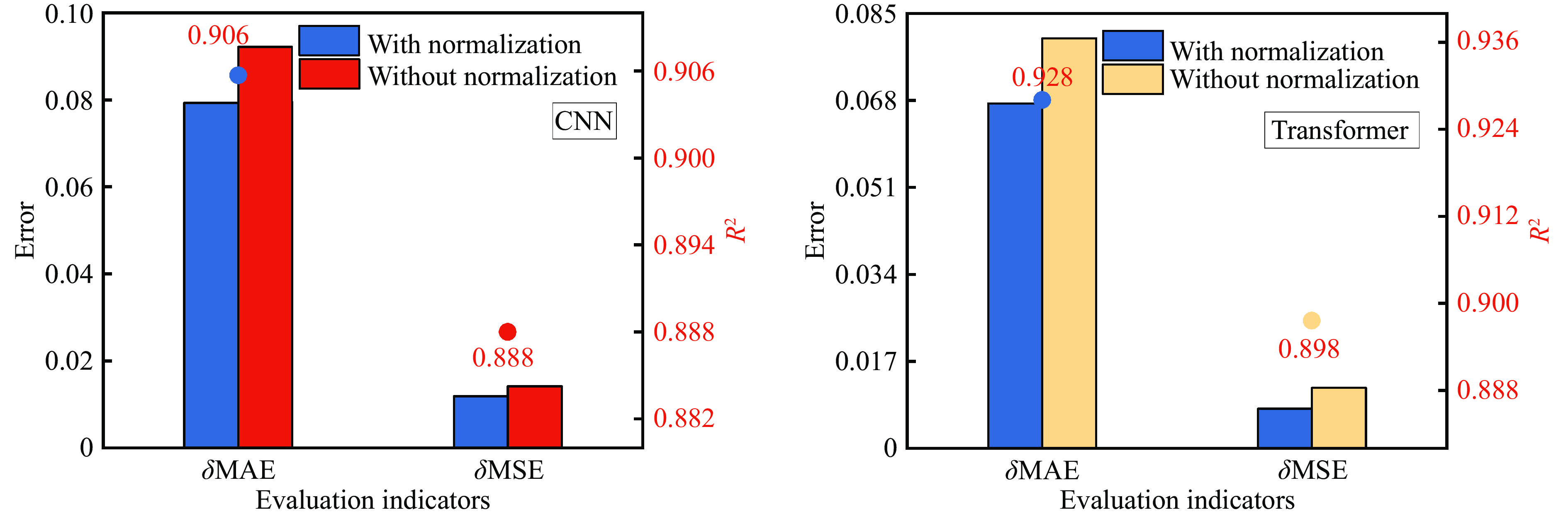

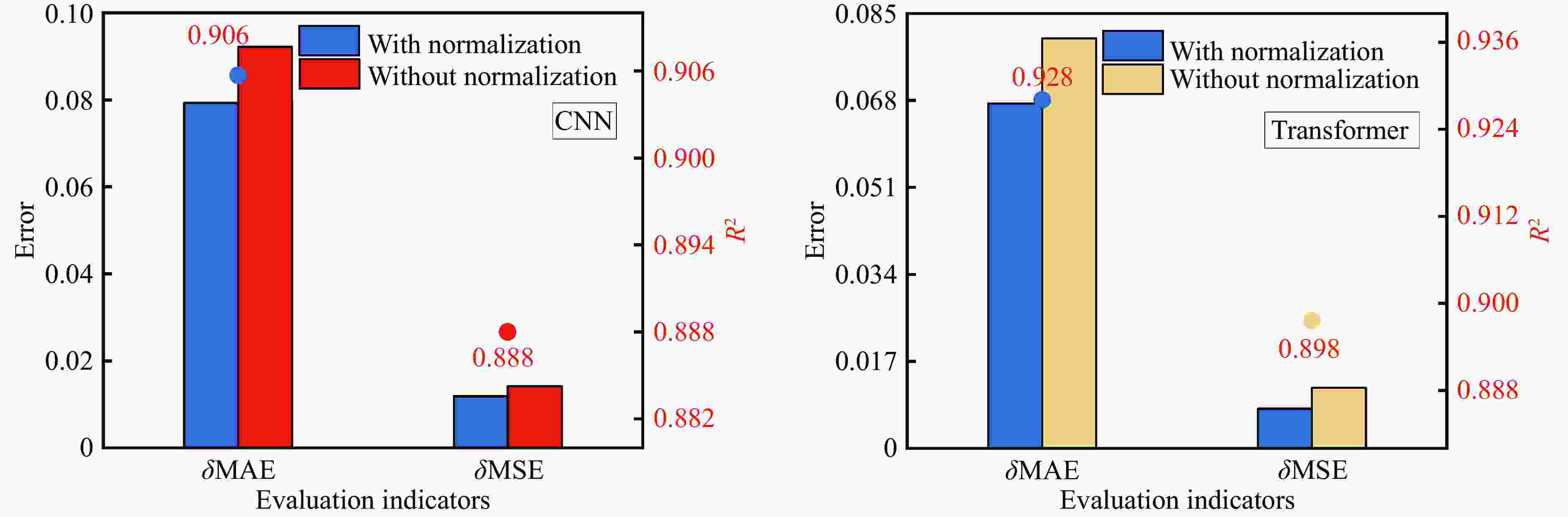

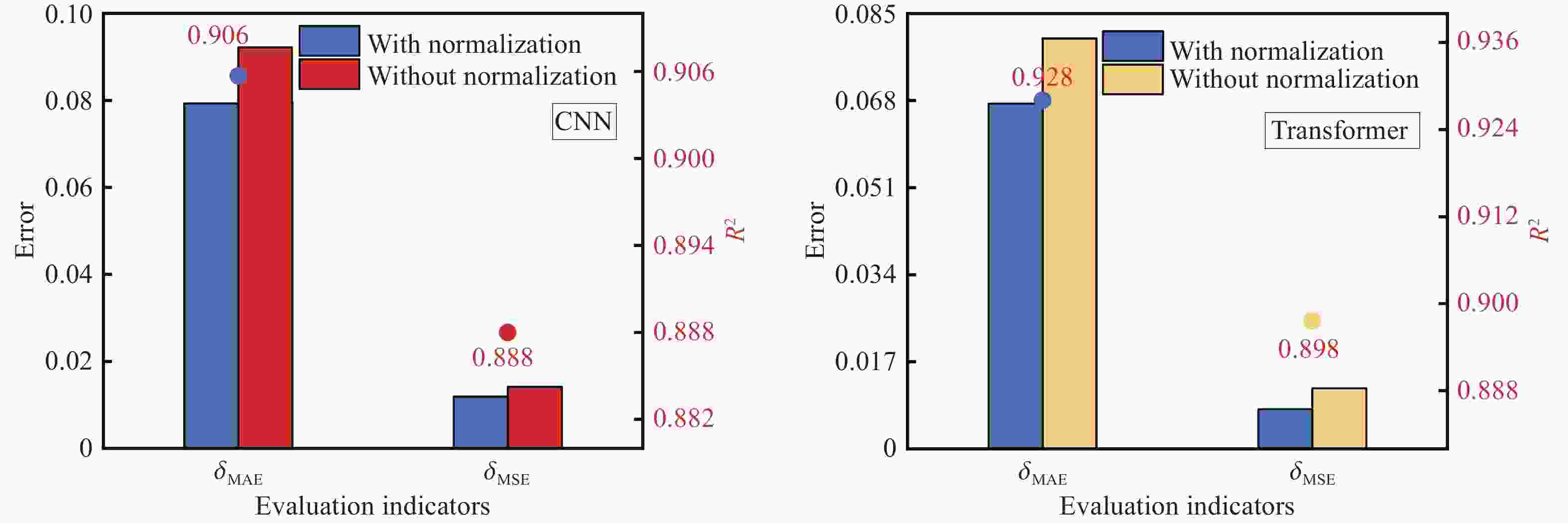

图 10 归一化处理对两种模型性能的影响

Figure 10. The impact of normalization on the performance of the CNN and Transformer models

下载: 全尺寸图片幻灯片

表 1 燃气临界淬熄直径实验数据库摘要

Table 1. Abstract of gas critical quenching diameter experiment database

参考文献	燃气浓度/%	长径比	初始压力/ kPa	多孔介质厚度/mm	热导率/ (W·m⁻¹·K⁻¹)
[27]	14.6～38.7	14.188	101.325	40～120	16.2
[30]	17.4～42.4	7.143	20～100	20～100	238
[29]	27.4	30～40	101.325	30～120	16.2
[29]	4.2	50～70	101.325	50～150	16.2
[28]	1.2～2.5	14.188	101.325	40～120	16.2
[31]	5.0～9.5	50	30～60	38	16.2
[31]	4.2	50	70～80	38	16.2

下载: 导出CSV

表 2 Transformer模型最优超参数组合

Table 2. Optimal hyperparameter combinations for Transformer models

超参数	最优值
批量大小	32
训练轮次	500

下载: 导出CSV

表 3 CNN模型最优超参数组合

Table 3. Optimal hyperparameter combination for CNN models

超参数	最优值
批量大小	16
训练轮次	600

下载: 导出CSV
