水平光面爆破激发地震波的成分及衰减特征

高启栋; 卢文波; 杨招伟; 严鹏; 陈明

doi:10.11883/bzycj-2018-0280

水平光面爆破激发地震波的成分及衰减特征

doi: 10.11883/bzycj-2018-0280

高启栋^{1, 2,},
卢文波^{1, 2, ,},
杨招伟^{1, 2},
严鹏^{1, 2},
陈明^{1, 2}

1.
武汉大学水资源与水电工程科学国家重点实验室，湖北武汉 430072
2.
武汉大学水工岩石力学教育部重点实验室，湖北武汉 430072

基金项目: 国家自然科学基金（51779190）；湖北省技术创新专项重大项目（2017ACA102）

详细信息

作者简介:
高启栋（1991－　），男，博士研究生，qdgao@whu.edu.cn

通讯作者:
卢文波（1968－　），男，博士，教授，wblu@whu.edu.cn

中图分类号: O389
计量
- 文章访问数: 6601
- HTML全文浏览量: 1870
- PDF下载量: 54
- 被引次数: 0
出版历程
- 收稿日期: 2018-07-30
- 修回日期: 2018-12-24
- 刊出日期: 2019-08-01

Components and attenuation of seismic wavesinduced by horizontal smooth blasting

GAO Qidong^{1, 2
,},
LU Wenbo^{1, 2
, ,},
YANG Zhaowei^{1, 2},
YAN Peng^{1, 2},
CHEN Ming^{1, 2}

1.
State Key Laboratory of Water Resources and Hydropower Engineering Science, Wuhan University, Wuhan 430072, Hubei, China
2.
Key Laboratory of Rock Mechanics in Hydraulic Structural Engineering (Ministry of Education), Wuhan University, Wuhan 430072, Hubei, China

摘要

摘要: 借助极化偏振分析方法，针对一组现场爆破实验，分析了水平光面爆破激发地震波的成分构成及特性，比较了不同波的衰减特征及各自对爆破振动的影响，并探讨了水平光面爆破的内在力学机理。结果表明，爆破振动中不同波的相对量值及主导波的类型均会随测点位置的改变而变化，爆源特性和沿传播路径的不同衰减共同决定波的成分构成及演化，各测点的优势振动方向也与波的成分构成密切相关。对于水平光面爆破，在光爆孔平面上，P波的影响可忽略，S波主要在竖直向振动，R波对水平及竖直向的振动均有贡献，其中水平向的振动主要由R波引起，而S波的竖直向振速在近区远高于R波，但归因于S和R波的不同衰减，R波在距离爆源22.5 m/kg^1/2（58～67 m）处开始主导竖直向的振动；在光爆孔平面外，P波的影响不可忽略，且在特定位置会成为优势波型。
- 水平光面爆破 /
- 爆破振动 /
- 爆破地震波 /
- 成分构成 /
- 衰减特征
Abstract: In this paper, using polarization analysis, we characterized the seismic waves induced by the horizontal smooth blasting in a group of onsite blasting experiments, presenting interpretation of wave components and offering comparison of attenuation characteristics and evaluation of the influences of different waves. We also examined the inherent mechanical mechanism of the horizontal smooth blasting under some simplifications. The results show that the proportion of different waves and the dominant wave type both vary with the relative location of interest, and the dominant motion direction at a specific position closely correlates with the wave components. The pattern of the blasting source and the different attenuation characteristics jointly determine the wave components and their evolutions. For the horizontal smooth blasting, only S and R waves are included on the same plane of smooth blastholes, while the P wave component is negligible. The horizontal vibration is mainly caused by the R wave, while the S wave mainly vibrates in the vertical direction and its vertical velocity in the near field is much higher than that of the R wave. However, the R wave still dominates the vertical vibration if the scaled distance exceeds 22.5 m/kg^1/2 (58−67 m), due to the different attenuation speeds of S and R waves. As for the seismic waves outside the same plane of smooth blastholes, the influence of the P wave cannot be ignored and it might become the dominant wave type somewhere. This study can help to enhance the understanding of blast-induced seismic waves.
- horizontal smooth blasting /
- blast vibration /
- blast-induced seismic waves /
- components /
- attenuation characteristics

HTML全文

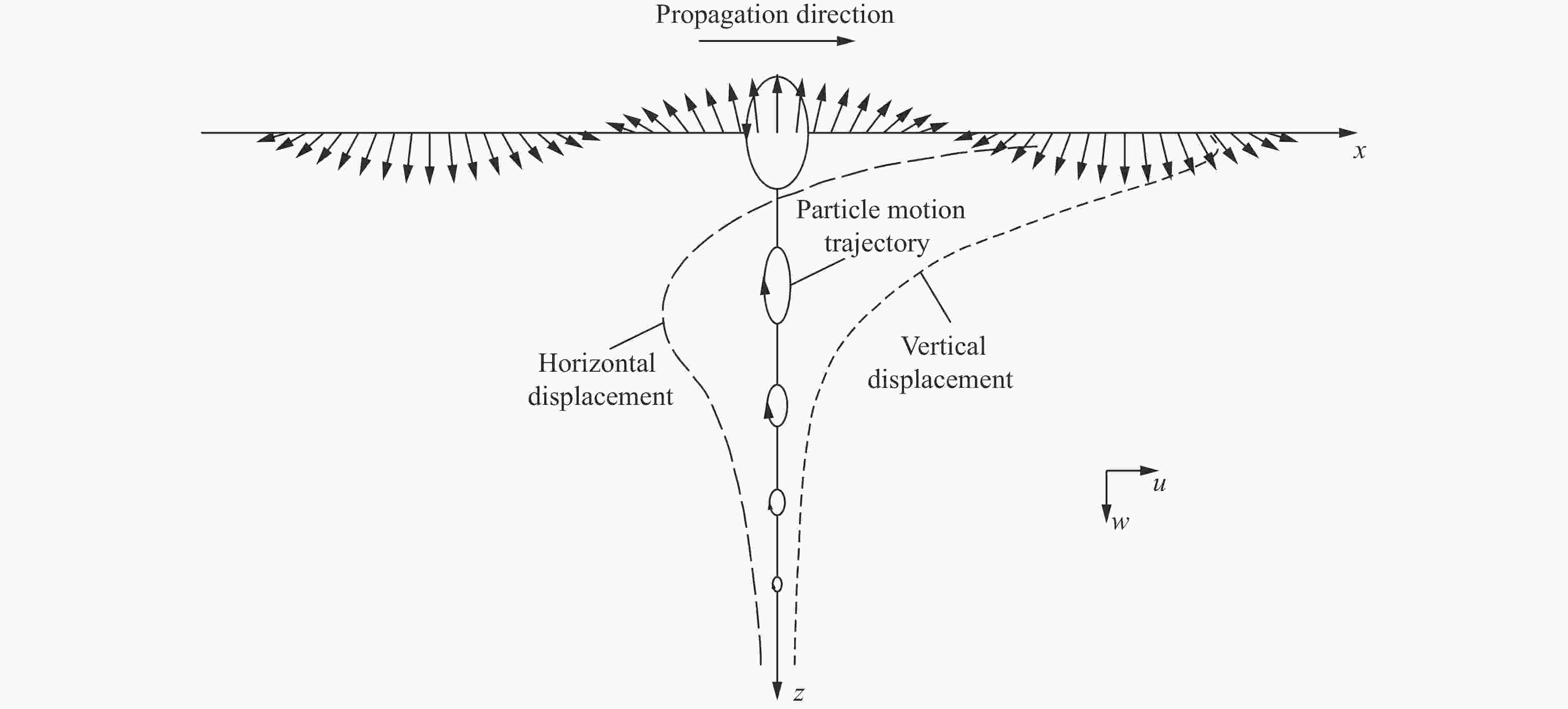

图 1 Rayleigh波的传播特性示意图^[32]

Figure 1. Illustration of Rayleigh wave’s propagation^[32]

下载: 全尺寸图片幻灯片

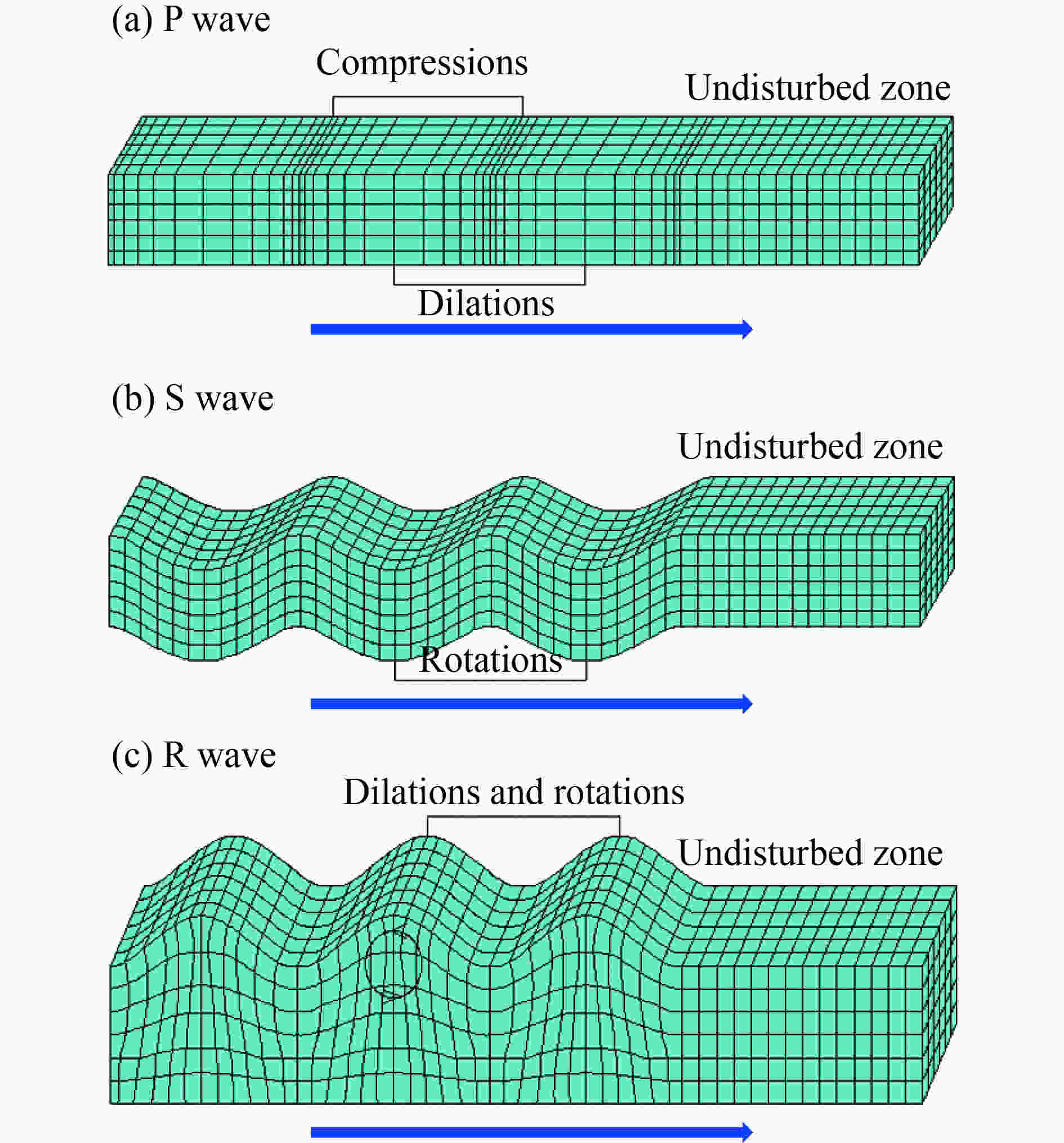

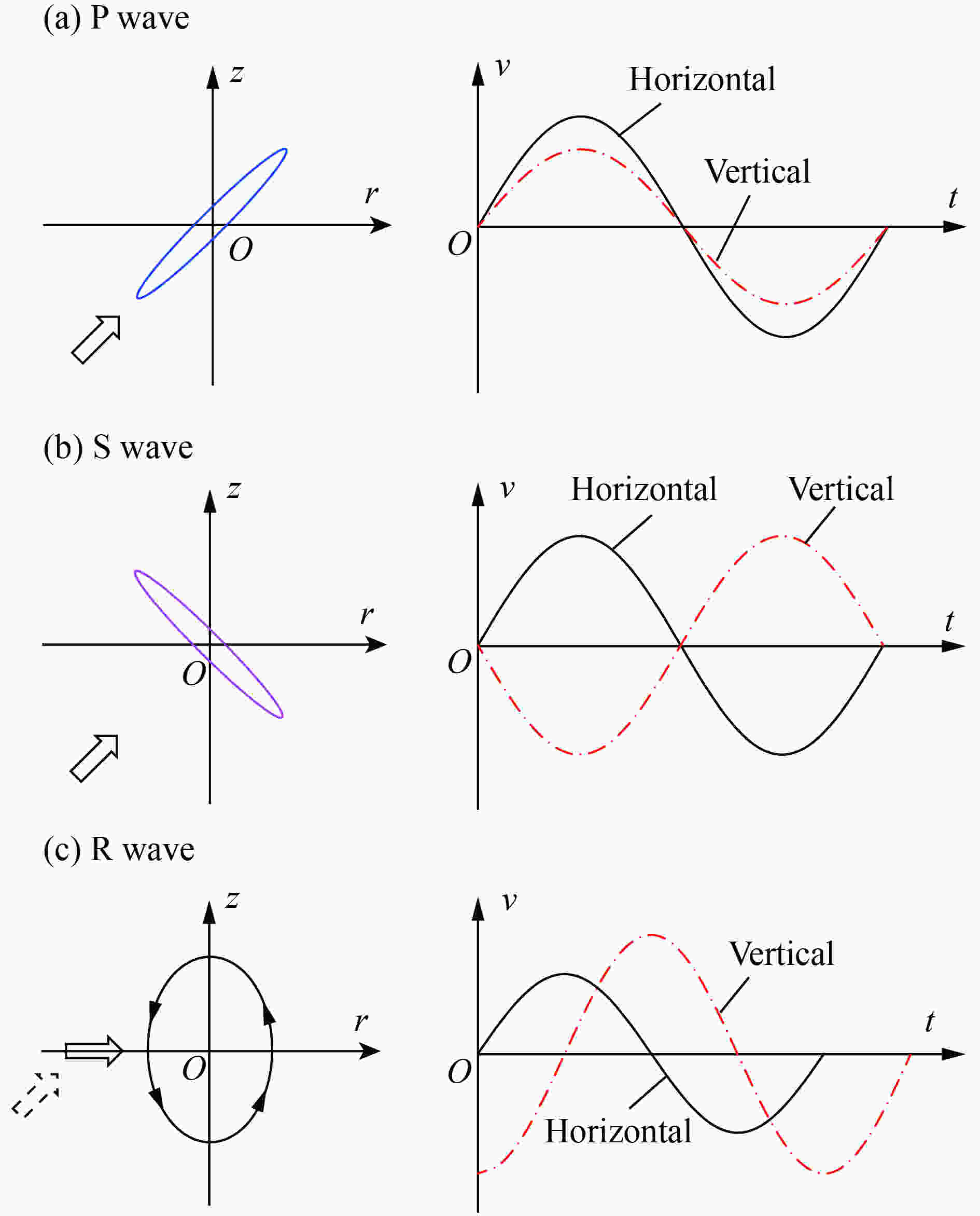

图 2 不同波的传播特性示意图

Figure 2. Illustration of propagation characteristics of different waves

下载: 全尺寸图片幻灯片

图 3 上行波的偏振方向和相位差异示意图

Figure 3. Illustration of polarization direction and phase differences for up-going waves

下载: 全尺寸图片幻灯片

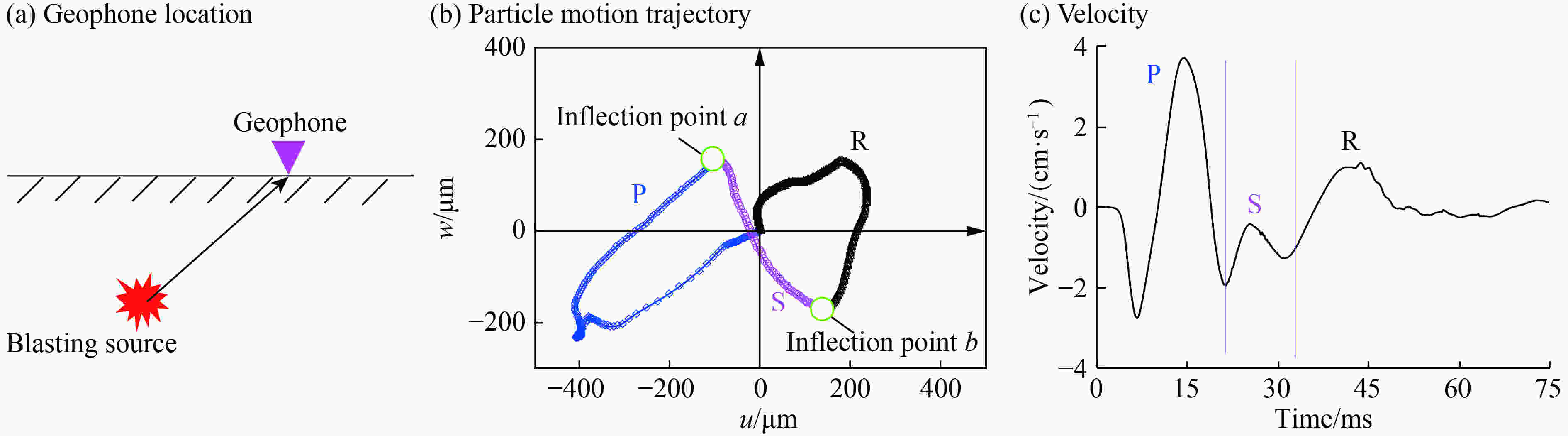

图 4 矢量图分析识别爆破地震波

Figure 4. Hodogramic identification of seismic components induced by blasting

下载: 全尺寸图片幻灯片

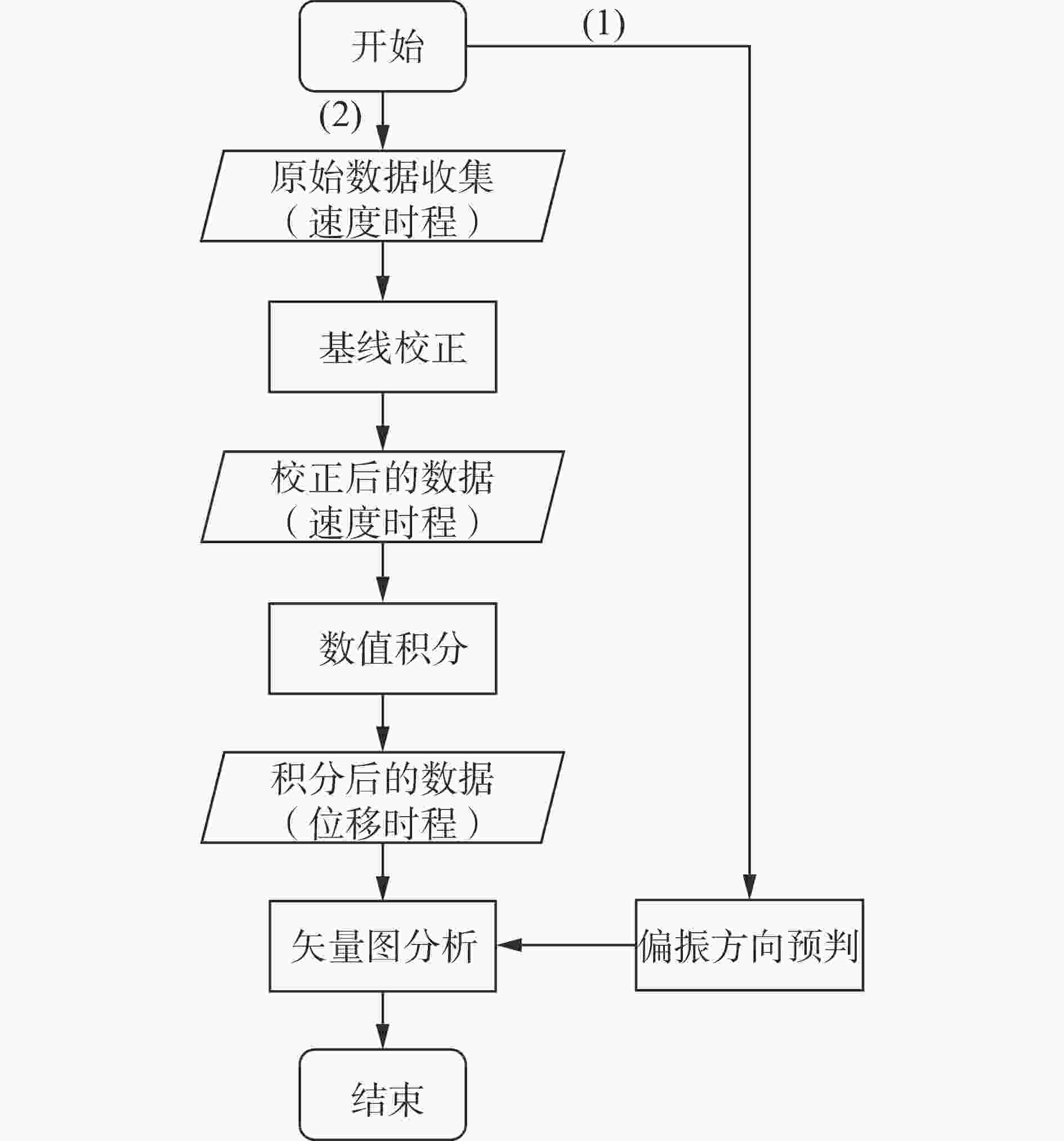

图 5 爆破地震波的识别流程

Figure 5. Flowchart of identification of wave components induced by blasting

下载: 全尺寸图片幻灯片

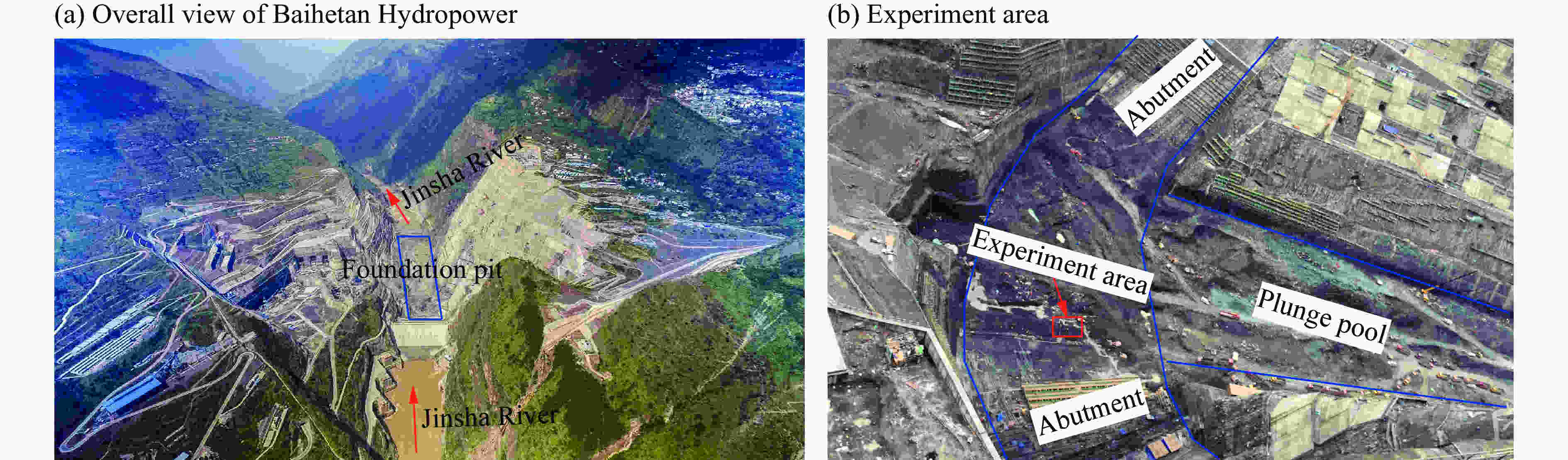

图 6 白鹤滩水电站全貌及实验选址

Figure 6. Overall view of Baihetan Hydropower and experiment area

下载: 全尺寸图片幻灯片

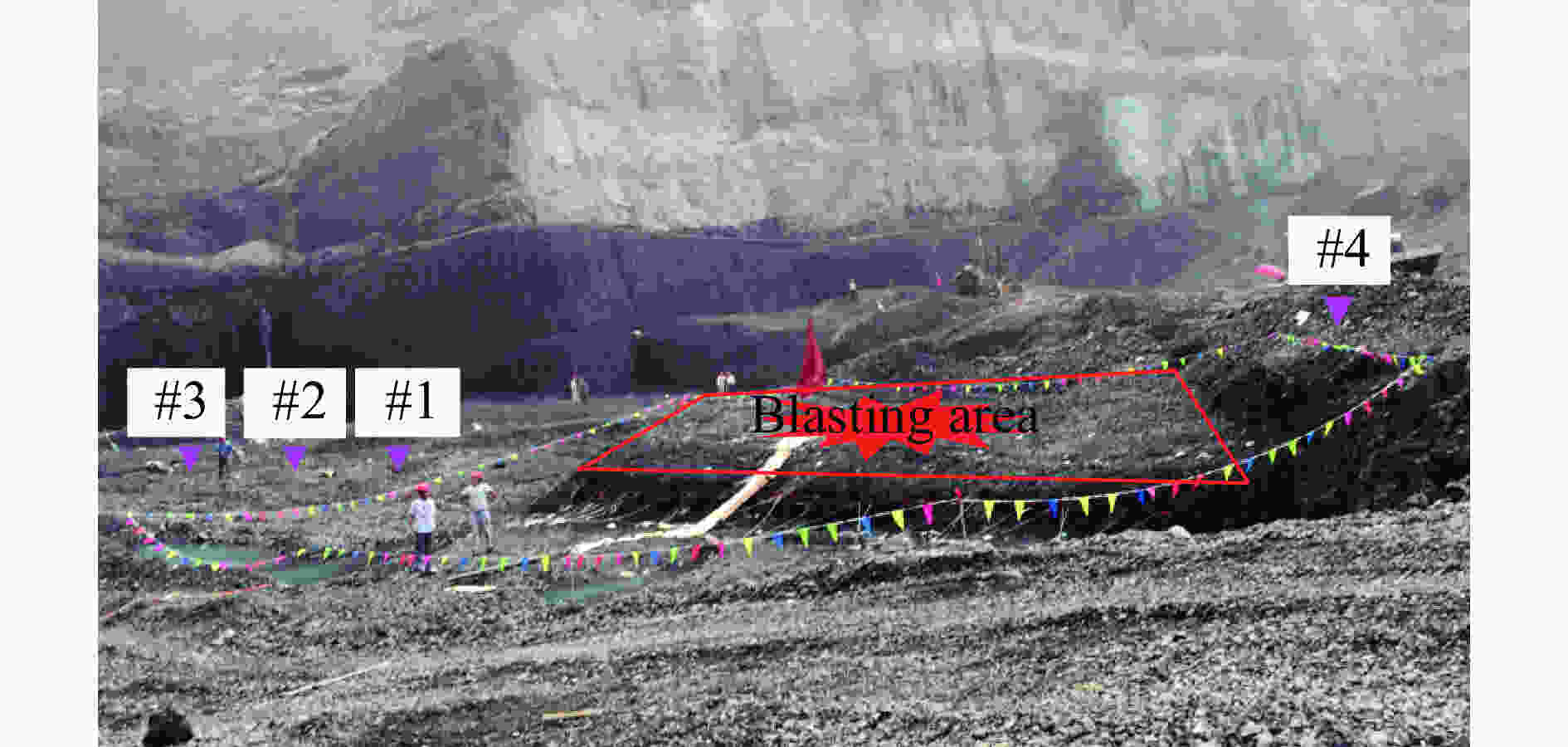

图 7 现场测点的布置

Figure 7. Layout of in-situ observation points

下载: 全尺寸图片幻灯片

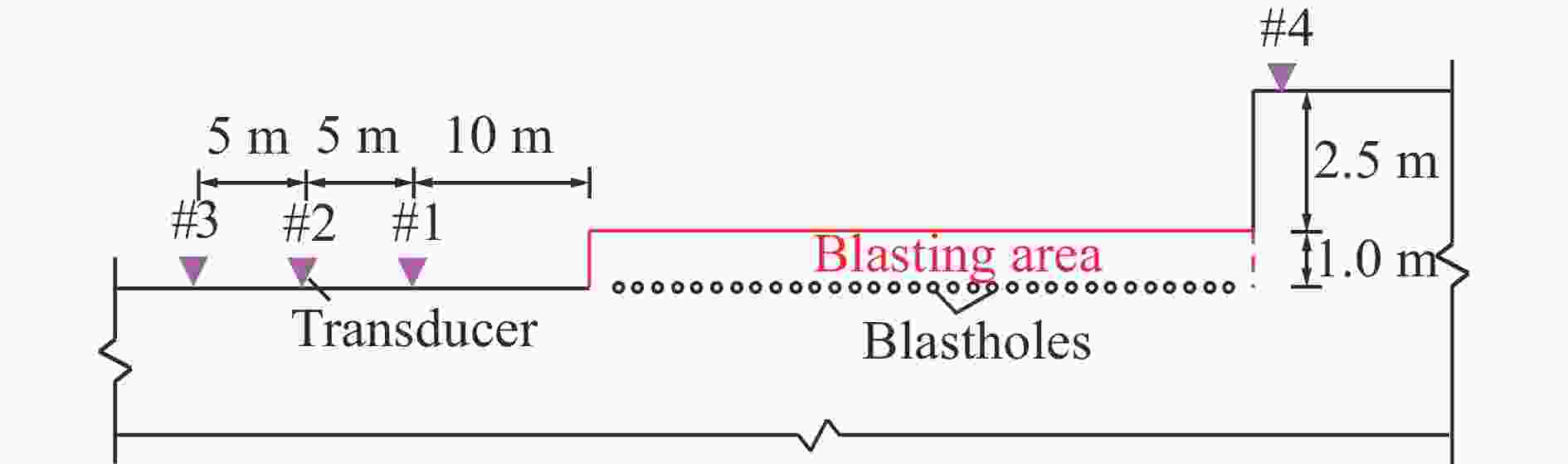

图 8 测点与炮孔的相对位置

Figure 8. Relative location of observation points and blastholes

下载: 全尺寸图片幻灯片

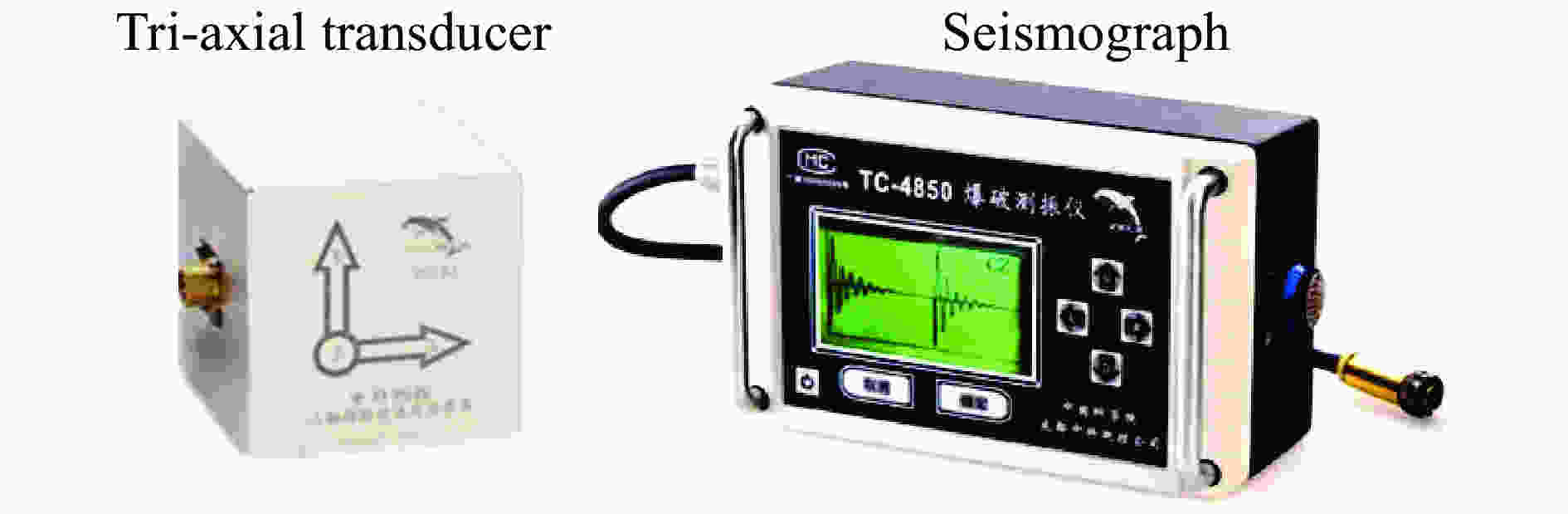

图 9 智能爆破振动监测系统

Figure 9. Intelligent blast vibration monitoring system

下载: 全尺寸图片幻灯片

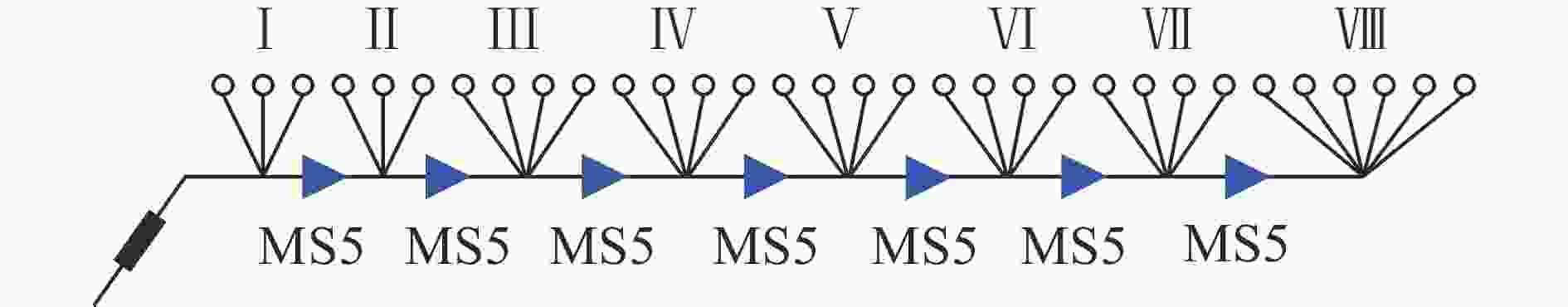

图 10 起爆网络

Figure 10. Initiation network

下载: 全尺寸图片幻灯片

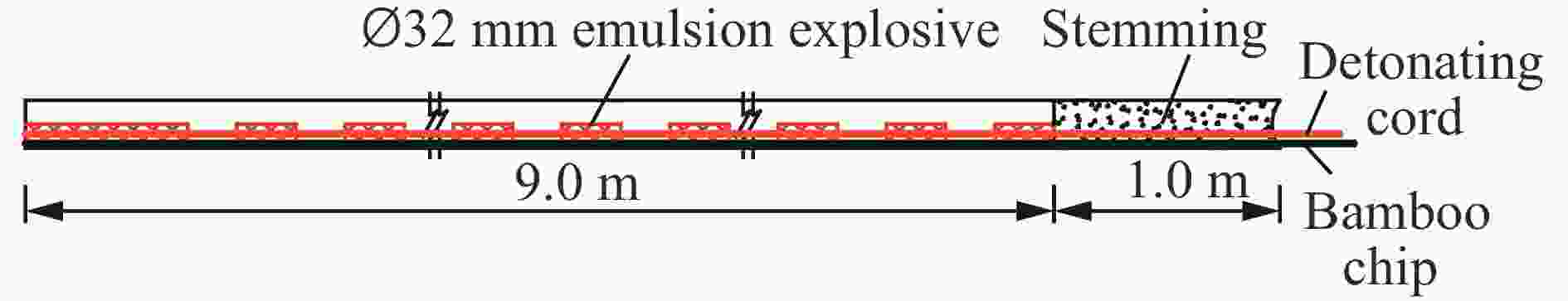

图 11 典型炮孔装药结构

Figure 11. Typical charging structure

下载: 全尺寸图片幻灯片

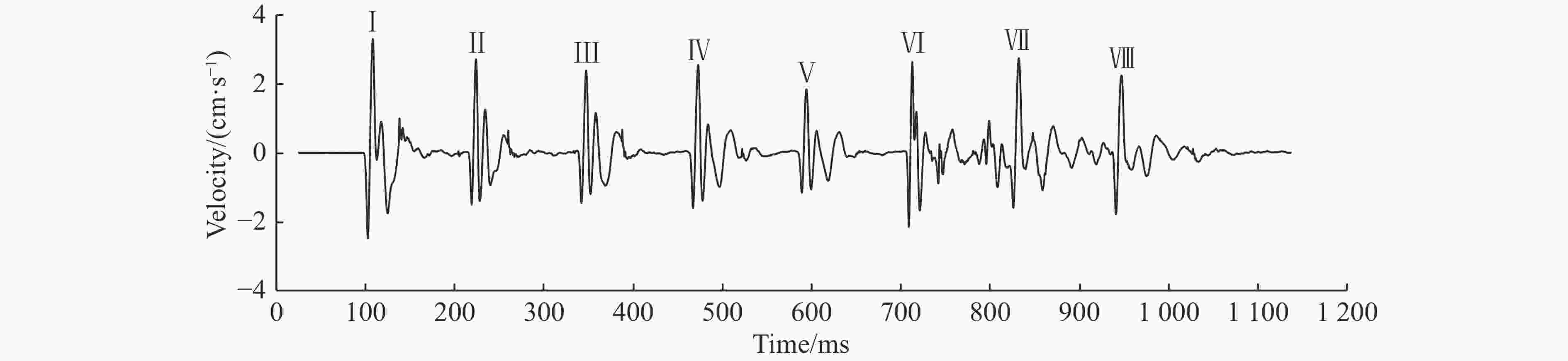

图 12 实测爆破振动时程

Figure 12. Measured blast vibration histories

下载: 全尺寸图片幻灯片

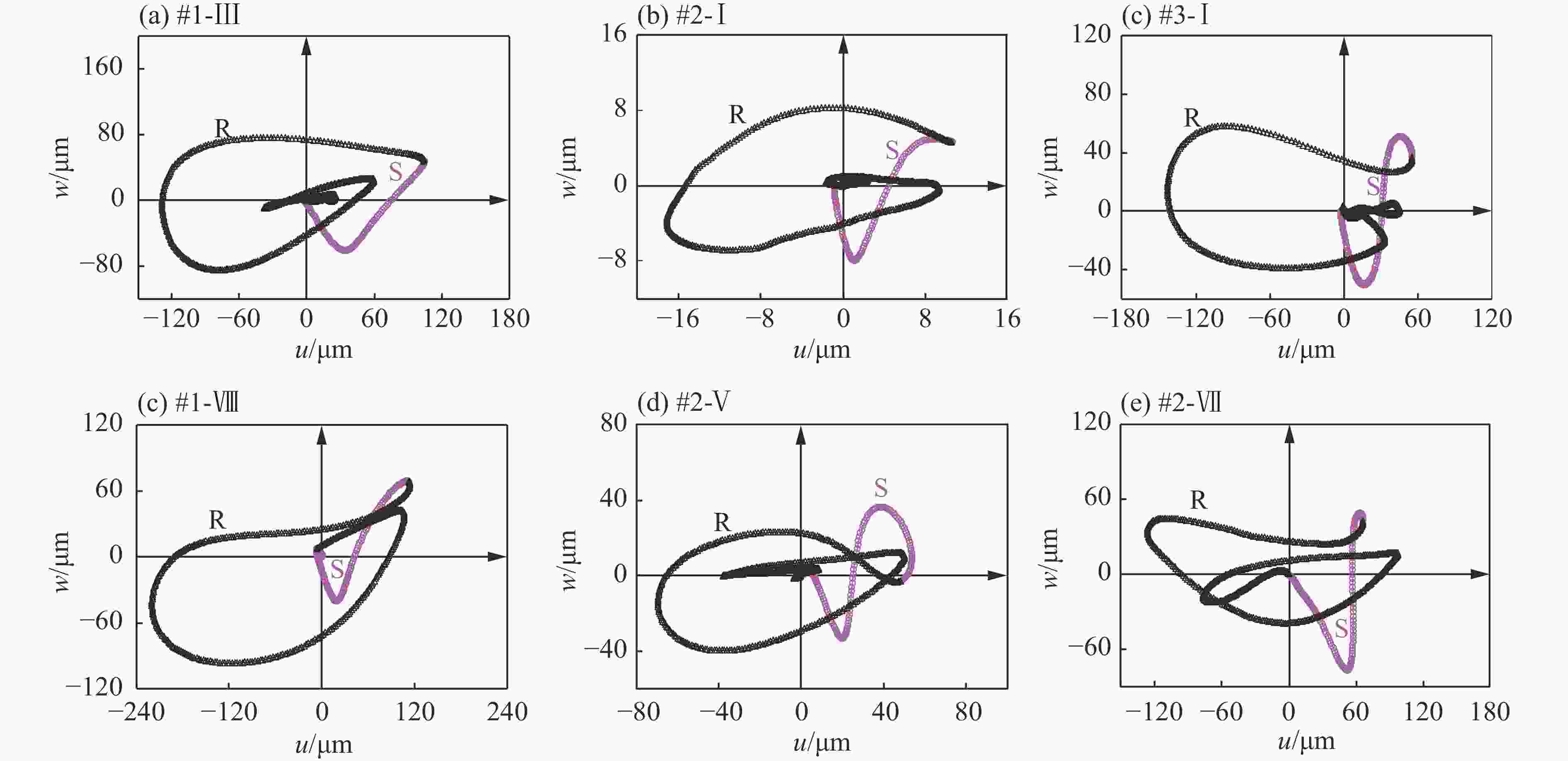

图 13 光爆孔同平面上的典型质点运动轨迹

Figure 13. Particle motion trajectories of smooth blastholes on the same plane

下载: 全尺寸图片幻灯片

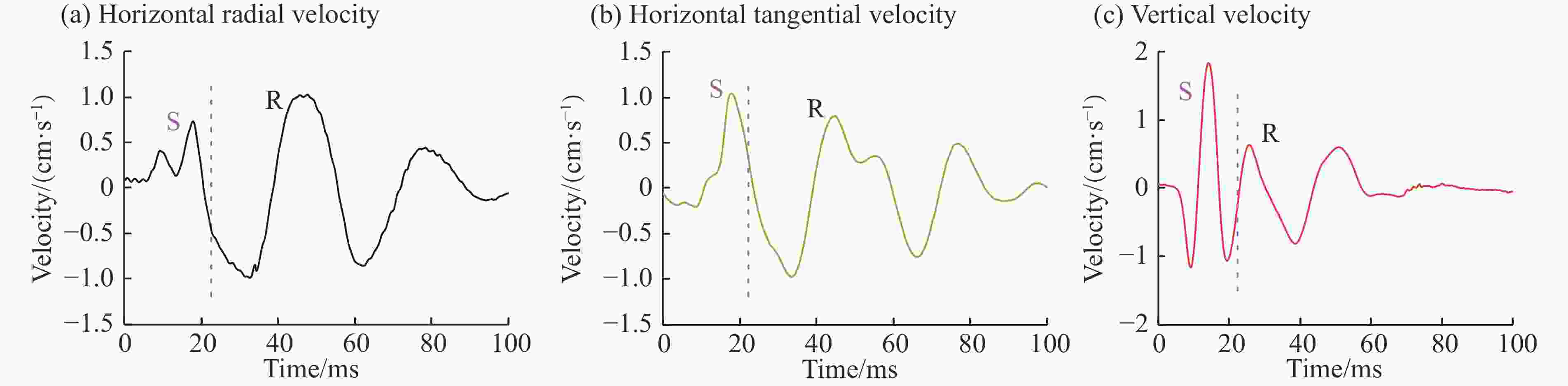

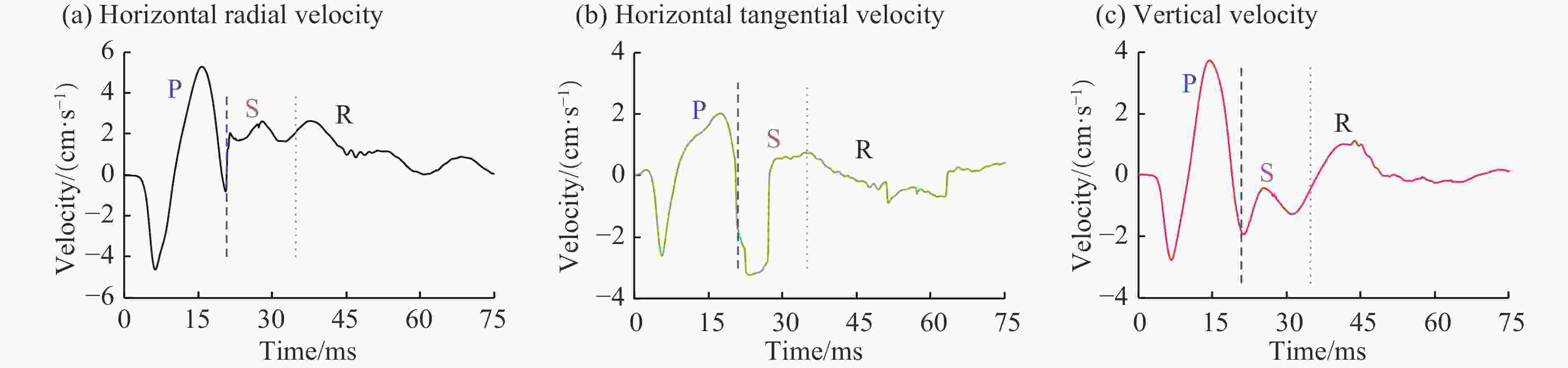

图 14 光爆孔同平面上的典型爆破振动速度

Figure 14. Blast vibration velocities of smooth blastholes on the same plane

下载: 全尺寸图片幻灯片

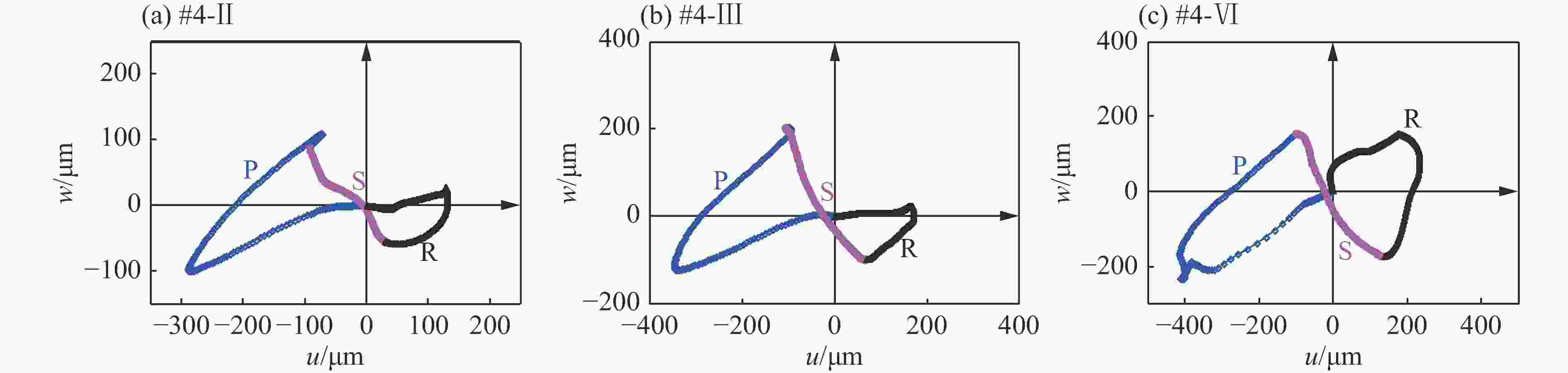

图 15 光爆孔平面外测点的典型质点运动轨迹

Figure 15. Particle motion trajectories of smooth blastholes outside the same plane

下载: 全尺寸图片幻灯片

图 16 光爆孔平面外测点的爆破振动速度

Figure 16. Blast vibration velocities of smooth blastholes outside the same plane

下载: 全尺寸图片幻灯片

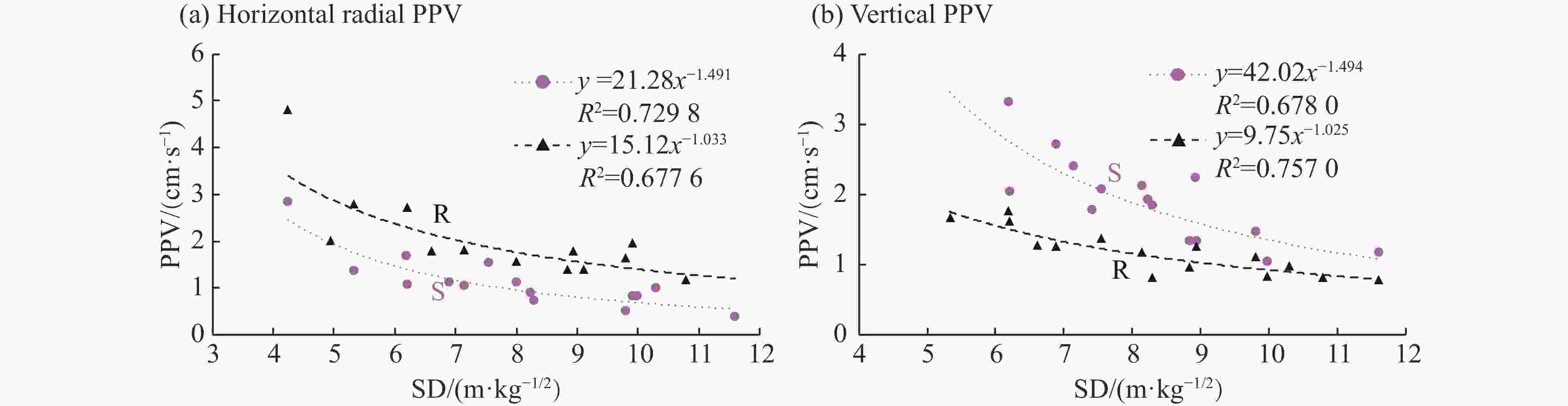

图 17 光爆孔同平面上测点S和R波PPV的比较

Figure 17. Comparison of PPVs associated with S and R waves of smooth blast-holes on the same plane

下载: 全尺寸图片幻灯片

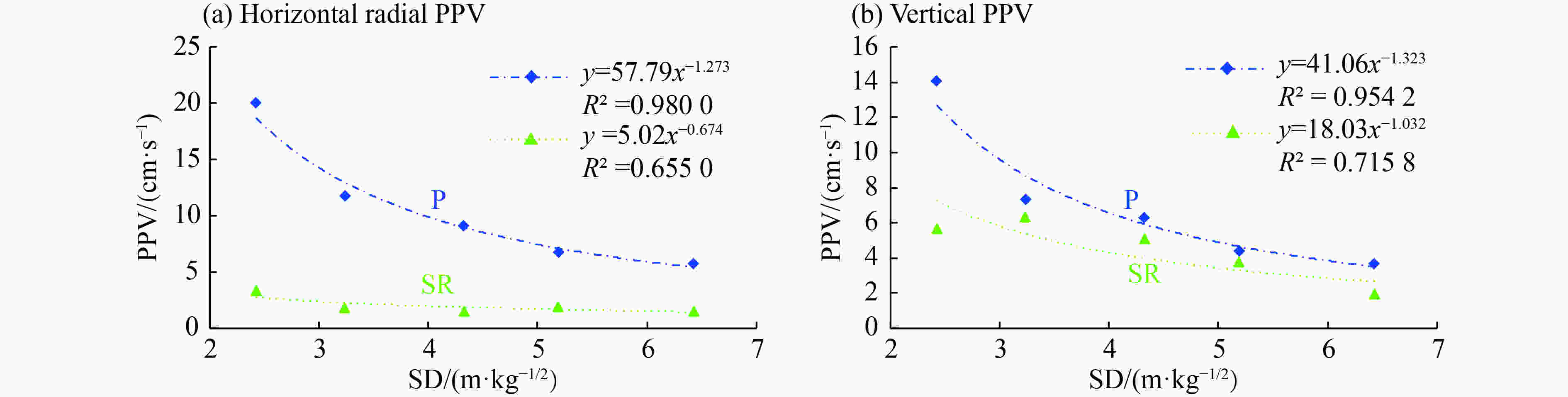

图 18 光爆孔平面外测点P波和SR波PPV的比较

Figure 18. Comparison of PPVs associated with P and SR waves of smooth blast-holes outside the same plane

下载: 全尺寸图片幻灯片

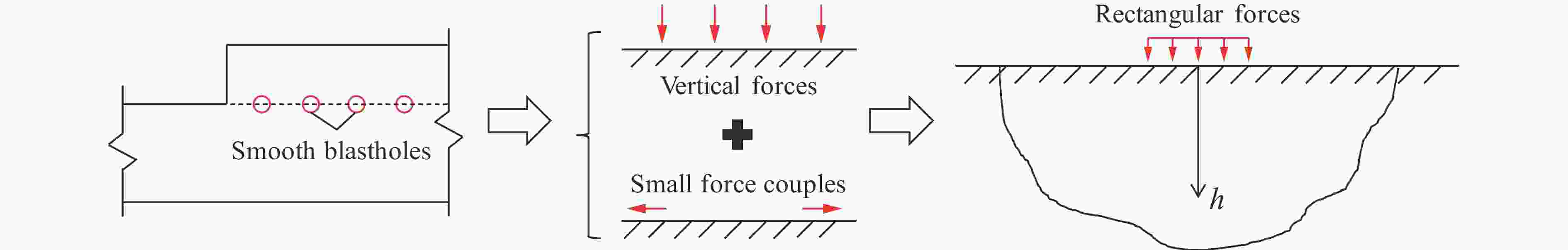

图 19 水平光爆的内在力学机理示意图

Figure 19. Illustration of mechanical mechanism of horizontal smooth blasting

下载: 全尺寸图片幻灯片

表 1 各段的爆破药量和测点距离

Table 1. Charge weight and distance of each blast

测点	水平距离/m
测点	Ⅰ	Ⅱ	Ⅲ	Ⅳ	Ⅴ	Ⅵ	Ⅶ	Ⅷ
#1	10.9	12.7	14.8	17.2	19.6	22.0	24.4	27.4
#2	15.9	17.7	19.8	22.2	24.6	27.0	29.4	32.4
#3	20.9	22.7	24.8	27.2	29.6	32.0	34.4	37.4
#4	18.3	16.5	14.4	12.0	9.6	7.2	4.8	1.8
药量/kg	6.6	6.6	7.7	7.7	8.8	8.8	8.8	13.2

下载: 导出CSV
