碳纤维叶片的鸟弹冲击响应及损伤

张景景; 谢洋; 刘志芳; 马小敏; 李世强

doi:10.11883/bzycj-2023-0130

碳纤维叶片的鸟弹冲击响应及损伤

doi: 10.11883/bzycj-2023-0130

太原理工大学机械与运载工程学院应用力学研究所，山西太原 030024

基金项目: 国家自然科学基金（12072219，12202303，12272254）

详细信息

作者简介:
张景景（1995－　），男，硕士，763374834@qq.com

通讯作者:
李世强（1986－　），男，博士，副教授，lishiqiang@tyut.edu.cn

中图分类号: O347.3
计量
- 文章访问数: 109
- HTML全文浏览量: 76
- PDF下载量: 118
- 被引次数: 0
出版历程
- 收稿日期: 2023-04-10
- 修回日期: 2023-06-27
- 网络出版日期: 2023-08-21
- 刊出日期: 2023-12-05

Bird impact response and damage of carbon fiber blades

Institute of Applied Mechanics, College of Mechanical and Vehicle Engineering, Taiyuan University of Technology, Taiyuan 030024, Shanxi, China

摘要

摘要: 通过实验和数值模拟研究了T300碳纤维叶片的抗冲击性能，探讨了碳纤维叶片的变形损伤模式及纤维层数对叶片抗冲击性能的影响。采用明胶鸟弹对不同层数碳纤维叶片开展了冲击实验，基于宏观连续损伤力学理论和Hashin失效准则针对碳纤维材料的失效形式编写了用户材料（vectorized user-material，VUMAT）子程序，采用光滑粒子流体动力学方法模拟明胶鸟弹，运用ABAQUS有限元软件对不同层数碳纤维叶片的动态响应过程进行了数值模拟，在鸟弹冲击过程中叶片变形、鸟流状态、冲击持续时间等方面，模拟结果与实验结果吻合较好。在鸟撞叶片初始冲击阶段，三种不同层数的叶片都有较大的变形，且叶片的变形模式相近；在冲击衰减阶段与恒流稳定阶段，不同层数碳纤维叶片的挠度与断裂位置都有较大差别。在鸟弹冲击叶片过程中，叶片以弯曲和扭转耦合变形模式为主，其中弯曲变形对其损伤破坏起主导作用。实验结果表明，碳纤维叶片损伤模式主要表现为：（1）叶根部边缘损伤，（2）叶根部完全断裂，（3）叶根部与叶顶部完全断裂。碳纤维抗冲击性能受层数的影响较大，通过实验和数值模拟对鸟弹冲击叶片进行机理分析，可为碳纤维叶片的工程设计和应用提供参考。
- 碳纤维叶片 /
- 鸟击 /
- 明胶鸟弹 /
- 动态响应 /
- 断裂损伤
Abstract: The impact resistance of T300 carbon fiber blades was studied through experiments and numerical simulations. The deformation damage pattern and the effect of the number of fiber layers on the impact resistance of the blade are studied. The impact experiment was conducted on the carbon fiber blades of different layers. Based on the macro-level continuum damage mechanics theory and the Hashin failure criterion, a vectorized user-material subroutine was written for the carbon fiber material, and the smooth particle hydrodynamics algorithm was used to simulate the gelatin projectiles. Numerical simulations of bird impact on the composite blades with different layers were carried out in ABAQUS/Explicit. The blade deformation process, bird flow state, and impact duration time of the experiments agree well with the numerical results. In the initial impact stage, the blade specimens have large deformations, and the deformation modes of the three carbon fiber blades with different layers are similar to each other. However, in the impact attenuation and constant flow stages, the deflection and fracture of different layers of carbon fiber blades are quite different. The damage mode of the 6-layer carbon fiber blade is complete fractures at the blade root and top, the damage mode of the 8-layer carbon fiber blade is root fracture, and there is no obvious macroscopic visible damage in the 10-layer carbon fiber blade. Under the gelatin projectile impact loading, the blade deformation mode is mainly coupled with the bending and torsional deformation process, and the bending deformation dominates the damage and failure process. Experimental results show that the damage pattern of carbon fiber blades is mainly classified as (1) edge damage at the root, (2) complete fracture at the root, and (3) complete fracture at the root and top edge. The impact resistance of carbon fiber is greatly influenced by the number of layers. The mechanism analysis of gelatin projectile impact on carbon fiber blades through experiments and numerical simulations can provide a reference for the engineering design and application of carbon fiber blades.
- carbon fiber blade /
- bird impact /
- gelatin projectiles /
- dynamic response /
- fracture damage

HTML全文

图 1 模具制作流程及叶片尺寸

Figure 1. Mould making process and dimensional parameters of the blade

下载: 全尺寸图片幻灯片

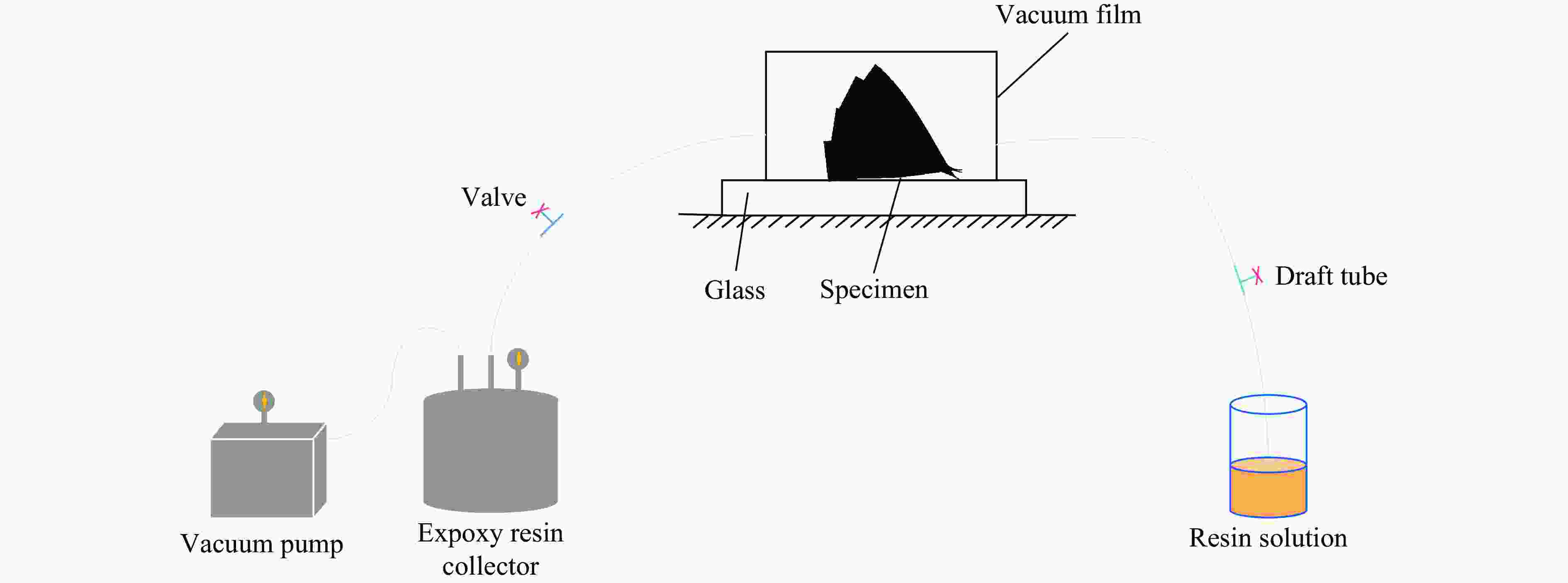

图 2 真空辅助树脂传递模压法叶片成型实验及工艺图

Figure 2. Blade forming experiment and process diagram of vacuum-assisted resin transfer molding method

下载: 全尺寸图片幻灯片

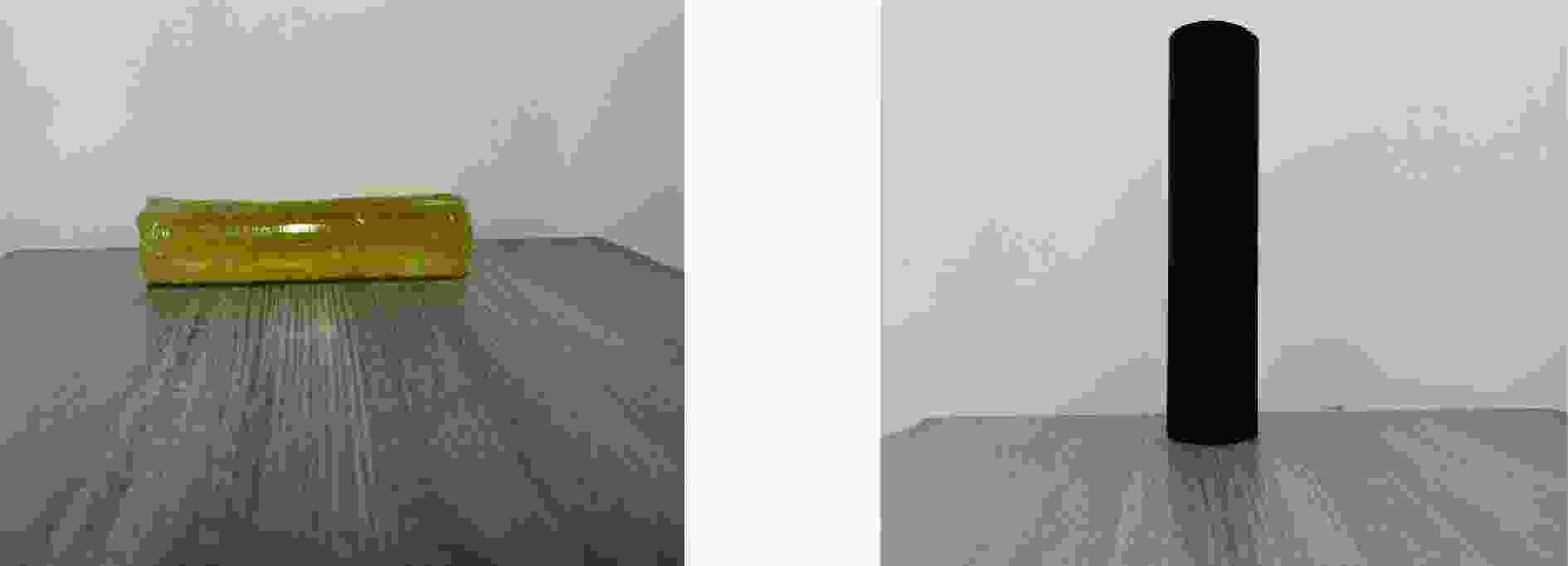

图 3 制备完成的原始柱状明胶弹体

Figure 3. Original columnar gelatin projectile

下载: 全尺寸图片幻灯片

图 4 实验装置图

Figure 4. Experimental setup diagram

下载: 全尺寸图片幻灯片

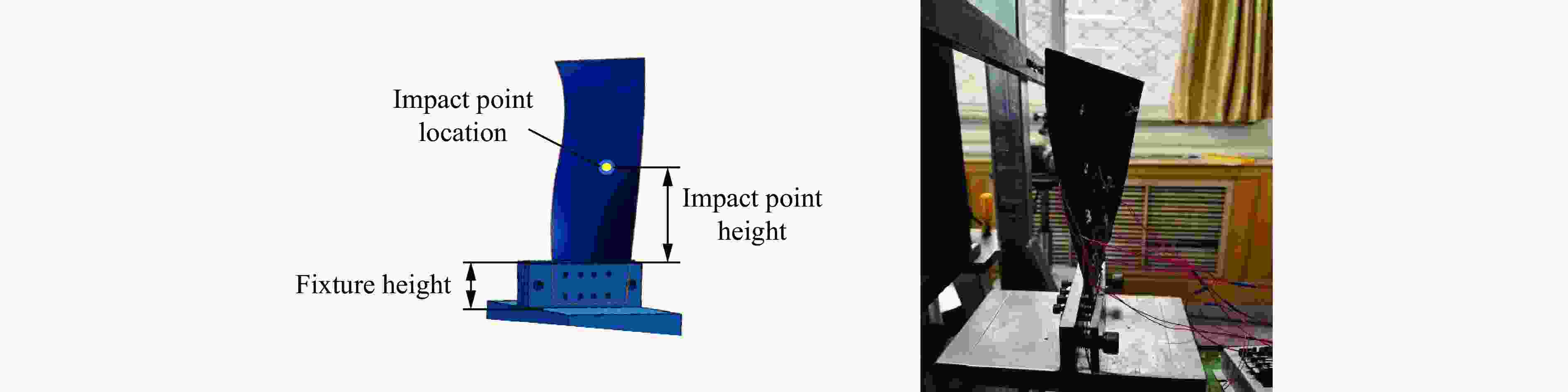

图 5 叶片固定、撞击位置示意图及实验图

Figure 5. Schematic and experimental diagram of blade fixation and impact position

下载: 全尺寸图片幻灯片

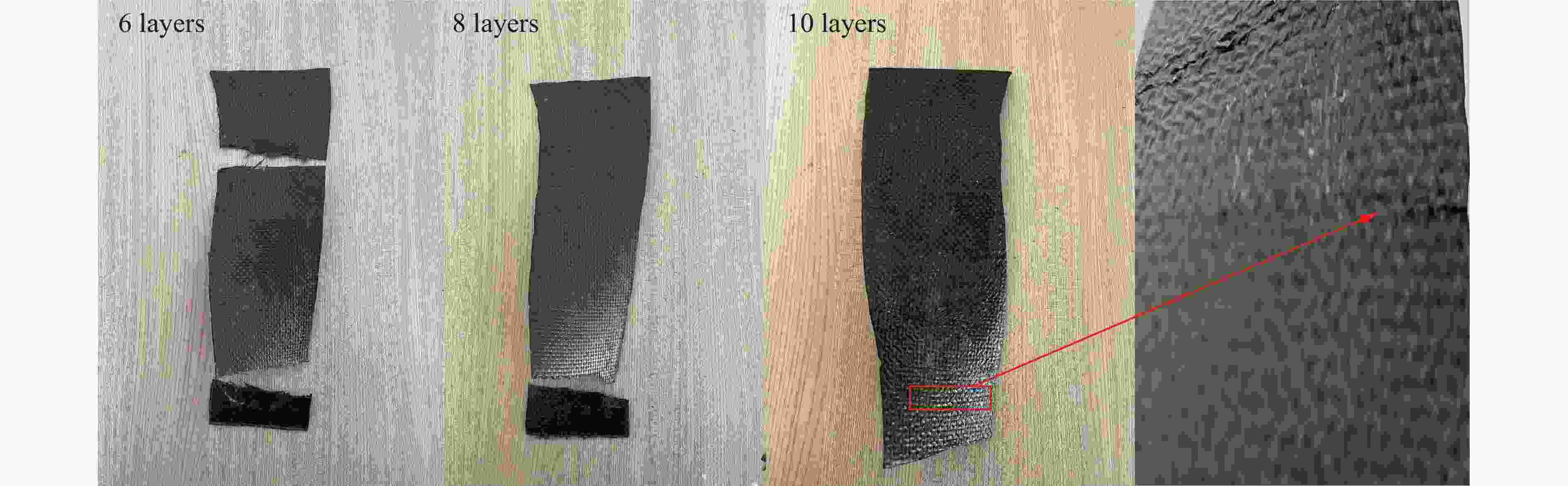

图 6 不同层数碳纤维叶片的宏观损伤形态

Figure 6. Macroscopic damage patterns of carbon fiber blades with different layer numbers

下载: 全尺寸图片幻灯片

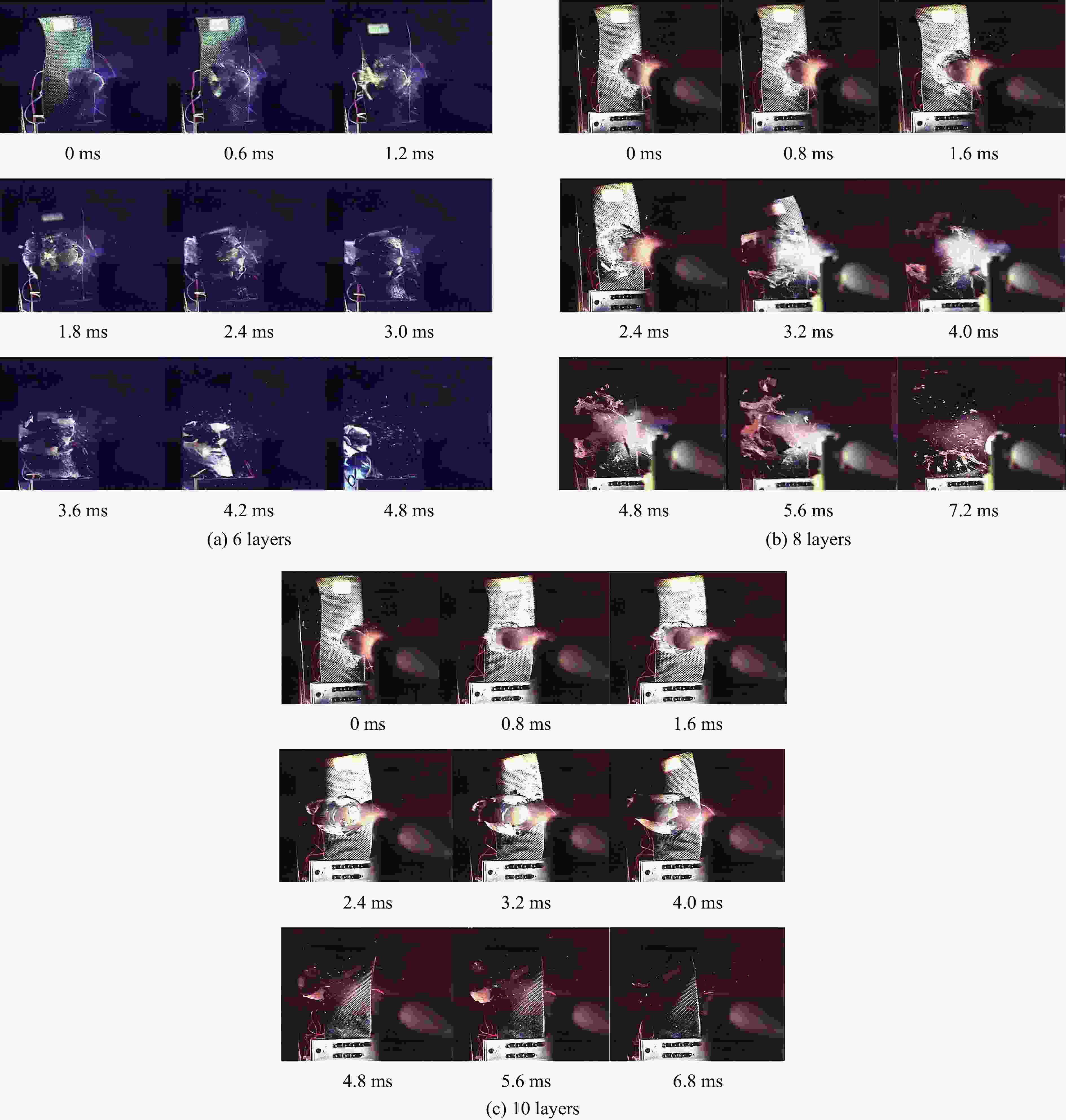

图 7 不同层数碳纤维叶片在鸟弹冲击下的模态变化

Figure 7. Modal changes of carbon fiber blades with different layer numbers under bird impact

下载: 全尺寸图片幻灯片

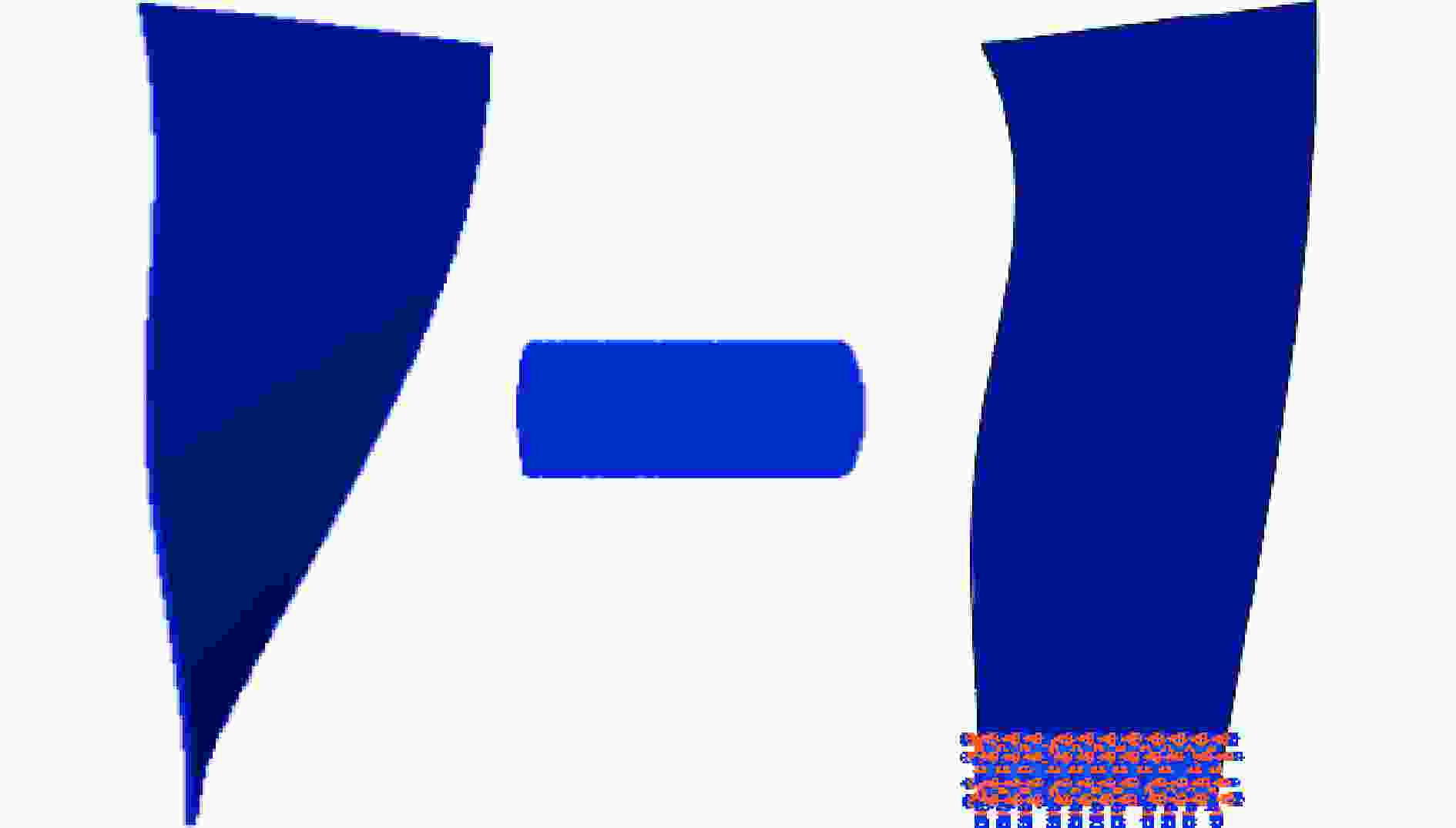

图 8 叶片鸟撞模型及边界条件

Figure 8. Blade bird collision model and boundary conditions

下载: 全尺寸图片幻灯片

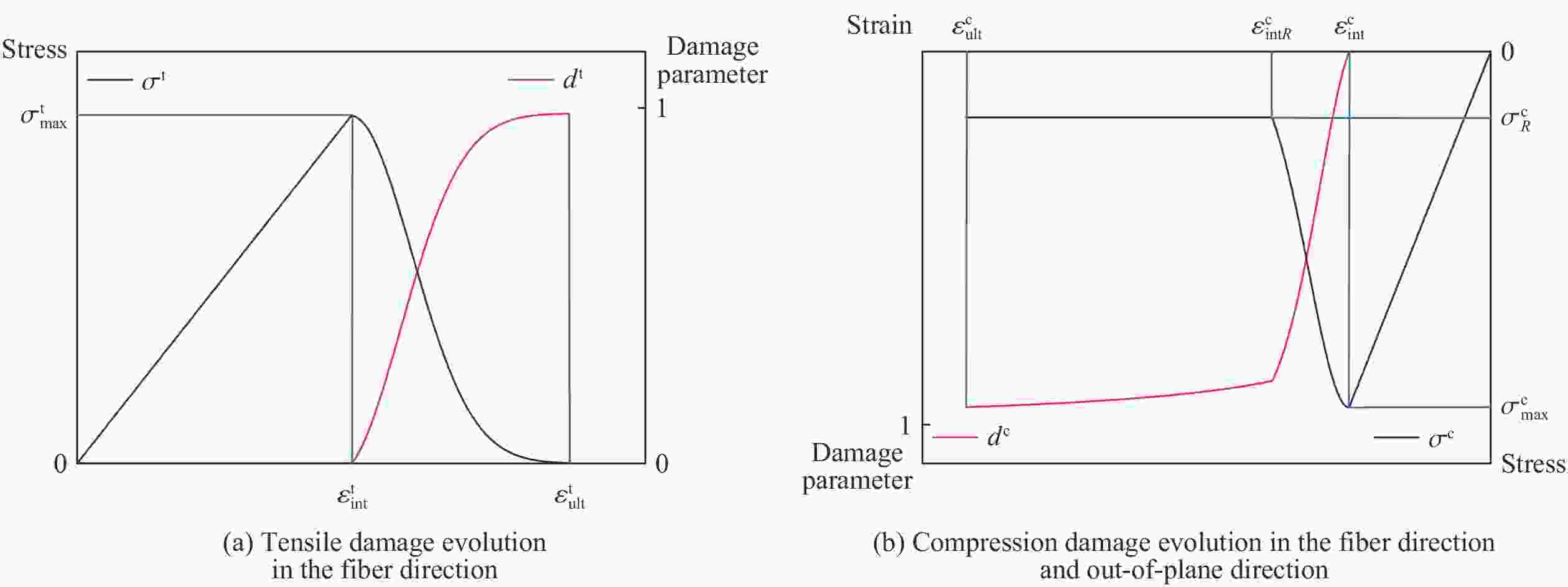

图 9 纤维损伤演化

Figure 9. Fiber damage evolution

下载: 全尺寸图片幻灯片

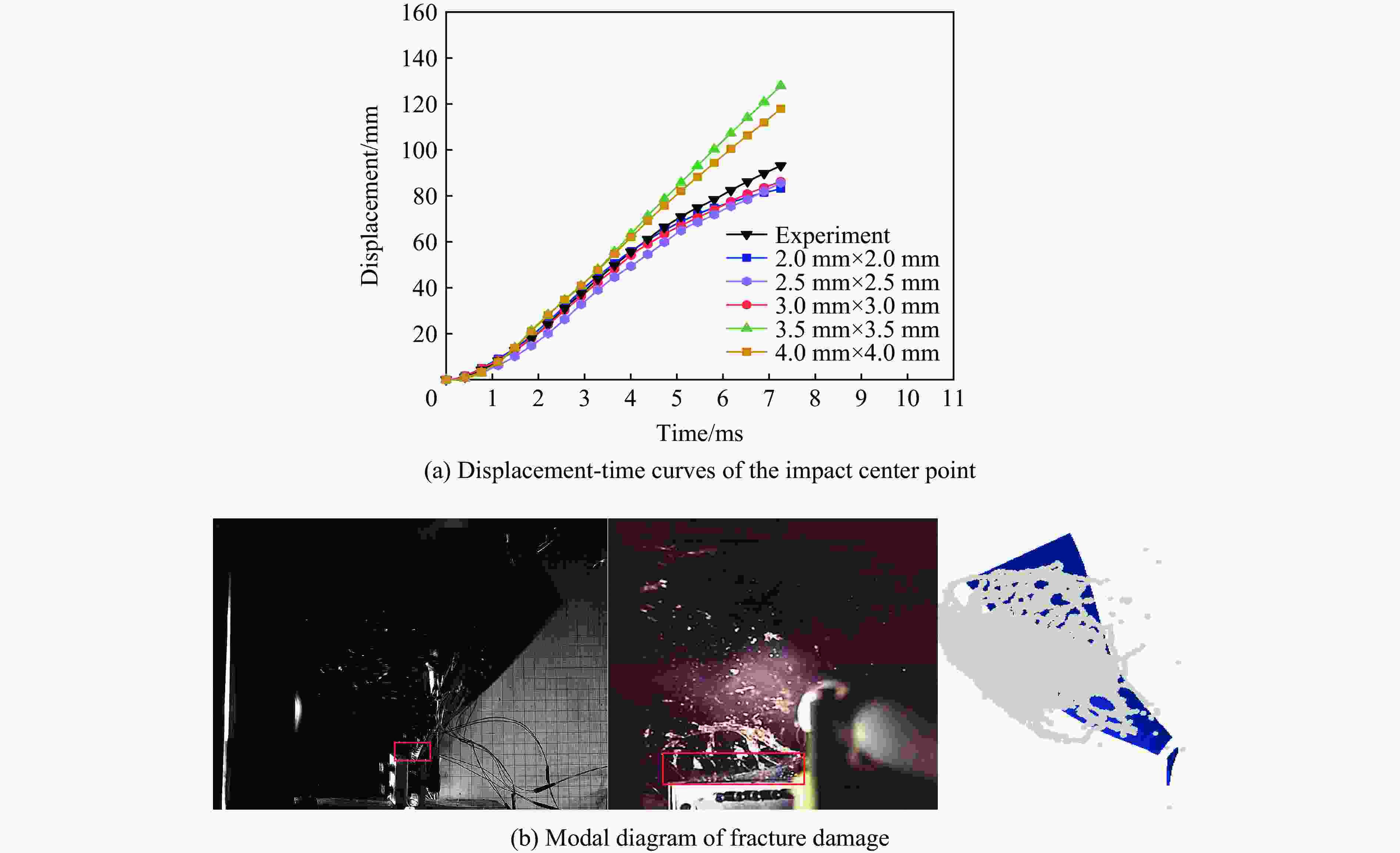

图 10 实验及有限元模拟结果对比图

Figure 10. Comparison of experimental and finite element simulation results

下载: 全尺寸图片幻灯片

图 11 鸟撞碳纤维叶片不同时刻的应力云图

Figure 11. Stress of a carbon fiber blade under bird impact at different times

下载: 全尺寸图片幻灯片

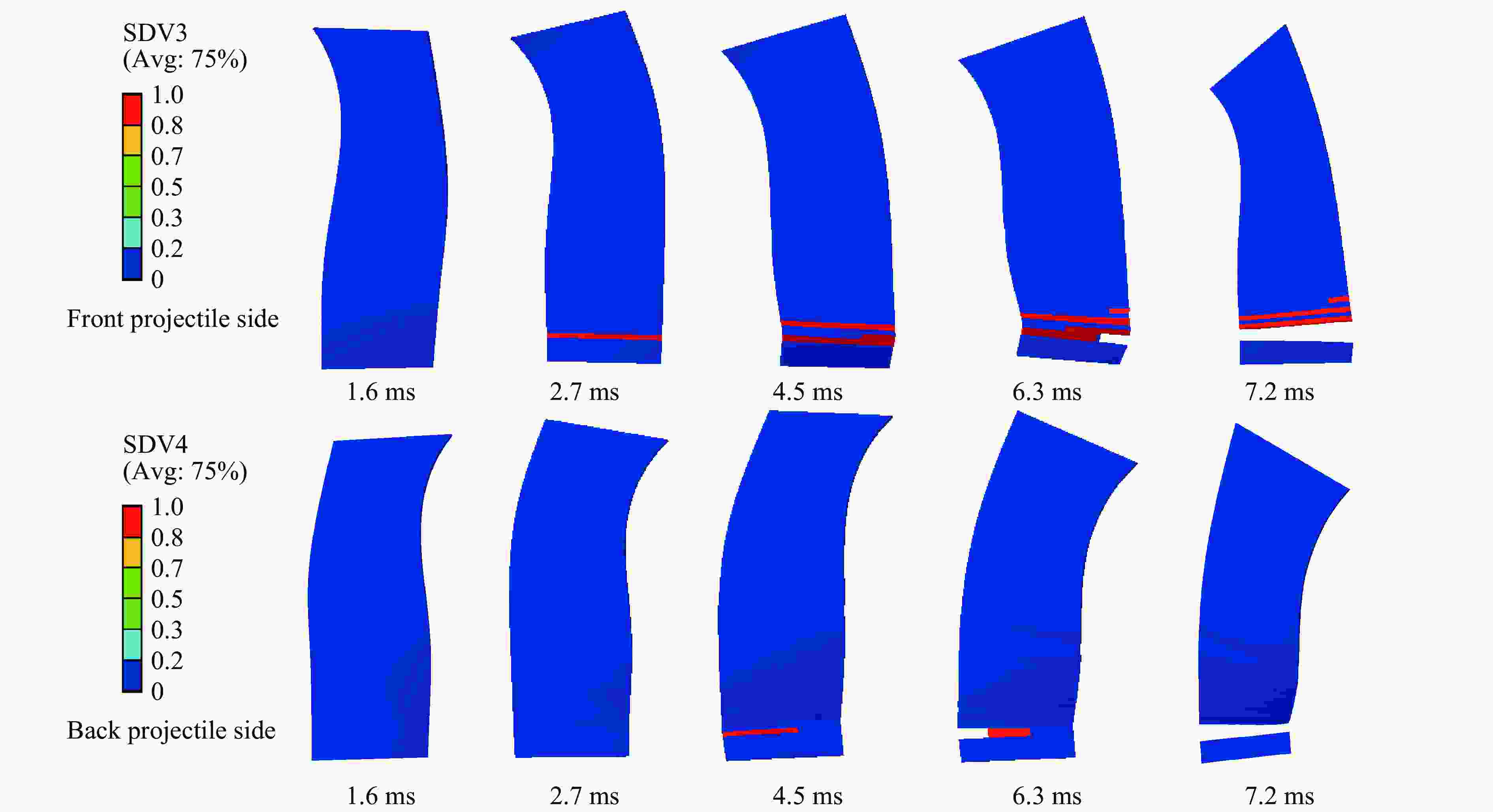

图 12 鸟撞碳纤维叶片不同时刻的纤维损伤云图

Figure 12. Fiber damage of the carbon fiber blade under bird impact at different times

下载: 全尺寸图片幻灯片

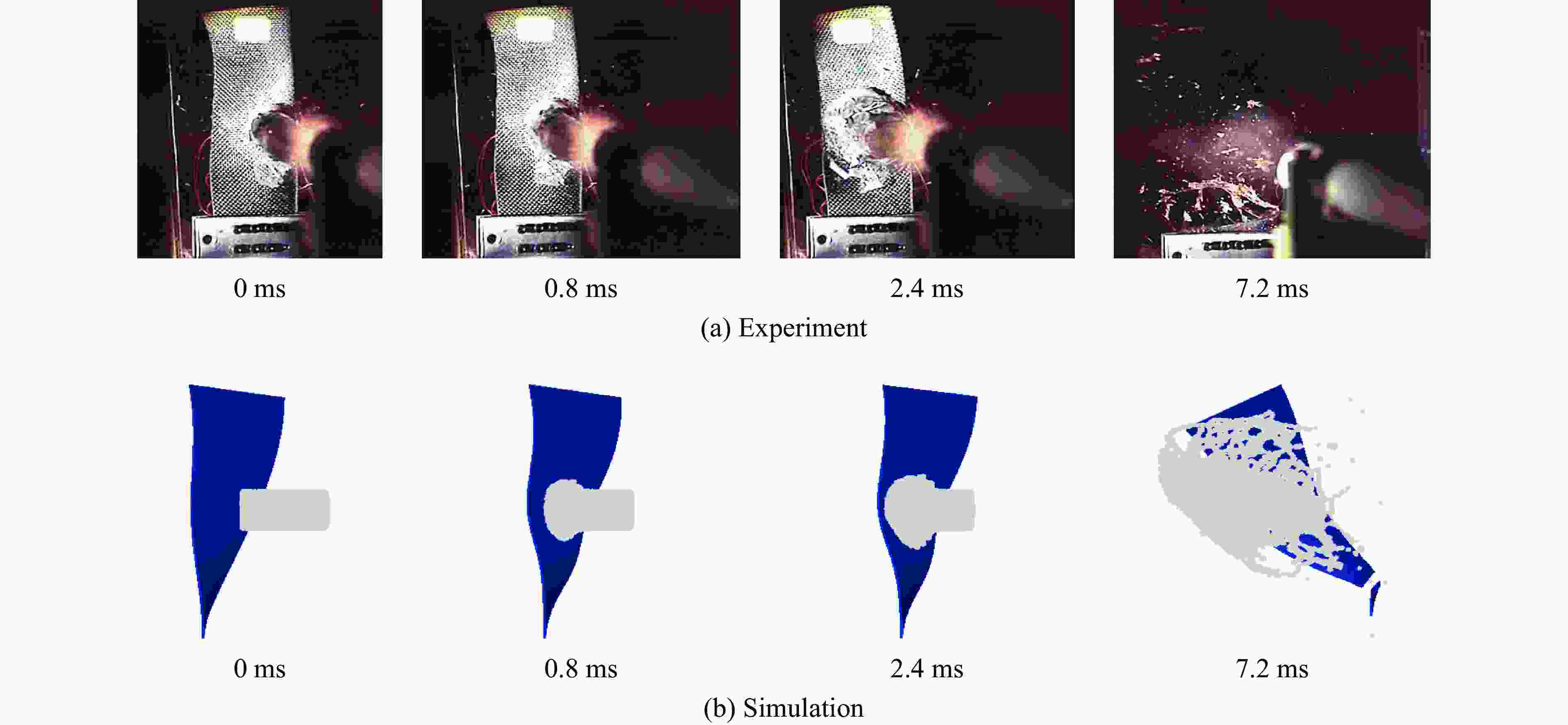

图 13 碳纤维叶片鸟撞过程

Figure 13. Fiber blade bird strike process

下载: 全尺寸图片幻灯片

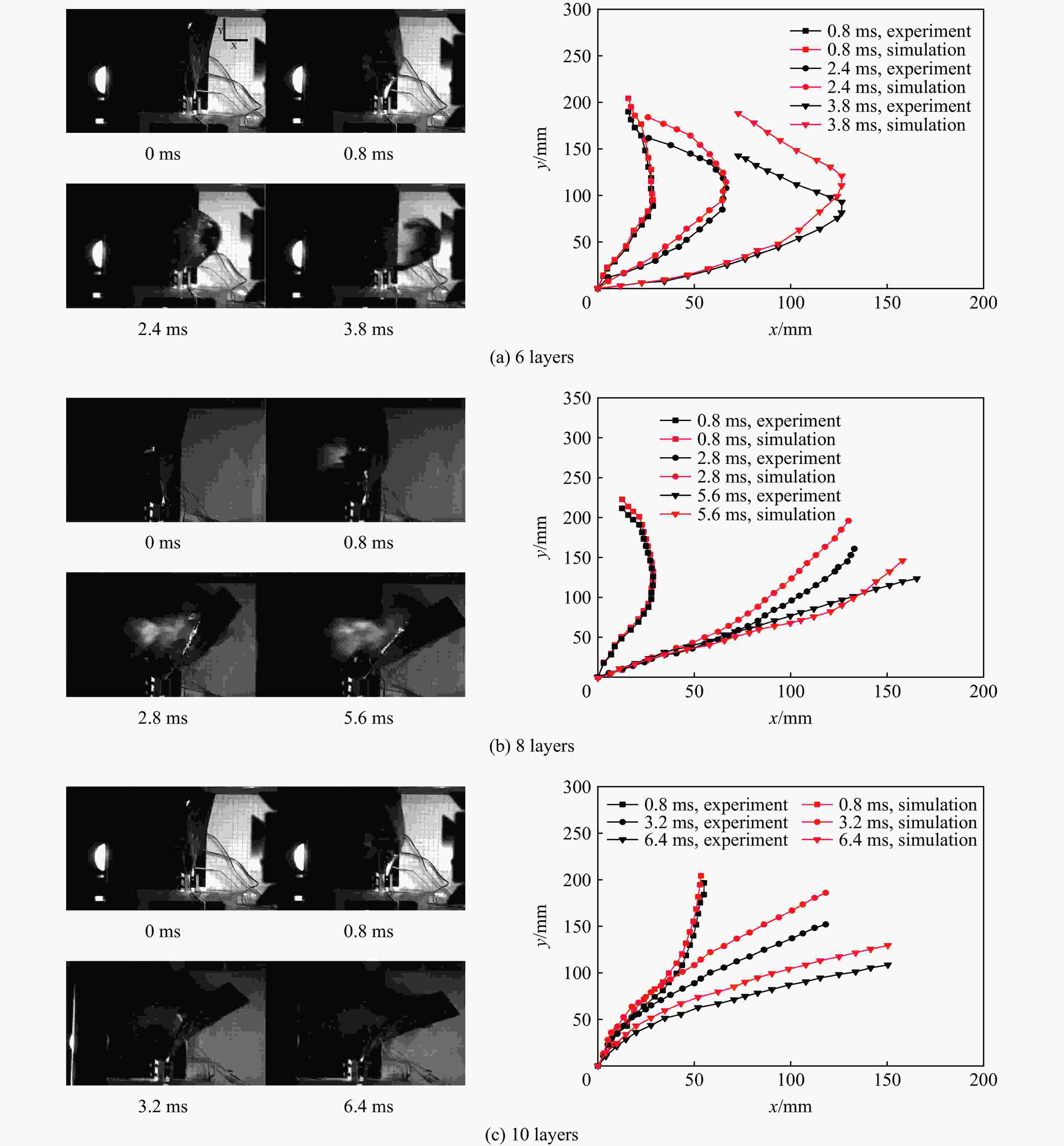

图 14 不同碳纤维层数叶片在不同时刻下的挠度变化

Figure 14. Deflection changes of carbon fiber blades with different layers at different times

下载: 全尺寸图片幻灯片

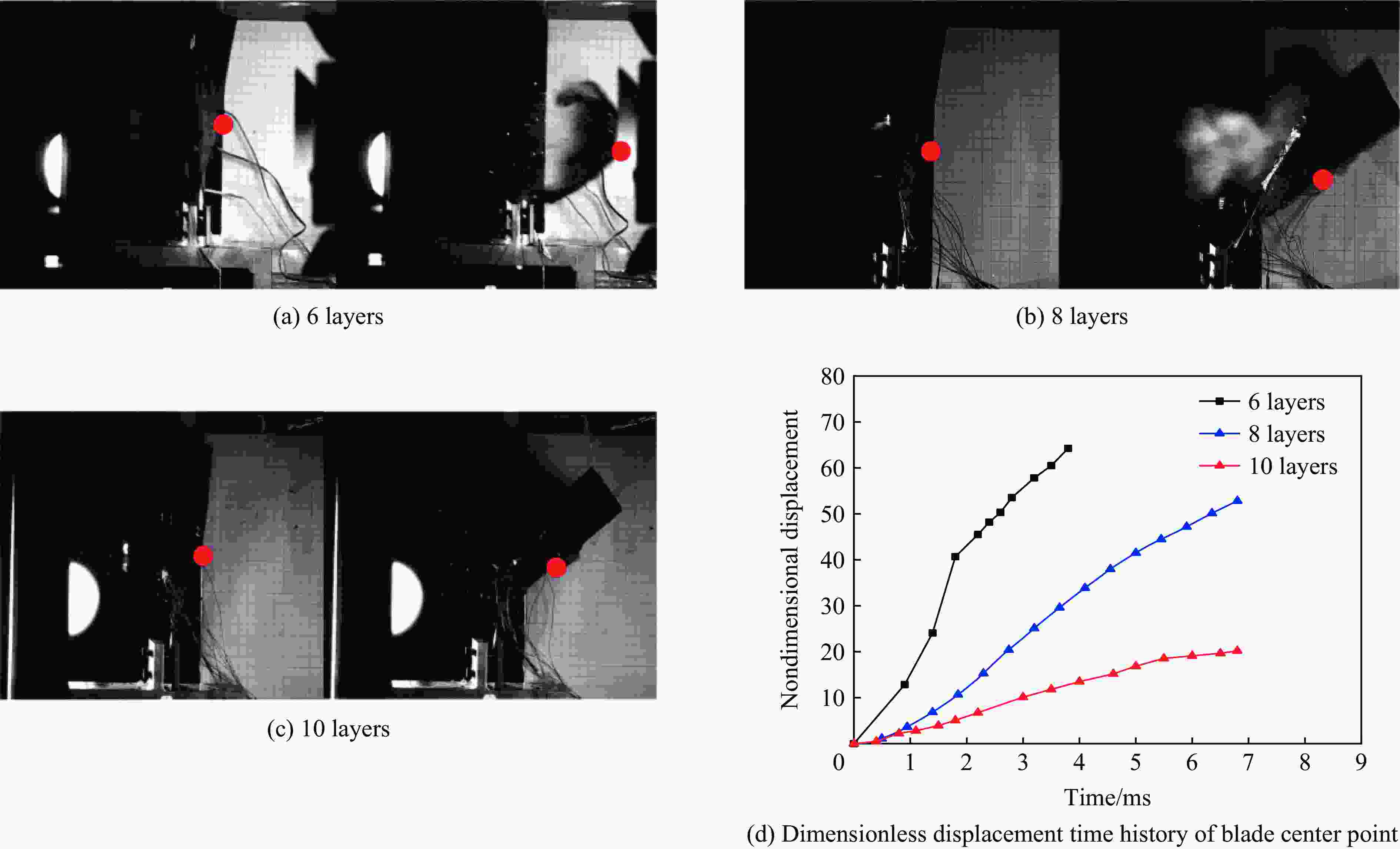

图 15 鸟撞碳纤维叶片冲击中心点的位移变化

Figure 15. Change of the displacement of the center point of a carbon fiber blade impacted by a bird

下载: 全尺寸图片幻灯片

表 1 碳纤维T300/914的材料参数^[16]

Table 1. Material parameters of T300/914^[16]

E₁/GPa	E₂/GPa	v₁₂	v₂₁	G/GPa	X_t/MPa	X_c/MPa	Y_t/MPa	Y_c/MPa	S_c/MPa
73.5	63	0.055	0.036	4.8	539.5	502	550	507	128

下载: 导出CSV

表 2 实验数据

Table 2. Experimental data

实验	冲击气压p/MPa	层数n	厚度h_t/mm	叶片质量M_p/g	鸟弹质量M_b/g	冲击速度v/（m·s⁻¹）	变形情况	损伤等级
1	0.1	6	0.94	43.4	83.1	31.5	根部与顶部断裂	10、15
2	0.1	6	0.95	44.1	83.4	34.2	根部与顶部断裂	10、15
3	0.1	6	0.93	43.1	83.0	32.8	根部与顶部断裂	10、15
4	0.1	8	1.22	55.4	83.5	33.5	根部断裂	15
5	0.1	8	1.25	56.0	83.2	32.7	根部断裂	15
6	0.1	8	1.23	55.7	83.0	31.9	根部断裂	15
7	0.1	10	1.56	72.0	83.0	33.6	根部有损伤	4
8	0.1	10	1.54	71.4	83.6	34.1	根部有损伤	4
9	0.1	10	1.57	72.5	83.0	33.4	根部有损伤	4

下载: 导出CSV
