退火态增材制造AlSi10Mg合金在极端条件下的力学行为

张权 陈剑斌 史同亚 汪小锋 南小龙 王永刚

张权, 陈剑斌, 史同亚, 汪小锋, 南小龙, 王永刚. 退火态增材制造AlSi10Mg合金在极端条件下的力学行为[J]. 爆炸与冲击. doi: 10.11883/bzycj-2024-0138
引用本文: 张权, 陈剑斌, 史同亚, 汪小锋, 南小龙, 王永刚. 退火态增材制造AlSi10Mg合金在极端条件下的力学行为[J]. 爆炸与冲击. doi: 10.11883/bzycj-2024-0138
ZHANG Quan, CHEN Jianbin, SHI Tongya, WANG Xiaofeng, NAN Xiaolong, WANG Yonggang. Mechanical behavior of additively manufactured AlSi10Mg alloy with annealing state under extreme conditions[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2024-0138
Citation: ZHANG Quan, CHEN Jianbin, SHI Tongya, WANG Xiaofeng, NAN Xiaolong, WANG Yonggang. Mechanical behavior of additively manufactured AlSi10Mg alloy with annealing state under extreme conditions[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2024-0138

退火态增材制造AlSi10Mg合金在极端条件下的力学行为

doi: 10.11883/bzycj-2024-0138
基金项目: 冲击波物理与爆轰物理全国重点实验室稳定支持项目(JCKYS2023212005);宁波市科技创新2025重大专项(2021Z099,2023Z005,2023Z012);新金属材料国家重点实验室开放基金(2023-Z04)
详细信息
    作者简介:

    张 权(1999- ),男,硕士研究生,2111081030@nbu.edu.cn

    通讯作者:

    汪小锋(1985- ),男,博士,讲师,wangxiaofeng@nbu.edu.cn

  • 中图分类号: O347.1

Mechanical behavior of additively manufactured AlSi10Mg alloy with annealing state under extreme conditions

  • 摘要: 采用激光选区熔化技术制备AlSi10Mg合金并对其进行去应力退火处理,利用光学显微镜、扫描电子显微镜和电子背散射衍射技术研究了合金的微观组织。为了解宽应变率和宽温度耦合作用对AlSi10Mg合金力学行为的影响,通过配有环境温箱的万能试验机和分离式霍普金森压杆分析了AlSi10Mg合金在极端条件下的力学行为。结果表明:AlSi10Mg合金具有精细的胞状-枝晶微观结构,主要包含α-Al相和Si相,经退火处理后,微观组织由断续的、呈链状分布的共晶Si颗粒构成。AlSi10Mg合金在室温、应变率为0.002~4 800 s−1时,呈现出应变率强化效应,且在不同的应变率范围内具有不同的敏感性;在173 K下具有更高的屈服强度和流动应力;当温度为173~243 K时,流动应力对温度不敏感;而温度为293~573 K时,温度敏感性显著提高,合金软化效应随着温度的升高而加剧。基于实验结果拟合得到修正的J-C本构模型并对其进行了验证,该模型可较好地反映材料在高、低温和不同应变率下的力学行为。

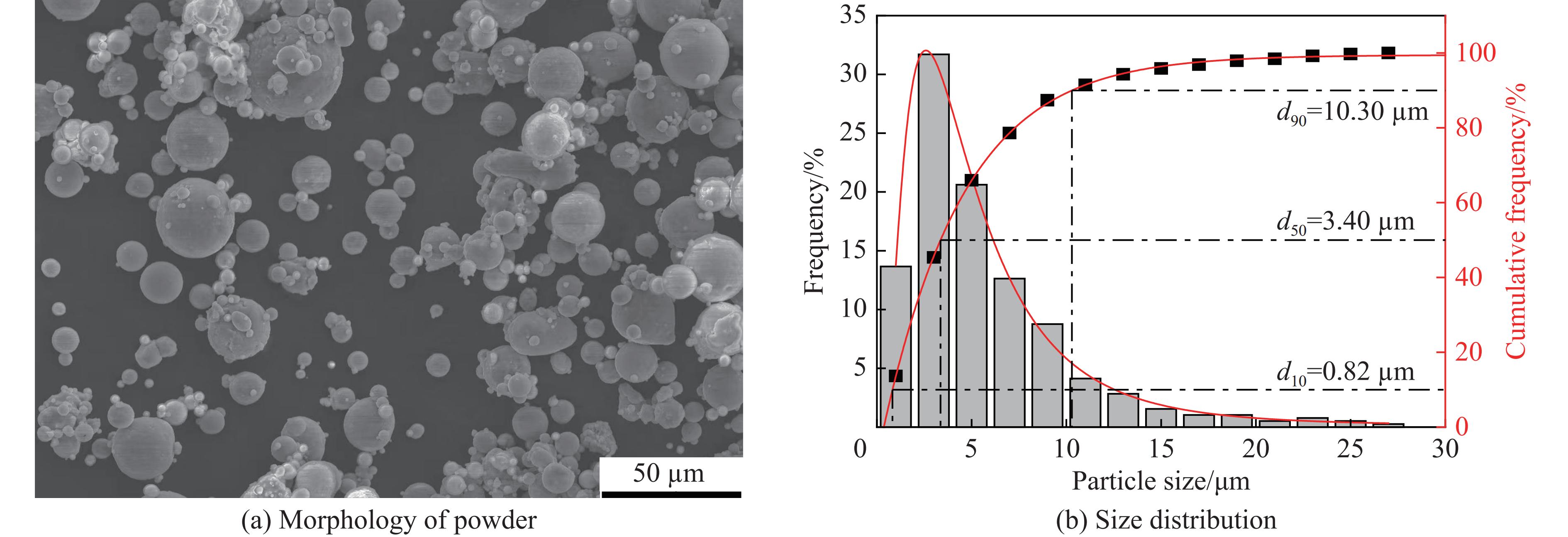

  • 图  1  AlSi10Mg粉末和粒径分布

    Figure  1.  AlSi10Mg powder and statistical analysis

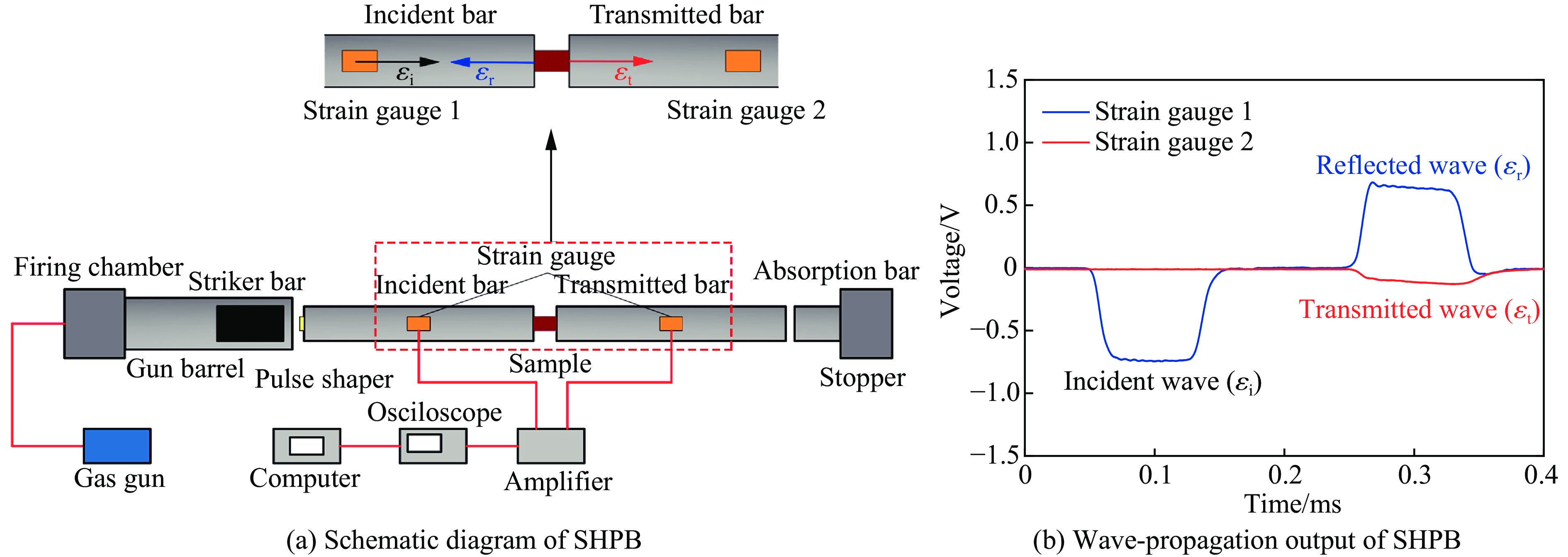

    图  2  SHPB装置示意图及输出波形

    Figure  2.  Schematic diagram of SHPB and wave-propagation output

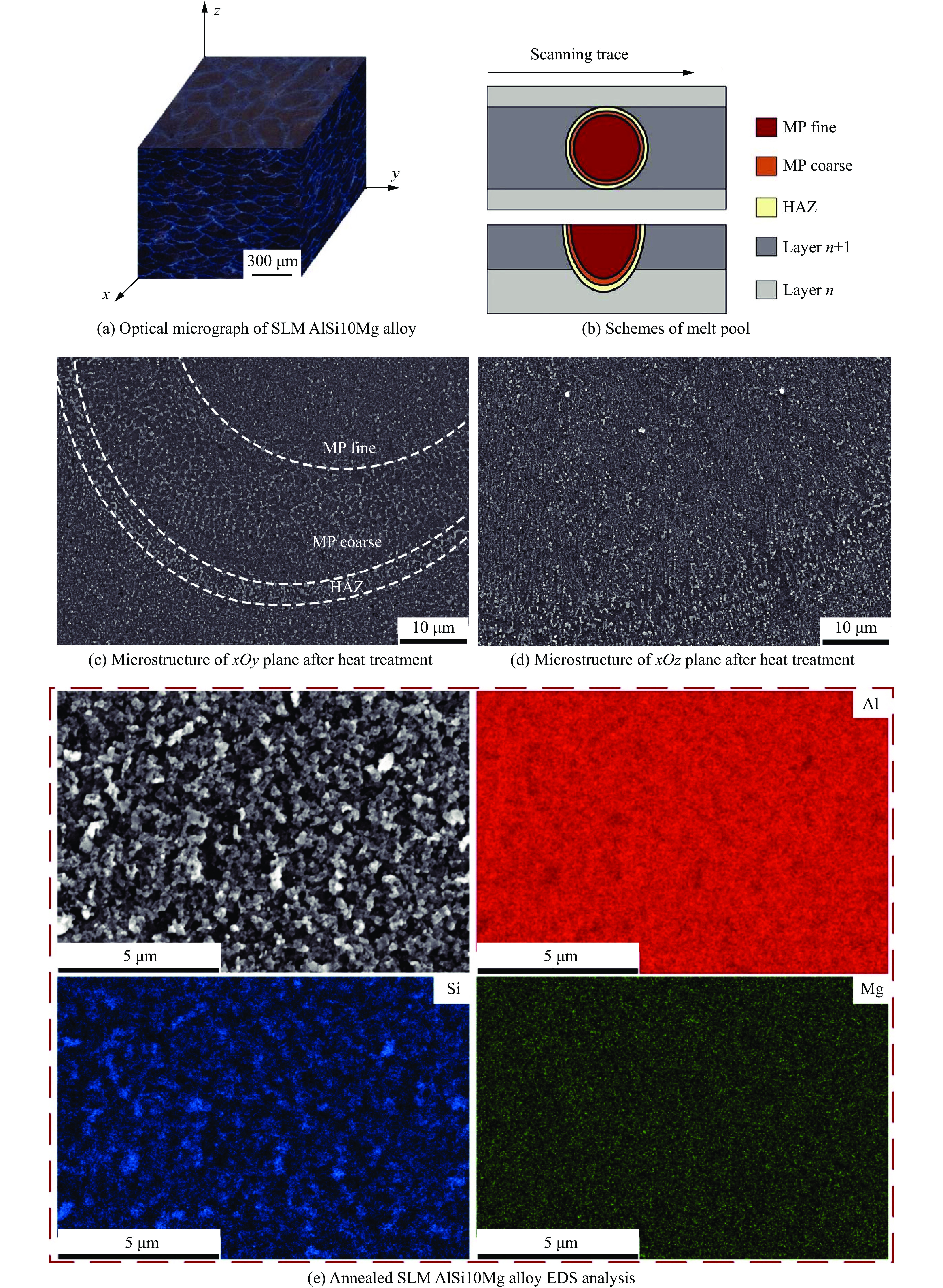

    图  3  退火态SLM AlSi10Mg合金xOy面和xOz面微观组织图像

    Figure  3.  Microstructure of xOy plane and xOz plane of SLM AlSi10Mg alloy after annealing treatment

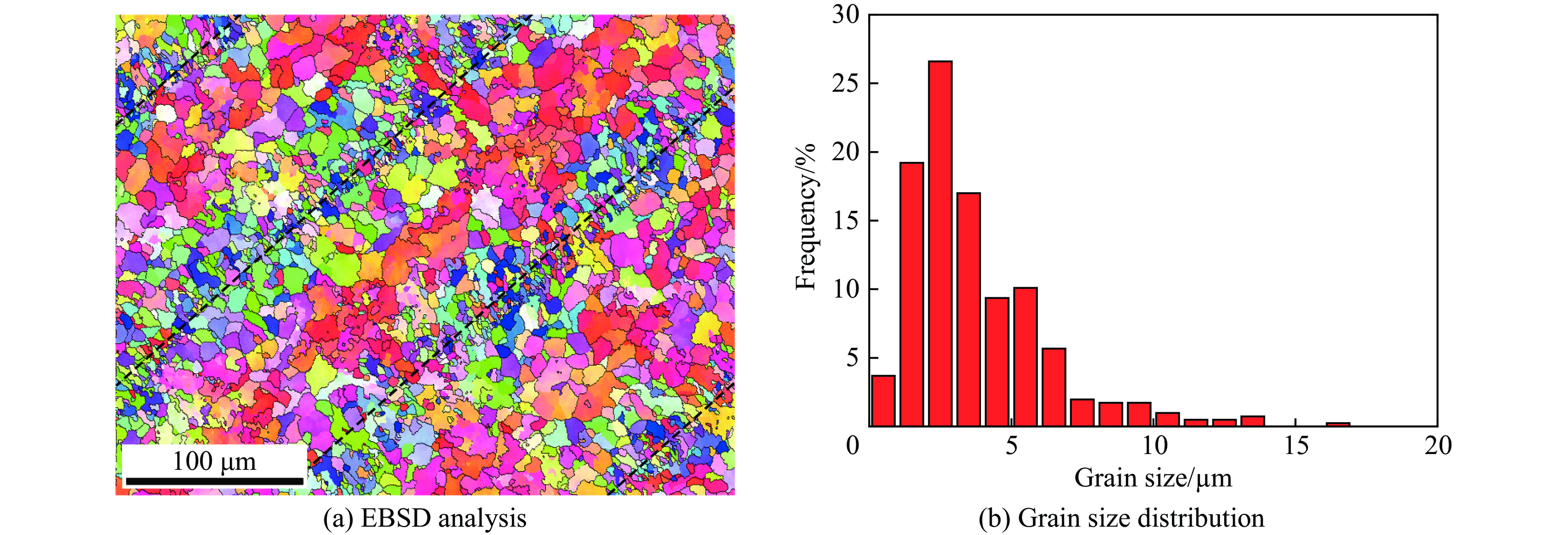

    图  4  退火态SLM AlSi10Mg合金的EBSD谱

    Figure  4.  Annealed SLM AlSi10Mg alloy EBSD analysis

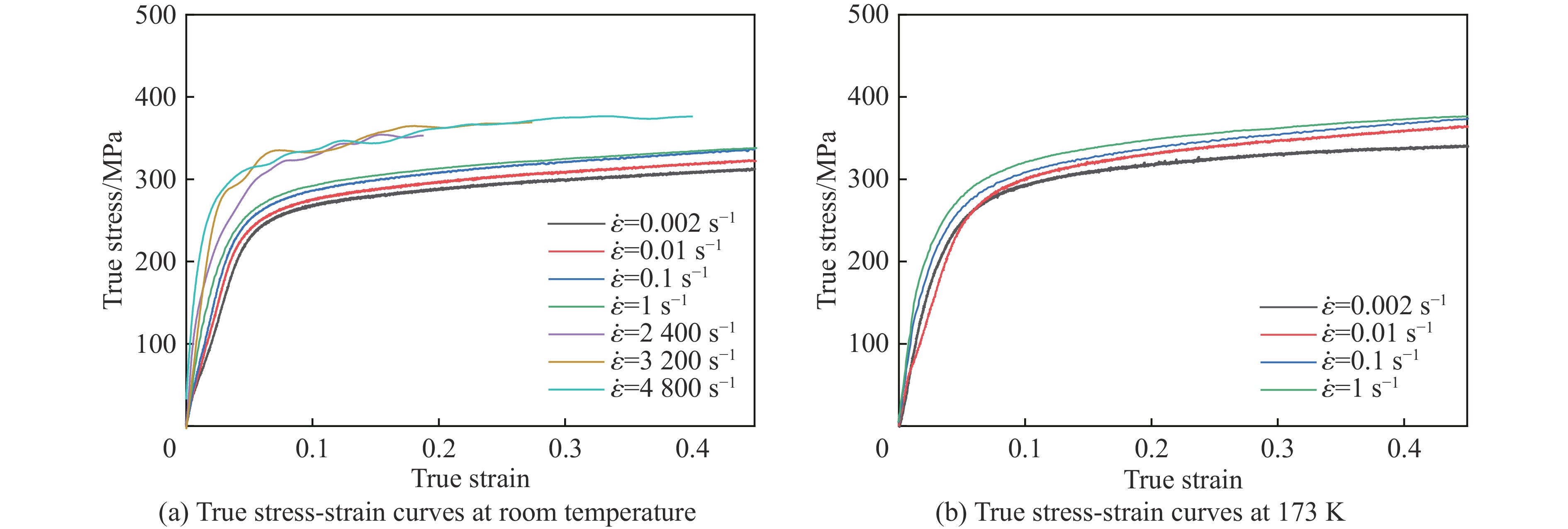

    图  5  室温及173 K、不同应变率下的真实应力-应变曲线

    Figure  5.  True stress-strain curves under different strain rates at room temperature and 173 K

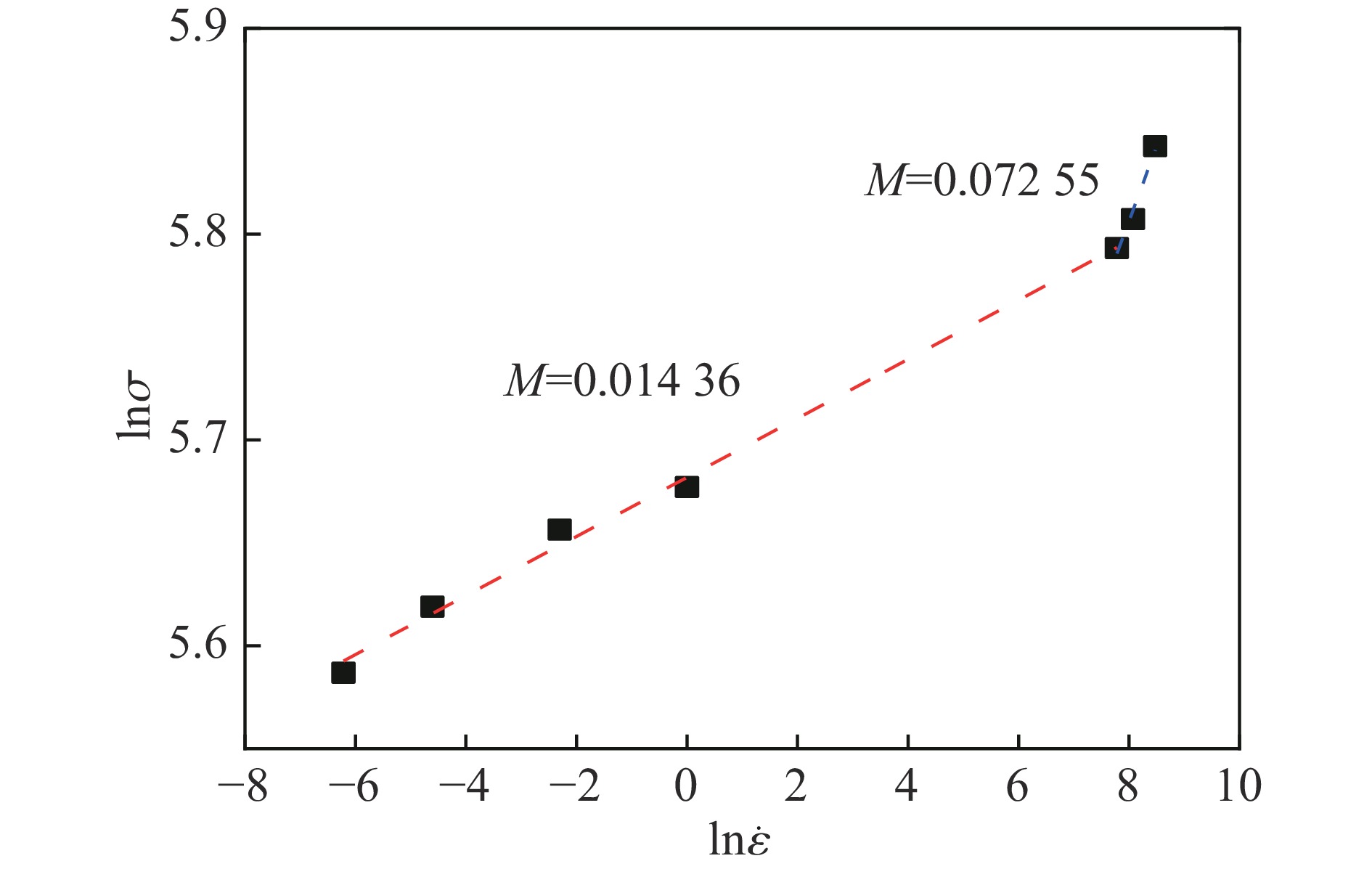

    图  6  室温下ɛ=0.1时不同应变率与流动应力的关系

    Figure  6.  Relationship between different strain and flow stress at room temperature when ɛ=0.1

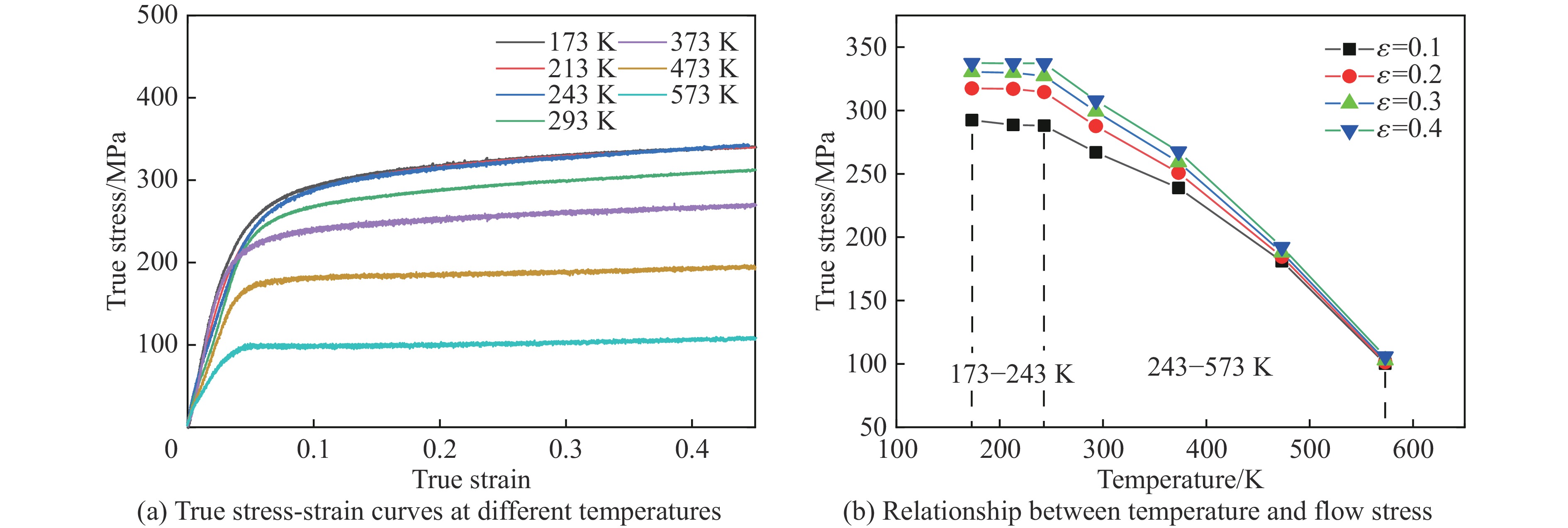

    图  7  0.002 s−1不同温度下的真实应力-应变曲线和温度与流动应力的关系

    Figure  7.  True stress-strain curves at different temperatures under 0.002 s−1 and relationship between temperature and flow stress

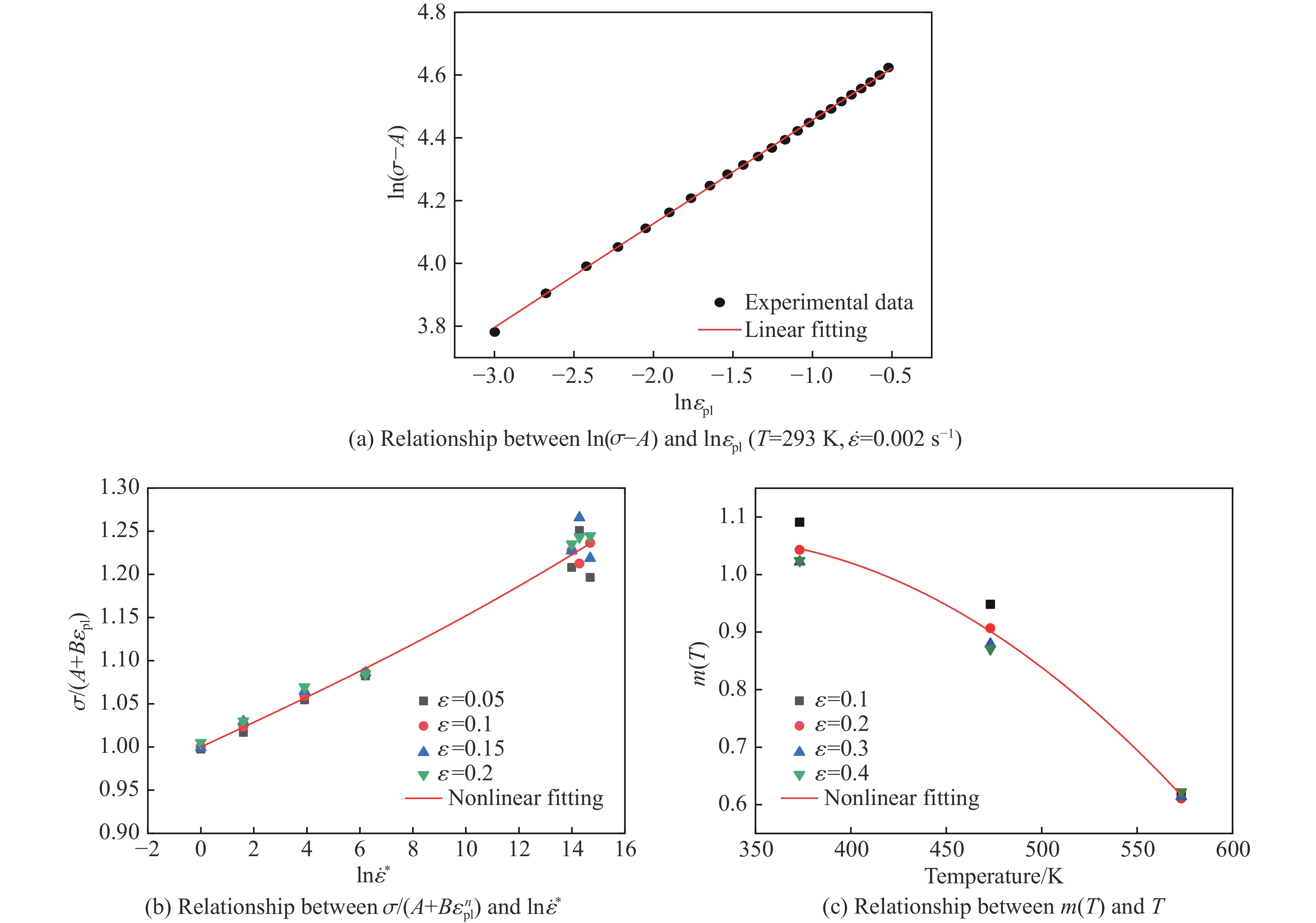

    图  8  拟合过程

    Figure  8.  Fitting process

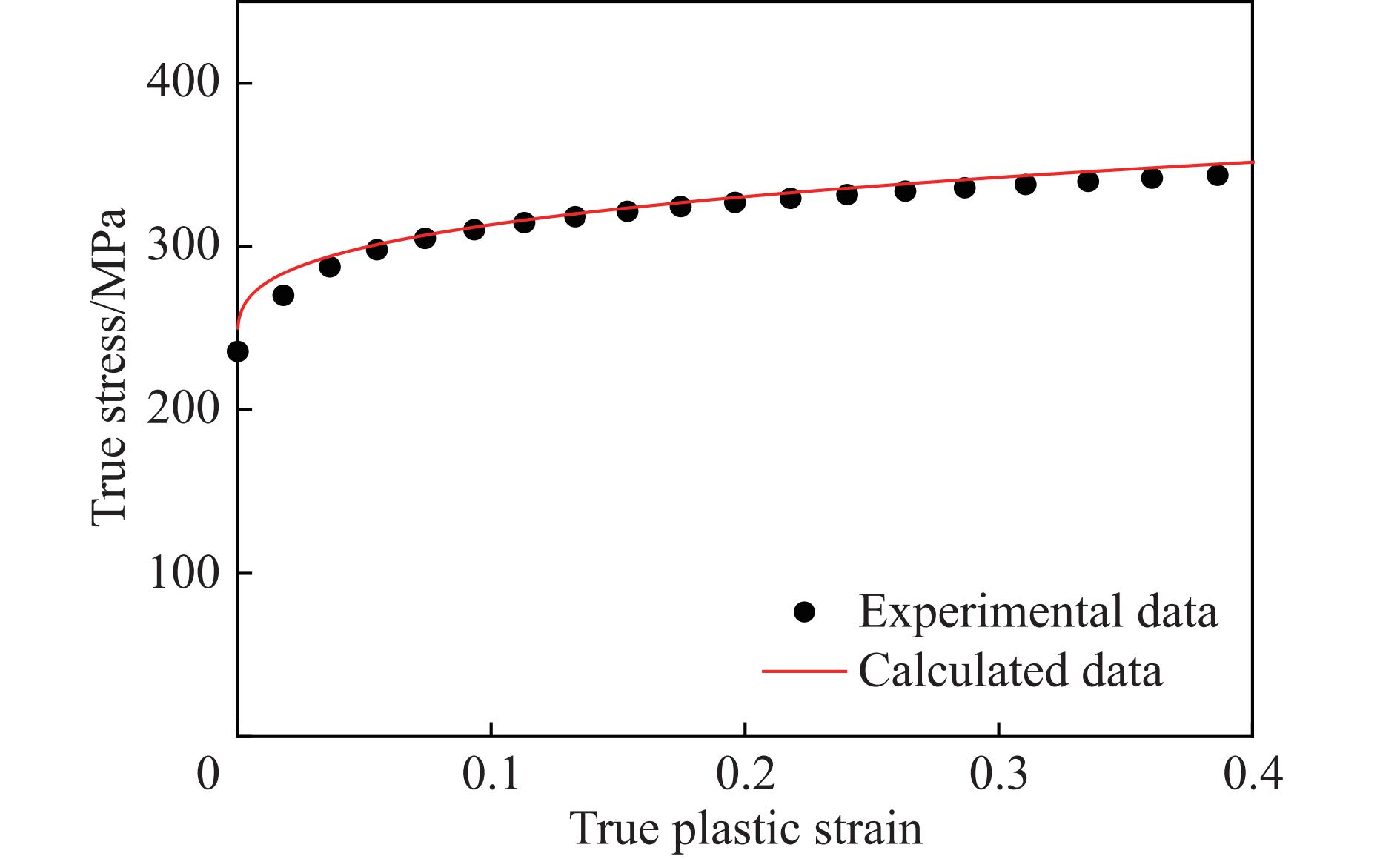

    图  9  J-C本构模型计算数据与实验数据

    Figure  9.  Comparison between experimental data and calculated data from J-C constitutive model

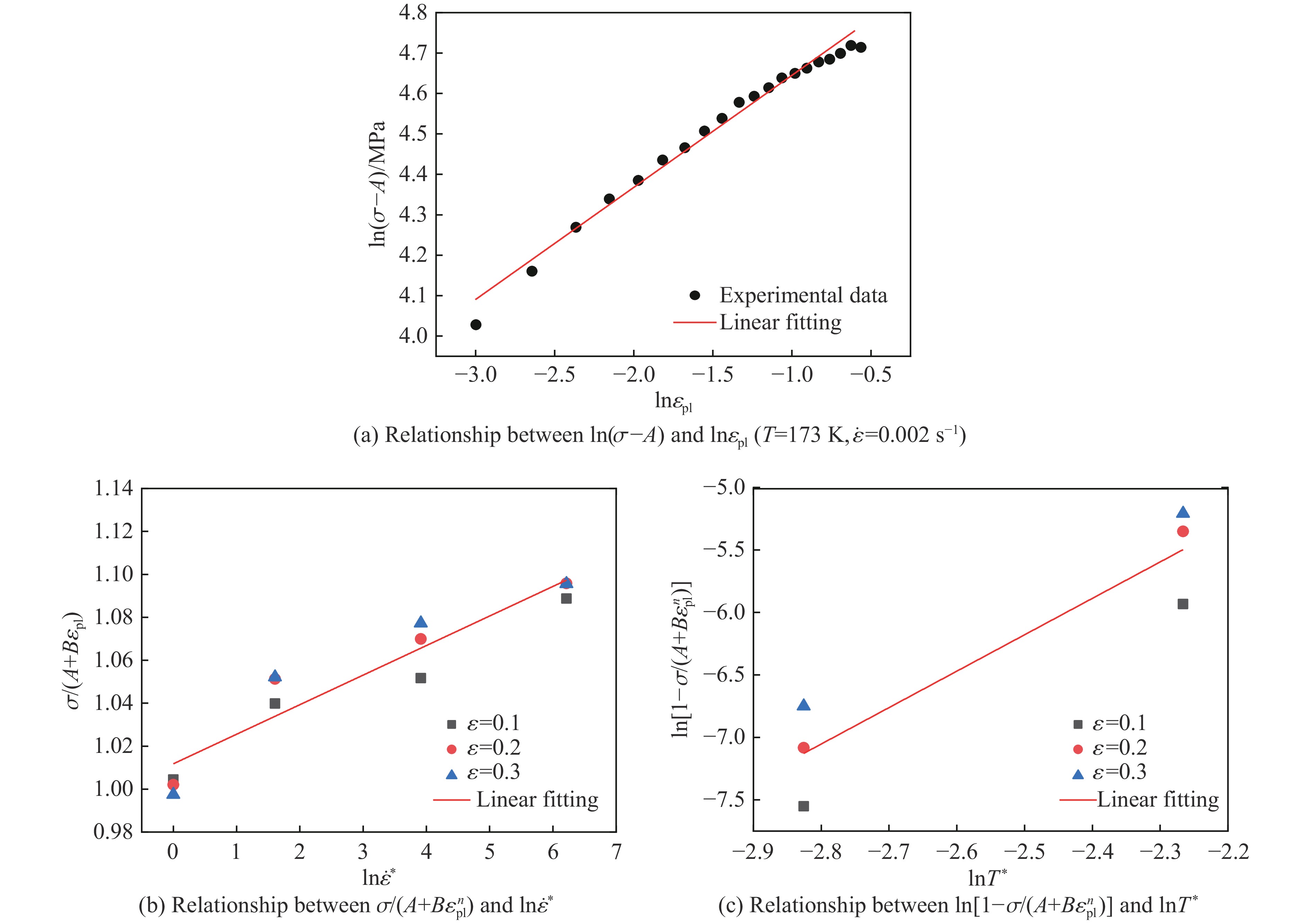

    图  10  拟合过程

    Figure  10.  Fitting process

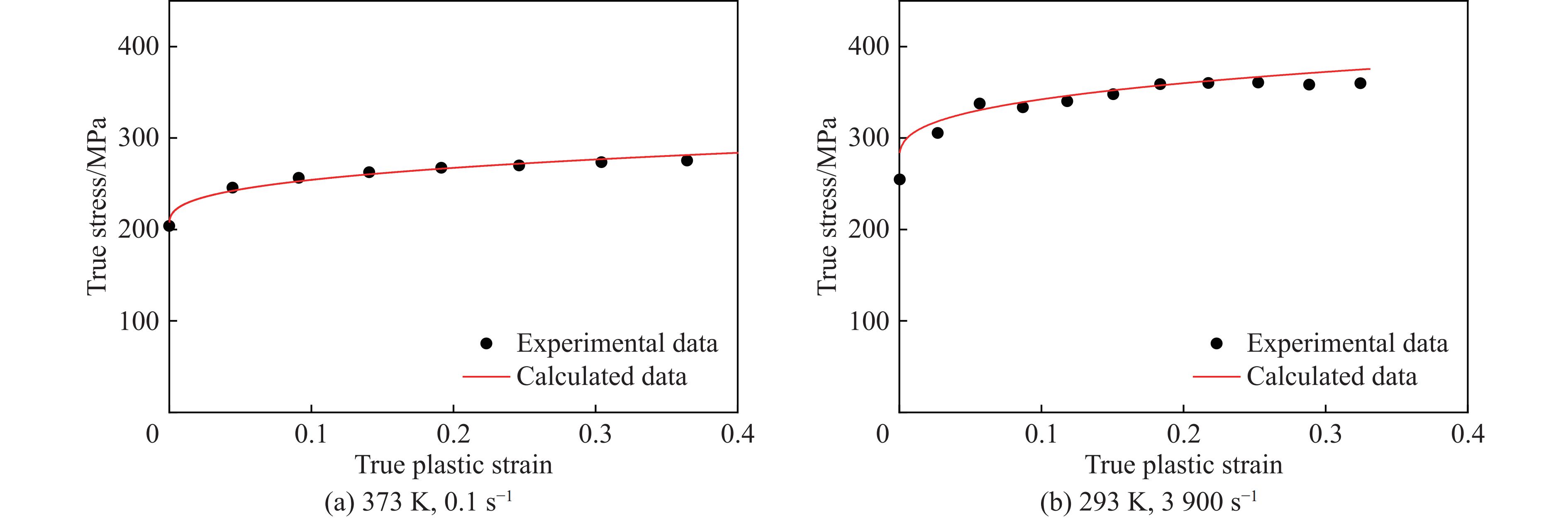

    图  11  J-C本构模型计算数据与实验数据

    Figure  11.  Comparison between experimental data and calculated data from J-C constitutive model

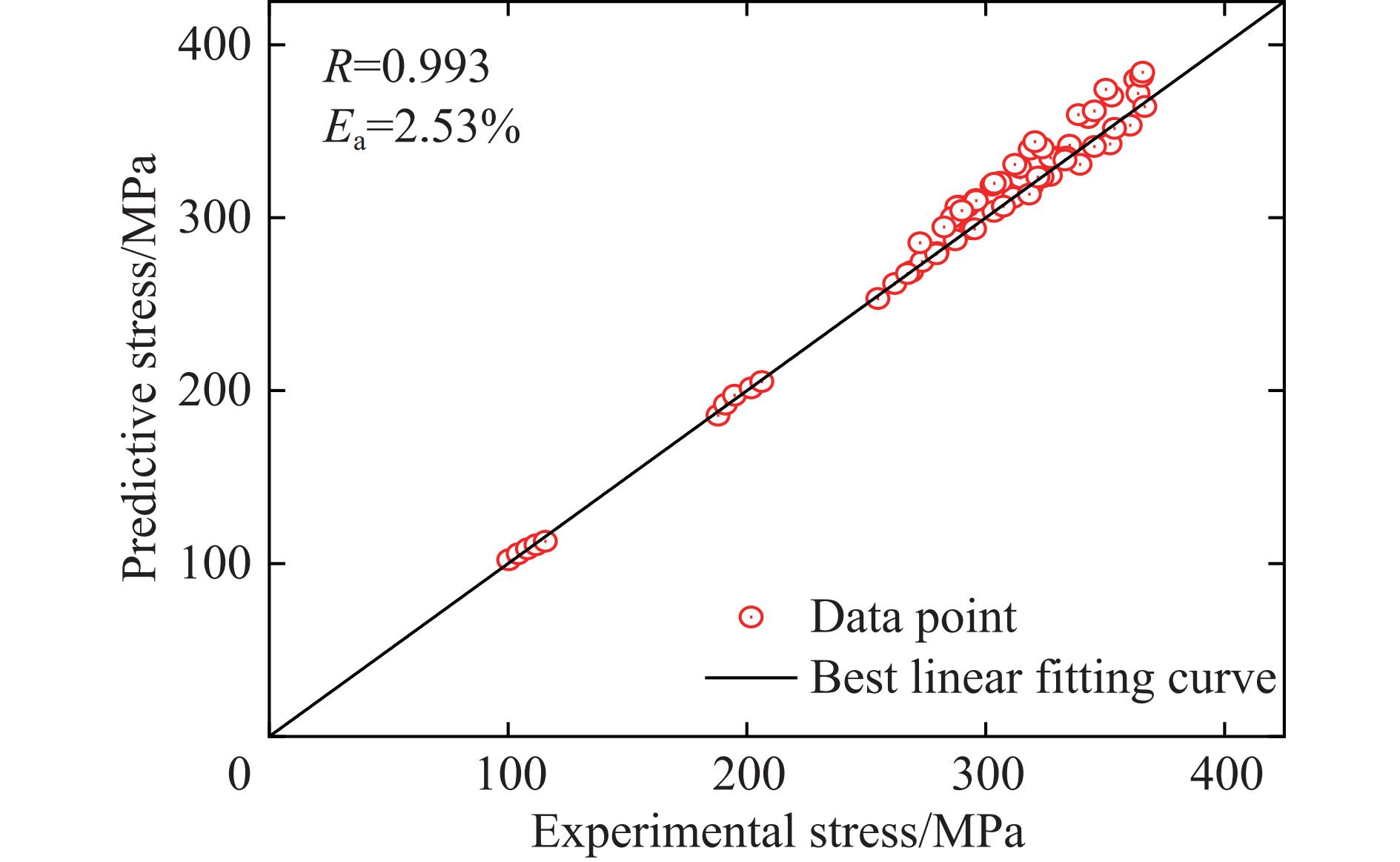

    图  12  本构模型预测值与实验值的相关性

    Figure  12.  Correlation between experimental values and predicted values from constitutive model

    图  13  室温及高温下本构模型的验证

    Figure  13.  Verification of constitutive models at room temperature and high temperature

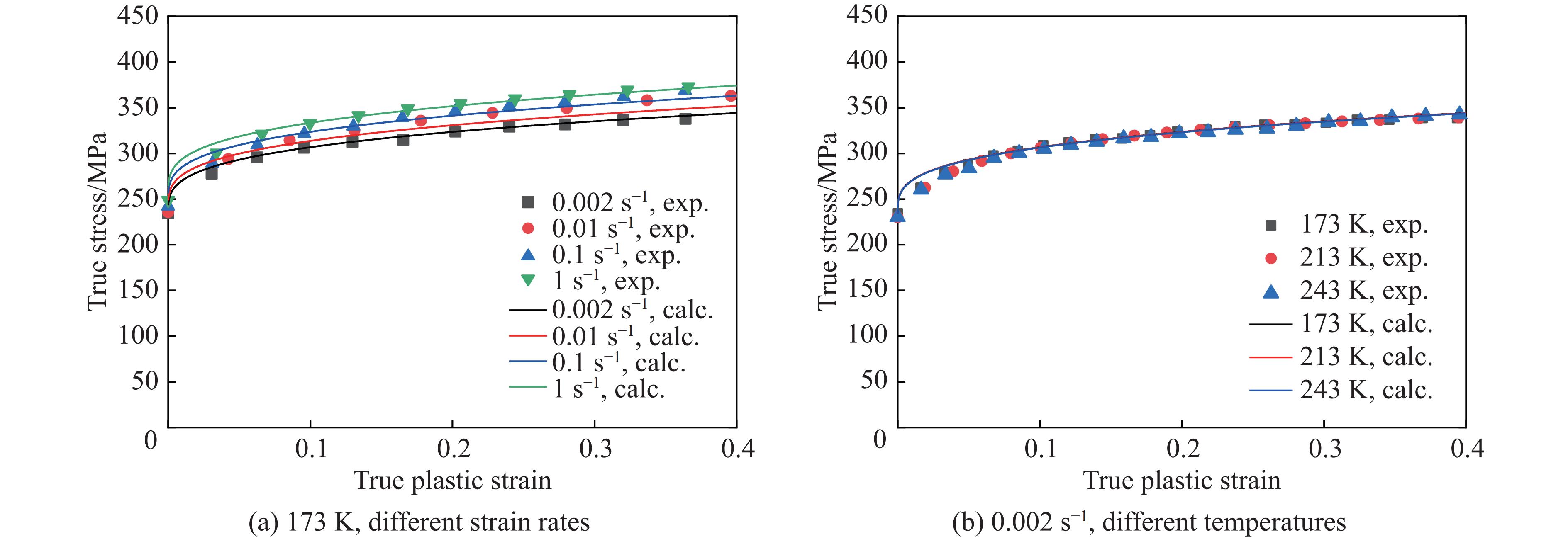

    图  14  低温下本构模型的验证

    Figure  14.  Verification of constitutive models at low temperature

    表  1  AlSi10Mg粉末的组成

    Table  1.   Composition of AlSi10Mg powder %

    AlSiMgFeMnCuTi
    88.9310.320.290.160.100.050.15
    下载: 导出CSV

    表  2  AlSi10Mg打印工艺参数

    Table  2.   Processing parameters of AlSi10Mg

    激光功率/
    W
    扫描速度/
    (m·s−1)
    扫描间距/
    mm
    层厚/
    mm
    旋转角度/
    (°)
    预热温度/
    K
    3001.20.20.0330423
    下载: 导出CSV

    表  3  修正后的J-C本构模型参数

    Table  3.   Modified J-C constitutive model parameters

    A/MPa B/MPa n C1 C2 k
    223 120 0.33 0.014 1.83×10−5 2.71
    下载: 导出CSV

    表  4  修正后的J-C本构模型温度参数

    Table  4.   Revised J-C constitutive model of temperature parameters

    T/K m
    373 1.026
    473 0.879
    573 0.590
    下载: 导出CSV

    表  5  低温J-C本构模型参数

    Table  5.   J-C constitutive model parameters at low temperature

    A/MPaB/MPanCm
    2341450.30.0142.91
    下载: 导出CSV
