爆炸冲击波作用下聚脲材料对肺冲击伤防护作用的数值模拟研究

刘迪 陈菁 张安强 赵晓东 张双博 康建毅 李朝龙 曾灵

刘迪, 陈菁, 张安强, 赵晓东, 张双博, 康建毅, 李朝龙, 曾灵. 爆炸冲击波作用下聚脲材料对肺冲击伤防护作用的数值模拟研究[J]. 爆炸与冲击, 2024, 44(12): 121423. doi: 10.11883/bzycj-2024-0205
引用本文: 刘迪, 陈菁, 张安强, 赵晓东, 张双博, 康建毅, 李朝龙, 曾灵. 爆炸冲击波作用下聚脲材料对肺冲击伤防护作用的数值模拟研究[J]. 爆炸与冲击, 2024, 44(12): 121423. doi: 10.11883/bzycj-2024-0205
LIU Di, CHEN Jing, ZHANG Anqiang, ZHAO Xiaodong, ZHANG Shuangbo, KANG Jianyi, LI Chaolong, ZENG Ling. Numerical simulation study on the protective effects of polyurea materials against lung blast injuries under blast wave loading[J]. Explosion And Shock Waves, 2024, 44(12): 121423. doi: 10.11883/bzycj-2024-0205
Citation: LIU Di, CHEN Jing, ZHANG Anqiang, ZHAO Xiaodong, ZHANG Shuangbo, KANG Jianyi, LI Chaolong, ZENG Ling. Numerical simulation study on the protective effects of polyurea materials against lung blast injuries under blast wave loading[J]. Explosion And Shock Waves, 2024, 44(12): 121423. doi: 10.11883/bzycj-2024-0205

爆炸冲击波作用下聚脲材料对肺冲击伤防护作用的数值模拟研究

doi: 10.11883/bzycj-2024-0205
基金项目: 国家重点研发计划(2020-JCJQ-ZD-254-05);后勤科研重点项目(BLJ23J006);陆军特色医学中心人才创新能力培养计划(ZXYZZKY03)
详细信息
    作者简介:

    刘 迪(1993- ),女,硕士,助理研究员,heidi678@tmmu.edu.cn

    通讯作者:

    陈 菁(1968- ),女,博士,研究员,chenj811@tmmu.edu.cn

  • 中图分类号: O389

Numerical simulation study on the protective effects of polyurea materials against lung blast injuries under blast wave loading

  • 摘要: 肺冲击伤是爆炸后第一级冲击伤最常见的死因,进行有效防护是减轻伤情、提升救治效能的最优举措。聚脲材料作为躯体防具的研究尚在起步阶段,本研究通过有限元数值模拟探讨了冲击波作用下聚脲材料对肺脏的防护效应及其对冲击波的衰减特性。首先利用LS-DYNA软件模拟冲击波对穿戴防护材料的山羊胸部的直接损伤过程,然后通过实爆测压数据及肺大体伤情进行有效性验证,最后利用该冲击波防护后效应有限元计算模型完成聚脲材料对人员肺冲击伤防护效应的评估。结果表明:右肺朝向爆心时,冲击波肺损伤应力主要集中在右肺下叶,防护模型肺脏整体应力较小,肺所受负压所致肺过牵效应减弱;聚脲材料能够有效衰减到达皮肤和肺脏表面的超压峰值约58.8%,降低胸骨最大线速度约22.4%,且随冲击波压强的增大,衰减能力增强,从而有效降低肺冲击伤的发生率和严重程度。建立的人员防护效应计算机仿真评估模型为新型防护材料用于人员肺冲击伤的防护效能评估、防护后损伤程度预测提供了方法,具有重要的军事和社会意义。

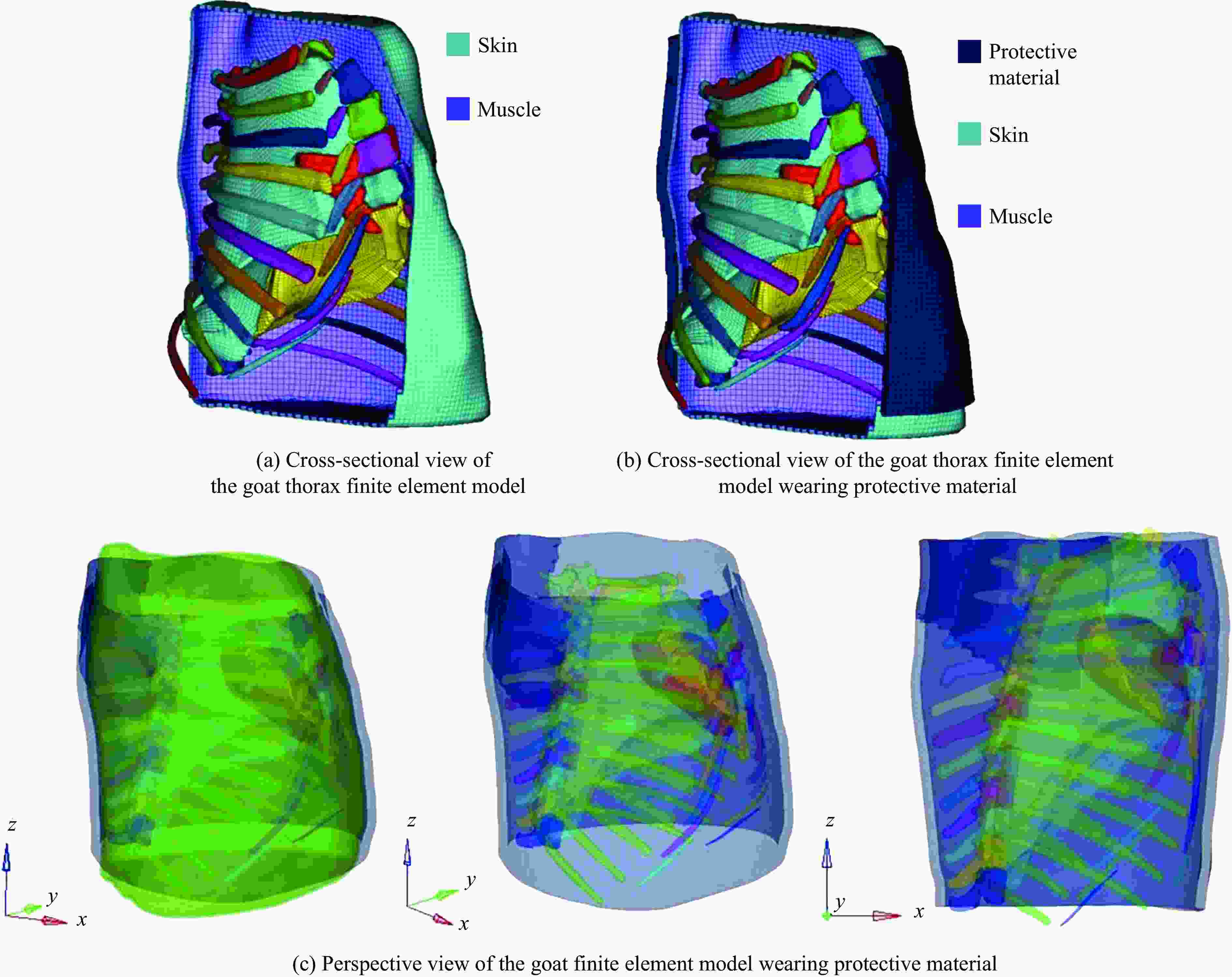

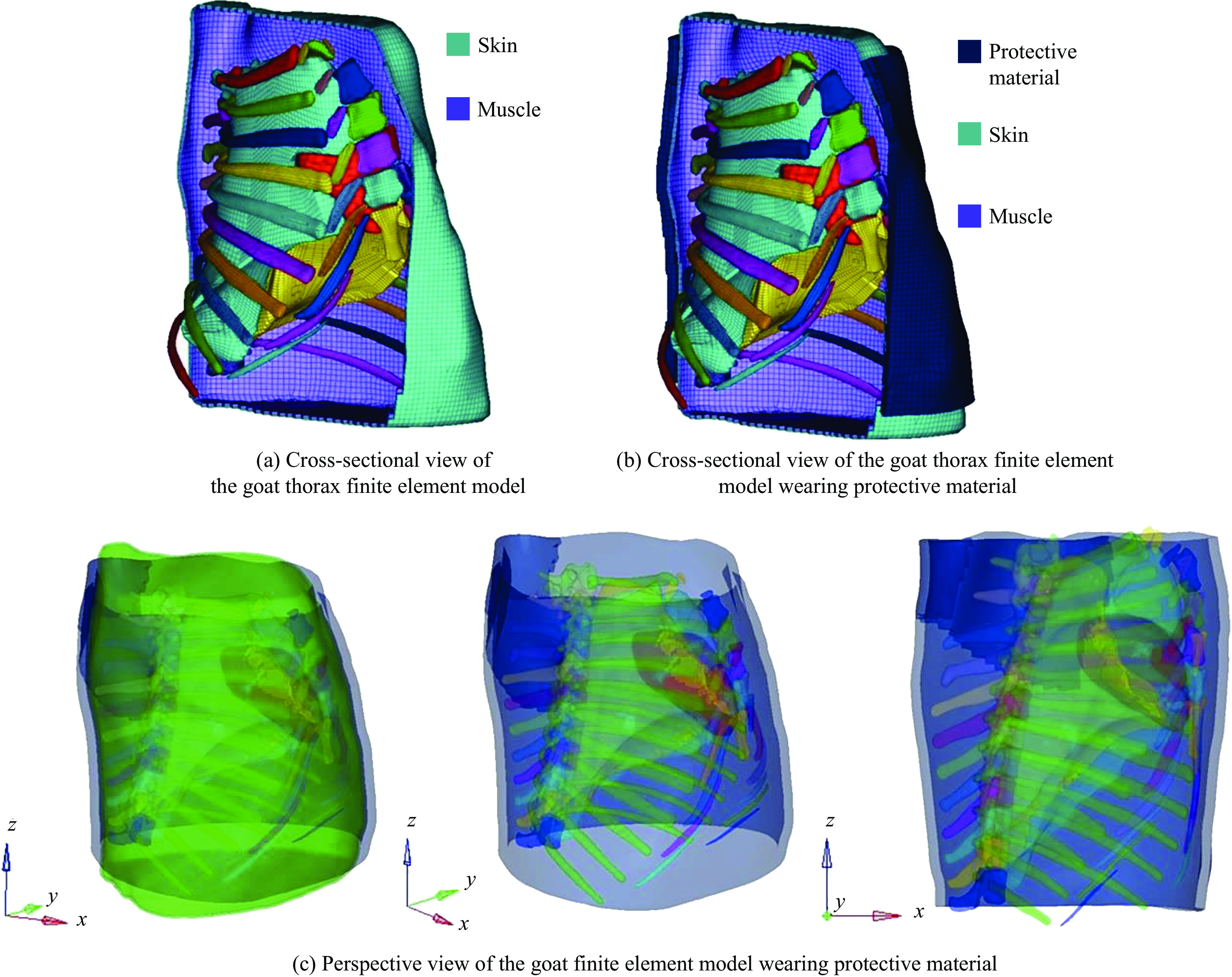

  • 图  1  山羊胸部有限元模型

    Figure  1.  Finite element models of the goat thorax

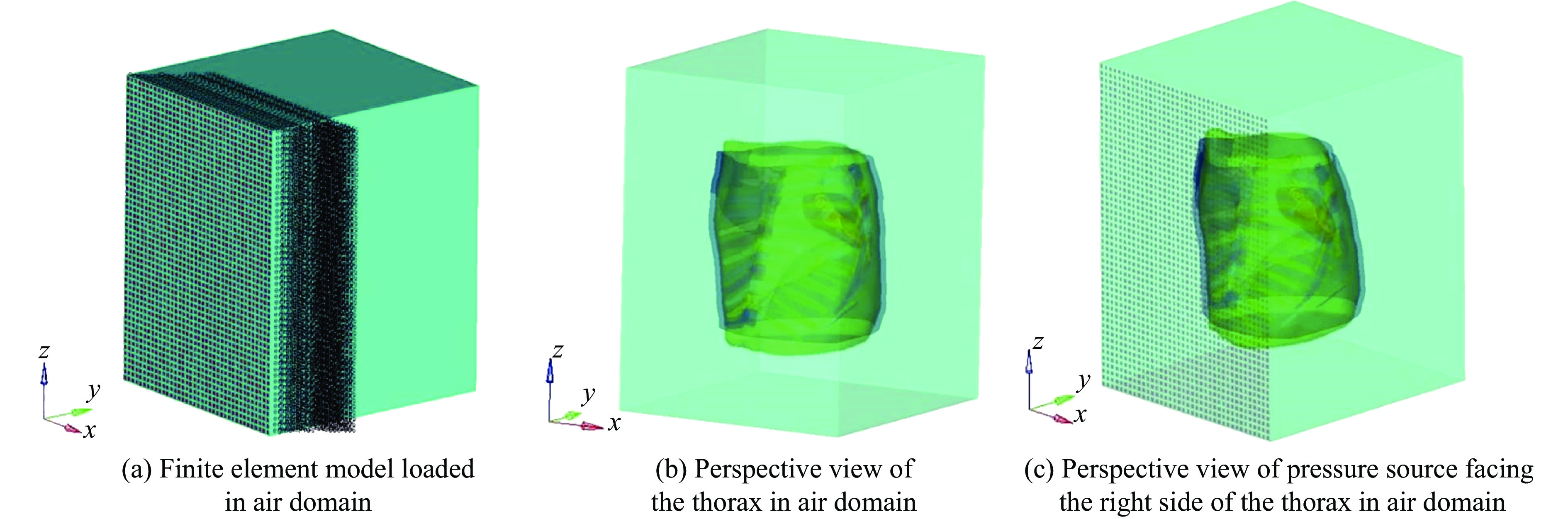

    图  2  压力源正对胸部右侧的冲击波加载模型

    Figure  2.  The blast wave loading model with a pressure source facing the right side of the thorax

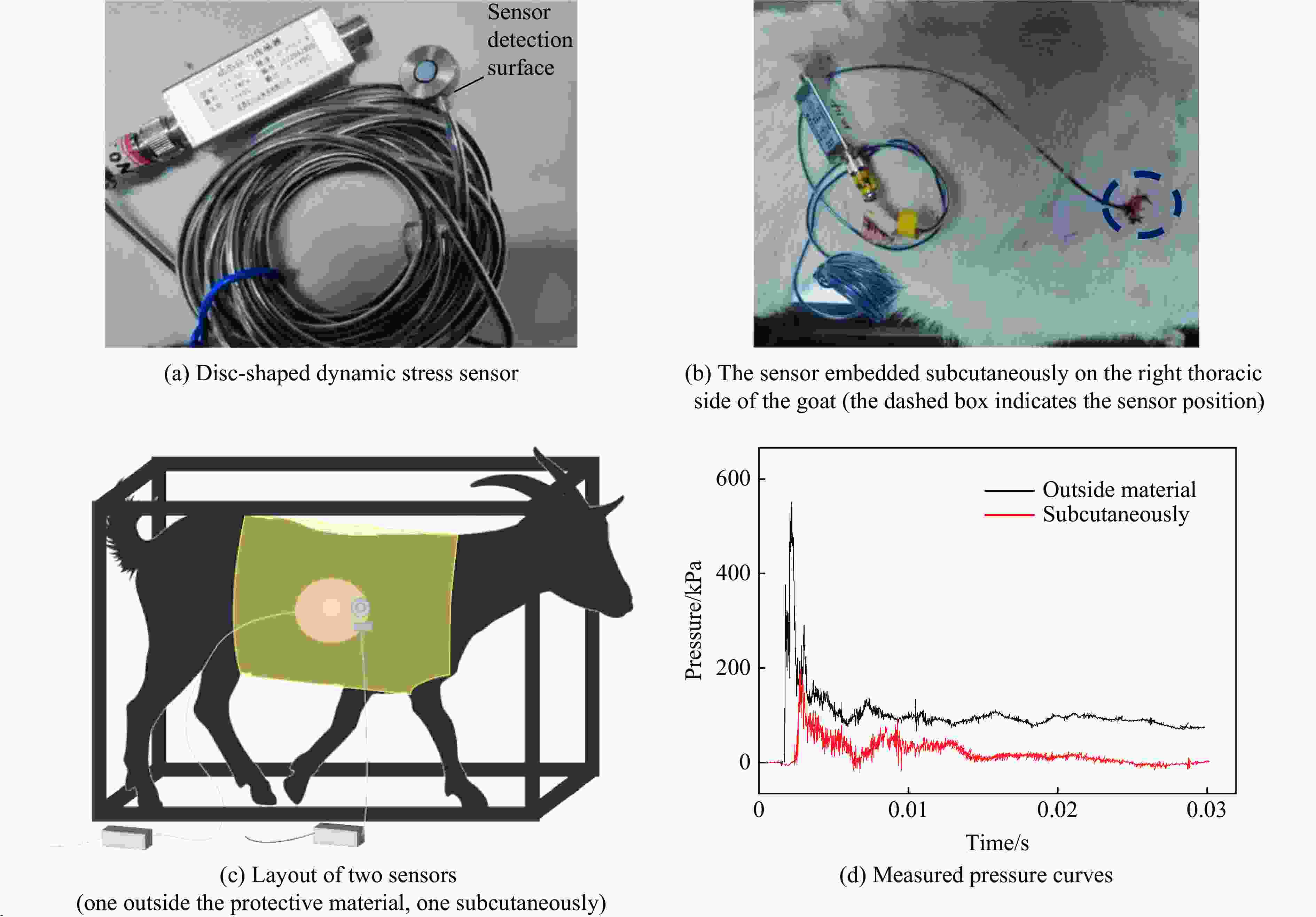

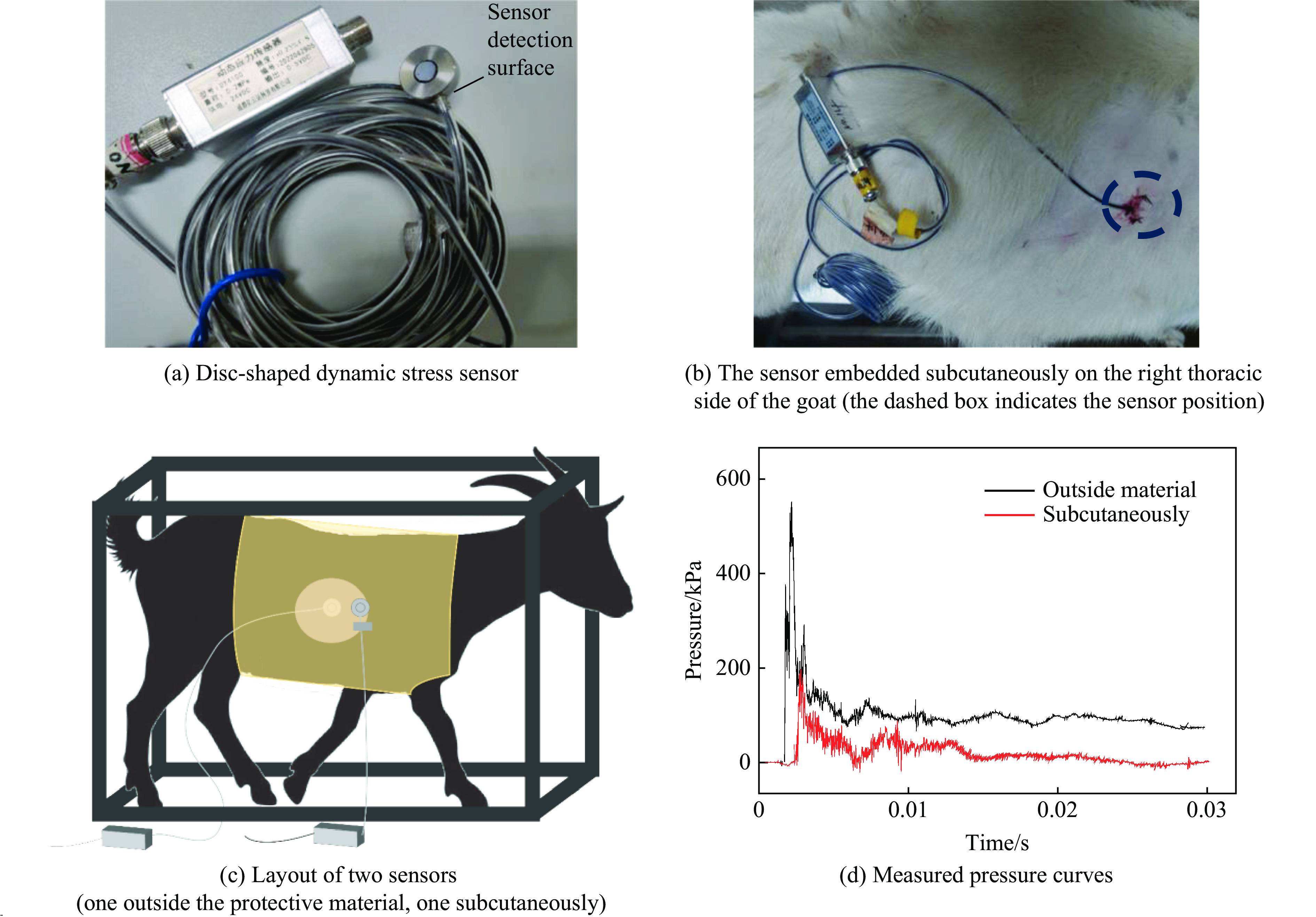

    图  3  实爆试验传感器测压示意图及测压曲线

    Figure  3.  Diagrams of sensor detection in live explosion test and measured pressure curves

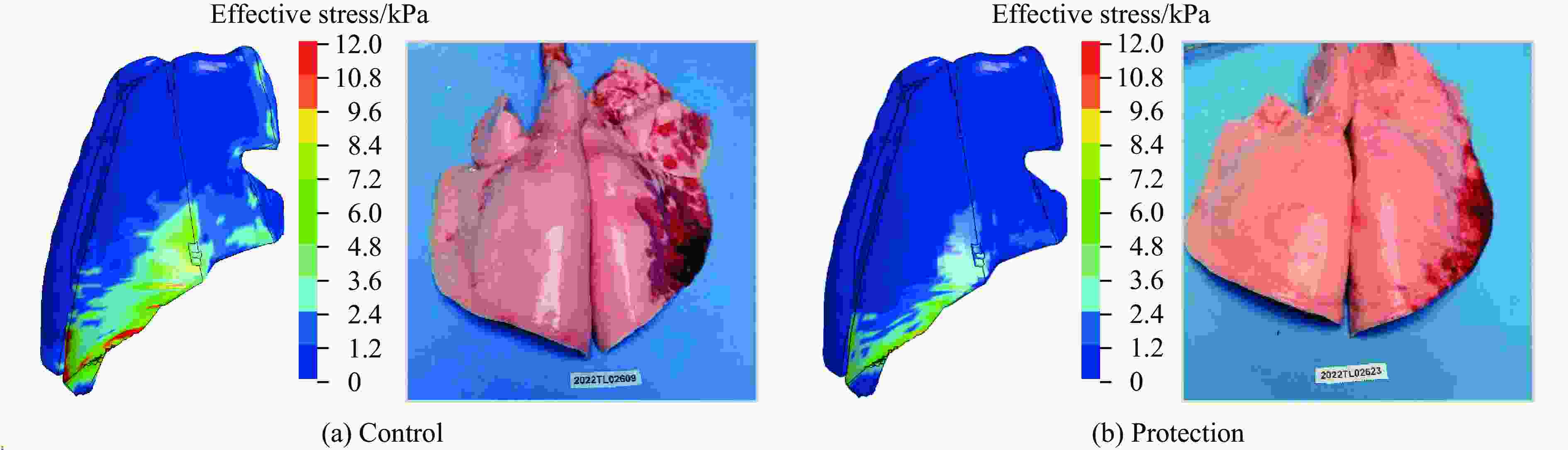

    图  4  500 kPa工况下山羊有限元模型模拟肺最大应力云图与旷场实爆试验4 m处山羊肺大体损伤情况对比

    Figure  4.  Comparison of lung stress cloud diagram of goat finite element model under 500 kPa condition and gross lung injury in field explosion test at 4 m

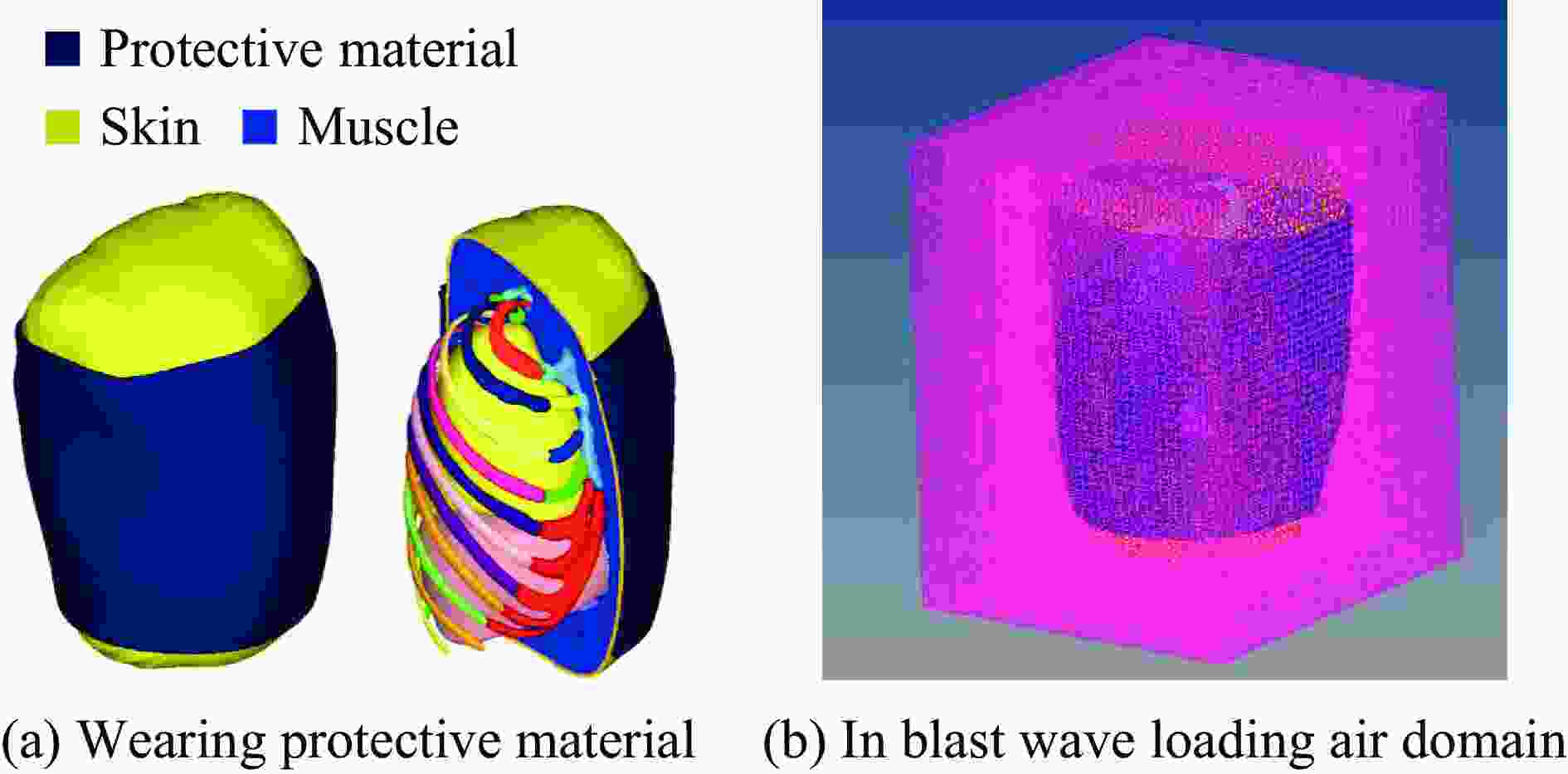

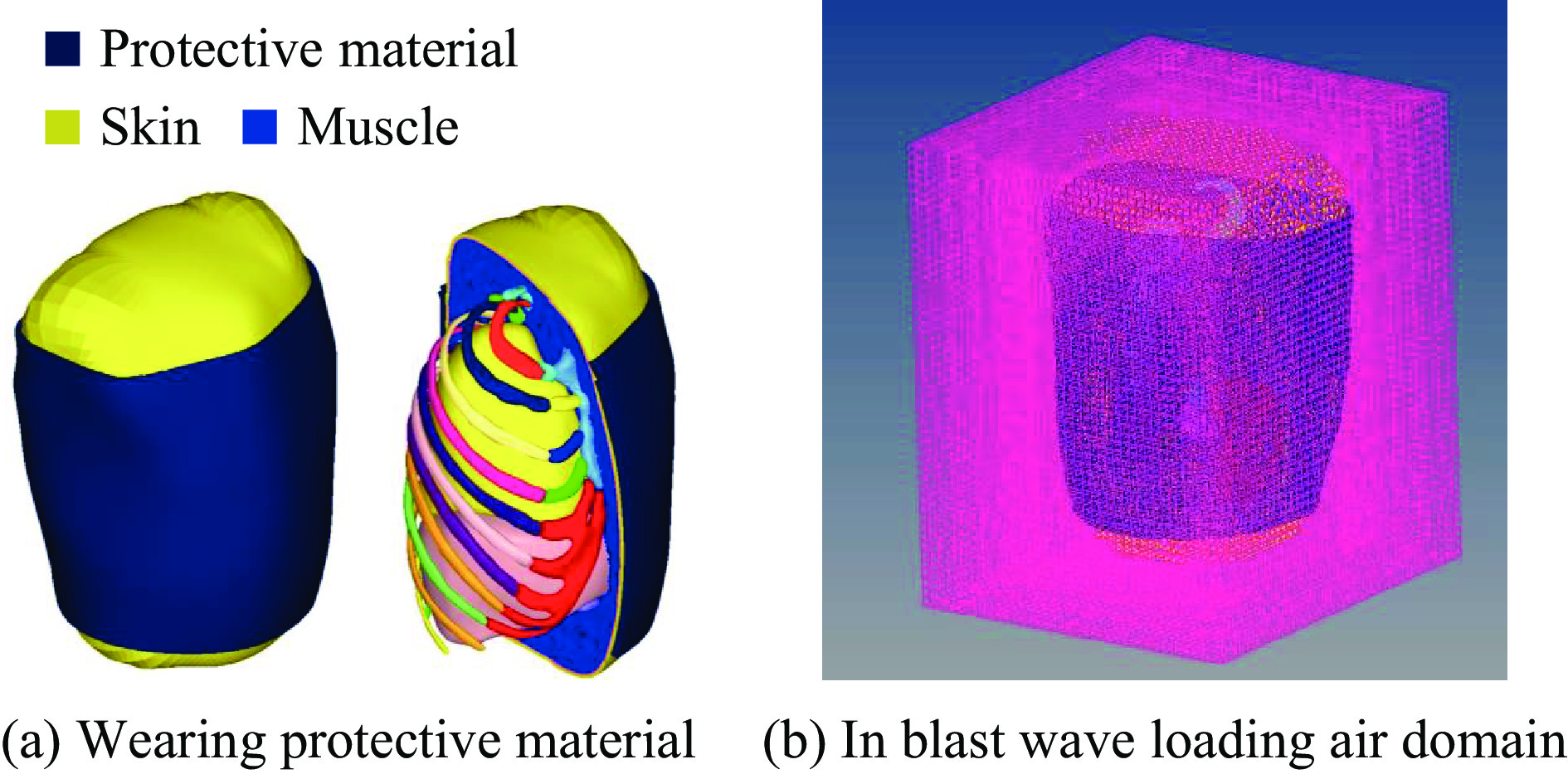

    图  5  人员穿戴防护材料的冲击波加载有限元模型

    Figure  5.  Finite element models of personnel wearing protective material for blast wave loading

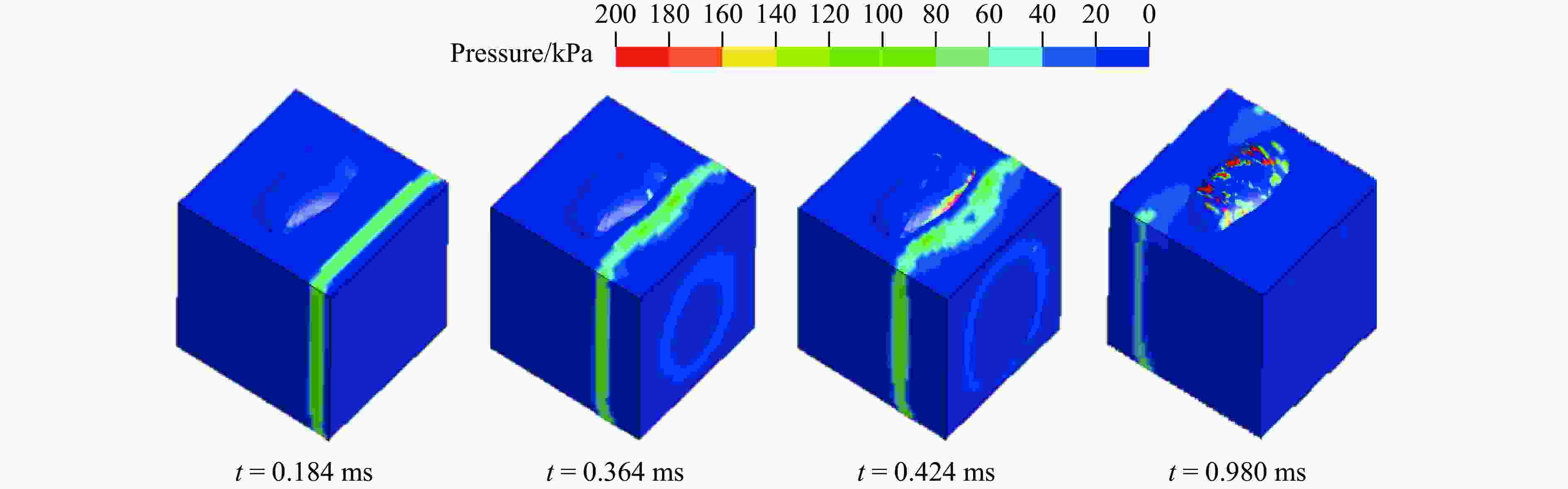

    图  6  冲击波加载压力场分布

    Figure  6.  Pressure field distribution of blast wave loading

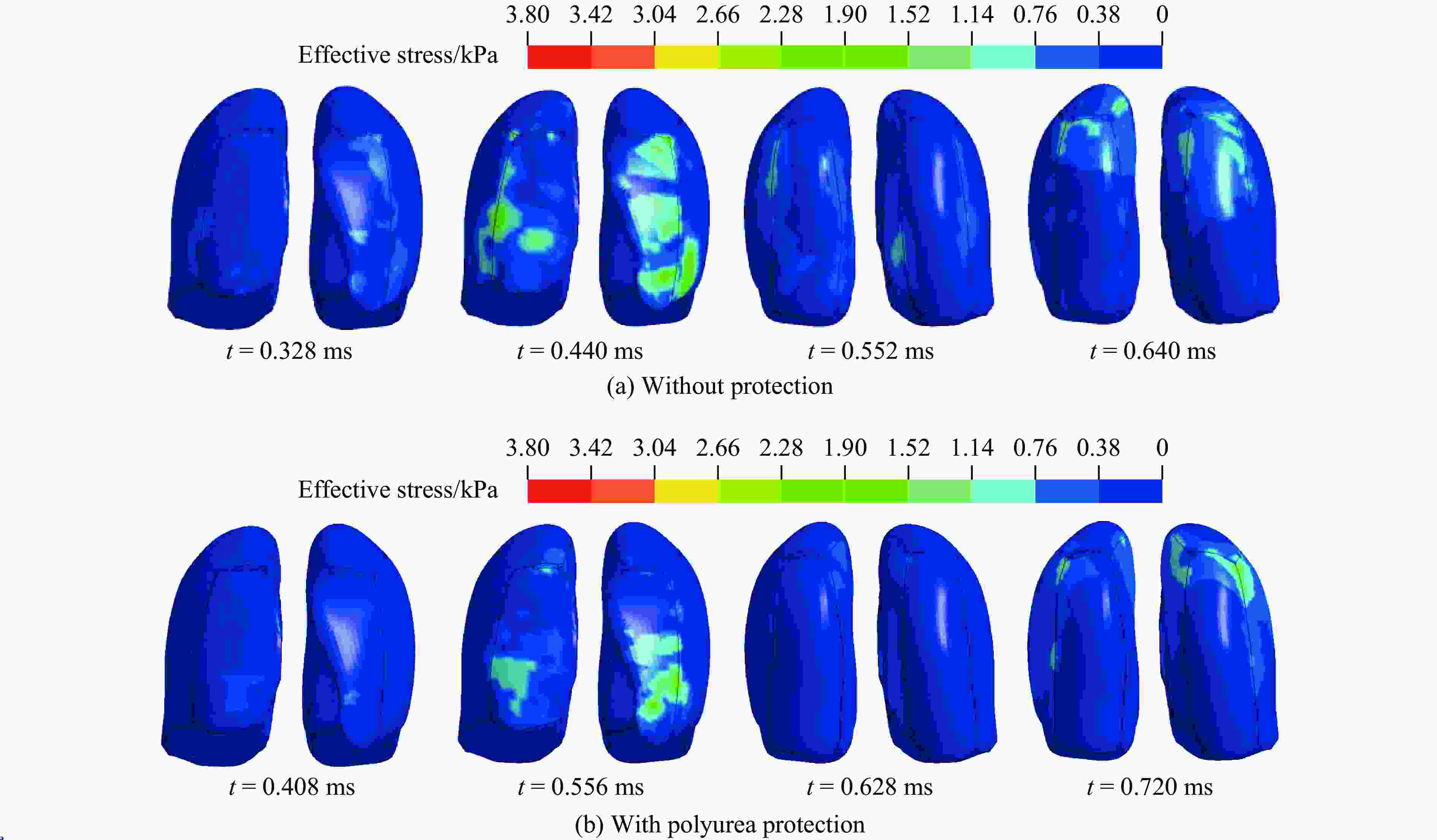

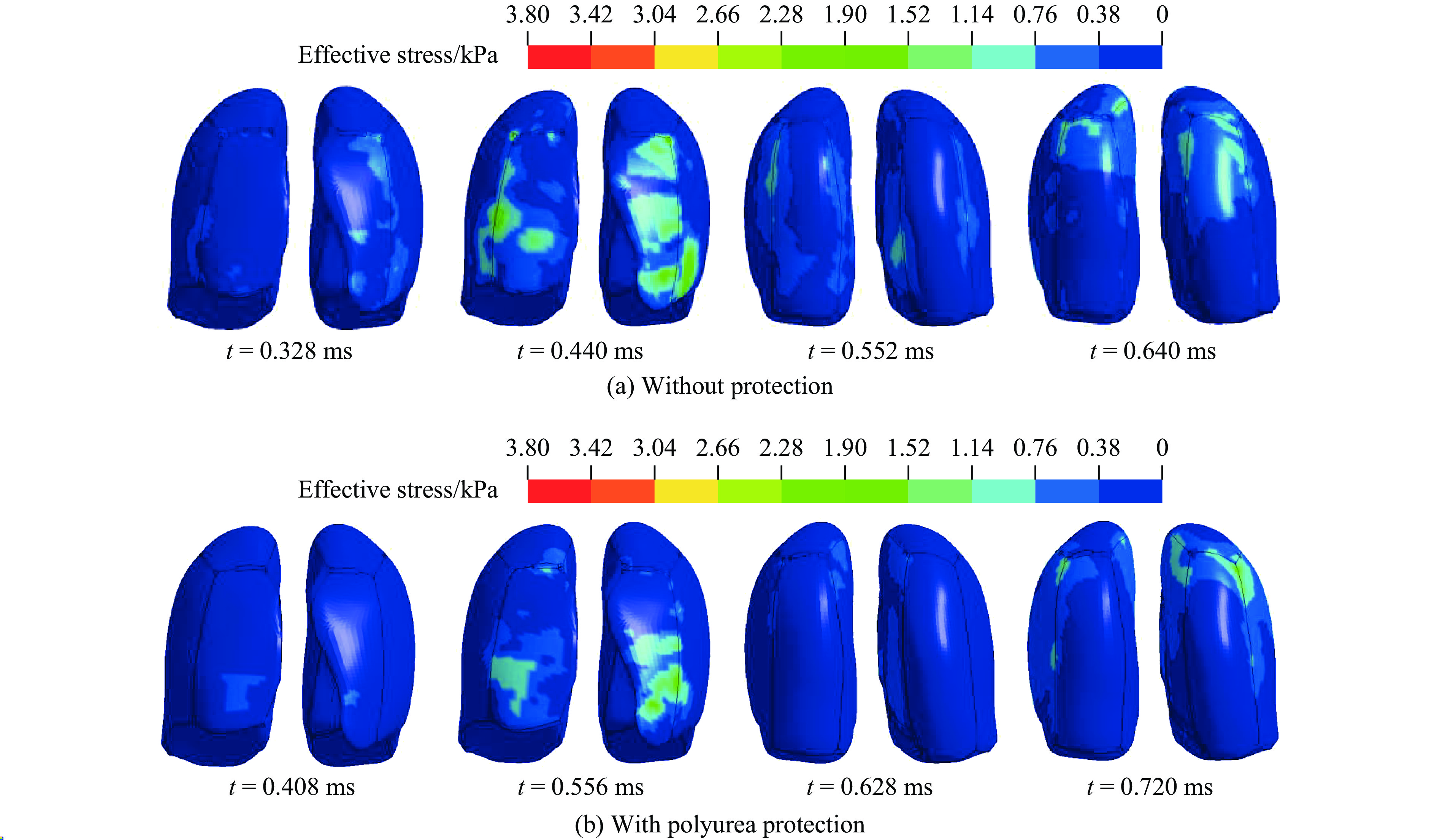

    图  7  100 kPa工况下无/有防护肺脏内应力的传播

    Figure  7.  Stress propagation in the lung without and with protection under the 100 kPa condition

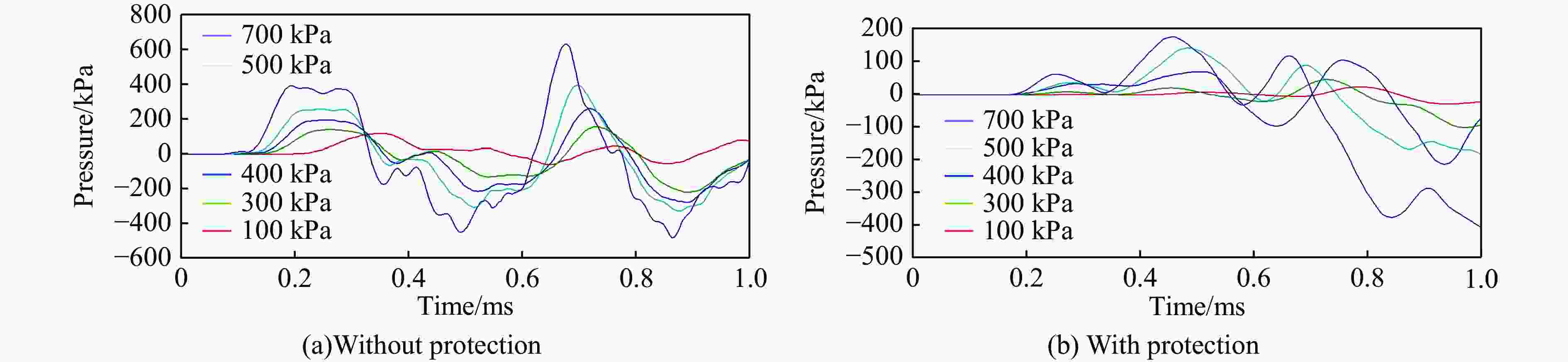

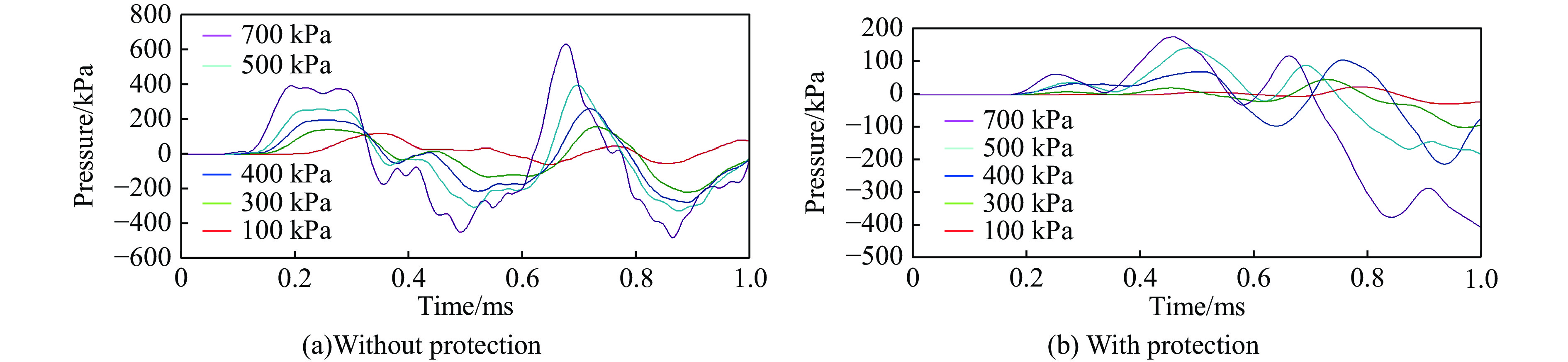

    图  8  右肺表面的压力-时间历程

    Figure  8.  Pressure-time history near the surface of the right lung

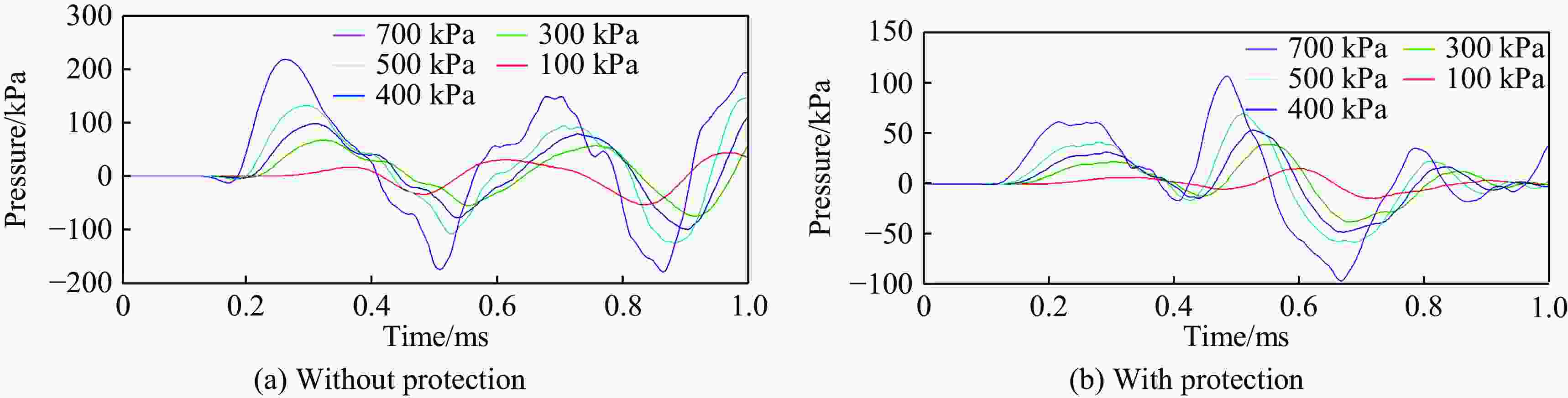

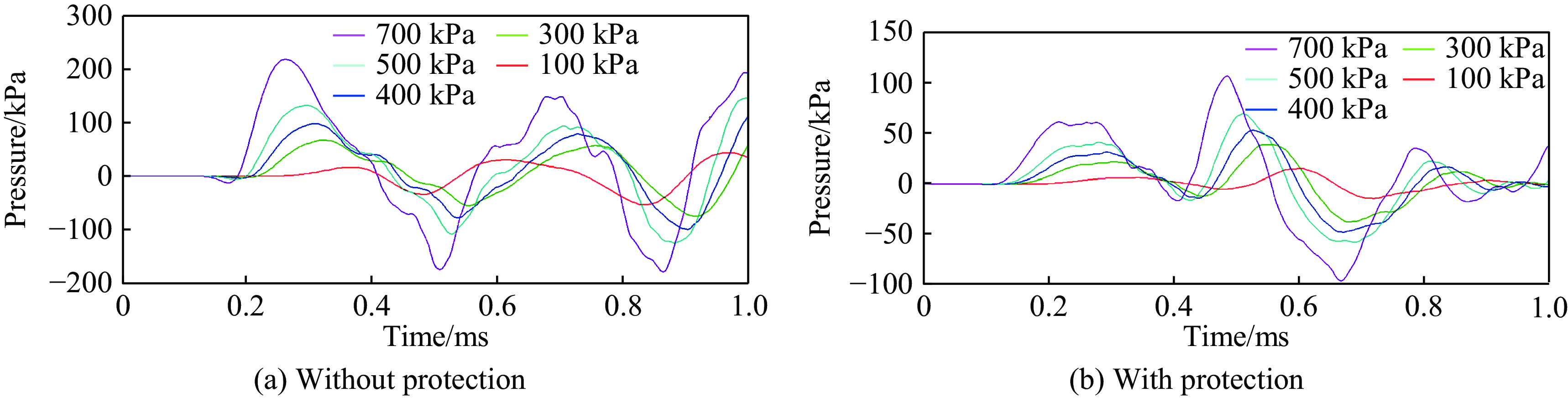

    图  9  皮下5 cm处肺矢状面压力-时间历程

    Figure  9.  Pressure-time histories in the sagittal plane 5 cm below the skin of the right lung

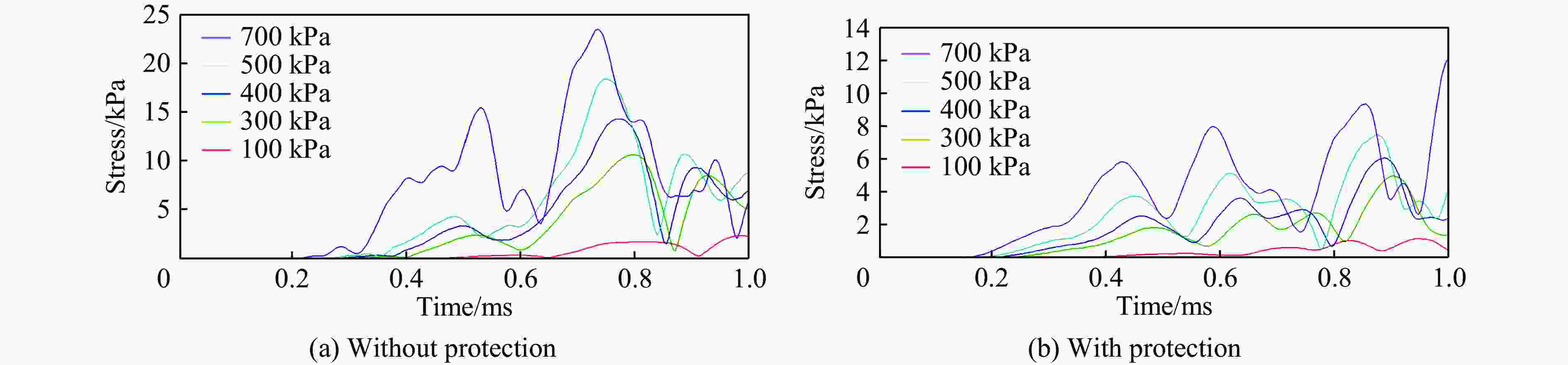

    图  10  右肺内的应力-时间历程

    Figure  10.  Stress-time histories inside the right lunge

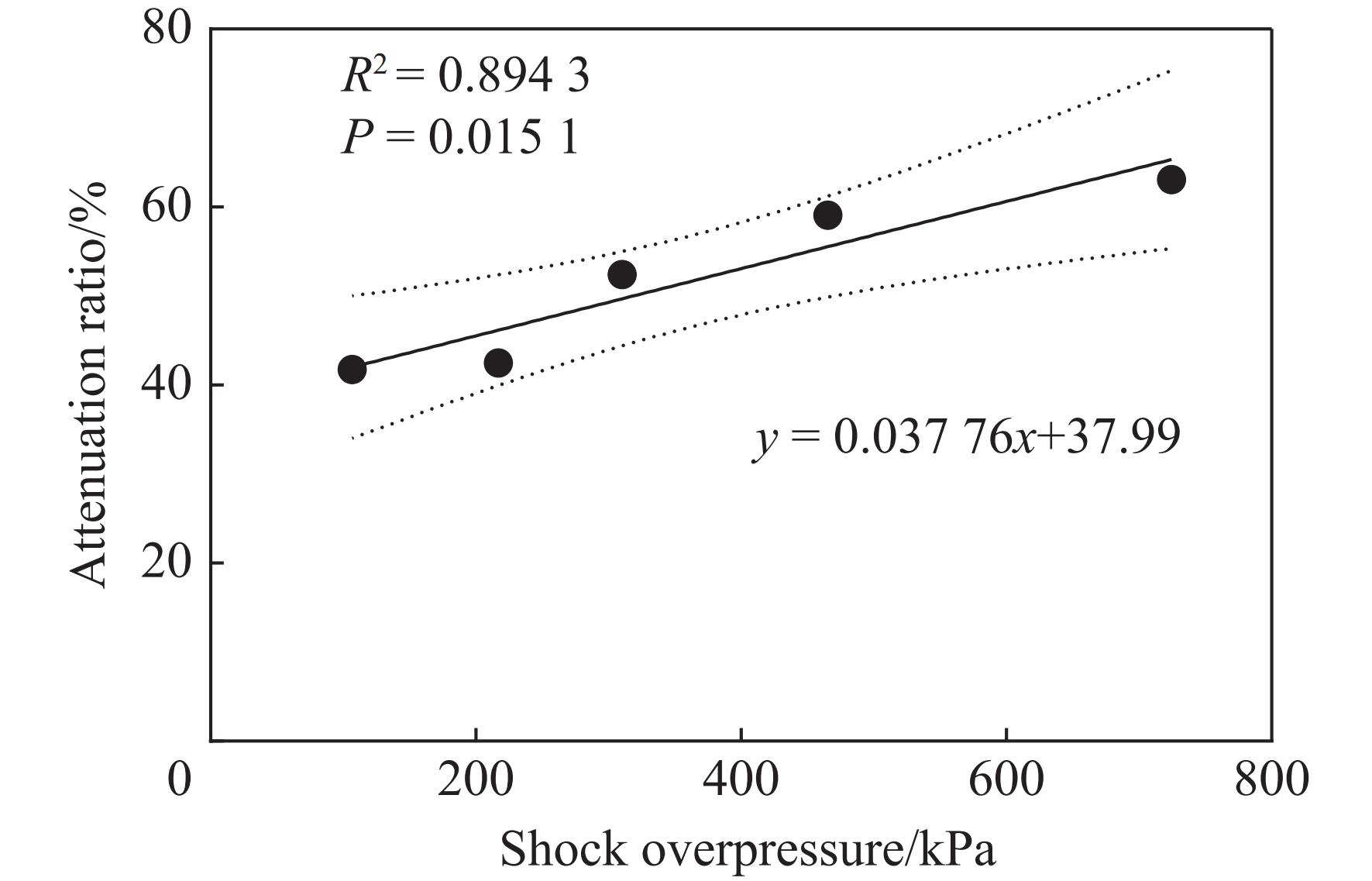

    图  11  聚脲材料对冲击波的衰减规律

    Figure  11.  Attenuation pattern of blast waves by polyurea material

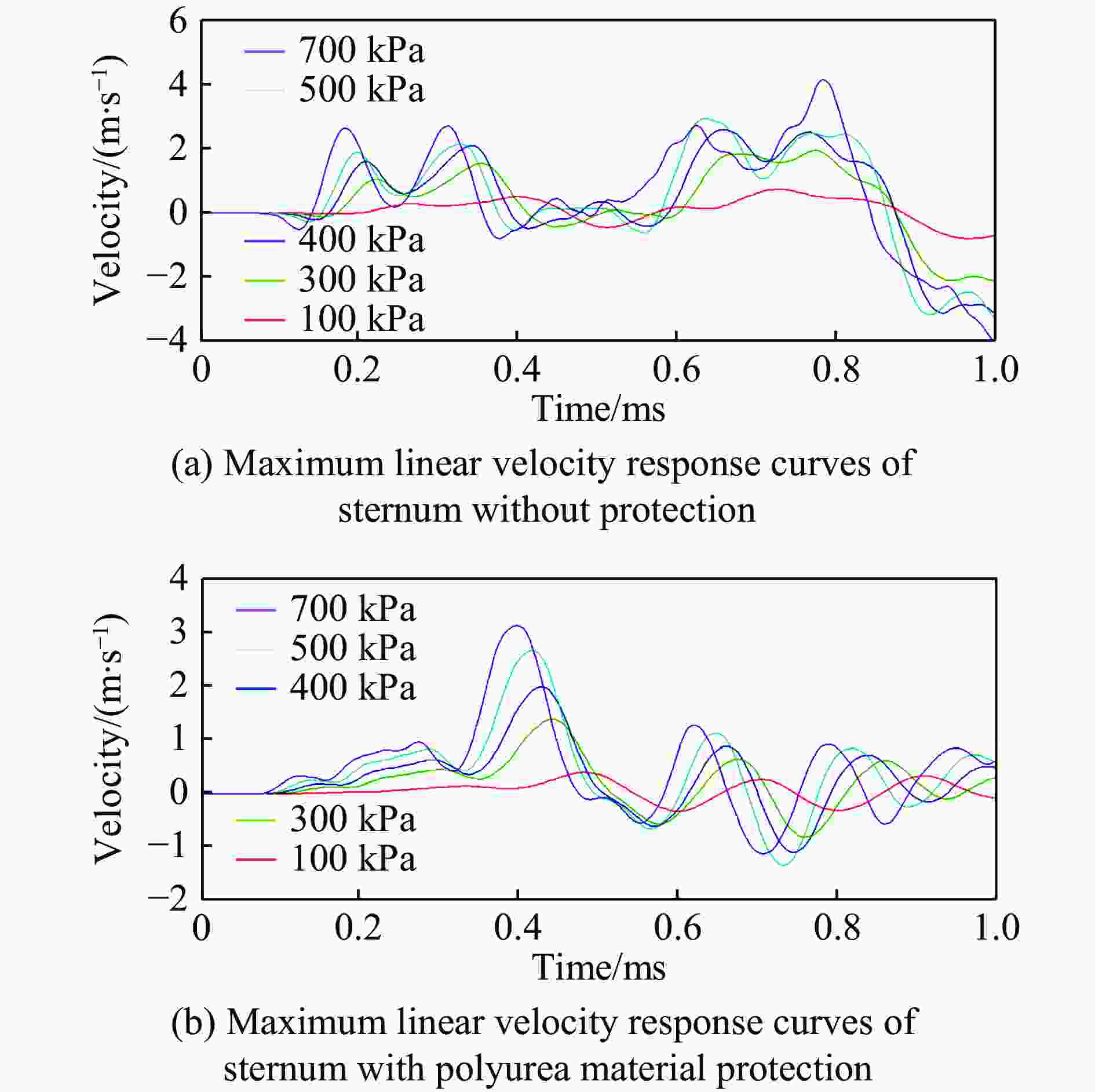

    图  12  5种工况下胸骨最大线速度响应曲线

    Figure  12.  Maximum linear velocity response curves of sternum under five conditions

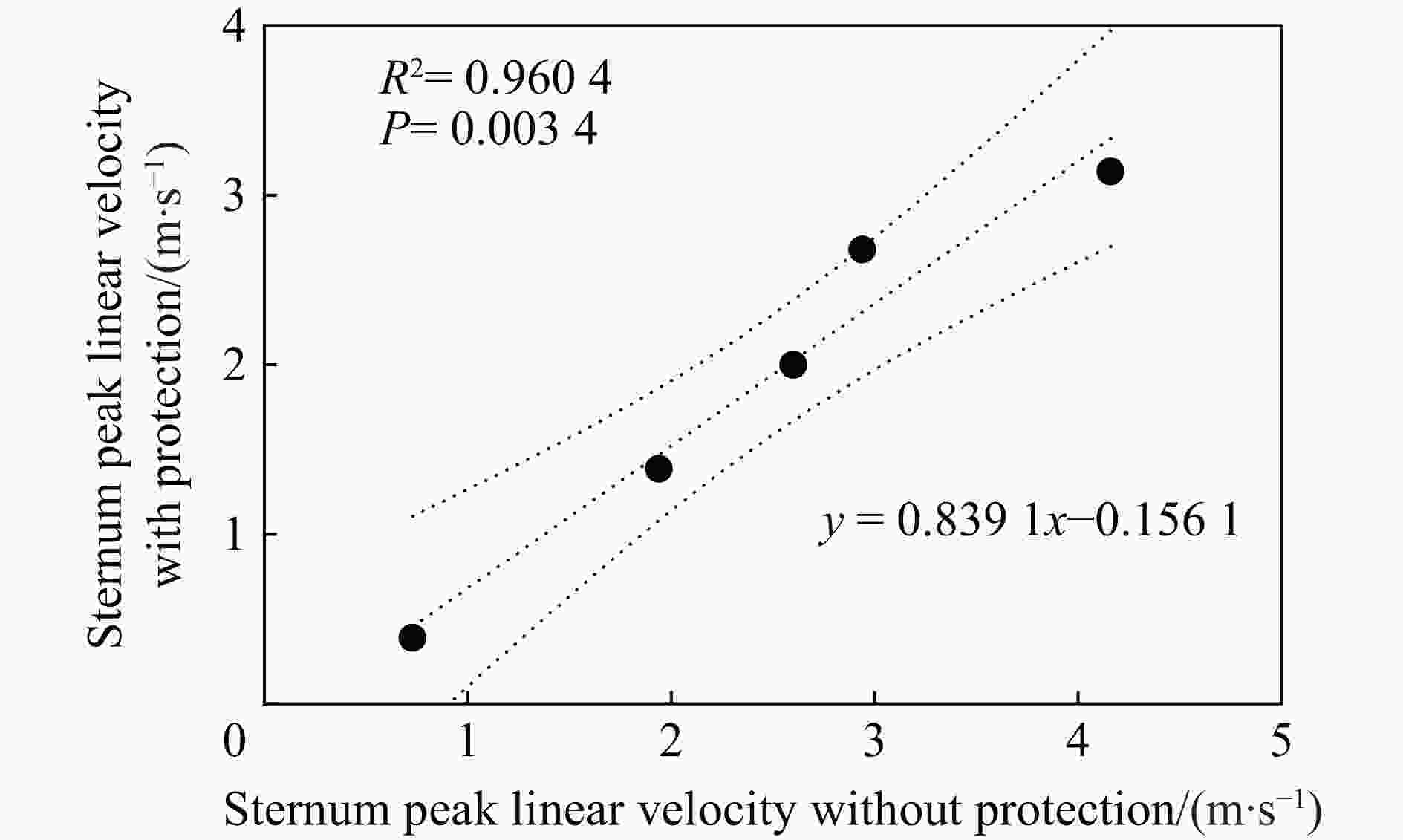

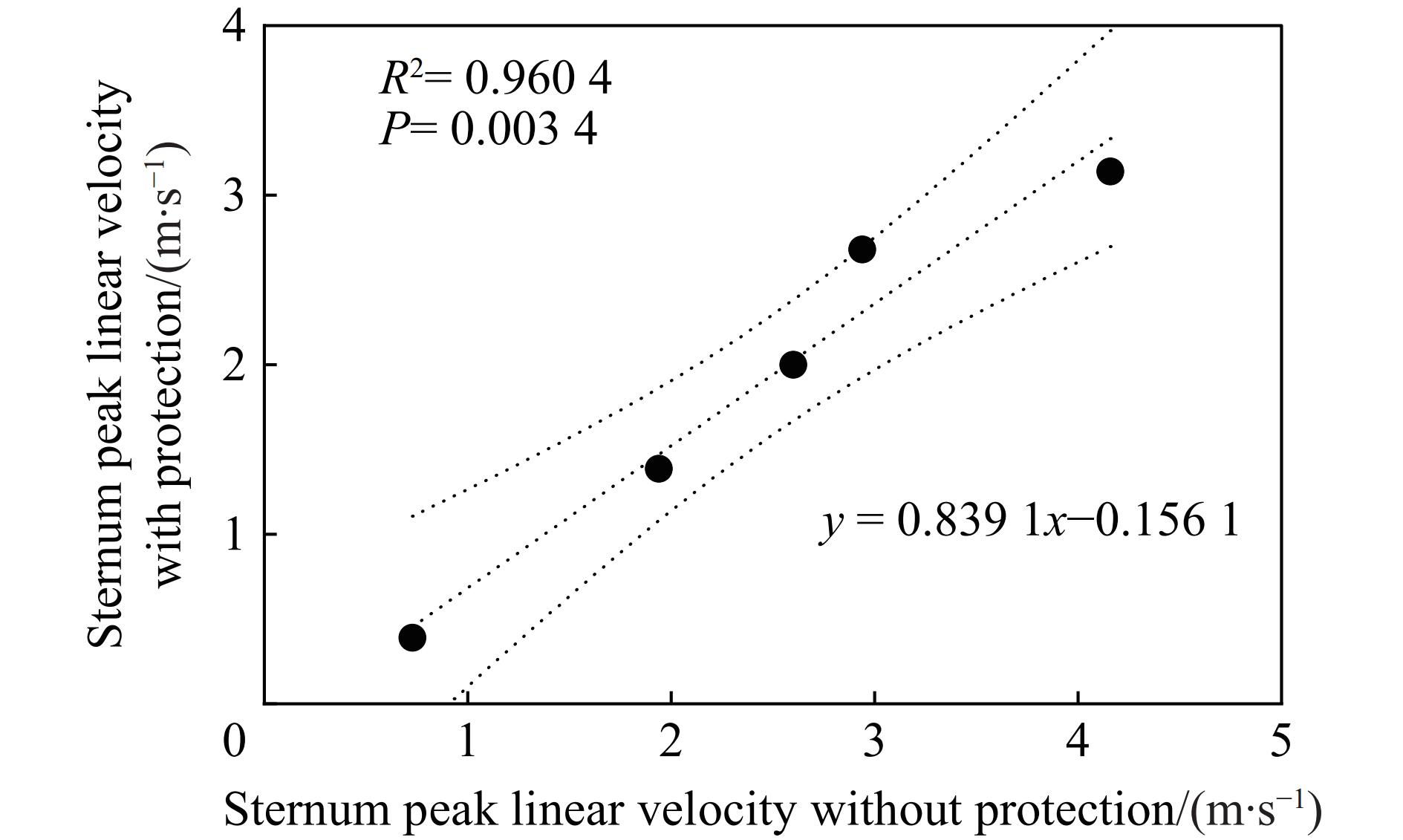

    图  13  防护前后胸骨最大线速度的对应关系

    Figure  13.  Corresponding relationship of the maximum linear velocities of the sternum before and after protection

    表  1  山羊胸部各组织的材料特性

    Table  1.   Material properties of various tissues in the goat thorax

    组织 ρ/(kg∙m−3) K/MPa G0/kPa G/kPa β/s−1 E/MPa μ
    胸骨 1250 9500 0.25
    软骨 1070 2.5 0.40
    肋骨 1080 9500 0.20
    脊柱 1330 355 0.26
    心脏 1000 744 67 65 0.1
    肺脏 600 744 67 65 0.1
    皮肤组织 1300 4000 200 195 0.1
    下载: 导出CSV

    表  2  防护材料的材料特性参数

    Table  2.   Material properties of protective materials

    材料模型 ρ/(kg∙m−3) μ E/MPa C/s−1 D
    MAT24 1070 0.465 150 98.16 4.52
    下载: 导出CSV

    表  3  不同工况下人员无/有防护肺脏力学响应分布

    Table  3.   Distribution of intrapulmonary mechanical responses in personnel without and with protection under different conditions

    ps/kPa肺表面超压峰值/kPa肺矢状面超压峰值/kPa肺内峰值应力/kPa
    100117.23/25.55(78.2%)43.30/15.27(64.7%)2.35/1.21(48.5%)
    300155.86/47.81(69.3%)66.58/39.17(41.2%)10.66/5.05(52.6%)
    400259.60/107.20(58.7%)113.24/53.30(52.9%)14.30/6.15(57.0%)
    500395.45/144.60(63.4%)145.19/69.93(51.8%)18.38/7.54(59.0%)
    700631.04/178.16(71.8%)217.42/107.71(50.5%)23.50/12.19(48.1%)
     注:括号内为有防护相对无防护的衰减百分比。
    下载: 导出CSV

    表  4  不同工况防护材料前后及无防护模型皮肤处超压峰值对比

    Table  4.   Comparison of overpressure peaks at the skin with and without protective material under different conditions

    ps/kPa 无防护皮肤超压峰值/kPa 有防护材料前超压峰值/kPa 防护材料后超压峰值/kPa
    100 128.21(51.5%) 106.69(41.8%) 62.14
    300 249.35(49.9%) 217.13(42.5%) 124.91
    400 357.10(58.7%) 310.41(52.4%) 147.63
    500 598.10(68.2%) 465.39(59.1%) 190.42
    700 776.05(65.5%) 724.68(63.1%) 267.61
     注:括号内为材料后超压峰值的衰减百分比。
    下载: 导出CSV
  • [1] GTD search results [DB/OL]. (2022)[2024-06-20]. https://www.start.umd.edu/gtd/.
    [2] SCOTT T E, JOHNSTON A M, KEENE D D, et al. Primary blast lung injury: the UK military experience [J]. Military Medicine, 2020, 185(5/6): 568–572. DOI: 10.1093/milmed/usz453.
    [3] 中华医学会创伤学分会. 天津港“8.12”大爆炸伤员伤情特点与救治反思 [J]. 中华创伤杂志, 2015, 31(9): 810–813. DOI: 10.3760/cma.j.issn.1001-8050.2015.09.014.

    Chinese Medical Association Trauma Branch. Reflection on the characteristics and treatment of the wounded in 8.12 Tinjin Port Explosion, China [J]. Chinese Journal of Traumatology, 2015, 31(9): 810–813. DOI: 10.3760/cma.j.issn.1001-8050.2015.09.014.
    [4] ABOUDARA M, MAHONEY P F, HICKS B, et al. Primary blast lung injury at a NATO Role 3 hospital [J]. Journal of the Royal Army Medical Corps, 2014, 160(2): 161–166. DOI: 10.1136/jramc-2013-000216.
    [5] 蒋建新, 曾灵. 肺爆炸冲击伤机制与防护研究进展 [J]. 陆军军医大学学报, 2022, 44(5): 395–398. DOI: 10.16016/j.2097-0927.202111179.

    JIANG J X, ZENG L. Advance of protection and mechanism of lung blast injury [J]. Journal of Army Medical University, 2022, 44(5): 395–398. DOI: 10.16016/j.2097-0927.202111179.
    [6] 郭国吉, 陈彩英, 王向明, 等. 聚脲弹性体防护材料的研究进展 [J]. 中国表面工程, 2021, 34(6): 1–20. DOI: 10.11933/j.issn.1007-9289.20210602001.

    GUO G J, CHEN C Y, WANG X M, et al. Research progress of polyurea elastomer protective materials [J]. China Surface Engineering, 2021, 34(6): 1–20. DOI: 10.11933/j.issn.1007-9289.20210602001.
    [7] DUDA M, PACH J, LESIUK G. Influence of polyurea composite coating on selected mechanical properties of AISI 304 steel [J]. Materials, 2019, 12(19): E3137. DOI: 10.3390/ma12193137.
    [8] 王建民, 陈菁, 康建毅, 等. 爆炸性武器生物杀伤效应评估方法及应用 [J]. 现代应用物理, 2019, 10(4): 041001. DOI: 10.12061/j.issn.2095-6223.2019.041001.

    WANG J M, CHEN J, KANG J Y, et al. Method for evaluation biological damage effect of explosive weapons and its application [J]. Modern Applied Physics, 2019, 10(4): 041001. DOI: 10.12061/j.issn.2095-6223.2019.041001.
    [9] BOUAMOUL A. Numerical study of primary blast injury to human and sheep lung induced by simple and complex blast loadings: DRDC Valcartier TR 2008-245 [R]. Canada: DTIC, 2009.
    [10] 薛钰琦, 张华才, 文大林, 等. 模拟实爆条件下新型聚脲类材料对肺冲击伤的防护效应研究 [J]. 第三军医大学学报, 2020, 42(19): 1875–1881. DOI: 10.16016/j.1000-5404.202003159.

    XUE Y Q, ZHANG H C, WEN D L, et al. Bioprotective effects of novel polyurea materials on lung blast injury after simulated open-field explosion [J]. Joural of Third Military Medical University, 2020, 42(19): 1875–1881. DOI: 10.16016/j.1000-5404.202003159.
    [11] 王智, 常利军, 黄星源, 等. 爆炸冲击波与破片联合作用下防弹衣复合结构防护效果的数值模拟 [J]. 爆炸与冲击, 2023, 43(6): 063202. DOI: 10.11883/bzycj-2022-0515.

    WANG Z, CHANG LJ, HUANG XY, et al. Simulation on the defending effect of composite structure of body armor under the combined action of blast wave and framents [J]. Explosion and Shock Waves, 2023, 43(6): 063202. DOI: 10.11883/bzycj-2022-0515.
    [12] CARUSO K S, HIJUELOS J C, PECK G E, et al. Development of synthetic cortical bone for ballistic and blast testing [J]. Journal of Advanced Materials, 2006, 38(3): 27–36.
    [13] WANG H C. Development of a side impact finite element human thoracic model [D]. Detroit: Wayne State University, 1995.
    [14] DUCK F A. Physical properties of tissue [M]. London: Academic Press, 1990: 137-165.
    [15] SARAF H, RAMESH K T, LENNON A M, et al. Mechanical properties of soft human tissues under dynamic loading [J]. Journal of Biomechanics, 2007, 40(9): 1960–1967. DOI: 10.1016/j.jbiomech.2006.09.021.
    [16] JIANG Y X, ZHANG B Y, WEI J S, et al. Study on the dynamic response of polyurea coated steel tank subjected to blast loadings [J]. Journal of Loss Prevention in the Process Industries, 2020, 67: 104234. DOI: 10.1016/j.jlp.2020.104234.
    [17] 周杰, 陶钢, 潘保青, 等. 爆炸冲击波对人体胸部创伤机理的有限元方法研究 [J]. 爆炸与冲击, 2013, 33(3): 315–320. DOI: 10.11883/1001-1455(2013)03-0315-06.

    ZHOU J, TAO G, PAN B Q, et al. Mechanism of blast trauma to human thorax: a finite element study [J]. Explosion and Shock Waves, 2013, 33(3): 315–320. DOI: 10.11883/1001-1455(2013)03-0315-06.
    [18] 中国数字化可视人体数据库 [DB/OL]. (2014)[2024-06-20]. http://cvh.bmicc.cn/cvh/cn/.

    Chinese digitized visible human database [DB/OL]. (2014)[2024-06-20]. http://cvh.bmicc.cn/cvh/cn/.
    [19] 王正国. 原发冲击伤的发生机制 [J]. 解放军医学杂志, 1995, 20(4): 315–317.

    WANG Z G. Mechanism of primary blast injury [J]. Medical Journal of Chinese PLA, 1995, 20(4): 315–317.
    [20] 张均奎, 王正国, 冷华光, 等. 冲击波负压与肺损伤 [J]. 爆炸与冲击, 1994, 14(1): 84–87. DOI: 10.11883/1001-1455(1994)01-0084-4.

    ZHANG J K, WANG Z G, LENG H G, et al. Underpressure of blast wave and lung injury [J]. Explosion and Shock Waves, 1994, 14(1): 84–87. DOI: 10.11883/1001-1455(1994)01-0084-4.
    [21] WHITE C S. Biomedical parameters, project harbor study: DASA-1335 [R]. Washington: Defense Atomic Support Agency, 1963.
    [22] AXELSSON H, YELVERTON J T. Chest wall velocity as a predictor of nonauditory blast injury in a complex wave environment [J]. The Journal of Trauma: Injury, Infection, and Critical Care, 1996, 40(s3): 31–37. DOI: 10.1097/00005373-199603001-00006.
