锯齿外形对弹体带攻角侵彻横向过载的影响

王帅; 邓志方; 何丽灵; 陈红永; 李继承; 颜怡霞; 陈刚

doi:10.11883/bzycj-2024-0250

锯齿外形对弹体带攻角侵彻横向过载的影响

doi: 10.11883/bzycj-2024-0250

王帅^{1, 2,},
邓志方^{1, 2},
何丽灵^{1, 2, ,},
陈红永^{1, 2},
李继承^{1, 2},
颜怡霞^{1, 2},
陈刚^{1, 2}

1.
中国工程物理研究院总体工程研究所，四川绵阳 621999
2.
工程材料与结构冲击振动四川省重点实验室，四川绵阳 621999

基金项目: 国家自然科学基金青年科学基金（12302495）；四川省自然科学基金杰出青年科学基金（2023NSFSC1913）

详细信息

作者简介:
王　帅（1989－　），男，博士，助理研究员，wangshuaicaep@163.com

通讯作者:
何丽灵（1984－　），女，博士，副研究员，heliling1984@139.com

中图分类号: O385
计量
- 文章访问数: 124
- HTML全文浏览量: 21
- PDF下载量: 27
- 被引次数: 0
出版历程
- 收稿日期: 2024-07-22
- 修回日期: 2024-11-28
- 网络出版日期: 2024-12-02

Influence of serrated configuration on transverse overload of the projectile penetrating with a small attack angle

WANG Shuai^{1, 2
,},
DENG Zhifang^{1, 2},
HE Liling^{1, 2
, ,},
CHEN Hongyong^{1, 2},
LI Jicheng^{1, 2},
YAN Yixia^{1, 2},
CHEN Gang^{1, 2}

1.
Institute of Systems Engineering, China Academy of Engineering Physics, Mianyang 621999, Sichuan, China
2.
Shock and Vibration of Engineering Materials and Structures Key Laboratory of Sichuan Province, Mianyang 621999, Sichuan, China

摘要

摘要: 为降低具有初始攻角的弹体在侵彻时产生的横向过载峰值。采用数值模拟方法，研究了一种带锯齿弹身的新型钻地弹以非零攻角姿态侵彻混凝土靶体时其特有的横向降载效应和机理。考虑初始攻角、质心系数等的影响，以常规光滑弹作为对比对象，分析了弹体运动规律、弹靶接触力、接触力矩、接触面积等。结果表明，在1°、2°和3°的小初始攻角范围内，锯齿弹可较光滑弹降低横向过载峰值约30.6%、5.2%、11.3%，但相应的接触力矩的峰值和脉宽、偏转角度等均有所增大。研究结果揭示了锯齿弹的横向降载机理：锯齿弹身减小了弹靶的接触面积，横向接触力主要集中在弹身锯齿区靠近头部的前两个锯齿环槽的右锯齿上，使得锯齿弹身与靶的横向接触力减小，而非锯齿区（主要是弹体头部）与靶的横向接触力增大，二者的竞争可增强锯齿弹整体的横向降载效果。通过结构设计等手段抑制锯齿弹的弹道偏转后，可有效提升锯齿弹的横向降载效率。
- 横向降载 /
- 攻角 /
- 锯齿弹 /
- 弹道偏转
Abstract: In the process of deep penetration of the earth penetration weapon (EPW) attacking the underground target, the non-ideal penetration attitude with an initial attack angle is inevitable, which will introduce transverse overload with a large peak value for the earth penetrator. It could damage some important components of the earth-penetrating projectile and reduce the penetration efficiency of the projectile. Therefore, it is necessary to study the methodology of reducing the transverse overload peak value of the earth-penetrating projectile. However, the previous research on the earth-penetrating projectile seldom considered the influence of transverse overload, making it difficult to effectively reduce the transverse overload. In order to overcome this problem, a numerical simulation method was used to study the special transverse overload shedding effect and its mechanism of a new type of earth-penetrating projectile with a serrated configuration penetrating concrete targets at non-zero attack angles. The influences of the initial attack angle and the coefficient of the center of mass of the projectile were studied, and the motion, contact force, contact moment, and contact area of the projectile were analyzed using a conventional smooth projectile for comparison. The results show that for small initial attack angles of 1°, 2° and 3°, the peak value of transverse overload of the serrated projectile is reduced by about 30.6%, 5.2%, and 11.3%, respectively, compared to the smooth projectile but the peak value of contact moment, pulse width, and deflection angle are increased. The research reveals the mechanical mechanism to reduce transverse overload: the serrated body of the projectile reduces the contact area between the projectile and the target, and the transverse contact force is mainly concentrated on the upper surface of the right serrated parts of the first two serrated grooves near the head of the projectile; the transverse contact force between the serrated body and the target decreases, while the transverse contact force between the non-serrated parts (mainly the head of the projectile) and the target increases. Therefore, these two parts of the projectile compete and control the reduction effects of the transverse overload of the whole projectile in the process of deep penetration with an initial attack angle. When optimizations of structural design are used to suppress the ballistic deflection of the serrated projectile, the transverse overload shedding efficiency of serrated projectiles can be effectively improved.
- transverse overload shedding /
- attack angle /
- serrated projectile /
- deflection of trajectory

HTML全文

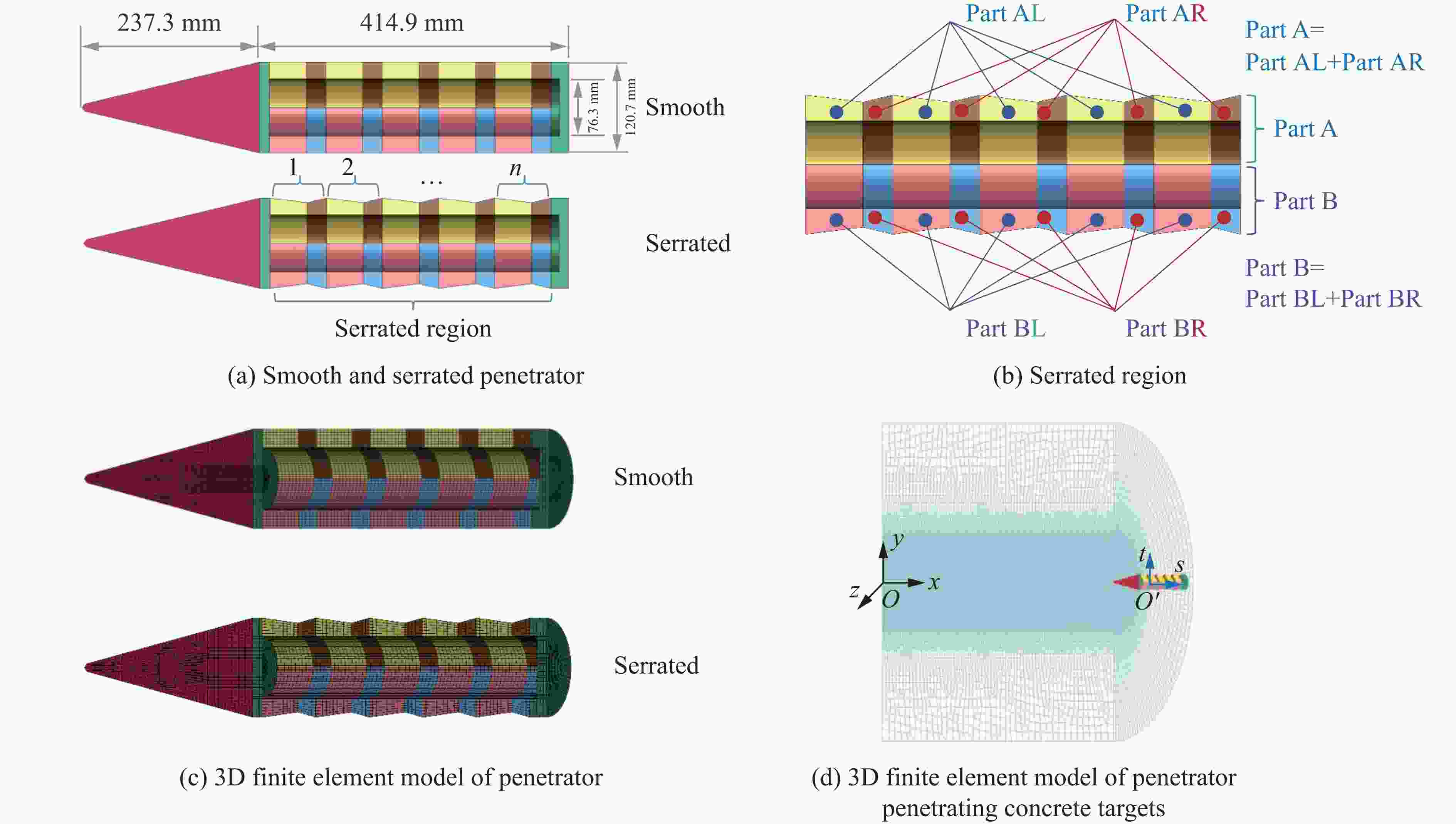

图 1 锯齿弹与光滑弹结构及有限元模型

Figure 1. Configurations and numerical models of the smooth and serrated projectiles

下载: 全尺寸图片幻灯片

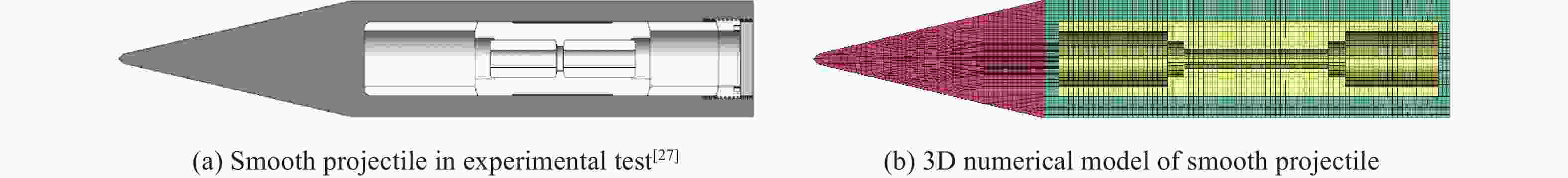

图 2 光滑弹^[27]及相应有限元模型

Figure 2. Smooth projectile^[27] and corresponding numerical model

下载: 全尺寸图片幻灯片

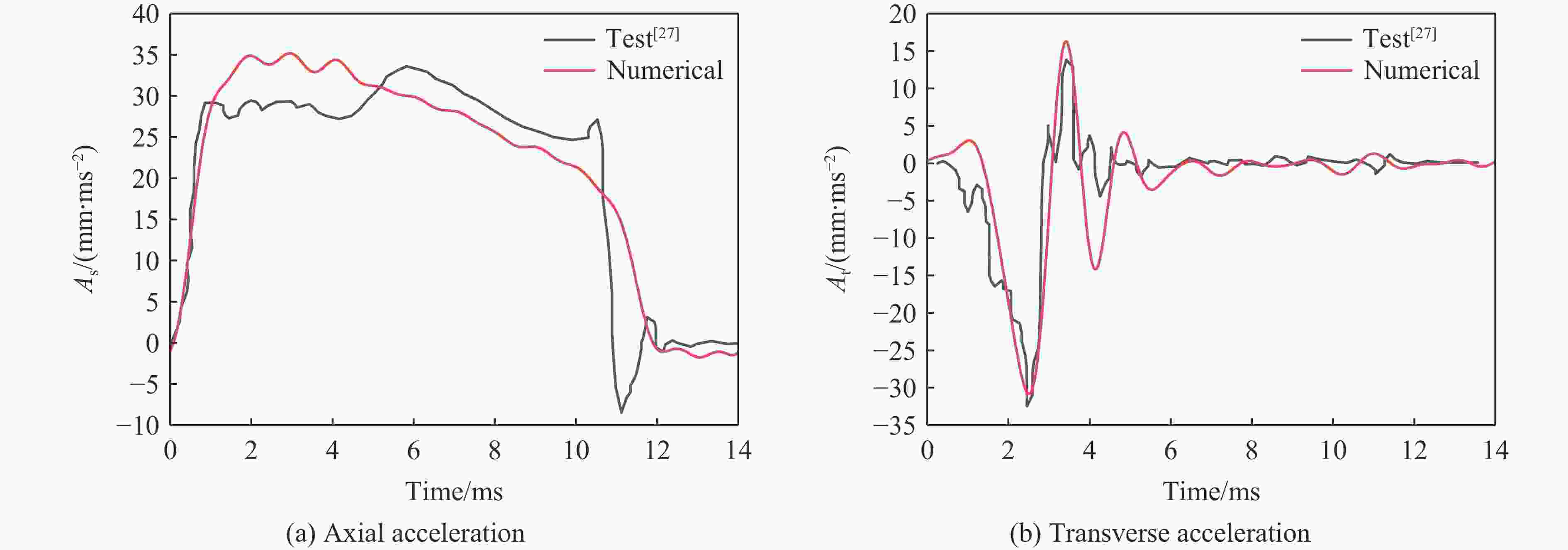

图 3 1.7°攻角时光滑弹侵彻混凝土靶的轴向及横向加速度时程曲线的数值仿真结果与试验结果对比

Figure 3. Comparison between numerical results and experimental results of acceleration of the smooth projectile penetrating concrete target at attack angle 1.7°

下载: 全尺寸图片幻灯片

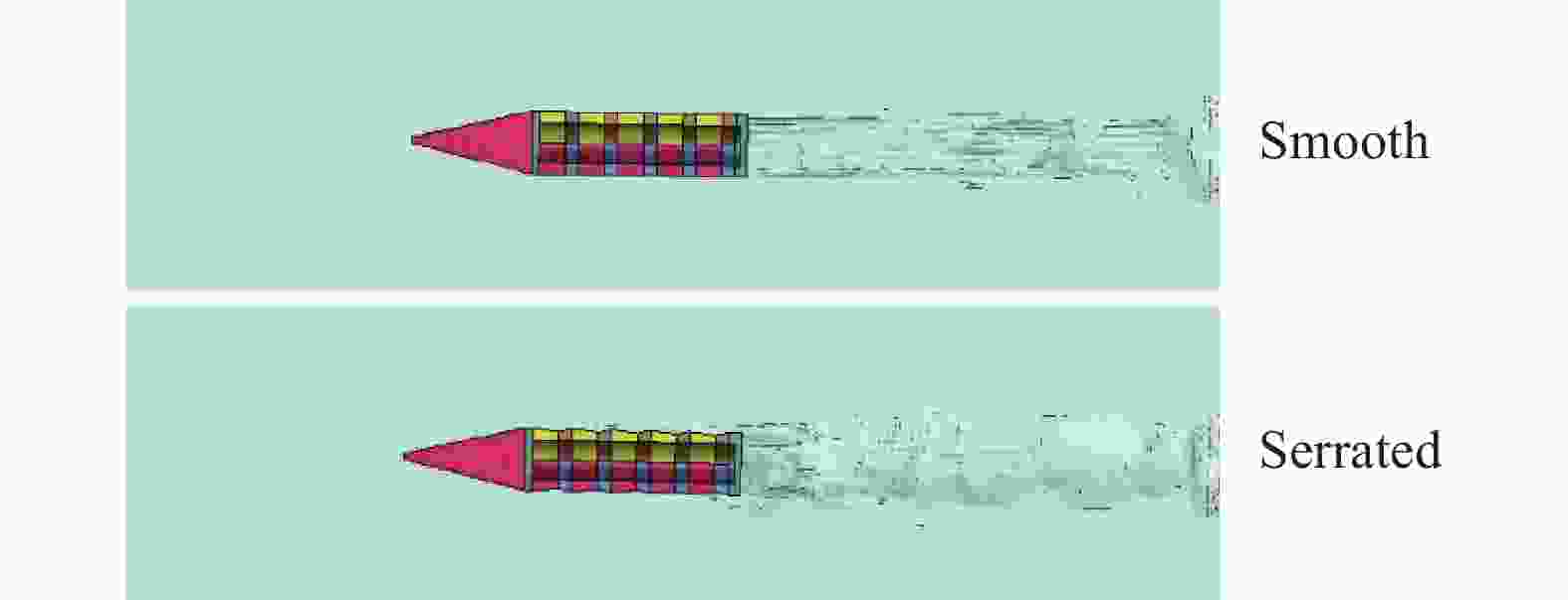

图 4 理想正侵彻时光滑弹与锯齿弹的弹道轨迹对比

Figure 4. Comparison of ballistic trajectories between smooth and serrated projectiles during ideal normal penetration

下载: 全尺寸图片幻灯片

图 5 理想正侵彻时光滑弹与锯齿弹的位移及加速度对比

Figure 5. Comparison of displacements and accelerations between smooth and serrated projectiles during ideal normal penetration

下载: 全尺寸图片幻灯片

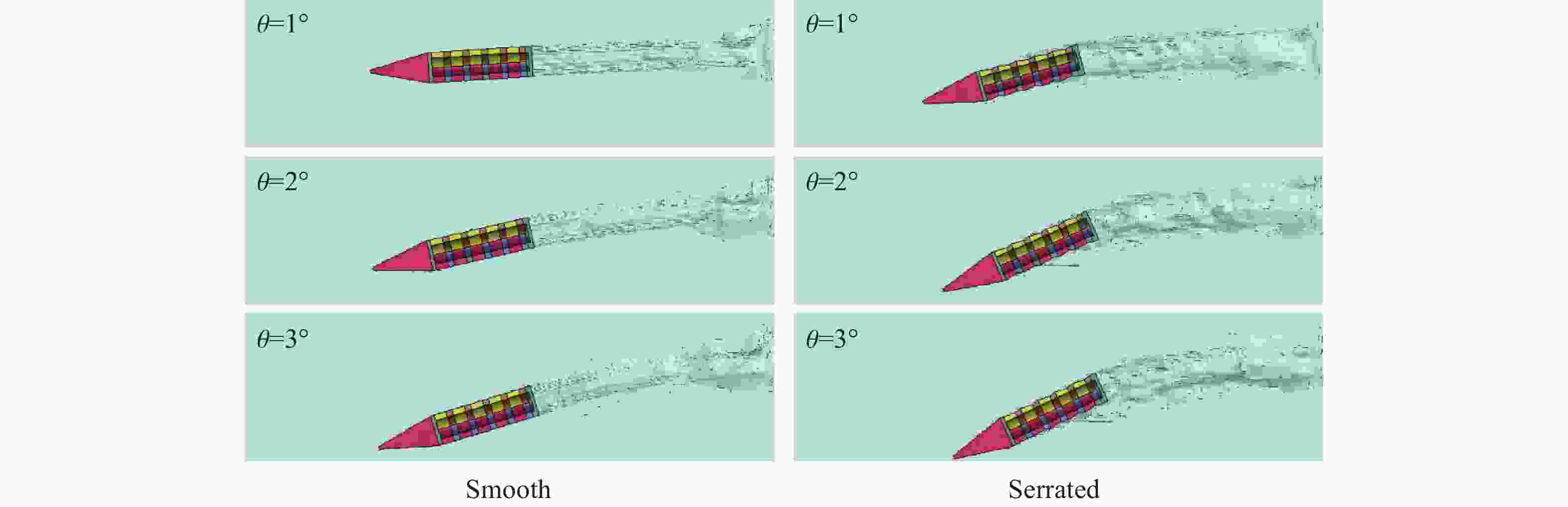

图 6 不同攻角时光滑弹及锯齿弹的弹道轨道对比

Figure 6. Comparison of ballistic trajectories between smooth and serrated projectiles for different attack angles

下载: 全尺寸图片幻灯片

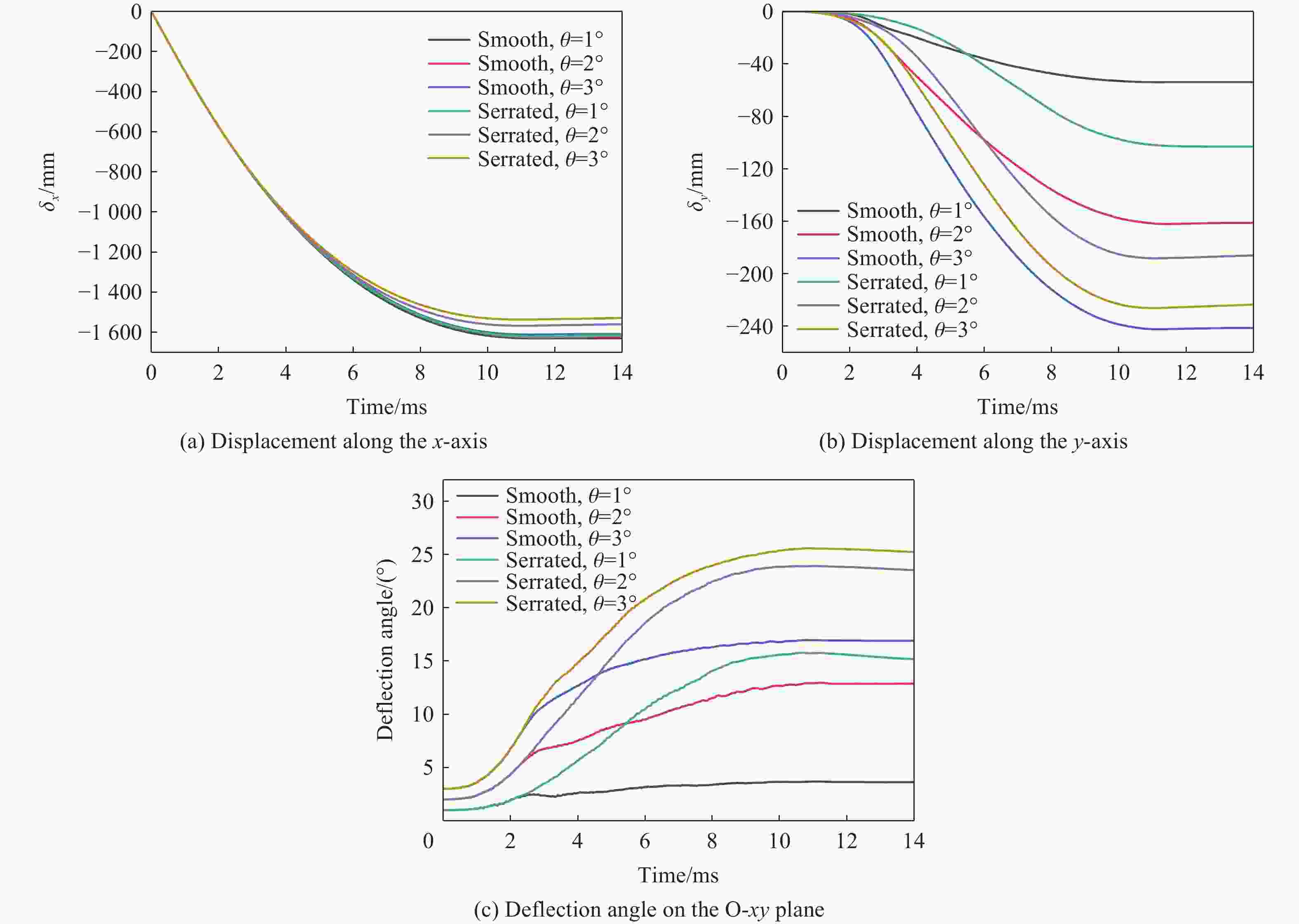

图 7 不同攻角时光滑弹及锯齿弹位移及偏转角对比

Figure 7. Comparison of displacements and deflection angles between smooth and serrated projectiles for different attack angles

下载: 全尺寸图片幻灯片

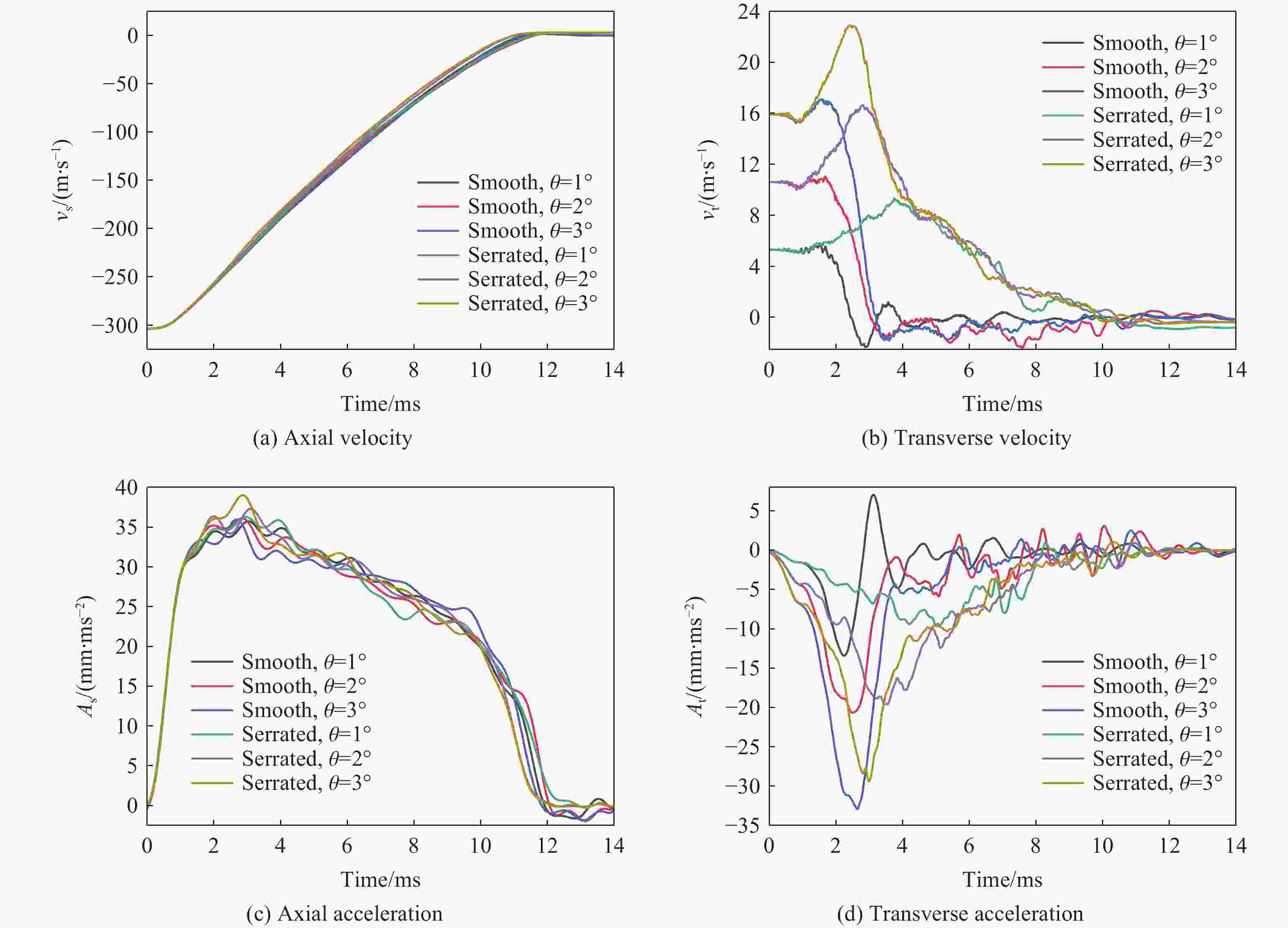

图 8 不同攻角时光滑弹及锯齿弹速度和加速度对比

Figure 8. Comparison of velocities and accelerations between smooth and serrated projectiles for different attack angles

下载: 全尺寸图片幻灯片

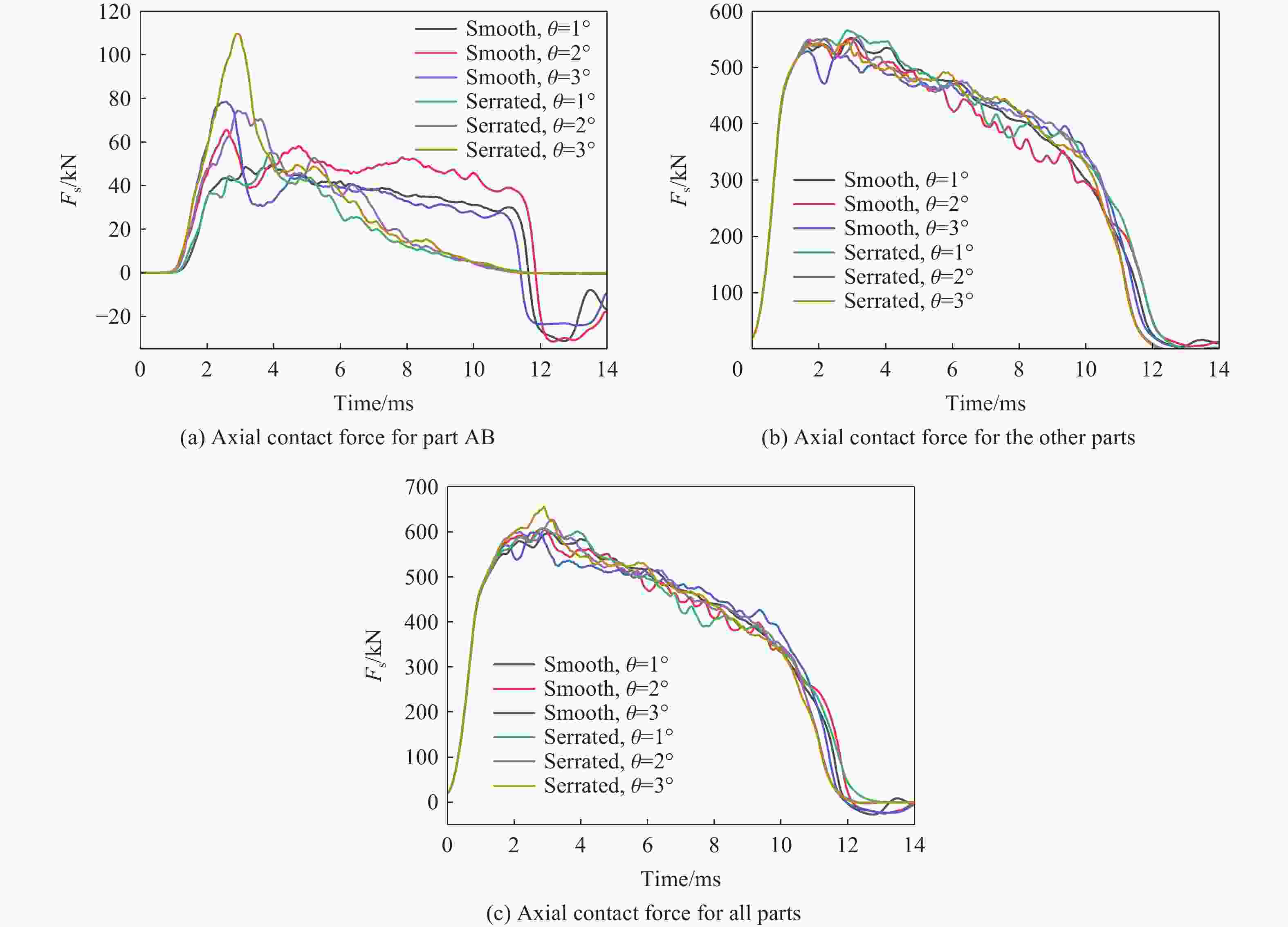

图 9 不同攻角时两种弹型的锯齿区与非锯齿区轴向接触力的对比

Figure 9. Comparison of axial contact forces in serrated and non-serrated areas between smooth and serrated projectiles for different attack angles

下载: 全尺寸图片幻灯片

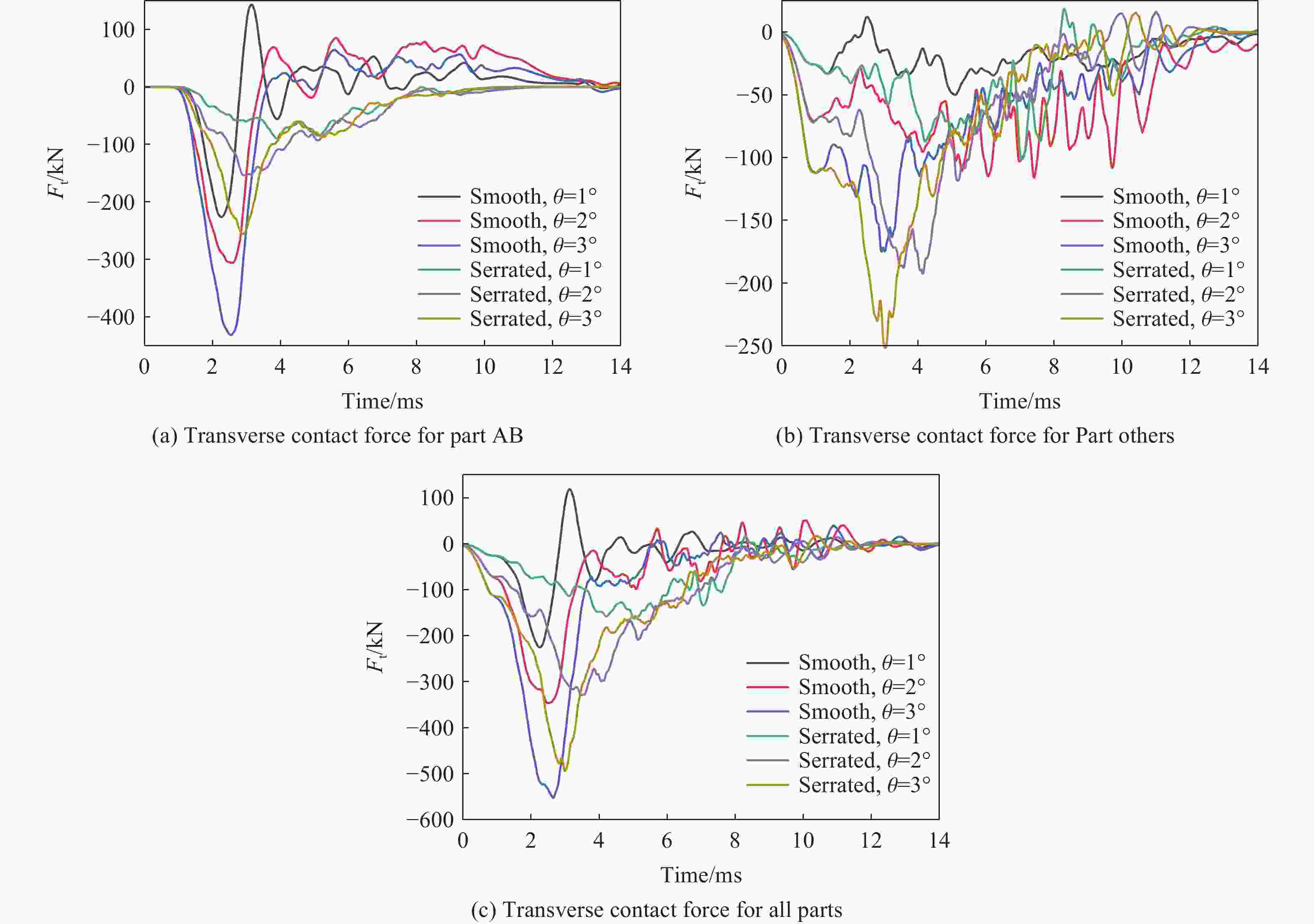

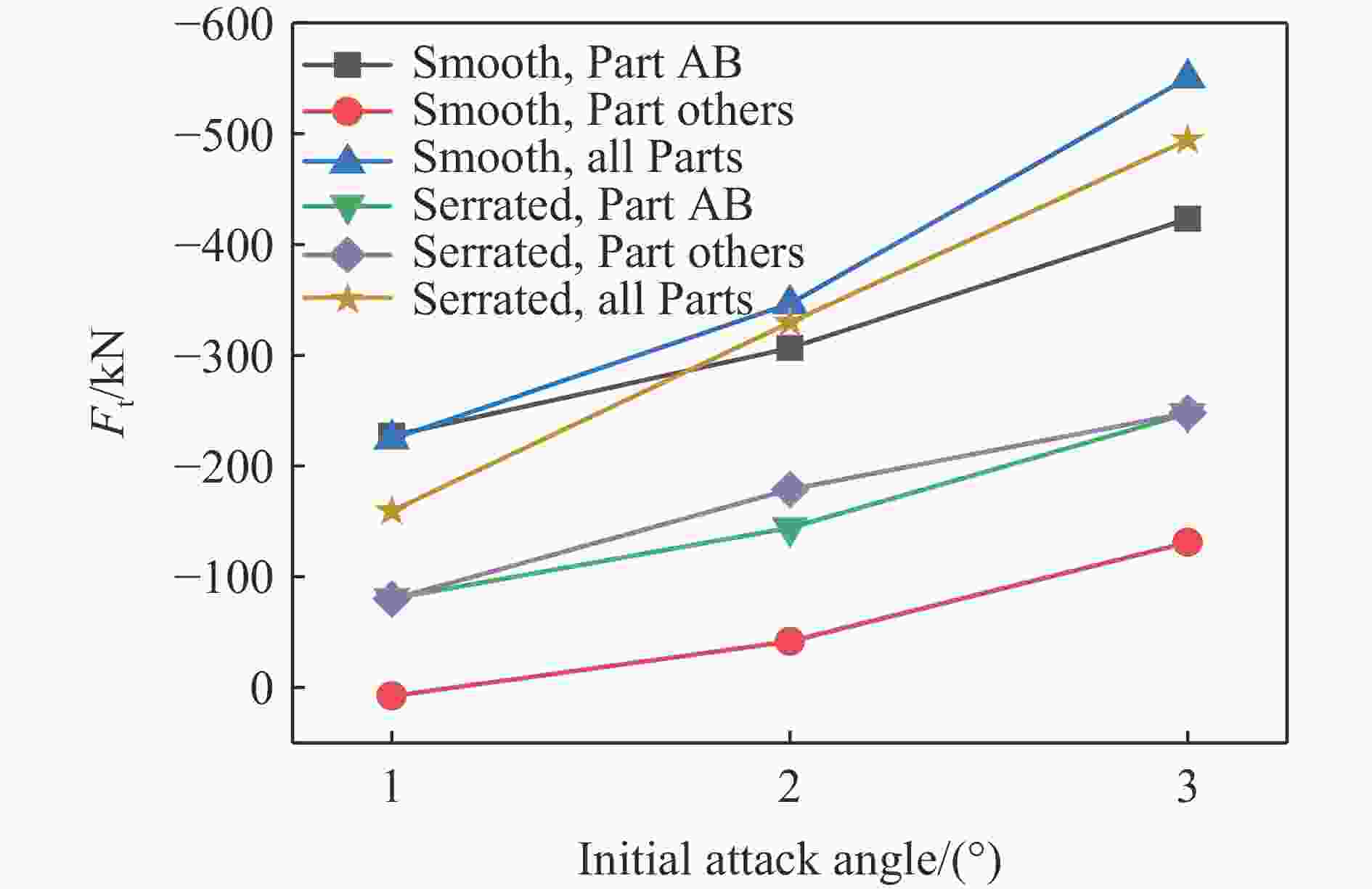

图 10 不同攻角时两种弹型锯齿区与非锯齿区横向接触力的对比

Figure 10. Comparison of transverse contact forces in serrated and non-serrated areas between smooth and serrated projectiles for different attack angles

下载: 全尺寸图片幻灯片

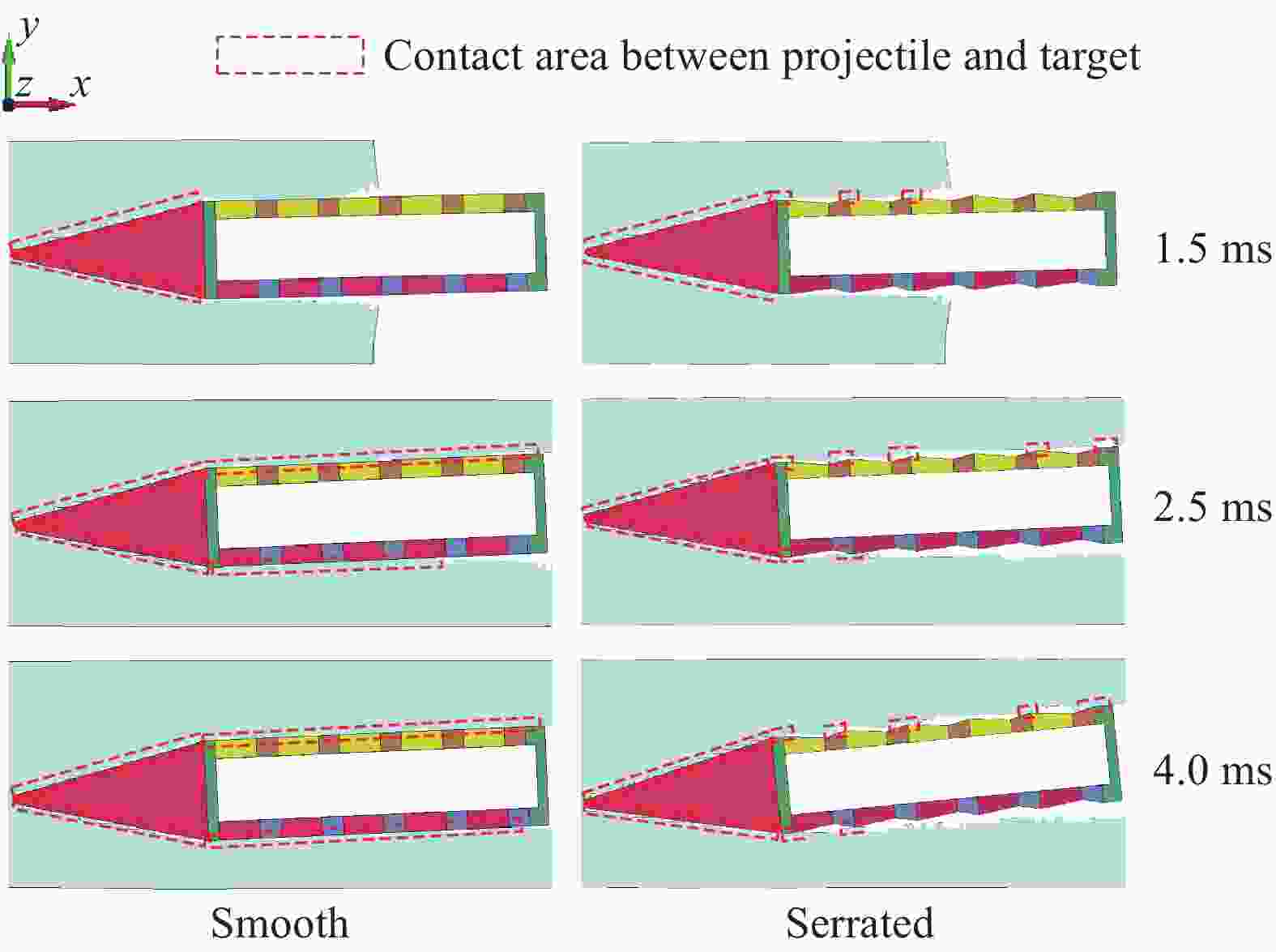

图 11 光滑弹与锯齿弹的弹靶接触形貌对比（1°攻角时）

Figure 11. Comparison of contact morphologies of projectile and target between smooth and serrated projectiles when attack angle is 1°

下载: 全尺寸图片幻灯片

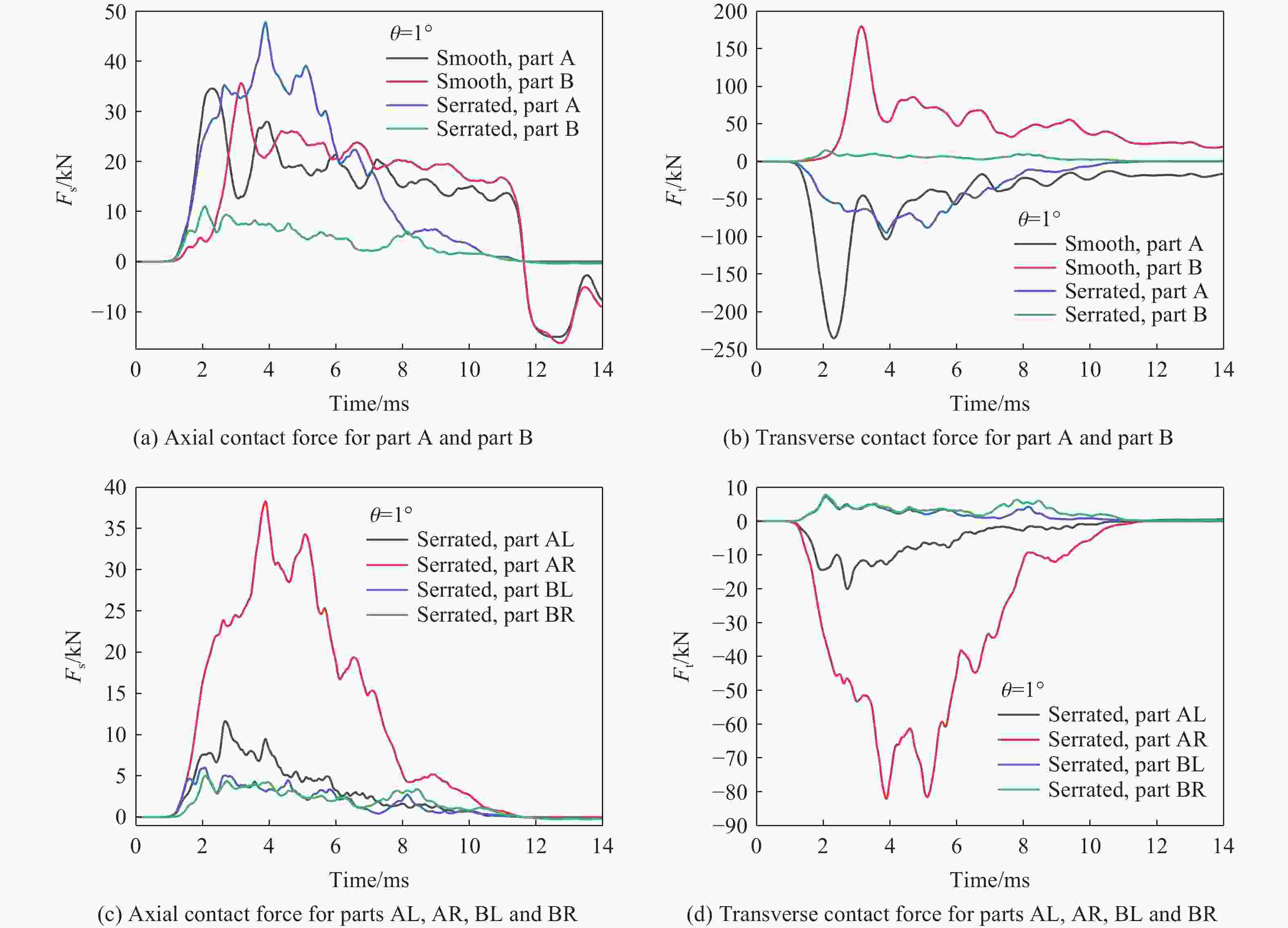

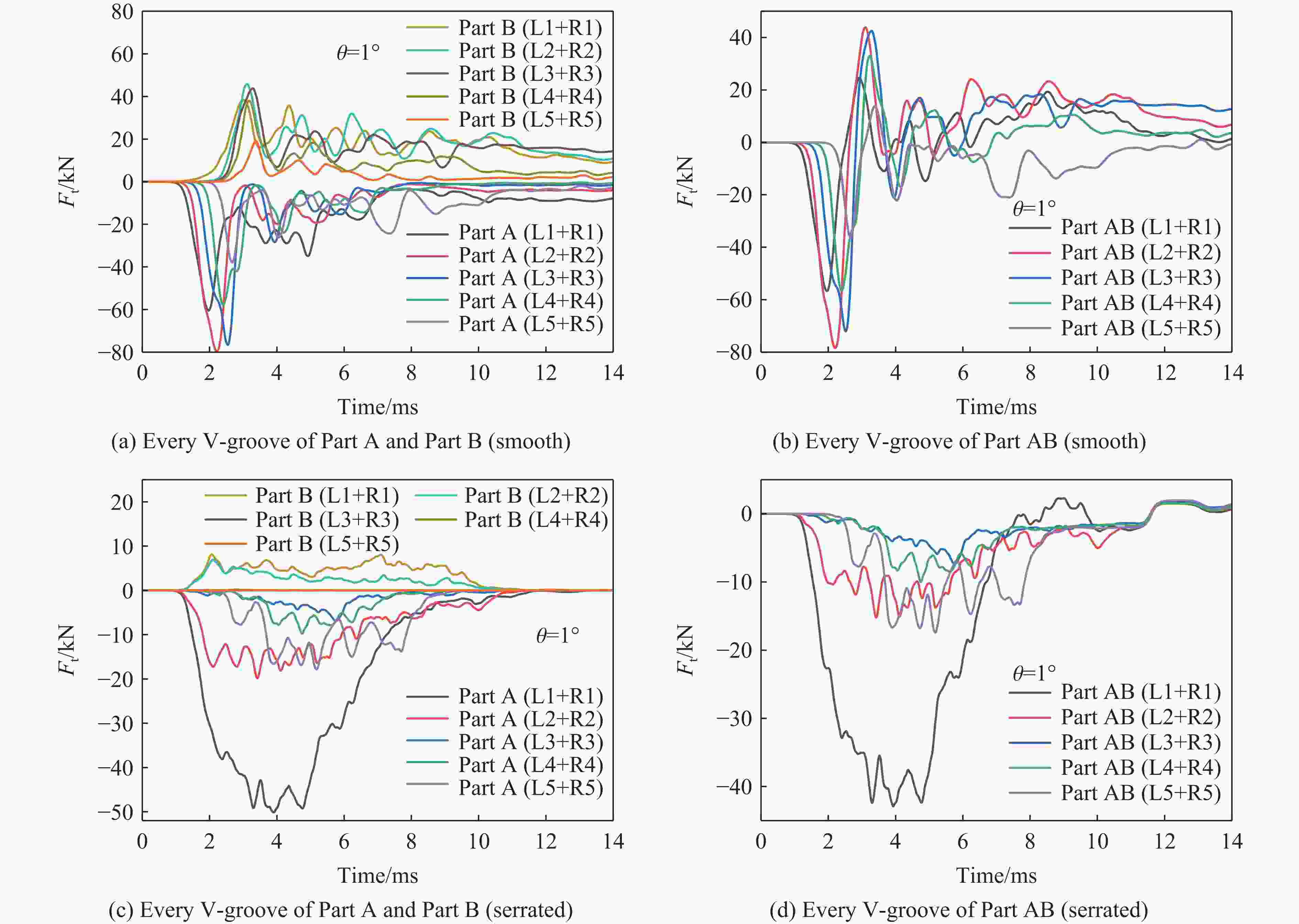

图 12 锯齿区上下表面及左右锯齿接触力对比（1°攻角时）

Figure 12. Comparison of contact forces between the upper and lower surfaces and the left and right parts in the serrated areas when attack angle is 1°

下载: 全尺寸图片幻灯片

图 13 沿弹尖至弹尾方向两种构型弹体弹身横向接触力变化趋势对比（1°攻角时）

Figure 13. Comparison of transverse contact forces of projectile bodies between smooth and serrated projectiles along the direction from head to tail when attack angle is 1°

下载: 全尺寸图片幻灯片

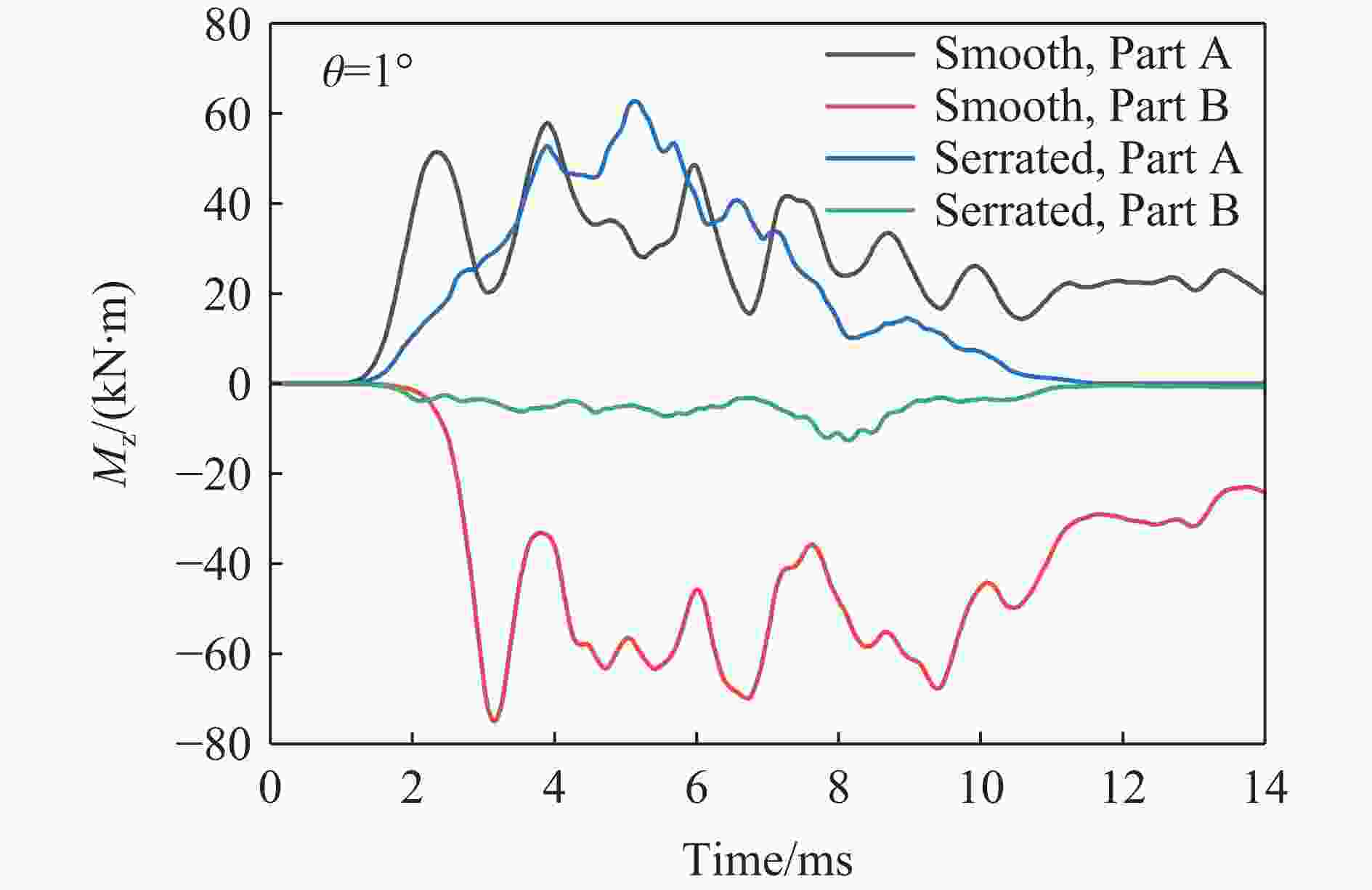

图 14 不同攻角时两种弹型锯齿区与非锯齿区接触力矩的对比

Figure 14. Comparison of contact moments between serrated and non-serrated areas for different attack angles

下载: 全尺寸图片幻灯片

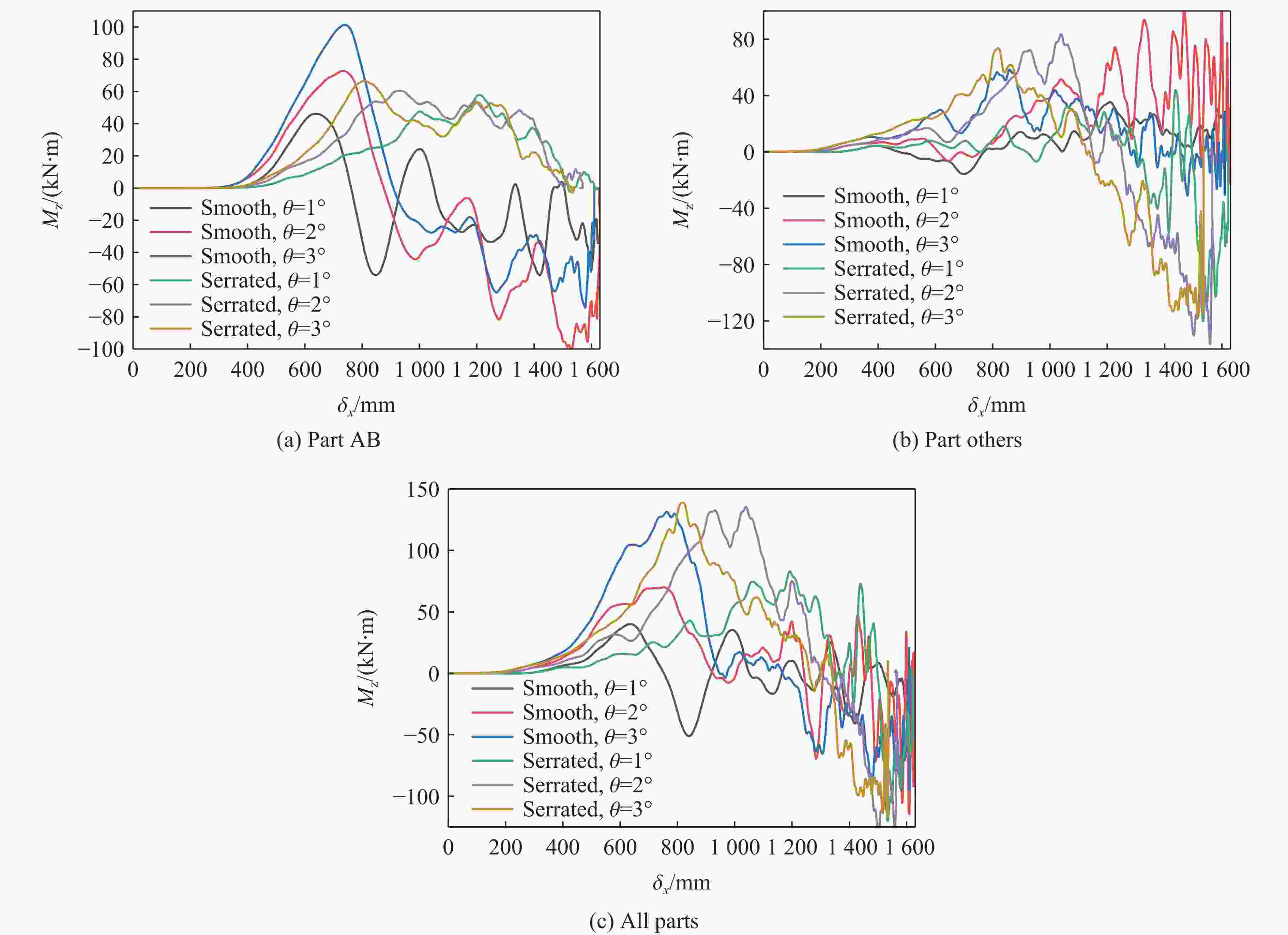

图 15 锯齿区上下表面接触力矩的对比

Figure 15. Contact moments for different serrated sections

下载: 全尺寸图片幻灯片

图 16 横向加速度最大时锯齿弹与光滑弹弹身与头部横向接触力的对比

Figure 16. Comparison of transverse contact forces between body and head of smooth and serrated projectiles when the transverse acceleration is maximum

下载: 全尺寸图片幻灯片

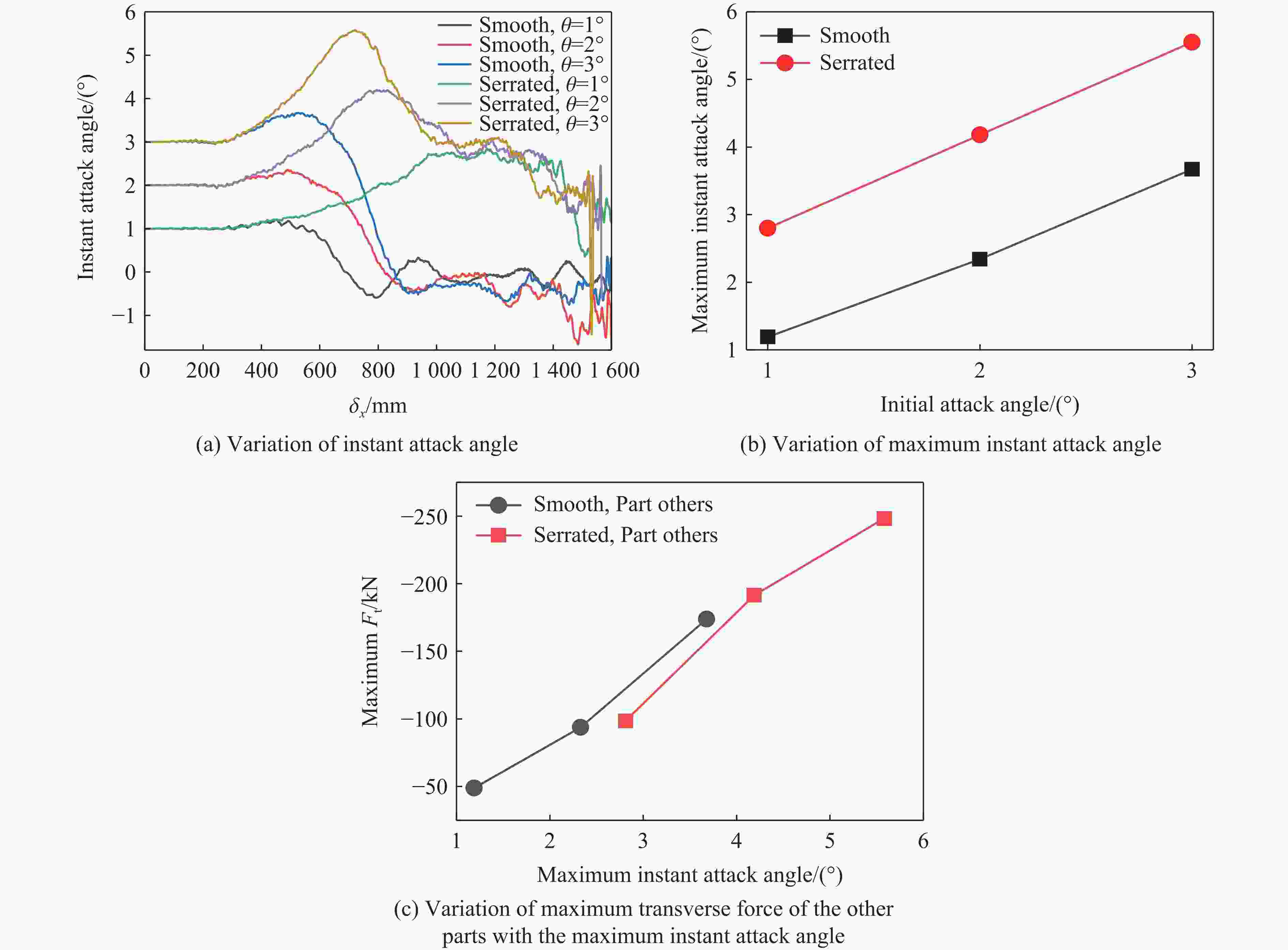

图 17 不同攻角时两种弹型瞬时攻角及横向接触力的变化规律

Figure 17. Variation of instant attack angles and transverse contact forces at different initial attack angles

下载: 全尺寸图片幻灯片

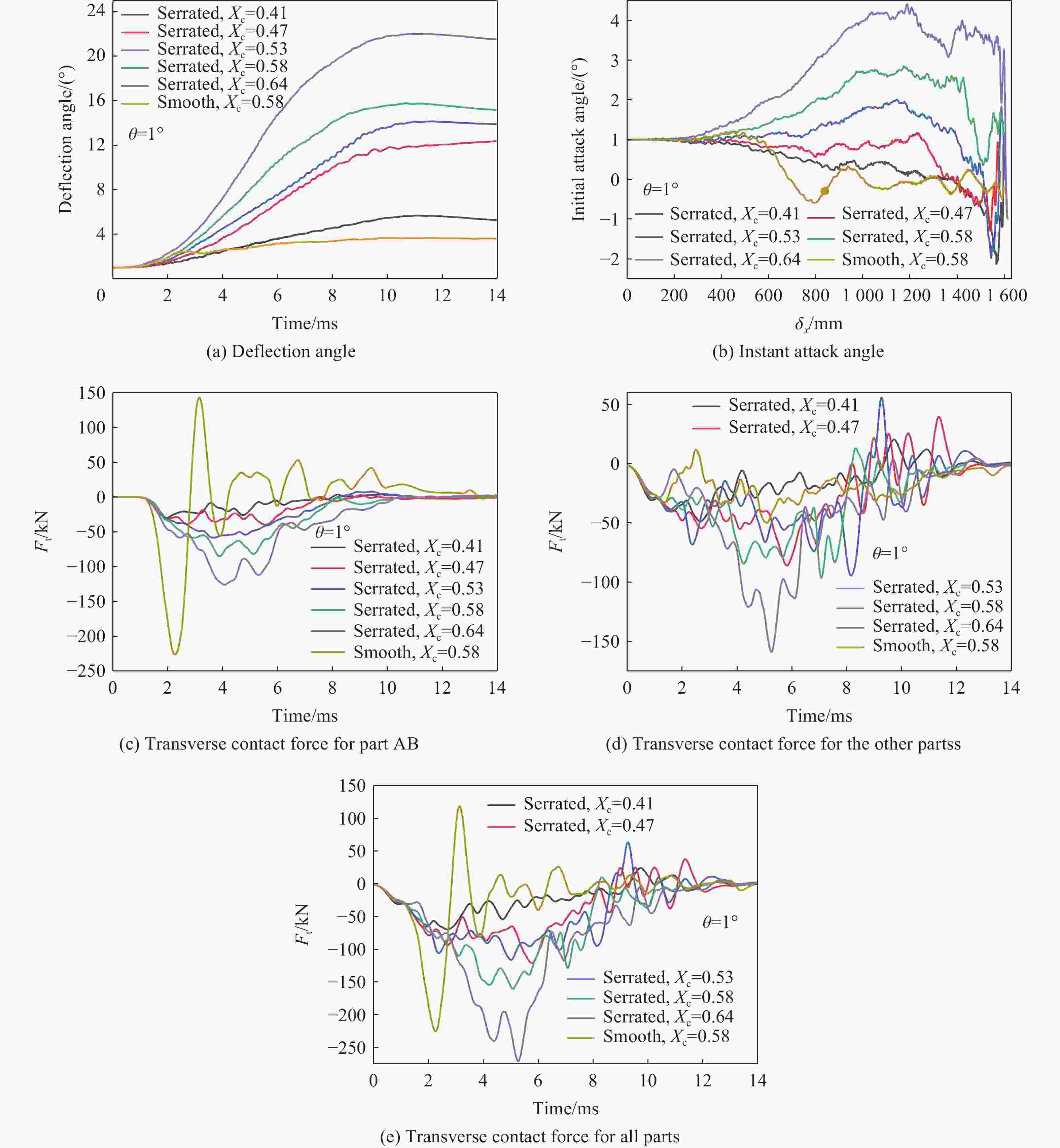

图 18 不同质心系数时锯齿弹偏转角、瞬时攻角、横向接触力变化趋势

Figure 18. Variation of deflection angle, instant attack angle and transverse contact force for serrated projectiles with different mass centers

下载: 全尺寸图片幻灯片

表 1 G50钢与7075铝合金弹塑性本构模型参数

Table 1. Elastoplastic constitutive parameters of G50 steel and 7075 aluminum alloy

材料	密度/ (g·cm⁻³)	弹性模量/ GPa	泊松比	屈服应力/ MPa	切线模量/ MPa
G50钢	7.8	200	0.3	1800	1000
7075铝合金	2.7	70	0.3	520	477

下载: 导出CSV

表 2 混凝土的HJC本构模型参数^[29]

Table 2. HJC constitutive parameters of concrete^[29]

密度/(g·cm⁻³)	剪切模量/GPa	a	b	C	N	f_c/MPa	T/MPa	$ {\dot \varepsilon _0} $/s⁻¹	ε_{e, min}
1.604	1.15	0.28	1.85	0.006	0.84	12.3	1.8	1	0.01

F_max	p_c/MPa	ε_c	p_l/MPa	ε_l	D₁	D₂	K₁/GPa	K₂/GPa	K₃/GPa
15.0	13.8	0.0075	1210	0.15	0.04	1.0	12	135	698

下载: 导出CSV

表 3 不同攻角时光滑弹与锯齿弹的侵彻工况设计

Table 3. Penetration condition of smooth and serrated projectiles at different attack angles

工况	弹体类型	初始攻角$ \theta $/（°）	质心系数$ {X}_{\mathrm{c}} $	左锯齿密度/(g·cm⁻³)	右锯齿密度/(g·cm⁻³)	其他区域密度/(g·cm⁻³)
1	光滑弹	0	0.58	8.525	8.525	8.525
2	锯齿弹	0	0.58	9.800	11.000	8.525
3	光滑弹	1	0.58	8.525	8.525	8.525
4	锯齿弹	1	0.58	9.800	11.000	8.525
5	光滑弹	2	0.58	8.525	8.525	8.525
6	锯齿弹	2	0.58	9.800	11.000	8.525
7	光滑弹	3	0.58	8.525	8.525	8.525
8	锯齿弹	3	0.58	9.800	11.000	8.525

下载: 导出CSV

表 4 不同质心位置构型弹体侵彻工况

Table 4. Penetration conditions of configurations of projectiles with different mass centers

工况	弹体类型	初始攻角$ \theta $/（°）	质心系数X_c	左锯齿密度/(g·cm⁻³)	右锯齿密度/(g·cm⁻³)	其他区域密度/(g·cm⁻³)
9	锯齿弹	1	0.41	0.479	0.479	24.200
10	锯齿弹	1	0.47	3.721	3.721	18.985
11	锯齿弹	1	0.53	6.965	6.965	13.756
4	锯齿弹	1	0.58	11.000	11.000	9.800
12	锯齿弹	1	0.64	13.454	13.454	3.295
3	光滑弹	1	0.58	8.525	8.525	8.525

下载: 导出CSV
