动载荷下固体推进剂损伤演化原位成像研究

苑永祥; 刘岳勋; 赵蒙; 王龙; 侯传涛; 王煊军; 吴圣川

doi:10.11883/bzycj-2024-0315

动载荷下固体推进剂损伤演化原位成像研究

doi: 10.11883/bzycj-2024-0315

苑永祥^1,,
刘岳勋¹,
赵蒙^2, ,,
王龙³,
侯传涛³,
王煊军²,
吴圣川^1, ,

1.
西南交通大学轨道交通运载系统全国重点实验室, 四川成都 610031
2.
火箭军工程大学智剑实验室, 陕西西安 710025
3.
北京强度环境研究所可靠性与环境工程技术重点实验室, 北京 100076

基金项目: 国家自然科学基金（52202082）；智剑实验室开放基金（2024-ZJSYS-KF02-04）；火箭军工程大学青年基金（2021QN-B014）；

详细信息

作者简介:
苑永祥（1999－　），男，硕士研究生，y896422289@163.com

通讯作者:
赵　蒙（1991－　），男，博士，讲师，mengxjtu@163.com

吴圣川（1979－　），男，博士，研究员，wusc@swjtu.edu.cn

中图分类号: O346.5; V512
计量
- 文章访问数: 111
- HTML全文浏览量: 19
- PDF下载量: 35
- 被引次数: 0
出版历程
- 收稿日期: 2024-08-29
- 修回日期: 2025-01-09
- 网络出版日期: 2025-01-09

In-situ tomography on damage evolution of solid propellant under dynamic loading

1.
State Key Laboratory of Rail Transit Vehicle System, Southwest Jiaotong University, Chengdu 610031, Sichuan, China
2.
Zhijian Laboratory, Rocket Force University of Engineering, Xi'an 710025, Shanxi, China
3.
Key Laboratory of Science and Technology on Reliability and Environmental Engineering, Beijing Institute of Structure and Environment Engineering, Beijing 100076, China

摘要

摘要: 为研究硝酸酯增塑聚醚固体推进剂内部结构损伤演化行为，采用同步辐射X射线三维成像和自主研发的原位压缩试验系统，在0.1、1.0和5.0 mm/s加载速率下进行了宏细观结构的原位可视化观测，探究了推进剂宏观变形及其内部微裂纹的空间分布与传播模式。结果表明，微裂纹主要形核并生长于填充颗粒与基体界面处，细观孔隙的演化表现出率相关性。与拉伸加载下损伤持续生长不同，压缩过程中孔隙形核、生长与闭合并存。尤其在高速压缩下，推进剂产生“喇叭”状形貌且微裂纹沿四周分布，表面宏观破坏由近表面颗粒与基体界面处微裂纹扩展传播所致。研究还发现，微裂纹的传播与填充颗粒的空间位置相关，在动态压缩载荷作用下，微裂纹存在横向和轴向两种扩展模式；基体竖直取向微裂纹易发生向水平取向微裂纹的转变，从而导致裂纹闭合。
- 固体推进剂 /
- 原位动态压缩 /
- 损伤率相关性 /
- 内部损伤演化 /
- 同步辐射三维成像
Abstract: Structural damages in solid propellants can lead to combustion anomalies and affect ballistic performance. Utilizing synchrotron radiation X-ray computed tomography technology and an in-situ mechanical loading test system, the macro-meso structures of nitrate ester plasticized polyether (NEPE) solid propellant were observed in-situ at compressive rates of 0.1, 1.0, and 5.0 mm/s. The compressive process employed an intermittent loading mode. With loading paused each time the preset displacement was reached to enable scanning imaging, thereby capturing the state of the propellant at specific phases during compression. Following the in-situ imaging experiment, the tomographic images of the samples were processed through projection correction and phase recovery using PITRE and PITRE_BM software, followed by image bit-depth conversion to obtain 8-bit 2D grayscale slices. Through 3D reconstruction, the typical damages and evolutionary behaviors of the solid propellant were analyzed, exploring the macroscopic deformation as well as the distribution and propagation patterns of internal micro-cracks. Results indicate that most micro-cracks nucleate and grow at the interface between filled particles and the matrix, with meso-pore evolution being rate-dependent. Unlike the continuous damage growth under tensile loading, the nucleation, growth, and closure of pores occur simultaneously during compression. Under high-rate uniaxial compressive loading, the solid propellant exhibits characteristic trumpet-shaped deformation, with spatially distributed cracks primarily located around the propellant. Macroscopic surface damage results from micro-crack propagation between near-surface particles and the matrix, with crack propagation related to the spatial location of filled particles. Transversal and axial crack propagation modes exist under dynamic compressive loading, with the transition from vertically to horizontally oriented cracks in the matrix leading to crack closure.
- solid propellant /
- in-situ dynamic compression /
- damage rate-related behavior /
- internal damage evolution /
- synchrotron radiation 3D tomography

HTML全文

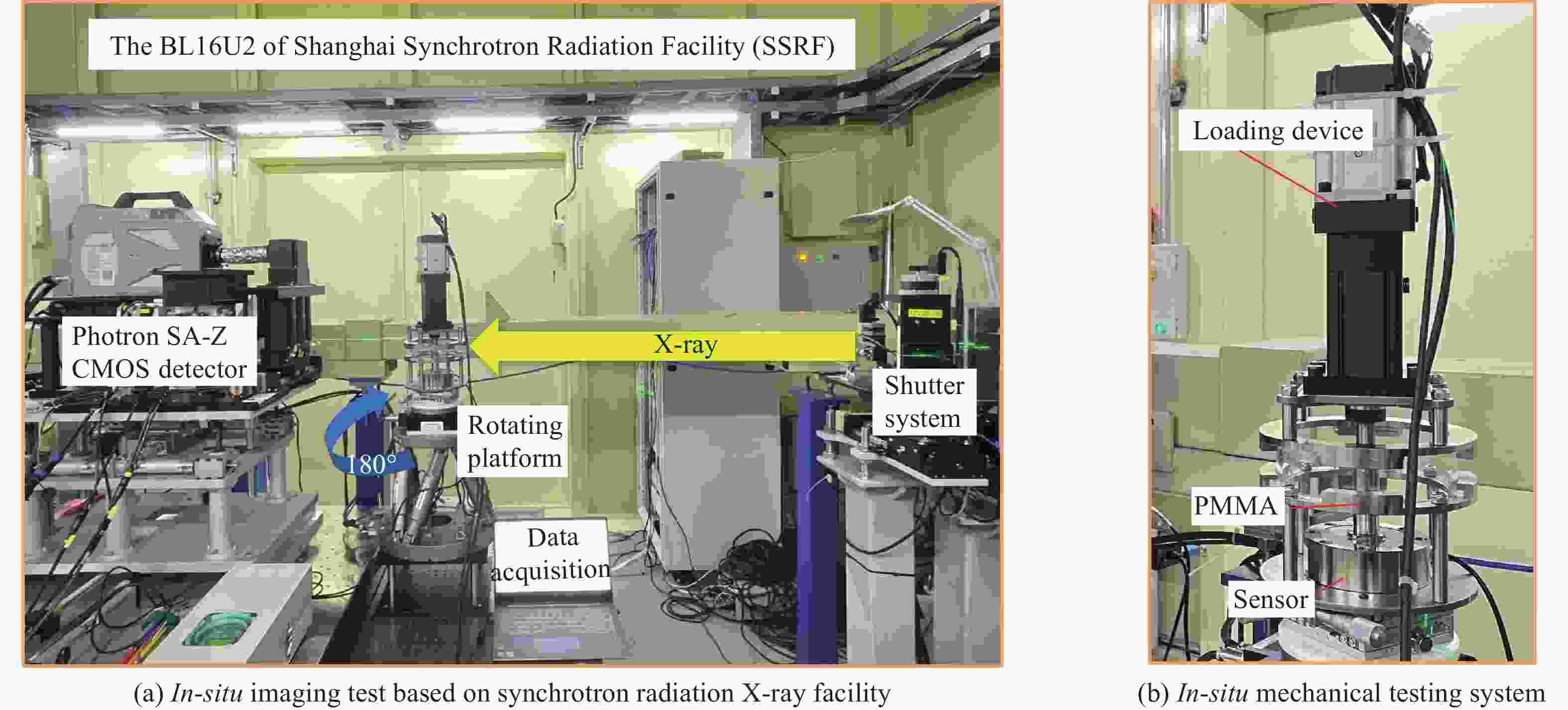

图 1 基于同步辐射X射线的原位压缩试验示意图

Figure 1. Schematic of in-situ compressive test based on synchrotron radiation X-ray facility

下载: 全尺寸图片幻灯片

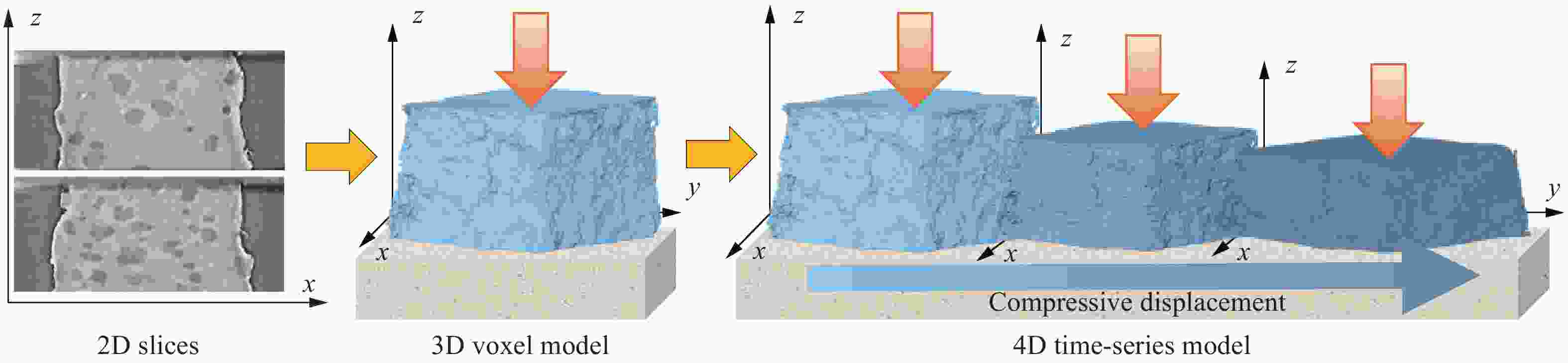

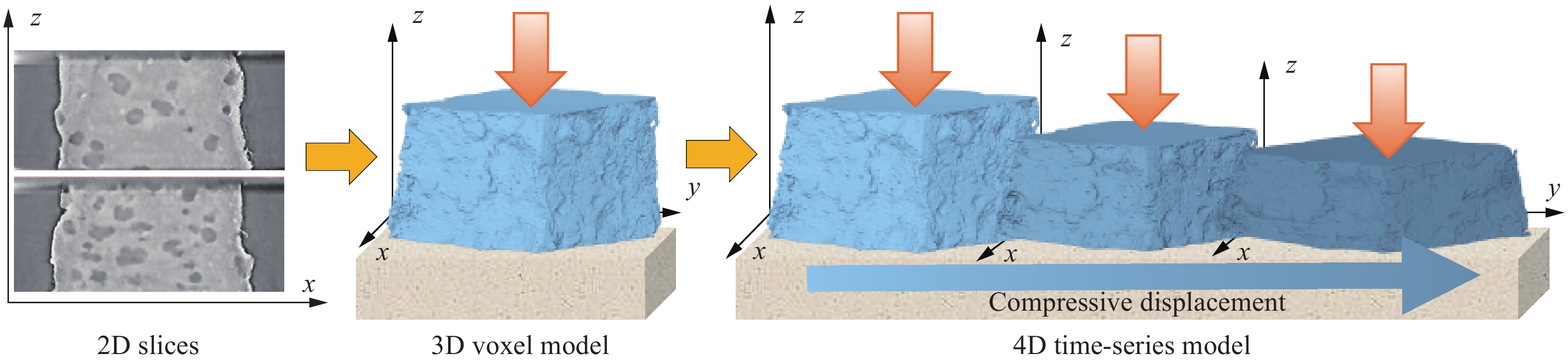

图 2 固体推进剂原位压缩变形的数据重构过程

Figure 2. The procedure of data reconstruction for in-situ compressive deformation of solid propellant

下载: 全尺寸图片幻灯片

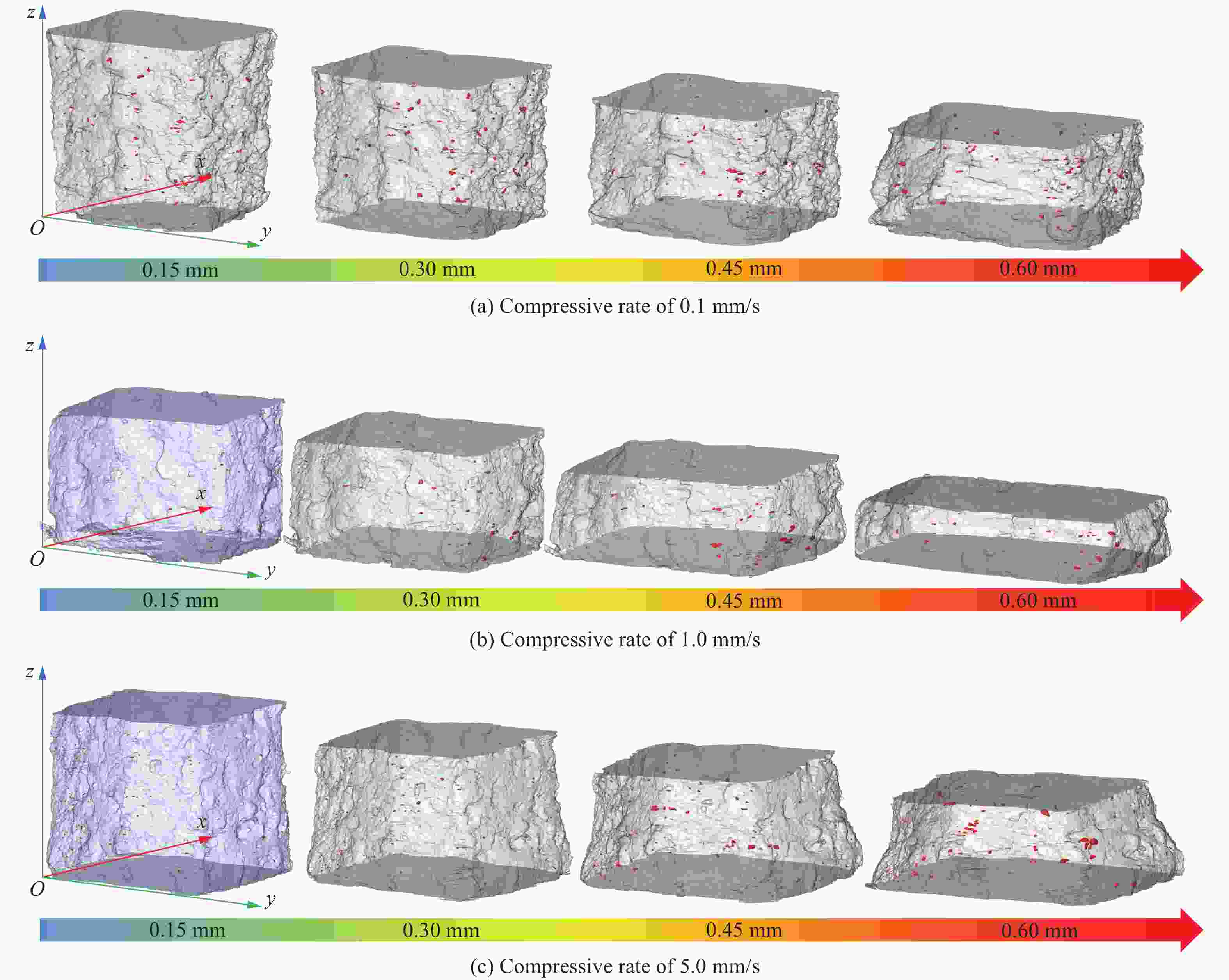

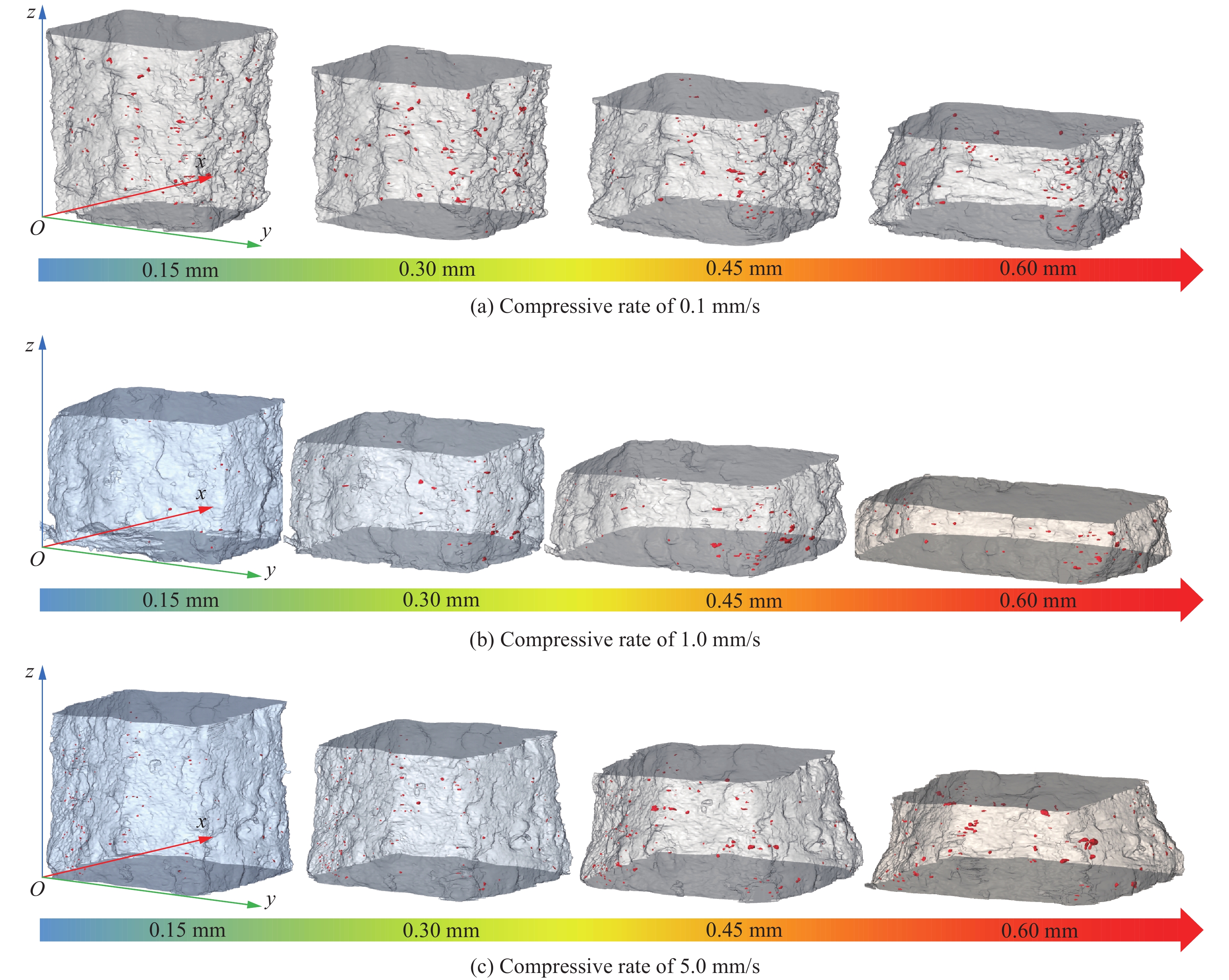

图 3 压缩加载下固体推进剂的宏观变形及其内部损伤分布

Figure 3. Macroscopic deformation and internal damage distribution of solid propellants under compressive loading

下载: 全尺寸图片幻灯片

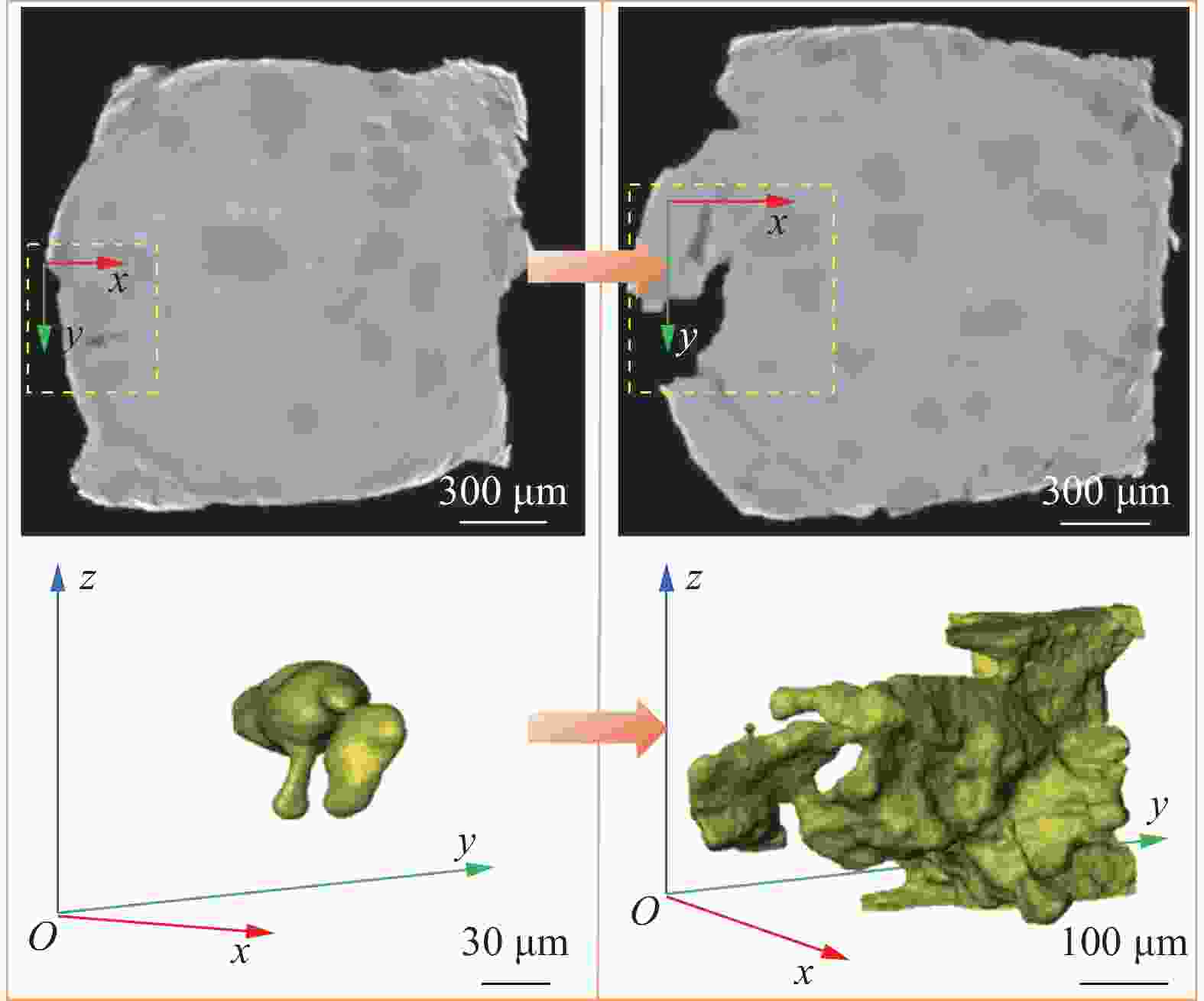

图 4 固体推进剂样品在5.0 mm/s压缩载荷作用下的表面损伤

Figure 4. Surface damage of solid propellant sample under compressive loading of 5.0 mm/s

下载: 全尺寸图片幻灯片

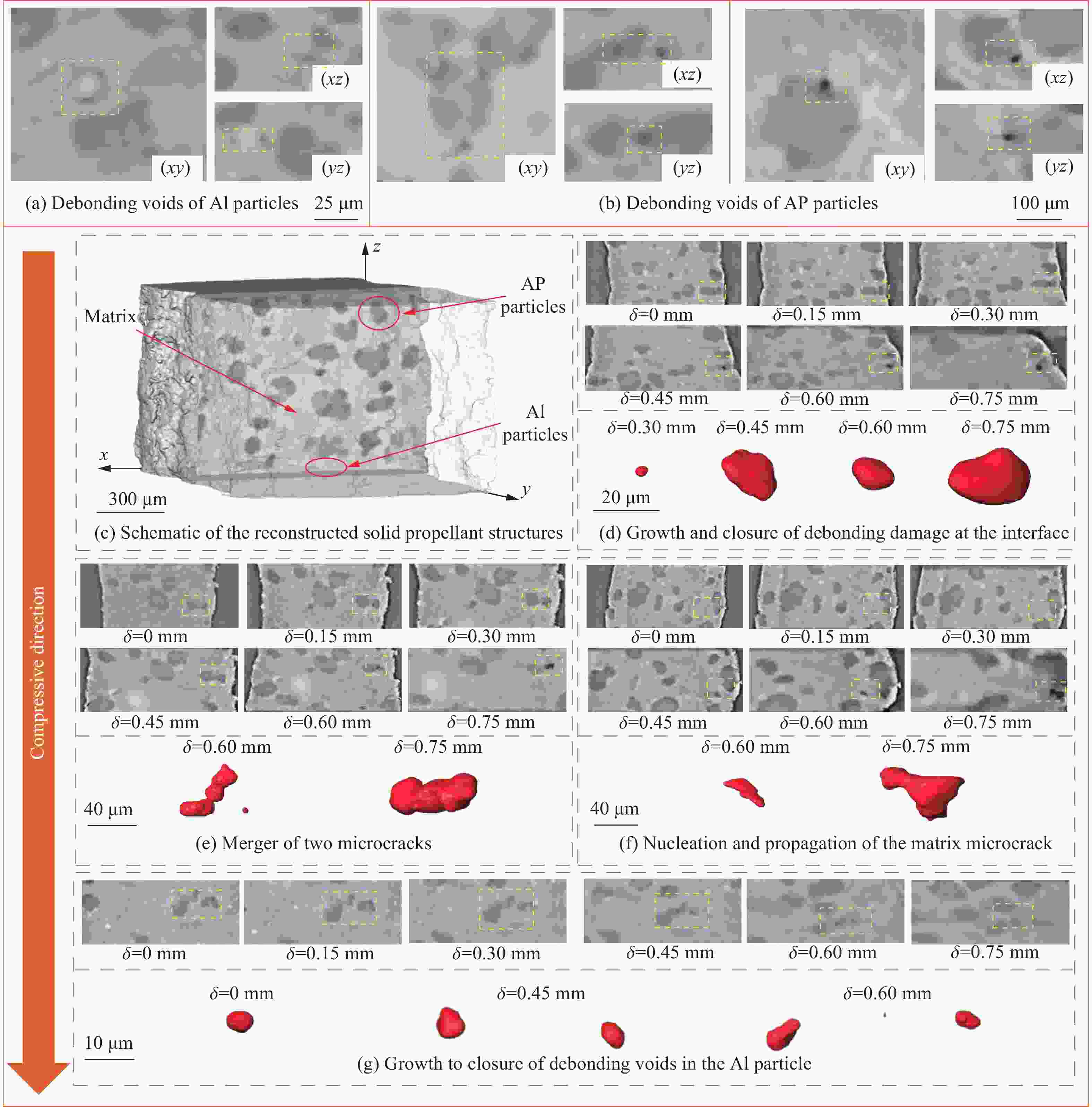

图 5 固体推进剂微结构示意图和典型损伤及演化行为

Figure 5. Schematic of microstructures and typical damages and evolutionary behaviors of solid propellant

下载: 全尺寸图片幻灯片

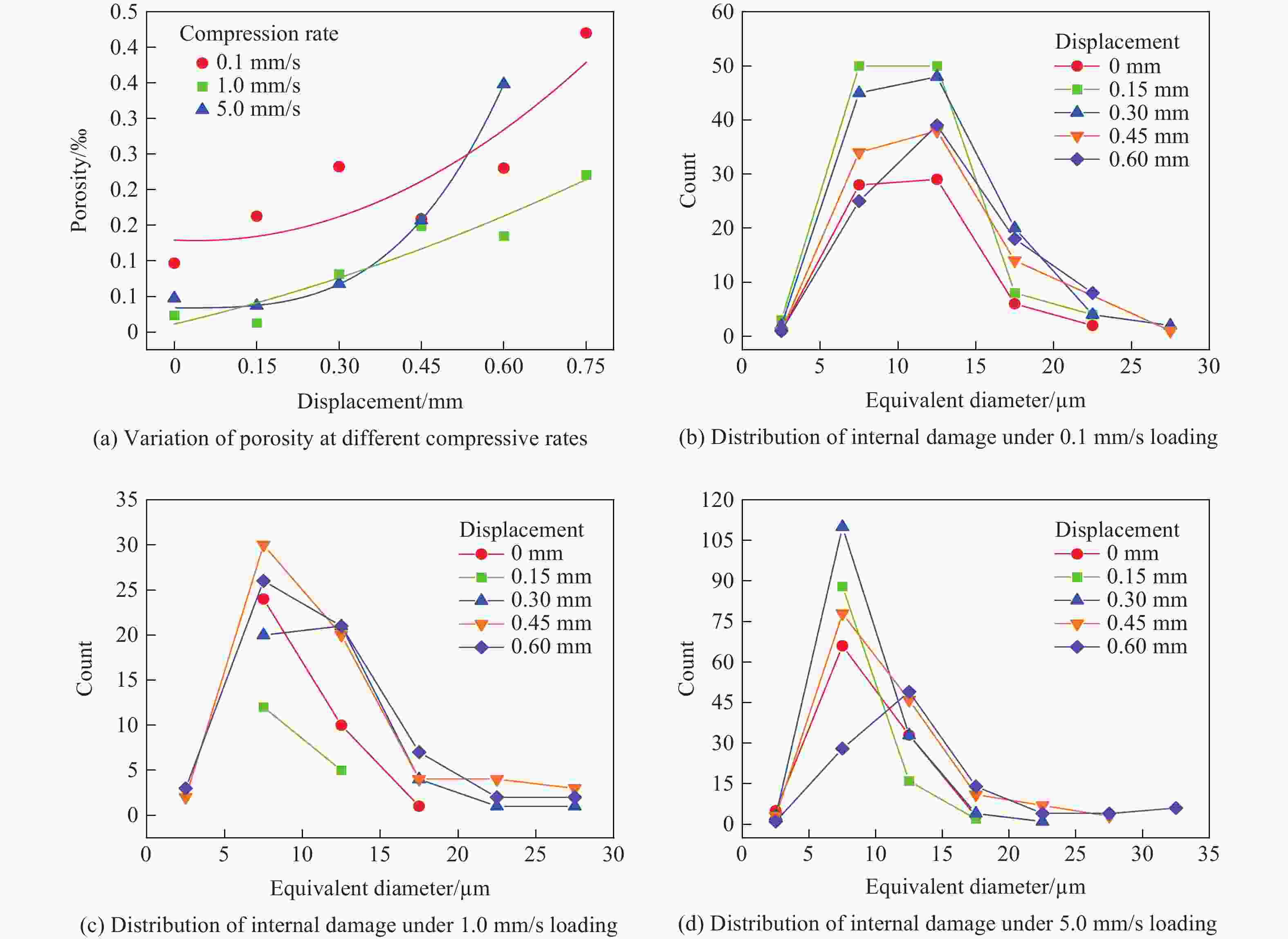

图 6 不同压缩速率下固体推进剂内部损伤孔隙的变化

Figure 6. The evolution of internal pores of solid propellant at different compressive rates

下载: 全尺寸图片幻灯片

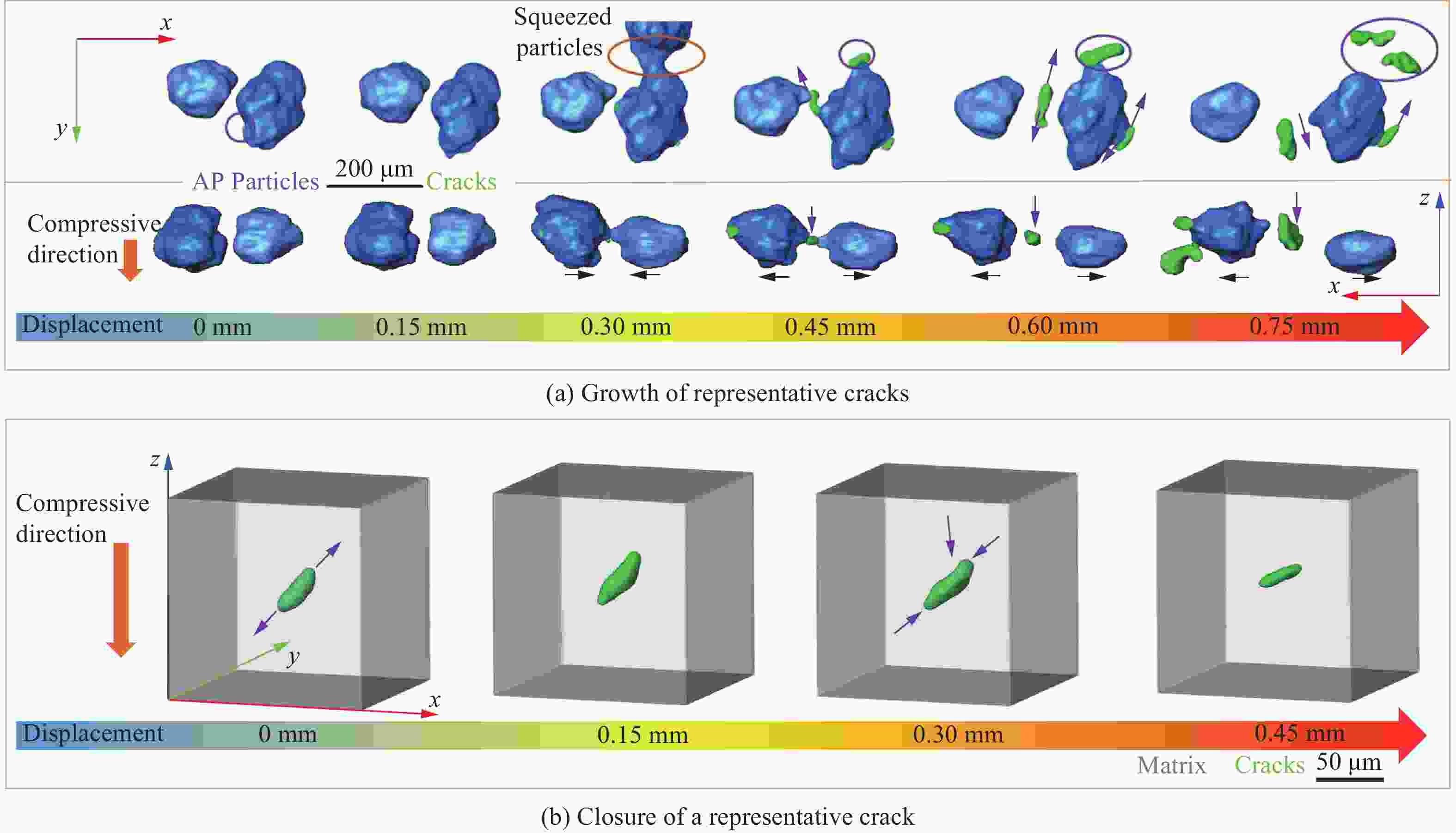

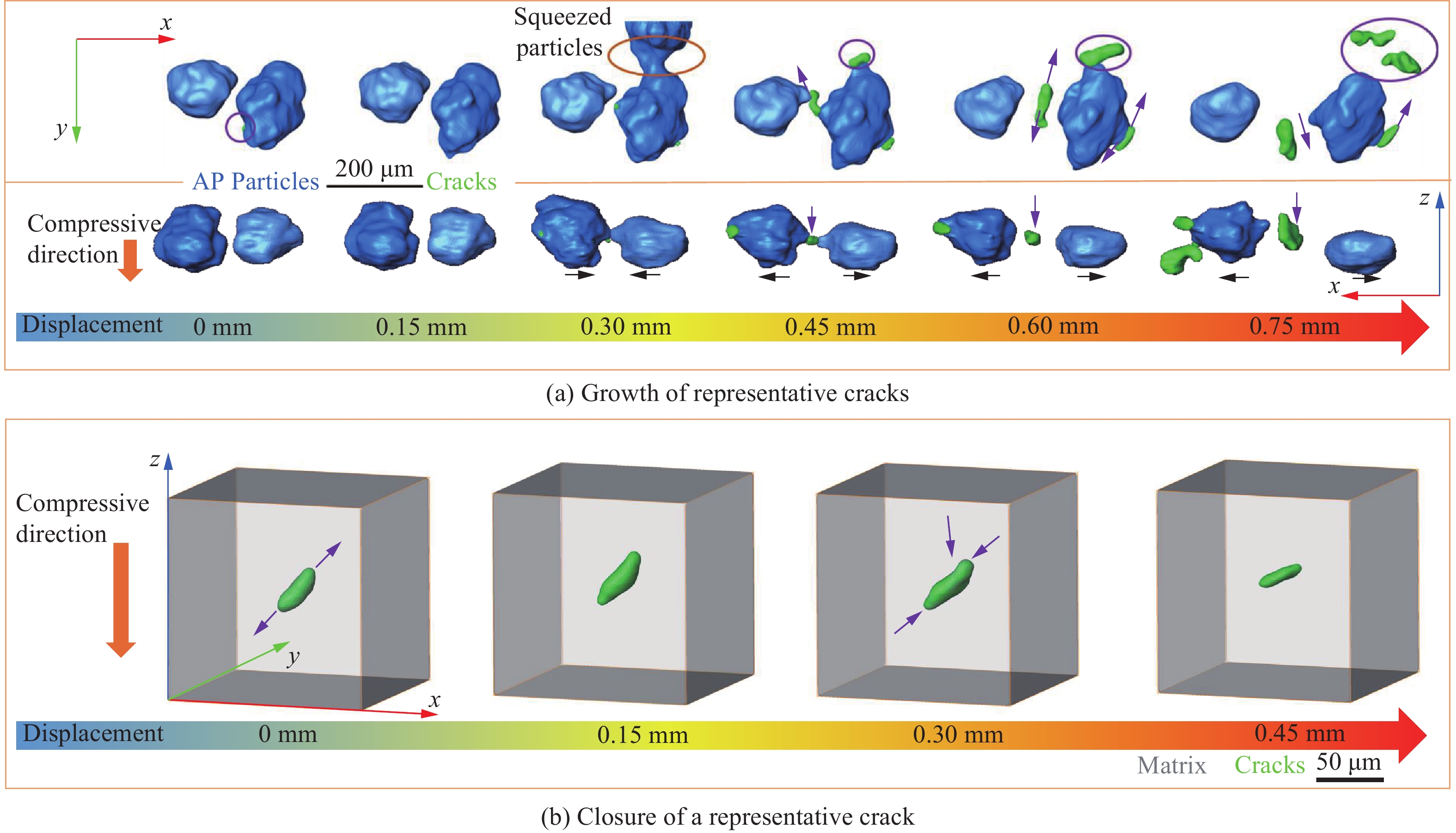

图 7 动态压缩下固体推进剂代表性的裂纹扩展模式

Figure 7. Representative crack propagation modes of solid propellant under dynamic compression

下载: 全尺寸图片幻灯片

参考文献(27)

[1]	BECKSTEAD M W, PUDUPPAKKAM K, THAKRE P, et al. Modeling of combustion and ignition of solid-propellant ingredients [J]. Progress in Energy and Combustion Science, 2007, 33(6): 497–551. DOI: 10.1016/j.pecs.2007.02.003.
[2]	余家泉, 许进升, 陈雄, 等. 推进剂/包覆层界面脱粘率相关特性研究 [J]. 航空学报, 2015, 36(12): 3861–3867. DOI: 10.7527/S1000-6893.2015.0089. YU J Q, XU J S, CHEN X, et al. Rate-dependent property of propellant and inhibitor interface debonding [J]. Acta Aeronautica et Astronautica Sinica, 2015, 36(12): 3861–3867. DOI: 10.7527/S1000-6893.2015.0089.
[3]	陈雄, 许进升, 郑健. 固体推进剂黏弹性力学 [M]. 北京: 北京理工大学出版社, 2016: 142–179. CHEN X, XU J S, ZHENG J. Viscoelastic mechanics of solid propellants [M]. Beijing: Beijing Institute of Technology Press, 2016: 142–179.
[4]	侯晓, 张旭, 刘向阳, 等. 固体火箭发动机药柱结构完整性研究进展 [J]. 宇航学报, 2023, 44(4): 566–579. DOI: 10.3873/j.issn.1000-1328.2023.04.011. HOU X, ZHANG X, LIU X Y, et al. Research progress on structural integrity of solid rocket motor grain [J]. Journal of Astronautics, 2023, 44(4): 566–579. DOI: 10.3873/j.issn.1000-1328.2023.04.011.
[5]	赵伯华, 辛振河, 沈月萍. 固体推进剂的体积模量与体积蠕变 [J]. 兵工学报, 1993, 14(1): 87–91. ZHAO B H, XIN Z H, SHEN Y P. Bulk modulus and bulk creep of solid propellants [J]. Acta Armamentarii, 1993, 14(1): 87–91.
[6]	JANA M K, RENGANATHAN K, RAO G V. A method of non-linear viscoelastic analysis of solid propellant grains for pressure load [J]. Computers & Structures, 1994, 52(1): 61–67. DOI: 10.1016/0045-7949(94)90256-9.
[7]	TUSSIWAND G S, SAOUMA V E, TERZENBACH R, et al. Fracture mechanics of composite solid rocket propellant grains: material testing [J]. Journal of Propulsion and Power, 2009, 25(1): 60–73. DOI: 10.2514/1.34227.
[8]	XU F, ARAVAS N, SOFRONIS P. Constitutive modeling of solid propellant materials with evolving microstructural damage [J]. Journal of the Mechanics and Physics of Solids, 2008, 56(5): 2050–2073. DOI: 10.1016/j.jmps.2007.10.013.
[9]	RAE P J, PALMER S J P, GOLDREIN H T, et al. Quasi–static studies of the deformation and failure of PBX 9501 [J]. Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences, 2002, 458(2025): 2227–2242. DOI: 10.1098/rspa.2002.0967.
[10]	ZHOU Z B, CHEN P W, HUANG F L, et al. Experimental study on the micromechanical behavior of a PBX simulant using SEM and digital image correlation method [J]. Optics and Lasers in Engineering, 2011, 49(3): 366–370. DOI: 10.1016/j.optlaseng.2010.11.001.
[11]	MILLER T C. Damage and dilatometry for solid propellants with digital image correlation [J]. Propellants, Explosives, Pyrotechnics, 2019, 44(2): 234–245. DOI: 10.1002/prep.201800283.
[12]	杨秋秋, 徐胜良, 强福智, 等. 固体推进剂SEM图像分形维数研究 [J]. 化学推进剂与高分子材料, 2021, 19(1): 63–67. DOI: 10.16572/j.issn1672-2191.202109010. YANG Q Q, XU S L, QIANG F Z, et al. Study on fractal dimension of SEM images of solid propellant [J]. Chemical Propellants & Polymeric Materials, 2021, 19(1): 63–67. DOI: 10.16572/j.issn1672-2191.202109010.
[13]	BUFFIERE J Y, MAIRE E, ADRIEN J, et al. In situ experiments with X ray tomography: an attractive tool for experimental mechanics [J]. Experimental Mechanics, 2010, 50(3): 289–305. DOI: 10.1007/s11340-010-9333-7.
[14]	吴圣川, 吴正凯, 胡雅楠, 等. 同步辐射光源四维原位成像助力材料微结构损伤高分辨表征 [J]. 机械工程材料, 2020, 44(6): 72–76. DOI: 10.11973/jxgccl202006016. WU S C, WU Z K, HU Y N, et al. High-resolution characterization of microstructural damage in materials by synchrotron radiation source 4D in-situ tomography [J]. Materials for Mechanical Engineering, 2020, 44(6): 72–76. DOI: 10.11973/jxgccl202006016.
[15]	WEN H D, CHERUKARA M J, HOLT M V. Time-resolved X-ray microscopy for materials science [J]. Annual Review of Materials Research, 2019, 49: 389–415. DOI: 10.1146/annurev-matsci-070616-124014.
[16]	KERSCHEN N E, SORENSEN C J, GUO Z R, et al. X-ray phase contrast imaging of the impact of a single HMX particle in a polymeric matrix [J]. Propellants, Explosives, Pyrotechnics, 2019, 44(4): 447–454. DOI: 10.1002/prep.201800002.
[17]	王龙, 刘岳勋, 吴圣川, 等. 基于原位X射线成像的推进剂损伤演化表征 [J]. 航空学报, 2023, 44(7): 427022. DOI: 10.7527/S1000-6893.2022.27022. WANG L, LIU Y X, WU S C, et al. In-situ X-ray tomography based characterization of propellant damage evolution [J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(7): 427022. DOI: 10.7527/S1000-6893.2022.27022.
[18]	魏晋芳, 赖国栋, 柴海伟, 等. 准静态拉伸下固体推进剂三维结构变形损伤失效机理研究 [J]. 固体火箭技术, 2023, 46(2): 186–194. DOI: 10.7673/j.issn.1006-2793.2023.02.003. WEI J F, LAI G D, CHAI H W, et al. Research on three-dimensional structural deformation failure mechanism of solid propellant under quasi-static tension [J]. Journal of Solid Rocket Technology, 2023, 46(2): 186–194. DOI: 10.7673/j.issn.1006-2793.2023.02.003.
[19]	LIU Y X, QIAN W J, WANG L, et al. In situ X-ray tomography study on internal damage evolution of solid propellant for carrier rockets [J]. Materials Science and Engineering: A, 2023, 882: 145451. DOI: 10.1016/j.msea.2023.145451.
[20]	张泰华, 白以龙, 王世英, 等. 准静态压缩对高能固体推进剂燃烧行为的影响 [J]. 兵工学报, 2000, 21(4): 365–367. DOI: 10.3321/j.issn:1000-1093.2000.04.020. ZHANG T H, BAI Y L, WANG S Y, et al. Quasi-static compression of high-energy solid propellants and their combustion [J]. Acta Armamentarii, 2000, 21(4): 365–367. DOI: 10.3321/j.issn:1000-1093.2000.04.020.
[21]	吴会民, 卢芳云, 卢力, 等. 压缩加载下三种含能材料细观破坏特征观察 [J]. 高压物理学报, 2005, 19(3): 213–218. DOI: 10.11858/gywlxb.2005.03.004. WU H M, LU F Y, LU L, et al. Microstructure fractural characteristics of energetic materials under compressive loading [J]. Chinese Journal of High Pressure Physics, 2005, 19(3): 213–218. DOI: 10.11858/gywlxb.2005.03.004.
[22]	王冉, 武毅, 白龙, 等. 宽温域宽应变率下丁羟四组元HTPB推进剂单轴压缩力学行为 [J]. 含能材料, 2024, 32(2): 183–192. DOI: 10.11943/CJEM2023119. WANG R, WU Y, BAI L, et al. Uniaxial compressive mechanical behavior of four-component HTPB propellant under wide temperature and strain rate range [J]. Chinese Journal of Energetic Materials, 2024, 32(2): 183–192. DOI: 10.11943/CJEM2023119.
[23]	HO S Y. High strain-rate impact studies of predamaged rocket propellants. I. Characterization of damage using a cumulative damage failure criterion [J]. Combustion and Flame, 1996, 104(4): 524–534. DOI: 10.1016/0010-2180(95)00166-2.
[24]	WANG Z J, QIANG H F, WANG T J, et al. A thermovisco-hyperelastic constitutive model of HTPB propellant with damage at intermediate strain rates [J]. Mechanics of Time-Dependent Materials, 2018, 22(3): 291–314. DOI: 10.1007/s11043-017-9357-9.
[25]	VISHAL V, CHANDRA D. Mechanical response and strain localization in coal under uniaxial loading, using digital volume correlation on X-ray tomography images [J]. International Journal of Rock Mechanics and Mining Sciences, 2022, 154: 105103. DOI: 10.1016/j.ijrmms.2022.105103.
[26]	QIAN W J, WU S C, LEI L M, et al. Time lapse in situ X-ray imaging of failure in structural materials under cyclic loads and extreme environments [J]. Journal of Materials Science & Technology, 2024, 175: 80–103. DOI: 10.1016/j.jmst.2023.07.041.
[27]	WITHERS P J, PREUSS M. Fatigue and damage in structural materials studied by X-ray tomography [J]. Annual Review of Materials Research, 2012, 42: 81–103. DOI: 10.1146/annurev-matsci-070511-155111.
