轻型消费级无人机软包锂离子电池在机械强冲击载荷下的力学响应特性

郭亚周; 刘小川; 白春玉; 王计真

doi:10.11883/bzycj-2024-0320

轻型消费级无人机软包锂离子电池在机械强冲击载荷下的力学响应特性

doi: 10.11883/bzycj-2024-0320

中国飞机强度研究所强度与结构完整性全国重点实验室，陕西西安 710065

详细信息

作者简介:
郭亚周（1994－　），男，硕士，工程师，guoyazhou623@163.com

通讯作者:
刘小川（1983－　），男，博士，研究员，liuxiaochuan@cae.ac.cn

中图分类号: O389; V214.8
计量
- 文章访问数: 34
- HTML全文浏览量: 17
- PDF下载量: 10
- 被引次数: 0
出版历程
- 收稿日期: 2024-08-31
- 修回日期: 2024-12-03
- 网络出版日期: 2024-12-04

Dynamic response characteristics of soft-pack lithium batteries for light consumer drones under mechanical strong impact loads

National Key Laboratory of Strength and Structural Integrity, Aircraft Strength Research Institute of China, Xi’an 710065, Shaanxi, China

摘要

摘要: 为研究轻型消费级无人机锂离子电池在高能量冲击下的动响应模式及爆炸着火特性，评估锂离子电池在动态冲击时的安全性能，以某轻型消费级无人机软包锂离子电池为研究对象，采用落锤冲击及气炮冲击实验方法，结合轻型无人机实际应用场景分别开展了软包电池组落锤冲击及电池高速冲击铝板测试实验，探讨不同电池电量的软包电池组在受冲击后的变形模式及着火情况，结合电池的机械变形响应及其着火演化特性分析了软包锂离子电池的冲击安全性。研究结果表明，轻型消费级无人机软包锂离子电池在常规电池外壳防护的条件下受面外方向载荷冲击后的着火风险高于面内方向载荷冲击后的着火风险；锂离子电池着火风险与电池电量、冲击速度等具有明显相关性，锂离子电池本身的力学响应主要受自身材料及结构影响,电池电量并不会影响电池的机械力学碰撞响应；本文中所采用的锂离子电池样本在电池电量为 100% 时以 50 m/s 的速度撞击铝板以及电池电量为 50% 以下时以 85 m/s 速度撞击铝板后燃烧风险均相对较低。
- 软包锂离子电池 /
- 高速冲击 /
- 机械载荷 /
- 变形模式 /
- 着火风险
Abstract: In order to study the dynamic response mode and explosion ignition characteristics of lithium battery in light and small unmanned aerial vehicle (UAV) under high-energy impact, and evaluate the safety performance of lithium battery under dynamic impact, this paper takes the soft-package lithium battery as the research object, and have used the drop-hammer impact and gas gun impact test methods to carry out the drop hammer impact of the soft-package battery pack and the high-velocity impact of the battery on the aluminum plate. The deformation mode and ignition of the soft-package lithium battery under different battery power after impact were studied respectively. Combined with the mechanical deformation response and ignition characteristics of the battery, the impact safety of the small soft-package lithium battery was analyzed. The results show that the ignition risk of small soft-package lithium battery after being impacted by loads in the out-of-plane direction under the conditions of conventional battery shell protection is much higher than that under the condition of out-of-plane load impact. The ignition risk of lithium battery is obviously related to battery power and impact velocity. The thickness of the impacted aluminum plate has little effect on the ignition risk of lithium battery. Due to the buffering effect of the external battery shell, the lithium battery for light and small UAV has a relatively low risk of ignition after an unpredictable heading impact accident at low altitude in the urban environment.
- soft-package lithium battery /
- high-speed impact /
- mechanical load /
- deformation mode /
- ignition risk

HTML全文

图 1 实验用锂离子电池

Figure 1. Lithium-ion batteries used in experiments

下载: 全尺寸图片幻灯片

图 2 落锤冲击实验装置

Figure 2. Drop-weight impact experimental device

下载: 全尺寸图片幻灯片

图 3 高速气炮冲击实验装置

Figure 3. High-speed gas-gun impact experimental device

下载: 全尺寸图片幻灯片

图 4 电池及弹托

Figure 4. Battery and sabot

下载: 全尺寸图片幻灯片

图 5 防护箱及应变片布置

Figure 5. Protective box and layout of strain gauges

下载: 全尺寸图片幻灯片

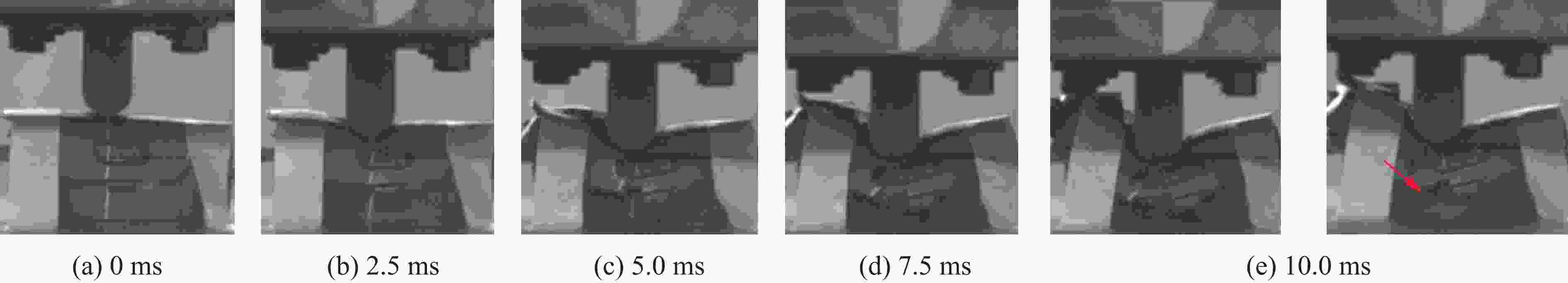

图 6 面外落锤冲击实验锂离子电池变形响应过程

Figure 6. Deformation response process of in out-of-plane drop-weight experiment

下载: 全尺寸图片幻灯片

图 7 面内气炮冲击实验锂离子电池变形响应过程

Figure 7. Deformation response process of in in-plane gas gun impact experiment

下载: 全尺寸图片幻灯片

图 8 100%充电状态电池在200 J冲击后的形貌

Figure 8. Morphologies of batteries with 100% state of charge after impact of 200 J

下载: 全尺寸图片幻灯片

图 9 面外落锤冲击下不同电量电池受碰撞的形貌

Figure 9. Morphologies of batteries with different states of charge after out-of-plane drop-hammer impact

下载: 全尺寸图片幻灯片

图 10 面内气炮冲击条件下电池受碰撞响应

Figure 10. Morphologies of batteries with different states of charge after under in-plane gas-gun impact

下载: 全尺寸图片幻灯片

图 11 不同电量电池受落锤撞击力随时间的变化

Figure 11. Impact force of punch on batteries with different capacities varying with time

下载: 全尺寸图片幻灯片

图 12 不同电量电池气炮冲击铝板典型部位应变

Figure 12. Typical strain of aluminum plate impacted by gas cannon in different electric quantity

下载: 全尺寸图片幻灯片

图 13 不同速度电池撞击2 mm厚铝板后的形貌

Figure 13. Response of batteries impacting 2-mm-thickness aluminum plate at different velocities

下载: 全尺寸图片幻灯片

图 14 2 mm厚铝板受不同速度电池撞击后形貌

Figure 14. Response of 2-mm-thickness aluminum plate to battery impact at different velocities

下载: 全尺寸图片幻灯片

图 15 不同速度撞击下铝板受电池撞击典型部位应变随时间的变化

Figure 15. Strain-time curves of typical parts at aluminum plates impacted by batteries at different velocities

下载: 全尺寸图片幻灯片

表 1 实验用锂离子电池参数

Table 1. Parameters of lithium-ion batteries used in experiments

电池类型	标称电压/V	充电限制电压/V	尺寸/mm	质量/g
电池单体	3.85	4.40	65.0×45.0×8.5	61.5
整颗电池	15.40	17.60	97.0×60.0×43.0	294.0

下载: 导出CSV

表 2 面外落锤冲击实验工况

Table 2. Conditions for out-of-plane drop-weight impact experiments

试件	电池充电状态/%	冲击能量/J
整颗电池D1	0	200
整颗电池D2	50	200
整颗电池D3	100	200

下载: 导出CSV

表 3 面内气炮冲击实验工况

Table 3. Conditions for in-plane gas gun impact experiments

试件	电池充电状态/%	铝板厚度/mm	冲击能量/J	冲击速度/
整颗电池D4	0	5	1 062	85
整颗电池D5	50	5	1 062	85
整颗电池D6	100	5	1 062	85
整颗电池D7	100	2	201	37
整颗电池D8	100	2	368	50
整颗电池D9	100	2	529	60
整颗电池D10	100	2	1 062	85

下载: 导出CSV
