Research in damage characteristic of caisson gravity wharf subjected to underwater contact and near-field explosion
-
摘要: 为探究水下接触和近场爆炸下沉箱码头的毁伤机理和荷载特性,基于沉箱码头缩尺模型试验,采用有限元数值模拟开展对比研究,分析了沉箱码头内冲击波荷载传播、衰减规律以及沉箱码头的破坏过程和毁伤机理。研究结果表明:水下接触和近场爆炸下,沉箱码头的毁伤区域、破坏特征基本一致,毁伤程度随爆距的增加而降低,码头迎爆外墙和迎爆侧面板为主要破坏区域,沉箱码头侧墙和仓格内纵横隔墙轻微损伤,沉箱码头毁伤特征在水下爆炸冲击波阶段基本形成,完成时间略大于冲击波在沉箱码头内传播时长的2倍;水下接触和近场爆炸下沉箱码头内冲击波在仓格的隔墙与填砂界面发生反射和透射现象,由于传播介质的不同而产生不同的荷载变化规律,其中码头迎爆外墙、迎爆侧仓格的墙、板及填砂均受到较大载荷,冲击波荷载在码头结构内衰减迅速。
-
关键词:

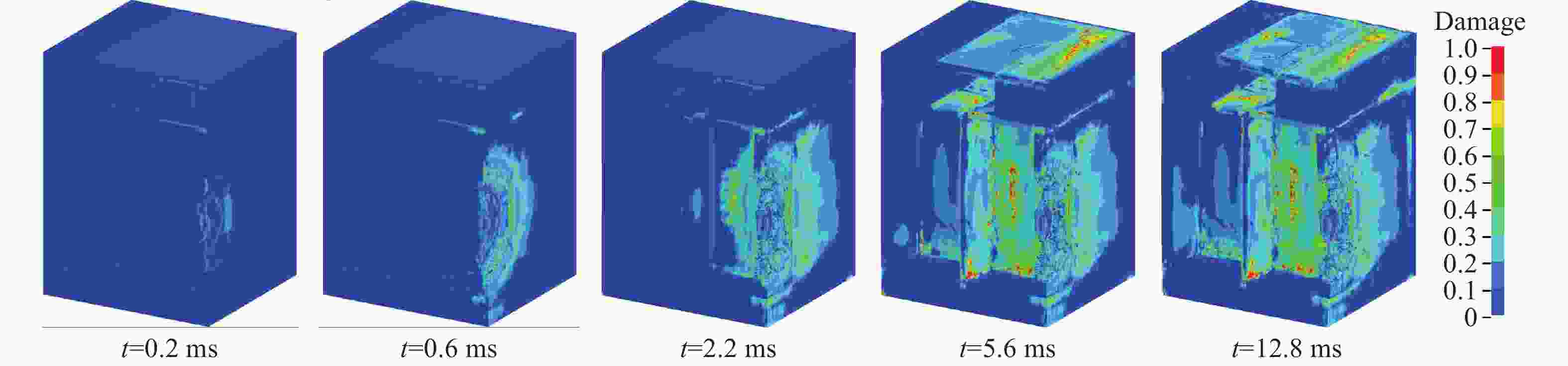

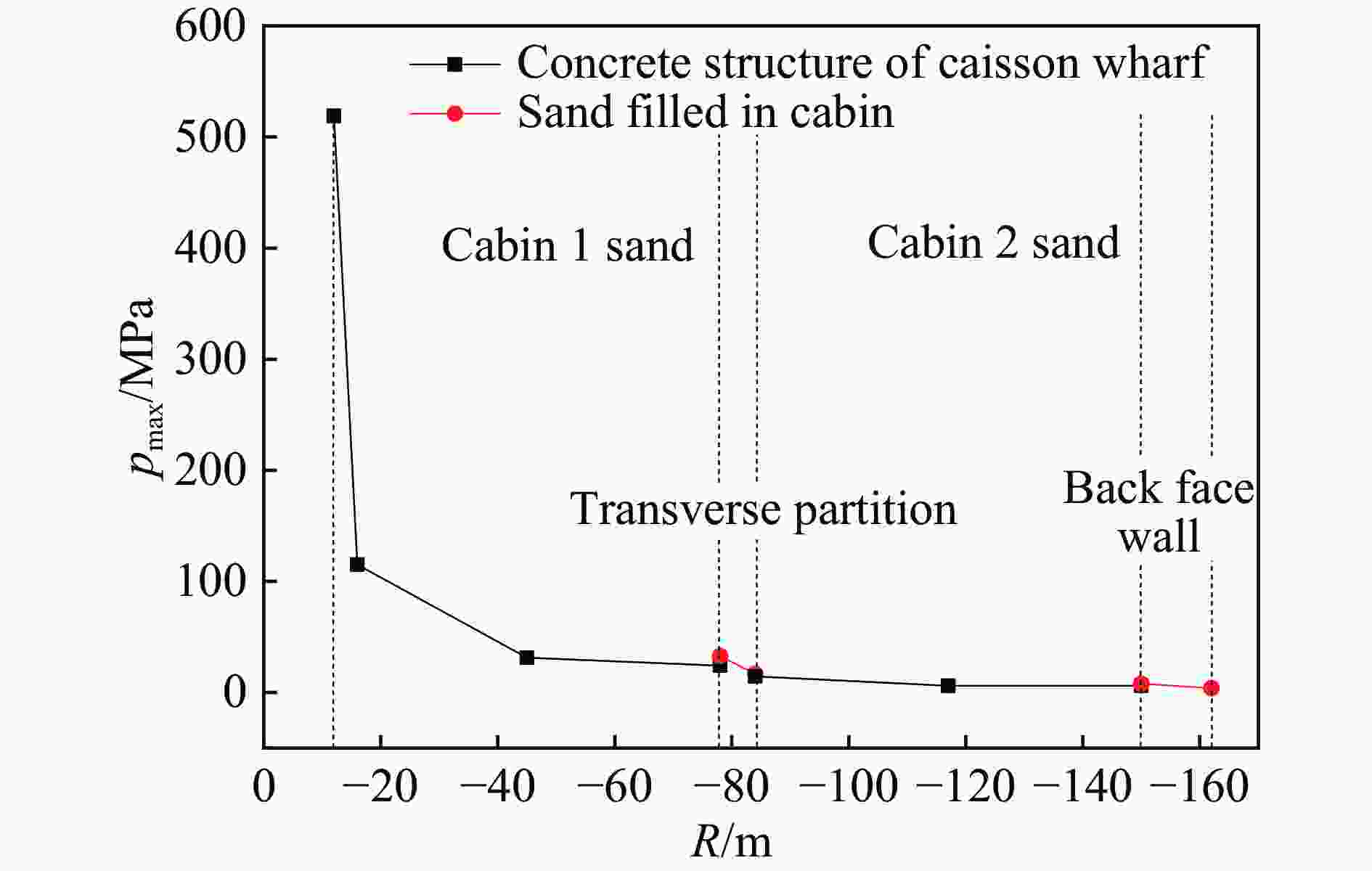

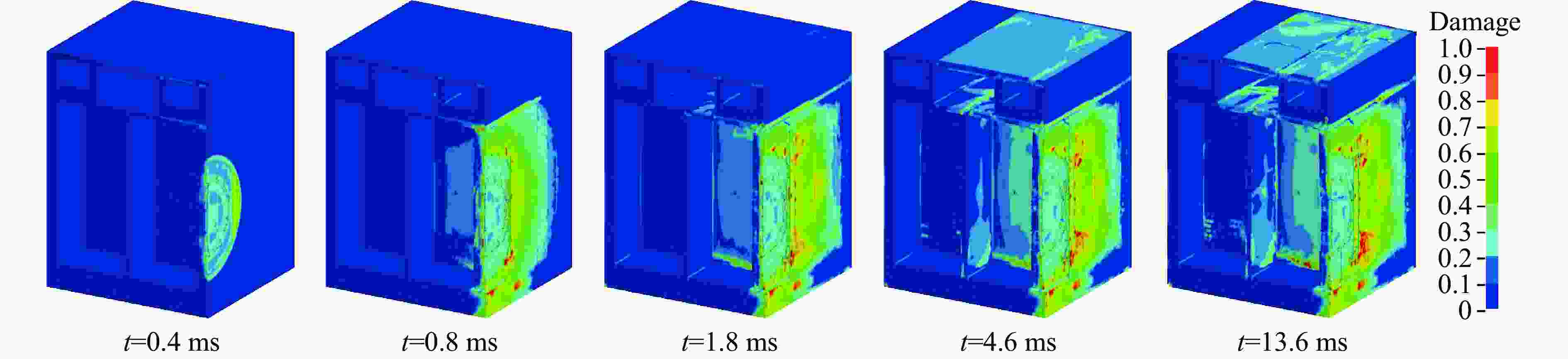

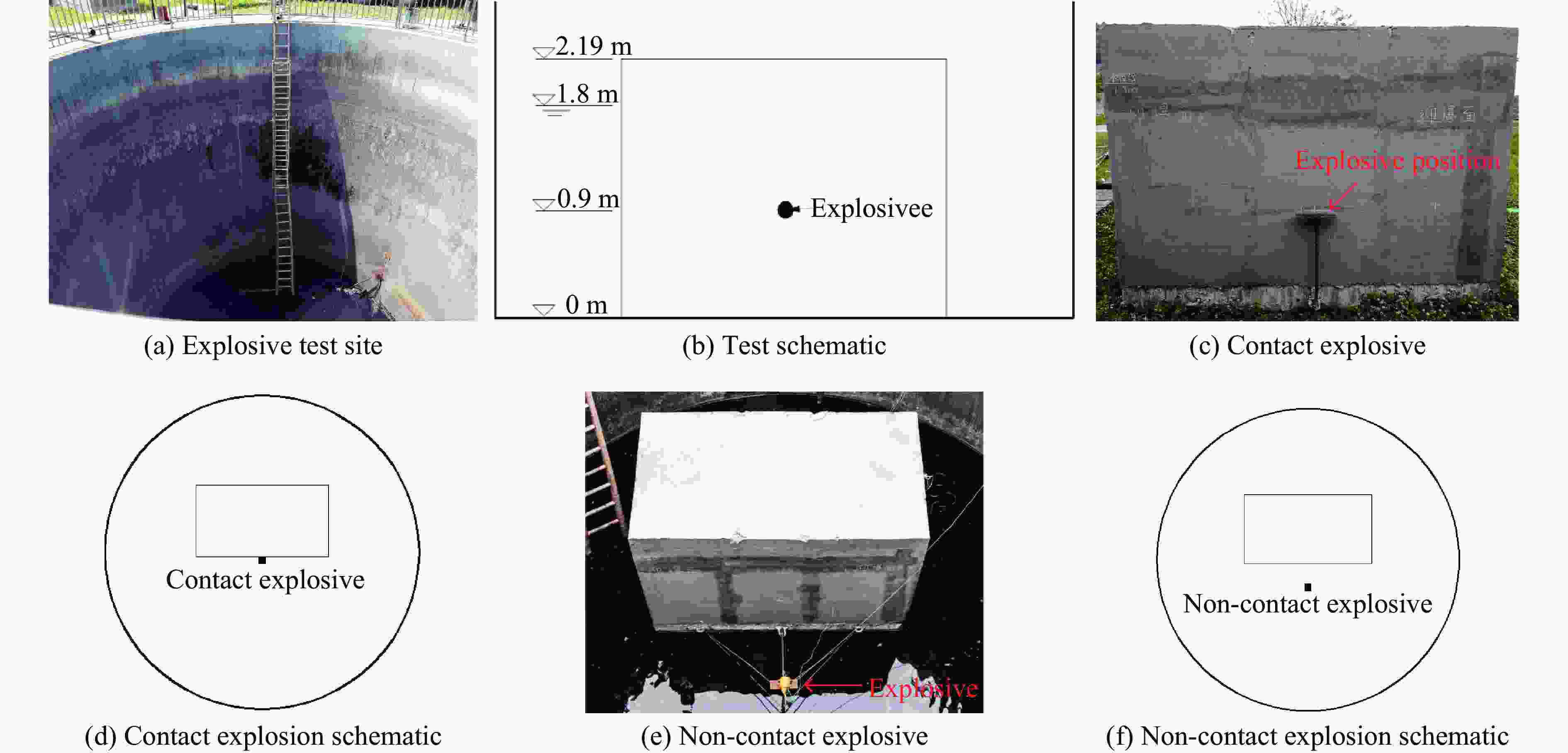

Abstract: In order to investigate the damage mechanism and load characteristics of caisson wharf subject to underwater contact and near-field explosion, finite element numerical simulation verified by the experimental results was conducted based on the caisson wharf model test. This analysis delved into the shock wave propagation and attenuation within the caisson wharf, as well as the destruction process and damage mechanisms of the caisson wharf. The results shows that the damage areas and characteristics of the caisson wharf are largely consistent under both underwater contact and near-field explosion. The damage degree decreases as the charge distance increases. The primary destruction areas are blasting wall and the slab near explosive, and the side walls and internal partitions of the caisson wharf are relatively minor damage, the damage characteristics of caisson wharf is primarily shaped during the underwater explosion shockwave phase, which takes approximately twice the duration of the shockwave propagation through the caisson wharf. Additionally, shockwaves within the caisson wharf subjected to underwater contact and near-field explosions undergo reflection and transmission at the interfaces between the partitions and fillings within the compartments. Shock wave produces different load variation patterns due to the different propagation media. The blasting wall and cabin are subjected to significant loads, and the shock wave load rapidly decays within caisson wharf. -
