反射爆炸应力波作用下动静裂纹的贯通机理

周星源; 岳中文; 金庆雨; 任猛; 徐胜男; 刘伟; 王煦; 薛克军

doi:10.11883/bzycj-2024-0409

反射爆炸应力波作用下动静裂纹的贯通机理

doi: 10.11883/bzycj-2024-0409

周星源^1,,
岳中文^{1, 2, ,},
金庆雨¹,
任猛¹,
徐胜男¹,
刘伟¹,
王煦¹,
薛克军¹

1.
中国矿业大学（北京）力学与土木工程学院，北京 100083
2.
中国矿业大学（北京）深部岩土力学与地下工程国家重点实验室，北京 100083

基金项目: 国家自然科学基金（52174094，51974318）

详细信息

作者简介:
周星源（1996－　），男，博士，zhouxingyuan19@mails.ucas.ac.cn

通讯作者:
岳中文（1975－　），男，博士，教授，zwyue75@163.com

中图分类号: O383.2
计量
- 文章访问数: 140
- HTML全文浏览量: 20
- PDF下载量: 40
- 被引次数: 0
出版历程
- 收稿日期: 2024-10-28
- 修回日期: 2025-03-05
- 网络出版日期: 2025-03-12

Propagation mechanism of stationary and dynamic cracks under reflected explosive stress waves

1.
School of Mechanics and Civil Engineering, China University of Mining and Technology Beijing, Beijing 100083 China
2.
State Key Laboratory for Geo-Mechanics and Deep Underground Engineering, China University of Mining and Technology Beijing, Beijing 100083, China

摘要

摘要: 采用动光弹的实验方法，研究了反射爆炸应力波作用下动静裂纹的作用关系及贯通后瞬态卸荷现象的产生机制。结果表明：P波的反射波前沿为拉伸波，后沿为压缩波，其前沿拉伸波向裂纹尖端施加拉伸应力增大动态强度因子，促进裂纹的扩展，而后沿压缩波向裂纹尖端施加压缩应力，降低应力强度因子，抑制裂纹的扩展。P波反射后转换出的S波会导致裂纹扩展方向的偏转和速度的变化，呈现波浪状不稳定扩展。爆炸裂纹与静止裂纹贯通后，裂纹面附近储存的弹性能以卸载波的形式向外快速释放，卸载波在静止裂纹尖端出现应力集中，诱发静止裂纹尖端次生裂纹的产生。
- 反射爆炸应力波 /
- 静止裂纹 /
- 爆炸裂纹 /
- 卸载波
Abstract: The influence of reflected explosion stress waves on dynamic crack propagation behavior , as well as the connection between dynamic cracks and pre-existing cracks, was studied using dynamic photoelastic experiments. A high-speed camera was used to capture the full field photoelastic isochromatic fringe pattern of horizontally expanding explosive cracks. The explosive crack is a directional crack generated by detonating explosives in a blast hole containing a horizontal V-shaped groove. The propagation process of explosive cracks can be divided into three different stages. In the first stage, explosive detonation produces dynamic cracks. Simultaneously incident explosion stress waves propagate and interact with prefabricated vertical cracks. In the second stage, the reflected explosion stress waves interact with dynamic cracks. In the third stage, dynamic cracks connect with pre-existing cracks and release unloading stress waves. Considering both singular and non-singular stresses in the near-crack-tip region, three far-field-controlled constant stresses were adopted. The mixed mode stress intensity factor of dynamic cracks under the action of reflected stress waves was analyzed and calculated using the Newton-Raphson iteration method. The results indicate that the leading edge of the reflected pressure wave acts as a stretching wave and the trailing edge behaves as a compression wave. The tensile component of the reflected pressure wave applies tensile stress to the crack tip, increasing the dynamic stress intensity factor K_Ⅰ and promoting crack propagation. On the contrary, the compressive component of the reflected pressure wave applies compressive stress to the crack tip, resulting in a decrease in the dynamic stress intensity factor K_Ⅰ and suppressing crack propagation. Reflected shear waves can cause unstable crack propagation. It causes changes in the direction and velocity of crack propagation, resulting in a wavy crack trajectory. After the penetration of dynamic cracks and prefabricated cracks, the elastic energy stored near the crack tip is rapidly released to generate unloading waves. Due to the action of the unloading wave, stress is concentrated at the tip of the pre-existing crack, causing the formation of a secondary crack at the tip of the pre-existing crack.
- reflected shock waves /
- stationary crack /
- explosion crack /
- unloading wave.

HTML全文

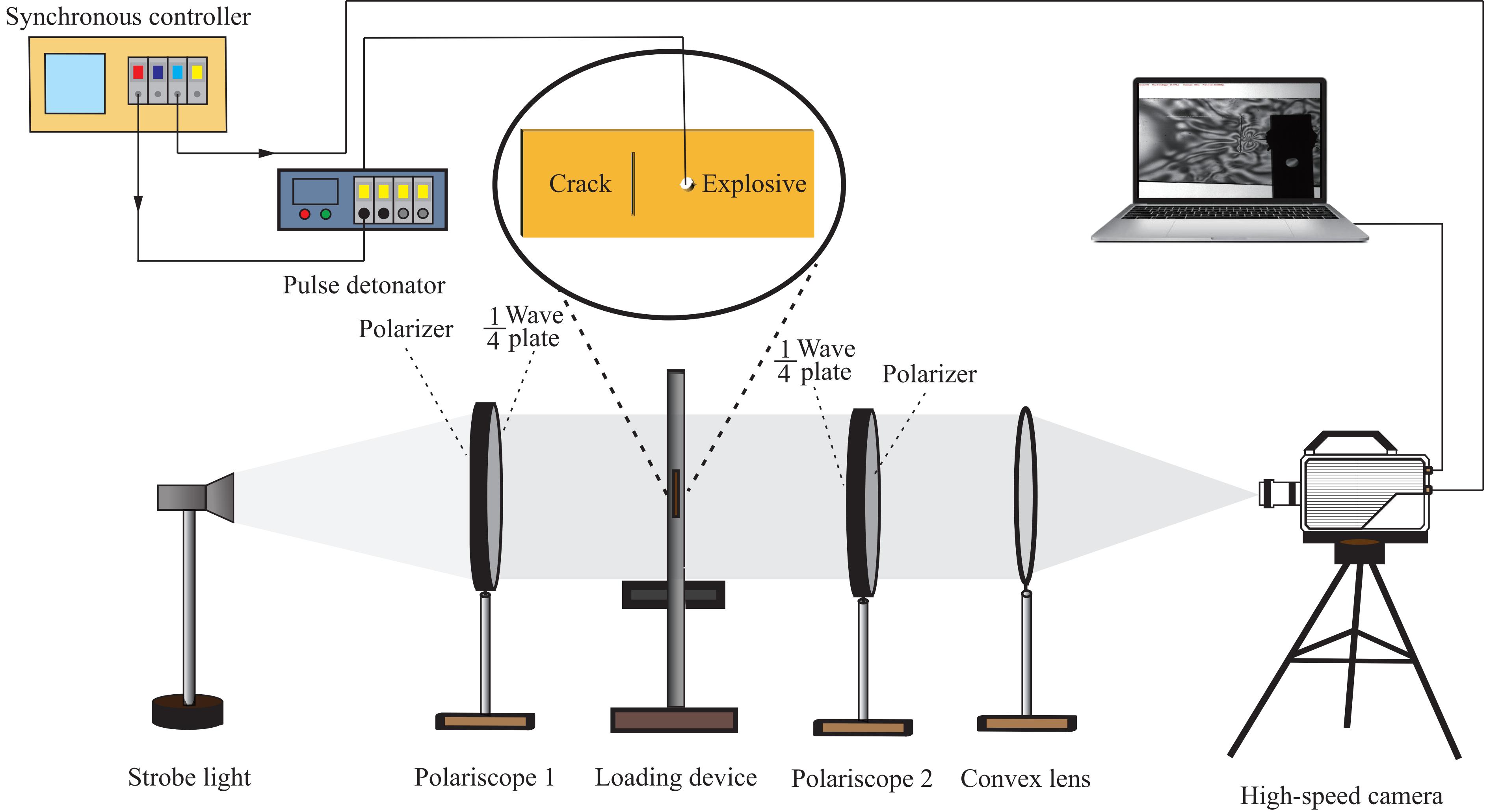

图 2 实验系统示意图

Figure 2. Schematic diagram of experimental system

下载: 全尺寸图片幻灯片

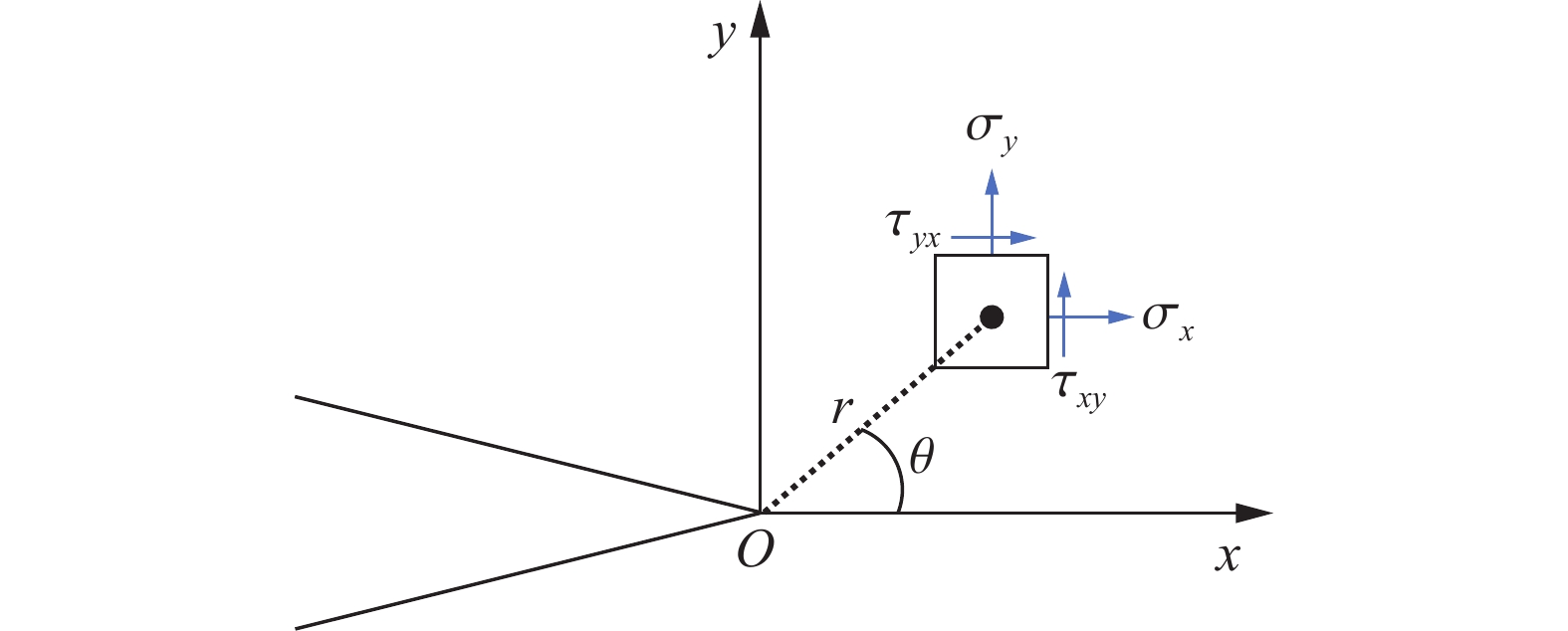

图 1 平面问题中裂纹尖端区域的应力单元

Figure 1. Stress element in crack tip region of plane problem

下载: 全尺寸图片幻灯片

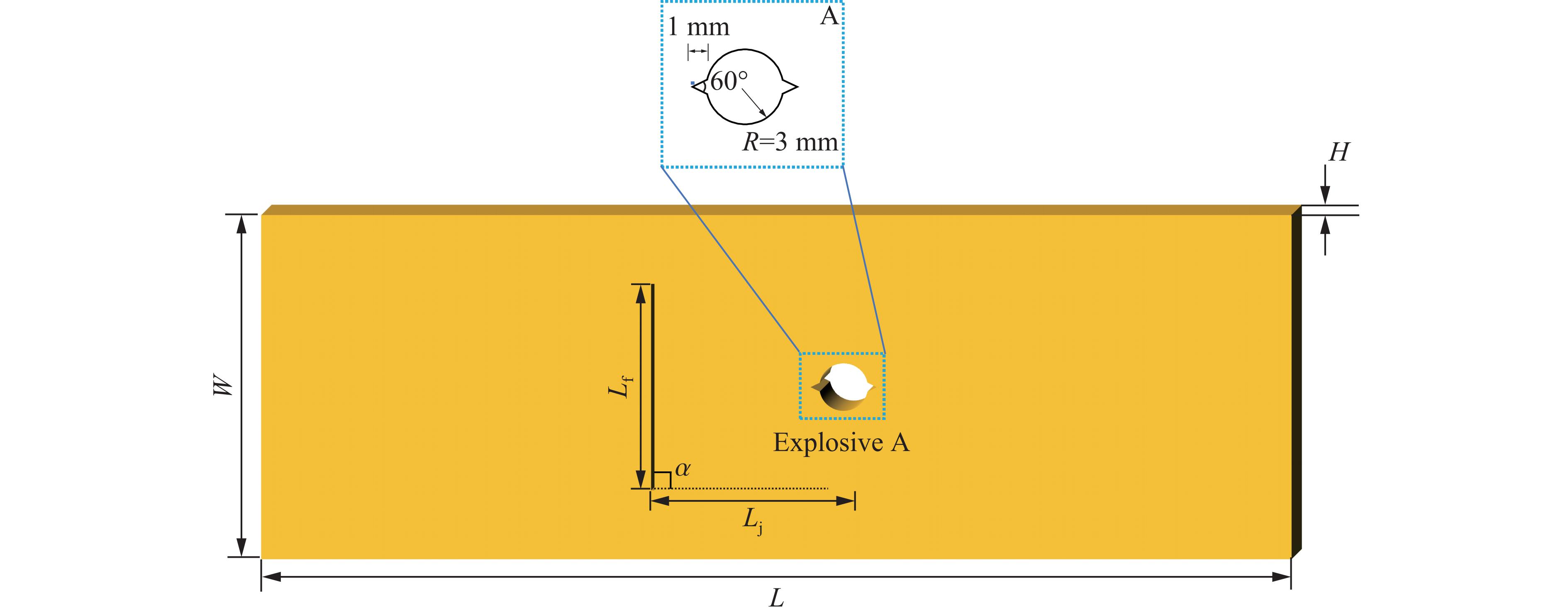

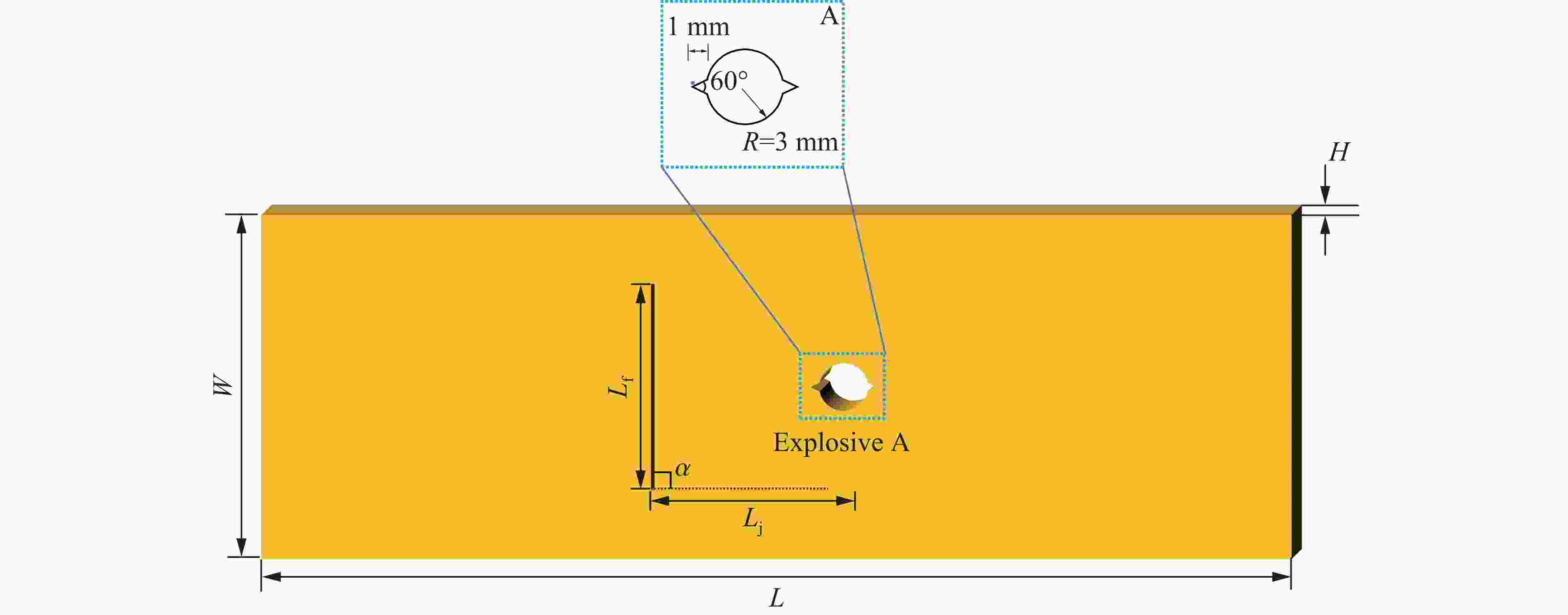

图 3 试件模型示意图

Figure 3. Specimen model diagram

下载: 全尺寸图片幻灯片

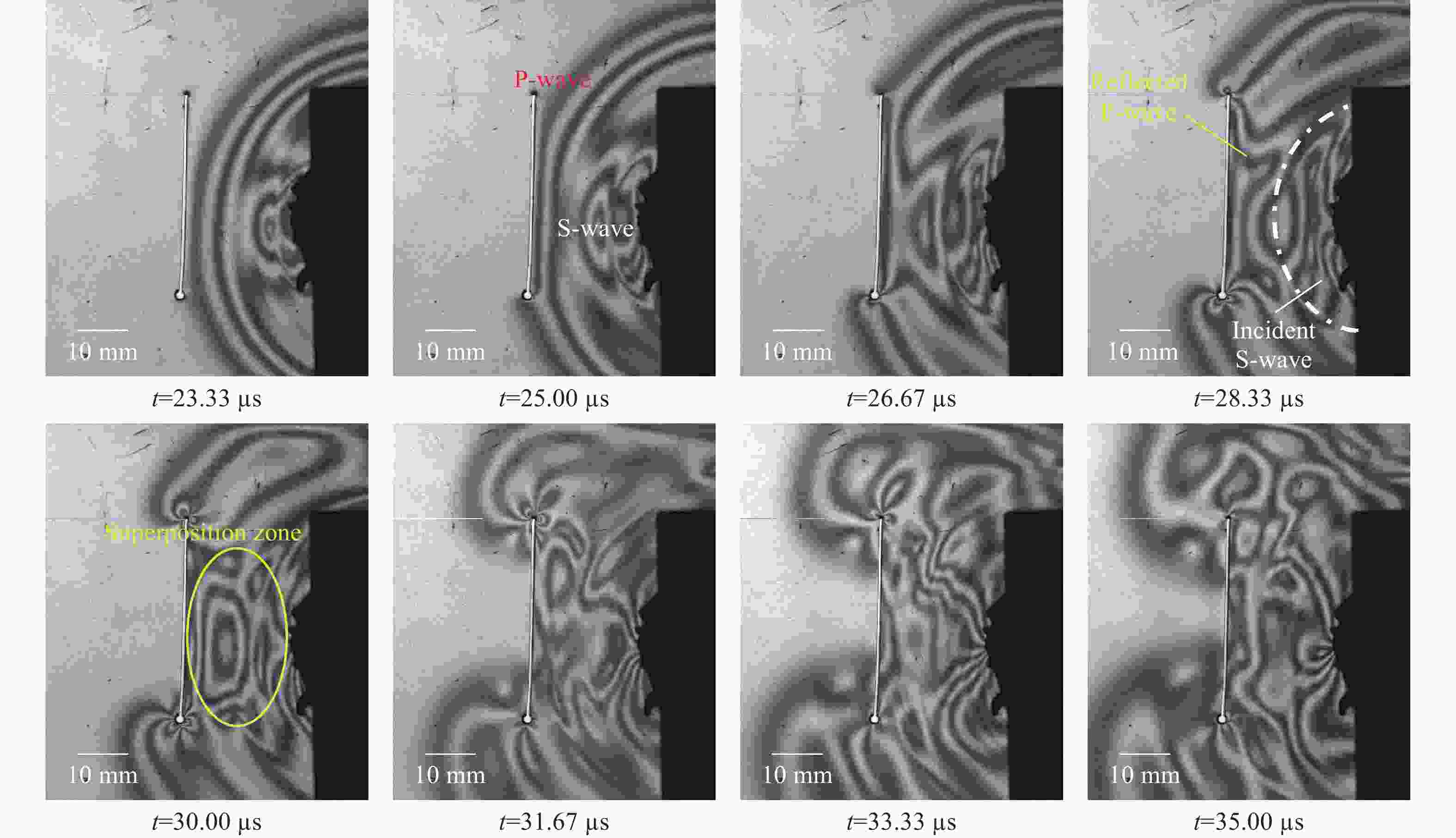

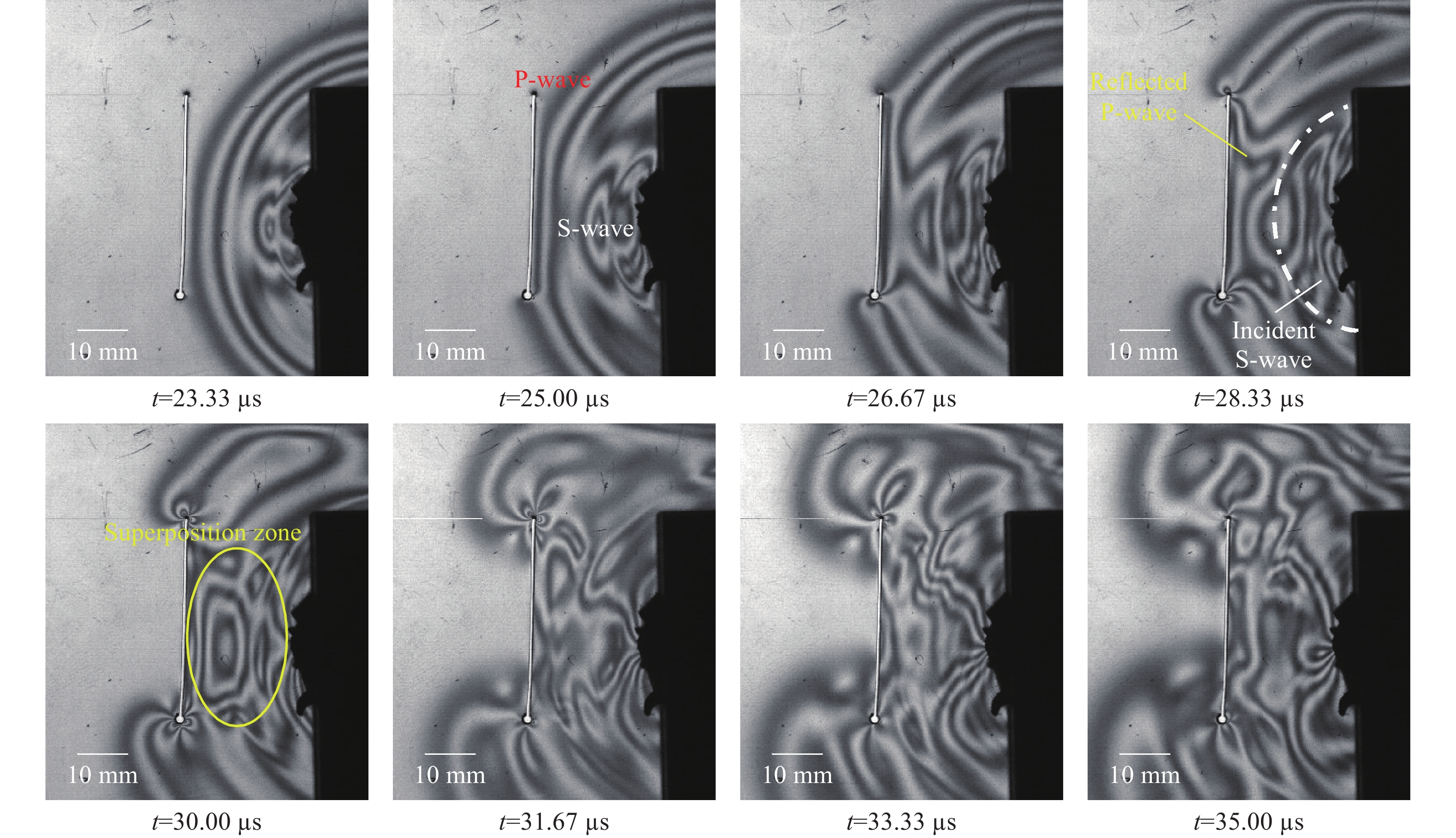

图 4 爆炸应力波传播过程的光弹等差条纹系列

Figure 4. Photoelastic fringes of single-hole blasting process

下载: 全尺寸图片幻灯片

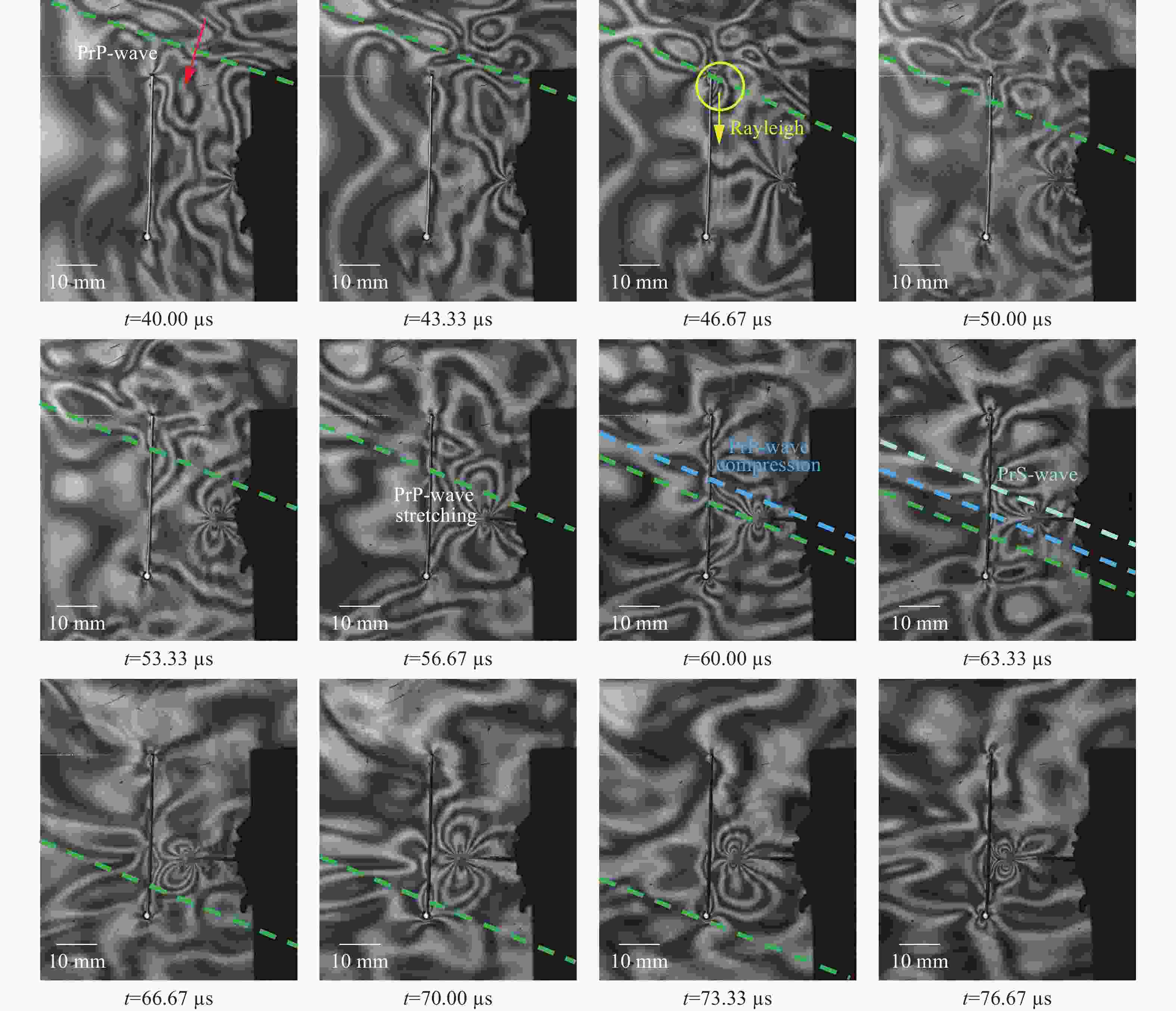

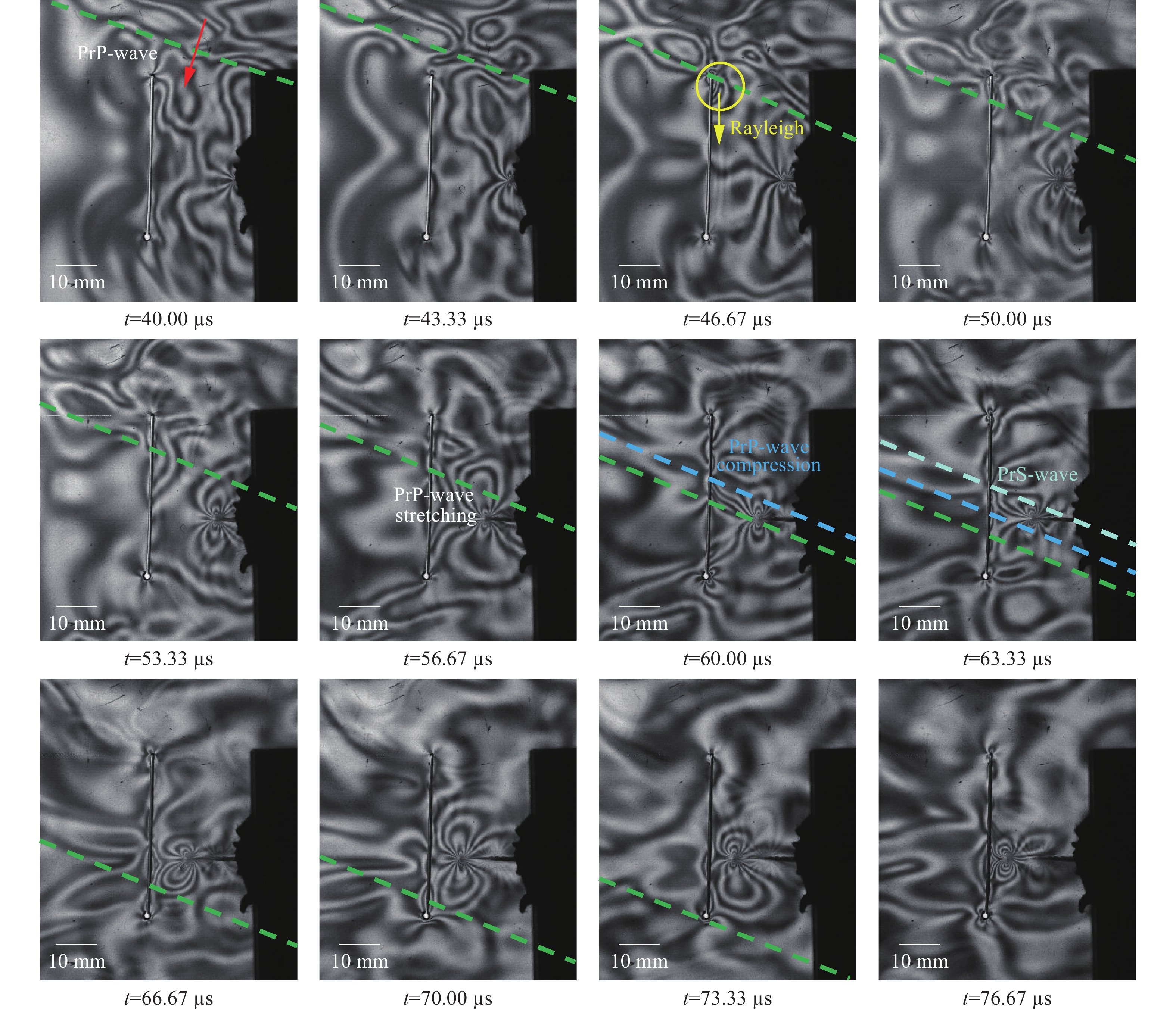

图 5 爆生主裂纹扩展过程的光弹等差条纹系列图片

Figure 5. Photoelastic fringes of blast-induced main crack propagation

下载: 全尺寸图片幻灯片

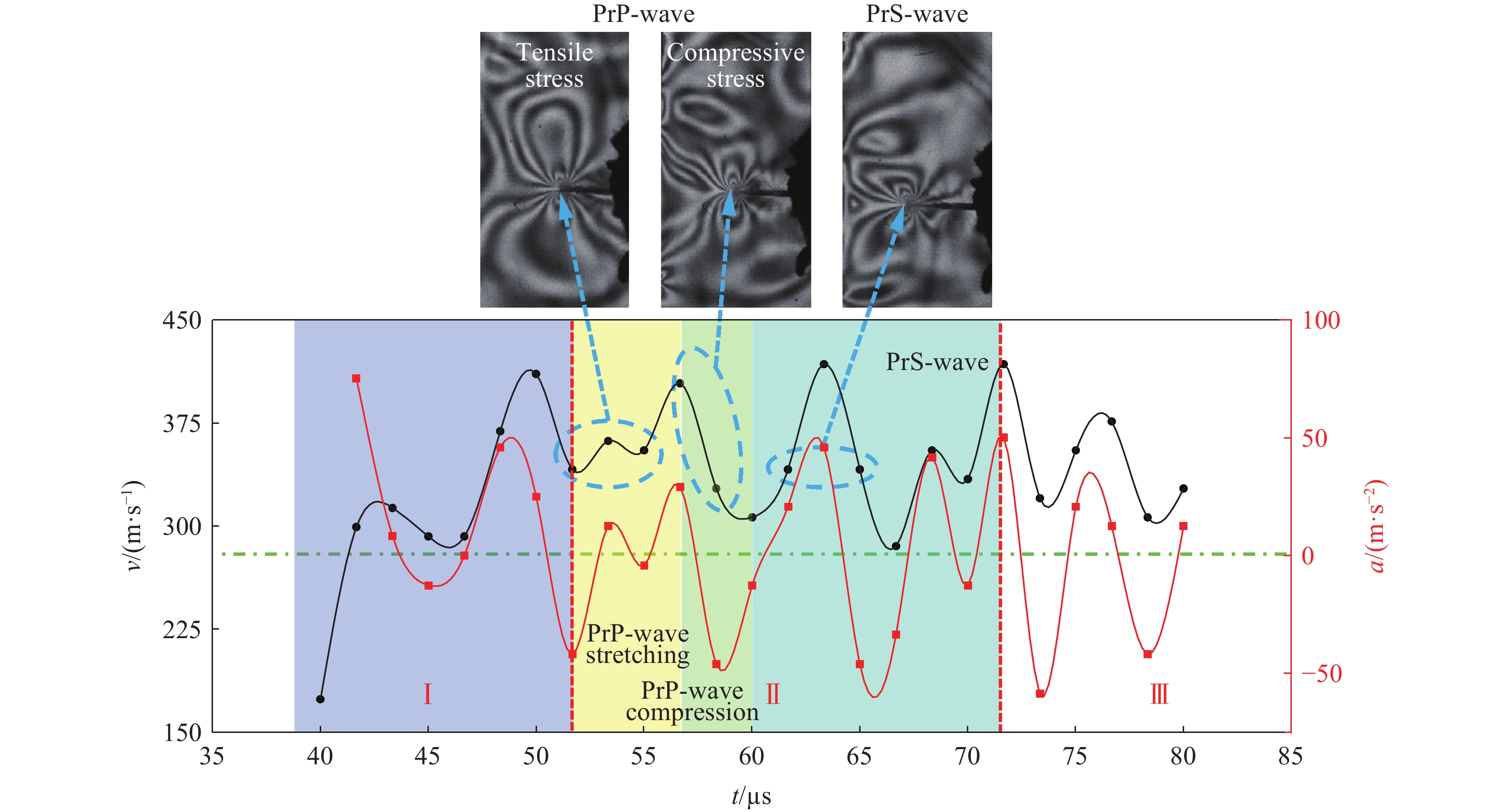

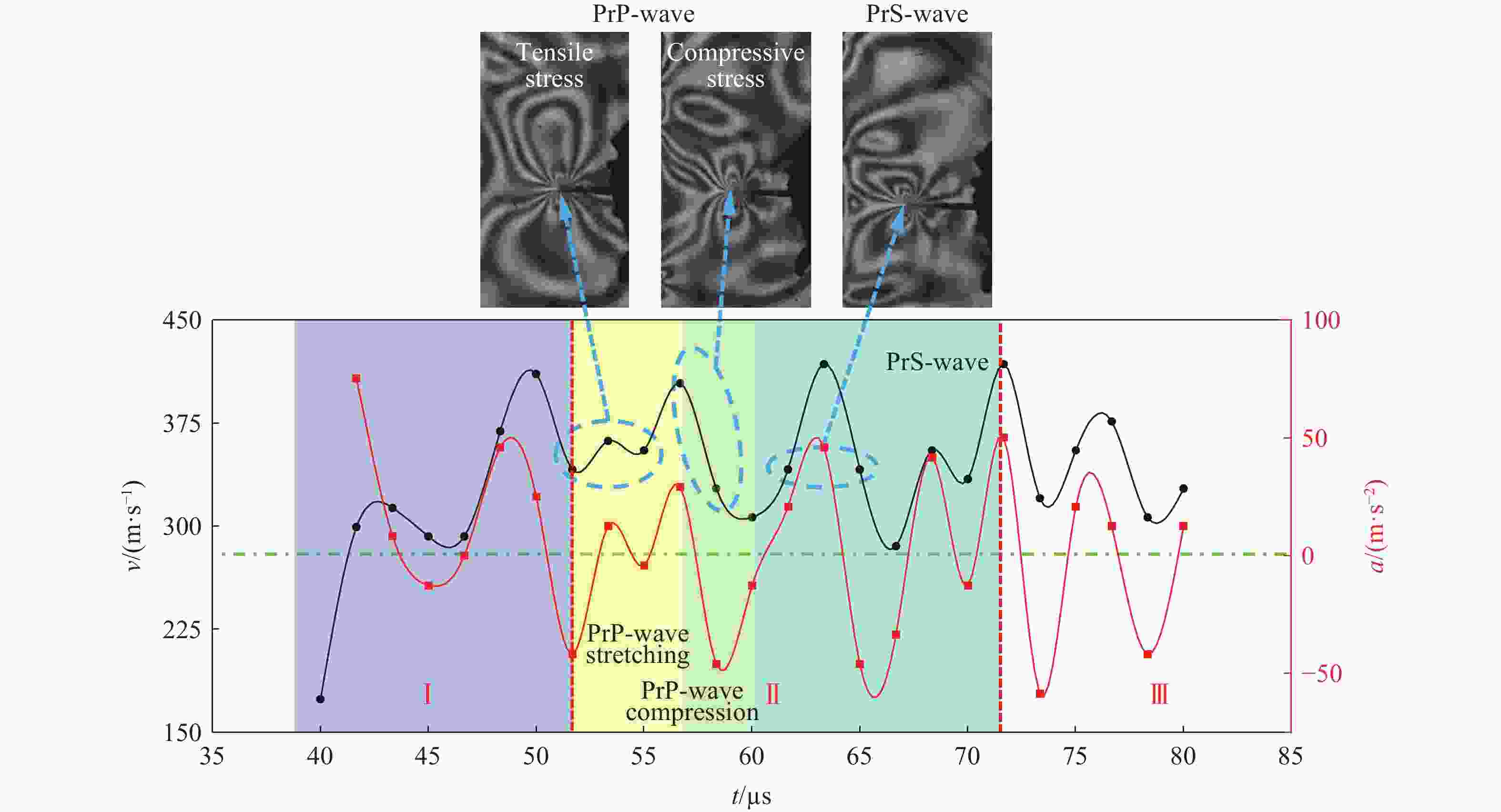

图 6 裂纹扩展速度和加速度变化曲线

Figure 6. History curves of velocity and acceleration of crack propagation

下载: 全尺寸图片幻灯片

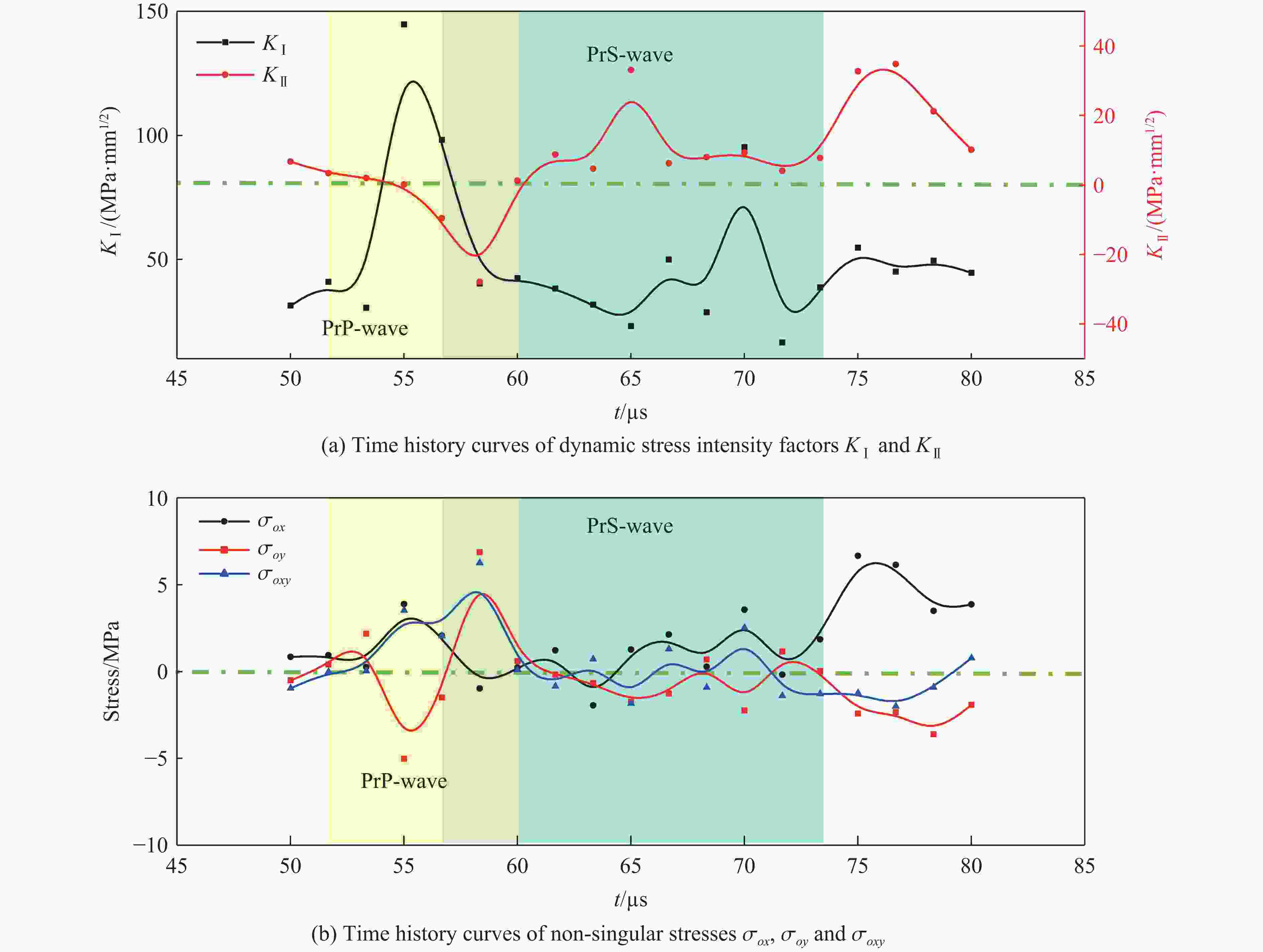

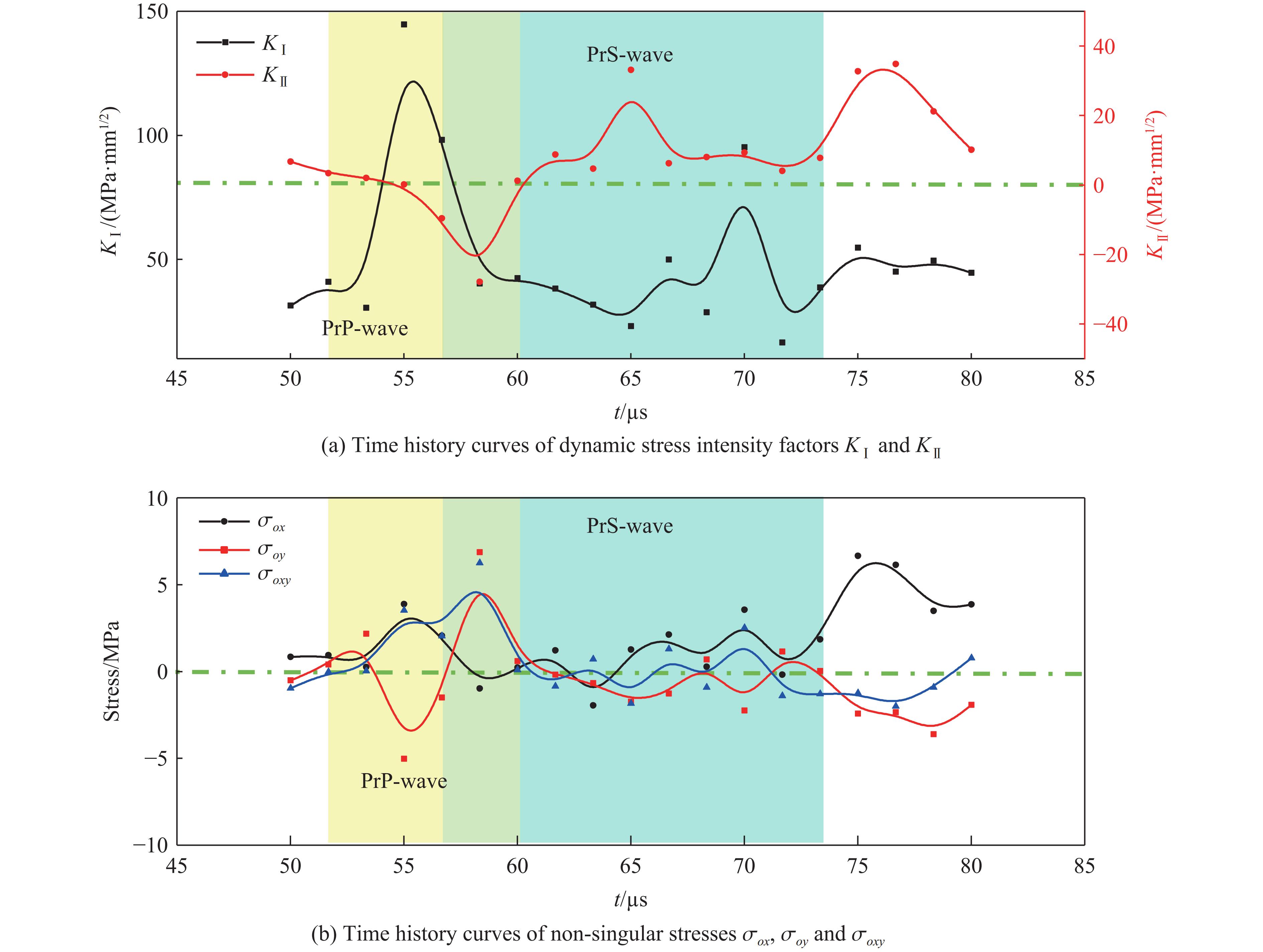

图 7 反射爆炸应力波作用下应力强度因子和非奇异应力参数随时间的变化

Figure 7. Changes of stress intensity factors and non-singular stresses with time under the action of reflected explosion stress wave

下载: 全尺寸图片幻灯片

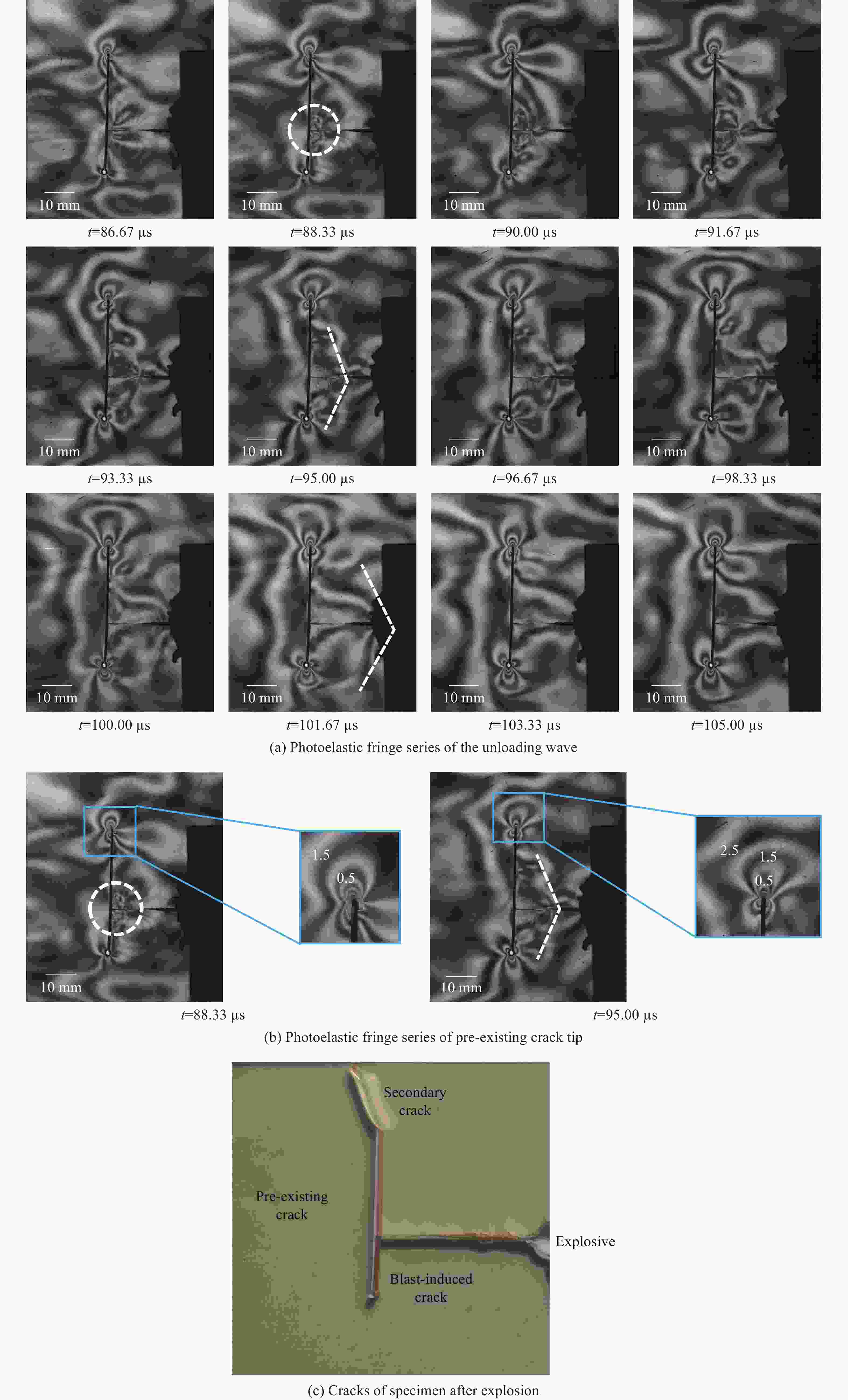

图 8 爆炸裂纹与预制裂纹贯通后弹性能快速释放的光弹条纹系列

Figure 8. A series of photoelastic stripes with rapid release of elastic energy after penetration of blast-induced and prefabricated cracks

下载: 全尺寸图片幻灯片

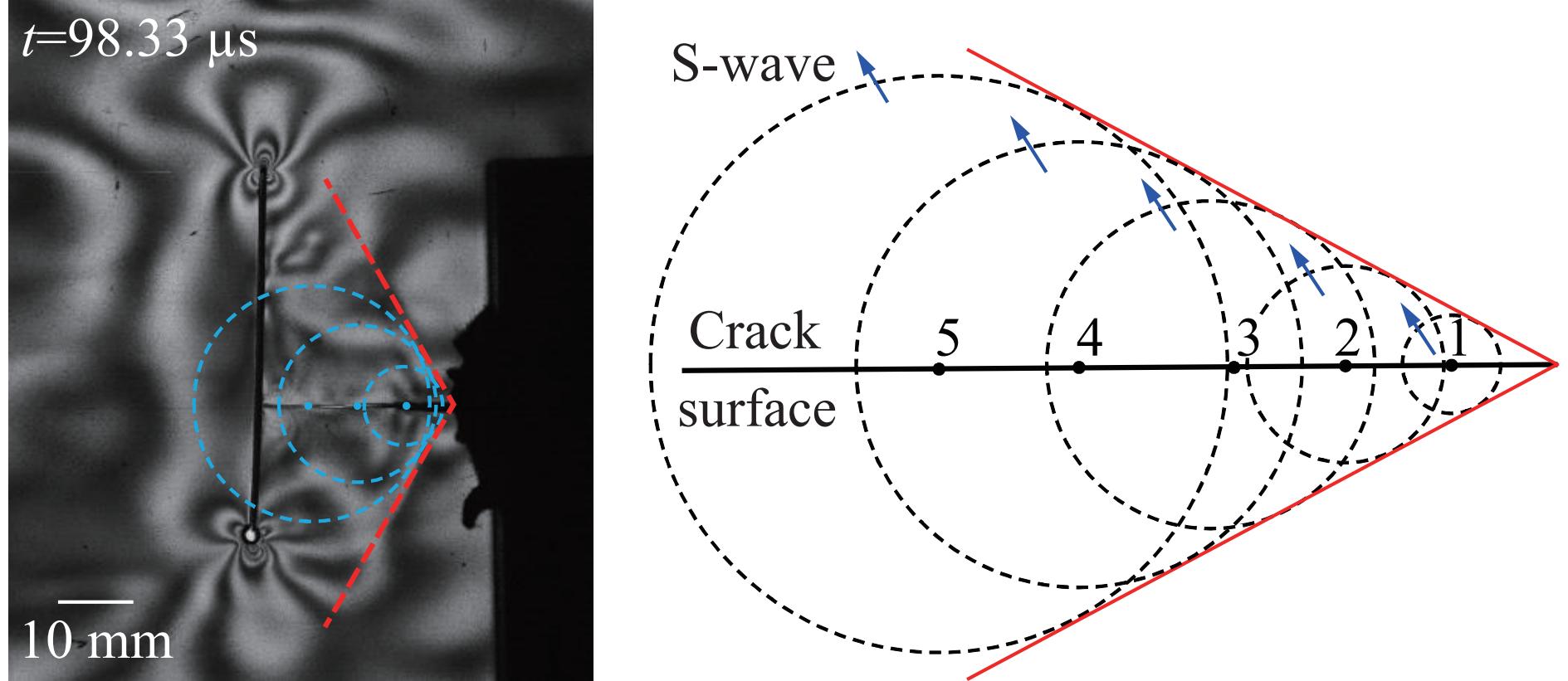

图 9 裂纹扰动S波马赫锥
