摘要:

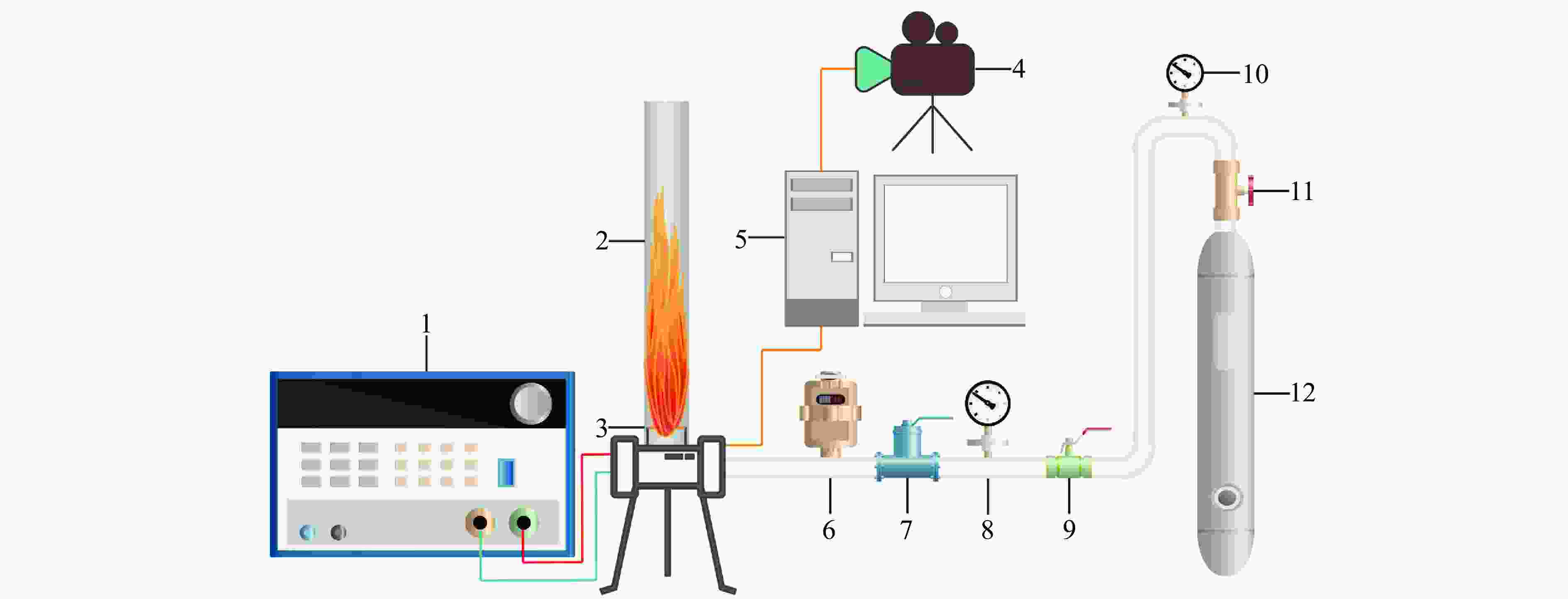

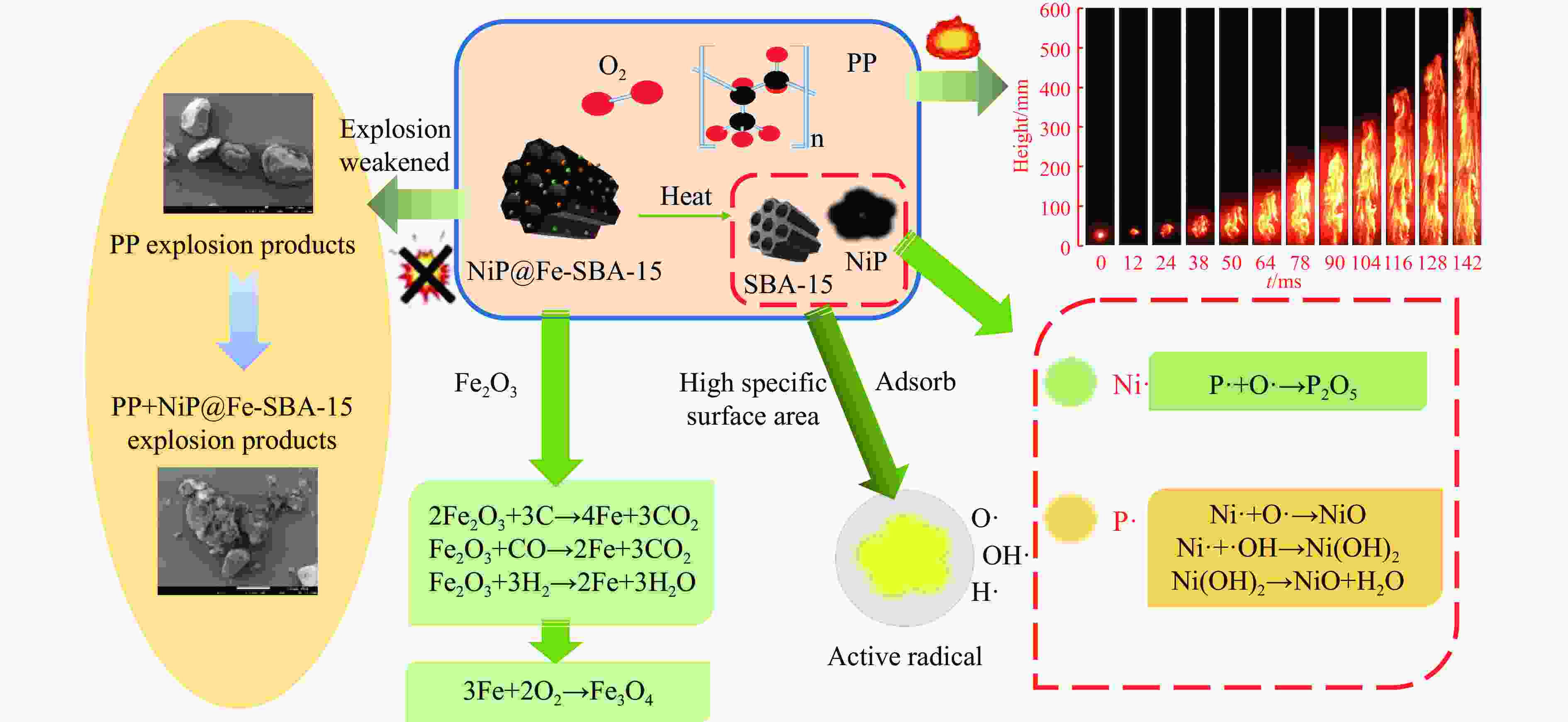

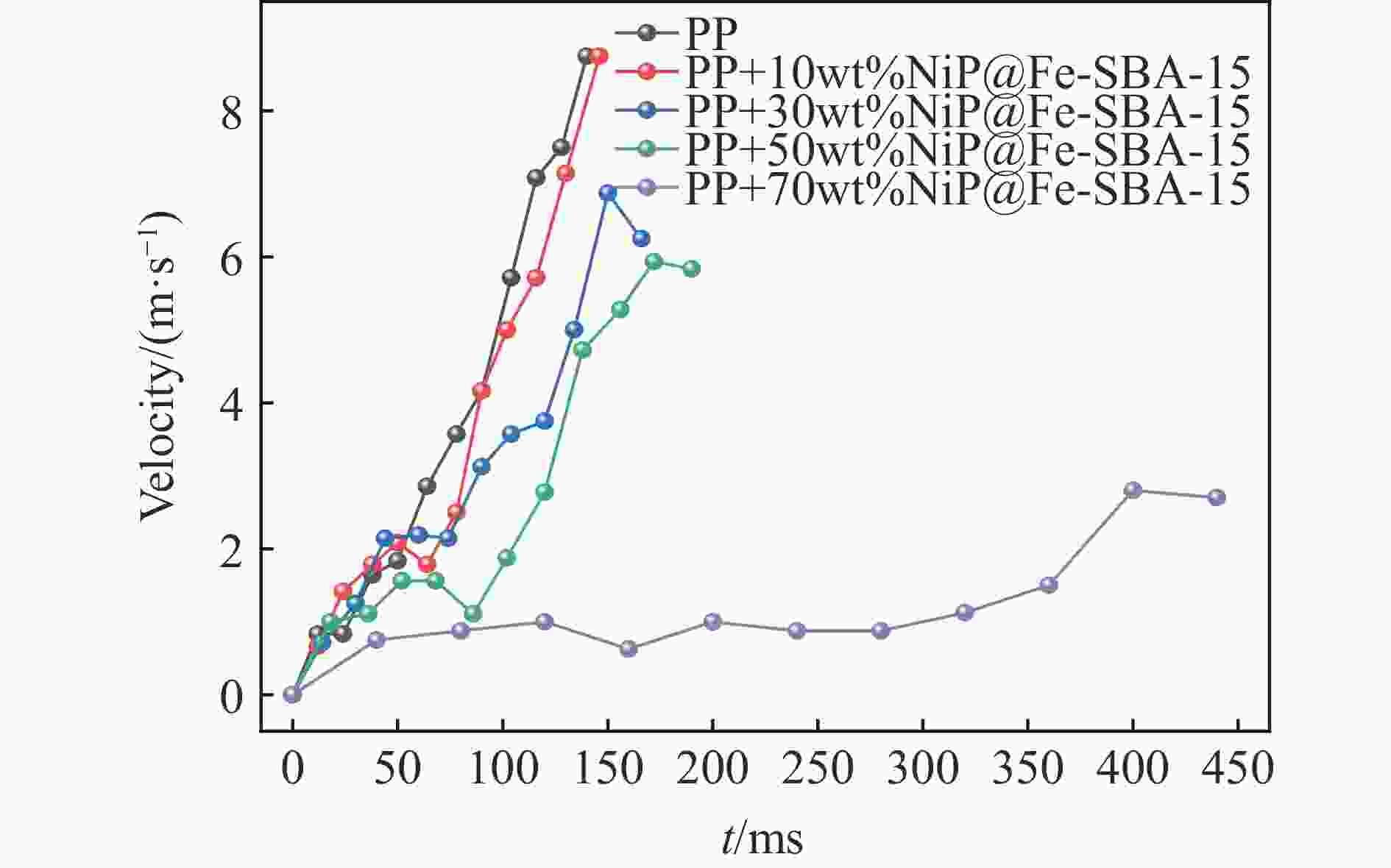

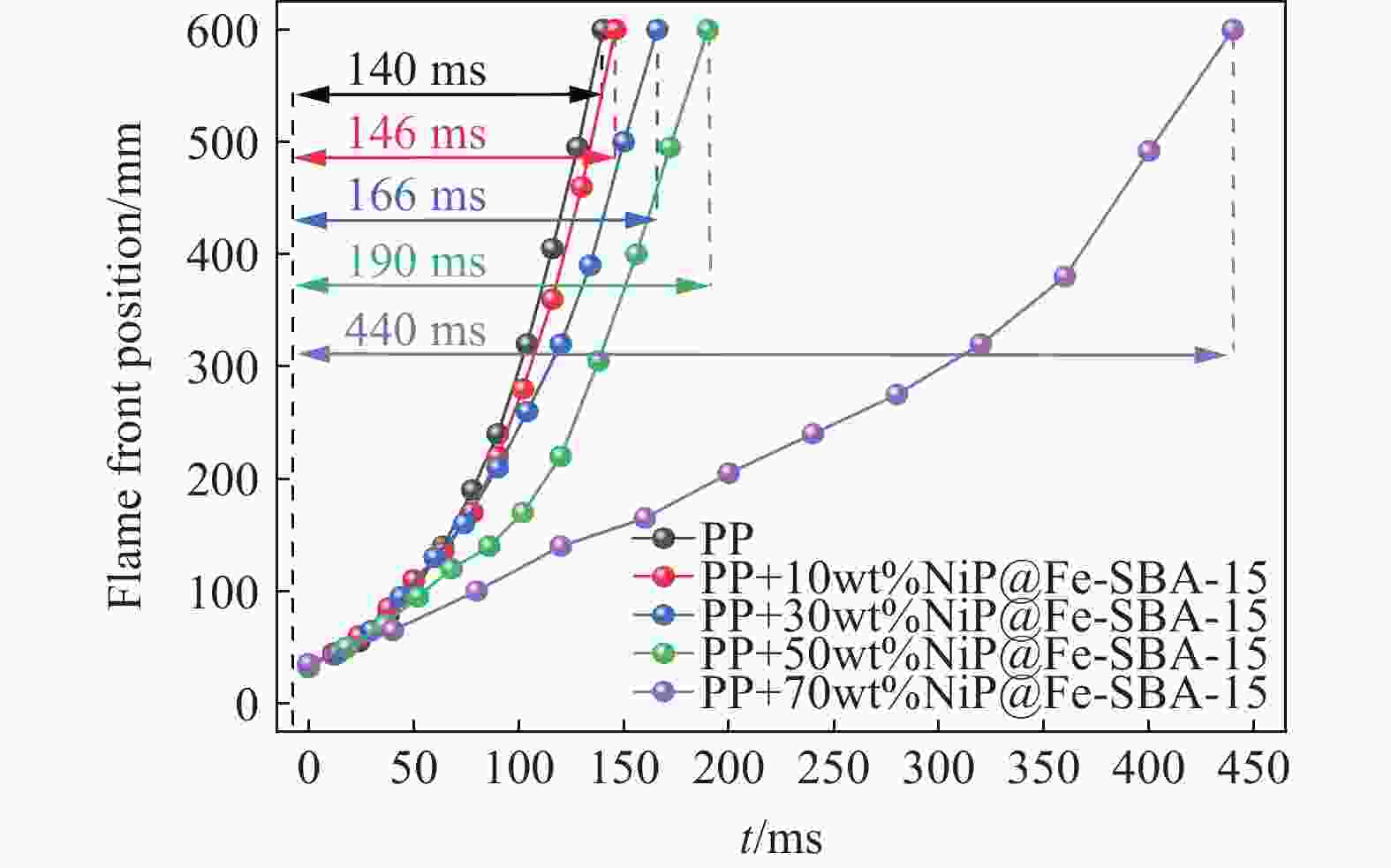

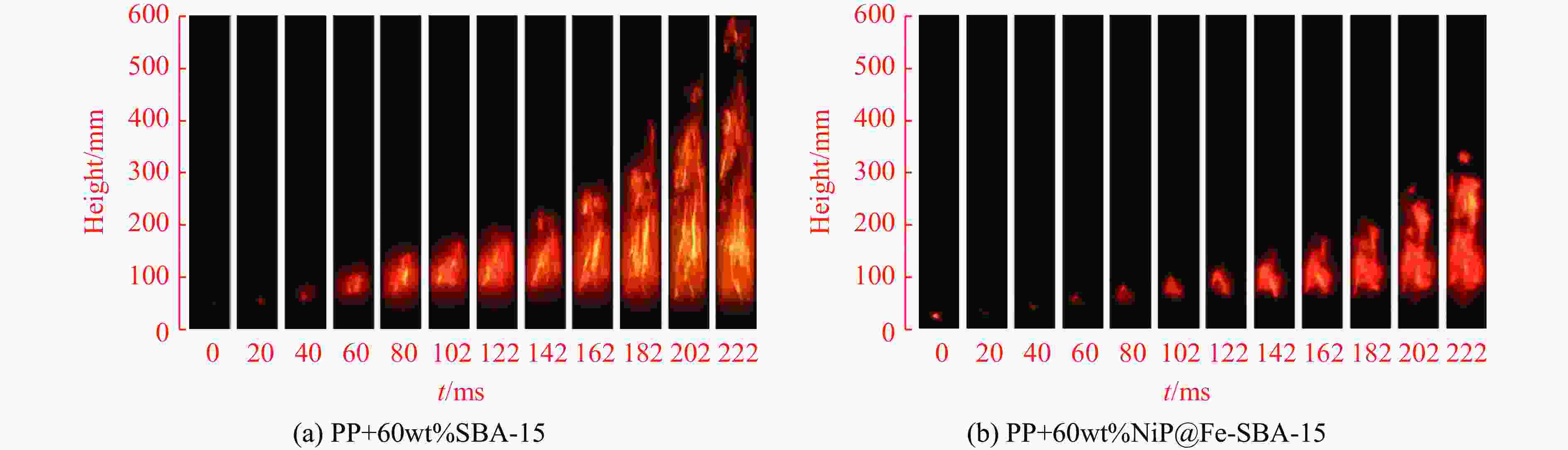

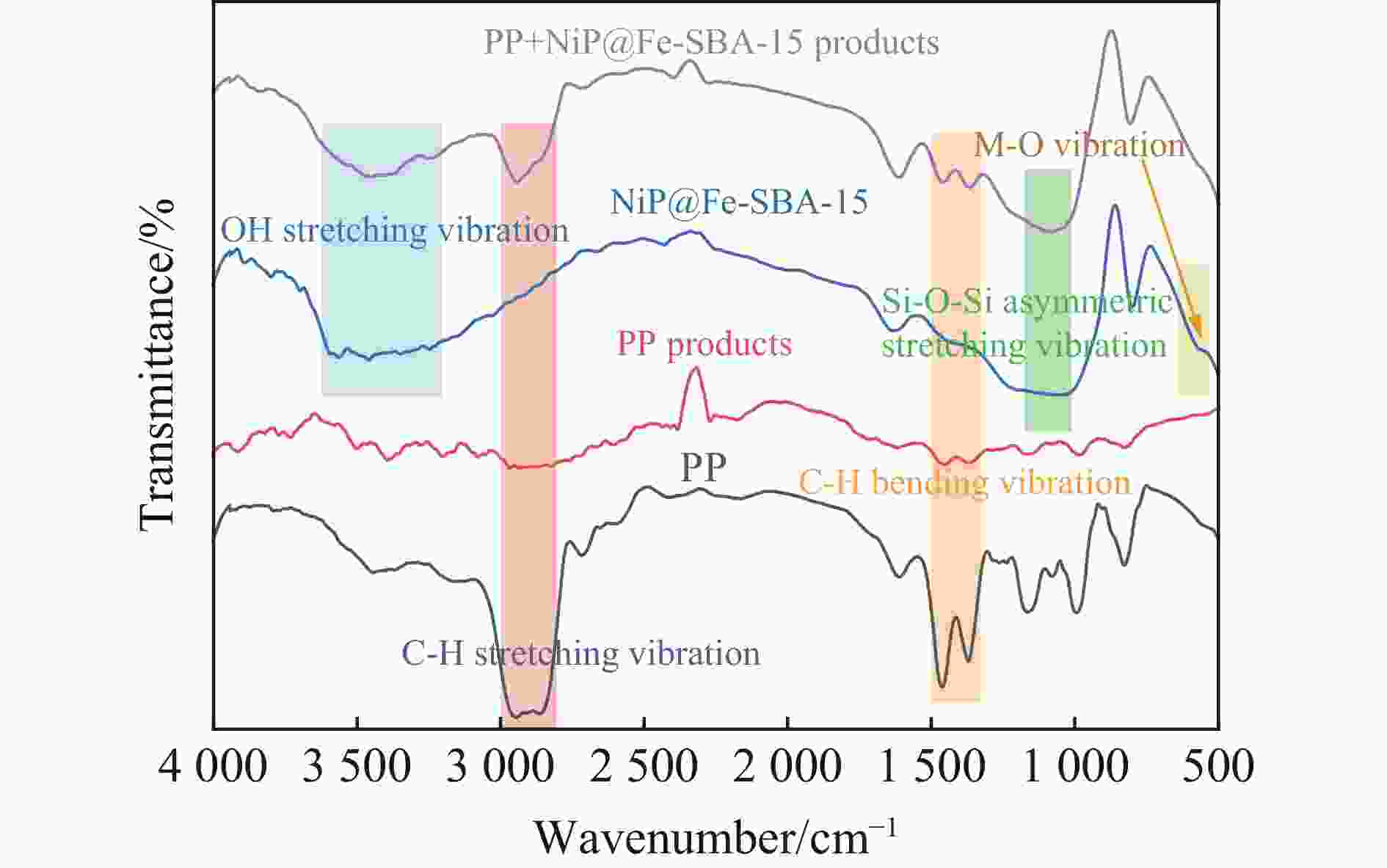

抑爆剂在防止粉尘爆炸事故中起着至关重要的作用。本文通过原位合成方法制备了一种新型的NiP@Fe-SBA-15抑爆剂,采用哈特曼管道爆炸测试系统,对爆燃火焰的传播行为进行实验研究,测定NiP@Fe-SBA-15抑爆剂对聚丙烯(PP)爆炸火焰的抑制作用,以及添加不同比例NiP@Fe-SBA-15抑爆剂条件下对PP爆炸火焰的抑制效果。实验结果表明:NiP@Fe-SBA-15抑爆剂能够显著降低PP粉尘爆燃火焰的温度和燃烧速度,当添加70wt% NiP@Fe-SBA-15时,可实现对PP爆燃火焰的完全抑制。此外,结合爆炸产物后的实验分析结果,提出了NiP@Fe-SBA-15对PP粉尘爆燃的物理和化学抑制机制。
Abstract:

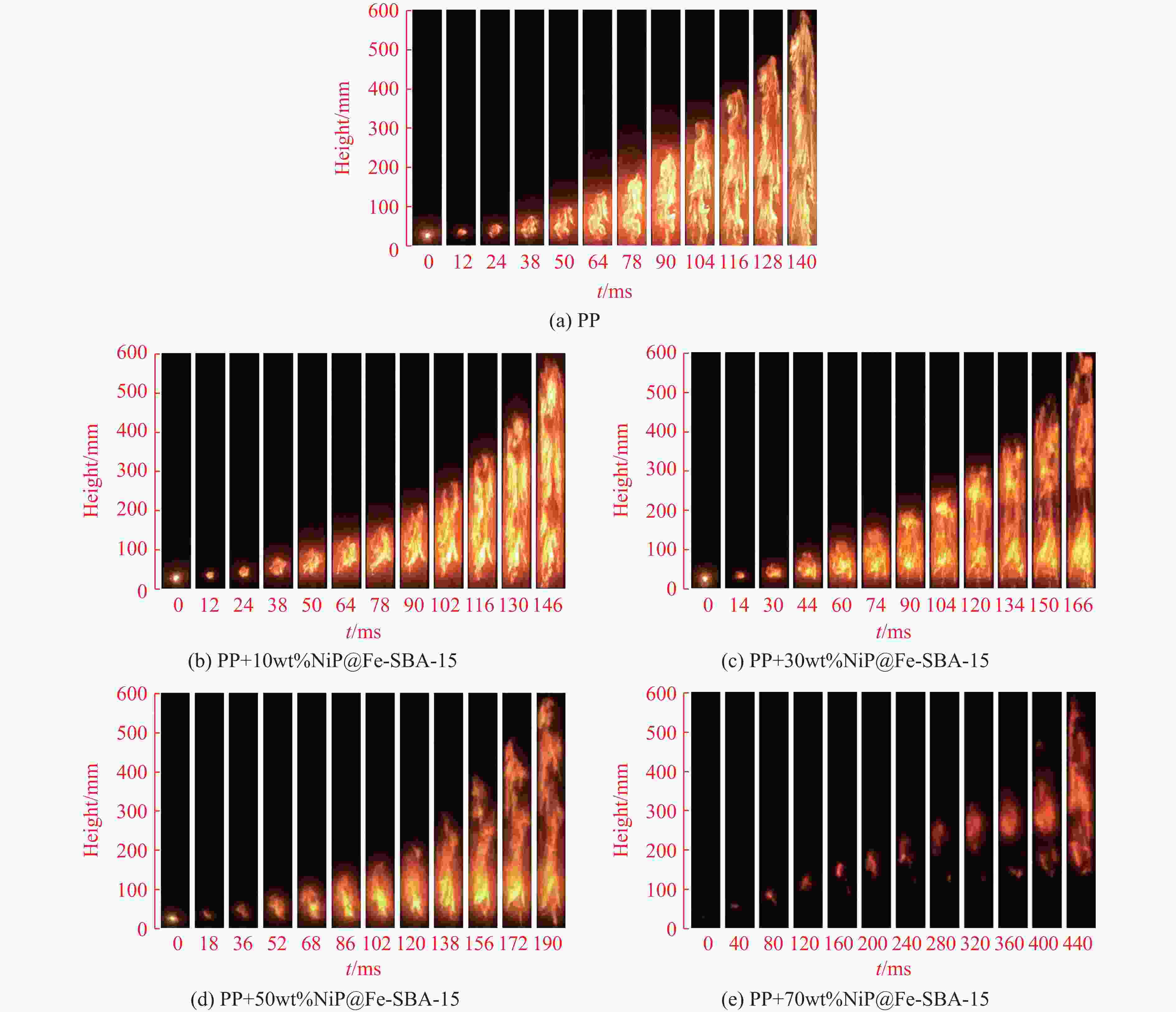

Polypropylene (PP) is a widely utilized plastic material in industrial production. However, during its production and transportation, it is highly prone to dust explosion accidents, posing significant threats to personnel and equipment safety. In this study, a novel explosion suppressant NiP@Fe-SBA-15 was synthesized to suppress the propagation of PP dust combustion flames. The synthesis method employed was in situ, whereby SBA-15 mesoporous silica was modified with metal ions, followed by the loading of active components NiP to prepare NiP@Fe-SBA-15.The results of SEM-Mapping test indicated that the active elements were uniformly distributed without significant aggregation, ensuring good dispersibility of the suppressant. In this paper, Hartman explosive device was used to evaluate the effect of NiP@Fe-SBA-15 explosion suppressor on PP dust deflation. The experimental results show that with the increase of NiP@Fe-SBA-15 additive, the flame propagation rate of PP dust deflagrator decreases significantly, and the flame propagation is almost completely inhibited when 70wt% inhibitor is added. The double explosion suppression mechanism of NiP@Fe-SBA-15 inhibiting the deflagging of PP dust is analyzed. On the physical level, NiP@Fe-SBA-15 inhibitor occupies the reaction space and reduces the concentration of oxygen and combustible volatiles, thus limiting the combustion reaction. At the same time, the SBA-15 molecular sieve exposed by thermal decomposition of the suppressor absorbs heat by forming a physical barrier, thus reducing the intensity of the combustion reaction. At the chemical level, the active ingredients NiP and Fe groups capture the living free radicals (H·, O·, OH·) produced during combustion, effectively interrupting the chain reaction and reducing the intensity of the explosion. In summary, this study proves that NiP@Fe-SBA-15 is an effective explosion suppressor for PP dust explosion, and reduces the combustion intensity of PP dust by combining physicochemical synergies. The research results of this paper can provide a new idea and method for improving the safety of polypropylene industry. Future research will focus on optimizing the application of NiP@Fe-SBA-15 explosion suppressors in industry, while solving the problems of cost, environmental sustainability and stability, so as to further promote the dust explosion prevention technology.
