Study on the influence of afterburning effect on implosion characteristics in different energy release rates
-

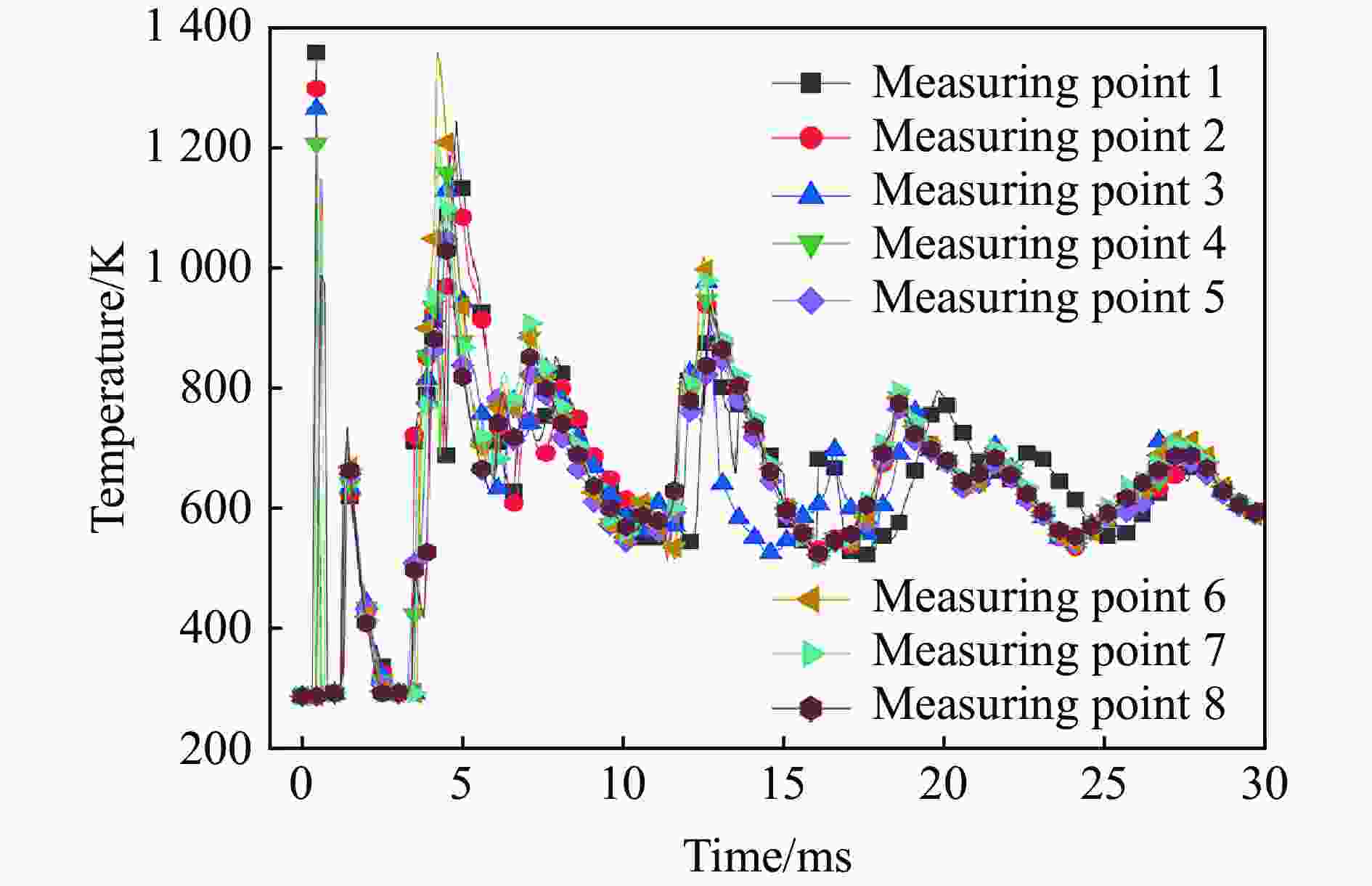

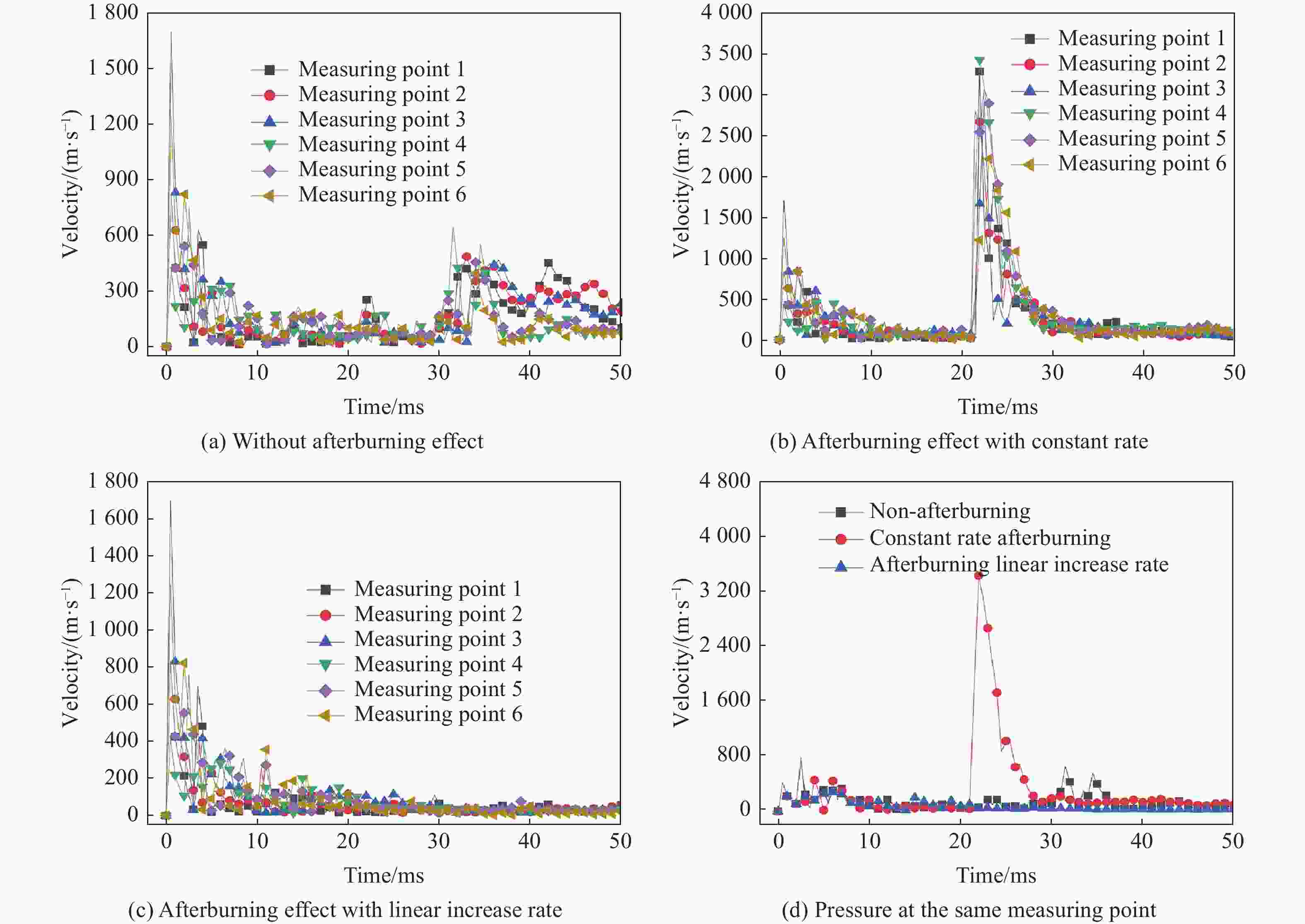

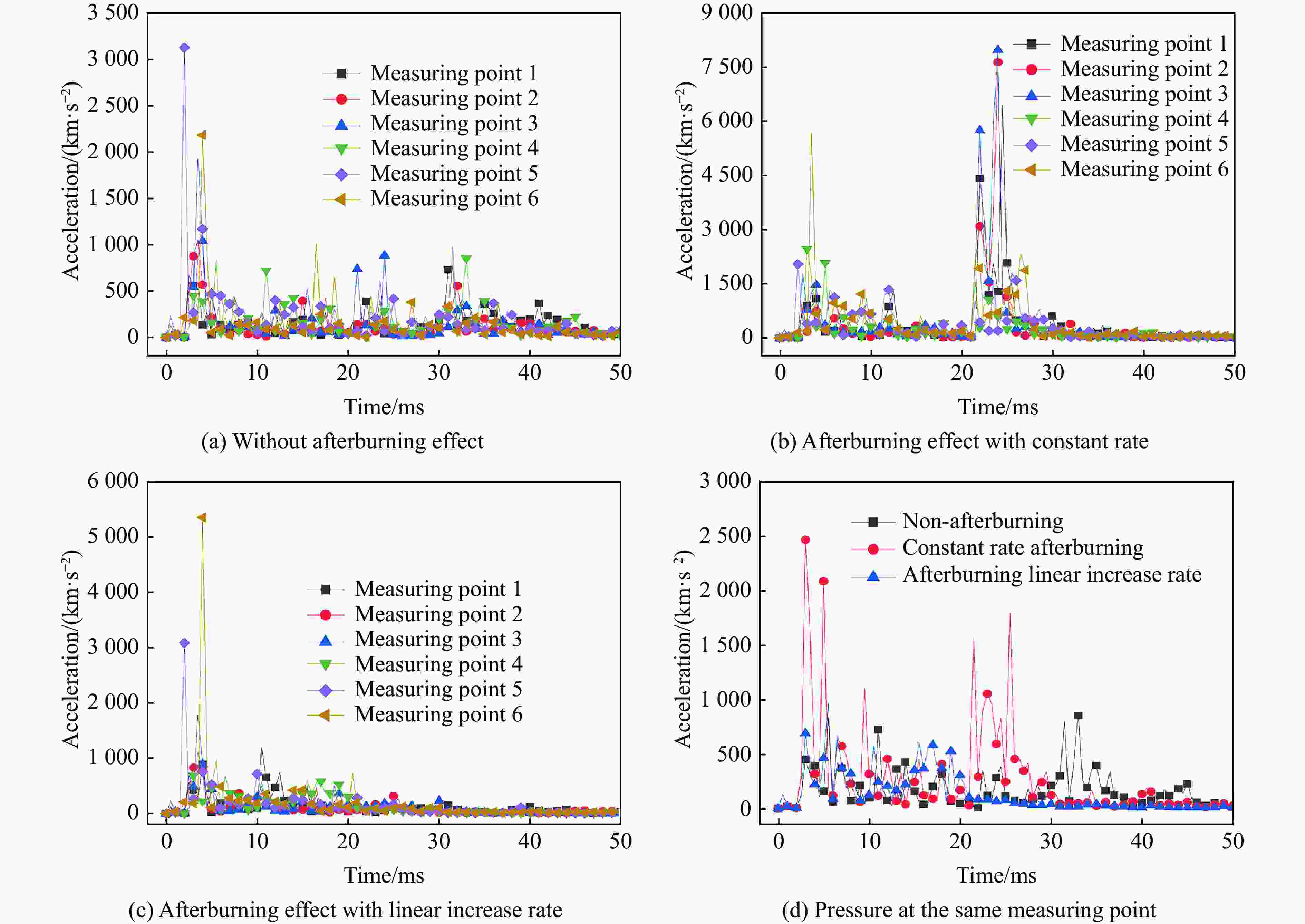

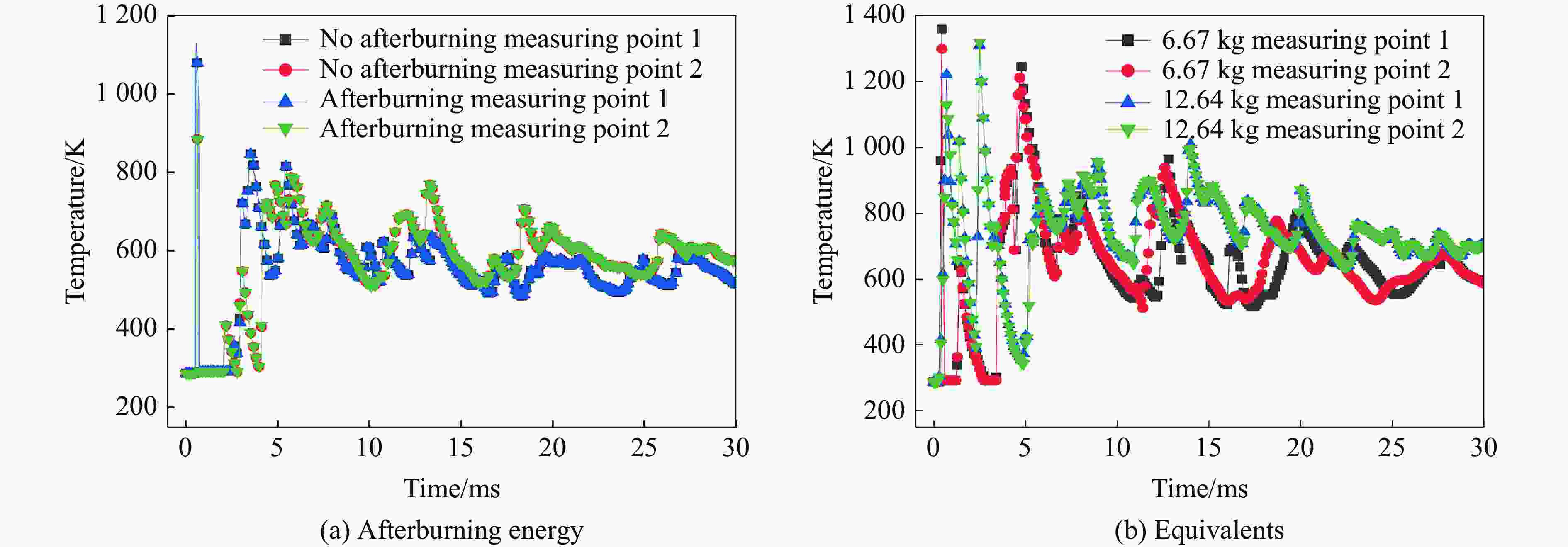

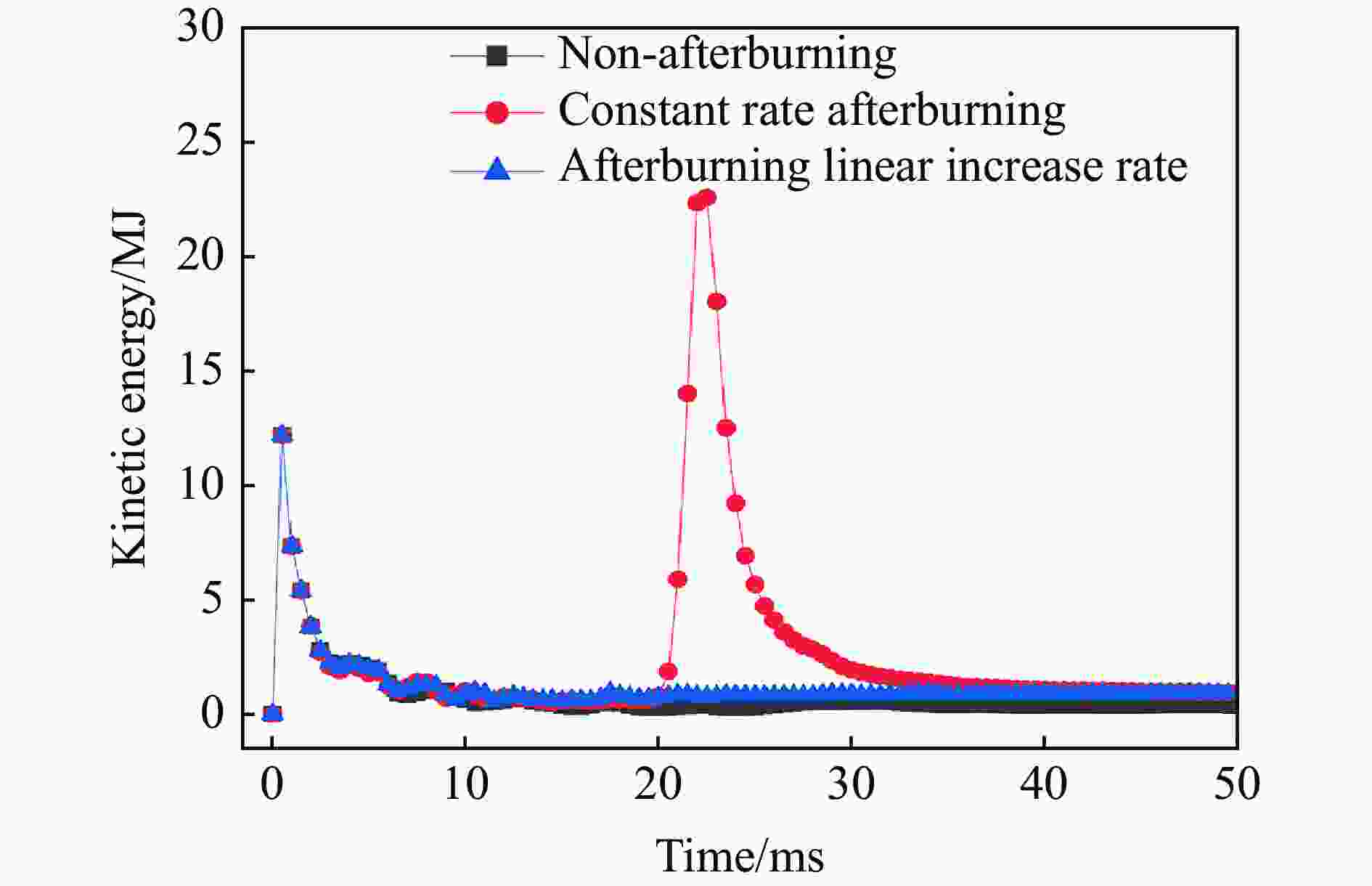

摘要: 为研究爆轰产物后燃烧效应对封闭空间的毁伤特性。以密闭空间结构和基于能量守恒的简化计算公式为基础,提出一种计算装药爆轰产物后燃烧能量的方法,基于该方法开展内爆毁伤模拟,以无后燃烧能量数值模拟结果为基础,率先采用恒定速率与线性增加率两种方式施加后燃烧能量,对比研究了爆炸载荷作用下的动态响应。研究结果表明:以不同速率方式开展后燃烧效应数值仿真时,除温度载荷外均有着不同程度的增强效果;以恒定速率方式施加后燃烧能量对内爆特性影响最大,其速度与加速度载荷的增幅分别为42.67%和71.21%,超压与准静态压力分别增大63.68%和74.95%,动能特性提升约212%。以不同速率方式施加后燃烧能量载荷,对内爆毁伤特性有着明显的增强效果,所提出的后燃烧能量计算方法能够较好地模拟密闭空间内爆毁伤时的动态响应,可为抗爆结构设计及评估提供更精确的后燃烧效应仿真方法。
-
关键词:

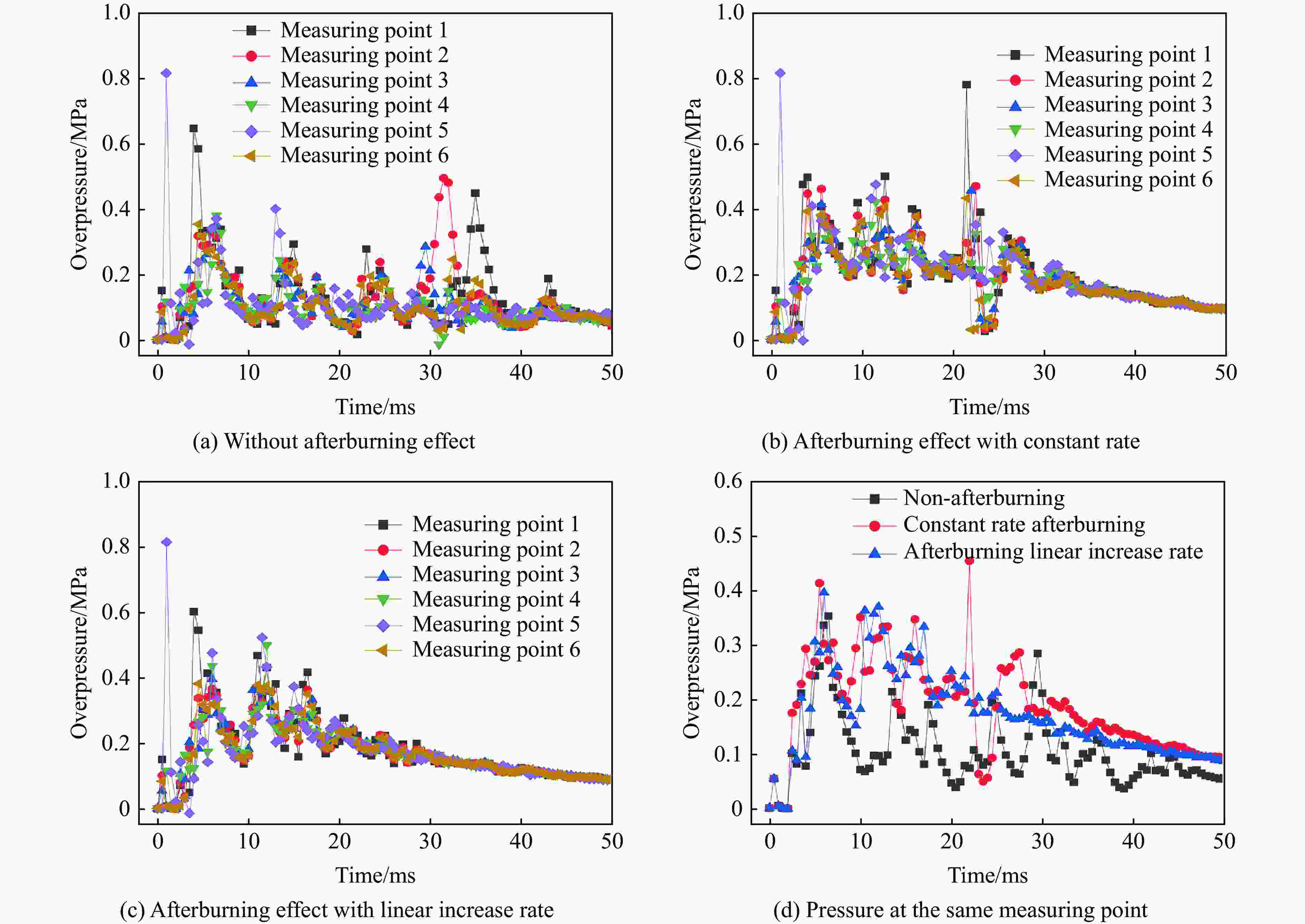

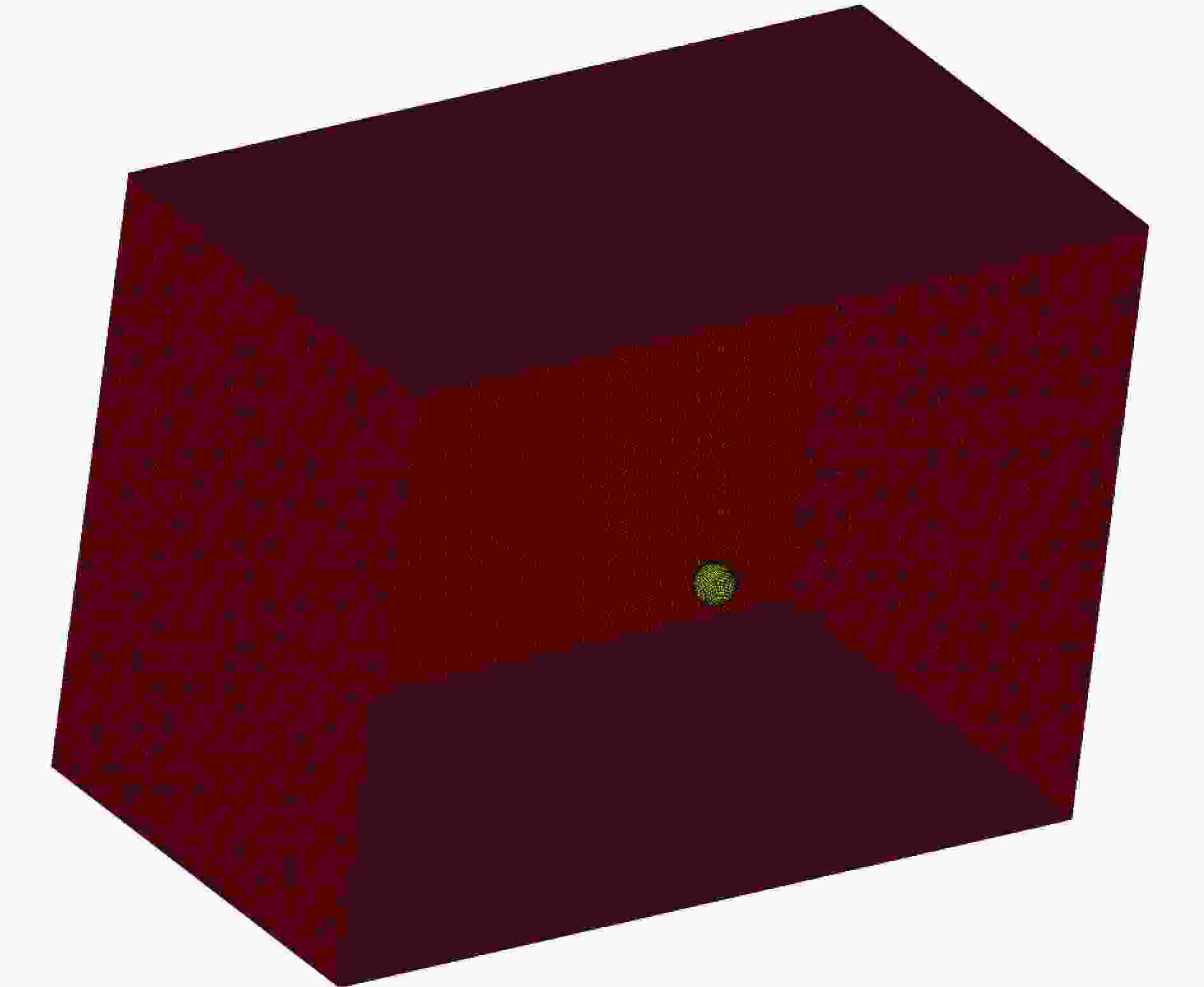

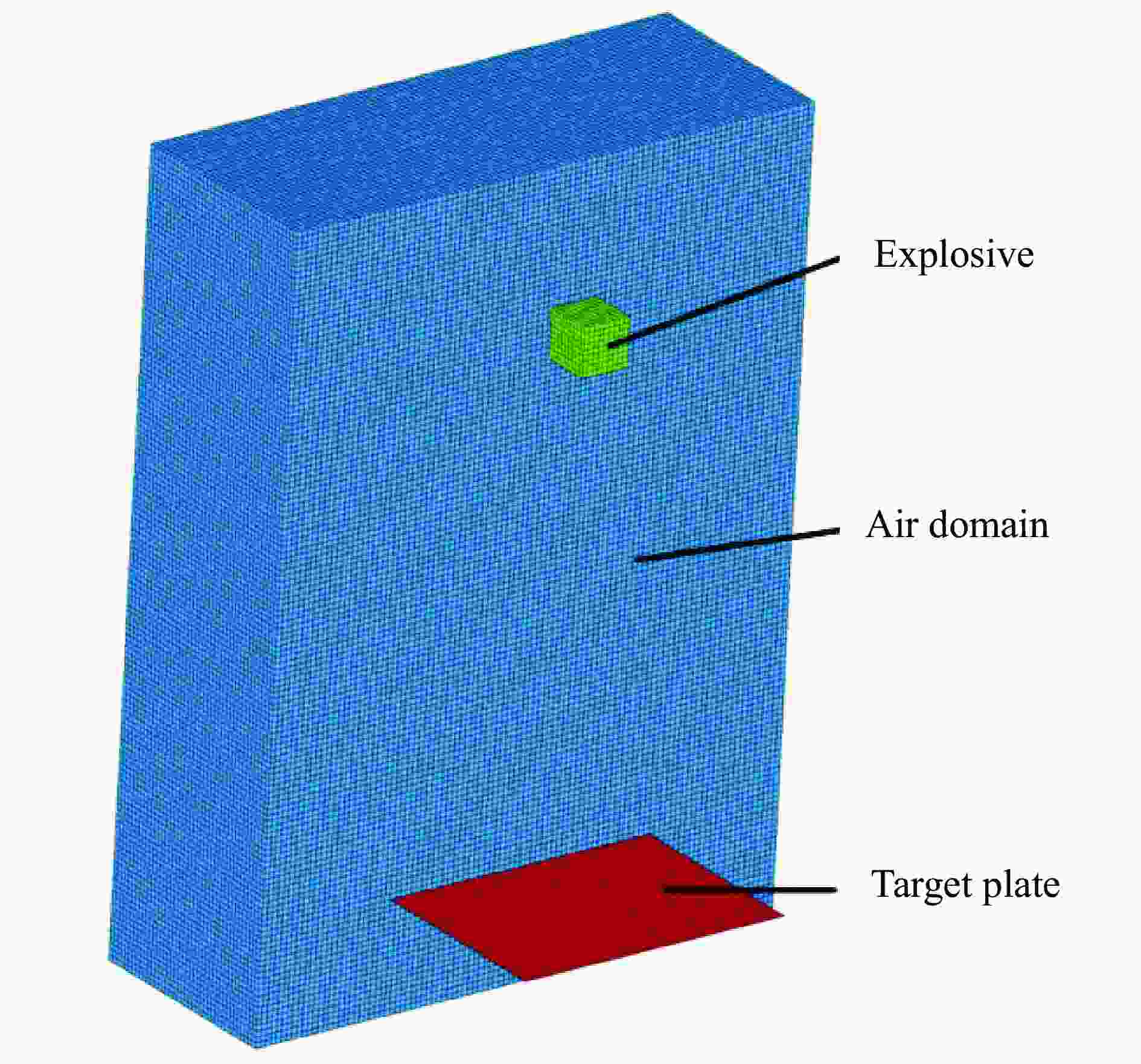

Abstract: To examine the influence of afterburning energy load generated by explosive detonation products on the damage characteristics of confined space, a closed space model is constructed with steel plates. Additionally, the quasi-static pressure in the confined space is simplified by applying the law of conservation of energy.Relying on the adiabatic index of the mixture of detonation products and air as well as the complete afterburning degree of detonation products, a simulation method for the afterburning effect is proposed. This method is used to calculate the afterburning energy of detonation products and determine the beginning and ending times of the afterburning effect.The numerical simulation of implosion ruin in confined space is carried out by this method. The implosion simulation considering afterburning energy load is performed by employing two simulation methods: constant reaction rate and linearly increasing reaction rate.The results are compared with the implosion simulation results without considering the afterburning effect. The influence and degree of change of the afterburning effect on the implosion damage characteristics are analyzed. The analysis of the research results shows that by adding explosive energy, simulations of afterburning energy loads with different reaction rates are carried out. It is found that except for the temperature in the confined space, the numerical simulation of the afterburning effect with different reaction rates has a significant influence.Moreover, the enhancement effect of the constant reaction rate is the most significant. It increases the velocity and acceleration loads under implosion in confined space by 42.67% and 71.21% respectively. The overpressure and quasi-static pressure are increased by 63.68% and 74.95% respectively, and the kinetic energy is increased by approximately 212%.The implosion simulation is conducted by applying the afterburning effect with different reaction rates. It is found that the afterburning effect has a significant influence on the detonation damage characteristics within the confined space. The proposed simulation method for the afterburning effect can better simulate the dynamic response of implosion ruin in confined spaces and can provide a more accurate simulation method of the afterburning effect for the design and evaluation of explosion-proof structures.-
Key words:
- afterburning effect /
- confined space /
- damage characteristics /
- quasi-static pressure
