摘要:

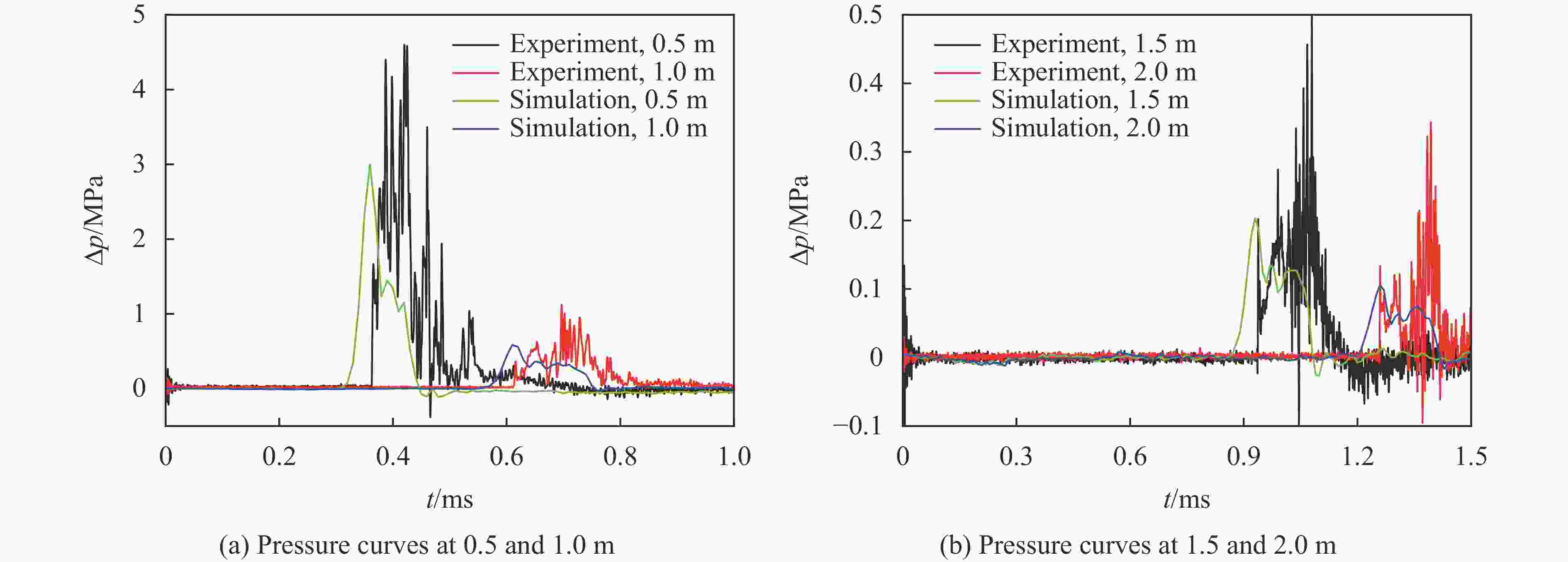

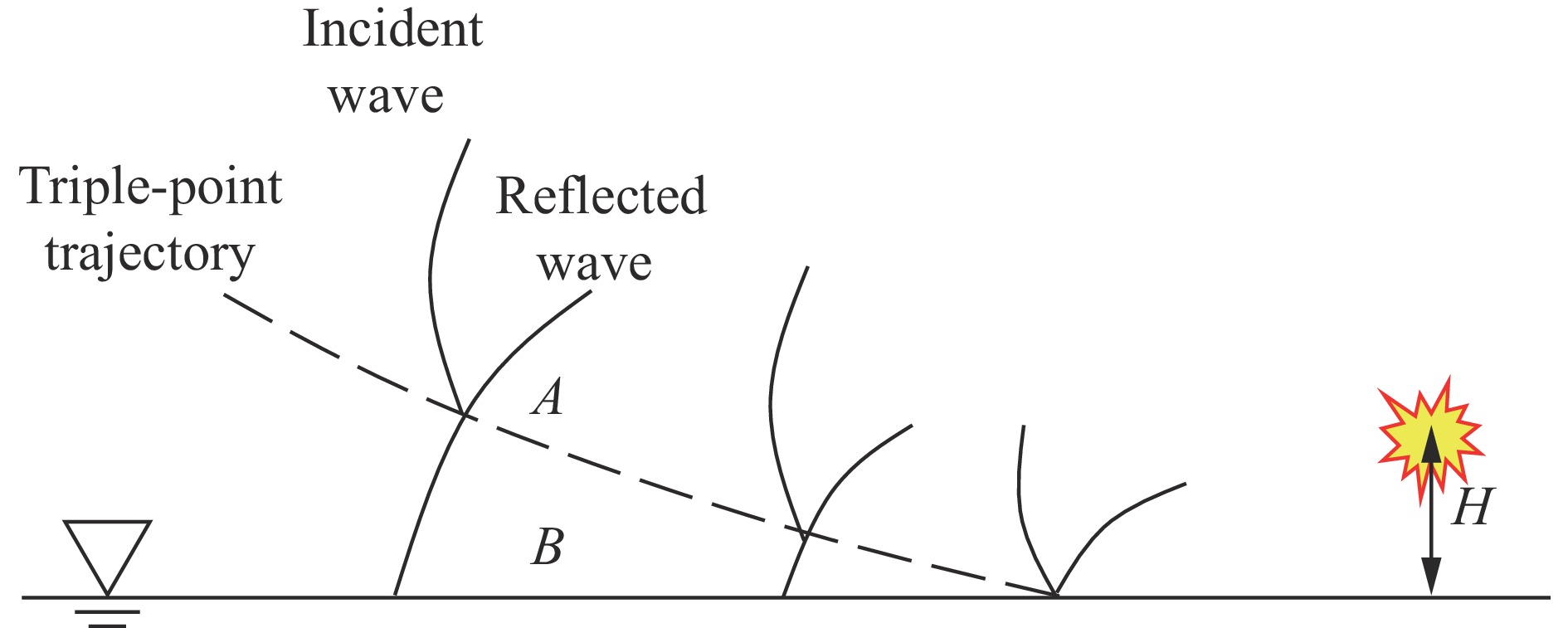

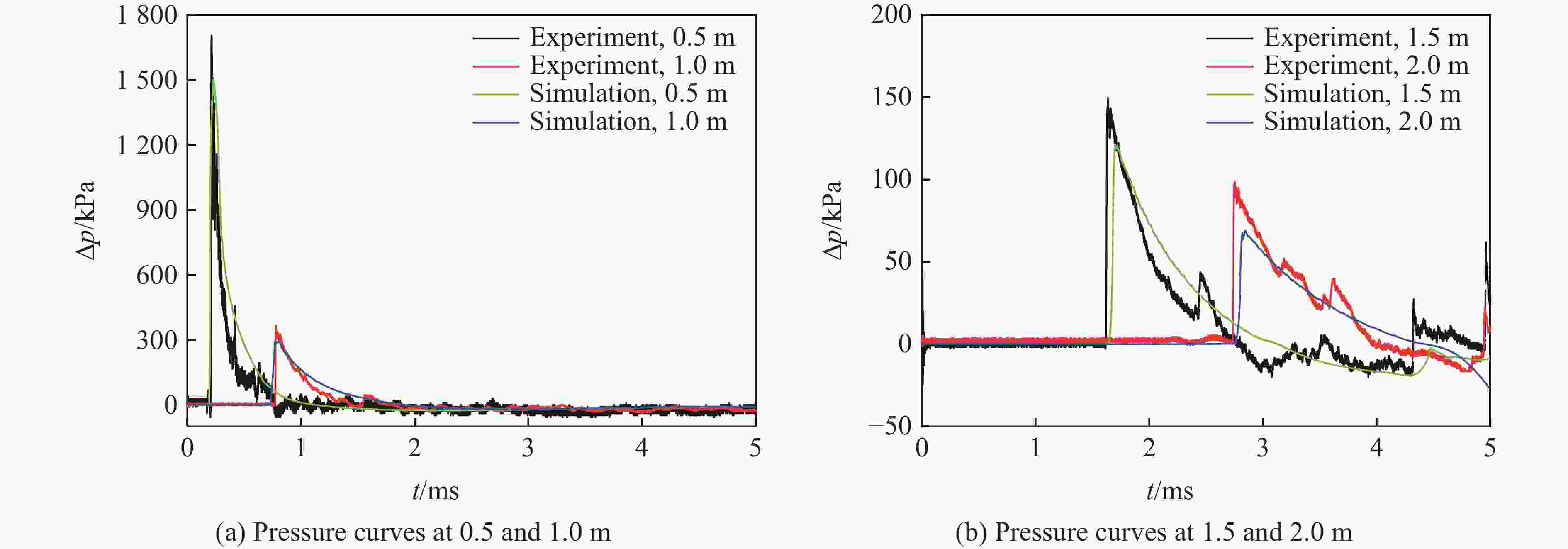

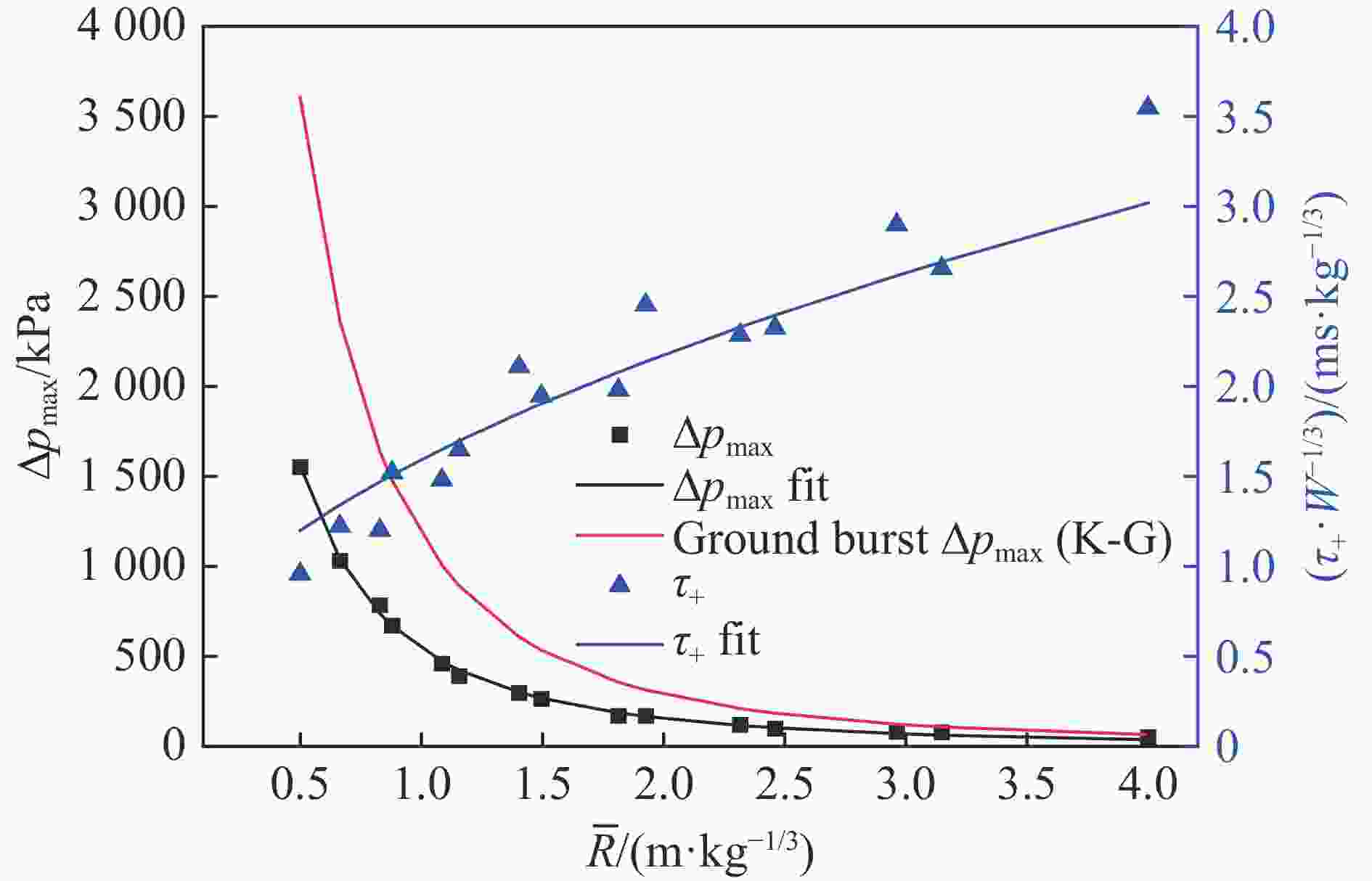

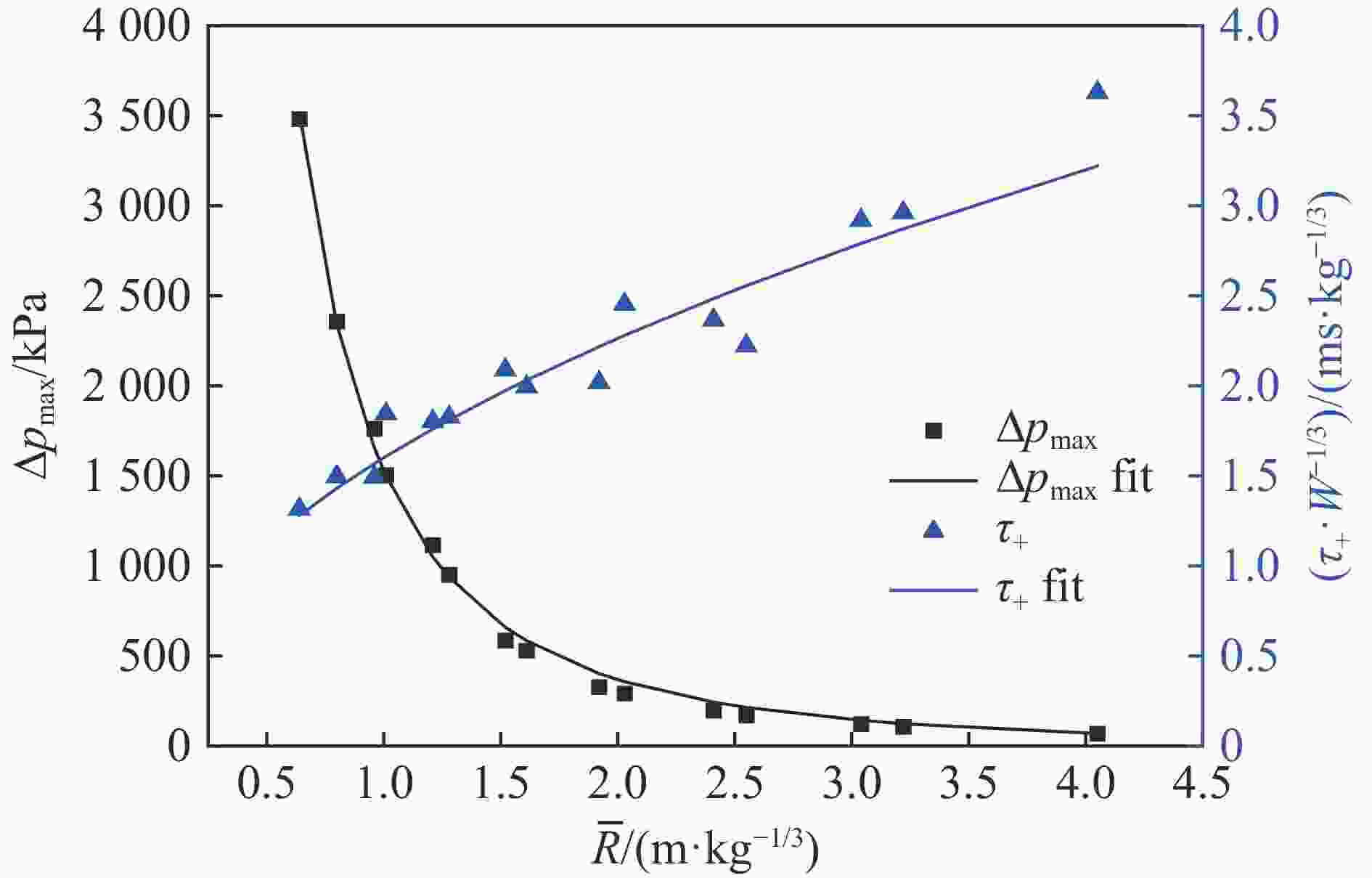

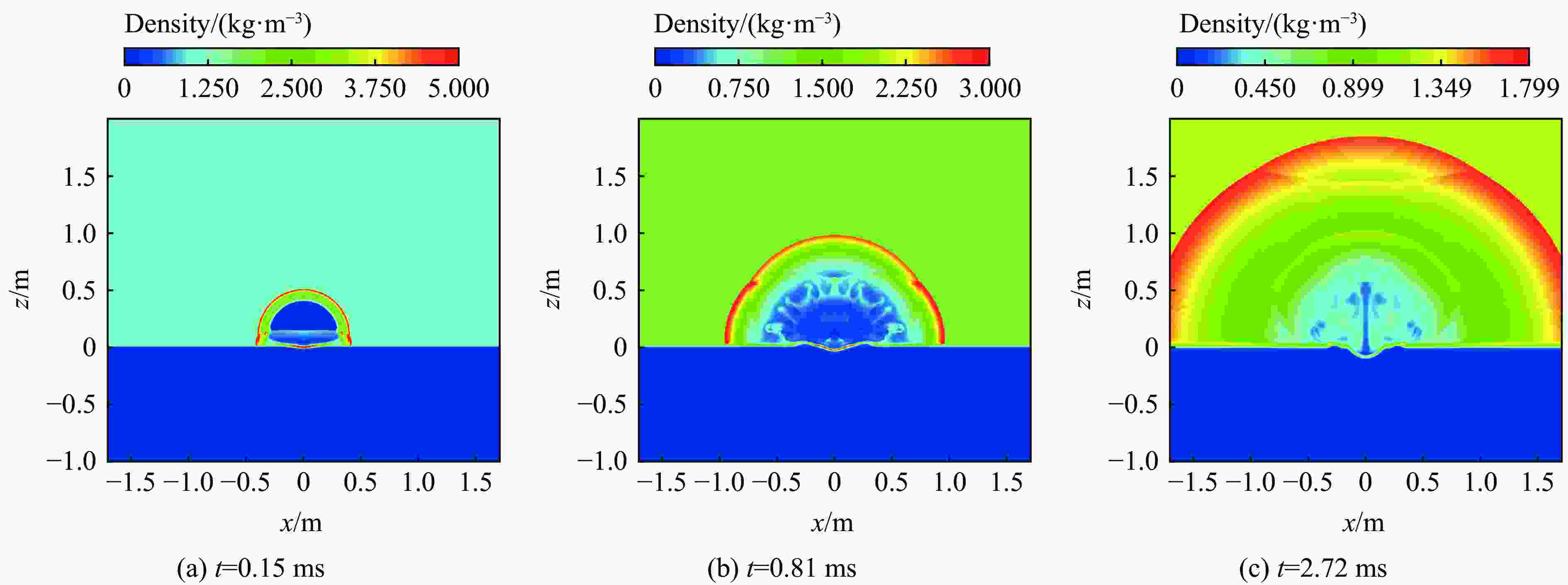

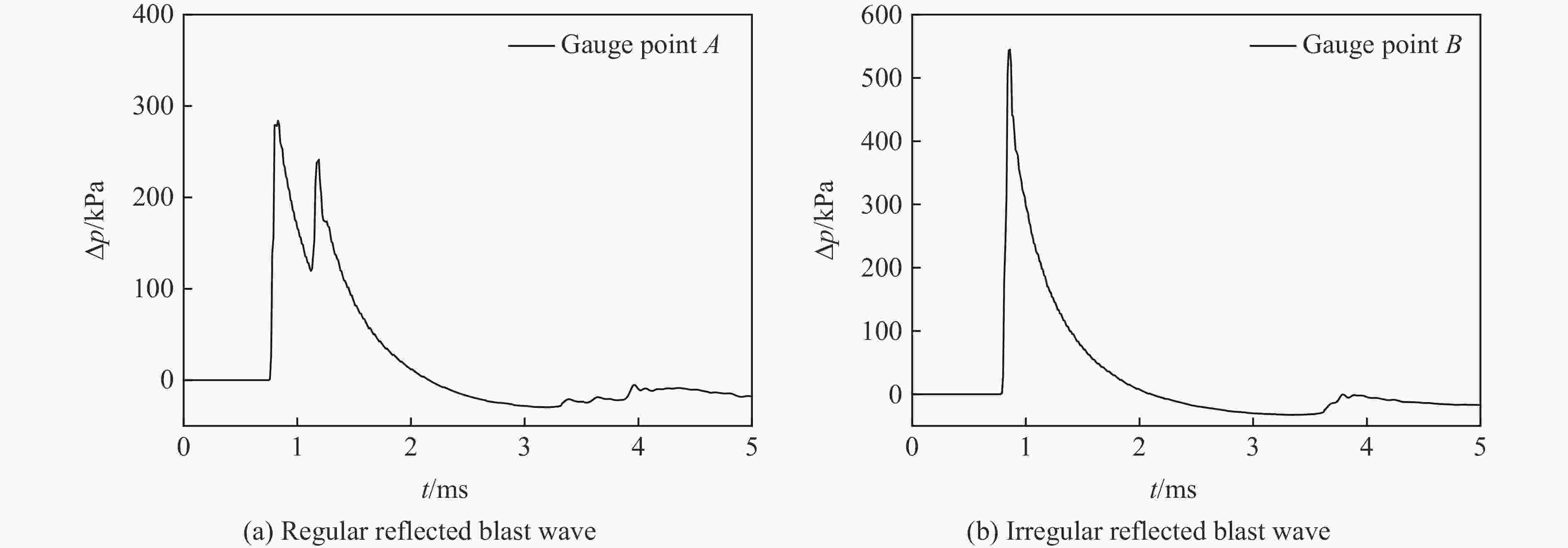

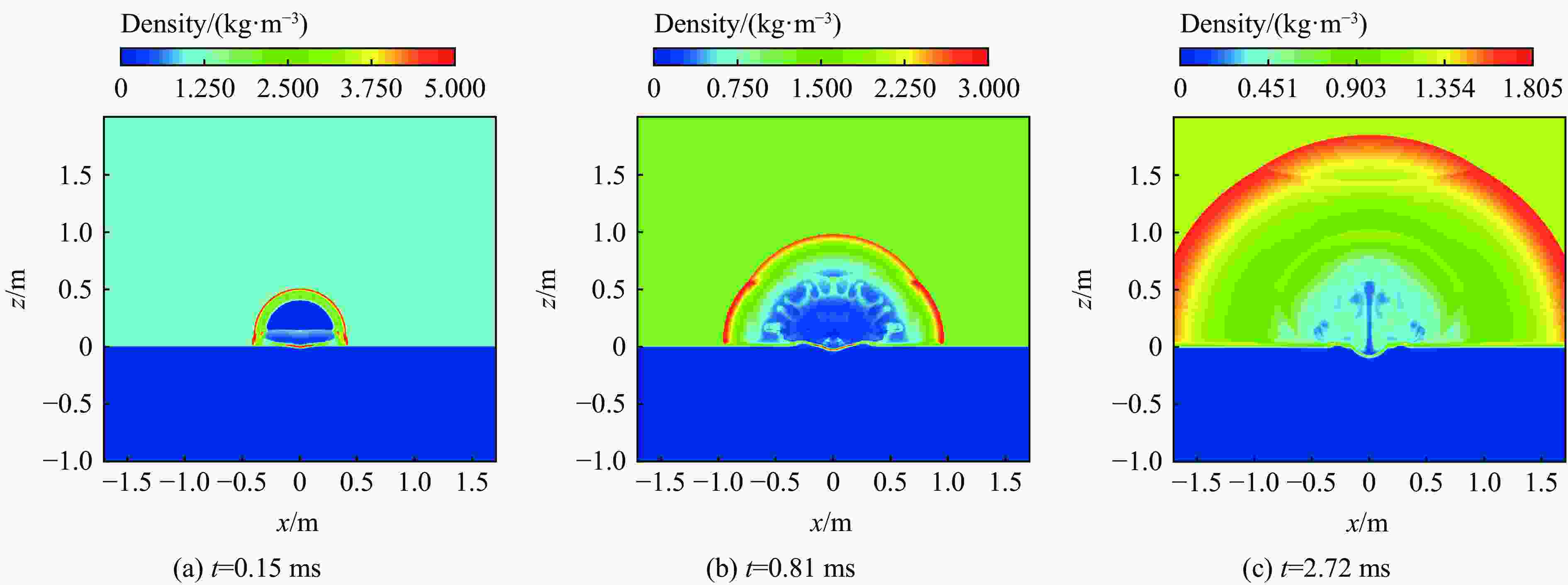

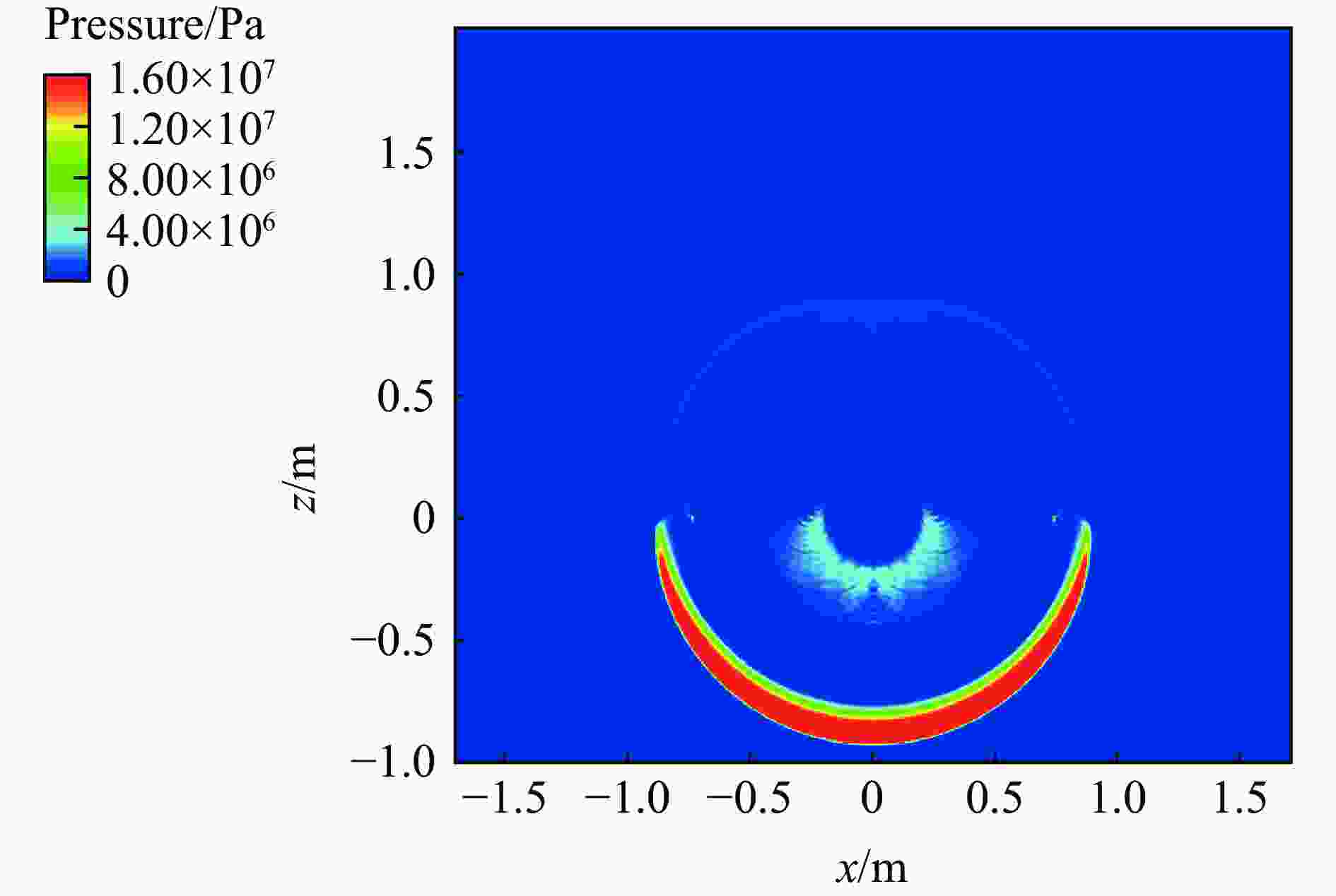

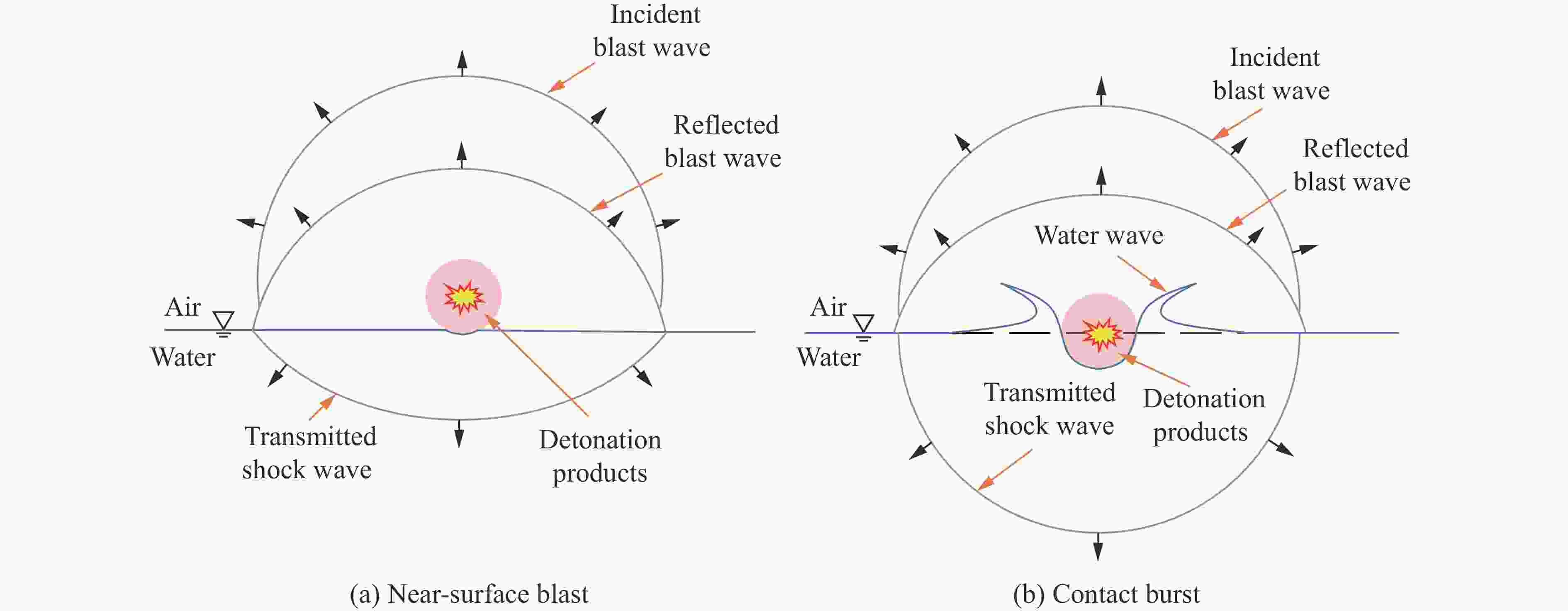

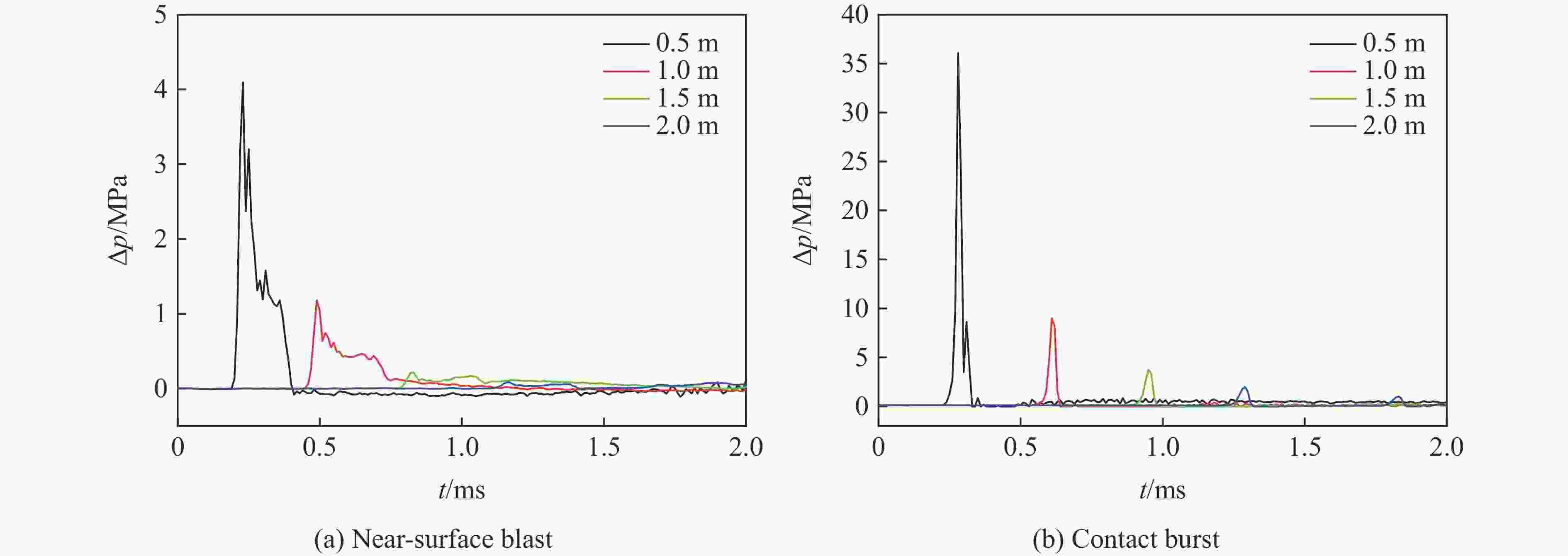

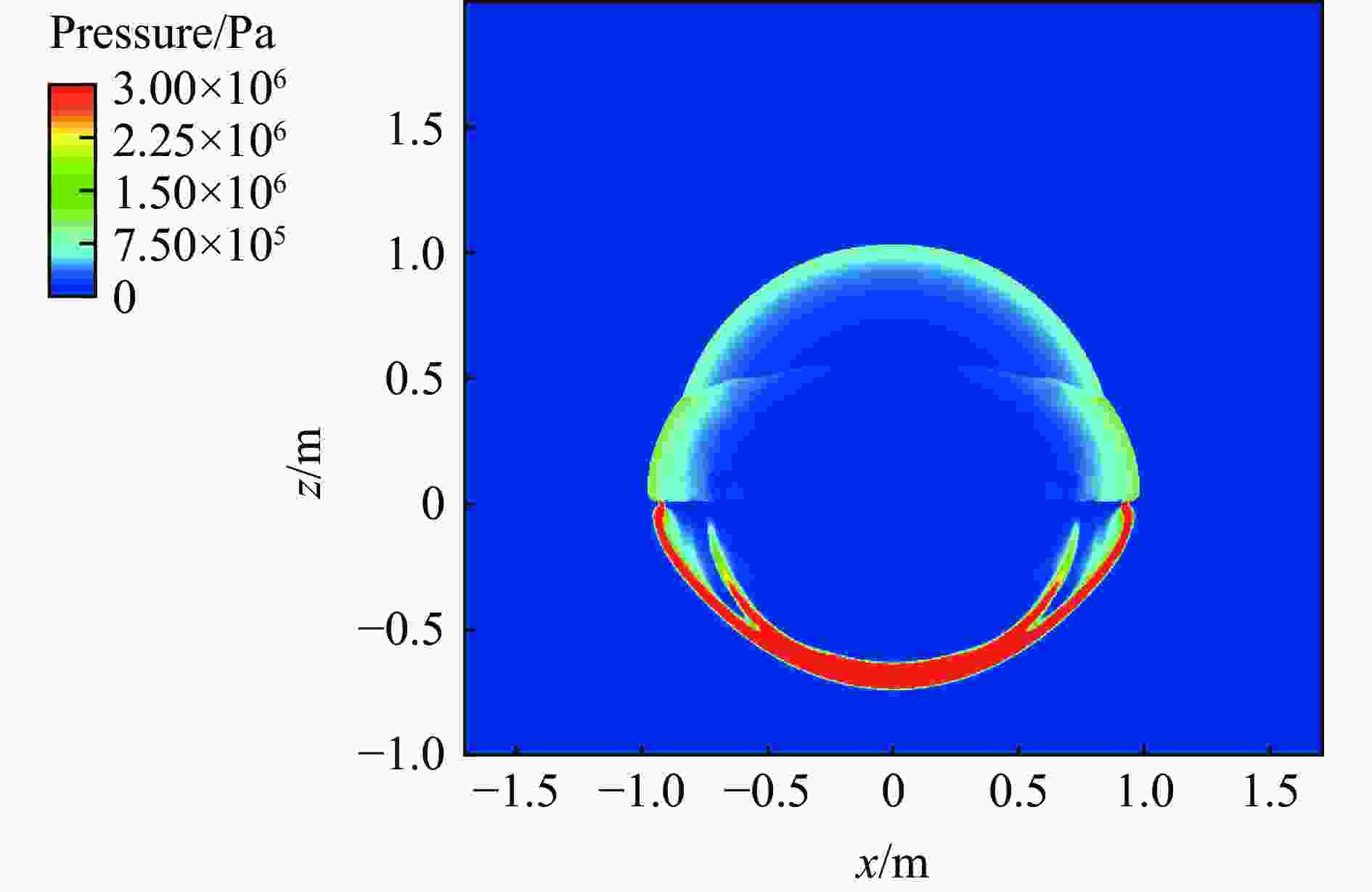

为了研究近水面爆炸场景下沿着水面传播的冲击波载荷特性,采用100 g、200 g和400 g TNT/RDX(40/60)炸药开展了触水(H_ = 0)、近水(H_ ≈ 0.2 m/kg1/3)和空中(H_ ≈ 0.6 m/kg1/3)3种典型比爆高条件下的爆炸实验,测量了冲击波超压和爆炸的高速摄影图像,同时采用数值模拟方法对实验进行了仿真。基于实验和数值模拟结果,开展了爆炸现象和水面冲击波载荷特性研究。结果表明:触水、近水和空中爆炸现象存在显著差异。触水爆炸时爆轰产物直接驱动水面形成半球形空腔,水坑边缘的水被挤压向上飞溅形成空心水柱;近水爆炸时爆轰产物对水面的碰撞作用相对较弱,水面上的冲击波主要以马赫波沿着水面向外传播;空中爆炸时冲击波在水面存在明显的规则和非规则反射区;触水爆炸的水面冲击波超压低于近水爆炸的水面冲击波超压,因此触水爆炸时水面不能再看成刚性平面;触水爆炸的水中冲击波压力相比近水爆炸的高。通过数据拟合得到了触水和典型近水爆炸条件下,水面上水平距离0.5~4.0 m/kg1/3范围内的冲击波超压和正压持续时间计算公式,可为冲击波载荷计算和分析提供参考。
关键词:
-
空中爆炸 /
-
近水面 /
-
触水 /
-
水中爆炸 /
-
冲击波 /
-
实验 /
-
数值模拟
Abstract:
To study the loading characteristics of shock wave along the water surface in near-surface explosion scenarios, explosion tests were carried out with three typical scaled height of burst . The explosion tests were contact burst (H_ = 0), near-surface blast (H_ ≈ 0.2m /kg1/3) and air blast (H_ ≈ 0.6m /kg1/3). In the experiment, 100 g, 200 g and 400 g TNT/RDX(40/60) explosives were used, and the shock wave overpressure and high-speed photographic images of the explosion were measured. Meanwhile, numerical simulation method is used to simulate the experiment. Based on the experimental and numerical simulation results, the explosion phenomena and the characteristics of shock wave loading on water surface were studied. The results show that there are significant differences in the explosion phenomena of contact burst, near-surface blast, and air blast. In contact burst, the detonation products directly drive the water surface to form a hemispherical cavity, and the water on the edge of the cavity is squeezed upwards to form a hollow water column. In near-surface blast, the collision of the detonation products with the water surface is relatively weak, and the shock wave on the water surface mainly propagates outwards as Mach waves along the water surface. In air blast, there are obvious regular and irregular reflection zones of the shock wave on the water surface. The shock wave overpressure on water surface of contact burst is lower than that of near-surface blast, therefore, the water surface cannot be considered as a rigid plane in contact burst. The underwater shock wave pressure of contact burst is higher than that of near-surface blast. The formulas of overpressure and positive pressure duration of shock wave on water surface within the range of 0.5~4.0 m/kg1/3 in contact burst and near-surface blast were obtained through data fitting, which can provide reference for shock wave loading calculation and analysis.
