缓倾结构面岩体在梯度应力作用下的岩爆模型

吝曼卿; 卢祥龙; 夏元友; 张兰; 廖奇; 杨涛

doi:10.11883/bzycj-2024-0466

缓倾结构面岩体在梯度应力作用下的岩爆模型

doi: 10.11883/bzycj-2024-0466

吝曼卿^{1, 2,},
卢祥龙^{1, 2, ,},
夏元友³,
张兰³,
廖奇^{1, 2},
杨涛^{1, 2}

1.
武汉工程大学资源与安全工程学院，湖北武汉 430073
2.
武汉工程大学磷资源开发利用教育部工程研究中心，湖北武汉 430073
3.
武汉理工大学土木工程与建筑学院，湖北武汉 430070

基金项目: 国家自然科学基金（52174085，42077228）；武汉工程大学研究生创新基金项目（No.CX2023177）

详细信息

作者简介:
吝曼卿（1983－　），女，博士，教授，硕士生导师，manqing_lin@foxmail.com

通讯作者:
卢祥龙（2000－　），男，硕士研究生，luxiao77789@163.com

中图分类号: O346; TD452
计量
- 文章访问数: 69
- HTML全文浏览量: 5
- PDF下载量: 13
- 被引次数: 0
出版历程
- 收稿日期: 2024-11-28
- 修回日期: 2025-02-25
- 网络出版日期: 2025-02-28

Model experimental investigation on the effects of rockburst on gently inclined structural planes under gradient stresses

LIN Manqing^{1, 2
,},
LU Xianglong^{1, 2
, ,},
XIA Yuanyou³,
ZHANG Lan³,
LIAO Qi^{1, 2},
YANG Tao^{1, 2}

1.
College of Resources and Safety Engineering, Wuhan Institute of Technology, Wuhan 430073, Hubei, China
2.
Wuhan Engineering University Phosphorus Resource Development and Utilization Engineering Research Center of the Ministry of Education, Wuhan Institute of Technology, Wuhan 430073, Hubei, China
3.
College of Civil Engineering and Architecture, Wuhan University of Technology, Wuhan 430070, Hubei, China

摘要

摘要: 深部开挖引起的围岩梯度应力和岩层天然赋存的缓倾硬性结构面是影响岩爆特性的重要因素。借助气液复合加载的岩爆模拟装置，对预制含不同硬性缓倾结构面大尺寸（400 mm×600 mm×1 000 mm）类岩体试件进行了三向加载-单面卸载的应力梯度加卸载岩爆试验，通过数字图像相关（digital image correlation，DIC）、声发射、红外辐射和高速摄影等多种监测手段，研究了含缓倾结构面试件岩爆演化特征及破坏机制。研究结果表明，缓倾结构面的存在对试件的破坏模式有控制性作用，在极大程度上制约了岩爆坑的边界与形态，并加速了岩爆的发生。验证了试件发生岩爆的位置主要分布在试件结构面之间的区域，且该区域的红外辐射值和DIC应变场在破坏之前显著高于卸载面其他位置。随着缓倾结构面倾角的增大，试件声发射峰值能量与累计能量均随之增大，产生剪切破坏占总破坏比例上升，孕育的岩爆烈度增强。研究成果可为深埋高应力地下工程灾害防控与治理提供重要参考。
- 岩爆 /
- 缓倾结构面 /
- 梯度应力 /
- 破坏特征 /
- 声发射 /
- 数字图像相关
Abstract: The gradient stresses in the surrounding rock caused by deep excavation and the naturally occurring slow-dipping hard structural planes of the rock are critical factors influencing the characteristics of rockburst.Through triaxial loading-unidirectional unloading tests conducted on large-scale (400 mm×600 mm×1 000 mm) artificial rock specimens containing prefabricated hard slow-dipping structural planes using a gas-liquid composite loading rockburst simulation system, this study systematically investigated rockburst evolution mechanisms and mechanisms of damage. A multi-modal monitoring approach incorporating digital image correlation (DIC), acoustic emission (AE) detection, infrared thermography, and high-speed photography was employed to capture critical parameters including energy released patterns, surface infrared radiation characteristics, DIC strain field evolution, and crack propagation dynamics during rockburst development. The results of the study show that the presence of the slow-dipping structural plane has a controlling effect on the damage pattern of the specimen,greatly constrains the boundaries and morphology of rockburst craters, and accelerates the occurrence of rockburst. It is verified that the location of rockbursts in the specimens is mainly in the area between the structural planes of the specimens. The infrared radiation values and DIC strain fields in this area are much higher than those in the rest of the unloading surface before the damage. As the angle of the slow-dipping structural plane increases, the peak and cumulative acoustic emission energy of the specimen increases, the proportion of shear damage to total damage produced increaces, intensity of rockburst spawned increaces. The research results can provide an important reference for the prevention, control and treatment of disasters in deep-buried high-stress underground engineering.
- rock-burst /
- slow-dipping structural planes /
- gradient stress /
- damage characteristic /
- acoustic emission /
- digital image correlation

HTML全文

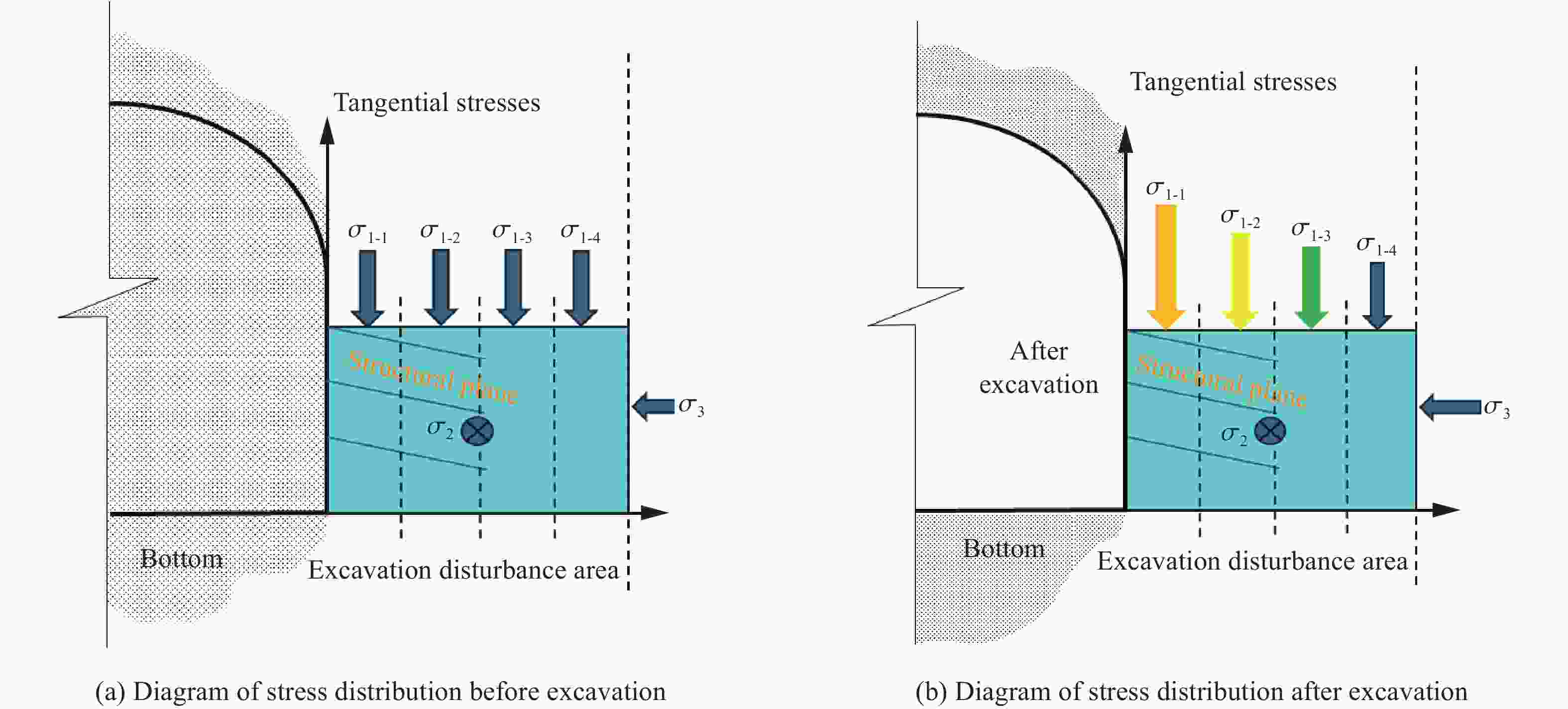

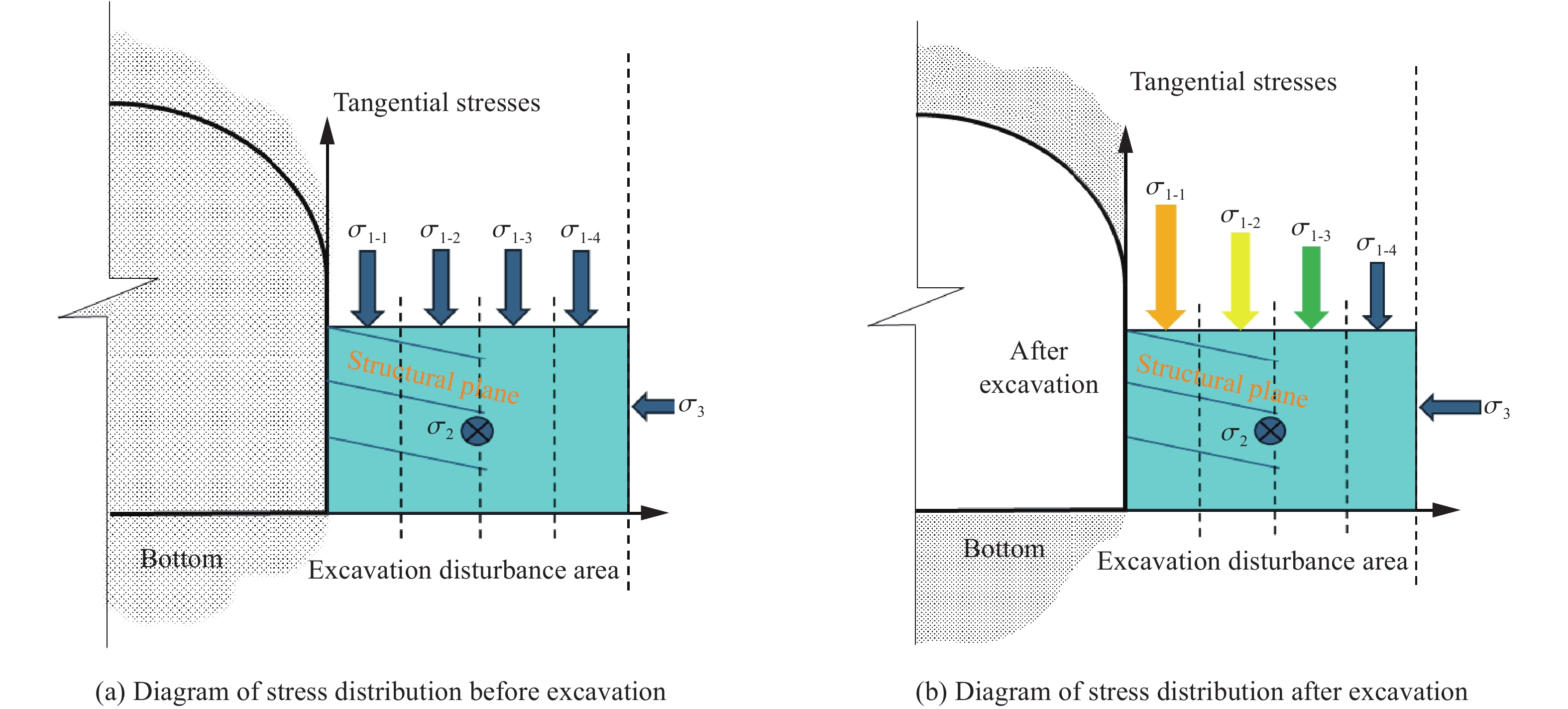

图 1 试验原理示意图

Figure 1. Schematic diagram of rockburst testing principle

下载: 全尺寸图片幻灯片

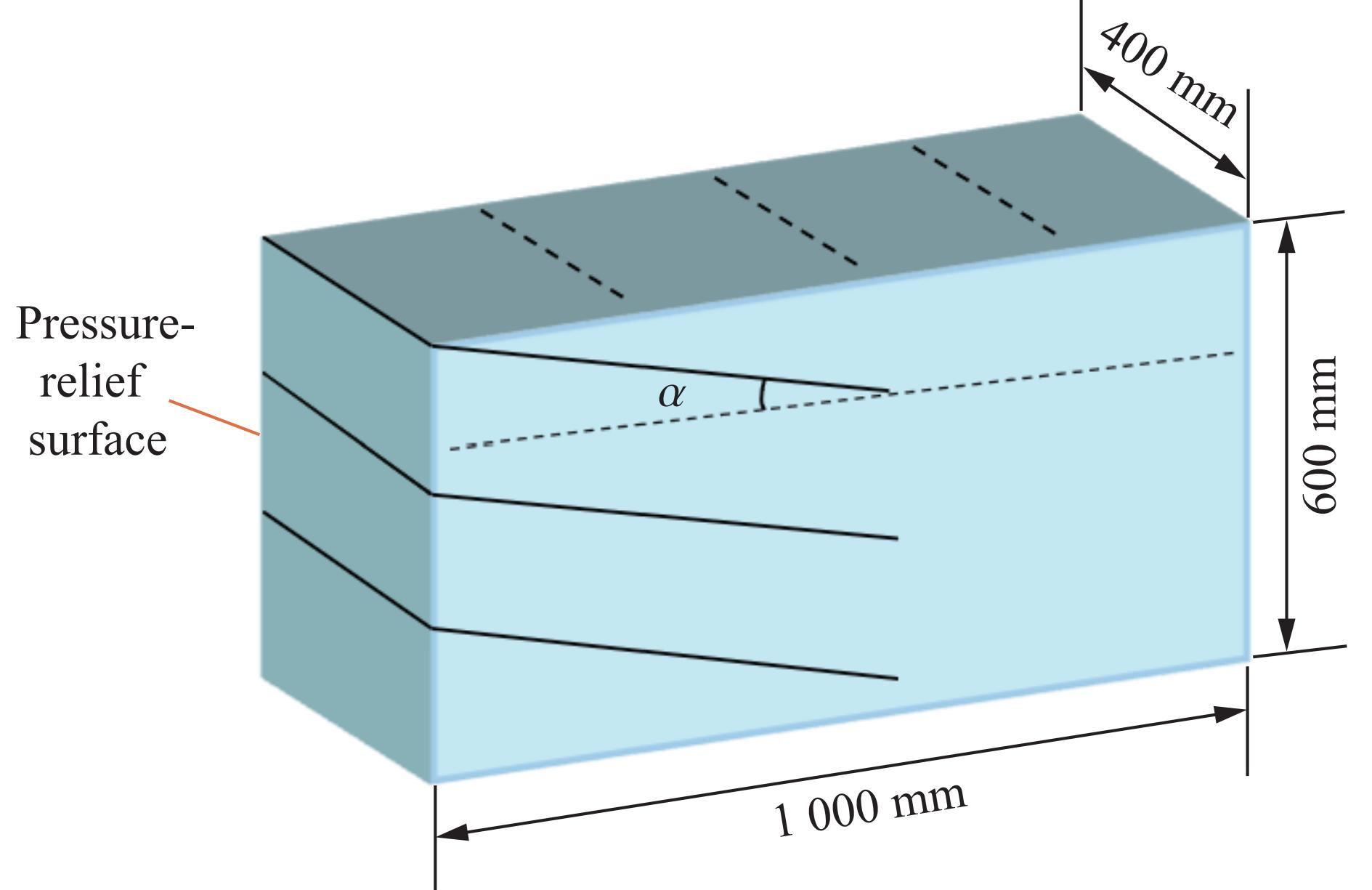

图 2 试件示意图

Figure 2. Schematic diagram of rock mass sample

下载: 全尺寸图片幻灯片

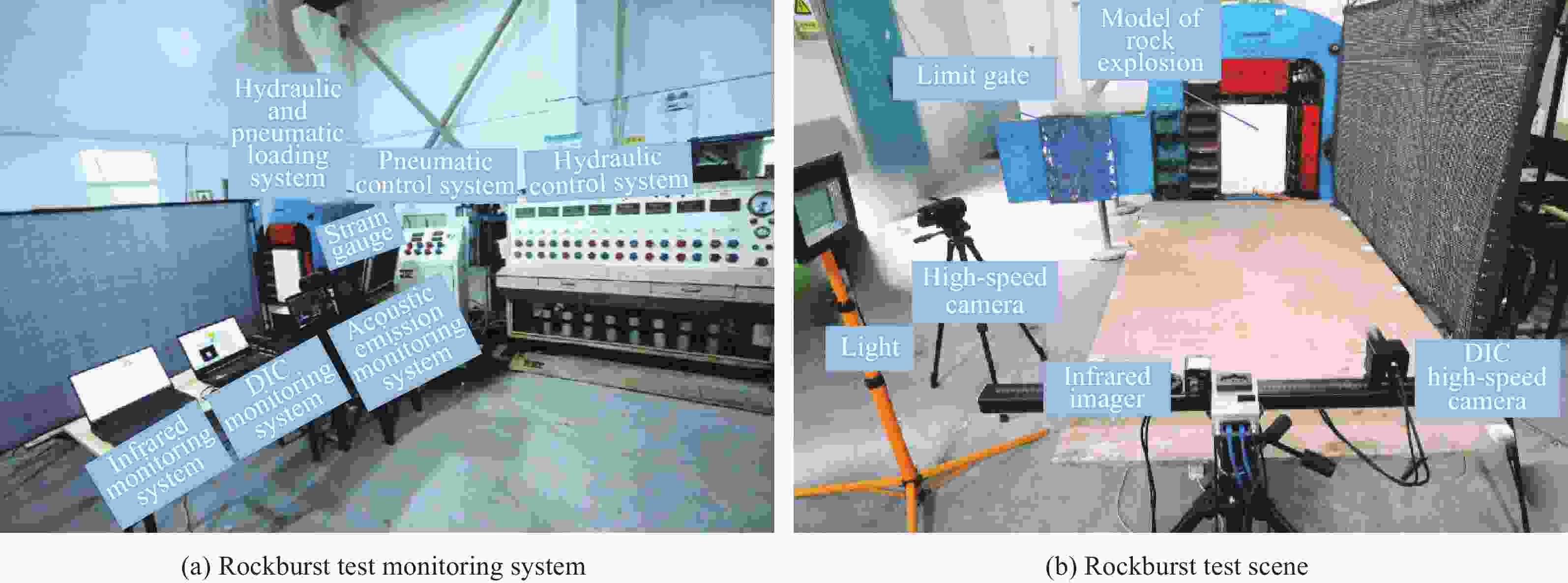

图 3 试验系统

Figure 3. Schematic diagram of the testing system

下载: 全尺寸图片幻灯片

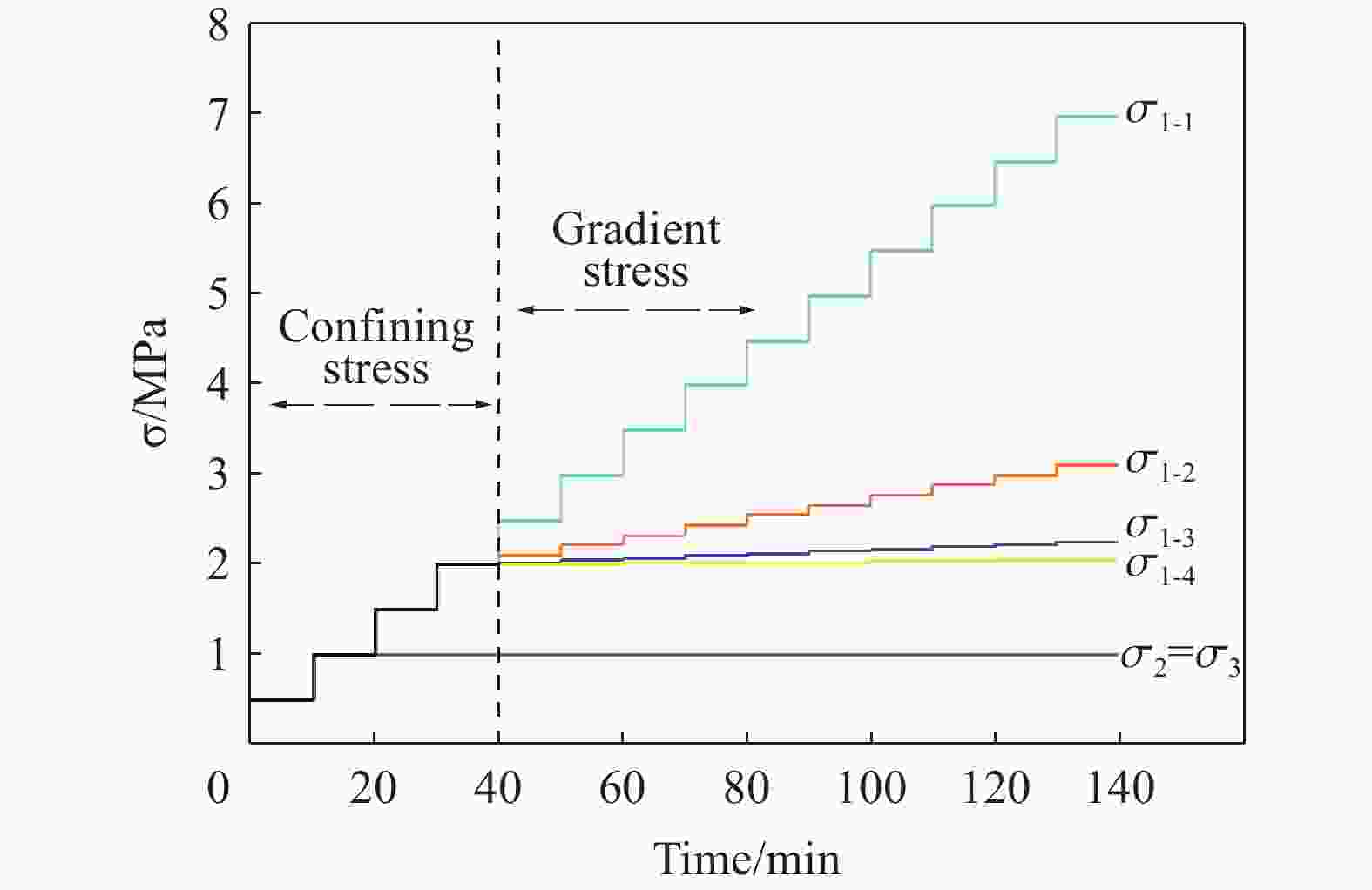

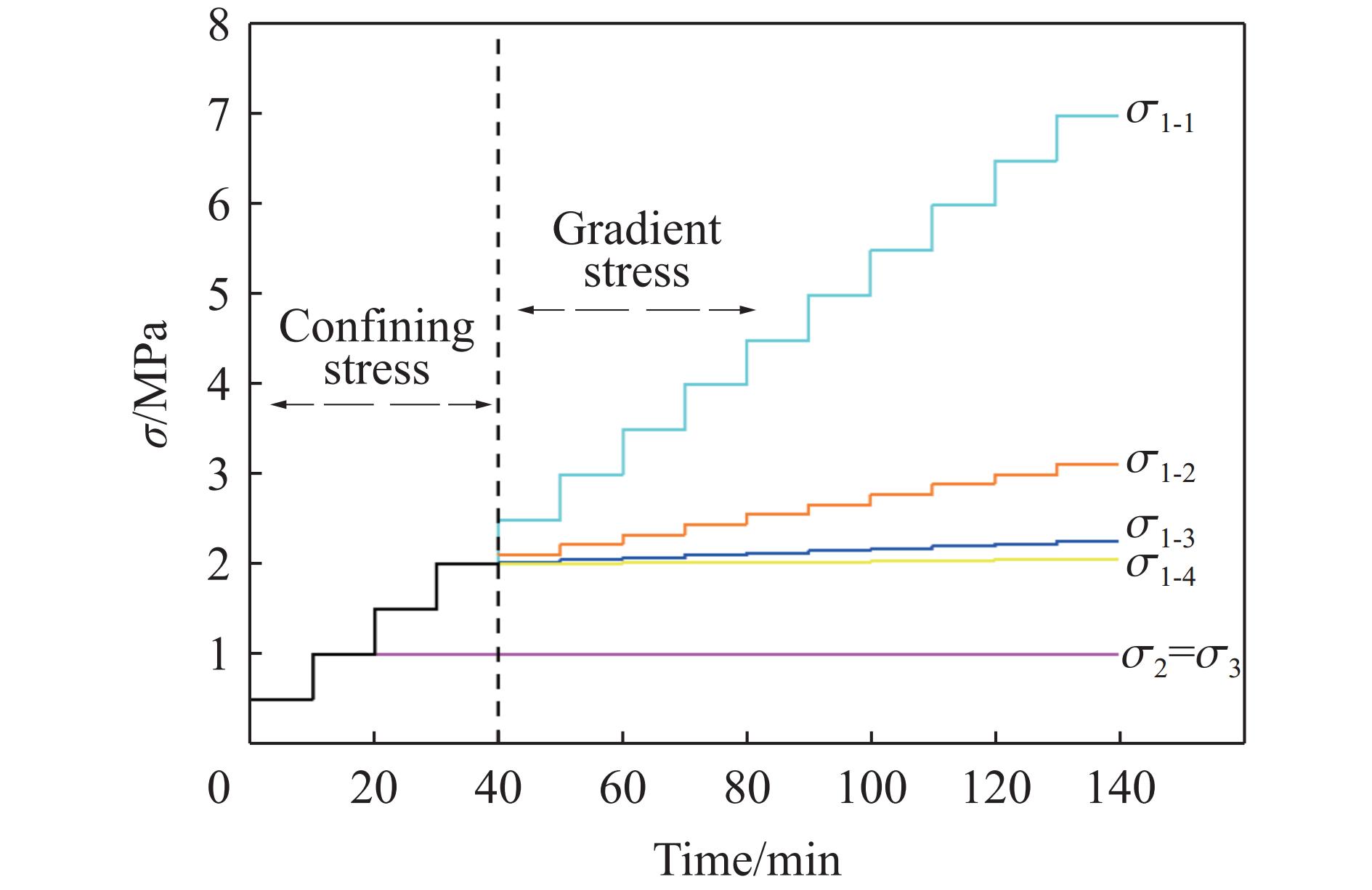

图 4 梯度应力加载路径

Figure 4. Stress loading paths for different gradients

下载: 全尺寸图片幻灯片

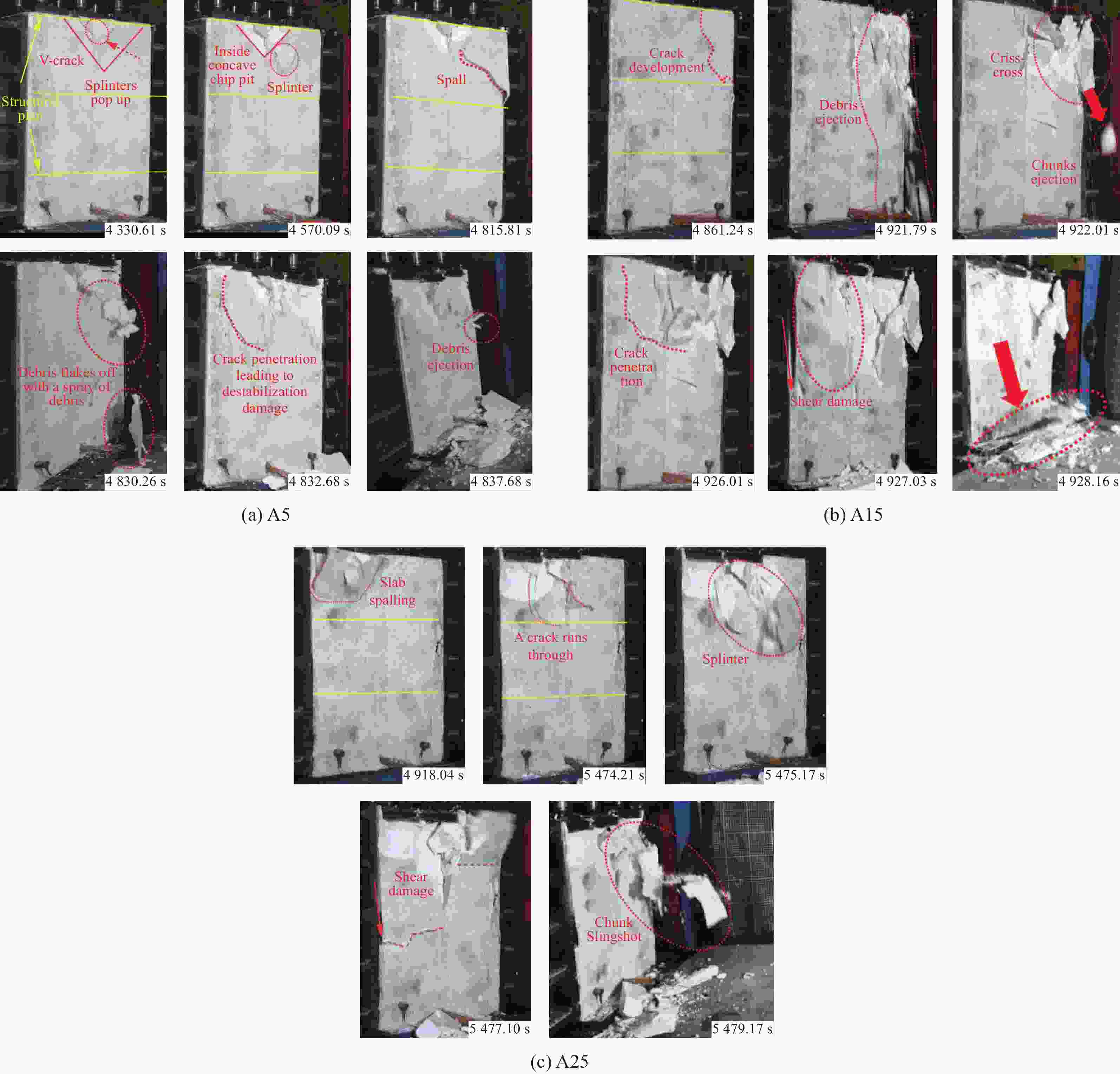

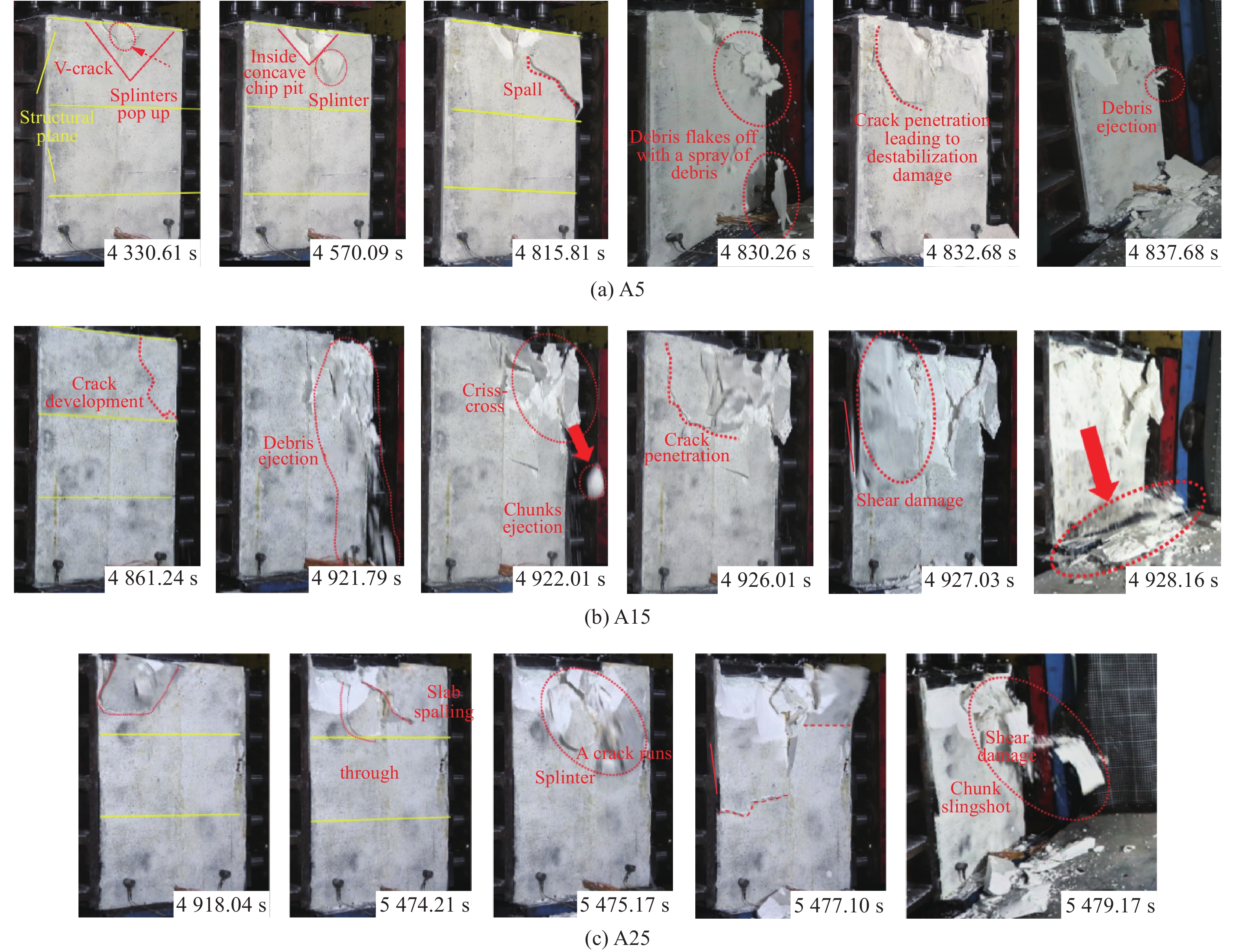

图 5 含缓倾结构面岩体岩爆演化过程

Figure 5. Rockburst evolution of rock body with gently dipping structural surface

下载: 全尺寸图片幻灯片

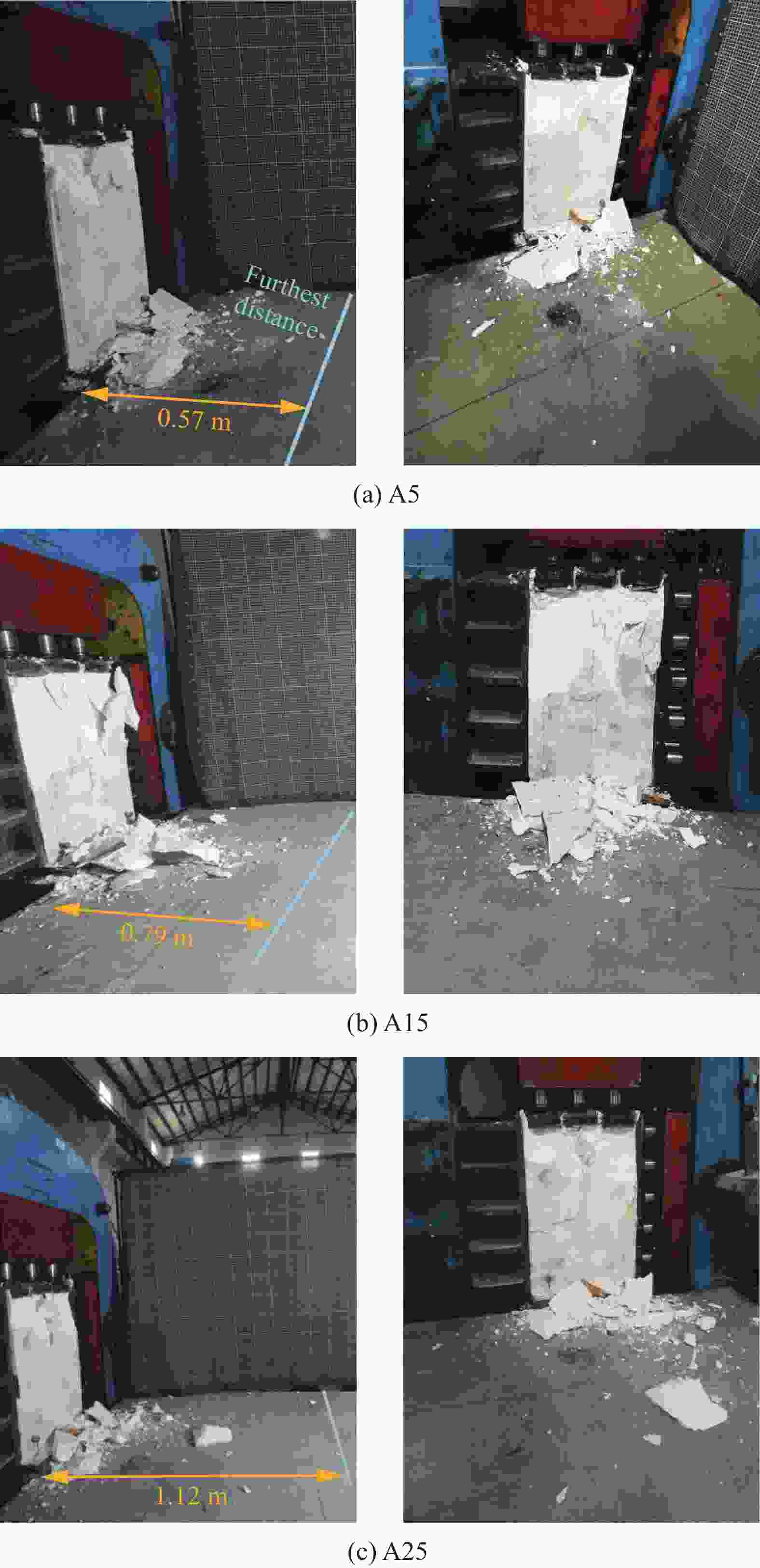

图 6 岩爆后碎屑分布

Figure 6. Debris distribution after rockburst

下载: 全尺寸图片幻灯片

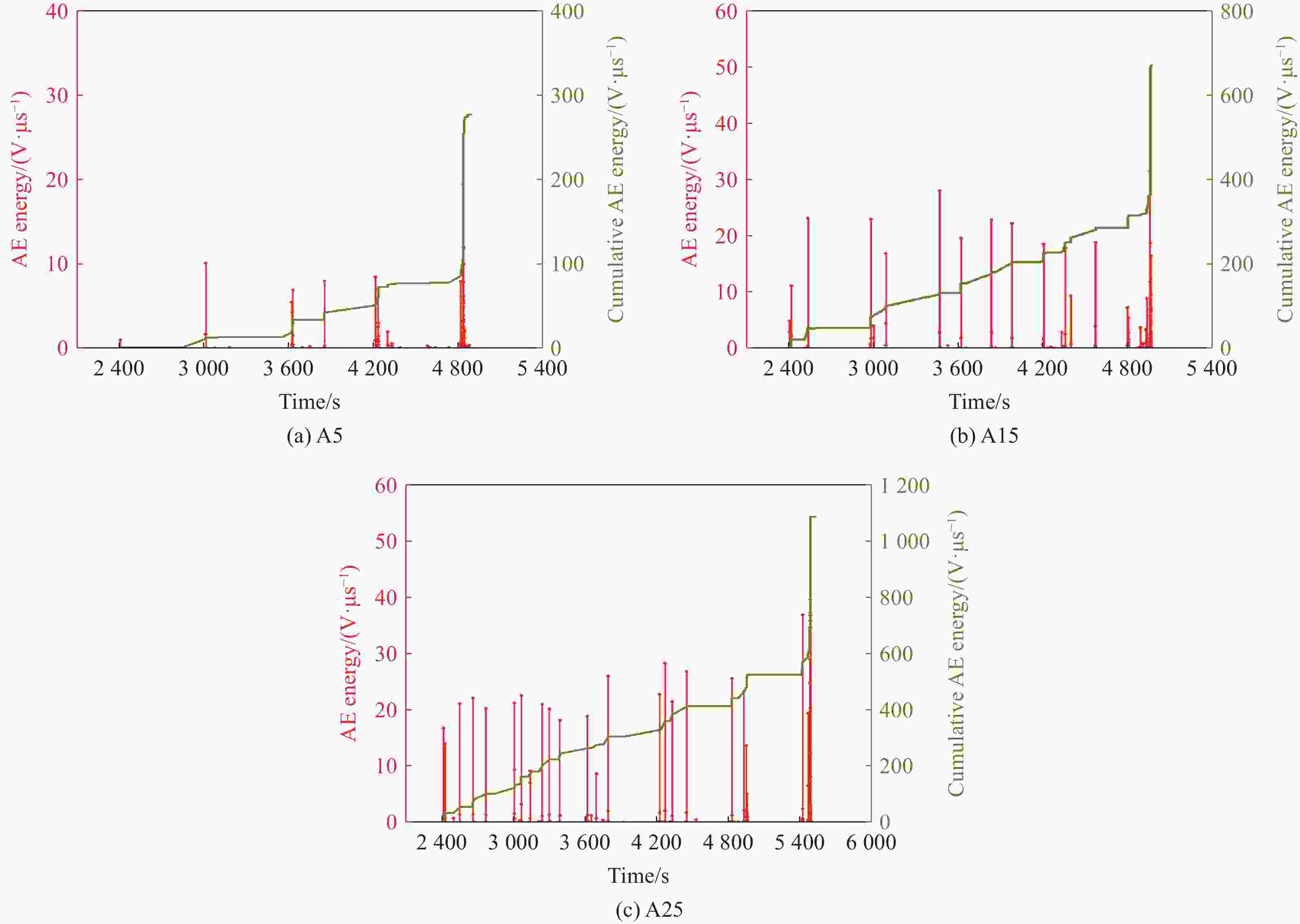

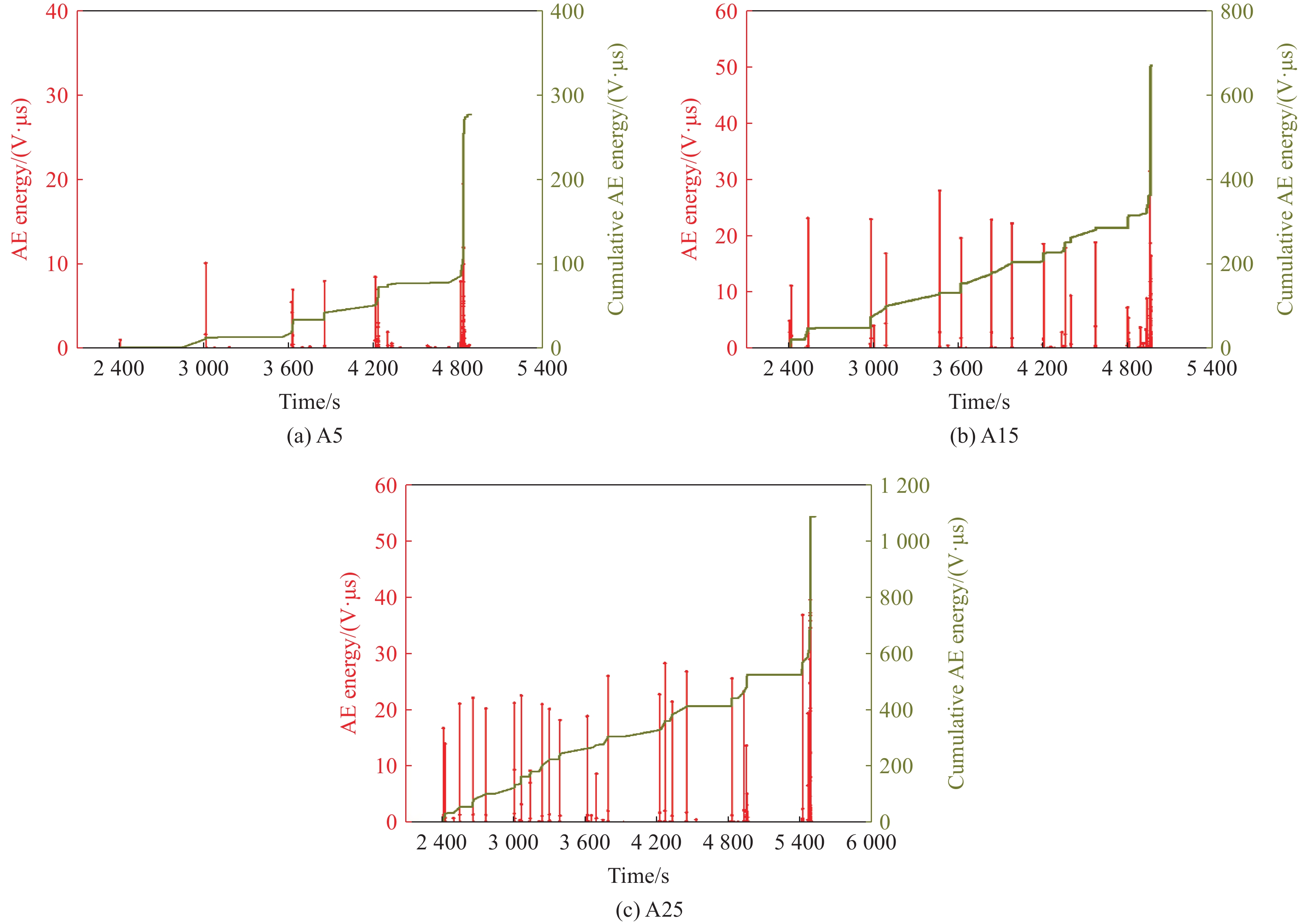

图 7 声发射能量特征

Figure 7. Acoustic emission acoustic energy characteristic

下载: 全尺寸图片幻灯片

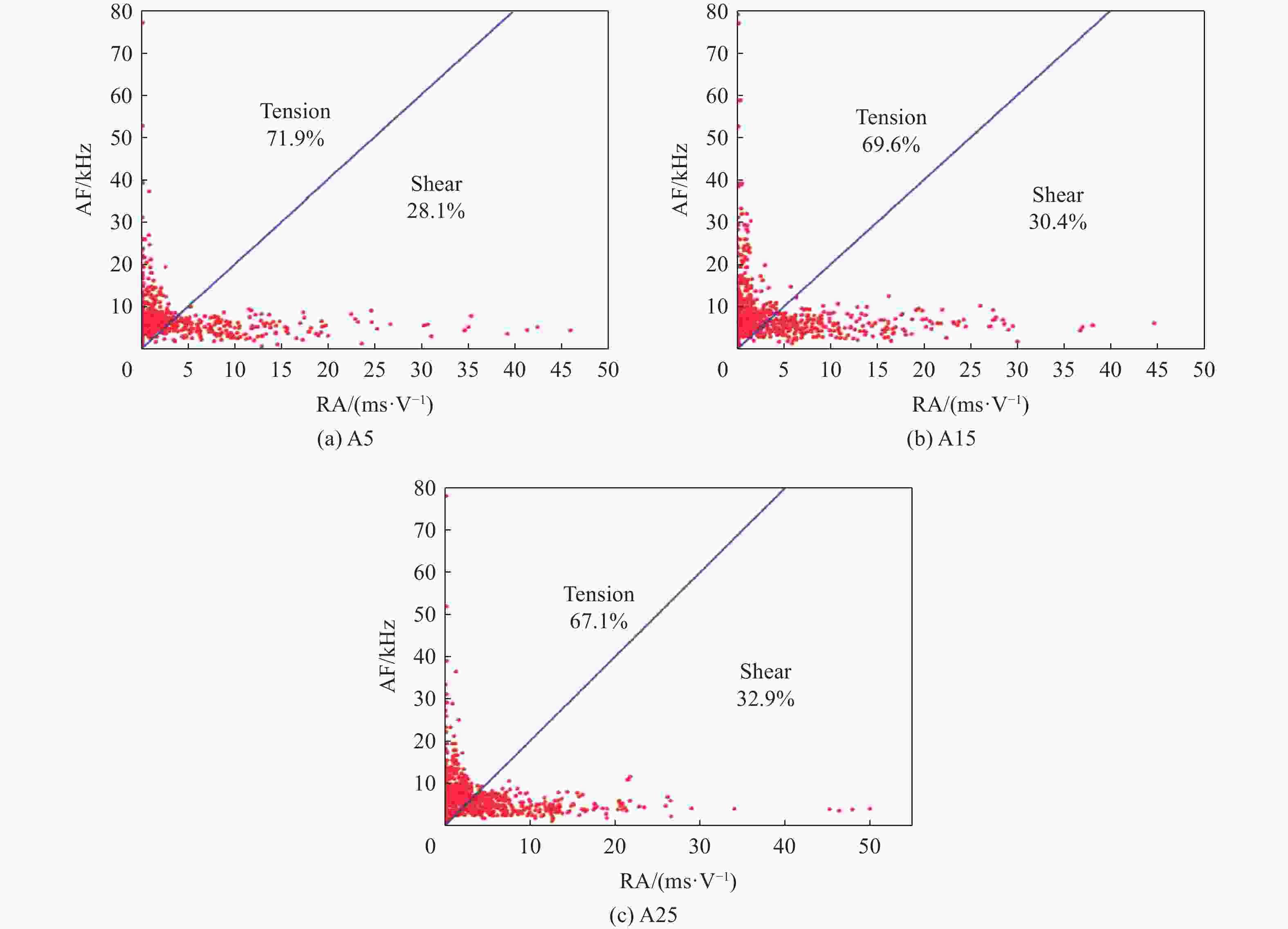

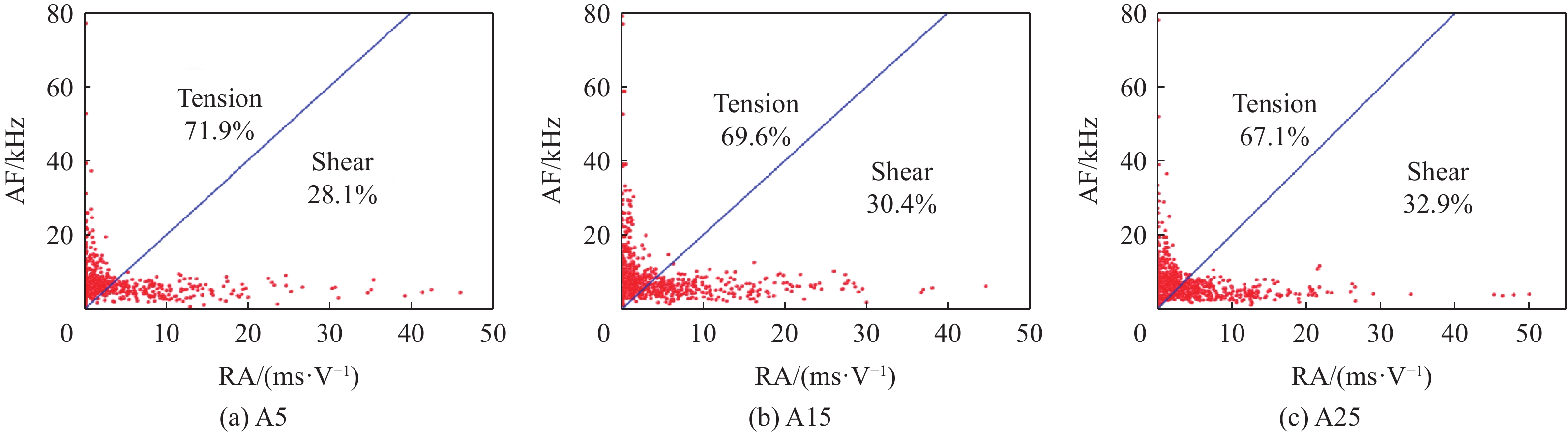

图 8 AF-RA值分布散点图

Figure 8. Distribution scatter plot of AF-RA

下载: 全尺寸图片幻灯片

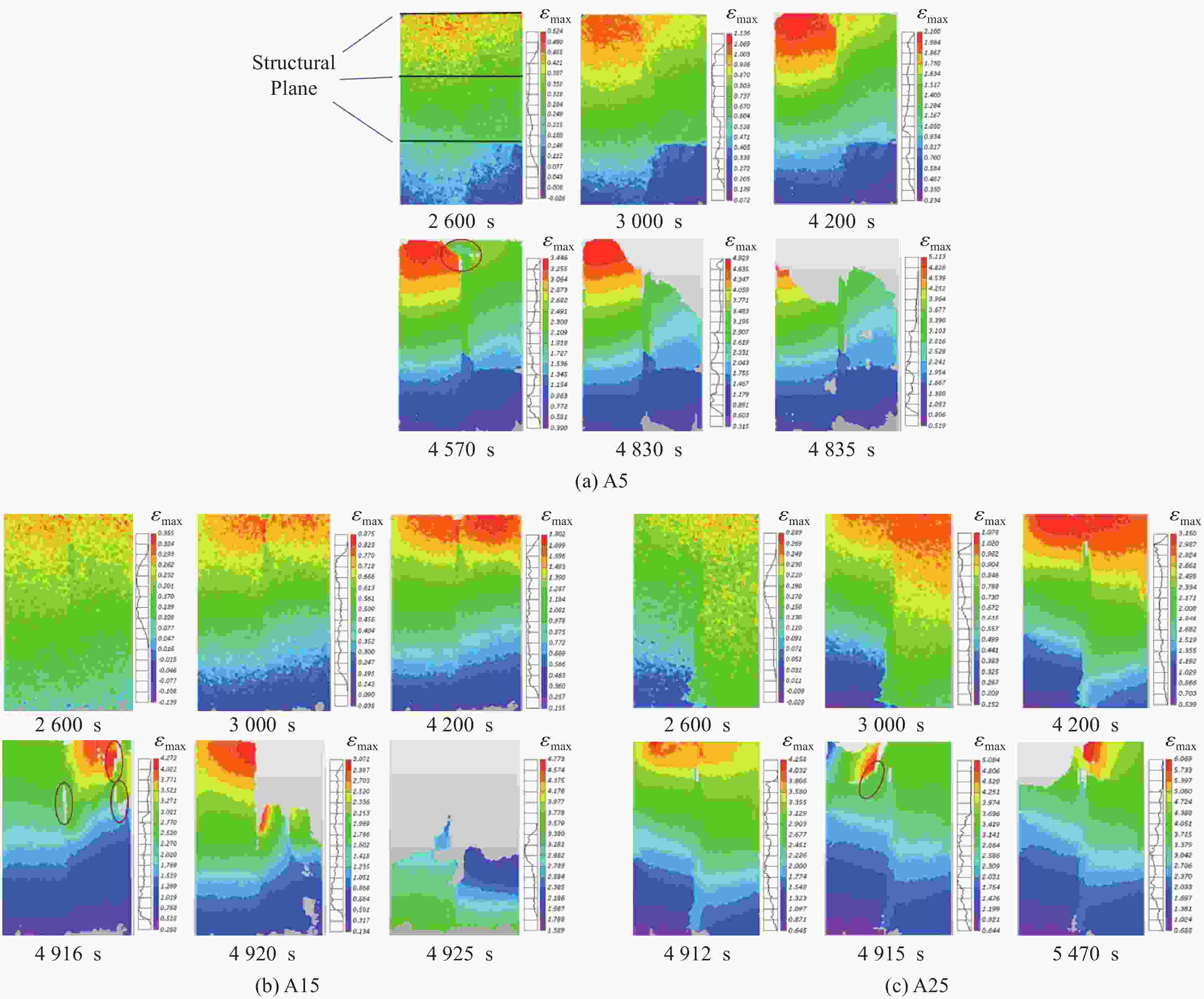

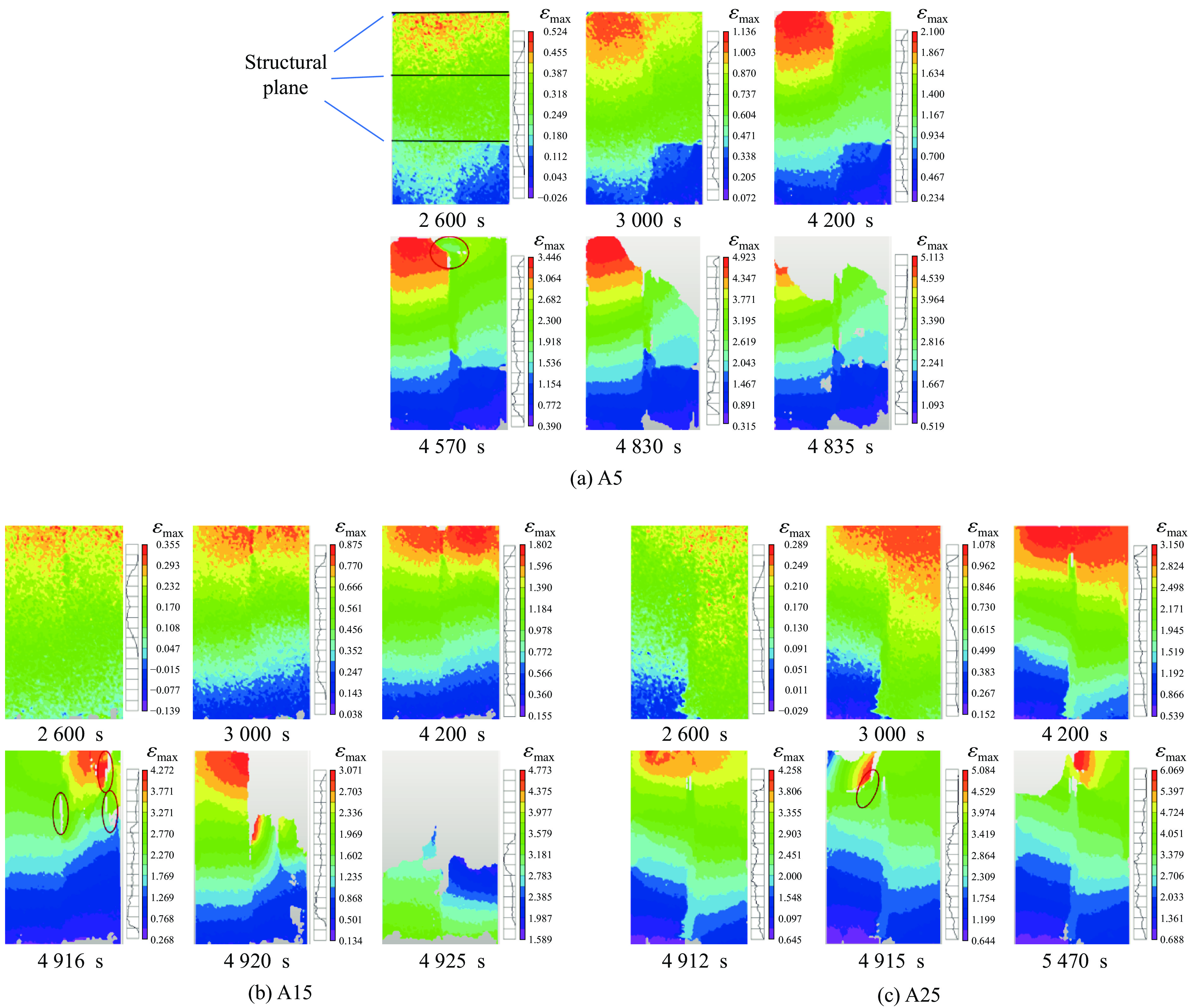

图 9 DIC应变监测云图

Figure 9. Diagram of DIC strain monitoring

下载: 全尺寸图片幻灯片

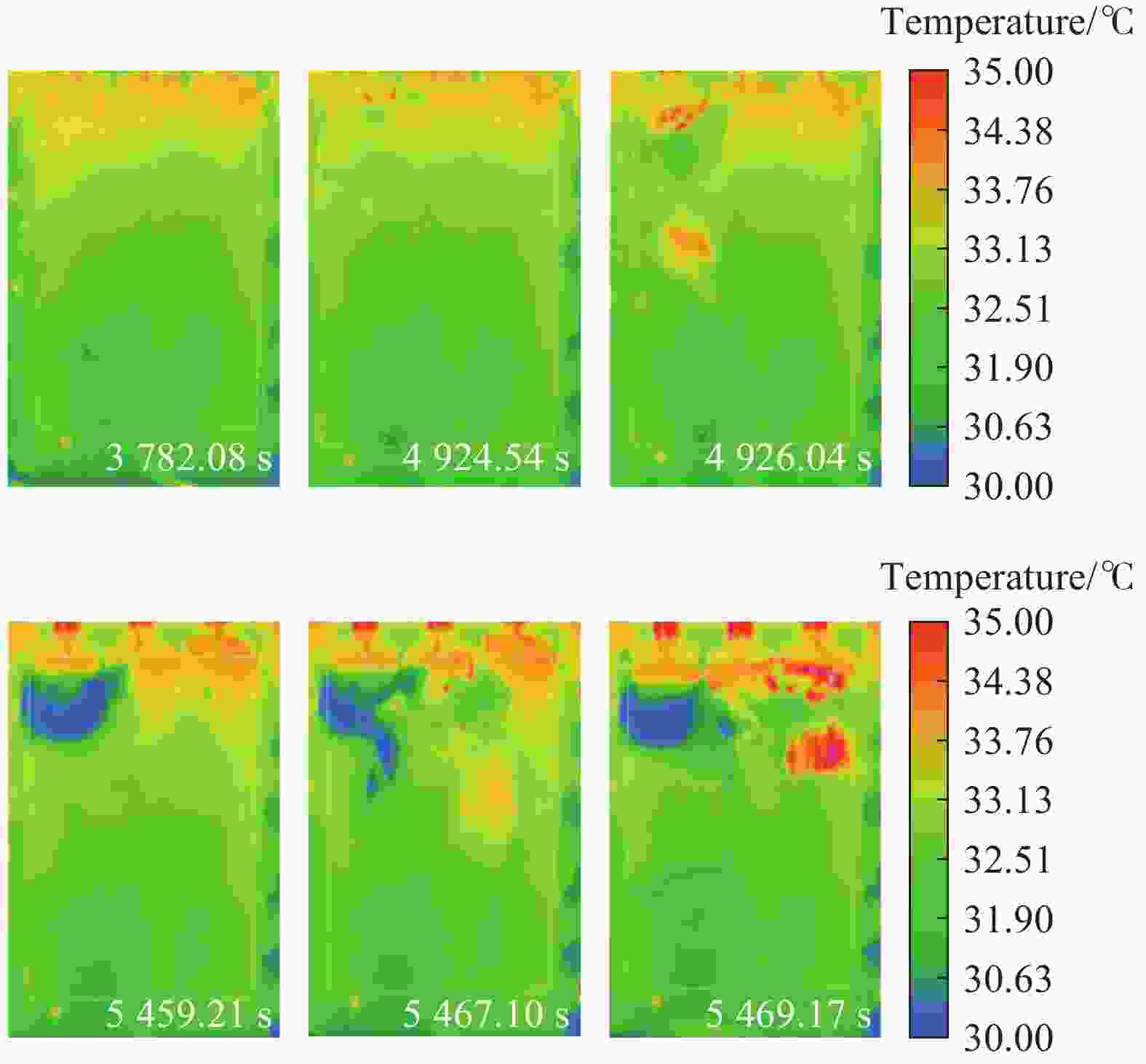

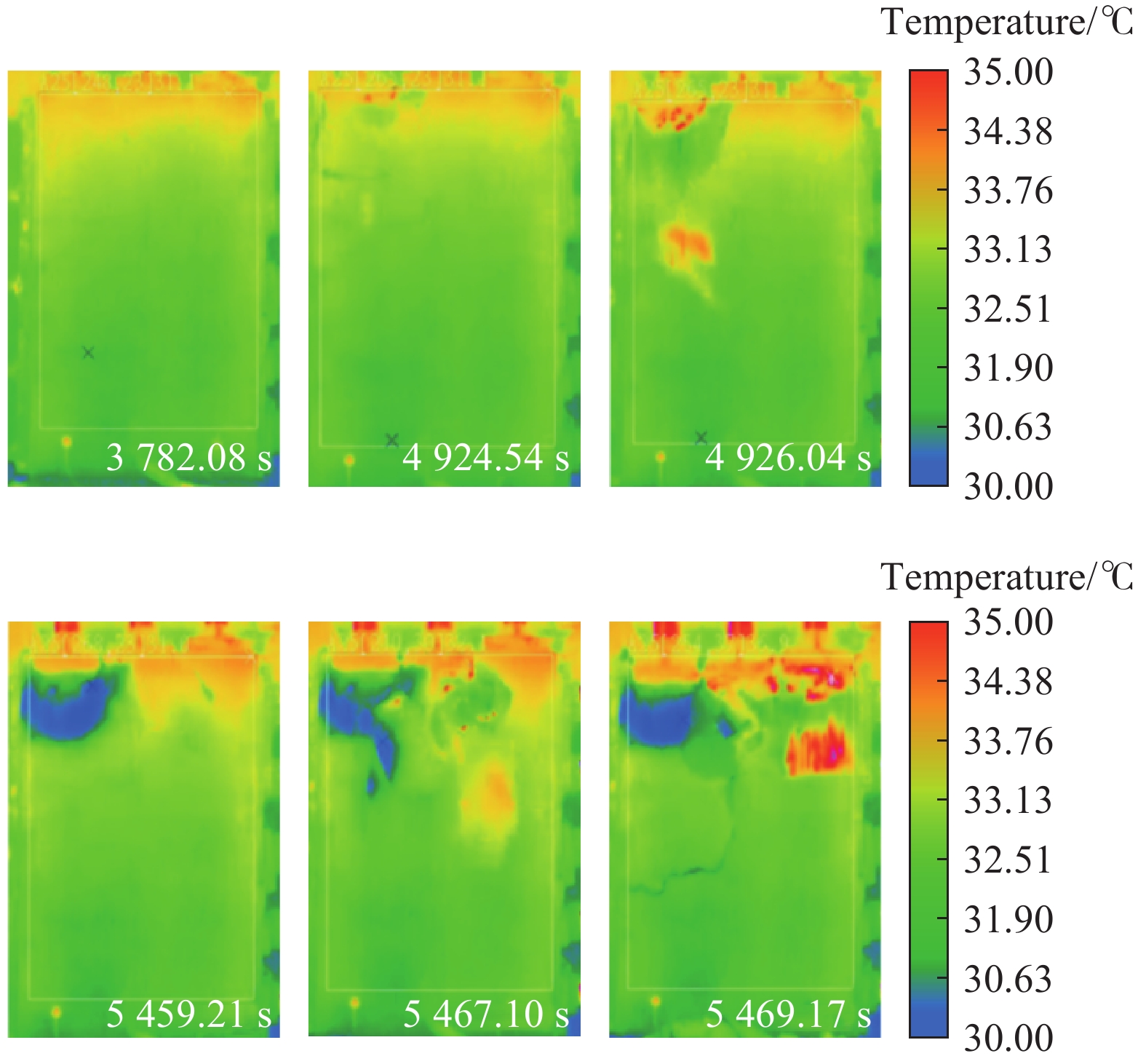

图 10 红外辐射特征

Figure 10. Infrared thermal

下载: 全尺寸图片幻灯片

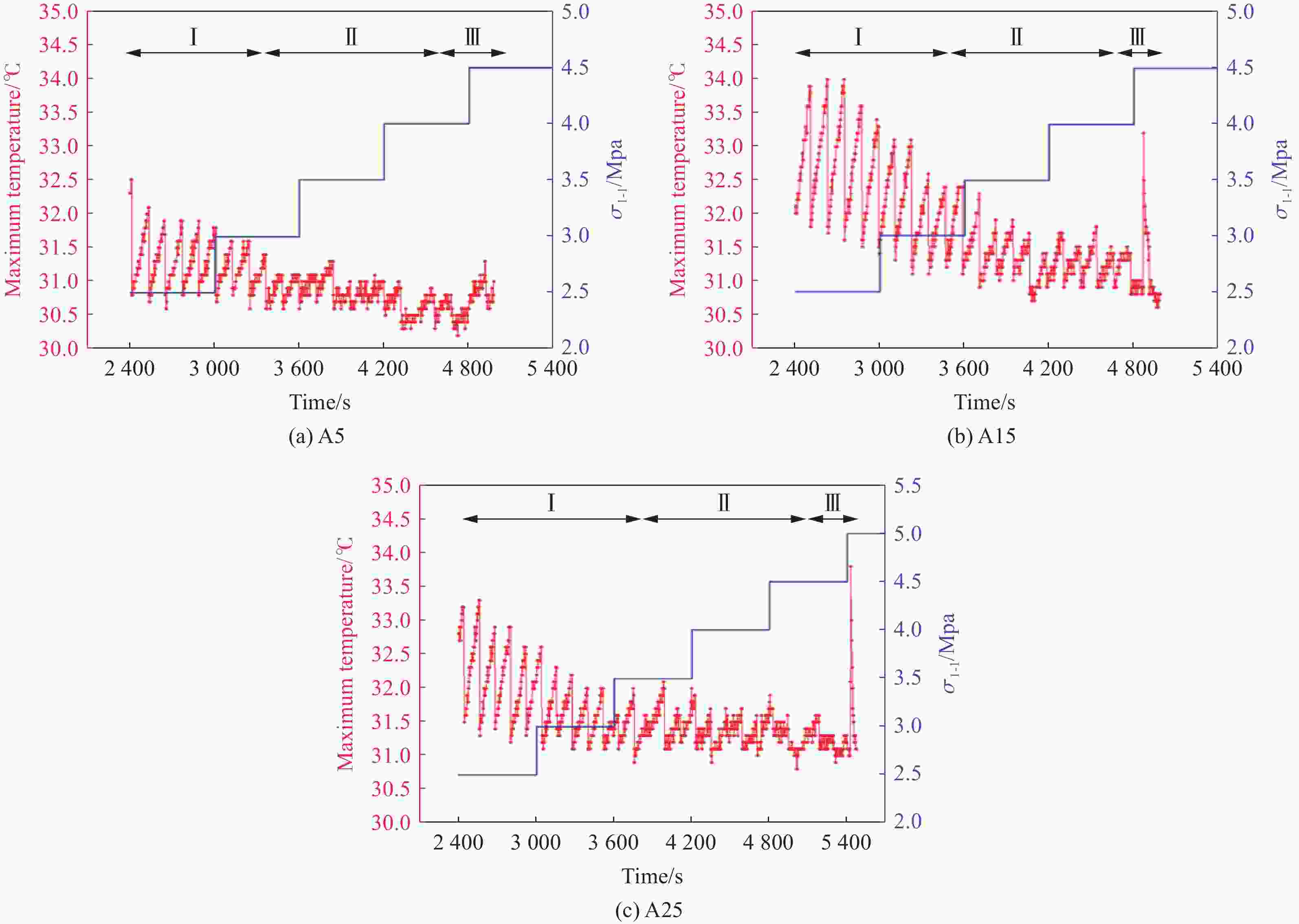

图 11 试件加载过程中表面最高温度-时间曲线

Figure 11. Maximum temperature-time curves during loading of specimen

下载: 全尺寸图片幻灯片

表 1 试件模型材料参数

Table 1. Model material parameters

材料名称	泊松比	弹性模量/ GPa	单轴抗压强度/MPa	岩爆倾向性Wet
完整模型	0.221	1.268	9.6	9.8
含15°结构面模型	0.274	1.154	7.4	6.5
磷块岩	0.249	22.23	81.9	9.4

下载: 导出CSV

表 2 声发射能量参数

Table 2. Parameters of acoustic emission acoustic energy

试件	结构面倾角/(º)	单次最大能量/(mV·μs)	累计能量/(mV·μs)
A5	5	1.9×10⁴	2.78×10⁵
A15	15	3.1×10⁴	6.72×10⁵
A25	25	3.9×10⁴	10.80×10⁵

下载: 导出CSV
