落石冲击下地面混凝土垫层对埋地管道的防护作用

刘天豪; 蒋楠; 周传波; 姚颖康; 杨锋; 吕国鹏

doi:10.11883/bzycj-2024-0474

落石冲击下地面混凝土垫层对埋地管道的防护作用

doi: 10.11883/bzycj-2024-0474

刘天豪^{1, 2,},
蒋楠^2, ,,
周传波¹,
姚颖康²,
杨锋^{1, 2},
吕国鹏^{1, 2}

1.
中国地质大学（武汉）工程学院，武汉 430074
2.
江汉大学精细爆破国家重点实验室，武汉 430056

基金项目: 湖北省自然科学基金杰出青年项目（2024AFA092）、湖北省重点研发计划项目（2021BAD004）、武汉市重点研发计划项目（2024050802030155）、国家自然科学基金资助项目（42102329、52478525）

详细信息

作者简介:
刘天豪（2001－　），男，硕士研究生，liutianhao@cug.edu.cn

通讯作者:
蒋　楠（1986－　），男，博士，教授，jiangnan@cug.edu.cn

中图分类号: O383
计量
- 文章访问数: 360
- HTML全文浏览量: 56
- PDF下载量: 72
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-04
- 修回日期: 2025-06-05
- 网络出版日期: 2025-06-06

Study on the protective effect of ground concrete bedding layer on buried pipelines under the rockfall impact

LIU Tianhao^{1, 2
,},
JIANG Nan^{2
, ,},
ZHOU Chuanbo¹,
YAO Yingkang²,
YANG Feng^{1, 2},
LYU Guopeng^{1, 2}

1.
Faculty of Engineering, China University of Geosciences, Wuhan 430074, China
2.
State Key Laboratory of Precision Blasting, Jianghan University, Wuhan, 430056, China

摘要

摘要: 为探究地面混凝土垫层对于用于输水的埋地管道的防护机制，通过全尺寸企口式混凝土管道落石冲击现场试验（埋深2 m）结合DH8302动态应变系统与LS-DYNA数值模拟精细化建模，揭示了管道动应变分布规律及垫层参数的影响机制。研究结果表明：在埋深2 m的工况下，受落石冲击时，管身裂缝失稳扩展更易导致企口式混凝土管道发生泄漏；管身峰值拉应变随垫层厚度与强度增大呈非线性减小，垫层厚度需超过临界值（15 cm）方可显著耗能，且存在强度最优区间（C30~C35），过度提高强度反而会降低防护效能；垫层厚度的防护效能贡献占比达74%，防护设计应遵循“几何优先于材料”原则，建议采用C30~C35强度、厚度不低于0.2 m的混凝土垫层，可大幅降低管道冲击破坏风险。
- 埋地混凝土管道 /
- 落石冲击 /
- 混凝土垫层 /
- 动力响应
Abstract: To investigate the protective effect of ground concrete cushion layers on buried pipelines used for water transmission, field rockfall impact tests were conducted by pre-burying multi-section bell-and-spigot concrete pipelines and casting in-situ concrete cushions on the ground. Combined with the DH8302 dynamic strain testing system, the spatial distribution characteristics of dynamic strain in the pipeline body and the variation law of earth pressure at the bell-and-spigot joints were analyzed. The LS-DYNA numerical simulation software was used to establish a detailed model of the rockfall impact test, and the reliability of the numerical model was verified by comparing simulation results with test results. By increasing the impact energy of rockfalls, the failure characteristics of buried bell-and-spigot concrete pipelines were studied. The influence mechanism of concrete cushion parameters (thickness and strength) on the protective effect was further analyzed by varying these parameters. The results show that: (1) Under the condition of a burial depth of 2 m, unstable crack propagation in the pipeline body is more likely to cause leakage of bell-and-spigot concrete pipelines under rockfall impact; (2) The peak tensile strain in the pipeline body decreases nonlinearly with the increase of cushion thickness and strength. The cushion thickness must exceed a critical value (15 cm) to significantly dissipate energy, and there is an optimal strength range (C30-C35) – excessive strength enhancement will reduce protective efficiency; (3) Cushion thickness accounts for 74% of the protective effect contribution, indicating that the design principle of "geometry prior to material" should be followed. It is recommended to use a concrete cushion with a strength of C30-C35 and a thickness of ≥0.2 m, which can significantly reduce the risk of pipeline impact damage and provide a quantitative design basis for pipeline protection in mountainous areas.
- buried concrete pipeline /
- rockfall impact /
- concrete bedding /
- dynamic response

HTML全文

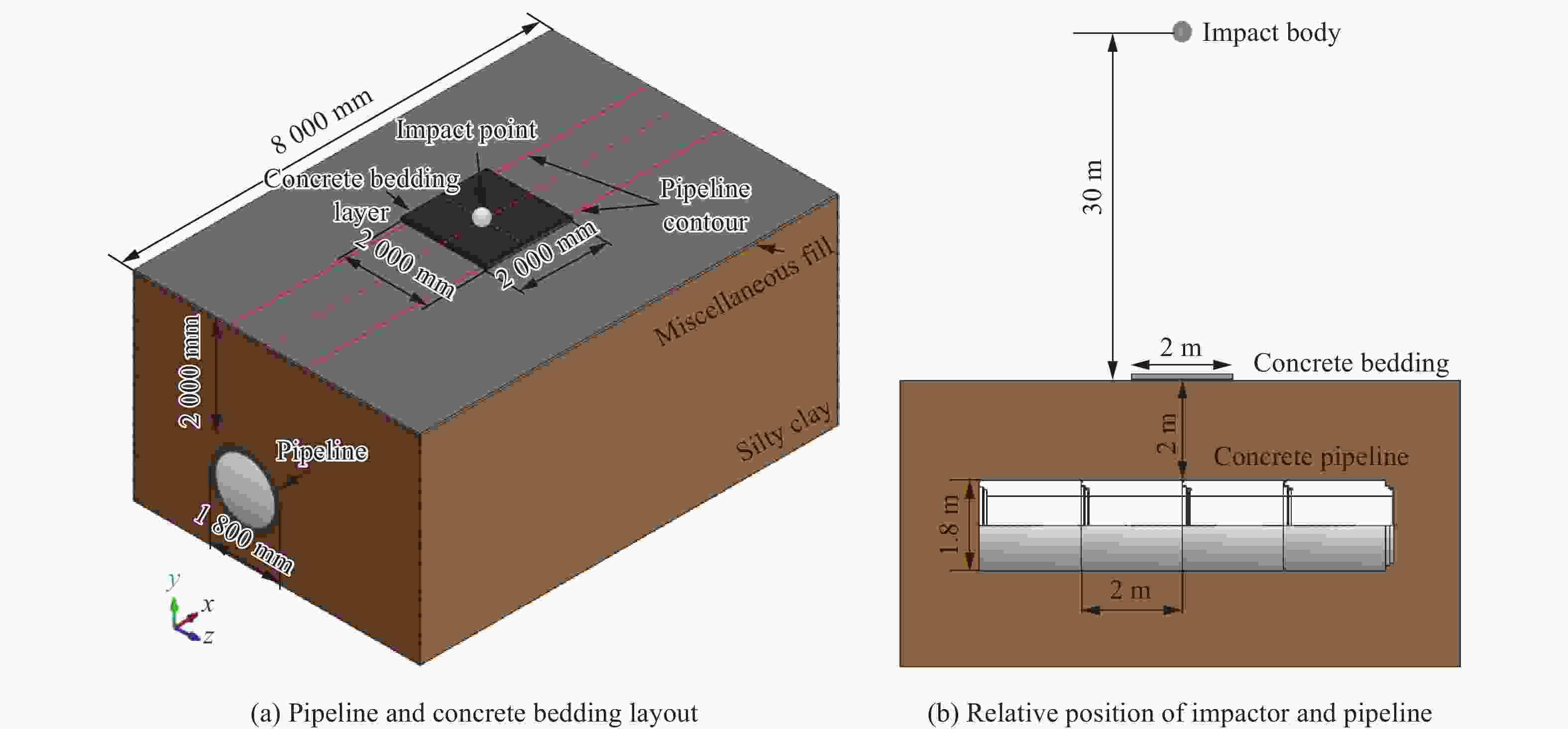

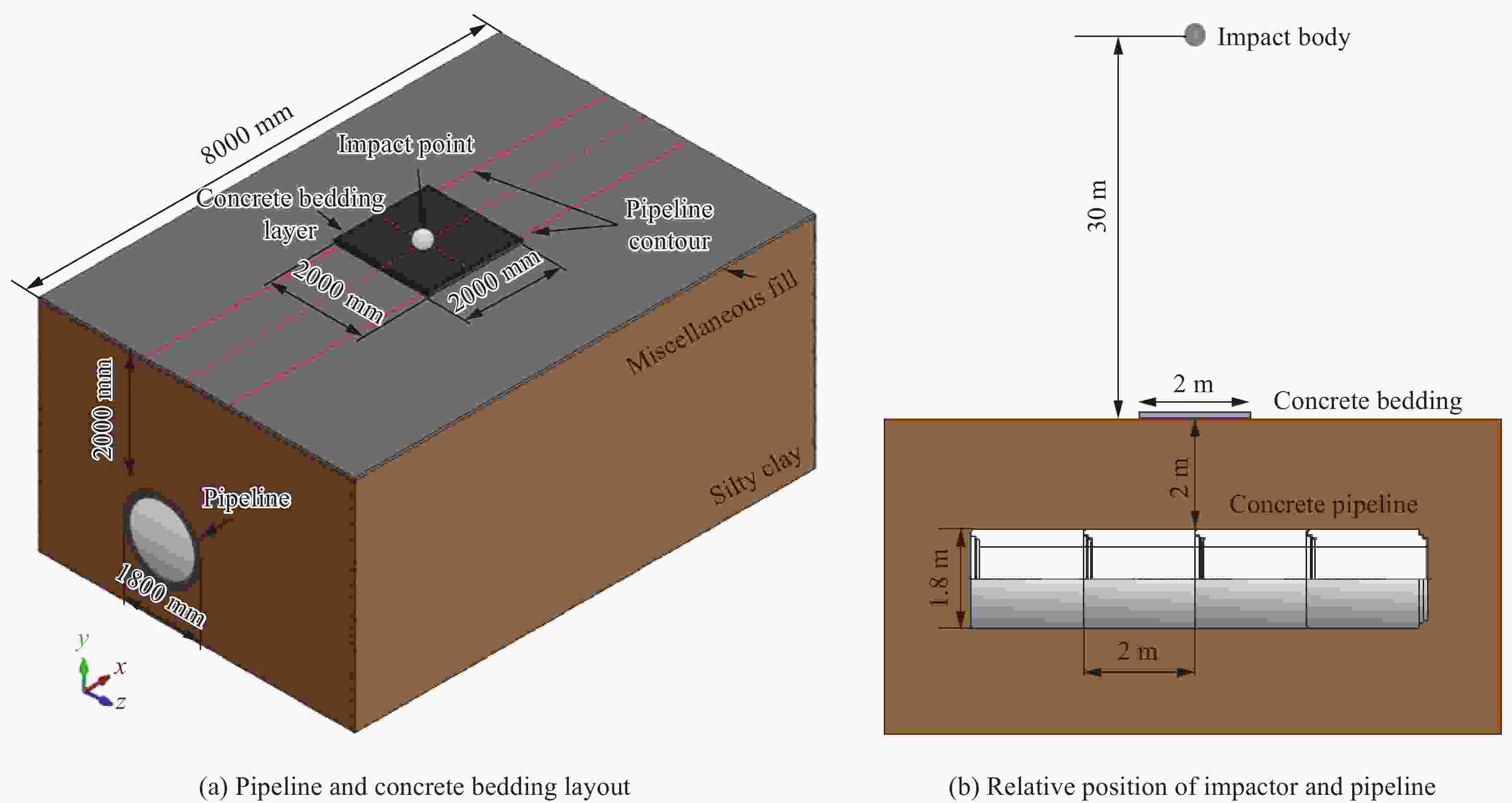

图 1 模型试验设计示意图

Figure 1. Schematic diagram of the model test design

下载: 全尺寸图片幻灯片

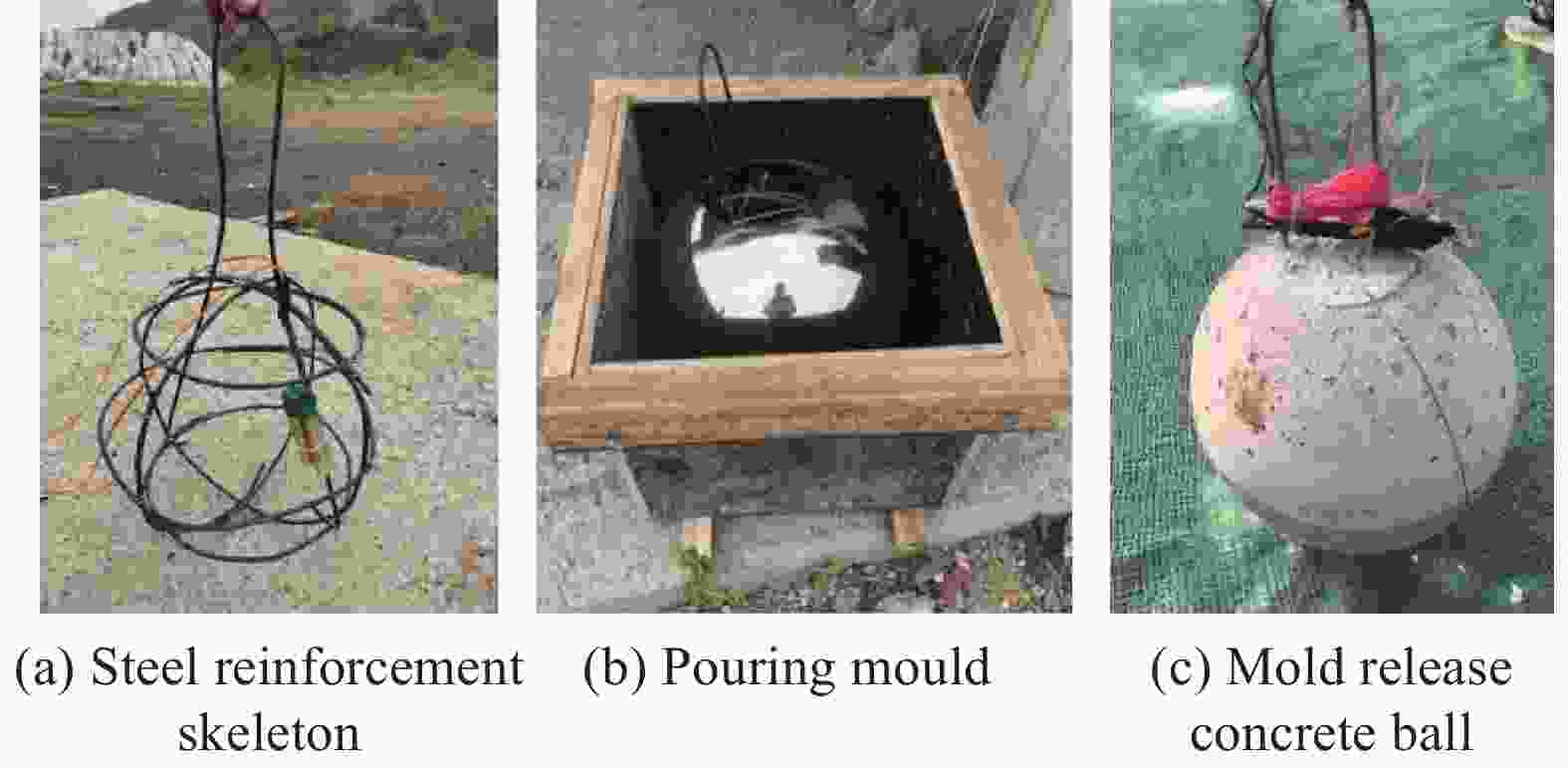

图 2 钢筋混凝土球制作过程

Figure 2. Production process of reinforced concrete ball

下载: 全尺寸图片幻灯片

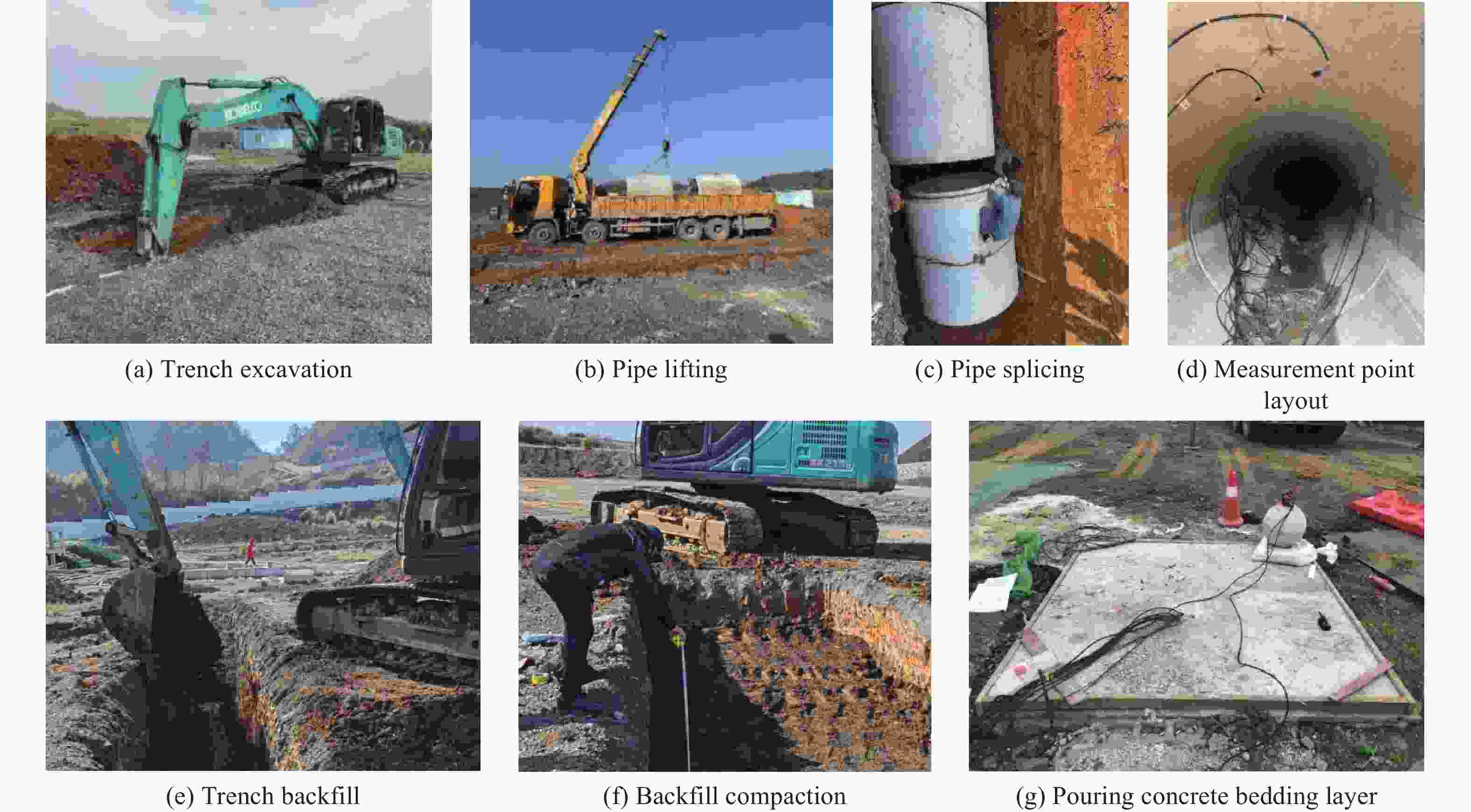

图 3 现场试验准备流程

Figure 3. Field test preparation process

下载: 全尺寸图片幻灯片

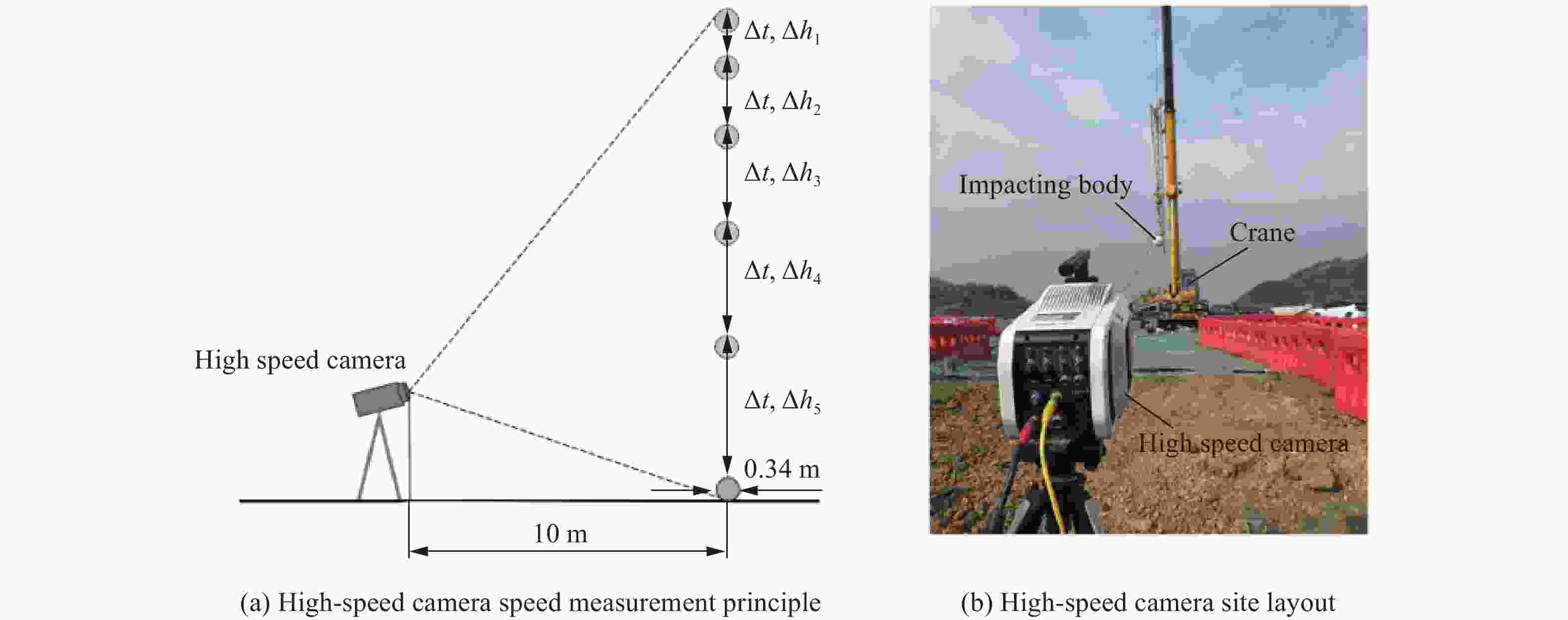

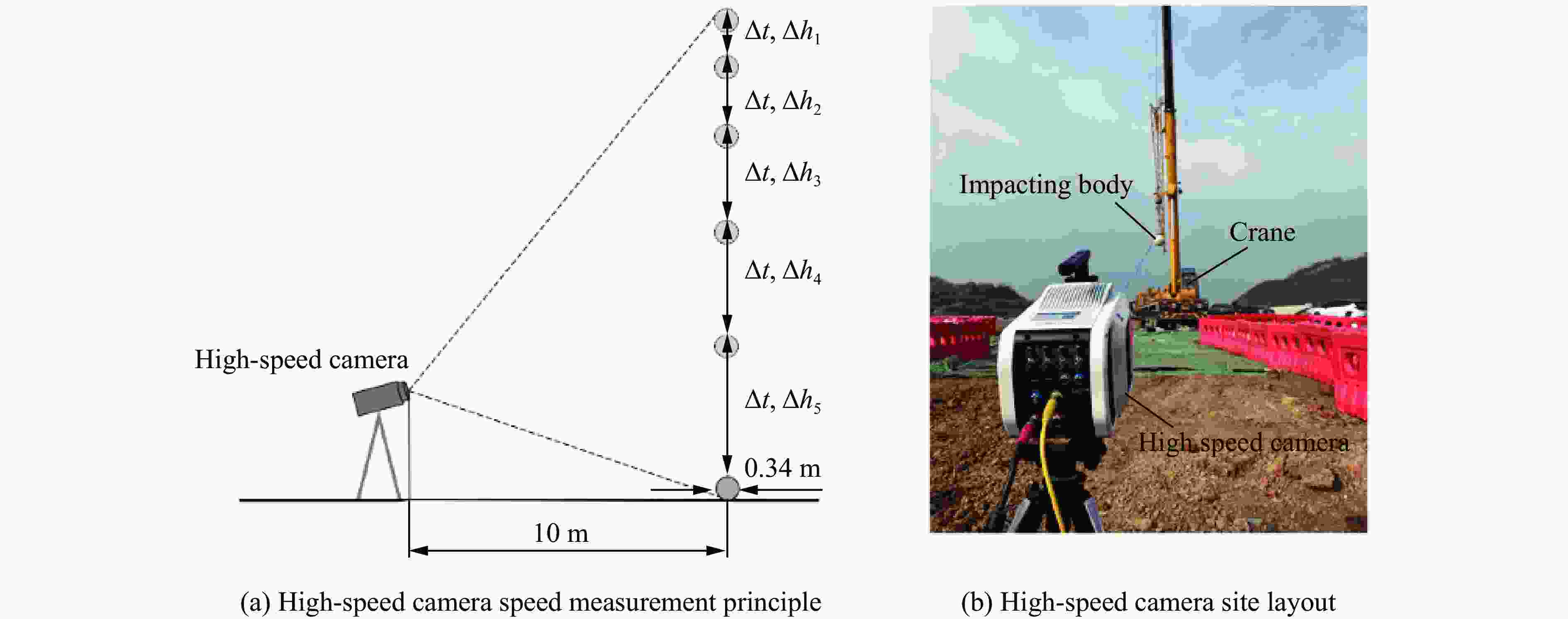

图 4 高速摄像机测速原理及现场布置

Figure 4. High-speed camera speed measurement principle and site layout

下载: 全尺寸图片幻灯片

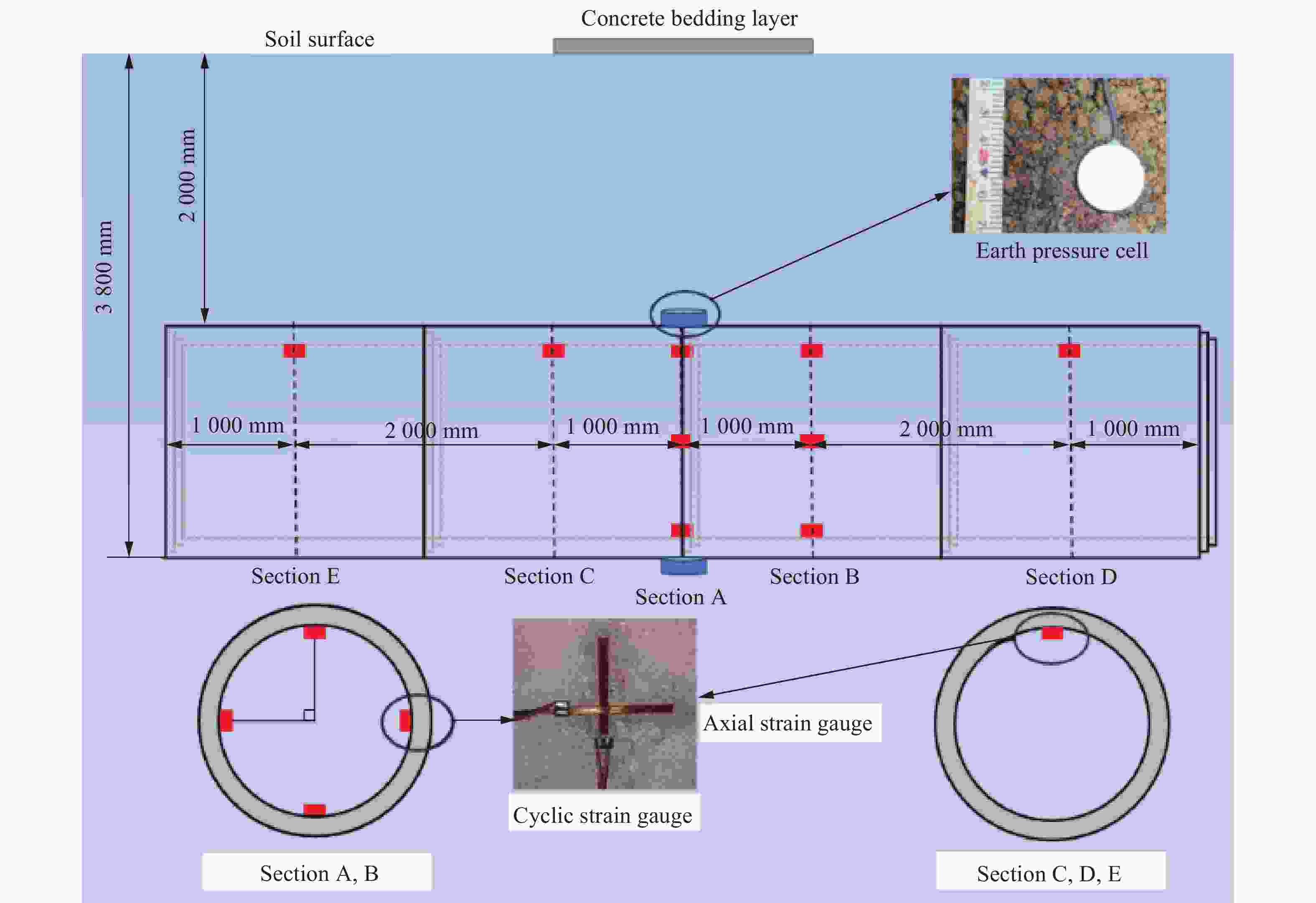

图 5 测试点位布置

Figure 5. Layout of test point

下载: 全尺寸图片幻灯片

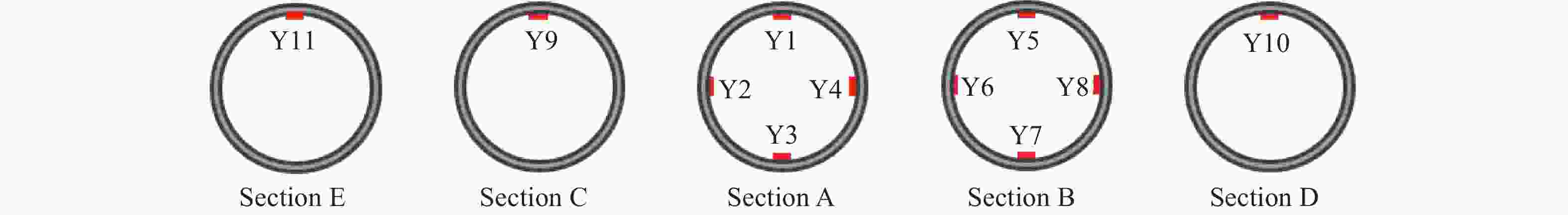

图 6 测试点编号

Figure 6. Test point number

下载: 全尺寸图片幻灯片

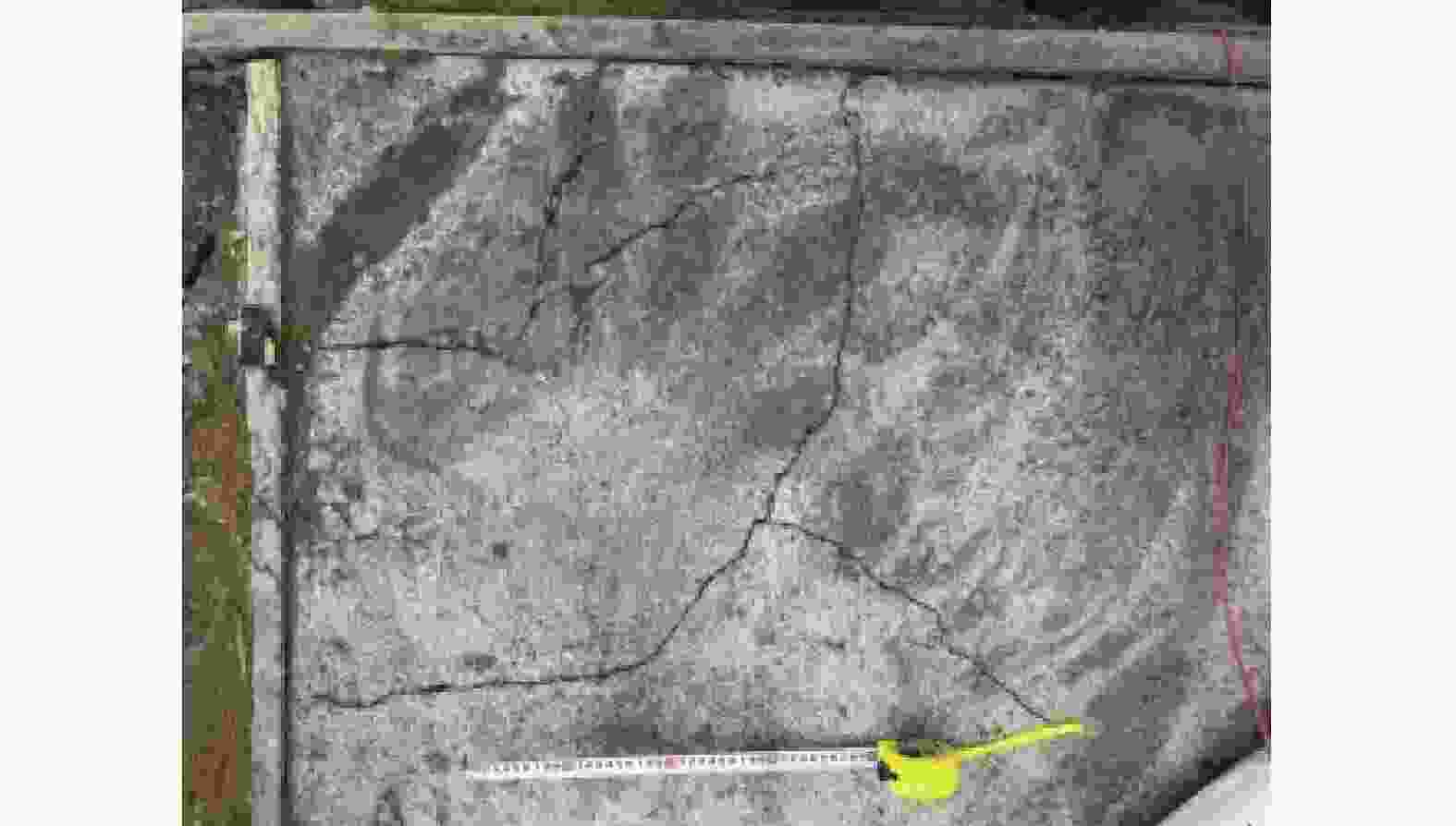

图 7 混凝土垫层破坏情况

Figure 7. Concrete bedding destruction

下载: 全尺寸图片幻灯片

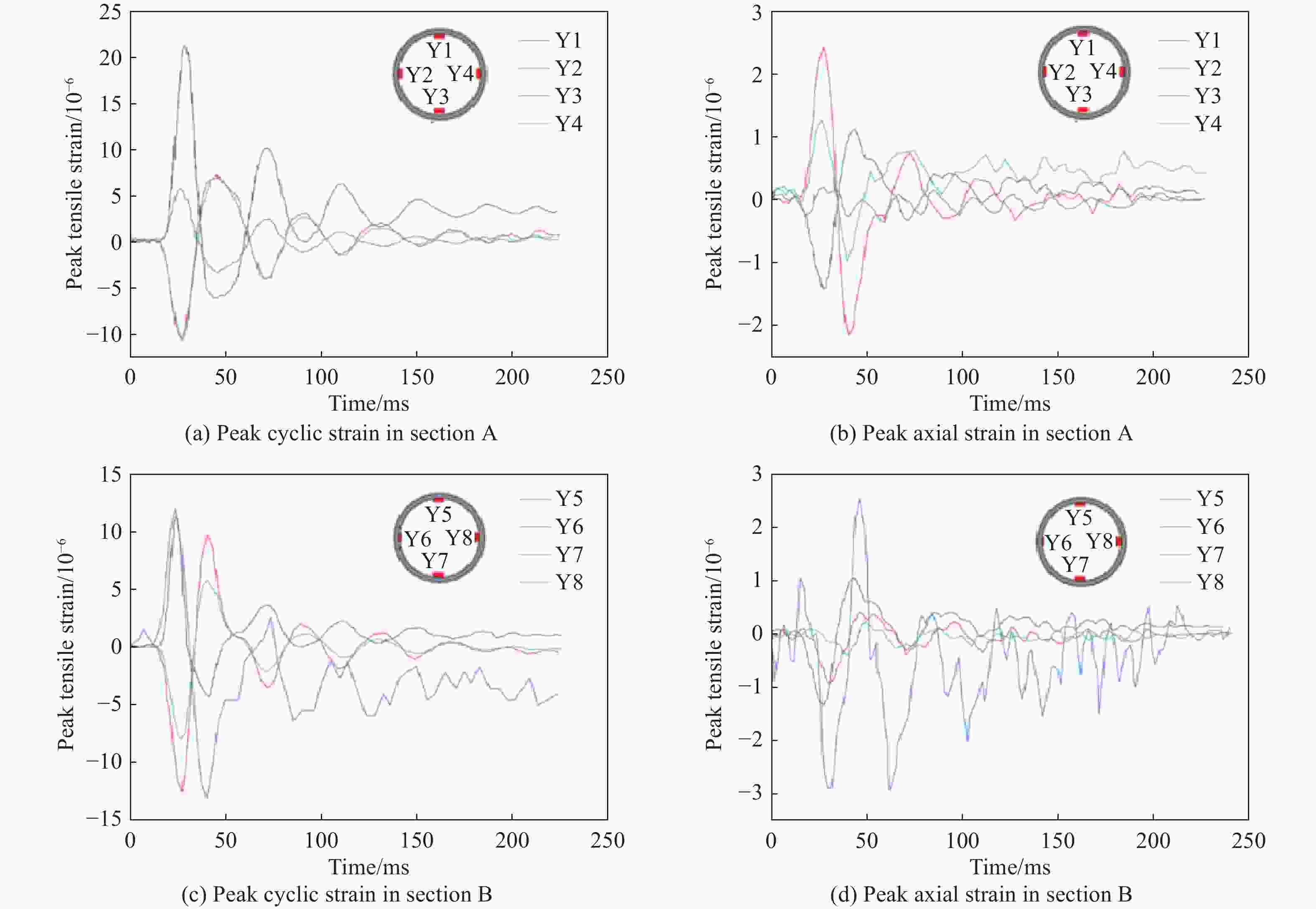

图 8 实测截面A、B应变曲线

Figure 8. Measured A and B section strain curve

下载: 全尺寸图片幻灯片

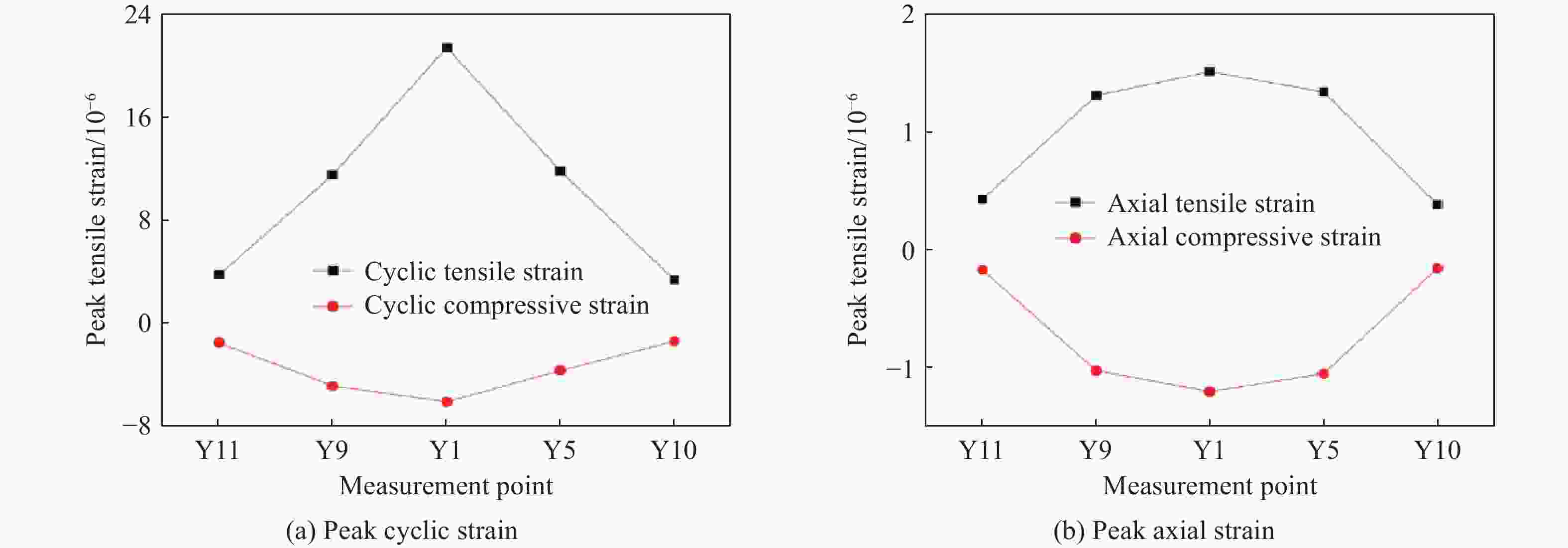

图 9 实测峰值应变沿管道轴向分布图

Figure 9. Measured peak strain distribution along the axial direction of the pipe

下载: 全尺寸图片幻灯片

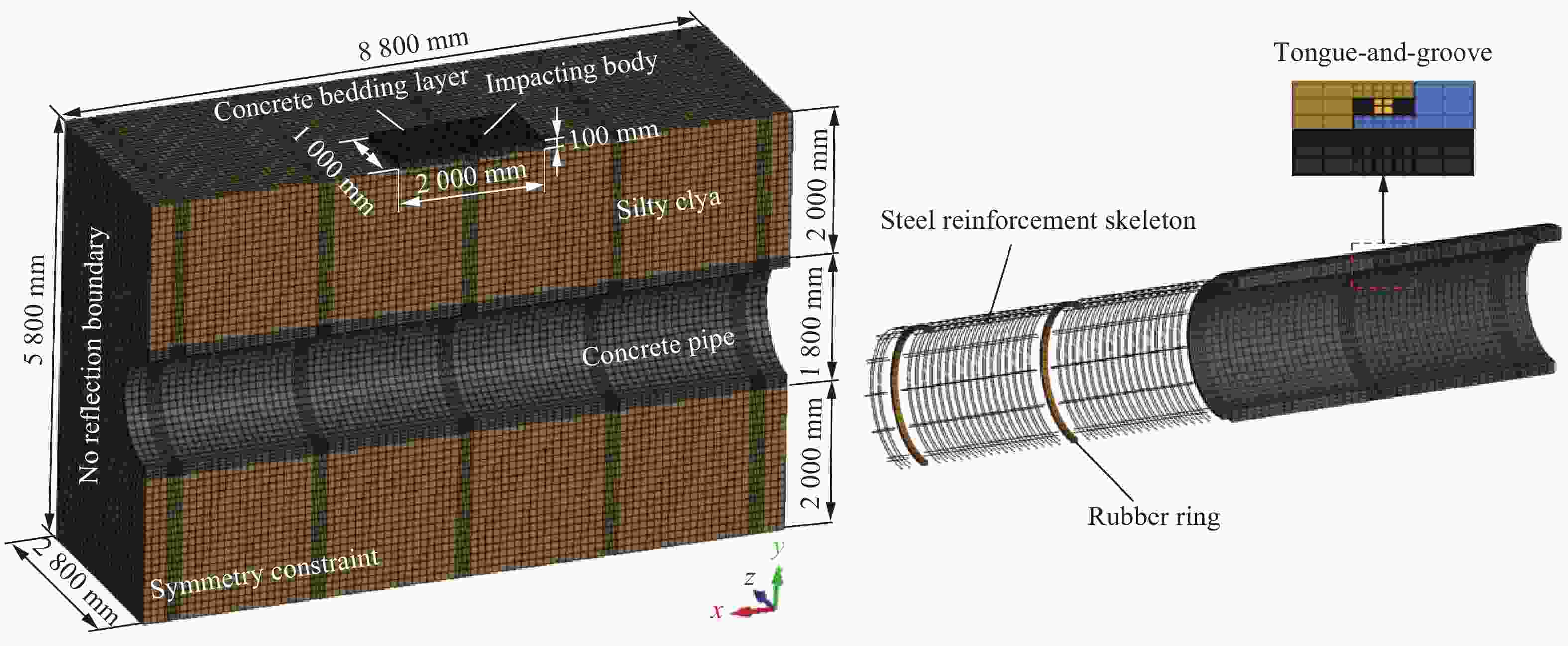

图 10 现场落石冲击试验数值模型示意图

Figure 10. Schematic diagram of the numerical model of the field rockfall impact test

下载: 全尺寸图片幻灯片

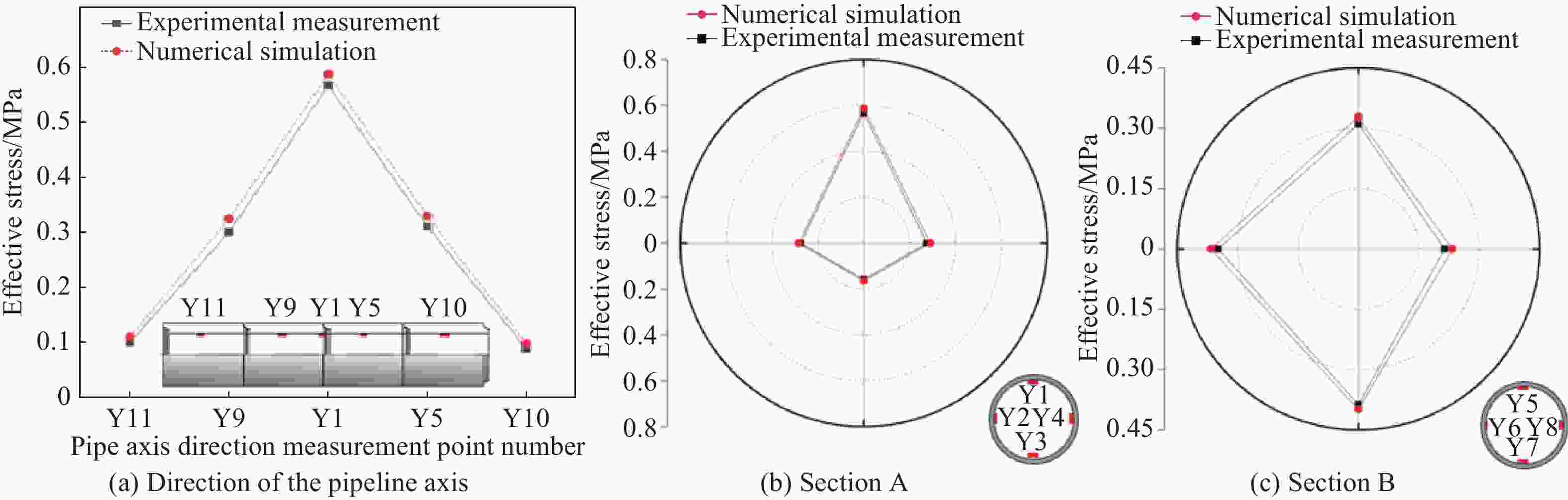

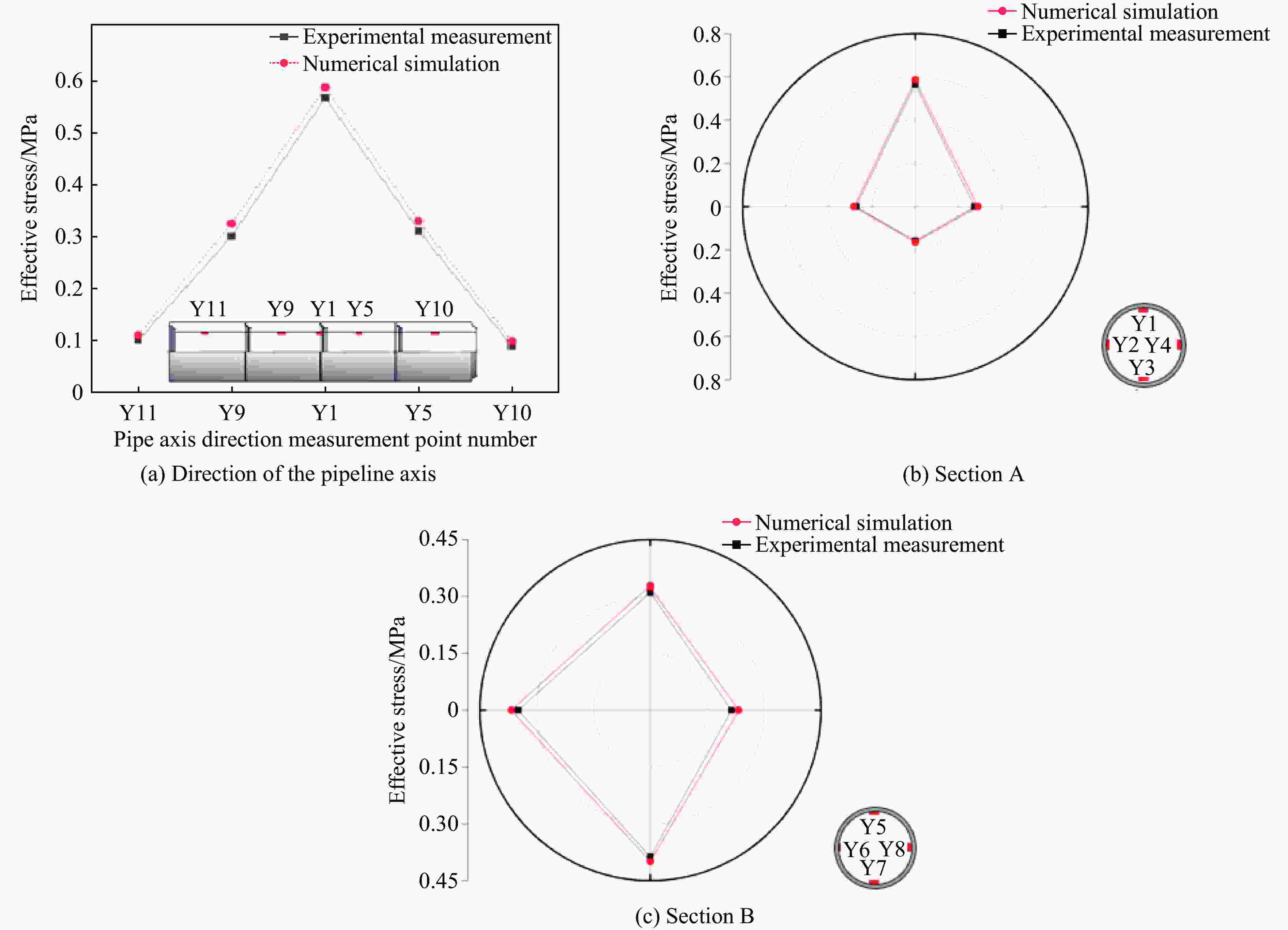

图 11 数值模拟与现场试验有效应力对比

Figure 11. Comparison of effective stress between numerical simulation and field test

下载: 全尺寸图片幻灯片

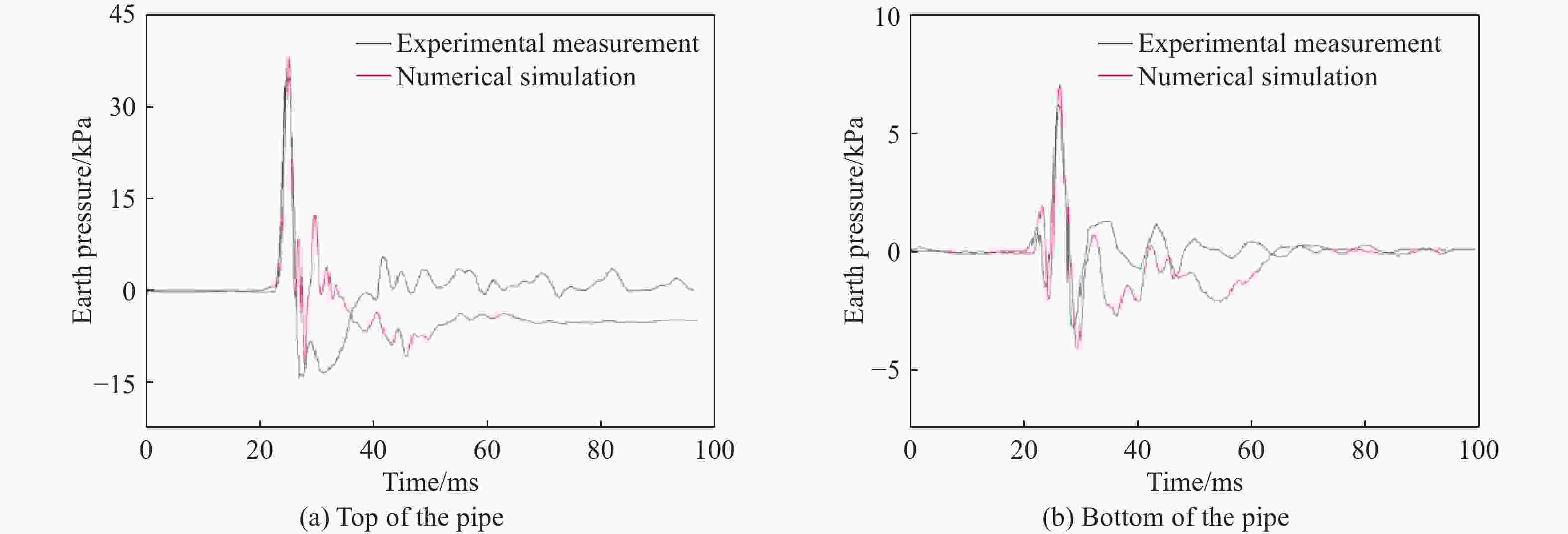

图 12 管道顶部、底部土压力验证

Figure 12. Verification of earth pressure at top and bottom of pipeline

下载: 全尺寸图片幻灯片

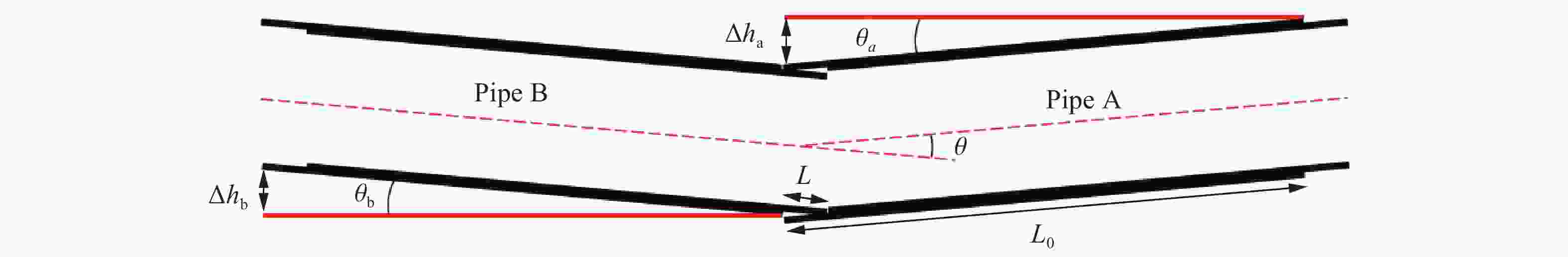

图 13 企口管偏转角计算示意

Figure 13. Schematic calculation of the deflection angle of the tongue and groove pipe

下载: 全尺寸图片幻灯片

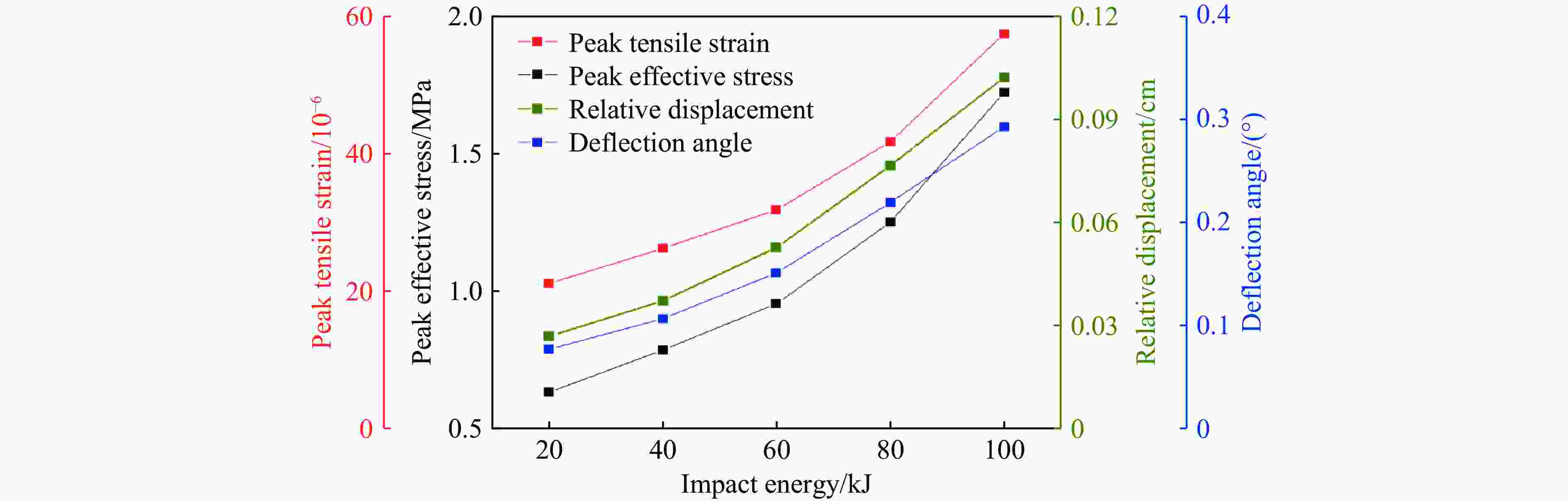

图 14 峰值拉应变、峰值有效应力、相对位移和偏转角的冲击能关系曲线

Figure 14. Relationship curves between impact energy and peak tensile strain, peak effective stress, relative displacement, and deflection angle

下载: 全尺寸图片幻灯片

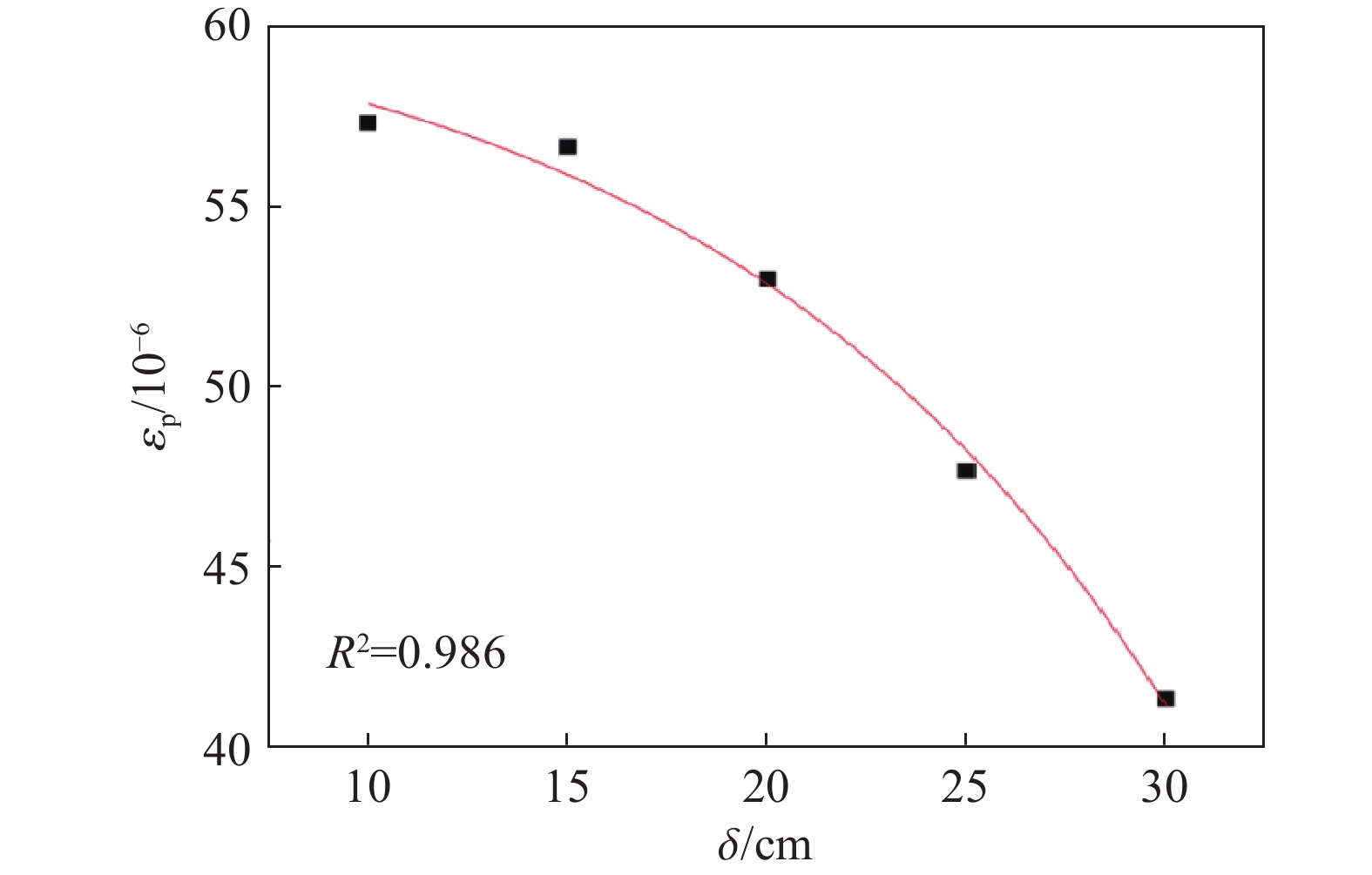

图 15 管道峰值拉应变与垫层厚度拟合曲线

Figure 15. Peak tensile strain versus bedding thickness curve

下载: 全尺寸图片幻灯片

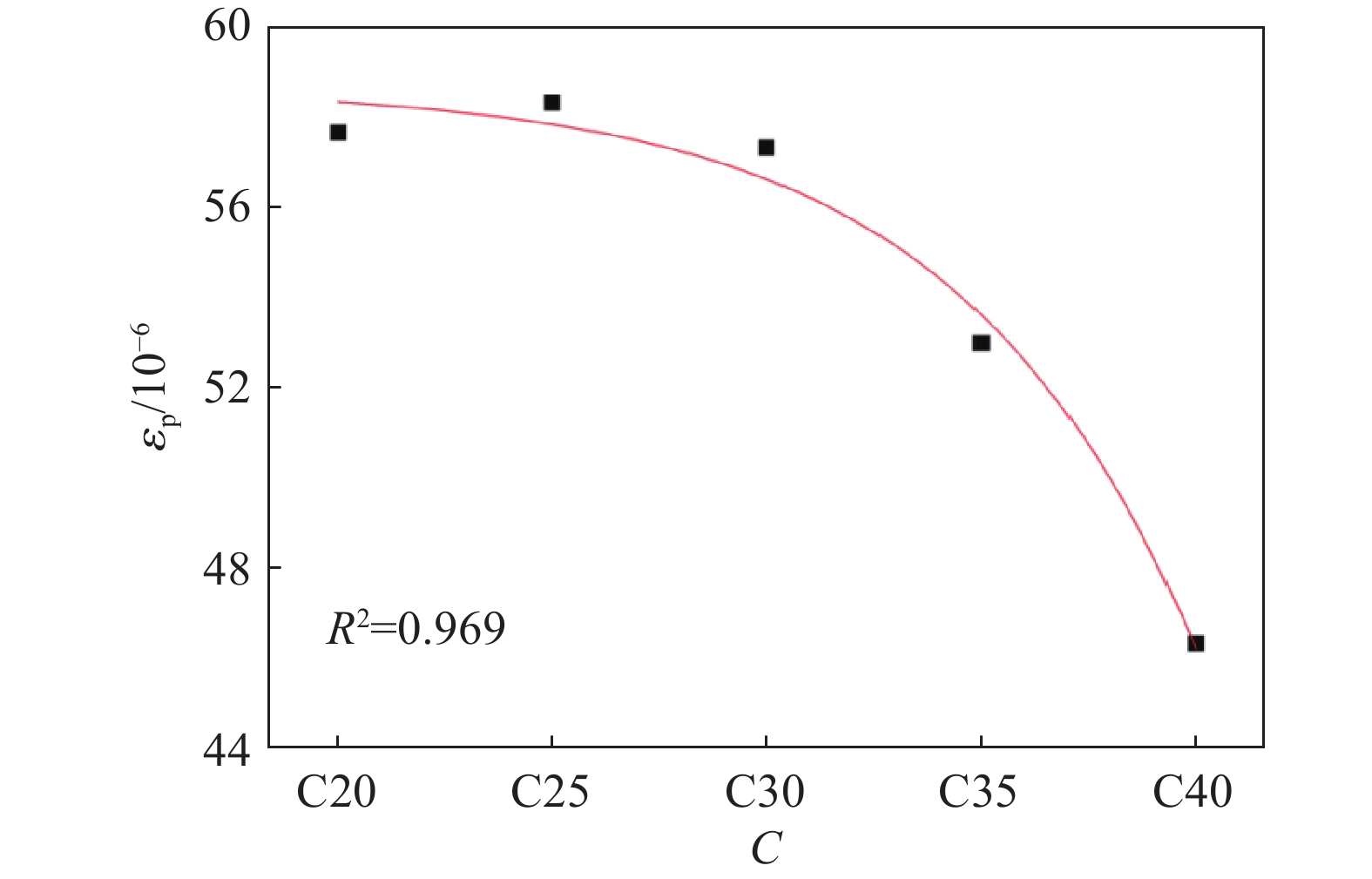

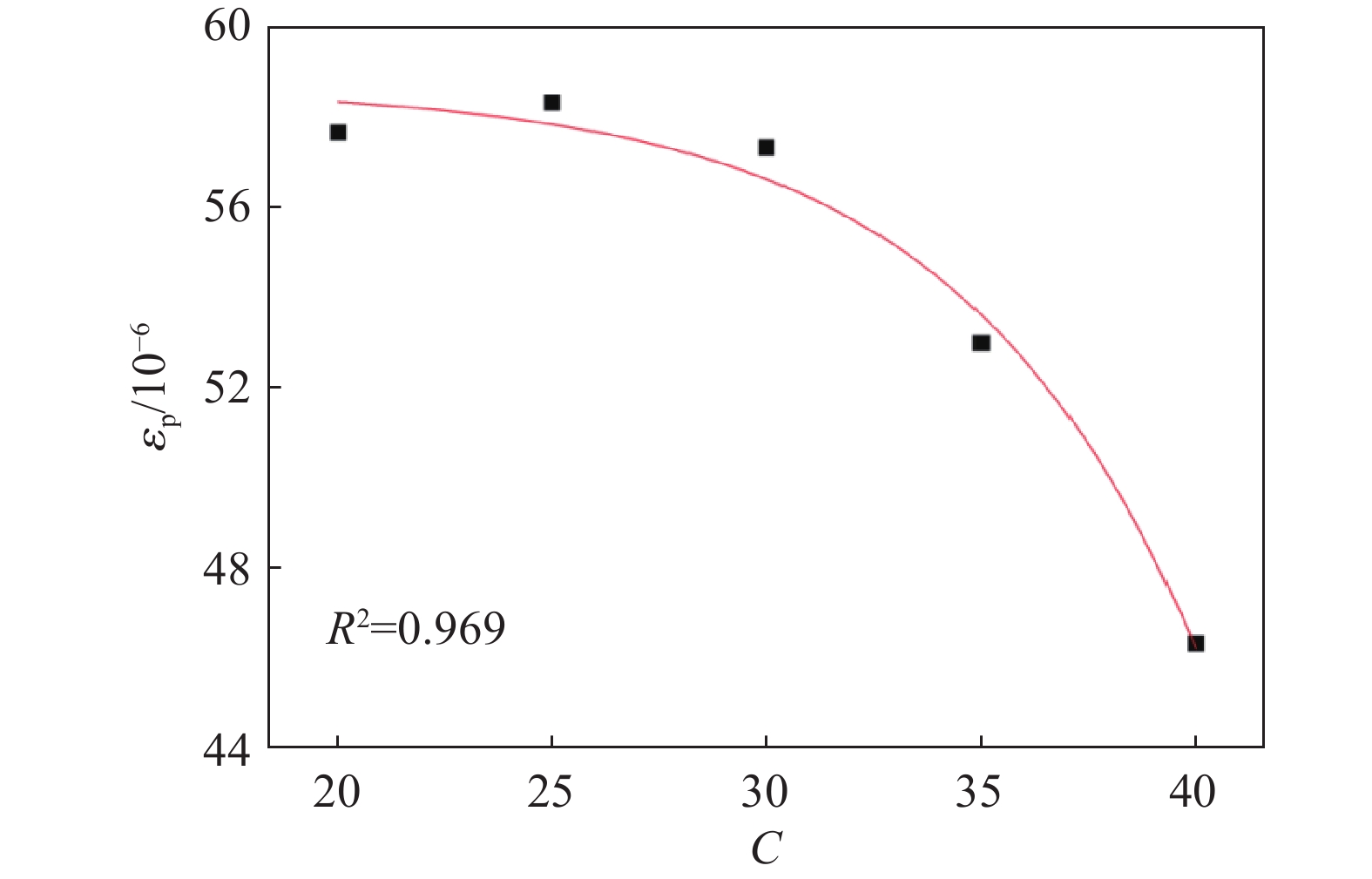

图 16 管道峰值拉应变与垫层混凝土强度拟合曲线

Figure 16. Peak tensile strain versus bedding concrete strength curve

下载: 全尺寸图片幻灯片

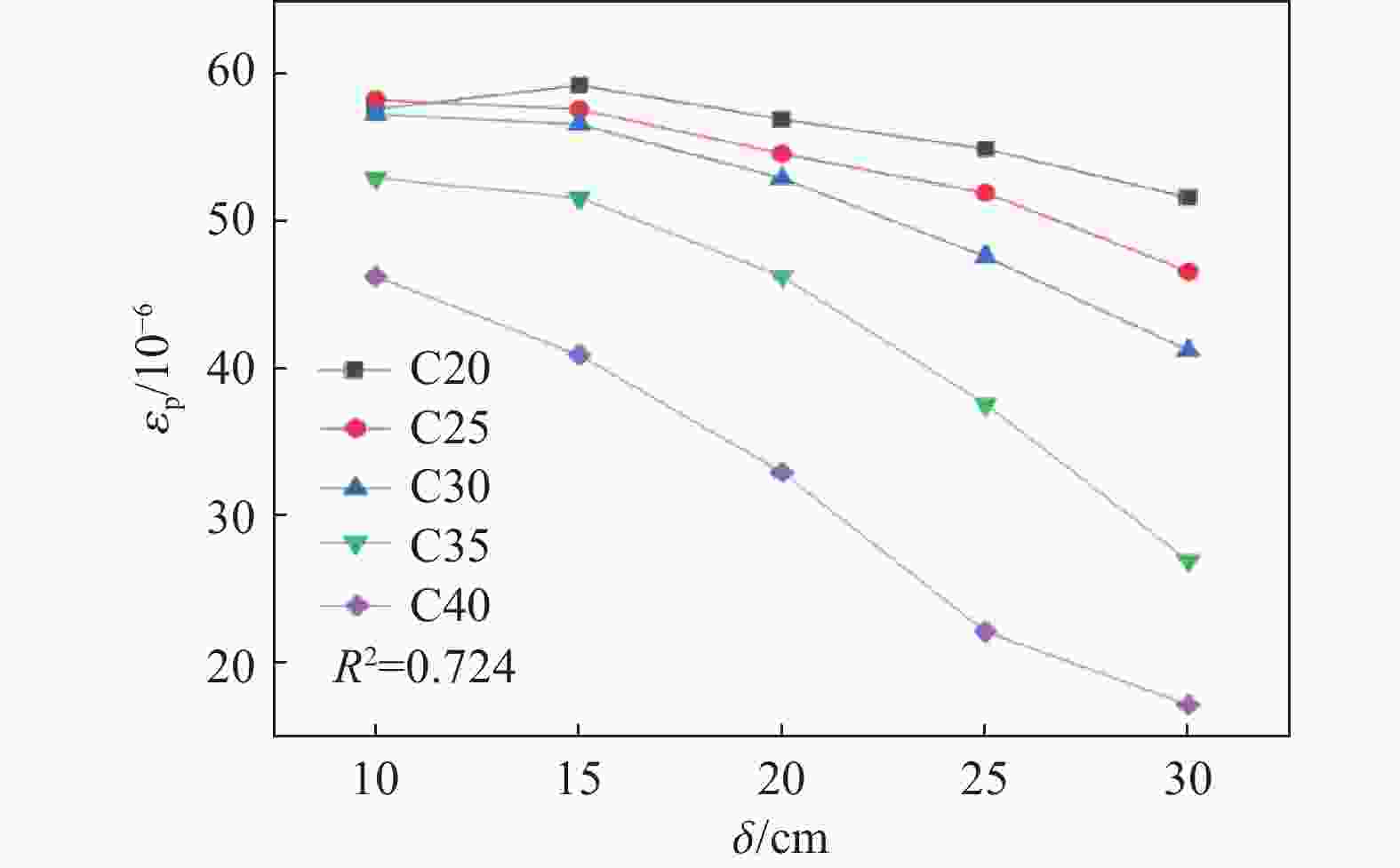

图 17 不同混凝土强度下峰值拉应变与垫层厚度关系曲线

Figure 17. Peak tensile strain versus bedding thickness curve for different concrete strength

下载: 全尺寸图片幻灯片

表 1 土壤的物理力学参数

Table 1. Physical and mechanical parameters of the soil

地层	土质	泊松比	密度/(g·cm⁻³)	黏聚力/kPa	内摩擦角/°
1	杂填土	−	1.80	4	18
2	粉质黏土	0.3	1.90	34	13.8

下载: 导出CSV

表 2 单节管道参数

Table 2. Parameter of a single section of the pipe

管道内径/ mm	管道壁厚/ mm	混凝土用量/m³	钢筋用量/ kg	管道重量/ kg	裂缝荷载/ (kN·m⁻¹)	破坏荷载/ (kN·m⁻¹)
1500	150	1865	55.6	1920.6	100	150

下载: 导出CSV

表 3 混凝土垫层参数

Table 3. Concrete bedding parameter

密度/ ( g·cm⁻³)	弹性模量/ MPa	泊松比	抗压强度/ MPa	抗拉强度/ MPa
2.5	30 000	0.2	20.1	2.01

下载: 导出CSV

表 4 粉质黏土材料参数

Table 4. Parameters of powdery clay material

材料	密度/ (g·cm⁻³)	弹性剪切模量/MPa	泊松比	内摩擦角/°	凝聚力/ kPa
粉质黏土	1.9	39	0.35	13	20

下载: 导出CSV

表 5 混凝土垫层参数

Table 5. Concrete bedding layer parameters

材料	密度/ (g·cm⁻³)	弹性模量/ GPa	泊松比	屈服强度/ MPa	切线模量/ MPa
混凝土	2.5	30	0.2	30	22500

下载: 导出CSV

表 6 管道相关材料参数

Table 6. Parameters of pipe-related materials

材料	密度/(g·cm⁻³)	弹性模量/ GPa	剪切模量/MPa	切线模量/MPa	泊松比	屈服应力/MPa
混凝土	2.4	32.5	—	—	0.2	—
钢筋	7.8	200	—	1500	0.3	350
橡胶	1.2	—	9.2	—	0.495	—

下载: 导出CSV

表 7 冲击体刚体材料参数

Table 7. Parameters of impact body rigid material

材料	密度/(g·cm⁻³)	弹性模量/GPa	泊松比
钢筋混凝土	2.43	30	0.3

下载: 导出CSV

表 8 数值模拟与现场试验有效应力对比误差

Table 8. Comparison error of effective stress between numerical simulation and field test

测点	有效应力/MPa		误差/%	测点	有效应力/MPa		误差/%	测点	有效应力/MPa		误差/%
测点	试验	模拟	误差/%	测点	试验	模拟	误差/%	测点	试验	模拟	误差/%
Y1	0.566	0.586	3.47	Y5	0.310	0.329	5.75	Y9	0.300	0.324	7.45
Y2	0.274	0.284	3.48	Y6	0.349	0.367	4.91	Y10	0.088	0.098	10.39
Y3	0.157	0.164	4.10	Y7	0.387	0.399	3.09	Y11	0.100	0.110	9.08
Y4	0.275	0.290	5.33	Y8	0.214	0.233	8.13

下载: 导出CSV
