不同直径钨纤维增强金属玻璃复合材料长杆弹“自锐”行为及侵彻/穿甲性能

任杰; 章浪; 李继承; 邓勇军; 陈小伟; 杜成鑫

doi:10.11883/bzycj-2025-0139

不同直径钨纤维增强金属玻璃复合材料长杆弹“自锐”行为及侵彻/穿甲性能

doi: 10.11883/bzycj-2025-0139

任杰^{1, 2,},
章浪^{1, 2},
李继承^{2, 3, ,},
邓勇军^{1, 2},
陈小伟^{2, 4},
杜成鑫⁵

1.
西南科技大学土木工程与建筑学院，四川绵阳 621010
2.
工程材料与结构冲击振动四川省重点实验室，四川绵阳 621010
3.
中国工程物理研究院总体工程研究所，四川绵阳 621999
4.
北京理工大学前沿交叉研究院，北京 100081
5.
南京理工大学机械工程学院，南京 210094

基金项目: 四川省自然科学基金杰出青年科学基金项目（2023NSFSC1913），国家国防科技工业局科研专项项目（KJSP2023020304）；

详细信息

作者简介:
任　杰（1998－　），男，学士，研究生，2501853799@qq.com

通讯作者:
李继承（1984－　），男，博士，研究员，lijc401@caep.cn

中图分类号: O385
计量
- 文章访问数: 634
- HTML全文浏览量: 95
- PDF下载量: 75
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-12
- 修回日期: 2025-09-01
- 网络出版日期: 2025-09-01

‘Self-sharpening’ behavior and penetration/perforation property of tungsten fiber/metallic glass composite long rods with different fiber diameters

REN Jie^{1, 2
,},
ZHANG Lang^{1, 2},
LI Jicheng^{2, 3
, ,},
DENG Yongjun^{1, 2},
CHEN Xiaowei^{2, 4},
DU Chengxin⁵

1.
School of Civil Engineering and Architecture, Southwest University of Science and Technology, Mianyang 621010 , Sichuan, China
2.
Shock and Vibration of Engineering Materials and Structures Key Laboratory of Sichuan Province, Mianyang 621010, Sichuan, China
3.
Institute of Systems Engineering, China Academy of Engineering Physics, Mianyang 621999, Sichuan, China
4.
Advanced Research Institute of Multidisciplinary Science, Beijing Institute of Technology, Beijing 100081, China
5.
School of Mechanical Engineering, Nanjing University of Science and Technology, Nanjing 210094, Jiangsu, China

摘要

摘要: 为对比不同直径钨纤维增强金属玻璃复合材料长杆弹的侵彻/穿甲“自锐”行为以及相应弹道性能的异同，综合侵彻/穿甲试验结果和细观有限元模拟，系统开展了不同长杆弹在侵彻/穿甲钢靶过程中的弹靶变形和破坏特性研究，并详细分析长杆弹在不同撞击速度下变形和破坏模式的转变。分析表明：由于不同直径钨纤维在抗弯曲、抗剪切等方面性能的差异，相应复合材料弹体在侵彻过程中表现出不同的破坏特征，从而影响其侵彻/穿甲性能。撞击速度对弹体的变形和破坏模式及其侵彻/穿甲性能也具有显著影响：速度较低时，在钨纤维直径较小情形下，弹体头部纤维在侵彻过程中表现出屈曲失稳现象且逐渐分散，使得弹头发生一定程度钝粗，并导致侵彻阻力增加和侵彻性能下降；随撞击速度增大，在纤维直径较小情形下弹体外侧纤维发生回流，而直径较大时纤维则主要发生剪切破坏，使得弹头进一步锐化并导致侵彻/穿甲性能提升；当撞击速度和钨纤维直径达到某一上限阈值时，弹体头部“边缘层”厚度急剧减小，“自锐”性能有所弱化，侵彻/穿甲能力再次降低。相关研究有助于预测不同直径钨纤维增强的金属玻璃复合材料长杆弹在不同撞击速度条件下的侵彻/穿甲性能，以及优化弹体结构设计和撞击速度等。
- 金属玻璃复合材料长杆弹 /
- 侵彻/穿甲 /
- 自锐 /
- 纤维直径 /
- 破坏模式 /
- 有限元模拟
Abstract: In order to compare the similarities and differences among the ‘self-sharpening’ behavior as well as the corresponding ballistic performance of tungsten fiber / metallic glass matrix (WF/MG) composite long rods with different fiber diameters, the deformation and failure characteristics of various WF/MG composite long rods were investigated systematically integrated with related penetrating test results and mesoscopic finite element (FE) simulation analysis, in which the two-dimensional (2D) and three-dimensional (3D) meso-scale FE geometric models of WF/MG composite long rod were established according to the actual distribution characteristics of metallic glass matrix and tungsten fibers, and a coupled ‘thermo-mechanical-free volume’ constitutive model was applied to characterize the high shear sensitivity as well as high strength of metallic glass matrix. Moreover, the transformation of deformation and failure modes of projectiles under different impact velocities was analyzed in detail. Related analysis demonstrated that due to the differences in the mechanical properties among the tungsten fibers with different diameters, i.e., bending resistance and shear resistance, etc., the corresponding composite long rods exhibit different failure characteristics during the penetration process, and it further affects their penetration / perforation performance. The impact velocity also plays an important role on the deformation and failure modes of composite long rods and the corresponding penetration / perforation performance: when the impact velocity is relatively low, the fibers in the nose of composite rod projectile exhibits unstable buckling phenomenon and gradually disperse during the penetration process, which makes the projectile nose blunt at a certain extent, and induces the increase in the penetration resistance and decrease in the penetration performance; along with the impact velocity increases, in the case that the fiber diameter is small, the fibers on the outer side of projectile nose refluxes back, and when the fiber diameter is large, the fibers mainly behave as shear failure, and it further strengthen the ‘self-sharpening’ behavior as well as the penetration performance of projectile; when the impact velocity and fiber diameter reach a certain upper threshold values, The thickness of ‘edge layer’ in the rod nose is sharply reduced, and thus the ‘self-sharpening’ performance is weakened, and the penetration capability of projectile is decayed again. Related research is beneficial to predicting the penetration / perforation performance of WF/MG composite long rods with different fiber diameters under different impact velocities, and optimizing the structural design of projectile as well as the impact velocity, etc.
- tungsten fiber/metallic glass composite long rods /
- penetration / perforation /
- self-sharpening /
- fiber diameter /
- failure mode /
- finite element simulation

HTML全文

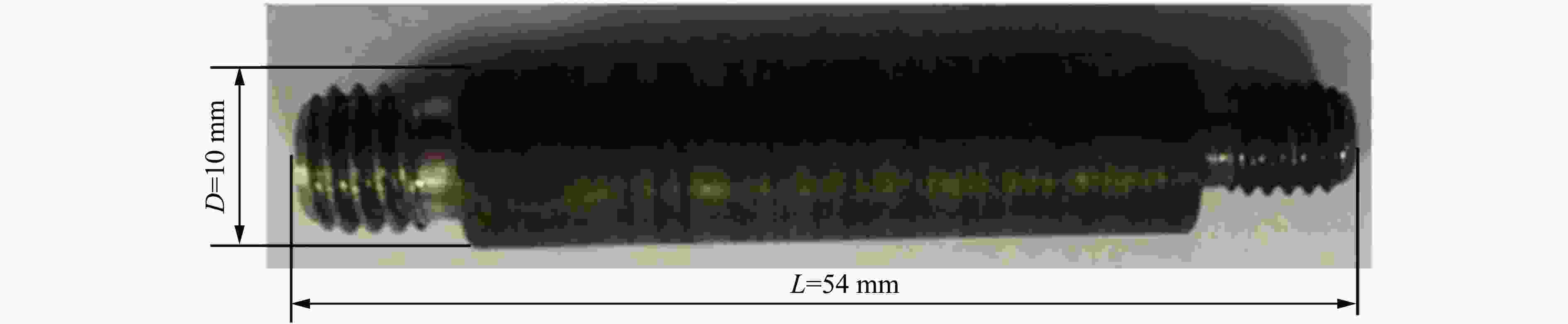

图 1 长杆弹初始形貌^[30]

Figure 1. Initial composite long rod ^[30]

下载: 全尺寸图片幻灯片

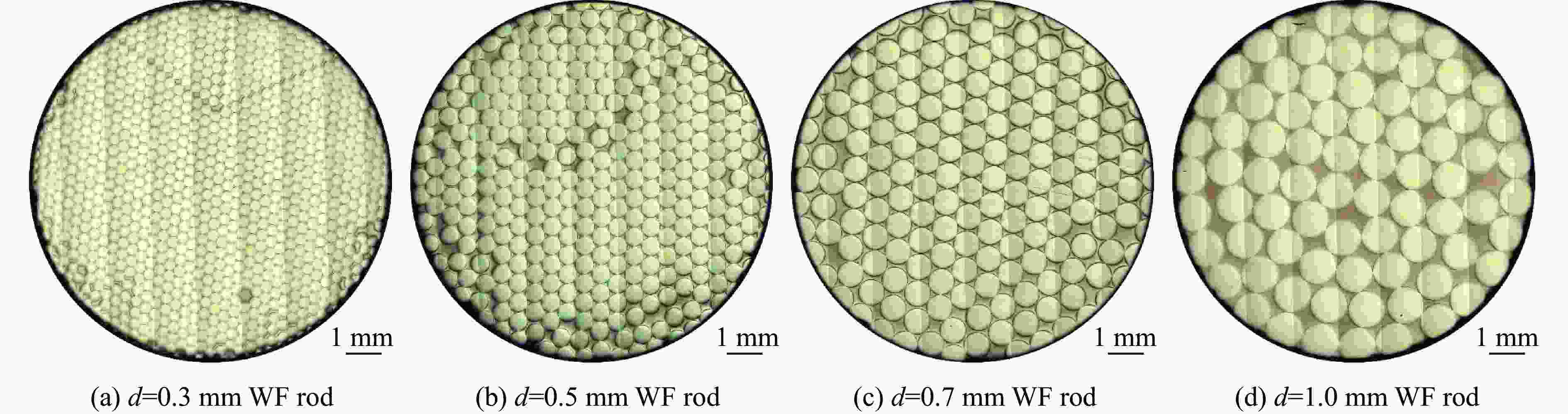

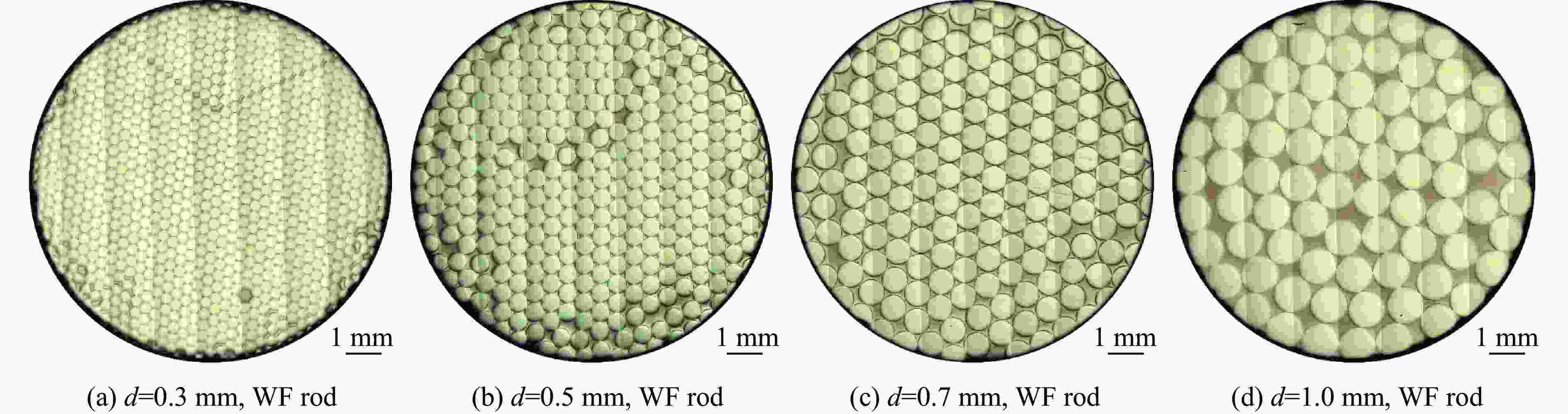

图 2 复合材料弹体横截面SEM图像^[30]

Figure 2. SEM images of cross-section of WF/MG composite long rod ^[30]

下载: 全尺寸图片幻灯片

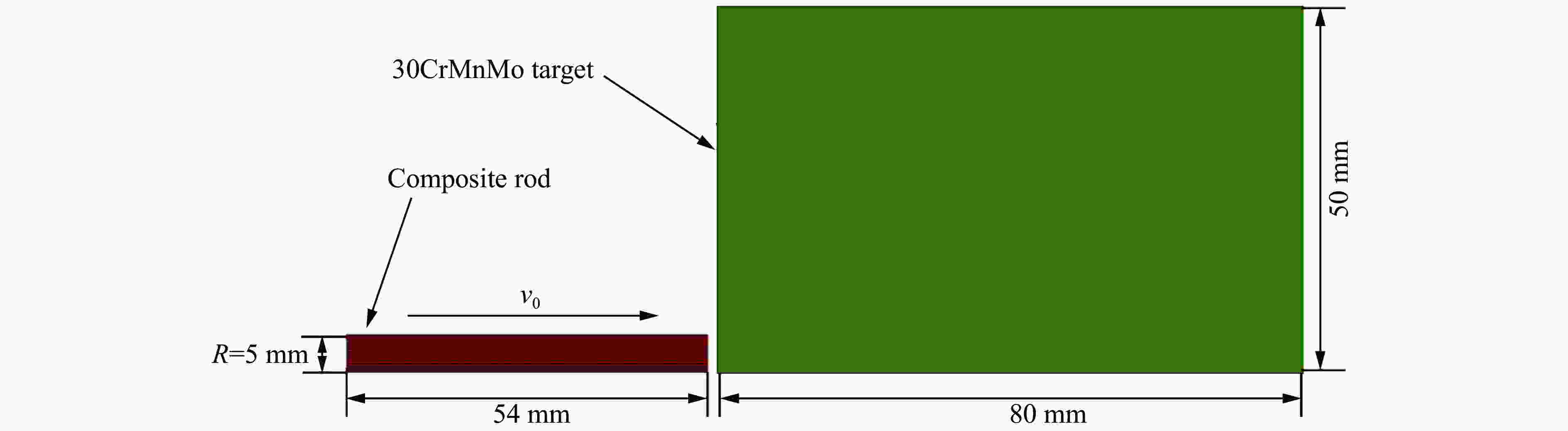

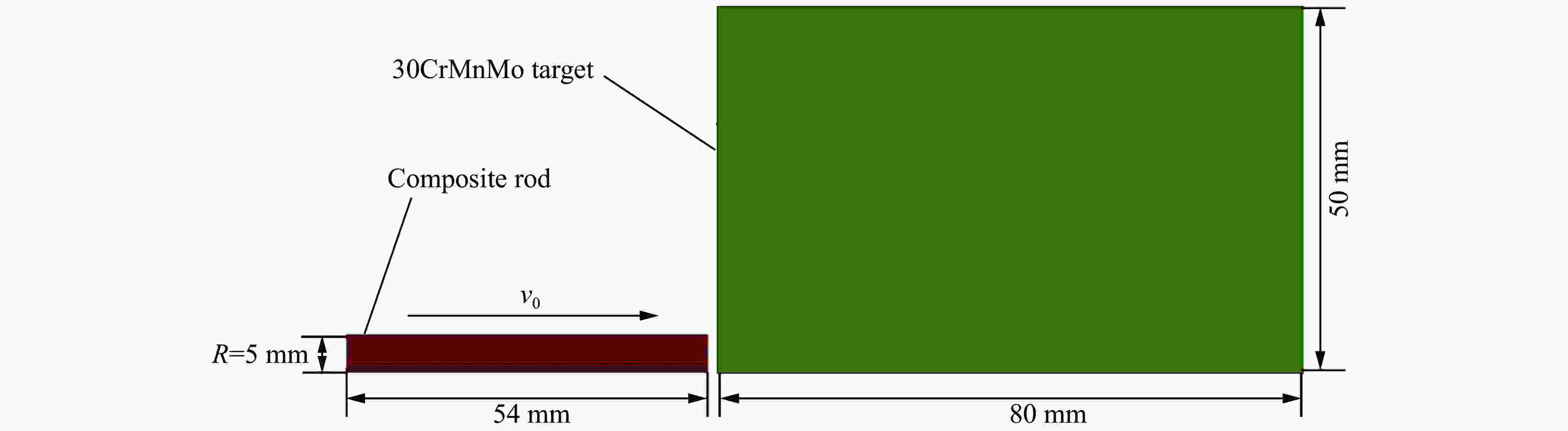

图 3 复合材料长杆弹侵彻钢靶轴对称有限元模型示意图

Figure 3. Sketch of axial symmetrical finite element geometrical model for composite long rod impacting on to steel target

下载: 全尺寸图片幻灯片

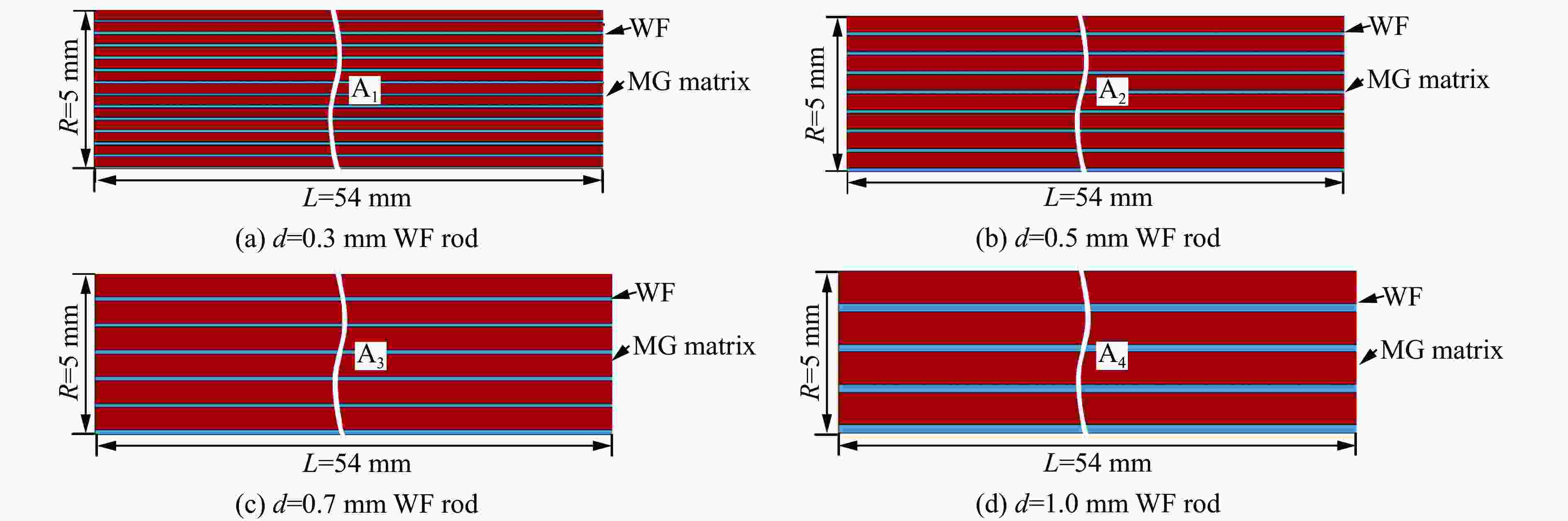

图 4 弹体二维有限元几何模型

Figure 4. 2D geometrical model of composite long rod

下载: 全尺寸图片幻灯片

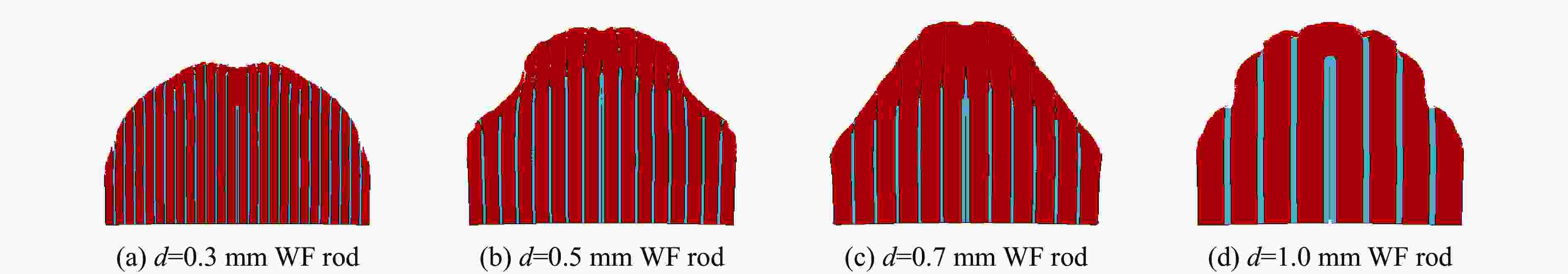

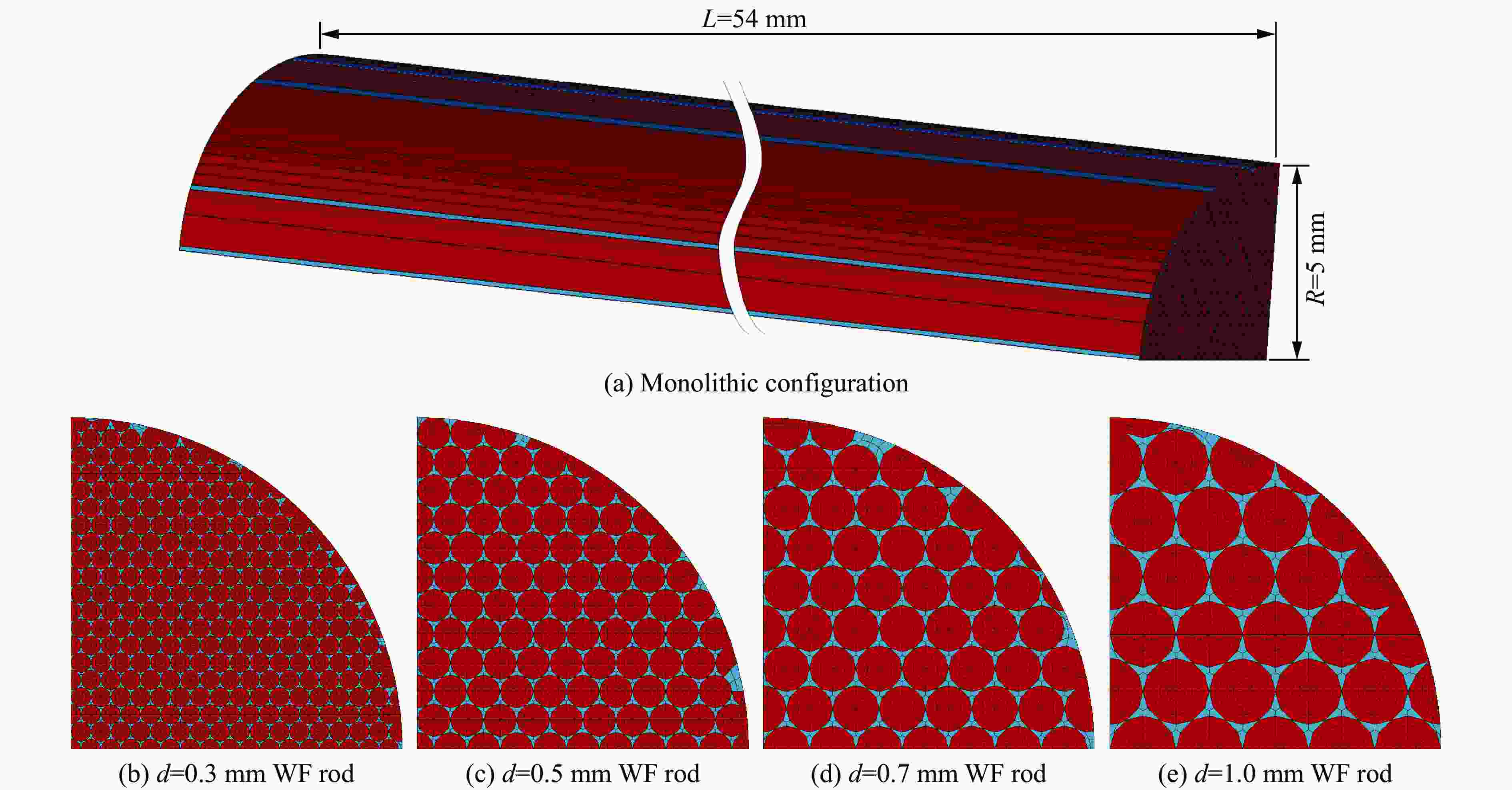

图 5 弹体三维有限元几何模型及横截面网格划分

Figure 5. 3D geometrical model of composite long rod and meshes in transverse cross section

下载: 全尺寸图片幻灯片

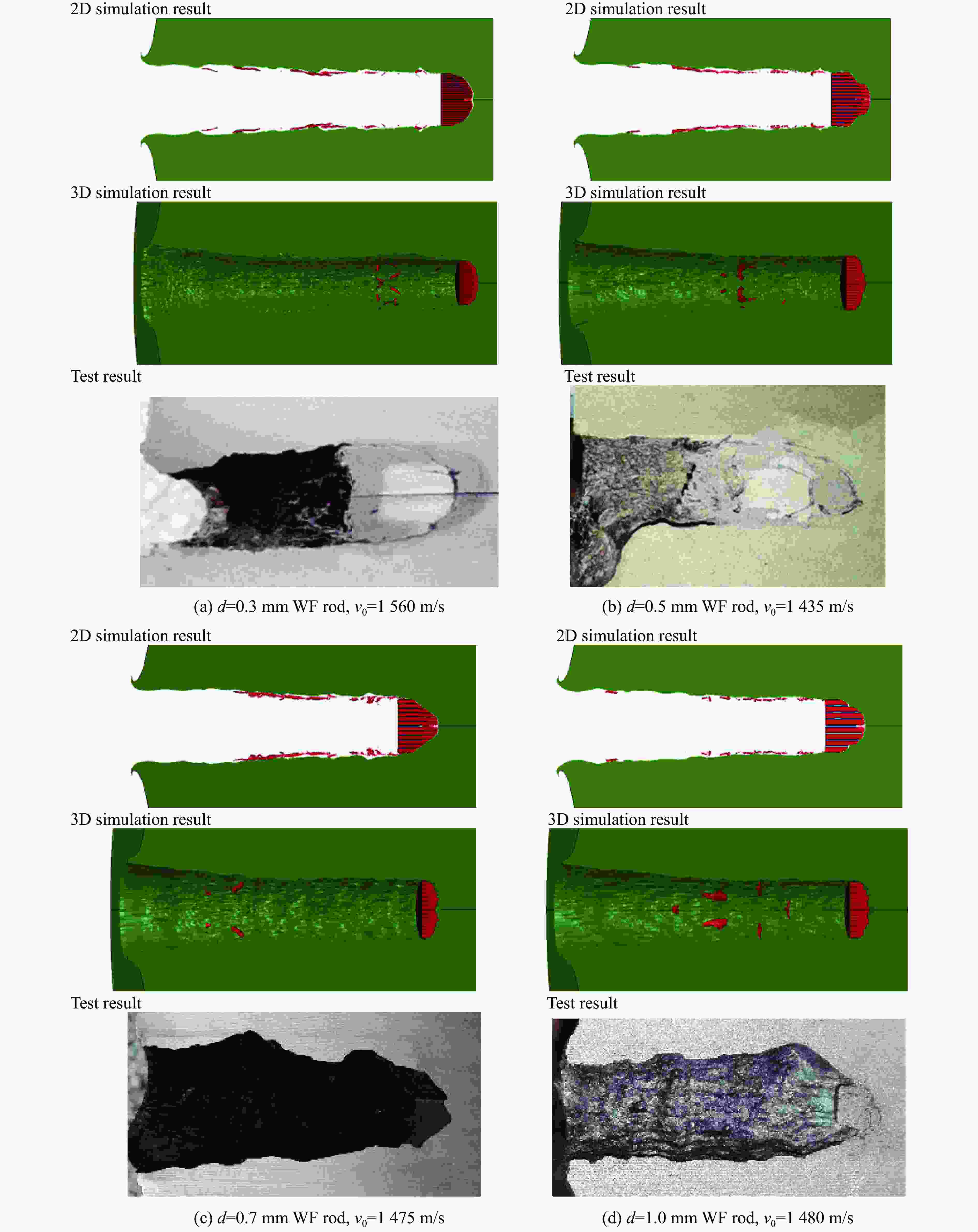

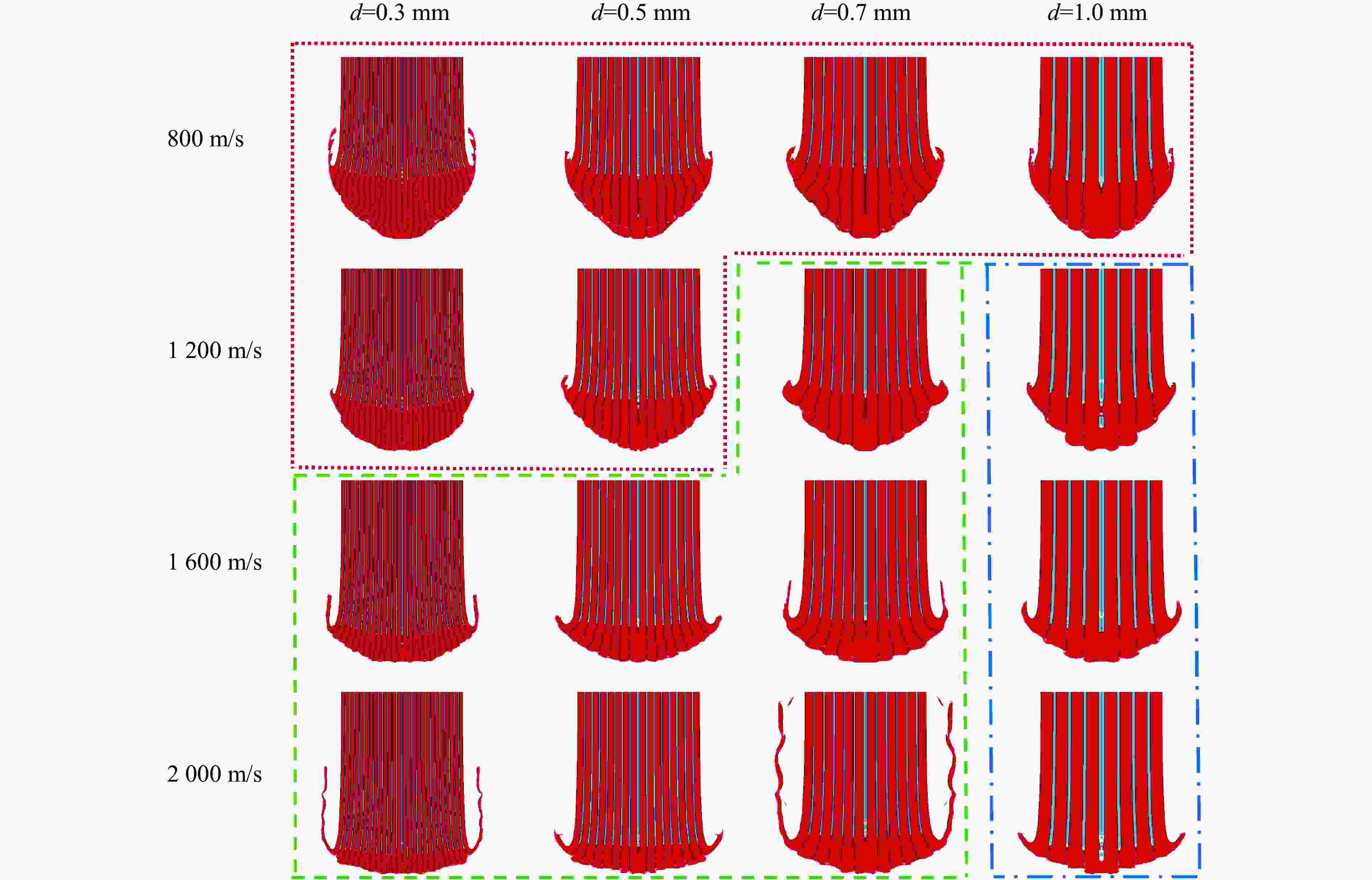

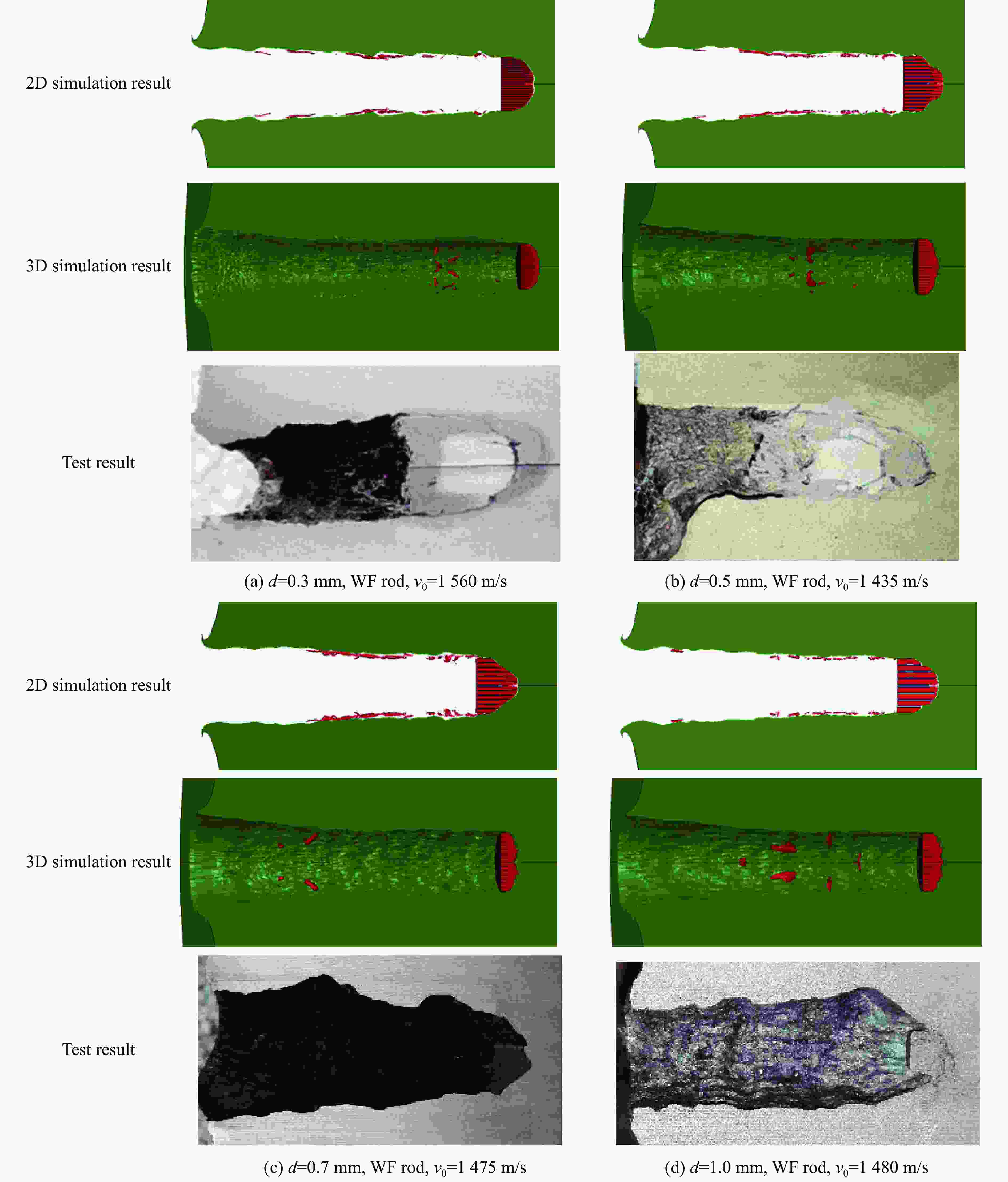

图 6 复合材料弹体侵彻钢靶后弹靶破坏形貌

Figure 6. Failure morphologies after penetration of composite rods into steel target

下载: 全尺寸图片幻灯片

图 7 复合材料弹体侵钢靶残余弹体形貌

Figure 7. Residual composite projectiles with different fiber diameters after the penetration into steel targets

下载: 全尺寸图片幻灯片

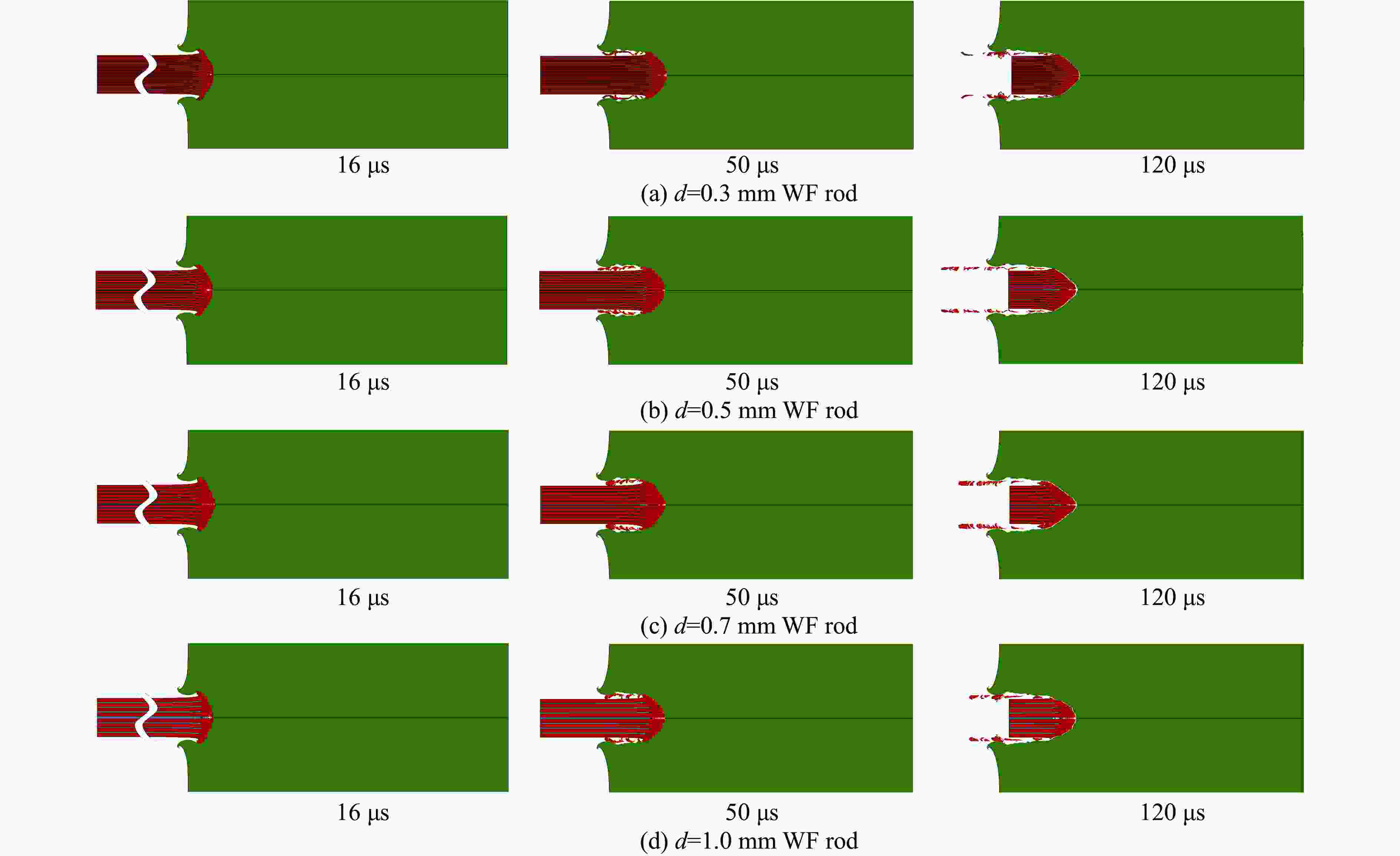

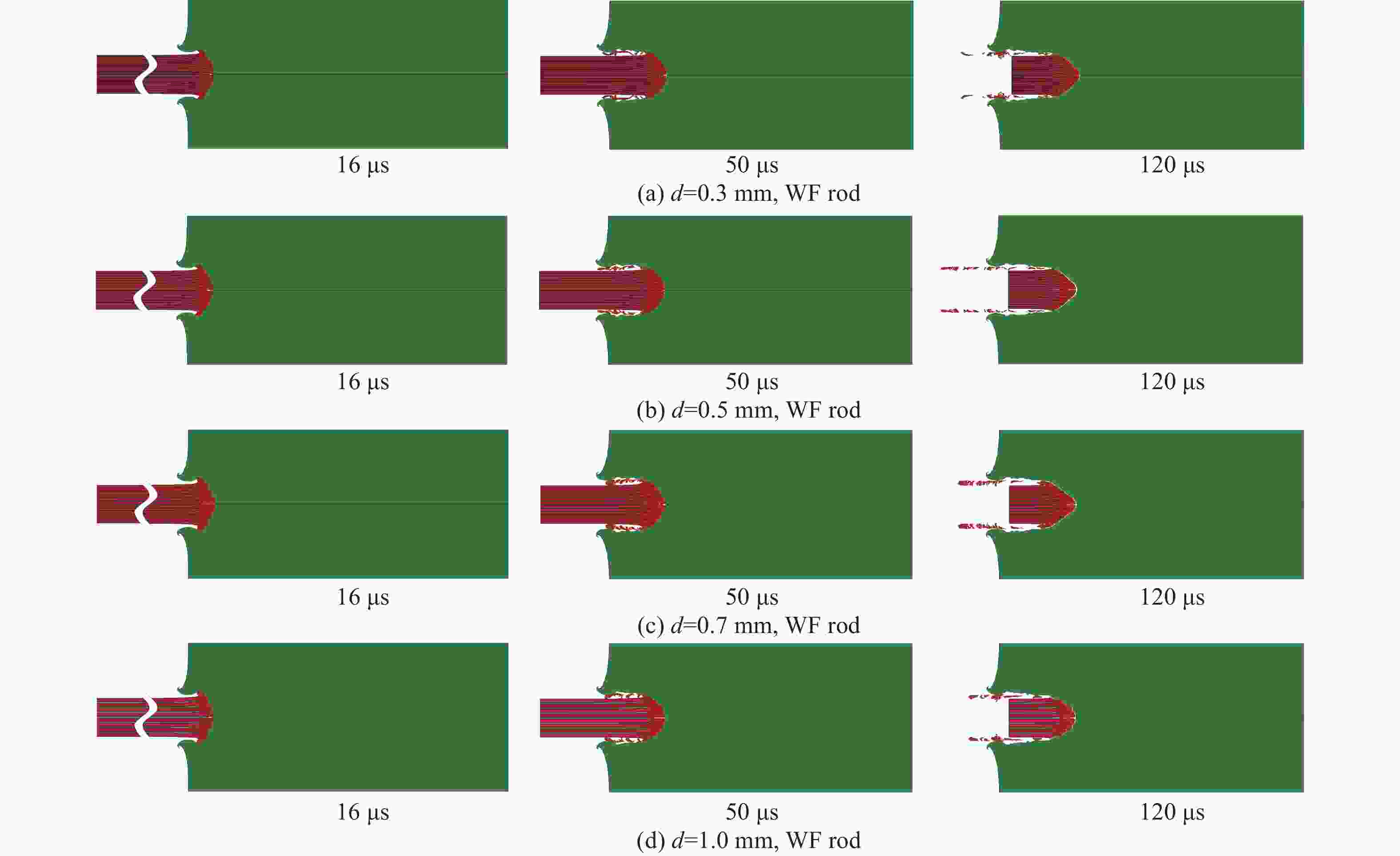

图 8 复合材料长杆弹以$ {v}_{0} $=800 m/s侵彻钢靶历程

Figure 8. Penetration process of the composite long rods into steel target at $ {v}_{0} $=800 m/s

下载: 全尺寸图片幻灯片

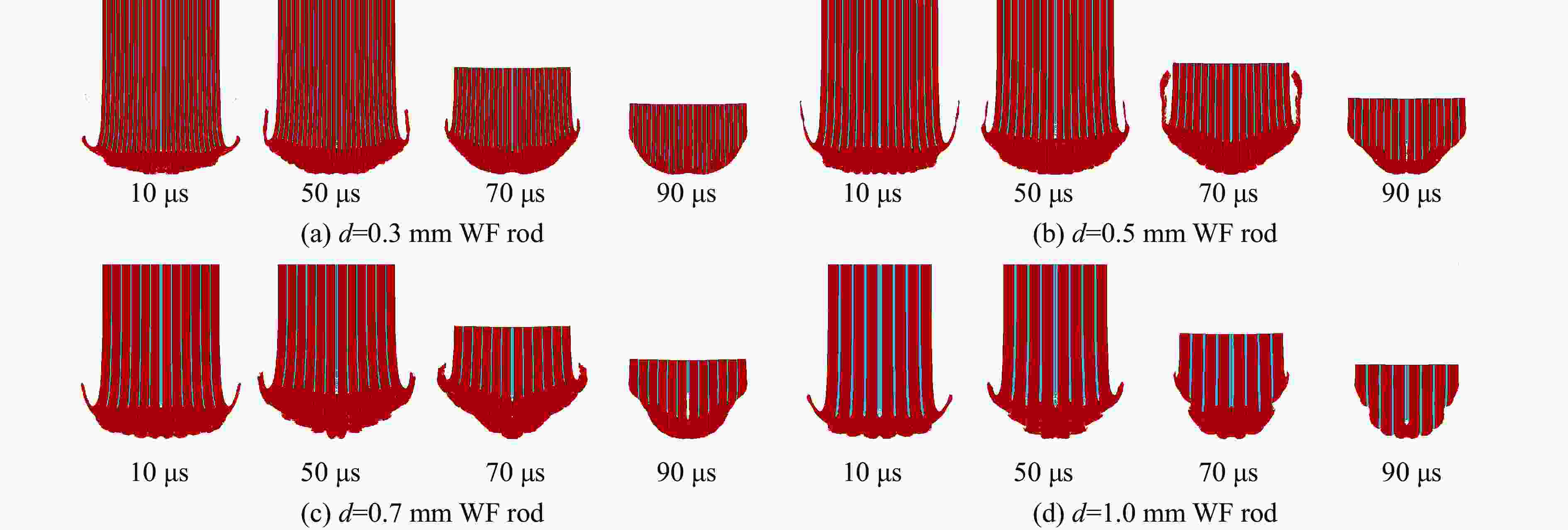

图 9 复合材料弹体以$ {v}_{0} $=800 m/s侵彻过程中的头形演化历程

Figure 9. Nose shape evolution of the composite long rods during the penetration at $ {v}_{0} $=800 m/s

下载: 全尺寸图片幻灯片

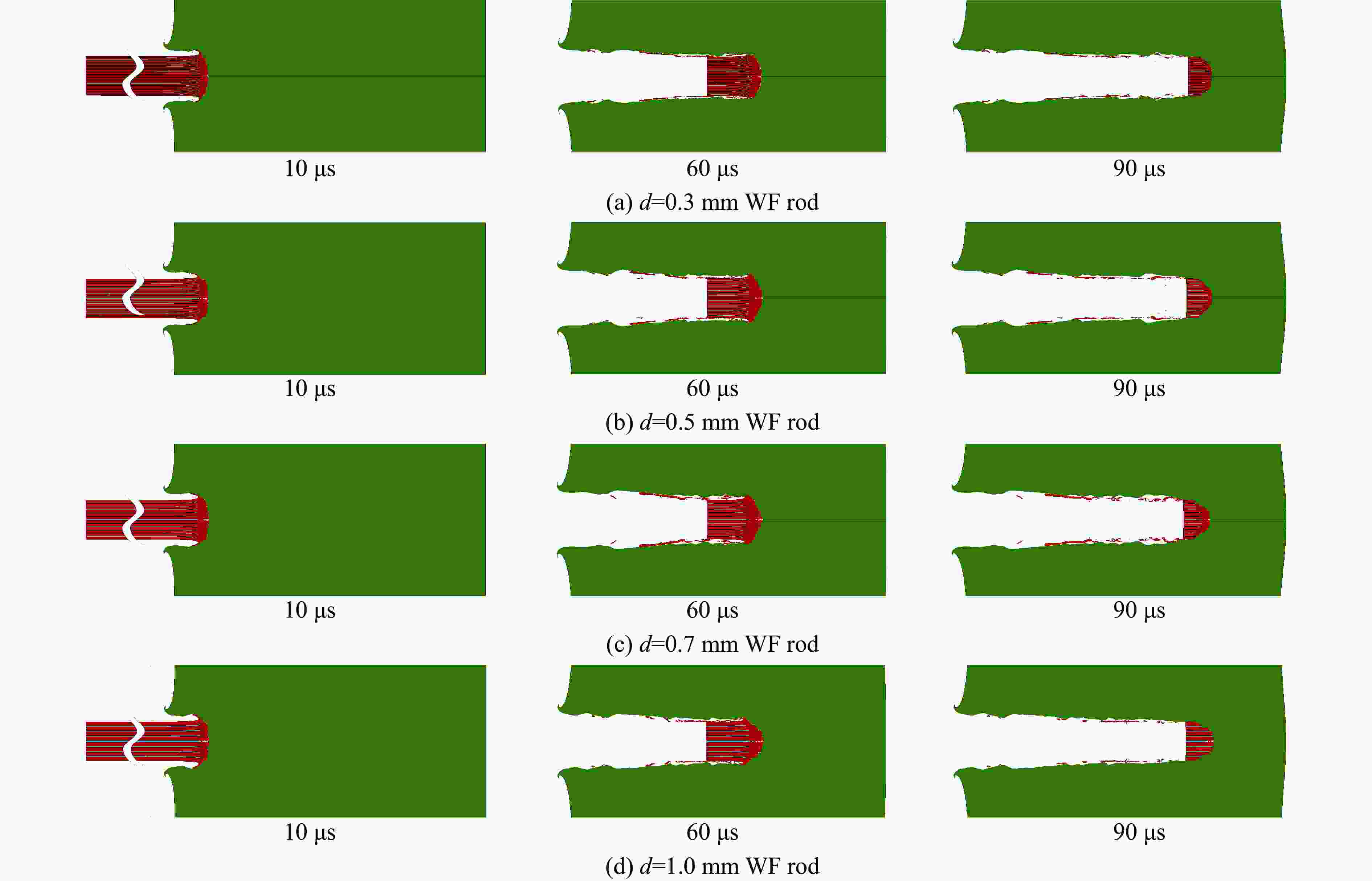

图 10 复合材料长杆弹以$ {v}_{0} $=1600 m/s侵彻钢靶历程

Figure 10. Penetration process of the composite long rods into steel target at $ {v}_{0} $=1600 m/s

下载: 全尺寸图片幻灯片

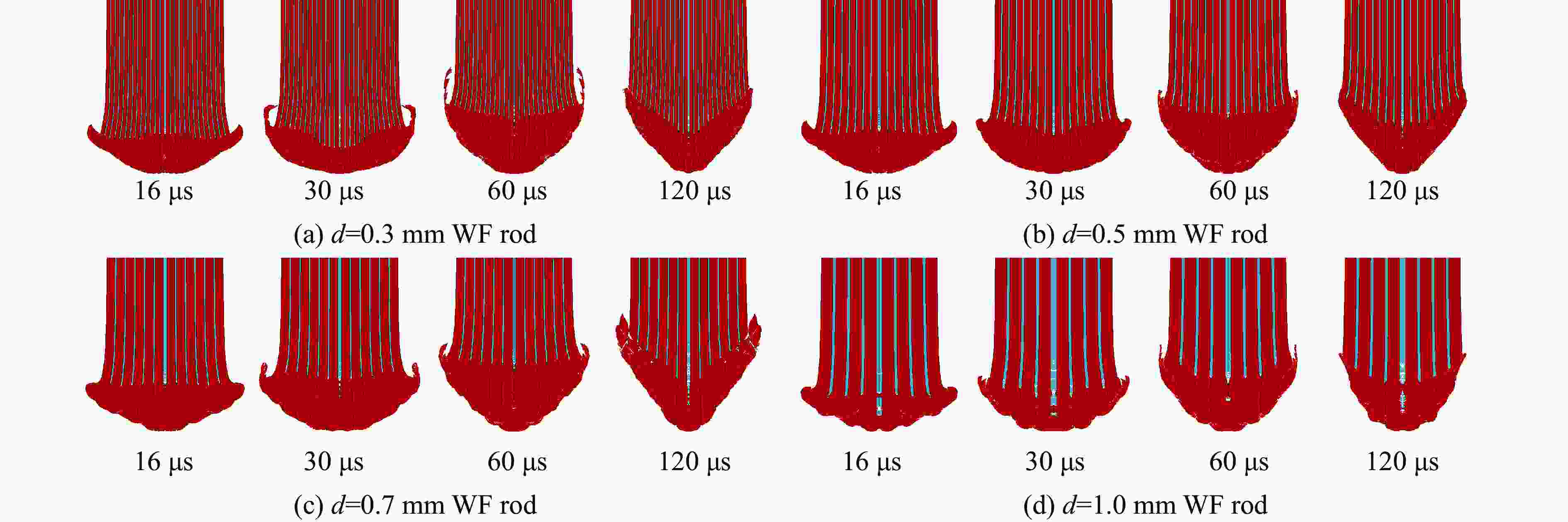

图 11 复合材料弹体以$ {v}_{0} $=1600 m/s侵彻过程中的头形演化历程

Figure 11. Nose shape evolution of the composite long rods during the penetration at $ {v}_{0} $=1600 m/s

下载: 全尺寸图片幻灯片

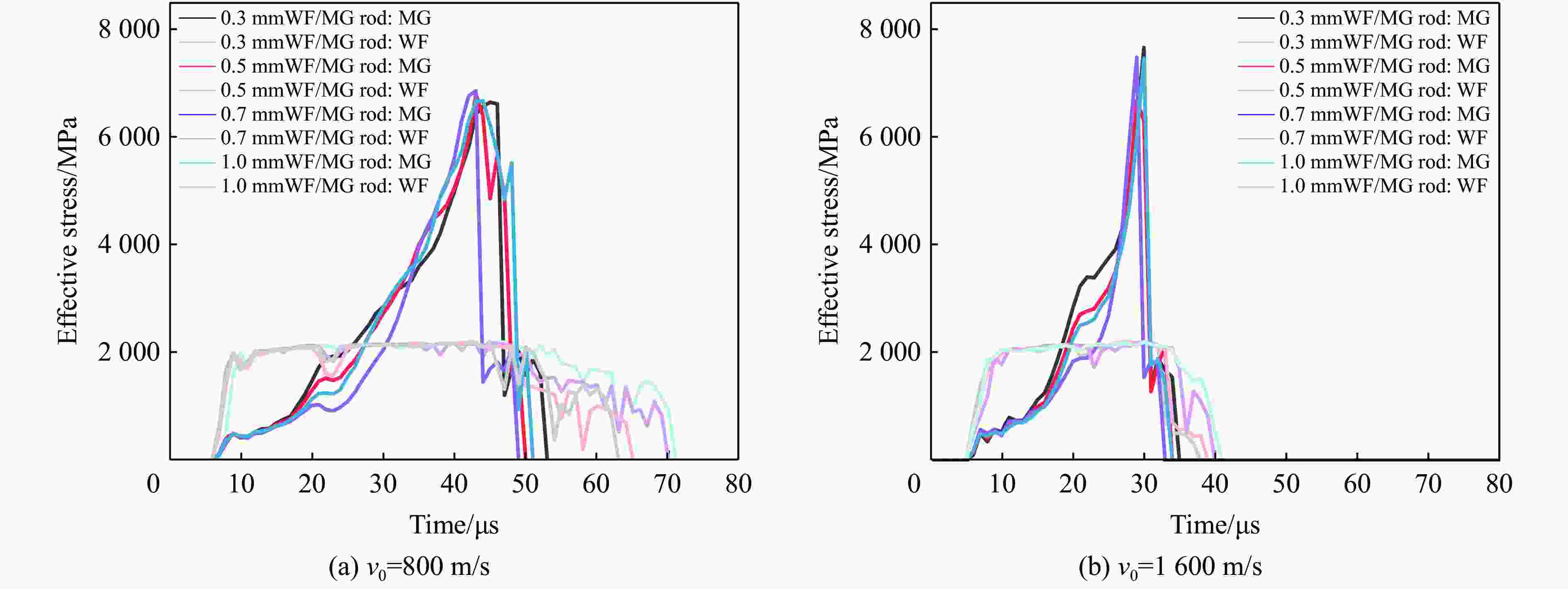

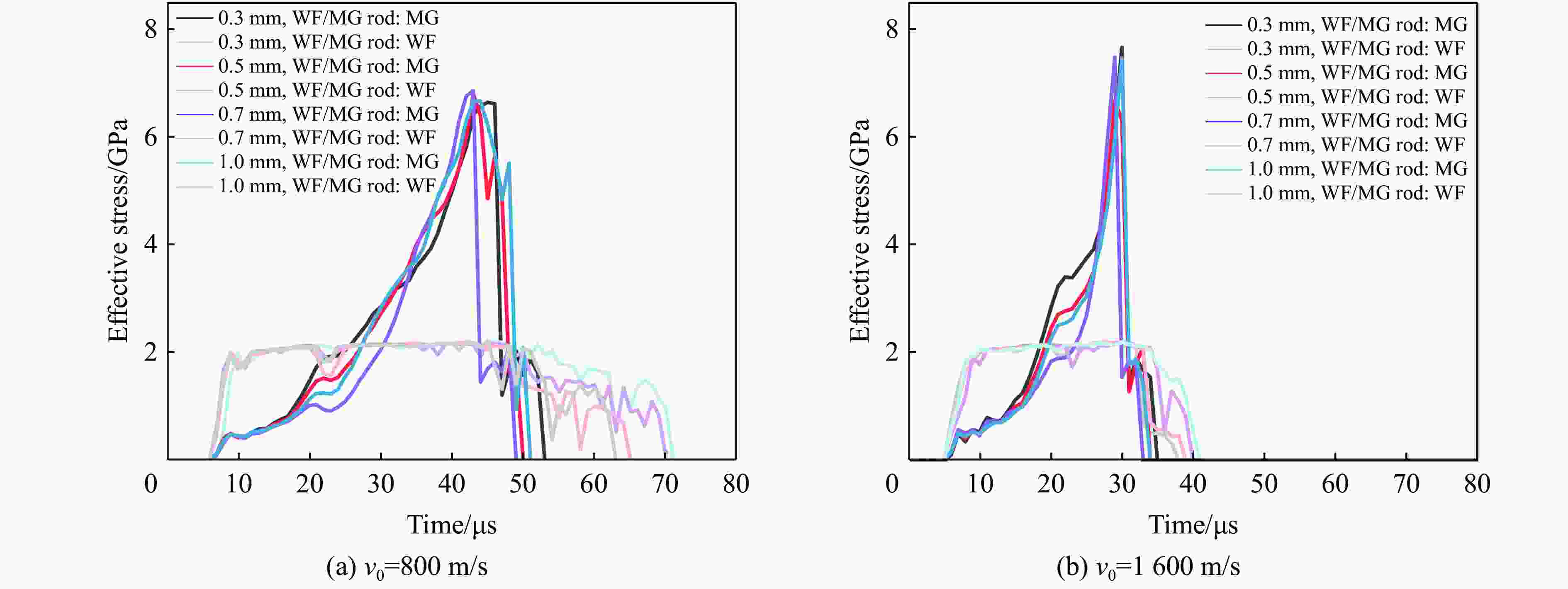

图 12 复合材料弹体侵彻钢靶过程中的关键点应力变化曲线

Figure 12. Stress evolution curves in the key points of the composite long rods during the penetration into steel target

下载: 全尺寸图片幻灯片

图 13 复合材料弹体侵彻靶板过程中的弹体形貌

Figure 13. The morphology of the composite rods penetrating the target

下载: 全尺寸图片幻灯片

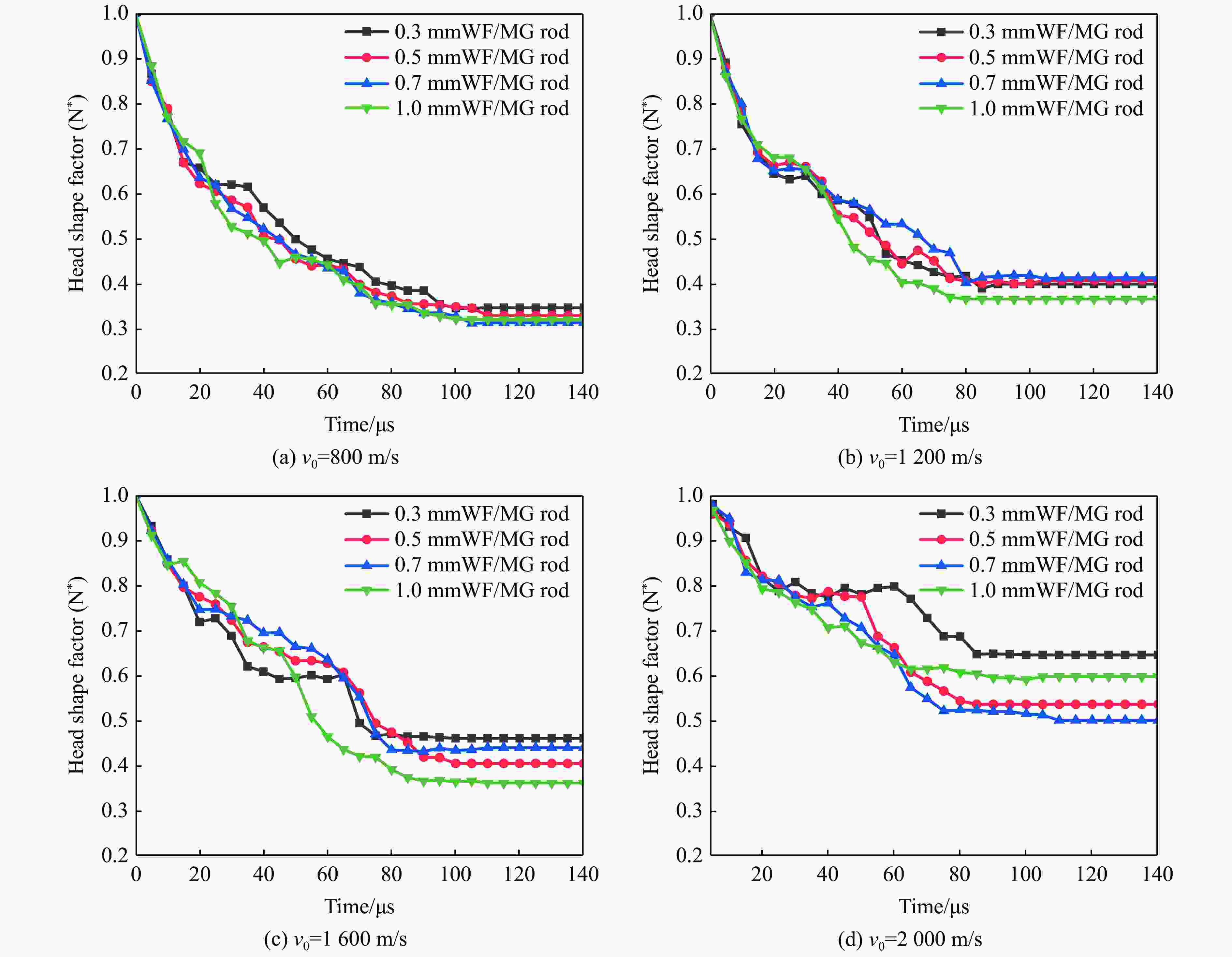

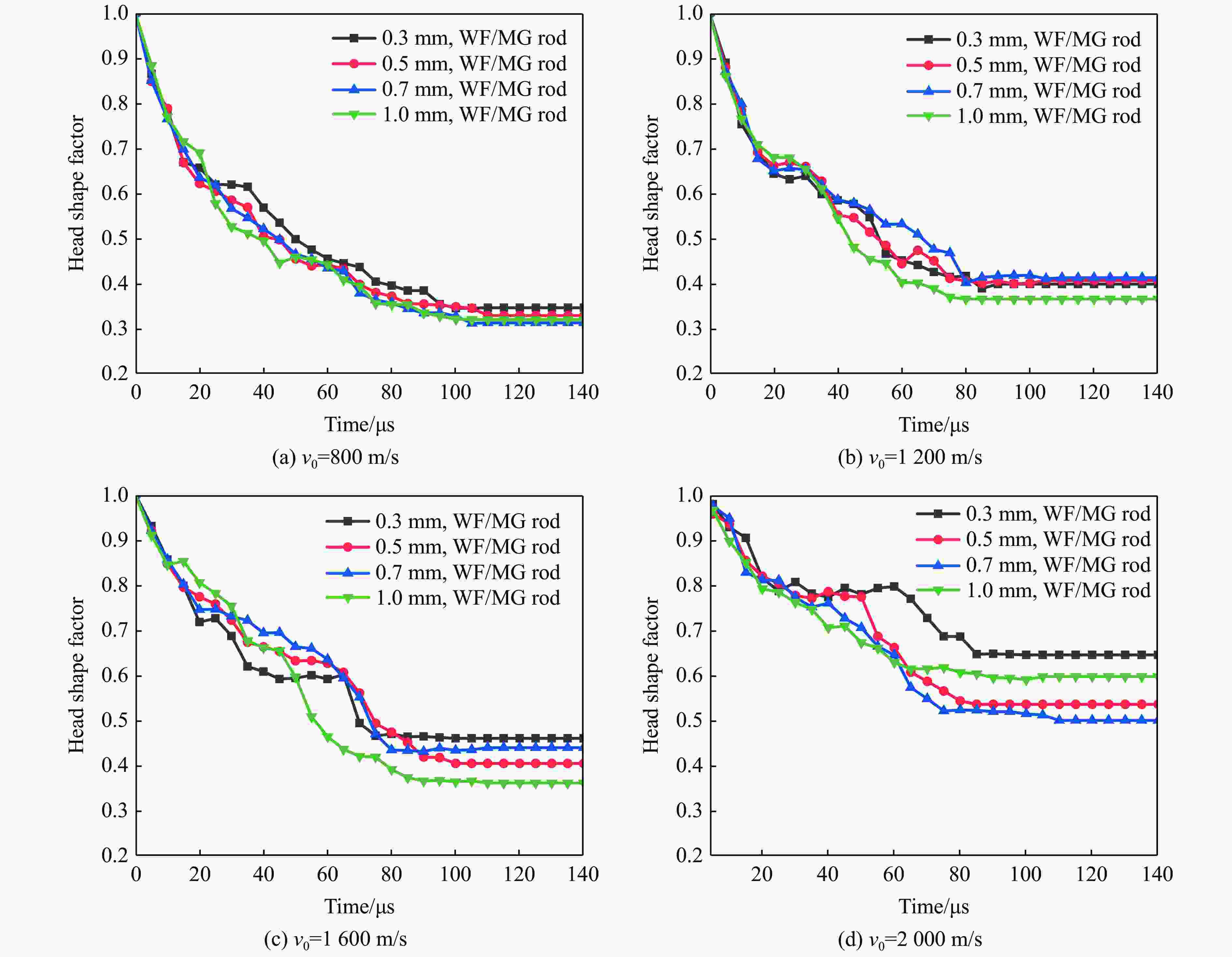

图 14 不同钨纤维直径复合材料弹体头形因子随时间变化历程

Figure 14. Variation characteristics of nose shape factor in the composite rods with different fiber diameters

下载: 全尺寸图片幻灯片

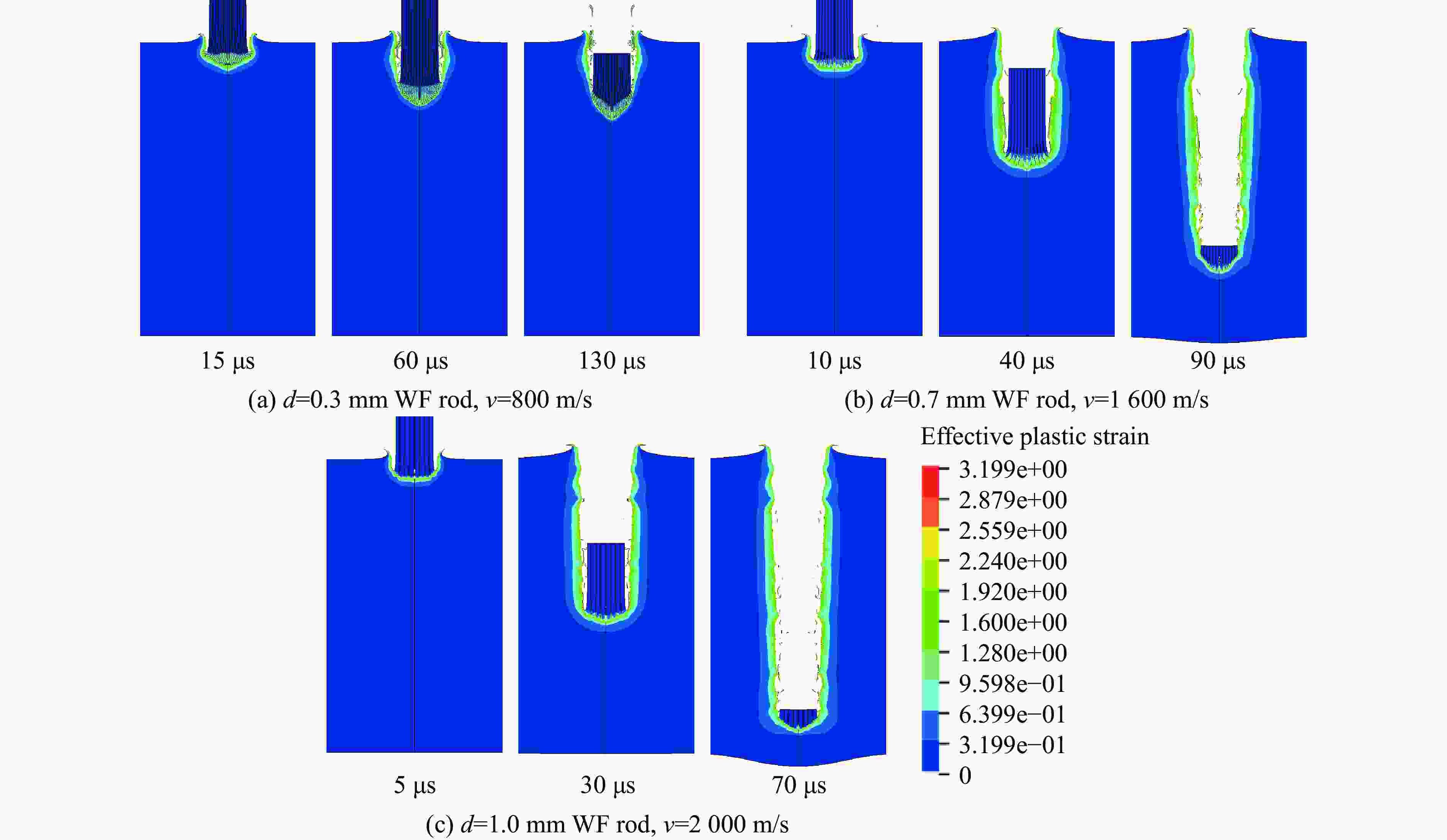

图 15 复合材料弹体侵彻靶板弹靶应变演化历程

Figure 15. Evolutions of effective strain within the projectile and target materials during the penetration process of composite rods into steel target

下载: 全尺寸图片幻灯片

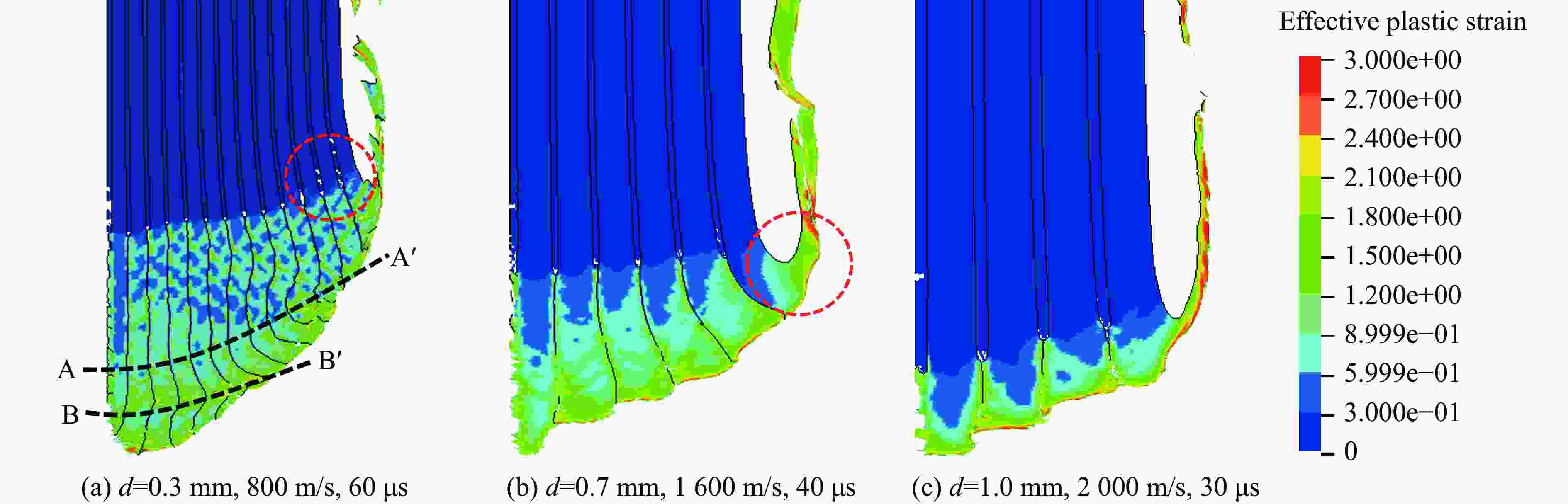

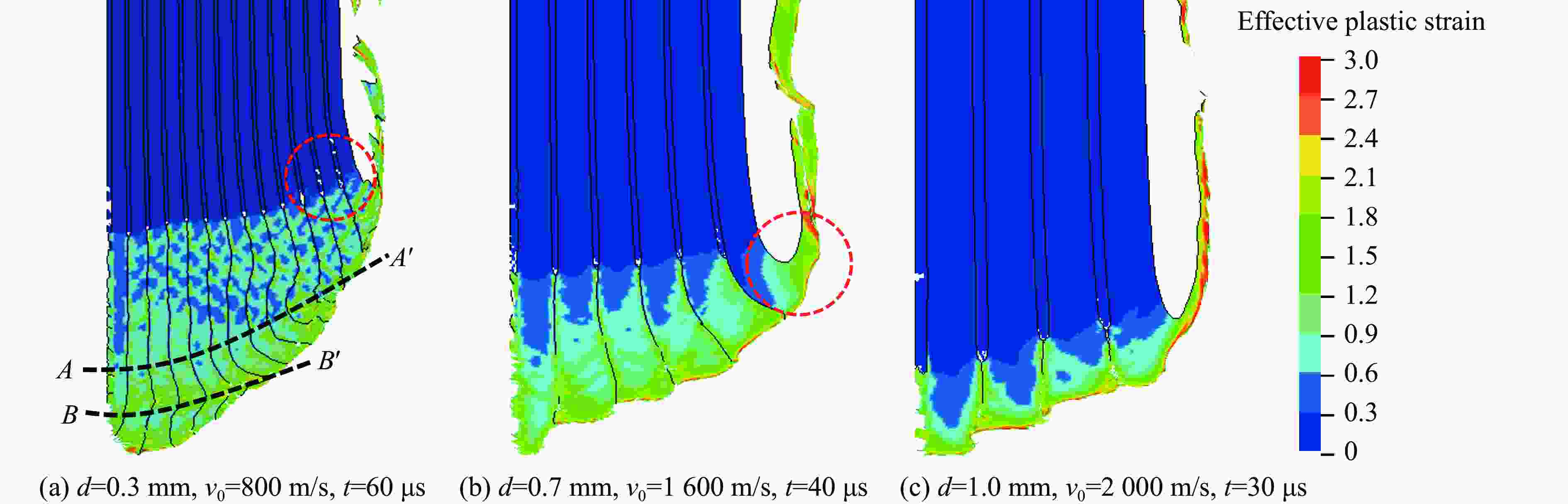

图 16 复合材料弹体弹头区域应变分布形貌

Figure 16. Distribution of effective strain in the nose of composite rods

下载: 全尺寸图片幻灯片

表 1 锆基金属玻璃本构模型参数^{[7, 8]}

Table 1. Parameters of constitutive model for Zr-based metallic glass ^{[7, 8]}

E/Gpa	ρ/(kg·m⁻³)	ν	C_v/J/(kg·K)	v^*/10⁻³⁰ m³	ξ_c	ξ₀	T_g/(K)
96	6125	0.36	400	20	134	0.05	625

T₀/(K)	Ω/10⁻³⁰ m³	f/s⁻¹	ΔG^m/eV	α	n_D	Λ
300	25	1×10¹³	ΔG^m ($ \dot{\varepsilon } $)	0.05	3	Λ_C=0.05 Λ_T=0.35

下载: 导出CSV

表 2 金属材料本构模型参数^[36-38]

Table 2. Constitutive model parameters for metallic materials^[36-38]

材料	E/GPa	ρ/(kg·m⁻³)	ν	T_r/K	T_m/K	C_v/(J·kg⁻¹·k⁻¹)	$ {\dot{\varepsilon }}_{0} $/s⁻¹
95W钨合金	410	17900	0.28	300	1752	134	1
30CrMnMo钢	200	7850	0.29	300	1793	477	1

材料	A/MPa	B/MPa	C	m	n	D₁	D₂
95W钨合金	1650	450	0.016	1.00	0.12	3.00	0
30CrMnMo钢	1200	310	0.014	1.03	0.26	3.20	0

材料	D₃	D₄	D₅	c₀/(m·s⁻¹)	S₁	γ₀	a
95W钨合金	0	0	0	3850	1.44	1.58	0
30CrMnMo钢	0	0	0	4578	1.38	1.67	0.47

下载: 导出CSV

表 3 穿甲试验及相应数值模拟结果

Table 3. Penetrating test and the corresponding simulation results

d/mm	v₀/( m·s⁻¹)	试验侵彻深度/mm	模拟侵彻深度/mm
d/mm	v₀/( m·s⁻¹)	试验侵彻深度/mm	二维	三维
0.3	1 560	60	60.14	63.09
0.5	1435	52	52.87	51.50
0.7	1475	54	54.84	51.10
1.0	1480	52	55.22	52.74

下载: 导出CSV

参考文献(42)

[1]	MAGNESS L S. High strain rate deformation behaviors of kinetic energy penetrator materials during ballistic impact [J]. Mechanics of Materials, 1994, 17(2-3): 147–154. DOI: 10.1016/0167-6636(94)90055-8.
[2]	BLEISE A, DANESI P R, BURKART W. Properties, use and health effects of depleted uranium (DU): a general overview [J]. Journal of Environmental Radioactivity, 2003, 64(2-3): 93–112. DOI: 10.1016/s0265-931x(02)00041-3.
[3]	CAI W D, LI Y, DOWDING R J, et al. A review of tungsten-based alloys as kinetic energy penetrator materials [J]. Reviews of Particulate Materials, 1995, 3(4): 71–132. DOI: 10.1108/13552549510104456.
[4]	李继承, 陈小伟. 块体玻璃及其复合材料的压缩剪切特性以及侵彻穿甲“自锐”行为 [J]. 力学进展, 2011, 41(5): 480–518. DOI: 10.6052/1000-0992-2011-5-lxjzJ2011-056. LI J C, CHEN X W. Compressive-shear behavior and self-sharpening of bulk metallic glasses and their composite materials [J]. Advances in Mechanics, 2011, 41(5): 480–518. DOI: 10.6052/1000-0992-2011-5-lxjzJ2011-056.
[5]	DAI L H, BAI Y L. Basic mechanical behaviors and mechanics of shear banding in BMGs [J]. International Journal of Impact Engineering, 2008, 35(8): 704–716. DOI: 10.1016/j.ijimpeng.2007.10.007.
[6]	GREER A L, CHENG Y Q, MA E. Shear bands in metallic glasses [J]. Materials Science and Engineering R, 2013, 74(4): 71–132. DOI: 10.1016/j.mser.2013.04.001.
[7]	LI J C, WEI Q, CHEN X W, et al. On the mechanism of deformation and fracture in bulk metallic glasses [J]. Materials Science and Engineering A, 2014, 610(5): 91–105. DOI: 10.1016/j.msea.2014.04.106.
[8]	LI J C, CHEN X W, HUANG F L. Inhomogeneous deformation in bulk metallic glasses: FEM analysis [J]. Materials Science and Engineering: A, 2015, 620(2): 333–351. DOI: 10.1016/j.msea.2014.10.013.
[9]	CONNER R D, DANDLIKER R B, SCRUGGS V, et al. Dynamic deformation behavior of tungsten-fiber /metallic–glass matrix composites [J]. International Journal of Impact Engineering., 2000, 24(5): 435–444. DOI: 10.1016/s0734-743x(99)00176-1.
[10]	CHOI-YIM H, CONNER R D, SZUECS F, et al. Quasistatic and dynamic deformation of tungsten reinforced Zr57Nb5Al10Cu15.4Ni12.6 bulk metallic glass matrix [J]. Scripta Materialia, 2001, 45(9): 1039–1045. DOI: 10.1016/s1359-6462(01)01134-4.
[11]	陈小伟, 李继承, 张方举, 等. 钨纤维增强金属玻璃复合材料弹穿甲钢靶的实验研究 [J]. 爆炸与冲击, 2012, 32(4): 346–354. DOI: 10.11883/1001-1455(2012)04-0346-09. CHEN X W, LI J C, ZHANG F J, et al. Experimental research on the penetration of tungsten-fiber /metallic glass-matrix composite material penetrator into steel target [J]. Explosion and Shock Waves, 2012, 32(4): 346–354. DOI: 10.11883/1001-1455(2012)04-0346-09.
[12]	CHEN X W, WEI L M, LI J C. Experimental research on long rod penetration of tungsten fiber/Zr-based metallic glass matrix composite into Q235 steel target [J]. International Journal of Impact Engineering, 2015, 79(3): 102–116. DOI: 10.1016/j.ijimpeng.2014.11.007.
[13]	雷波. 钨纤维复合材料穿甲弹芯自锐行为的试验研究[D]. 沈阳: 沈阳理工大学, 2008.
[14]	荣光, 黄德武. 钨纤维复合材料穿甲弹芯侵彻时的自锐现象 [J]. 爆炸与冲击, 2009, 29(4): 351–355. DOI: 10.11883/1001-1455(2009)04-0351-05. RONG G, HUABG D W. Self-sharpening phenomena of tungsten fiber composite material penetrators during penetration [J]. Explosion and Shock Waves, 2009, 29(4): 351–355. DOI: 10.11883/1001-1455(2009)04-0351-05.
[15]	RONG G, HUANG D W, YANG M C. Penetrating behaviors of Zr-based metallic glass composite rods reinforced by tungsten fibers [J]. Theoretical and Applied Fracture Mechanics, 2012, 58(1): 21–27. DOI: 10.1016/j.tafmec.2012.02.003.
[16]	夏龙祥. 钨纤维增强块体金属非晶复合材料侵彻行为研究[D]. 南京: 南京理工大学, 2013.
[17]	DU C X, SHU D W, DU Z H, et al. Effect of L/D on penetration performance of tungsten fiber / Zr-based bulk metallic glass matrix composite rod [J]. International Journal of Refractory Metals and Hard Materials, 2019, 85(3): 105042–1-9. DOI: 10.1016/j.ijrmhm.2019.105042.
[18]	ZHOU F, DU C X, DU Z H, et al. Penetration gain study of a tungsten-fiber / Zr-based metallic glass matrix composite [J]. Crystals, 2022, 12(2): 284–1-12. DOI: 10.3390/cryst12020284.
[19]	ZHOU F, DU C X, CHENG C, et al. Penetration performance and fragmentation mechanism behind target of tungsten fibre / zirconium-based bulk metallic glass matrix composite rod [J]. International Journal of Refractory Metals and Hard Materials, 2023, 112(2): 106160–1-10. DOI: 10.1016/j.ijrmhm.2023.106160.
[20]	吴烁罡, 杜成鑫, 周峰, 等. 钨丝/锆基非晶复合材料与93W合金弹芯侵彻靶板的损伤特征[J]. 爆炸与冲击, 2024, 44(4): 043302-1-1~11. DOI: 10.11883/bzycj-2023-0312. WU S G, DU C X, ZHOU F, et al. Damage characteristic of target penetrated by WF/Zr-MG and 93W rods[J]. Explosion and Shock Waves, 2024, 44(4): 043302-1-1~11. DOI: 10.11883/bzycj-2023-0312.
[21]	DANDLIKER, R. B, CONNER, R. D. &JOHNSON, W. L. Melt infiltration casting of bulk metallic-glass matrix composites[J]. Journal of Materials Research 13, 2896–2901 (1998). DOI: 10.1557/JMR.1998.0396.
[22]	MA W F, KOU H C, CHEN C S, et al. Interfacial characteristics and dynamic mechanical properties of Wf/Zr-based metallic glass matrix composites [J]. Transactions of Nonferrous Metals Society of China, 2007, 18(1): 77–81. DOI: 10.1016/S1003-6326(08)60014-X.
[23]	ZHANG H F, LI H, WANG A M, et al. Synthesis and characteristics of 80 vol. % tungsten (W) fibre-Zr based metallic glass composite [J]. Intermetallics, 2009, 17(11): 1070–1077. DOI: 10.1016/j.intermet.2009.05.011.
[24]	ZONG H T, MA M Z, LIU L, et al. Wf/Zr_41.2Ti_13.8Cu_12.5Ni₁₀Be_22.5 bulk metallic glass composites prepared by a new melt infiltrating method [J]. Journal of Alloys and Compounds, 2010, 504(8): 106–109. DOI: 10.1016/j.jallcom.2010.02.045.
[25]	陈晓华, 张保玉, 惠希东. 钨丝直径对连续锆基非晶复合材料拉伸行为的影响 [J]. 稀有金属材料工程, 2015, 44(2): 469–474. DOI: CNKI:SUN:COSE.0.2015-02-041. CHEN X H, ZHANG B Y, HUI X D. Effect of different diameters of tungsten wires on tensile mechanical behaviors of continuously manufactured zr-based bulk metallic glass composites [J]. Rare Metal Materials and Engineering, 2015, 44(2): 469–474. DOI: CNKI:SUN:COSE.0.2017-04-036.
[26]	王鲁, 王富耻, 程焕武, 等. 钨丝/锆基非晶合金复合材料的动态力学特性 [J]. 北京理工大学学报, 2003, 23(2): 165–167. DOI: 10.3969/j.issn.1001-0645.2003.02.009. WANG L, WANG F C, CHENG H W, et al. Dynamic mechanical characteristics of W fiber/Zr-based amorphous matrix composites [J]. Transactions of Beijing Institute of Technology, 2003, 23(2): 165–167. DOI: 10.3969/j.issn.1001-0645.2003.02.009.
[27]	WANG G, CHEN D M, SHEN J, et al. Deformation behaviors of a tungsten-wire/bulk metallic glass matrix composite in a wide strain rate range [J]. Journal of Non-Crystalline Solids, 2006, 352(2): 3872–3878. DOI: 10.1016/j.jnoncrysol.2006.06.037.
[28]	程焕武, 才鸿年, 王鲁, 等. 钨丝增强锆基非晶合金复合材料动态变形特征研究 [J]. 兵器材料科学与工程, 2008, 31(2): 2327. DOI: 10.14024/j.cnki.1004-244x.2008.02.014. CHENG H W, CAI H N, WANG L, et al. Dynamic deformation of tungsten fiber Zr-based amorphous matrix composites [J]. Ordnance Material Science and Engineering, 2008, 31(2): 2327. DOI: 10.14024/j.cnki.1004-244x.2008.02.014.
[29]	马卫锋, 寇宏超, 李金山, 等. 钨丝增强Zr基非晶复合材料动态力学行为及断裂特性 [J]. 中国有色金属学报, 2008, 18(6): 1045–1050. DOI: 10.19476/j.ysxb.1004.0609.2008.06.015. MA W F, KOU H C, LI J S, et al. Dynamic mechanical behaviors and fracture characteristic of tungsten fiber reinforced Zr-based metallic glass matrix composites [J]. The Chinese Journal of Nonferrous Metals, 2008, 18(6): 1045–1050. DOI: 10.19476/j.ysxb.1004.0609.2008.06.015.
[30]	杜成鑫, 杜忠华, 朱正旺. 钨丝直径对锆基复合非晶材料穿甲性能的影响 [J]. 稀有金属材料工程, 2017, 46(04): 1080–1085. DOI: CNKI:SUN:COSE.0.2017-04-036. DU C X, DU Z H, ZHU Z W. Effect of tungsten fiber diameter on penetration ability of Zr-based metallic glass composites [J]. Rare Metal Materials And Engineering, 2017, 46(04): 1080–1085. DOI: CNKI:SUN:COSE.0.2017-04-036.
[31]	杜成鑫, 杜忠华, 朱正旺. 着靶速度和钨丝直径对钨丝/锆基非晶复合材料弹体芯侵彻性能的影响 [J]. 稀有金属材料工程, 2017, 46(06): 1632–1637. DOI: CNKI:SUN:COSE.0.2017-06-030. DU C X, DU Z H, ZHU Z W. Effect of impact velocity and diameter of tungsten fiber on penetration ability of Wf/Zr-based metallic glass composite penetrator [J]. Rare Metal Materials And Engineering, 2017, 46(06): 1632–1637. DOI: CNKI:SUN:COSE.0.2017-06-030.
[32]	LI J C, CHEN X W, HUANG F L. FEM analysis on the “self-sharpening” behavior of tungsten fiber / metallic glass matrix composite long rod [J]. International Journal of Impact Engineering, 2015, 86(6): 67–83. DOI: 10.1016/j.ijimpeng.2015.07.006.
[33]	LI J C, CHEN X W, HUAGN F L. FEM analysis on the deformation and failure of fiber reinforced metallic glass matrix composite [J]. Materials Science and Engineering: A, 2016, 652(5): 145–166. DOI: 10.1016/j.msea.2015.11.051.
[34]	LI J C, CHEN X W, HUANG F L. On the mechanical properties of particle reinforced metallic glass matrix composites [J]. Journal of Alloys and Compounds, 2018, 737(5): 271–294.
[35]	LI J C, CHEN X W, HUANG F L. Ballistic performance of tungsten particle/metallic glass matrix composite long rod [J]. Defence Technology, 2019, 15(5): 132–145. DOI: 10.1016/j.dt.2018.06.009.
[36]	陈建良, 李继承. 钨纤维增强金属玻璃复合材料分段弹体侵彻性能研究[J]. 爆炸与冲击, 2020, 40(6): 063201-1~12. DOI: 10.11883/bzycj-2019-0379. CHEN J L, LI J C. Ballistic behavior of tungsten fiber/metallic glass matrix composite segmented rods[J]. Explosion and Shock Waves, 2020, 40(6): 063201-1~12. DOI: 10.11883/bzycj-2019-0379.
[37]	章浪, 赵丰鹏, 张钰忠 , 等. 钨纤维增强金属玻璃复合材料的长杆弹斜侵彻/穿甲性能[J]. 爆炸与冲击, 2025, 45(3): 033302-1-15. DOI: 10.11883/bzycj-2024-0158. ZHANG L, ZHAO F P, ZHANG Y Z, et al. Ballistic performance of tungsten fiber-reinforced metallic glass composite in the long rod oblique penetration/perforation[J]. Explosion and Shock Waves, 2025, 45(3): 033302-1-15. DOI: 10.11883/bzycj-2024-0158.
[38]	任杰, 章浪, 李继承, 等. Wf/Zr基复合材料长杆弹在不同速度下的头形转变规律 [J]. 包装工程, 2024, 45(19): 134–143. DOI: 10.19554/j.cnki.1001-3563.2024.19.013. REN J, ZHANG L, LI J C, et al. Nose shape transition characteristics with impact velocity in tungsten fiber reinforced metallic glass composite long rod [J]. Packaging Engineering, 2024, 45(19): 134–143. DOI: 10.19554/j.cnki.1001-3563.2024.19.013.
[39]	JOHNSON G R, COOK W H. Fracture characteristics of three metals subjected to various strains, strain rates, temperatures, and pressures [J]. Engineering. Fracture Mechanics, 1985, 21(1): 31–48. DOI: 10.1016/0013-7944(85)90052-9.
[40]	JOHNSON G R, COOK W H. A constitutive model and data for metals subjected to large strains, high strain rates and high temperature[C]. In: Proceedings of the seventh International Symposium of Ballistics, Hague, Netherlands: International Ballistics Committee; 1983: pp: 541–547.
[41]	WANG L L, YANG L M, DONG X L, et al. Dynamics of materials: experiments, models and applications (1st Edition) [M]. Academic Press: London, United Kingdom, 2019.
[42]	LEBER S, TAVERNELLI J, White D D, et al. Fracture modes in tungsten wire [J]. Journal of the Less Common Metals, 1976, 48(1): 119–133. DOI: 10.1016/0022-5088(76)90238-1.
