摘要:

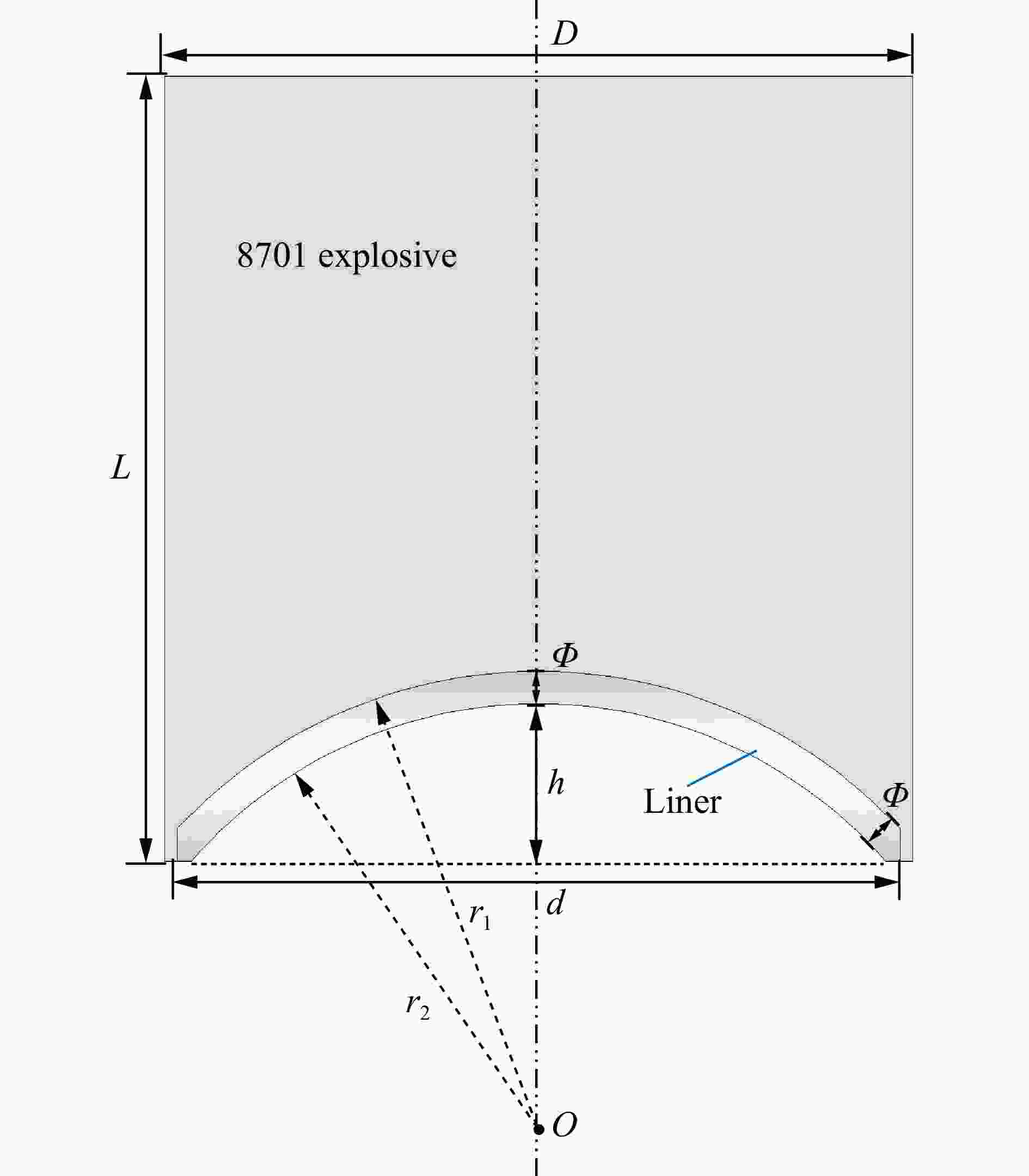

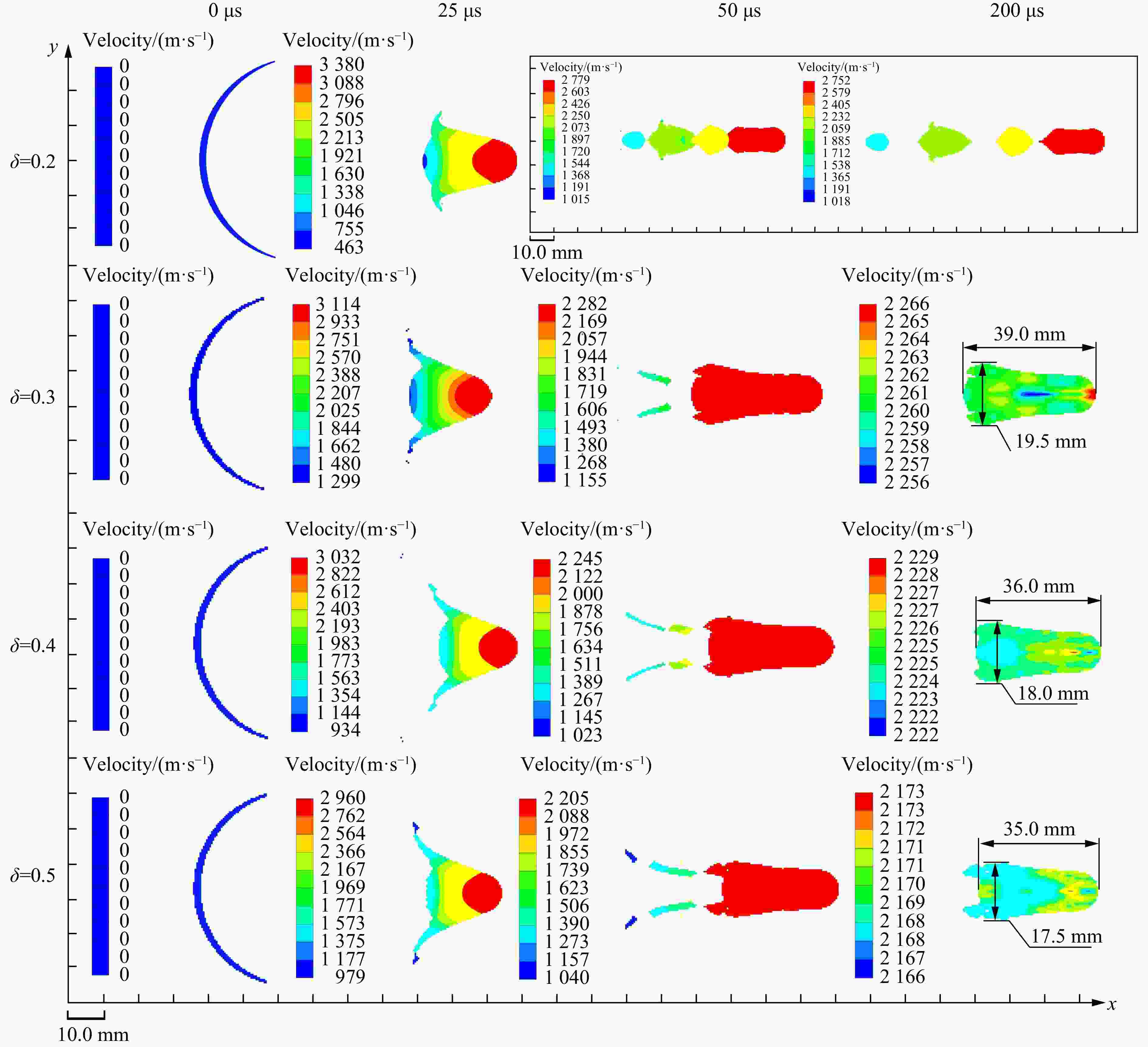

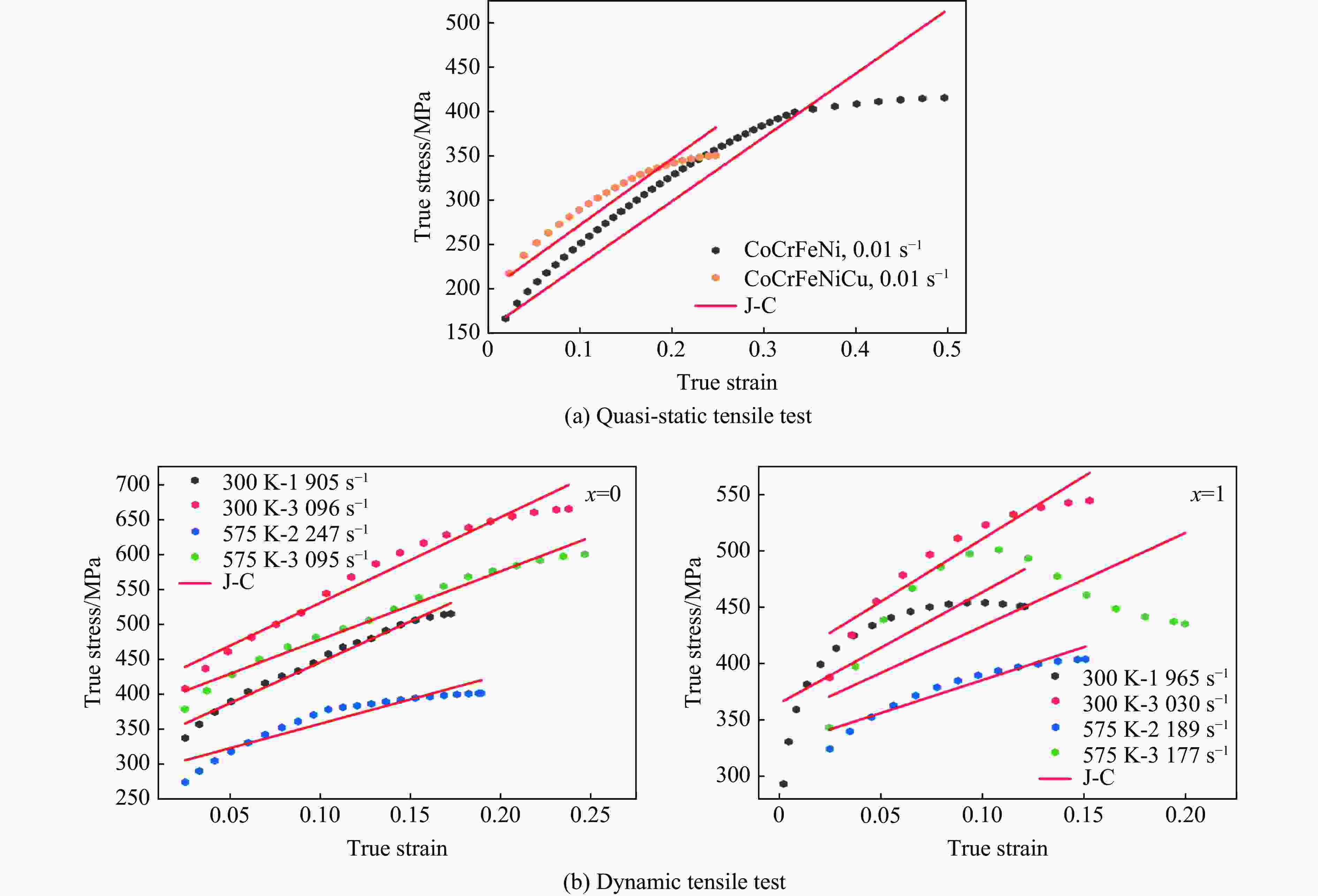

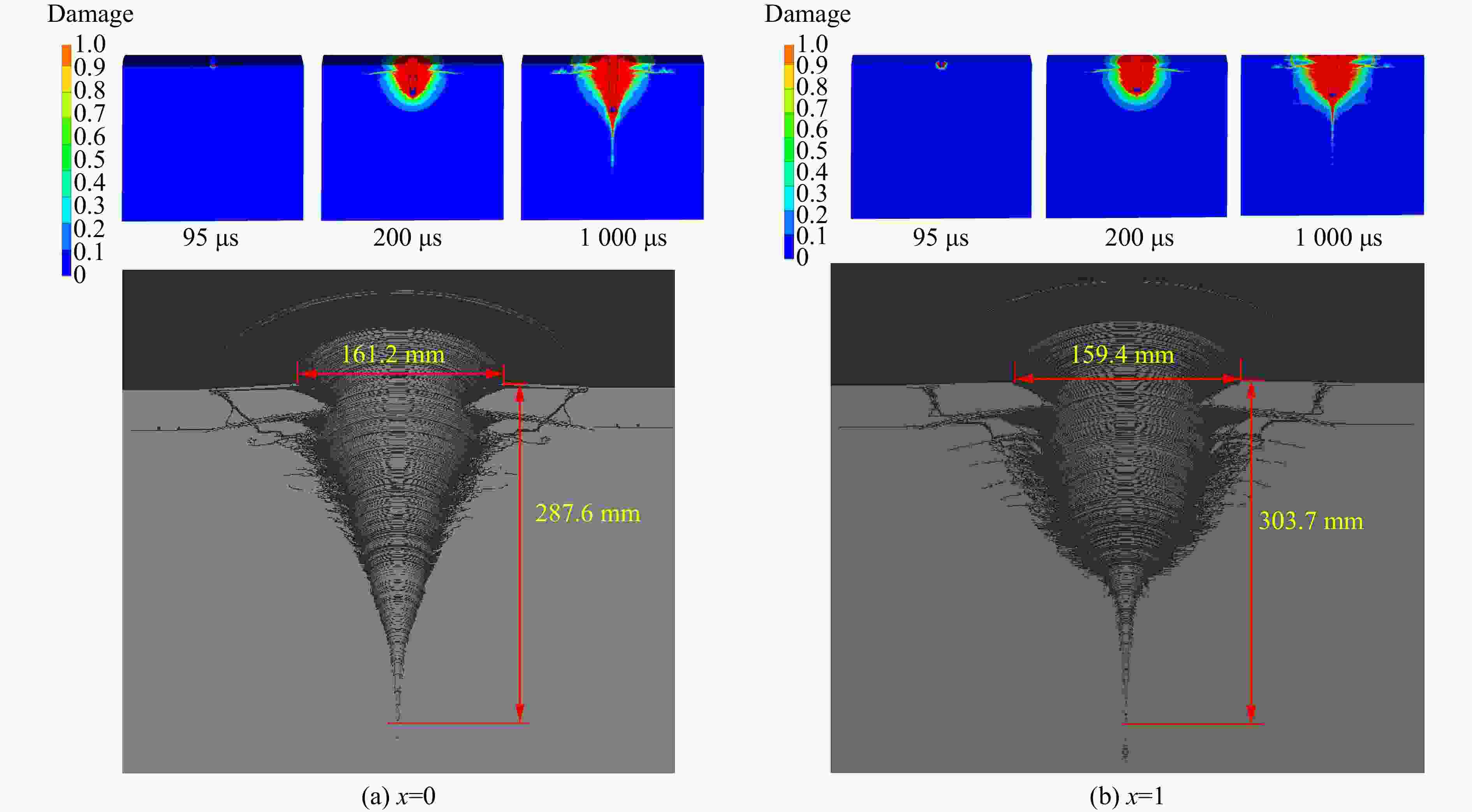

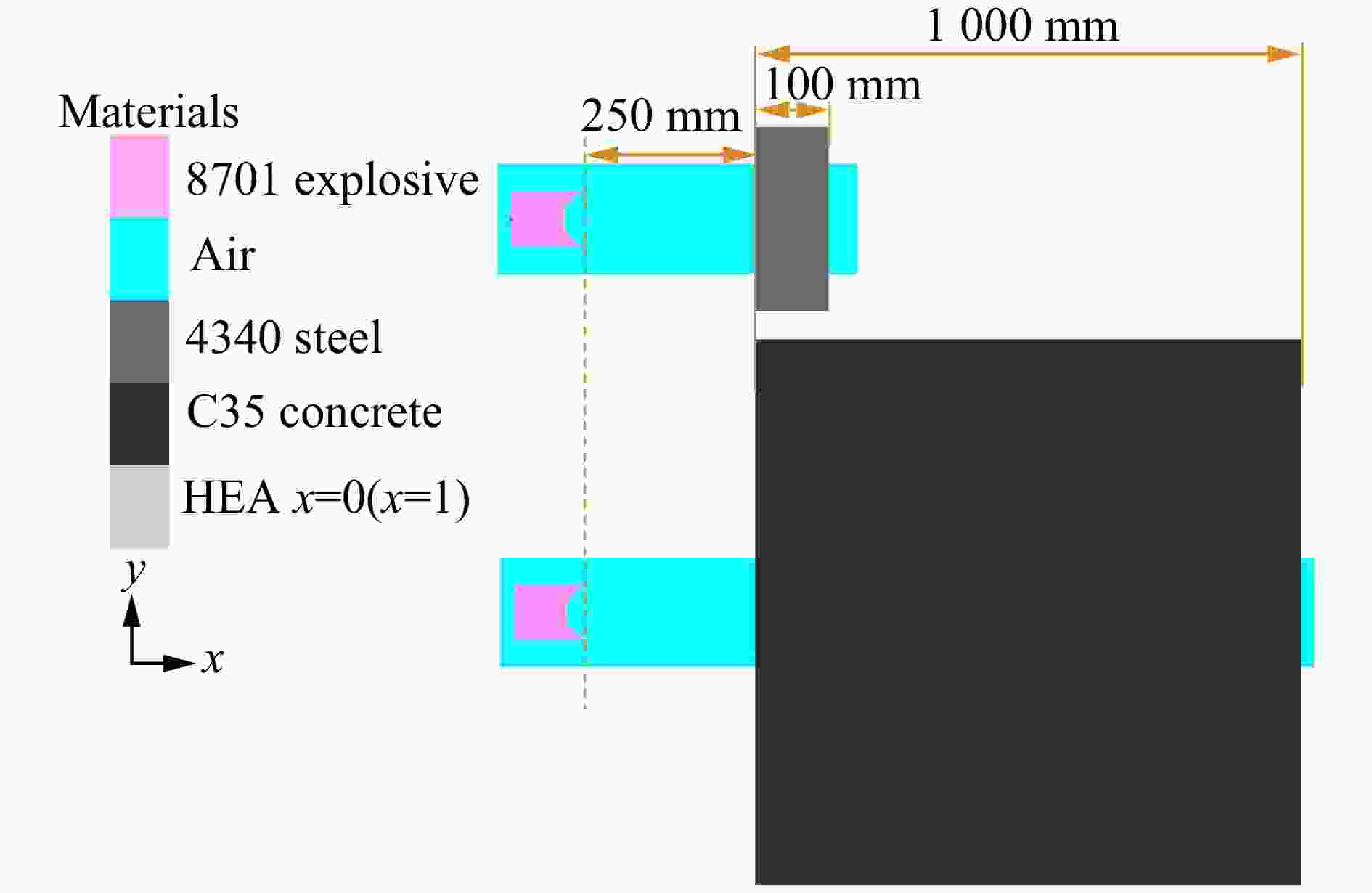

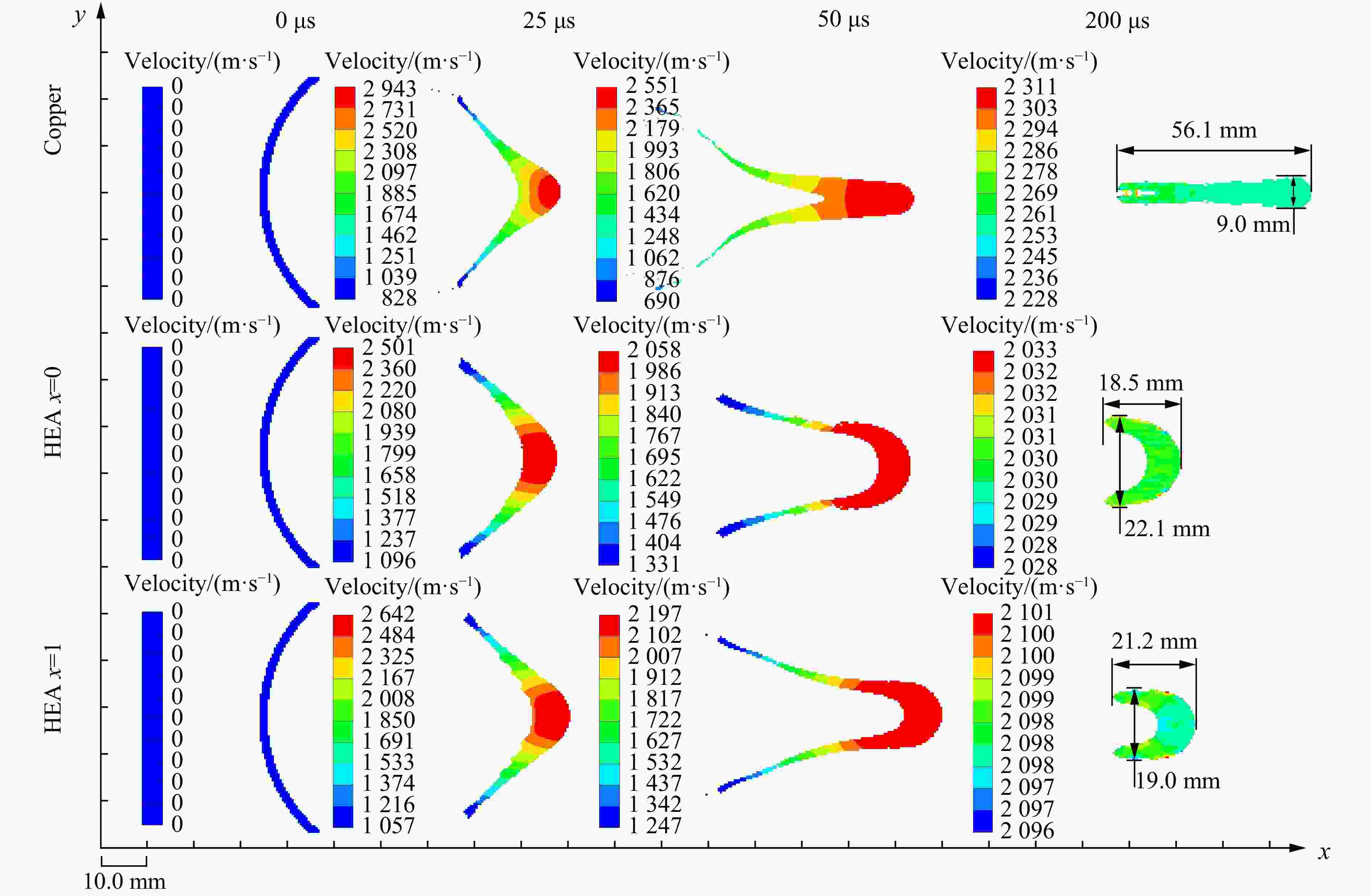

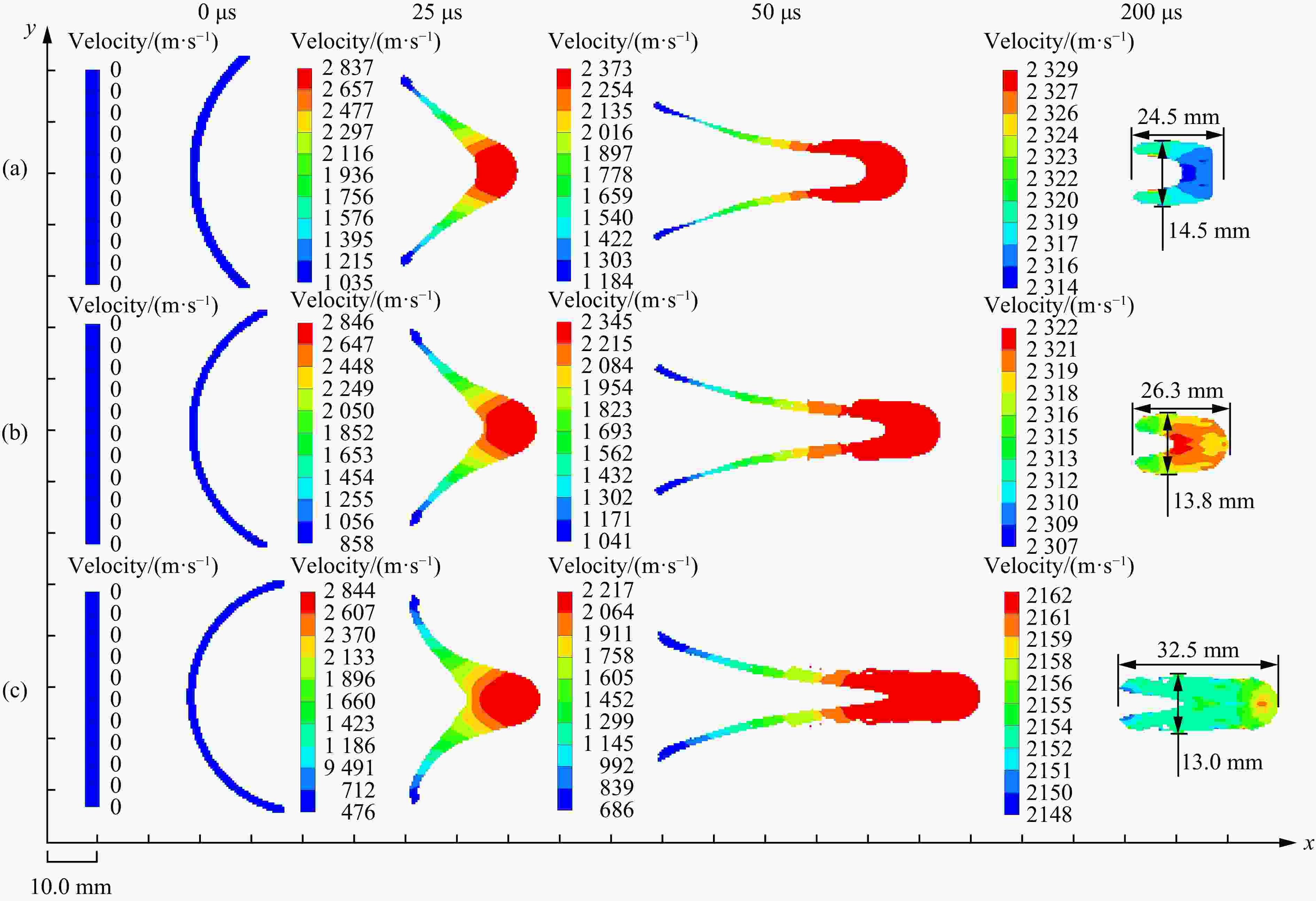

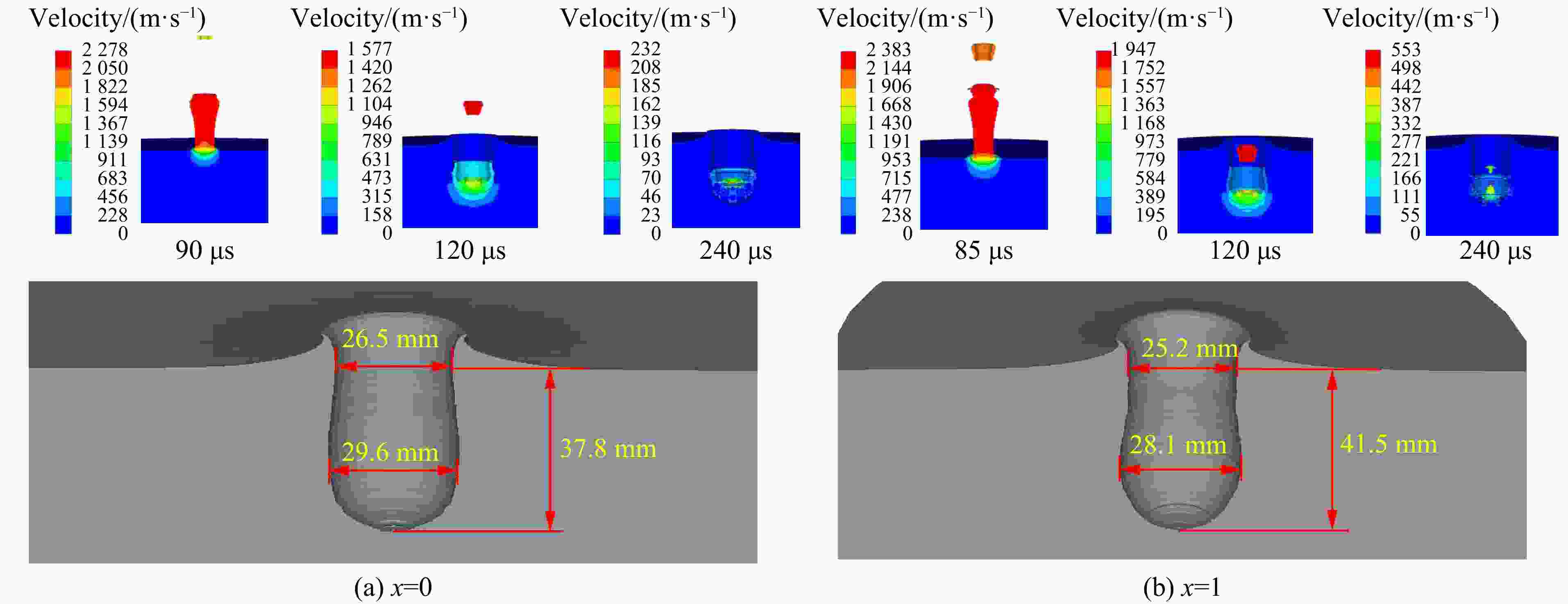

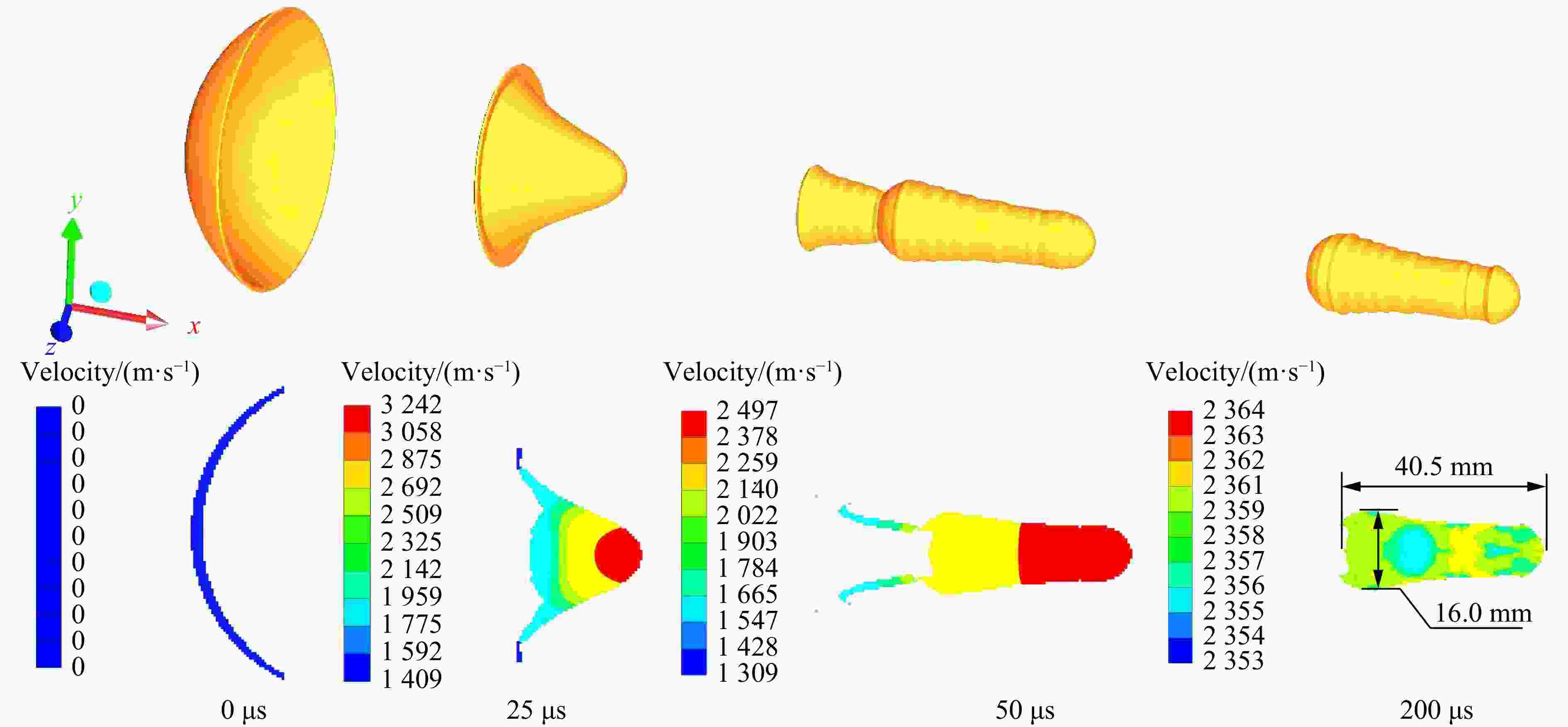

高熵合金作为一种新型高性能金属材料,在毁伤侵彻领域展现出应用潜力。本研究探究了CoCrFeNiCux 高熵合金作为药型罩材料在爆炸成型弹丸领域中的应用潜力,旨在通过优化药型罩结构提升爆炸成形弹丸的成形性能与毁伤效能。通过准静态与动态拉伸试验获取了合金的力学性能,并拟合了Johnson-Cook本构模型参数。结果表明,两种高熵合金(x=0, 1)均表现出优异的塑性、延展性及正应变率敏感性,动态屈服强度随应变率升高显著提升。基基于AUTODYN软件对比分析了紫铜与高熵合金药型罩的成形规律,发现高熵合金因强度高导致初始结构成形困难,弹丸尾部闭合不良。通过对药型罩进行均匀变壁厚优化,使形成的爆炸成型弹丸长径比分别提升至2.0(x=0)和2.5(x=1),速度分别达2260 m/s和2357 m/s。侵彻性能验证表明,优化后的弹丸对100 mm厚4340钢靶的侵彻深度分别为37.8 mm和41.5 mm,对1000 mm厚C35混凝土靶的侵彻深度分别达287.6 mm和303.7 mm,扩孔直径均超过装药口径的260%,显示出优异的侵彻毁伤能力。研究表明,通过优化CoCrFeNiCux 高熵合金药型罩结构可显著改善爆炸成型弹丸的成形质量与侵彻性能,为高效毁伤战斗部设计提供了理论依据与新思路。
Abstract:

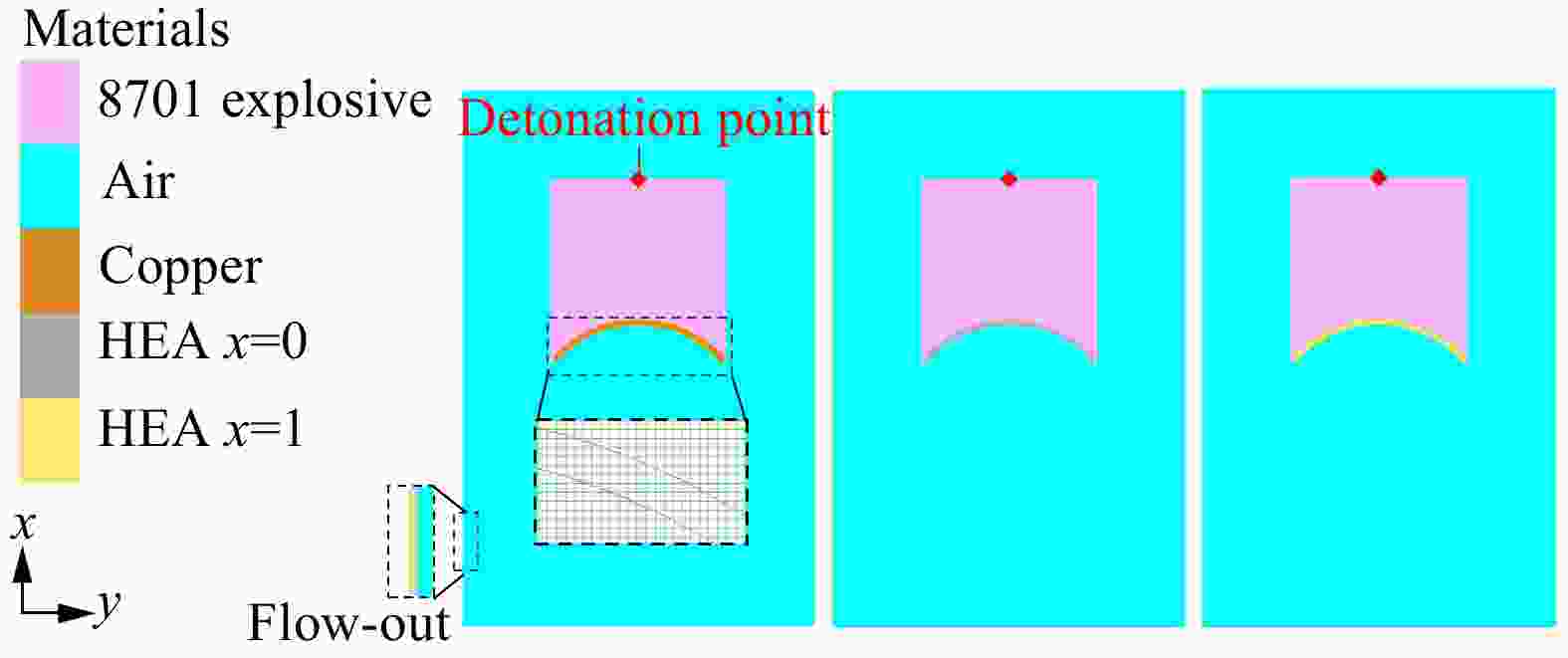

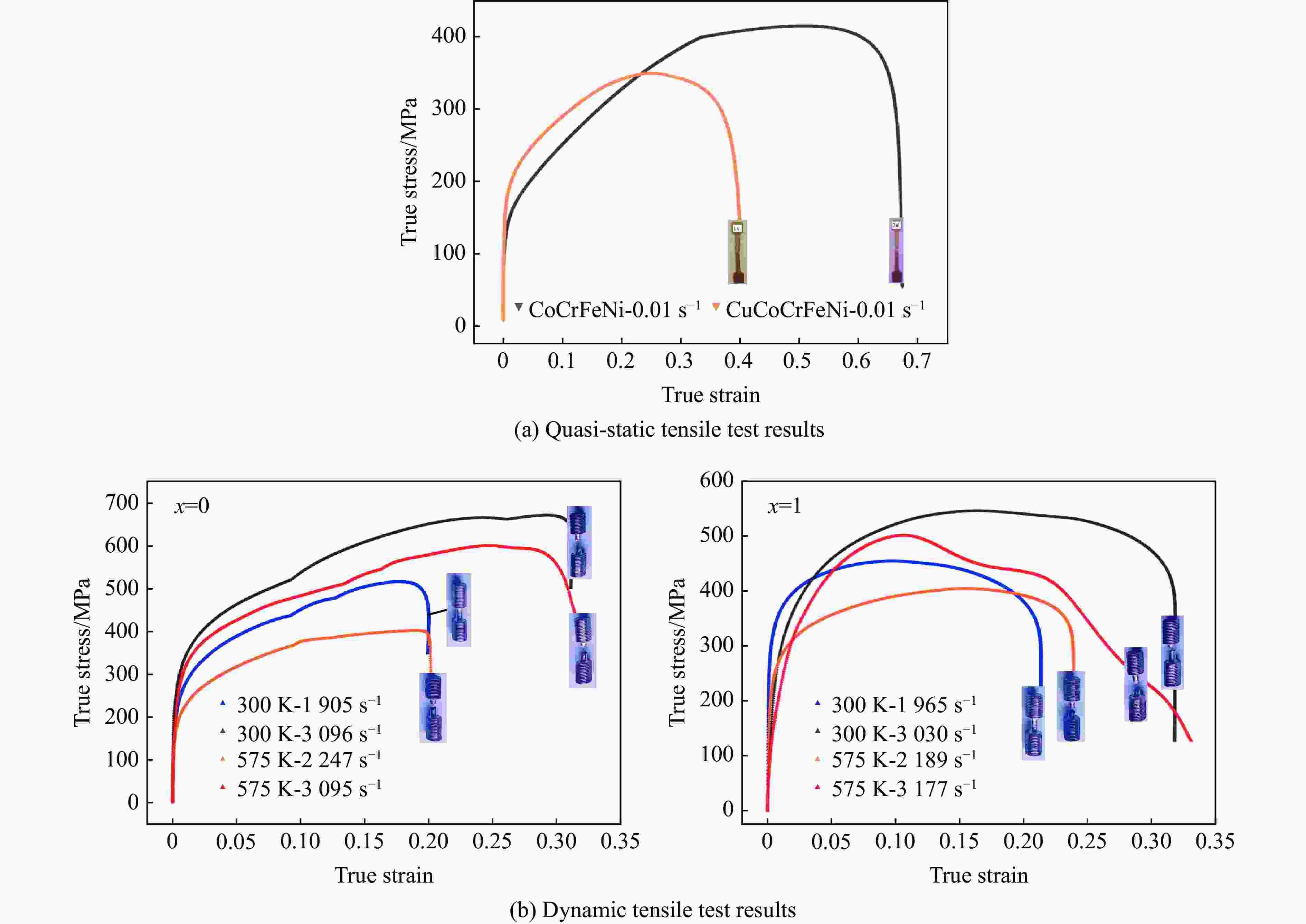

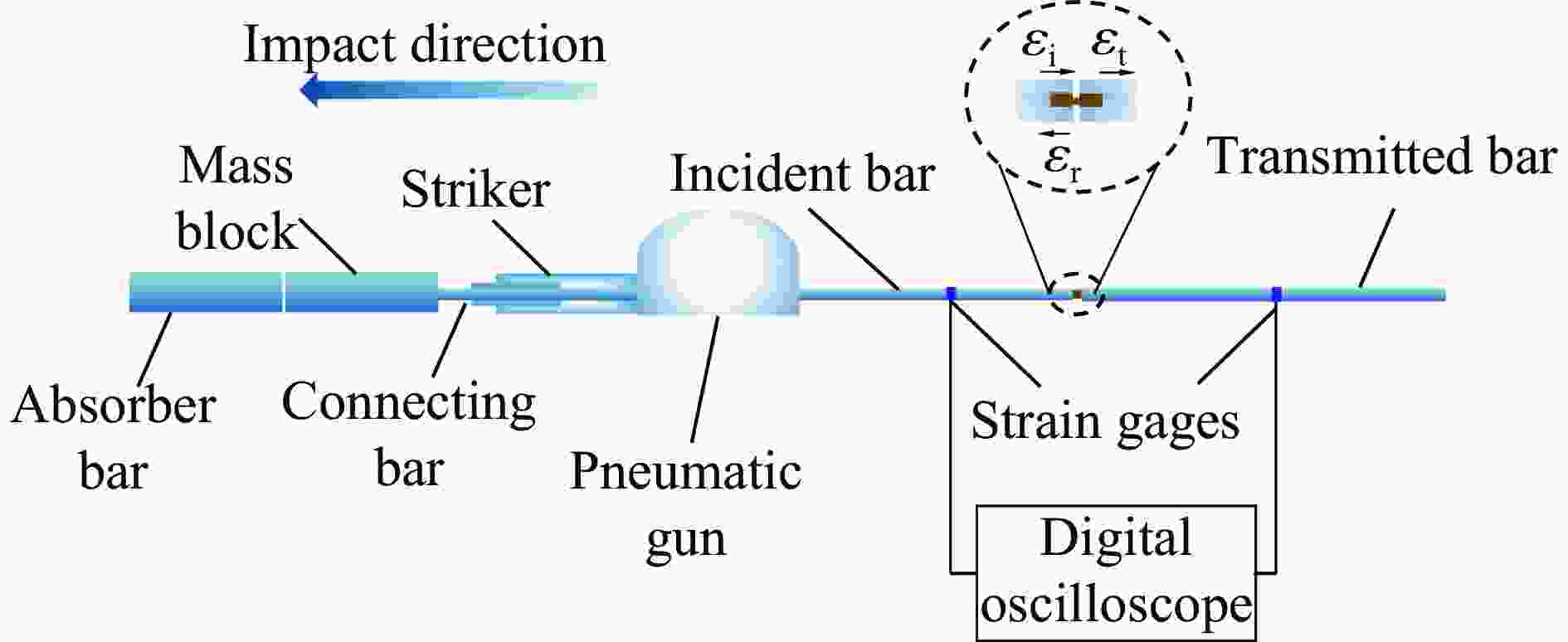

High-entropy alloys (HEAs), as a novel class of high-performance metallic materials, have demonstrated considerable potential in the fields of damage and penetration mechanics. This study investigates the application of CoCrFeNiCux HEAs as liner materials for explosively formed projectiles (EFPs), with the objective of enhancing EFP formation quality and damage efficacy through structural optimization of the liner. Quasi-static and dynamic tensile tests were conducted to characterize the mechanical properties of the HEAs with different copper contents (x=0 and x=1). The experimental data were used to fit parameters for the Johnson-Cook (J-C) constitutive model. The results indicate that both HEA compositions exhibit outstanding plasticity, ductility, and positive strain rate sensitivity, with dynamic yield strength increasing significantly under high strain-rate loading. Numerical simulations were performed using the nonlinear finite element software AUTODYN to compare the EFP formation processes between conventional copper liners and the proposed HEA liners. The simulations revealed that the superior strength of the HEAs impeded the complete closure of the projectile tail when using a conventional uniform wall thickness liner geometry. To address this issue, a uniform variable wall thickness design was implemented for the HEA liners. This optimization successfully improved the formed EFPs, resulting in length-to-diameter ratios of 2.0 for x=0 and 2.5 for x=1, with velocities reaching 2260 m/s and 2357 m/s, respectively. The penetration performance of the optimized HEA EFPs was validated against two target types. The projectiles achieved penetration depths of 37.8 mm (x=0) and 41.5 mm (x=1) into 100-mm-thick 4340 steel targets, and 287.6 mm and 303.7 mm into 1000-mm-thick C35 concrete targets. The crater diameters exceeded 260% of the charge caliber, confirming excellent penetration and damage capabilities. This work demonstrates that structural optimization of CoCrFeNiCux HEA liners significantly enhances EFP formation quality and penetration performance, providing a theoretical foundation and a novel strategy for the design of high-efficiency damage warheads.
