Residual mechanical performance of round-ended concrete-filled steel tube columns exposed to combined eccentric compression and impact loading
-

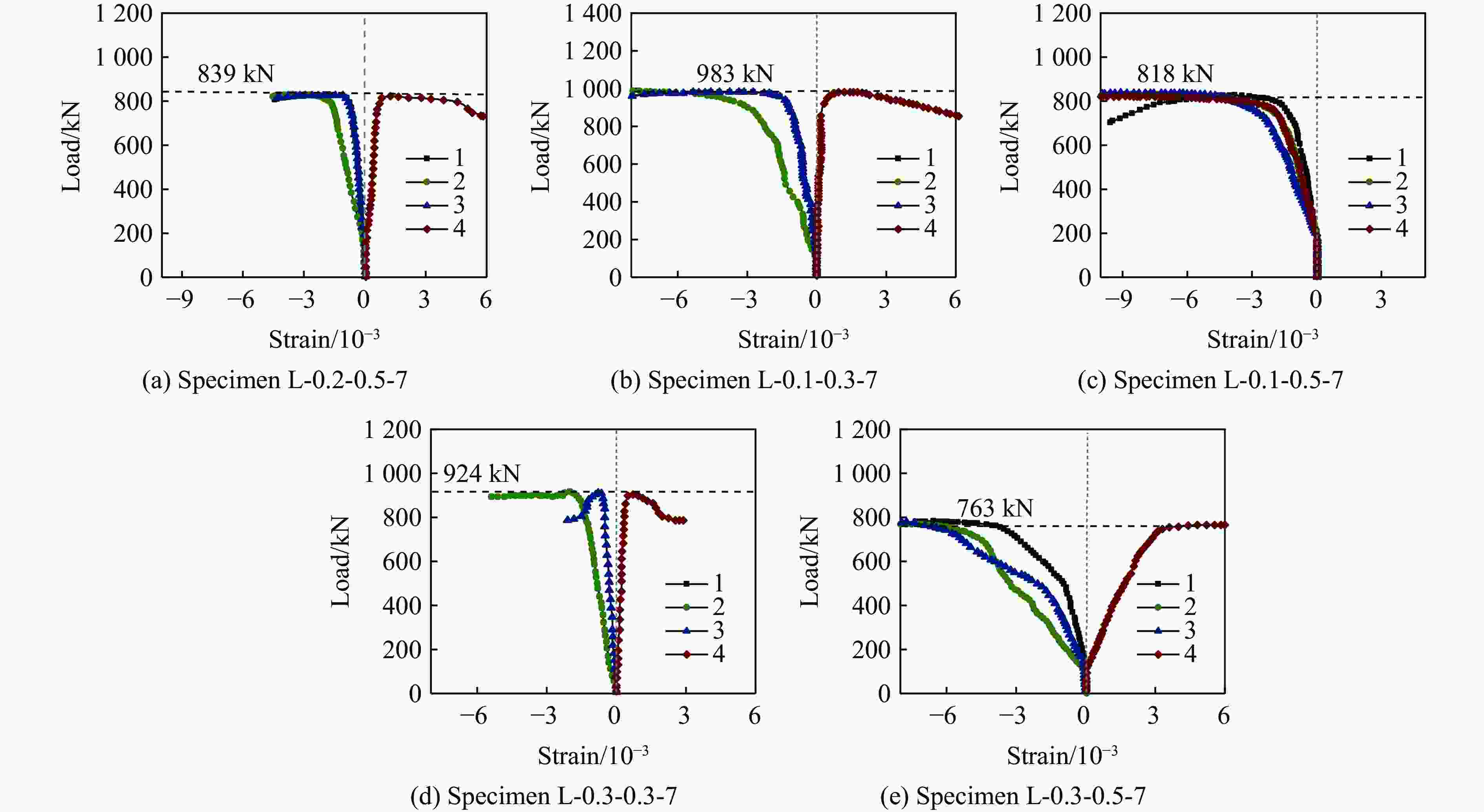

摘要: 针对圆端形钢管混凝土构件在桥梁墩柱、主塔等应用中可能面临船舶、车辆、漂浮物等撞击作用的问题，聚焦压弯和撞击耦合作用后圆端形钢管混凝土柱的剩余力学性能，开展了撞后剩余力学性能试验，获得了不同偏心率和轴压比影响下试件的破坏模式、荷载-跨中位移和荷载-纵向应变曲线。此外，基于ABAQUS软件建立了144个圆端形钢管混凝土柱侧向撞击和剩余承载力分析模型，重点分析了撞击速度、偏心率、轴压比、长宽比和含钢率对撞后残余挠度与剩余承载力的影响。最后，基于响应面分析法提出了多因素交互影响下该类试件的撞后残余变形和剩余承载力系数的预测公式。结果表明：圆端形钢管混凝土压弯柱在侧向撞击下以整体变形为主；偏心受压过程中荷载-柱中侧向位移曲线较平缓下降，说明试件延性良好；随着轴压比和偏心率的增大，试件剩余承载力降低。通过考虑多因素交互影响建立的响应面模型能较好地预测圆端形钢管混凝土柱撞后的残余变形和剩余承载力系数。Abstract: Round-ended concrete-filled steel tube (RE-CFST) members, commonly used in bridge piers and main towers, are often subjected to impacts from vessels, vehicles, floating debris, and other potential collisions. Therefore, this study focuses on the residual mechanical performance of RE-CFST columns exposed to the combined effect of eccentric compression and impact loading. Post-impact compression tests were conducted, and the failure modes, load-midspan displacement, and load-longitudinal strain curves under different eccentricity ratios and axial-load ratios were obtained. The results showed that the RE-CFST beam-columns primarily presented global deformation under lateral impact. Under eccentric compression, pronounced local buckling was observed in the outer steel tube on the compression side. The load-lateral displacement curve of the column under eccentric compression showed a gentle decrease, indicating good ductility of the specimen. As the eccentricity ratio and axial-load ratio increased, the residual bearing capacity of the specimen decreased. In addition, using ABAQUS software, a total of 144 finite element (FE) models were established to analyze the lateral impact behavior and residual bearing capacity of RE-CFST columns. The effects of impact velocity, eccentricity ratio, axial-load ratio, aspect ratio, and steel ratio were emphatically studied. Results indicate that with the increase in steel ratio and aspect ratio, the post-impact residual deflection of the specimens decreases, while the residual bearing capacity improves. Finally, based on response surface analysis, formulas for the residual deformation after an impact and residual bearing capacity coefficients of these specimens under the interaction of multiple factors were proposed. The results show that the aspect ratio is a key factor affecting both post-impact residual deflection and residual bearing capacity coefficients. Furthermore, the interaction between aspect ratio and eccentricity ratio, as well as between aspect ratio and impact velocity, is significant. The proposed formulas can well predict the post-impact residual deformation and residual bearing capacity coefficients of RE-CFST columns.
-

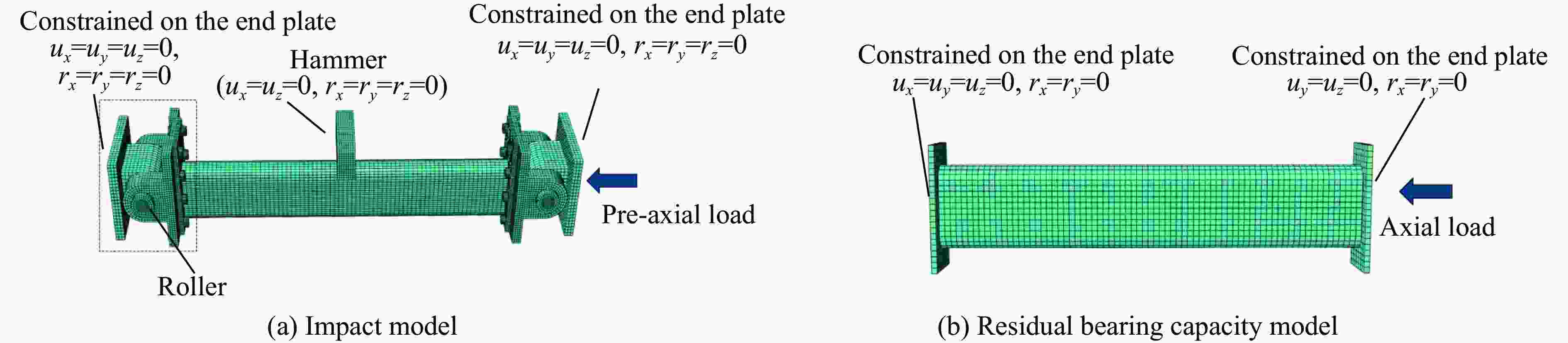

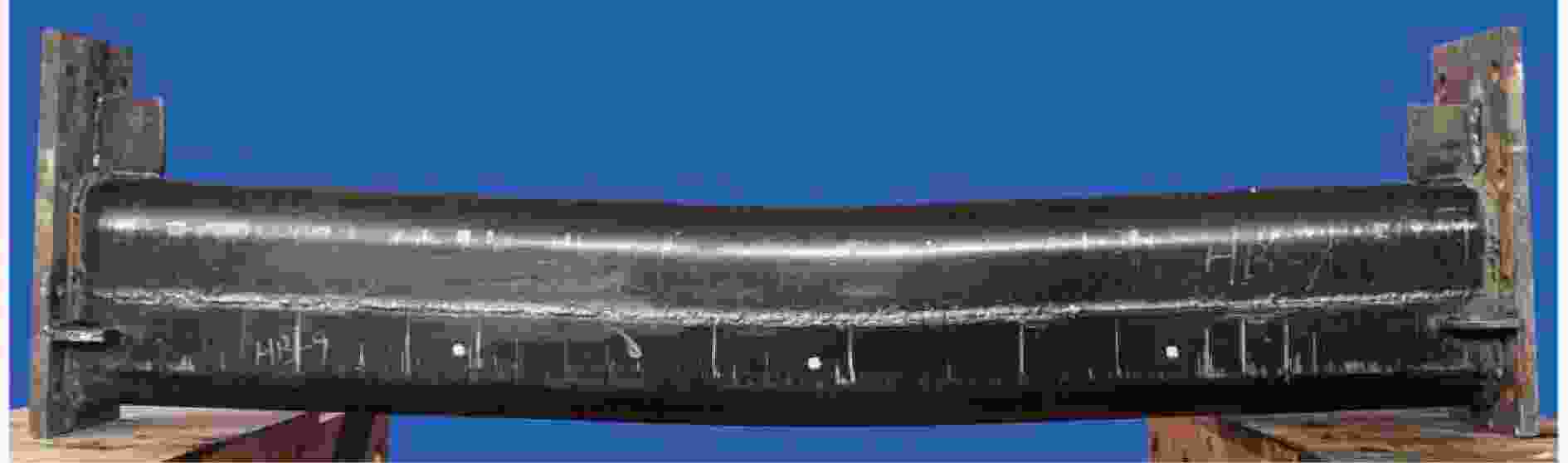

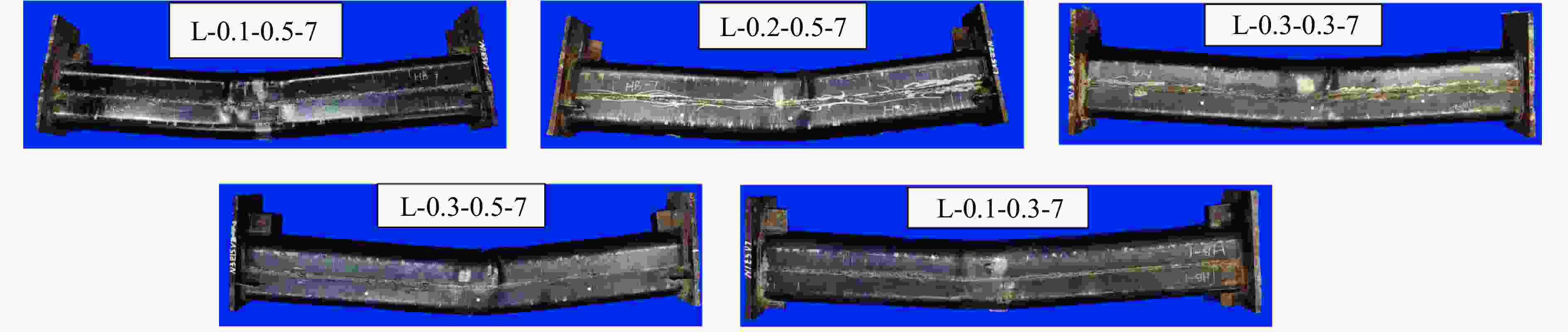

图 4 试件L-0.1-0.5-7被撞击后的破坏形态
Figure 4. Post-impact failure pattern of specimen L-0.1-0.5-7

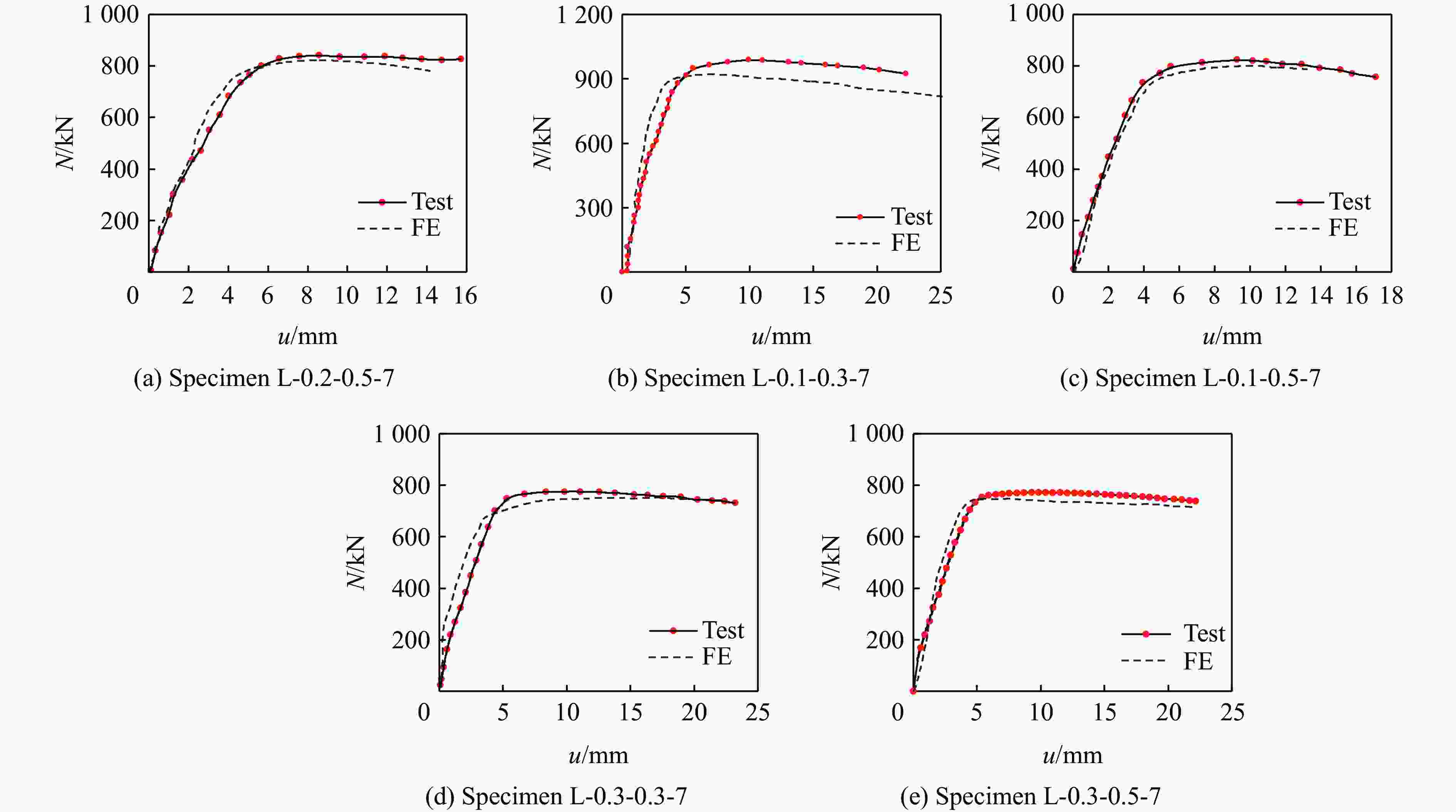

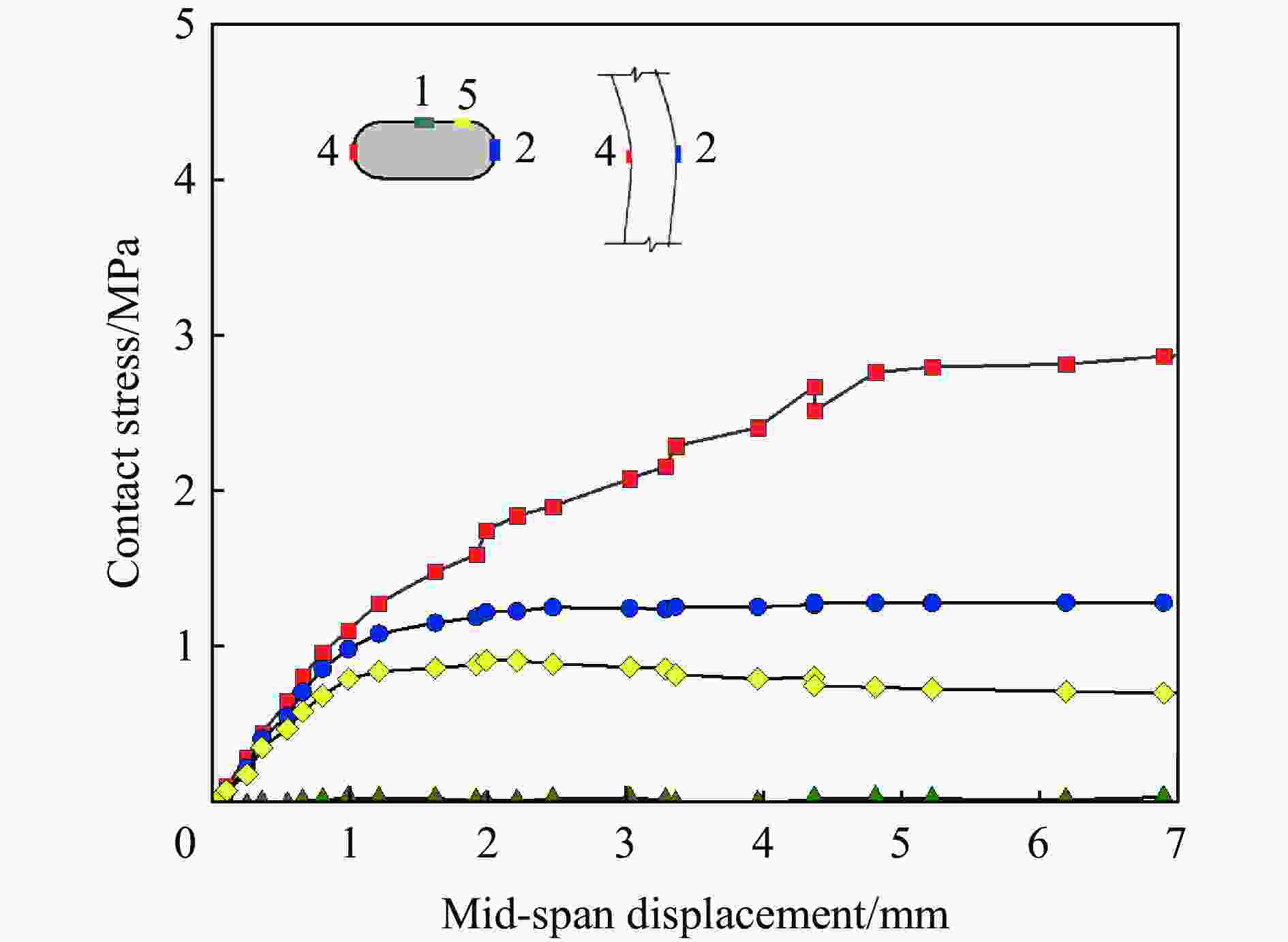

图 12 不同节点处接触应力与跨中位移的关系
Figure 12. Relationship between contact stress and mid-span displacement at different nodes

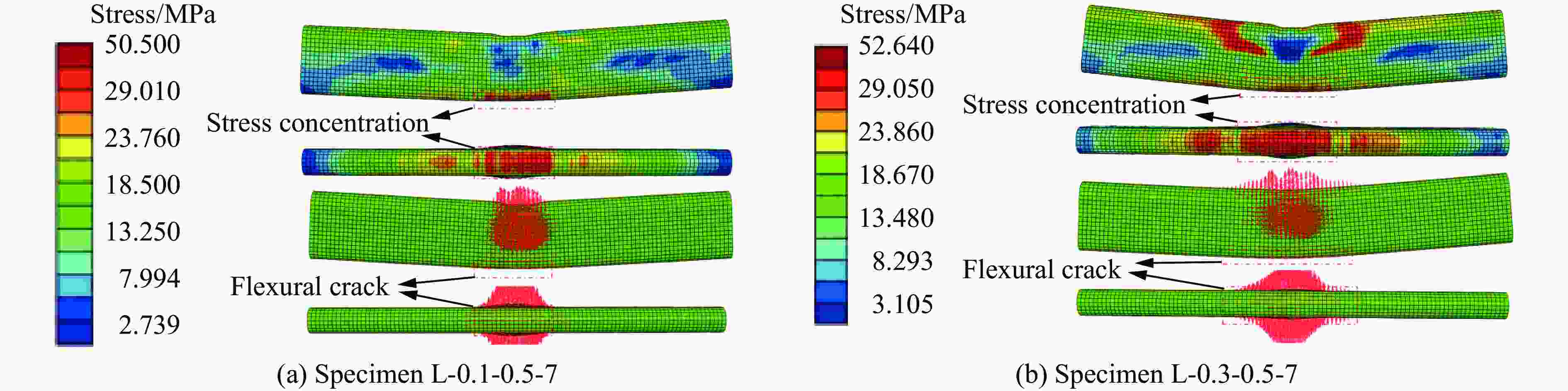

图 13 试样L-0.1-0.5-7和L-0.3-0.5-7中混凝土的应力和应变分布
Figure 13. Strain and stress distributions of internal concrete in specimens L-0.1-0.5-7 and L-0.3-0.5-7

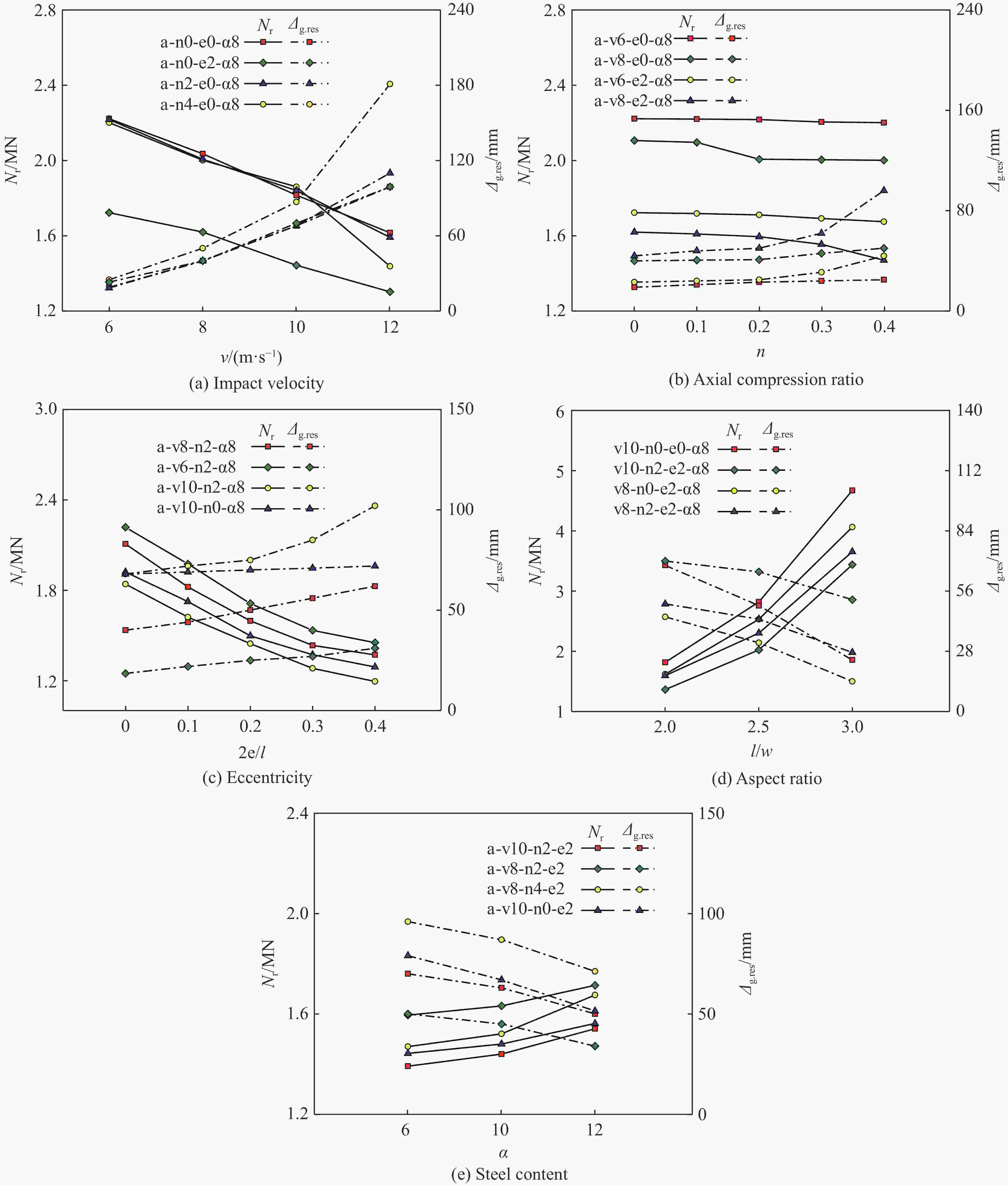

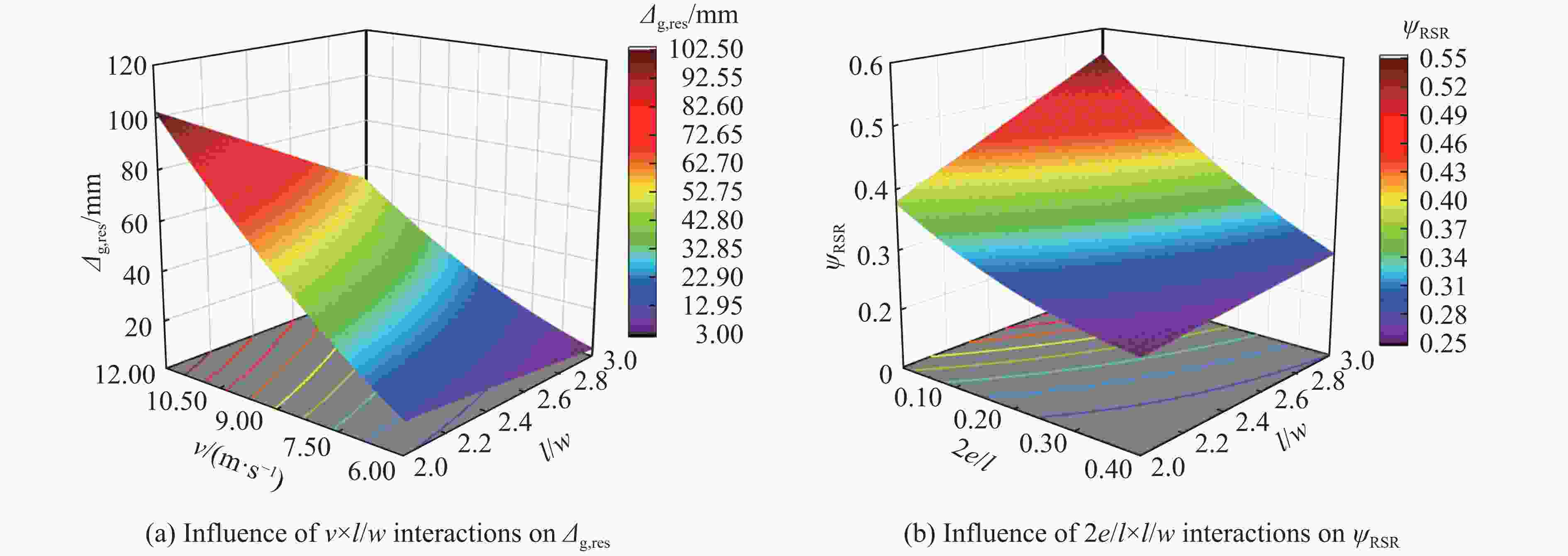

图 15 不同参数对残余挠度和剩余承载力的影响
Figure 15. Effects of various parameters on residual deflection and residual load-bearing capacity

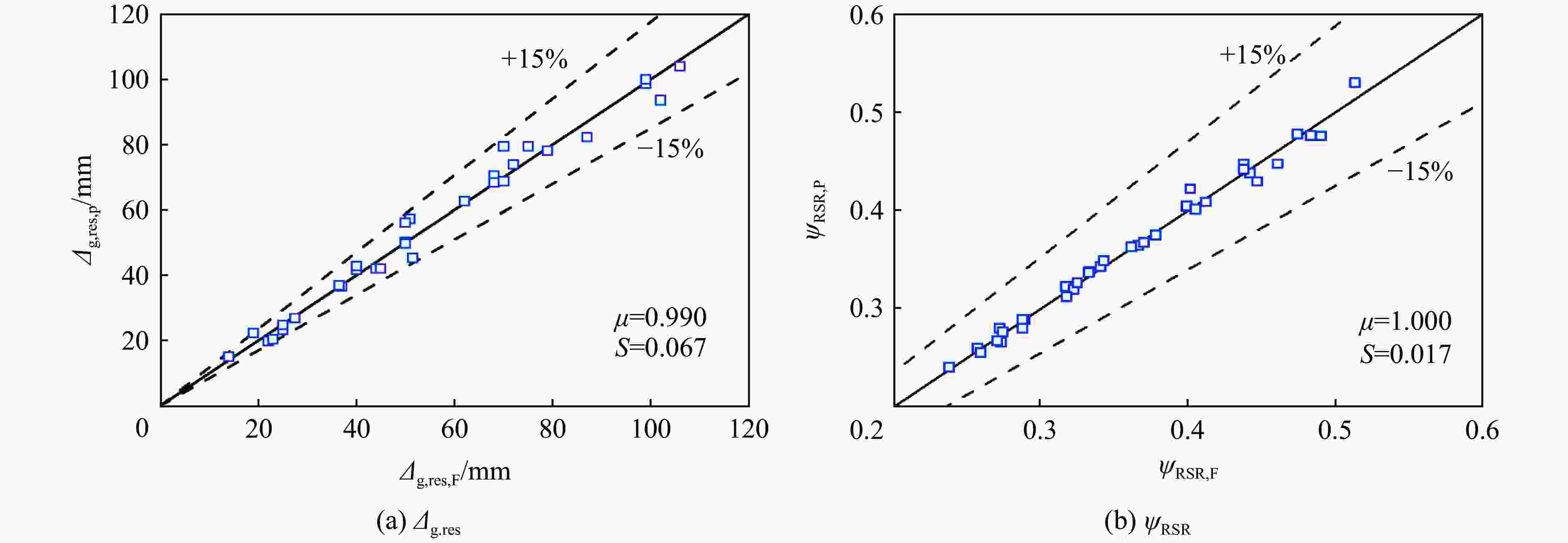

图 17 有限元模拟值与公式预测值对比
Figure 17. Comparisons of results from FE model and formula prediction

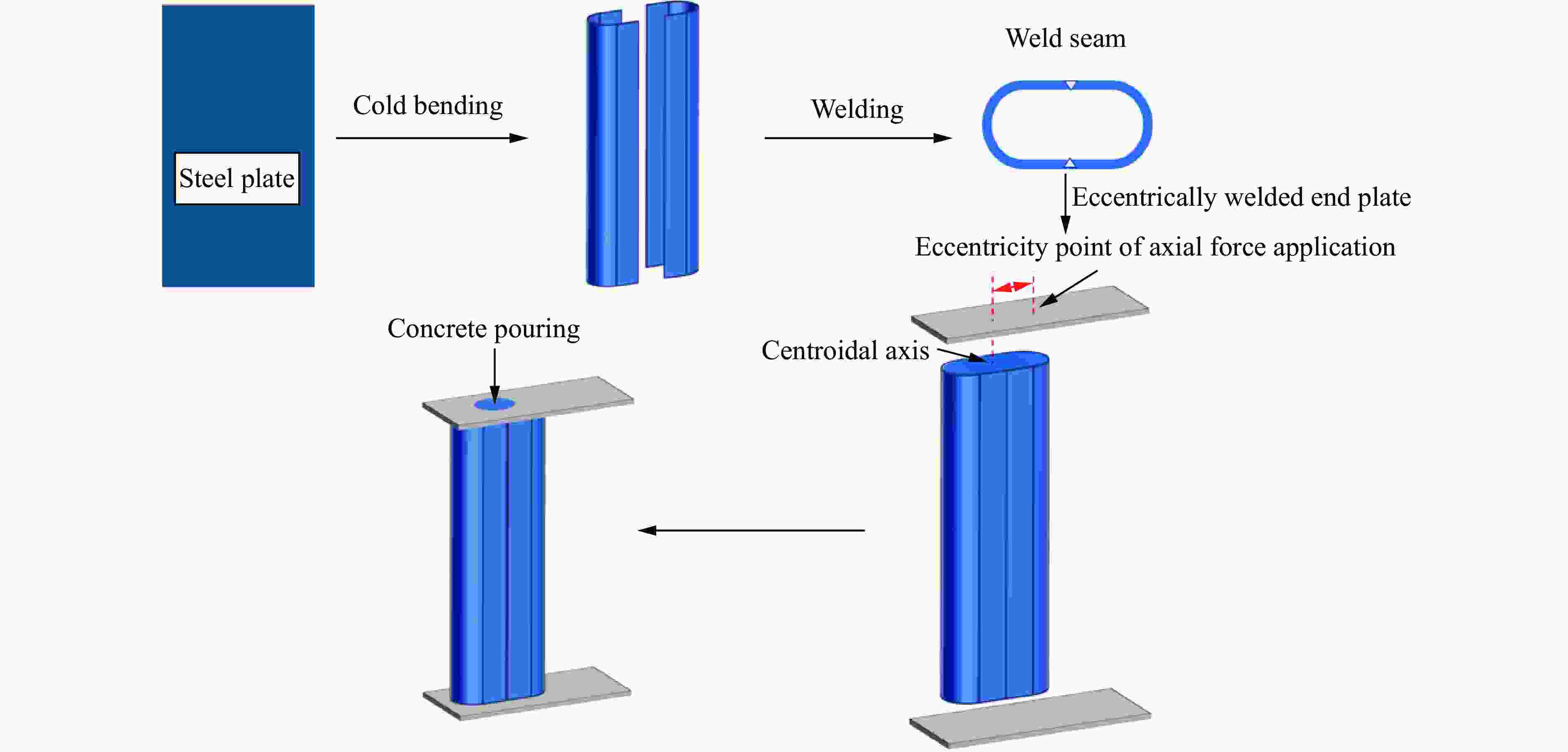

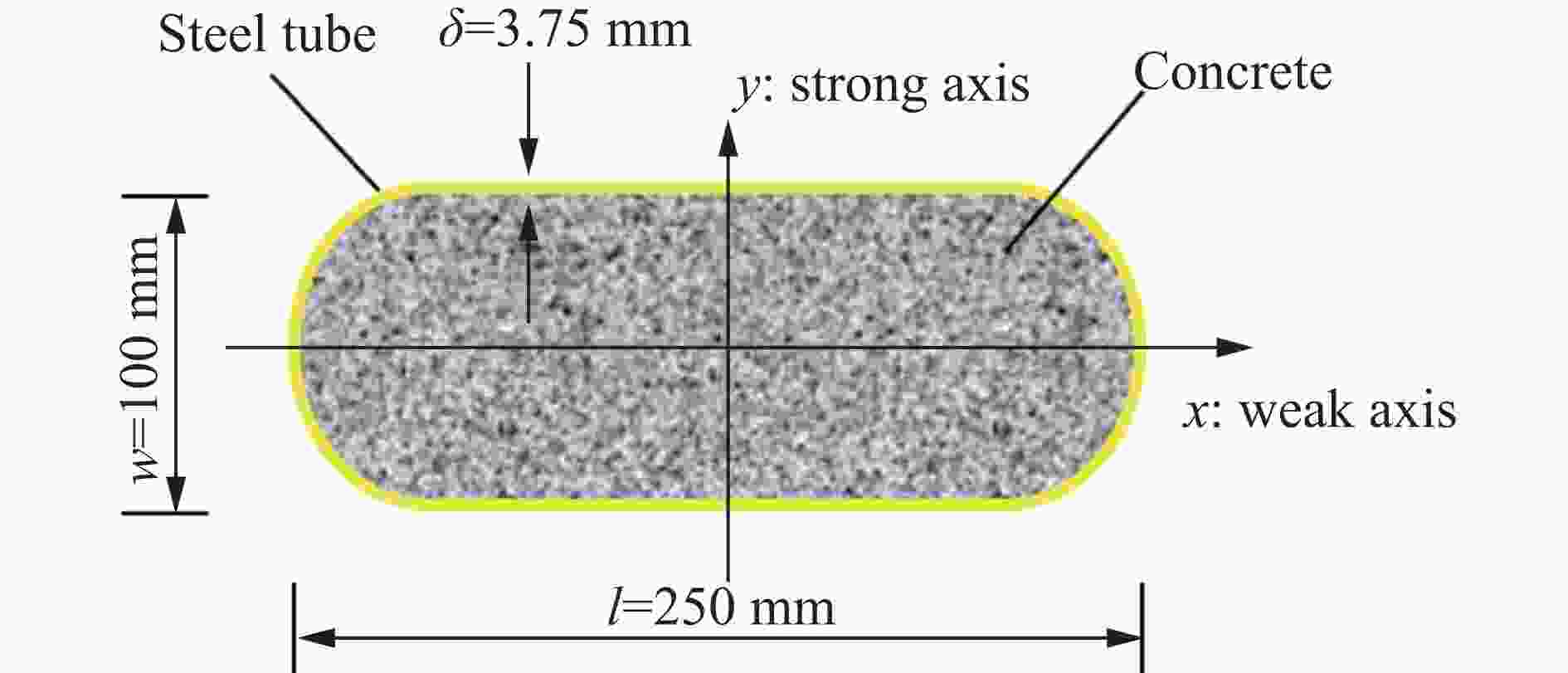

表 1 试件参数
Table 1. Specimen parameters
试件编号 l/mm w/mm δ/mm L/mm v0/(m·s−1) n 2e/l L-0.1-0.5-7 250 100 3.75 1500 7 0.1 0.5 L-0.2-0.5-7 0.2 0.5 L-0.1-0.3-7 0.1 0.3 L-0.3-0.3-7 0.3 0.3 L-0.3-0.5-7 0.3 0.5
下载: 导出CSV
表 2 钢材的力学性能
Table 2. Mechanical properties of steels
δ/mm 位置 fu/MPa fy/MPa Es/GPa Δ/% 3.75 平直段 521 387 196 23 圆弧段 574 458 214 28
下载: 导出CSV
表 3 不同参数对残余挠度的贡献
Table 3. Contribution of different parameters to the residual deflection
影响因素 自由度 P F 影响贡献/% v 3 < 0.0001 255.5 61.1 2e/l 4 < 0.0001 26.8 6.4 n 4 < 0.0001 25.9 6.1 α 2 < 0.0001 23.4 5.5 l/w 2 < 0.0001 86.6 21.0
下载: 导出CSV
表 4 不同参数对剩余承载力的贡献
Table 4. Contribution of different parameters to the residual load-bearing capacity
影响因素 自由度 P F 影响贡献/% v 3 < 0.0001 429.1 27.3 2e/l 4 < 0.0001 531.1 33.7 n 4 0.0491 4.2 0.3 α 2 0.0616 3.7 0.2 l/w 2 < 0.0001 606.5 38.6
下载: 导出CSV
表 5 有限元模拟值与公式预测值对比
Table 5. Comparisons of results from FE model and formula prediction
试件编号 Δg,res,P/mm Δg,res,F/mm Δg,res.P/Δg,res,F ψRSR,P ψRSR,F ψRSR,P/ψRSR,F a-v12-n0-e0-α8 98.7 99.0 1.00 0.322 0.321 1.00 a-v6-n0-e0-α8 23.2 25.1 0.93 0.442 0.437 1.01 a-v8-n4-e0-α8 49.7 50.1 0.99 0.408 0.411 0.99 a-v10-n4-e0-α8 82.3 86.9 0.95 0.364 0.369 0.99 a-v8-n0-e2-α8 42.1 44.0 0.96 0.319 0.321 0.99 a-v10-n0-e2-α8 78.7 70.0 1.12 0.288 0.286 1.01 a-v12-n0-e2-α8 98.3 99.1 0.99 0.255 0.258 0.99 a-v6-n0-e0-α8 17.3 19.1 0.91 0.437 0.441 0.99 a-v6-n2-e0-α8 23.2 25.0 0.93 0.441 0.437 1.01 a-v6-n4-e0-α8 17.2 18.5 0.93 0.447 0.460 0.97 a-v6-n0-e2-α8 20.4 23.1 0.89 0.349 0.342 1.02 a-v6-n2-e2-α8 23.2 25.0 0.93 0.342 0.340 1.01 a-v6-n4-e2-α8 42.1 44.1 0.96 0.336 0.332 1.01 a-v8-n0-e2-α8 41.3 44.1 0.94 0.319 0.321 0.99 a-v8-n2-e2-α8 50.4 50.1 1.01 0.312 0.317 0.98 a-v8-n4-e2-α8 94.2 96.0 0.98 0.288 0.292 0.99 a-v8-n2-e0-α8 41.7 40.0 1.04 0.404 0.398 1.02 a-v8-n2-e2-α8 50.8 50.0 1.02 0.312 0.317 0.98 a-v8-n2-e4-α8 62.7 62.1 1.01 0.279 0.272 1.03 a-v10-n2-e0-α8 70.4 68.0 1.04 0.362 0.365 0.99 a-v10-n2-e2-α8 79.4 70.0 1.13 0.285 0.287 0.99 a-v10-n2-e4-α8 93.6 102.1 0.92 0.240 0.237 1.01 a-v10-n0-e0-α8 68.4 68.2 1.01 0.362 0.361 1.00 a-v10-n0-e4-α8 74.0 72.1 1.03 0.259 0.256 1.01 a-v10-n2-e2-α12 56.1 50.0 1.12 0.267 0.269 0.99 a-v8-n4-e2-α8 95.4 96.0 0.99 0.285 0.292 0.98 a-v10-n0-e2-α8 78.0 78.9 0.99 0.288 0.286 1.01 a-v10-n0-e2-α12 45.4 51.5 0.88 0.276 0.273 1.01 b-v10-n0-e0-α8 23.1 24.1 0.96 0.502 0.513 0.98 b-v10-n2-e2-α8 53.1 52.1 1.02 0.362 0.377 0.96 b-v8-n0-e2-α8 15.0 14.0 1.07 0.430 0.446 0.96 a-v12-n0-e2-α8 106.0 109.0 0.96 0.302 0.316 0.96 a-v6-n2-e4-α8 30.2 31.1 0.97 0.289 0.288 1.00 b-v8-n2-e2-α8 26.8 27.5 0.97 0.402 0.401 1.00 b-v12-n0-e0-α8 37.0 36.5 1.01 0.491 0.490 1.00 b-v12-n4-e0-α8 57.4 51.0 1.13 0.453 0.474 0.96 b-v12-n0-e2-α8 37.0 36.5 1.01 0.336 0.332 1.01 平均值μ 0.99 1.00 标准差S 0.067 0.017
下载: 导出CSV
-
[1] WANG R, HAN L H, HOU C C. Behavior of concrete filled steel tubular (CFST) members under lateral impact: experiment and FEA model [J]. Journal of Constructional Steel Research, 2013, 80: 188–201. DOI: 10.1016/j.jcsr.2012.09.003. [2] GAO S, XU Y C, ZHANG S M, et al. Performance of square concrete-filled steel tubular columns under repeated lateral impact [J]. Engineering Structures, 2023, 280: 115719. DOI: 10.1016/j.engstruct.2023.115719. [3] 李珠, 李宝成, 李永刚, 等. 钢管混凝土短柱轴向冲击动力特性的探讨 [J]. 太原理工大学学报, 2006, 37(4): 383–385. DOI: 10.16355/j.cnki.issn1007-9432tyut.2006.04.001.LI Z, LI B C, LI Y G, et al. The research of the dynamic property of steel tube-confined concrete short column under axial impact [J]. Journal of Taiyuan University of Technology, 2006, 37(4): 383–385. DOI: 10.16355/j.cnki.issn1007-9432tyut.2006.04.001. [4] HAN L H, HOU C C, ZHAO X L, et al. Behaviour of high-strength concrete filled steel tubes under transverse impact loading [J]. Journal of Constructional Steel Research, 2014, 92: 25–39. DOI: 1016/j.jcsr.2013.09.003. DOI: 10.1016/j.jcsr.2013.09.003. [5] 谷利雄, 丁发兴, 付磊, 等. 圆端形钢管混凝土轴压短柱受力性能研究 [J]. 中国公路学报, 2014, 27(1): 57–63. DOI: 10.19721/j.cnki.1001-7372.2014.01.009.GU L X, DING F X, FU L, et al. Mechanical behavior of concrete-filled round-ended steel tubular stub columns under axial load [J]. China Journal of Highway and Transport, 2014, 27(1): 57–63. DOI: 10.19721/j.cnki.1001-7372.2014.01.009. [6] SHEN Q H, WANG J F, WANG W Q, et al. Performance and design of eccentrically-loaded concrete-filled round-ended elliptical hollow section stub columns [J]. Journal of Constructional Steel Research, 2018, 150: 99–114. DOI: 10.1016/j.jcsr.2018.07.025. [7] DING F X, ZHANG T, WANG L P, et al. Behavior of concrete-filled round-ended steel tubes under bending [J]. Steel and Composite Structures, 2017, 25(4): 457–472. DOI: 10.12989/scs.2017.25.4.457. [8] DING F X, ZHANG T, WANG L P, et al. Further analysis on the flexural behavior of concrete-filled round-ended steel tubes [J]. Steel and Composite Structures, 2019, 30(2): 149–169. DOI: 10.12989/scs.2019.30.2.149. [9] 王志滨, 吴扬杭, 余鑫, 等. 圆端形钢管混凝土柱偏压性能研究 [J]. 建筑结构学报, 2022, 43(4): 177–185. DOI: 10.14006/j.jzjgxb.2020.0302.WANG Z B, WU Y H, YU X, et al. Behavior of concrete-filled round-ended steel tubular column under eccentric compression [J]. Journal of Building Structures, 2022, 43(4): 177–185. DOI: 10.14006/j.jzjgxb.2020.0302. [10] 任志刚, 肖萌. 圆端形钢管混凝土构件纯弯力学性能 [J]. 建筑科学与工程学报, 2020, 37(2): 44–53. DOI: 10.19815/j.jace.2019.03019.REN Z G, XIAO M. Mechanical behaviors of concrete-filled round end steel tubular members under pure bending [J]. Journal of Architecture and Civil Engineering, 2020, 37(2): 44–53. DOI: 10.19815/j.jace.2019.03019. [11] 任志刚, 何慧峰, 李旗. 广义圆端形钢管混凝土短柱轴压承载力公式 [J]. 建筑科学与工程学报, 2024, 41(1): 115–127. DOI: 10.19815/j.jace.2022.01063.REN Z G, HE H F, LI Q. Formula For axial compressive bearing capacity of generalized round-ended CFST short columns [J]. Journal of Architecture and Civil Engineering, 2024, 41(1): 115–127. DOI: 10.19815/j.jace.2022.01063. [12] 梅圣琪, 王蕊, 赵晖, 等. 撞击作用下圆端形钢管混凝土动力响应与挠度预测 [J]. 工程力学, 2025, 42(9): 51–62. DOI: 10.6052/j.issn.1000-4750.2023.03.0215.MEI S Q, WANG R, ZHAO H, et al. Dynamic response and deflection prediction of round-ended rectangular concrete-filled steel tube members under impact loading [J]. Engineering Mechanics, 2025, 42(9): 51–62. DOI: 10.6052/j.issn.1000-4750.2023.03.0215. [13] ZHAO H, MEI S Q, WANG R, et al. Round-ended concrete-filled steel tube columns under impact loading: test, numerical analysis and design method [J]. Thin-Walled Structures, 2023, 191: 111020. DOI: 10.1016/j.tws.2023.111020. [14] ZHAO H, WANG Y H, LI S Y, et al. Post-impact performance of round-ended CFST columns: Tests, numerical analysis and design [J]. Structures, 2024, 70: 107886. DOI: 10.1016/j.istruc.2024.107886. [15] GB/T 50081-2019 混凝土物理力学性能试验方法标准 [S].GB/T 50081-2019 Standard for test methods of concrete physical and mechanical properties [S]. [16] ZHAO H, ZHANG W H, WANG R, et al. Axial compression behaviour of round-ended recycled aggregate concrete-filled steel tube stub columns (RE-RACFST): experiment, numerical modeling and design [J]. Engineering Structures, 2023, 276: 115376. DOI: 10.1016/j.engstruct.2022.115376. [17] GB/T 51446-2021 钢管混凝土混合结构技术标准 [S].GB/T 51446-2021 Technical standard for concrete-filled steel tubular hybrid structures [S]. [18] 韩林海. 钢管混凝土结构: 理论与实践 [M]. 3版. 北京: 科学出版社, 2016.HAN L H. Concrete filled steel tubular structures: theory and practice [M]. 3rd ed. Beijing: Science Press, 2016. [19] CEB-FIP model code 1990 [S]. Trow-bridge, Wiltshire: Comtié Euro-International du Béton, 1993. [20] ZHAO H, WANG R, HOU C C, et al. Performance of circular CFDST members with external stainless steel tube under transverse impact loading [J]. Thin-Walled Structures, 2019, 145: 106380. DOI: 10.1016/j.tws.2019.106380. [21] ABRAMOWICZ W, JONES N. Dynamic axial crushing of square tubes [J]. International Journal of Impact Engineering, 1984, 2(2): 179–208. DOI: 10.1016/0734-743X(84)90005-8. [22] REID S R, REDDY T Y. Static and dynamic crushing of tapered sheet metal tubes of rectangular cross-section [J]. International Journal of Mechanical Sciences, 1986, 28(9): 623–637. DOI: 10.1016/0020-7403(86)90077-9. [23] REID S R, REDDY T Y, GRAY M D. Static and dynamic axial crushing of foam-filled sheet metal tubes [J]. International Journal of Mechanical Sciences, 1986, 28(5): 295–322. DOI: 10.1016/0020-7403(86)90043-3. [24] ABRAMOWICZ W, JONES N. Dynamic progressive buckling of circular and square tubes [J]. International Journal of Impact Engineering, 1986, 4(4): 243–270. DOI: 10.1016/0734-743X(86)90017-5. [25] ZHAO H, MEI S Q, WANG R, et al. Performance of round-ended CFST columns under combined actions of eccentric compression and impact loads [J]. Engineering Structures, 2024, 301: 117328. DOI: 10.1016/j.engstruct.2023.117328. [26] LAI D D, HUANG X K, LIAO F Y, et al. Lateral impact performance of pitting corroded CFST columns for offshore applications [J]. Ocean Engineering, 2024, 313: 119369. DOI: 10.1016/j.oceaneng.2024.119369. [27] Al-THAIRY H, WANG Y C. A numerical study of the behaviour and failure modes of axially compressed steel columns subjected to transverse impact [J]. International Journal of Impact Engineering, 2011, 38(8/9): 732–744. DOI: 10.1016/j.ijimpeng.2011.03.005. [28] AlAM M I, FAWZIA S. Numerical studies on CFRP strengthened steel columns under transverse impact [J]. Composite Structures, 2015, 120: 428–441. DOI: 10.1016/j.compstruct.2014.10.022. [29] RABBAT B G, RUSSELL H G. Friction coefficient of steel on concrete or grout [J]. Journal of Structural Engineering, 1985, 111(3): 505–515. DOI: 10.1061/(ASCE)0733-9445(1985)111:3(505. [30] 李佳奇, 王蕊, 赵晖, 等. 外包不锈钢中空夹层钢管混凝土柱耐火性能研究 [J]. 工程力学, 2020, 37(10): 125–133. DOI: 10.6052/j.issn.1000-4750.2019.11.0679.LI J Q, WANG R, ZHAO H, et al. Study on the fire performance of concrete-filled double-skin tubular columns with external stainless steel tubes [J]. Engineering Mechanics, 2020, 37(10): 125–133. DOI: 10.6052/j.issn.1000-4750.2019.11.0679. [31] GB 50936-2014 钢管混凝土结构技术规范 [S].GB 50936-2014 Technical code for concrete filled steel tubular structures [S]. [32] 孔祥韶, 杨豹, 周沪, 等. 基于响应面法的纤维金属层合板抗弹性能优化设计 [J]. 爆炸与冲击, 2022, 42(4): 043301. DOI: 10.11883/bzycj-2021-0146.KONG X S, YANG B, ZHOU H, et al. Optimal design of ballistic performance of fiber-metal laminates based on the response surface method [J]. Explosion and Shock Waves, 2022, 42(4): 043301. DOI: 10.11883/bzycj-2021-0146. [33] 颉宗旺, 王蕊, 王宇恒, 等. H型钢柱撞击全过程力学性能分析与损伤评估 [J]. 爆炸与冲击, 2025, 45(8): 083102. DOI: 10.11883/bzycj-2024-0119.XIE Z W, WANG R, WANG Y H, et al. Analysis on mechanical performance and damage evaluation of H-section steel columns during and after impact process [J]. Explosion and Shock Waves, 2025, 45(8): 083102. DOI: 10.11883/bzycj-2024-0119. [34] 樊伟, 孙洋, 申东杰, 等. 带主梁的简化模型与响应面联合的桥梁船撞易损性分析方法 [J]. 湖南大学学报(自然科学版), 2021, 48(3): 34–43,135. DOI: 10.16339/j.cnki.hdxbzkb.2021.03.004.FAN W, SUN Y, SHEN D J, et al. Vessel-collision vulnerability analysis method of bridge structures based on simplified model with girders and response surface [J]. Journal of Hunan University (Natural Sciences), 2021, 48(3): 34–43,135. DOI: 10.16339/j.cnki.hdxbzkb.2021.03.004. [35] 樊伟, 毛薇, 庞于涛, 等. 钢筋混凝土柱式桥墩抗车撞可靠度分析研究 [J]. 中国公路学报, 2021, 34(2): 162–176. DOI: 10.19721/j.cnki.1001-7372.2021.02.006.FAN W, MAO W, PANG Y T, et al. Reliability analysis of reinforced concrete column bridge piers subjected to vehicle collisions [J]. China Journal of Highway and Transport, 2021, 34(2): 162–176. DOI: 10.19721/j.cnki.1001-7372.2021.02.006. [36] HAMMOUDI A, MOUSSACEB K, BELEBCHOUCHE C, et al. Comparison of artificial neural network (ANN) and response surface methodology (RSM) prediction in compressive strength of recycled concrete aggregates [J]. Construction and Building Materials, 2019, 209: 425–436. DOI: 10.1016/j.conbuildmat.2019.03.119. [37] 邓友生, 孟丽青, 郑云方, 等. 基于响应面回归模型的纤维混凝土力学性能分析 [J]. 湖南大学学报(自然科学版), 2024, 51(9): 177–187. DOI: 10.16339/j.cnki.hdxbzkb.2024098.DENG Y S, MENG L Q, ZHENG Y F, et al. Mechanical properties analysis of fiber concrete based on response surface regression model [J]. Journal of Hunan University (Natural Sciences), 2024, 51(9): 177–187. DOI: 10.16339/j.cnki.hdxbzkb.2024098. -
