柱形装药接触爆炸作用下钢纤维混凝土靶成坑效应预测模型

杨石刚; 王彬刚; 许继恒; 方秦; 杨亚; 罗泽

doi:10.11883/bzycj-2025-0263

柱形装药接触爆炸作用下钢纤维混凝土靶成坑效应预测模型

doi: 10.11883/bzycj-2025-0263

杨石刚^1,,
王彬刚^1, ,,
许继恒¹,
方秦¹,
杨亚²,
罗泽³

1.
陆军工程大学爆炸冲击防灾减灾全国重点实验室，江苏南京 210094
2.
中国人民解放军 63983部队，江苏无锡 214000
3.
中国人民解放军 32573部队，广东东莞 523000

详细信息

作者简介:
杨石刚（1985－　），男，博士，副教授，youngshg@126.com

通讯作者:
王彬刚（1996－　），男，博士研究生，2575667171@qq.com

中图分类号: O389
计量
- 文章访问数: 354
- HTML全文浏览量: 51
- PDF下载量: 85
- 被引次数: 0
出版历程
- 收稿日期: 2025-08-25
- 修回日期: 2026-01-22
- 网络出版日期: 2026-01-30

Prediction model of crater damage effect of steel fiber reinforced concrete target under contact explosion of cylinder charge

1.
State Key Laboratory of Explosion&Impact and Disaster Prevention&Mitigation, Army Engineering University of PLA, Nanjing 210094, Jiangsu, China
2.
Unit of 63983 of the People’s Liberation Army of China, Wuxi 214000, Jiangsu, China
3.
Unit of 32573 of the People’s Liberation Army of China, Dongguan 523000, Guangdong, China

摘要

摘要: 为评估柱形装药接触爆炸对钢纤维钢筋混凝土（steel fiber reinforced concrete, SFRC）结构的成坑效应，采用光滑粒子伽辽金与结构化任意拉格朗日-欧拉流固耦合算法建立了SFRC靶体数值模型，研究了不同装药量Q和长径比l/d联合作用下SFRC靶体的破坏模式和损伤程度，基于接触爆炸理论与量纲分析，引入爆坑系数K₁与 K₂构建了爆坑直径D与深度H随有效装药量Q_e变化的预测模型。结果表明：不同装药量和长径比联合作用下，SFRC靶体主要呈爆炸成坑破坏。不同装药量情况下，当l/d由1增大至5时，爆坑直径D与深度H均减小了约50%。在Q_e小于16 kg范围内，K₁与$ \sqrt{{K}_{2}} $随有效装药量呈幂函数衰减，而D与H则随有效装药量呈幂函数增长。在相同Q_e条件下，成坑效应更集中于爆坑直径的扩展。构建的预测模型可对不同强度等级与有效装药量下SFRC的爆坑尺寸进行快速且较为准确的计算，为SFRC结构的抗爆设计提供理论依据。
- 钢纤维钢筋混凝土 /
- 柱形装药 /
- 接触爆炸 /
- 爆坑深度 /
- 爆坑直径
Abstract: To evaluate the crater damage effect of cylinder charge contact explosion on steel fiber reinforced concrete (SFRC) structures, a numerical model of an SFRC target was developed by the using the smooth particle Galerkin method and a structured arbitrary Lagrange-Euler (SPG-S-ALE) fluid-structure interaction algorithm. The failure modes and damage of the SFRC target under different charge mass Q and length-to-diameter ratios l/d were investigated. Based on contact explosion theory and dimensional analysis, cratering coefficients K₁ and K₂ were introduced to develop predictive models for the crater diameter D and depth H as functions of the effective charge mass Qₑ. The results indicate that under the combined effects of charge mass and length-to-to-diameter ratio, the primary failure mode of the SFRC targets is cratering damage. Under constant charge mass conditions, as the l/d ratio increases from 1 to 5, both the crater diameter D and depth H decrease by approximately 50%. Within the range of effective charge Qₑ less than 16 kg, the K₁ and$ \sqrt{{K}_{2}} $ exhibit a power-law decay with increasing effective charge mass, while the crater diameter D and depth H show a power-law growth. For a given effective charge mass Qₑ, the cratering effect is more concentrated on the expansion of the crater diameter. The developed predictive model allows for rapid and reasonably accurate calculation of crater dimensions in SFRC with different strength grades and effective charge mass, providing a theoretical basis for the blast-resistant design of SFRC structures.
- steel fiber reinforced concrete /
- cylinder charge /
- contact explosion /
- crater diameter /
- crater depth

HTML全文

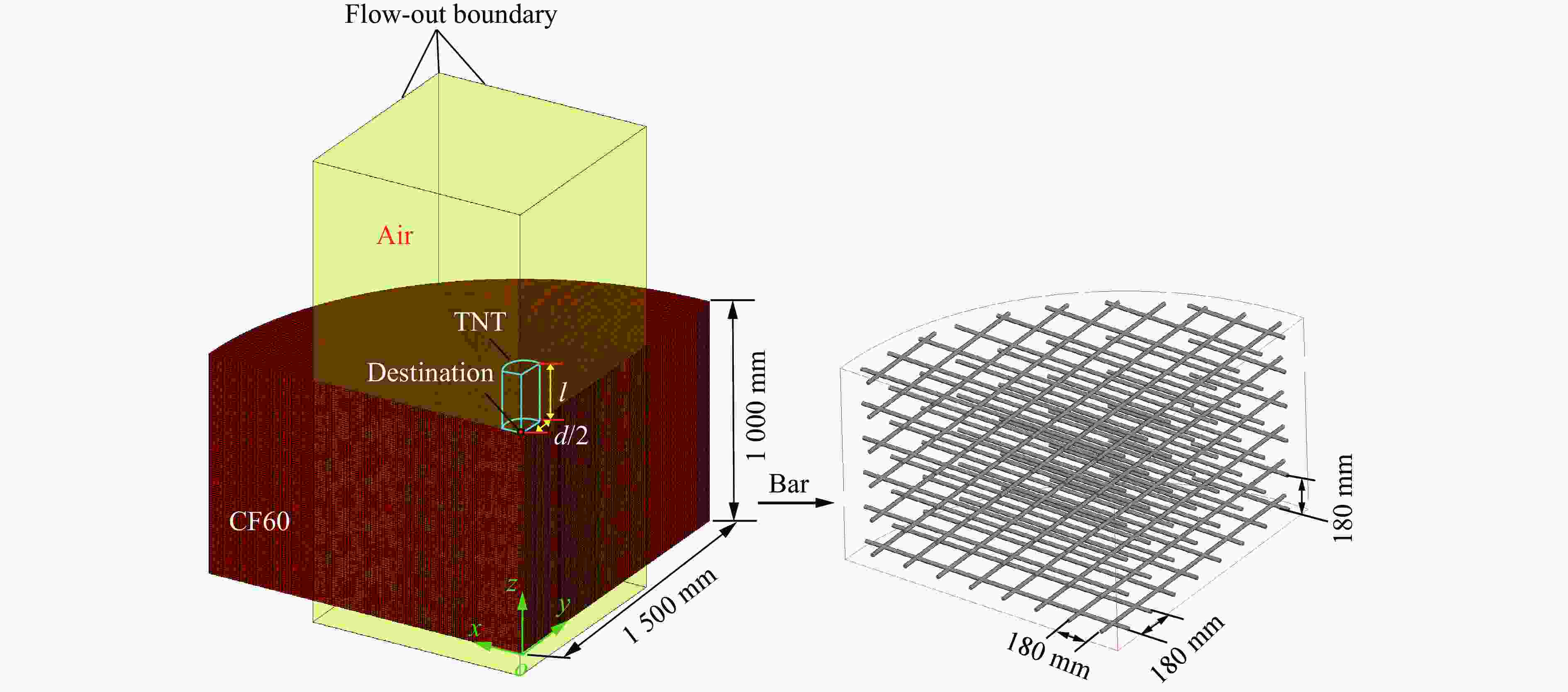

图 1 SFRC靶体有限元模型

Figure 1. Finite element model of the target of SFRC

下载: 全尺寸图片幻灯片

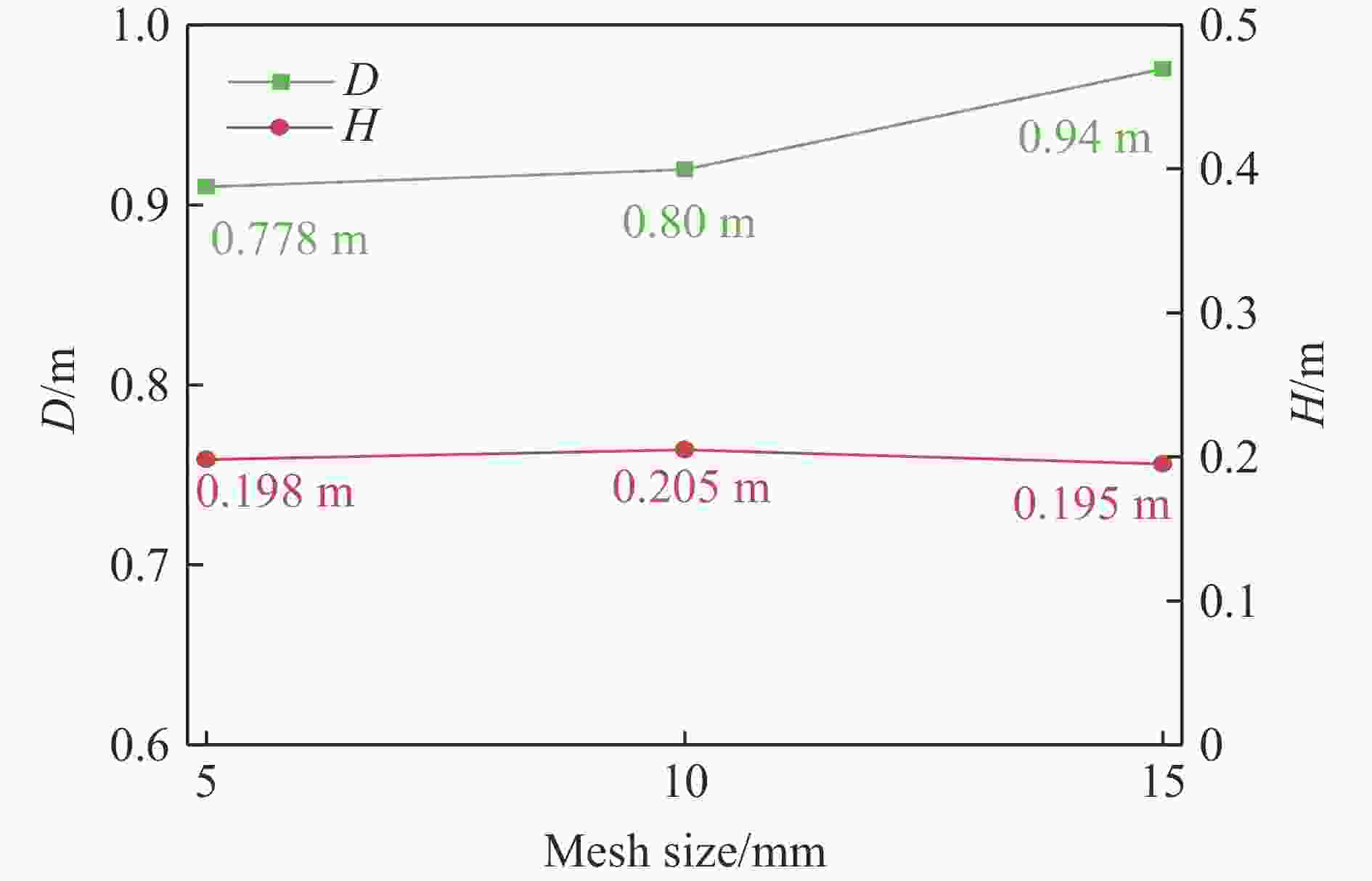

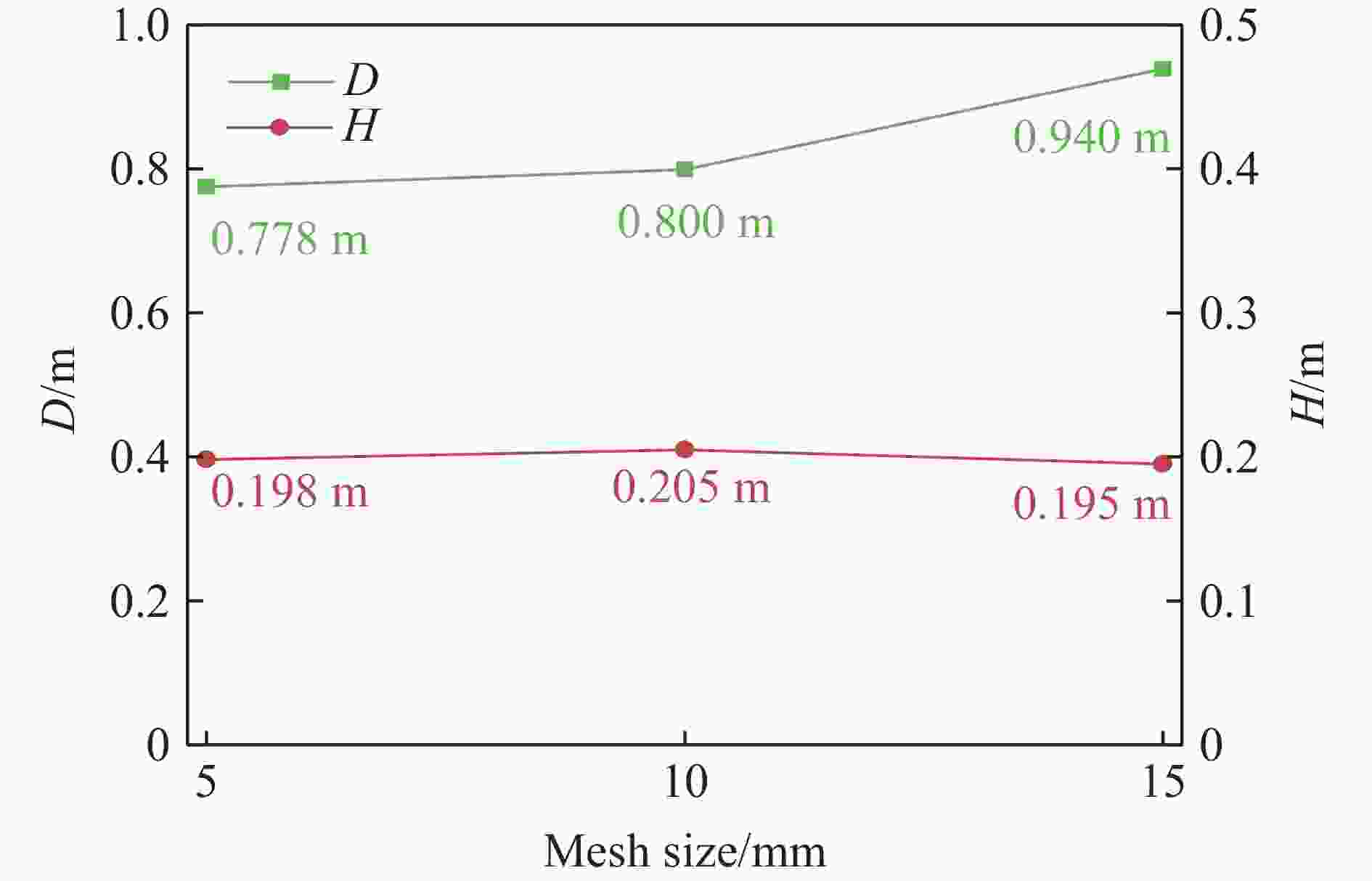

图 2 网格尺寸敏感性分析

Figure 2. Mesh size sensitivity analysis

下载: 全尺寸图片幻灯片

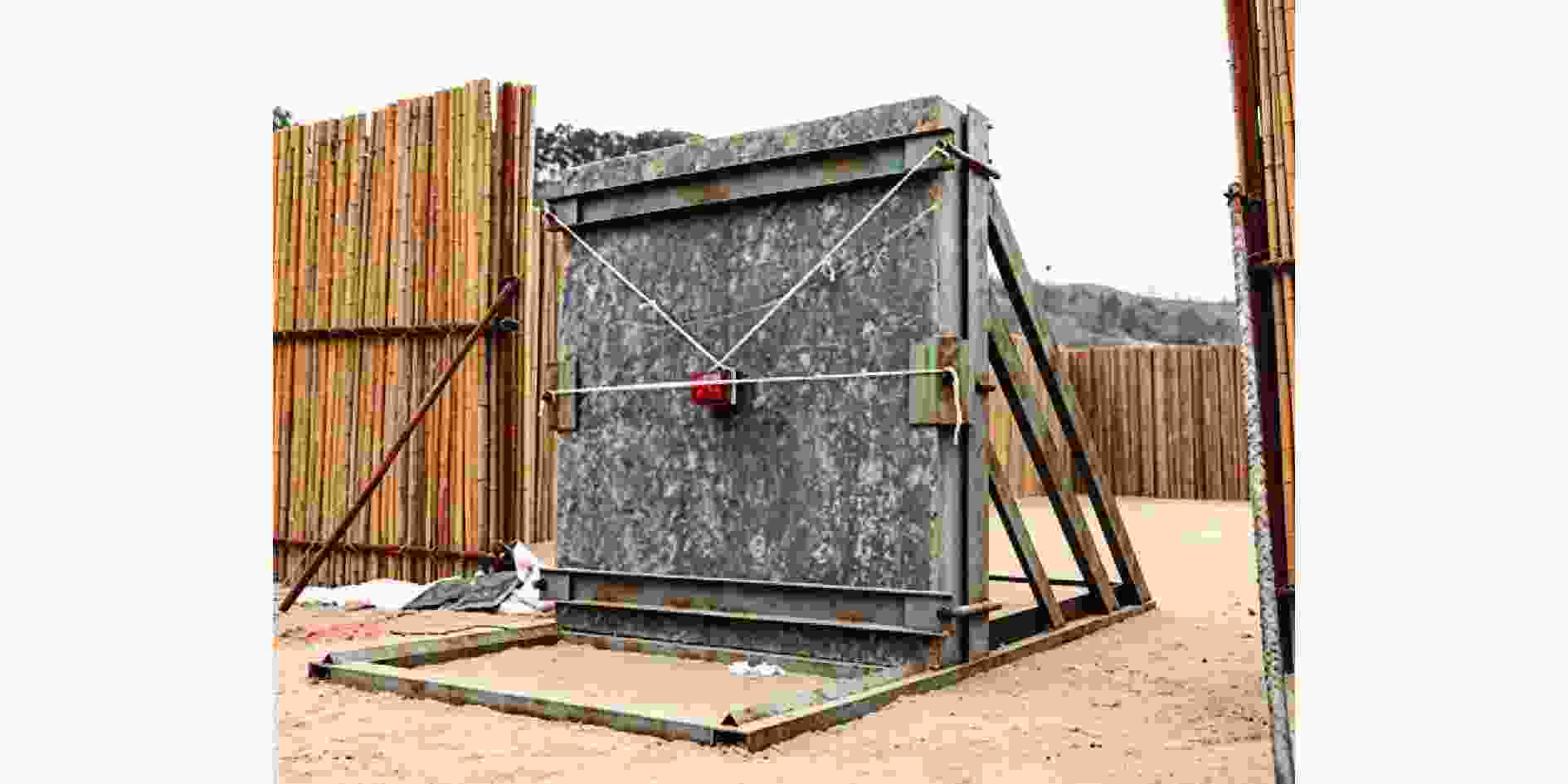

图 3 试验装置^[11]

Figure 3. Test equipment^[11]

下载: 全尺寸图片幻灯片

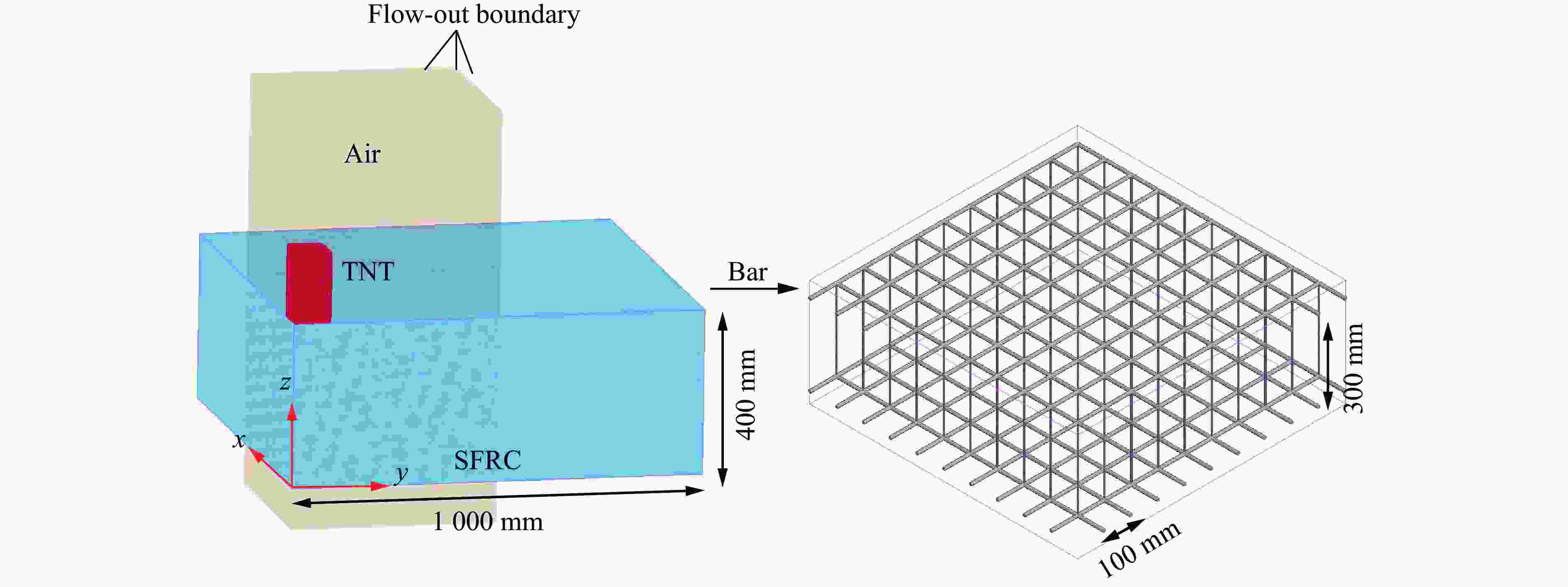

图 4 有限元模型

Figure 4. Finite element model

下载: 全尺寸图片幻灯片

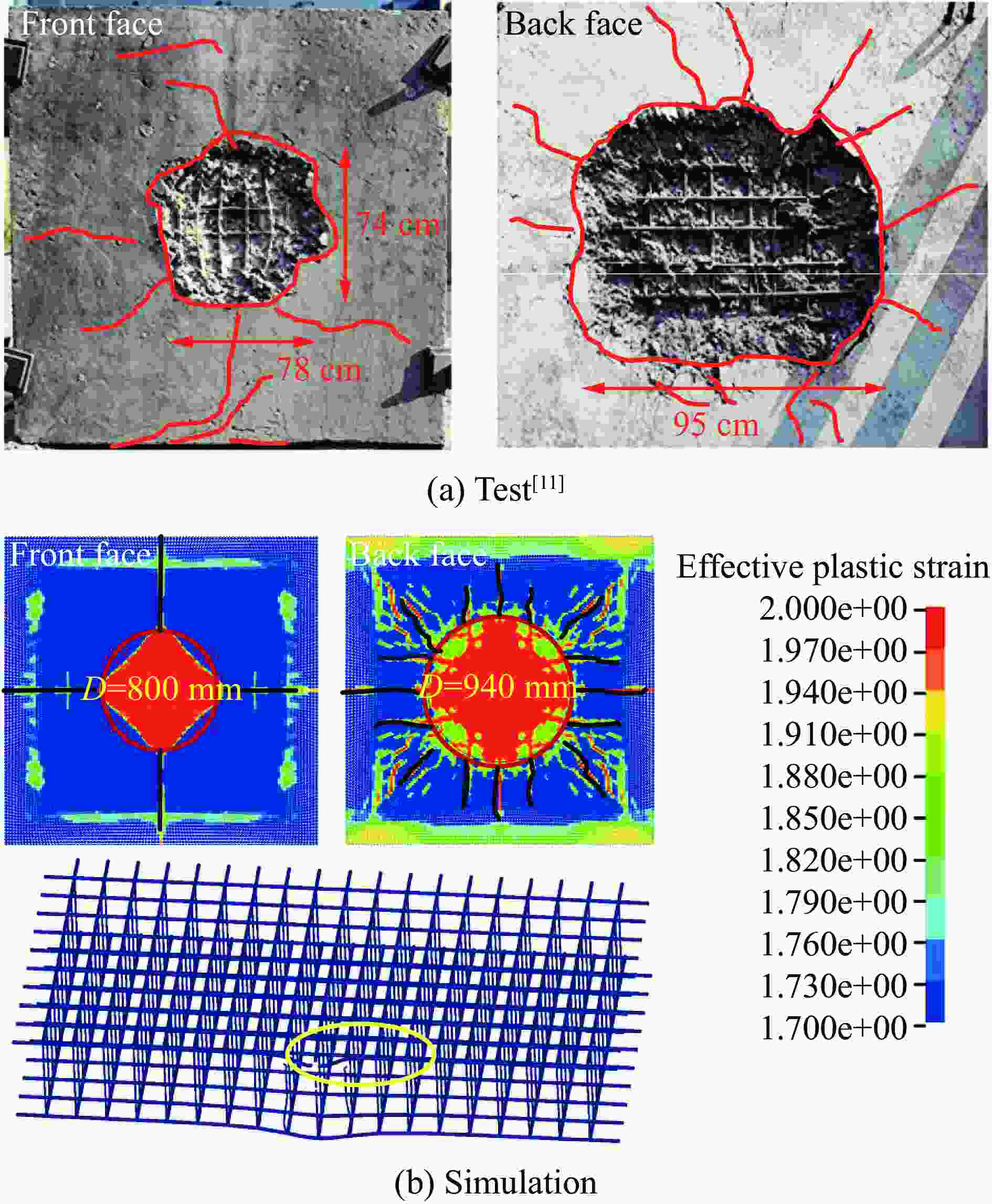

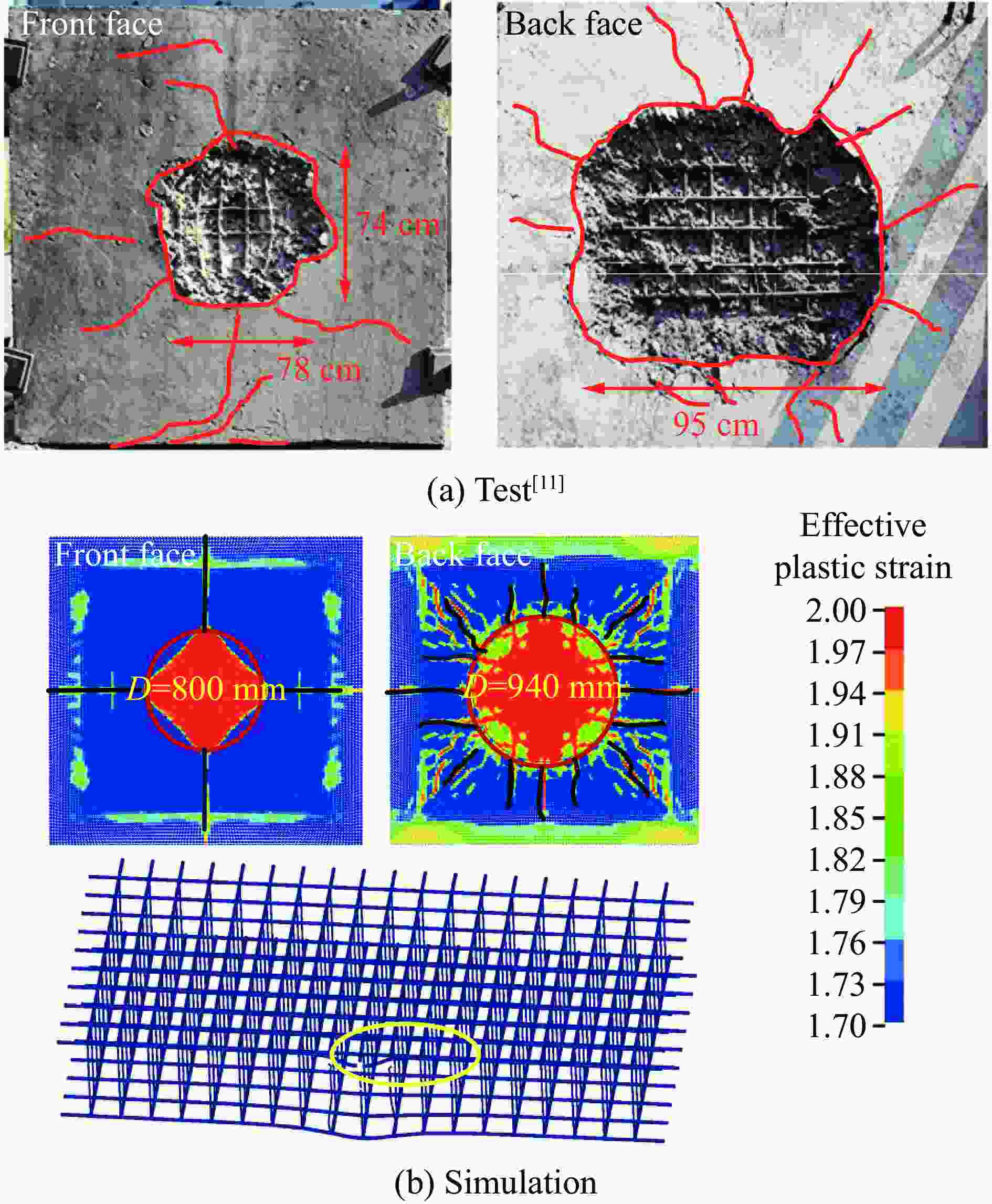

图 5 SFRC靶体试验结果与数值模拟结果

Figure 5. Test results and numerical results of SFRC target

下载: 全尺寸图片幻灯片

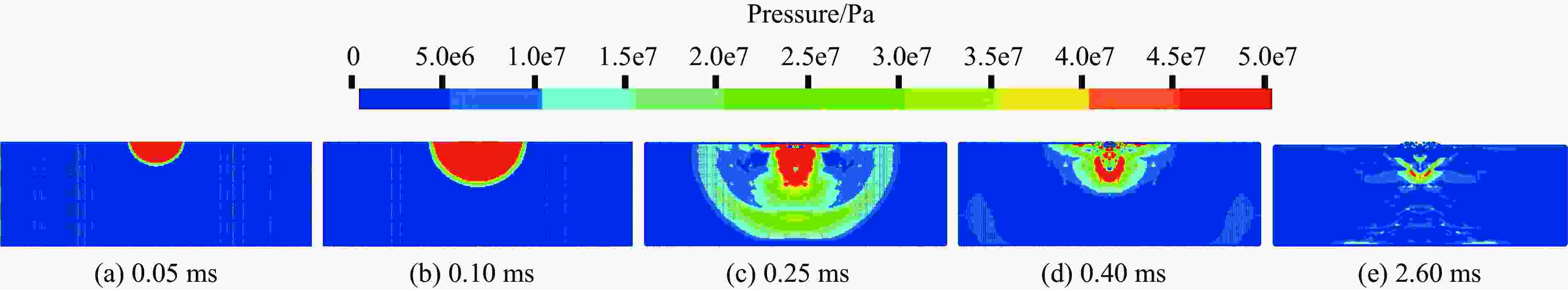

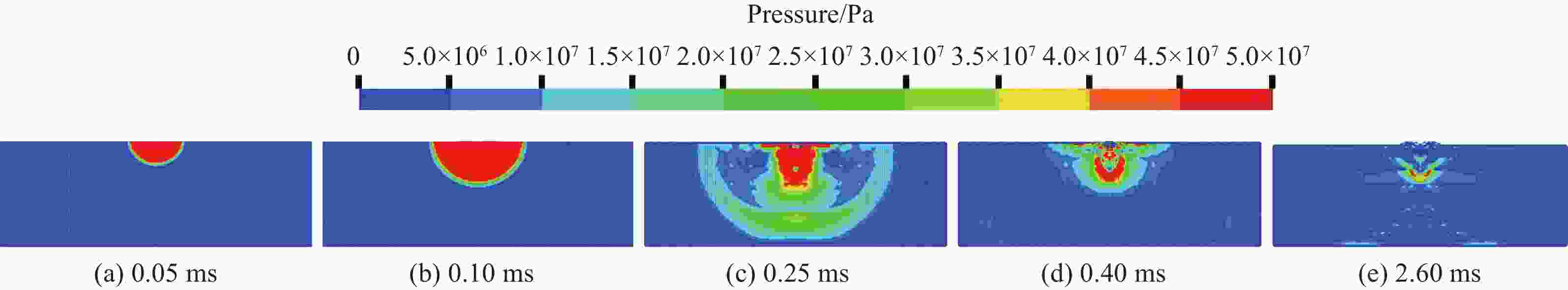

图 6 Q=11 kg、l/d=1时SFRC 靶应力传播过程

Figure 6. Evaluation process of Von Mises stress distribution in the SFRC target under Q=11 kg and l/d=1

下载: 全尺寸图片幻灯片

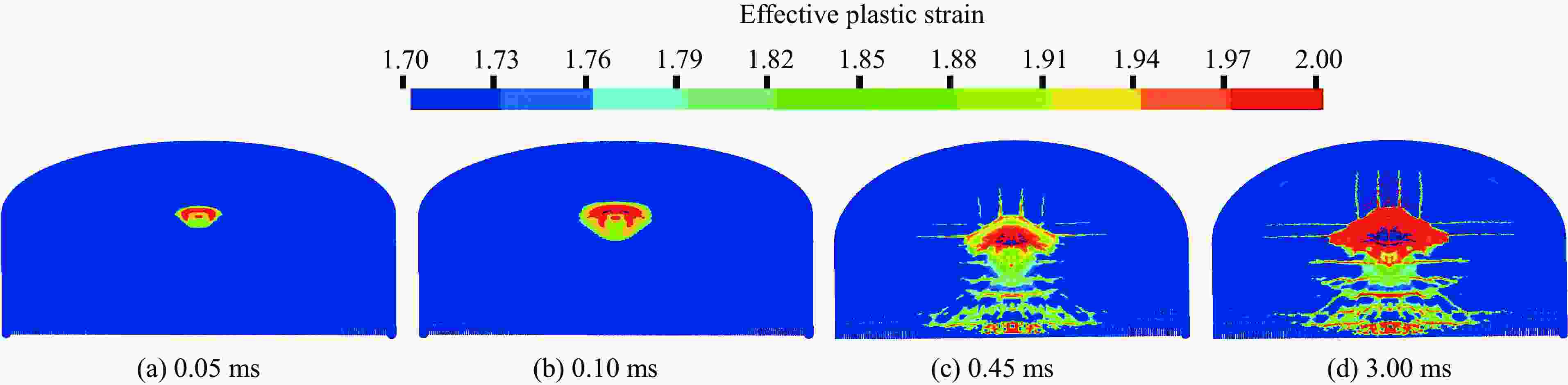

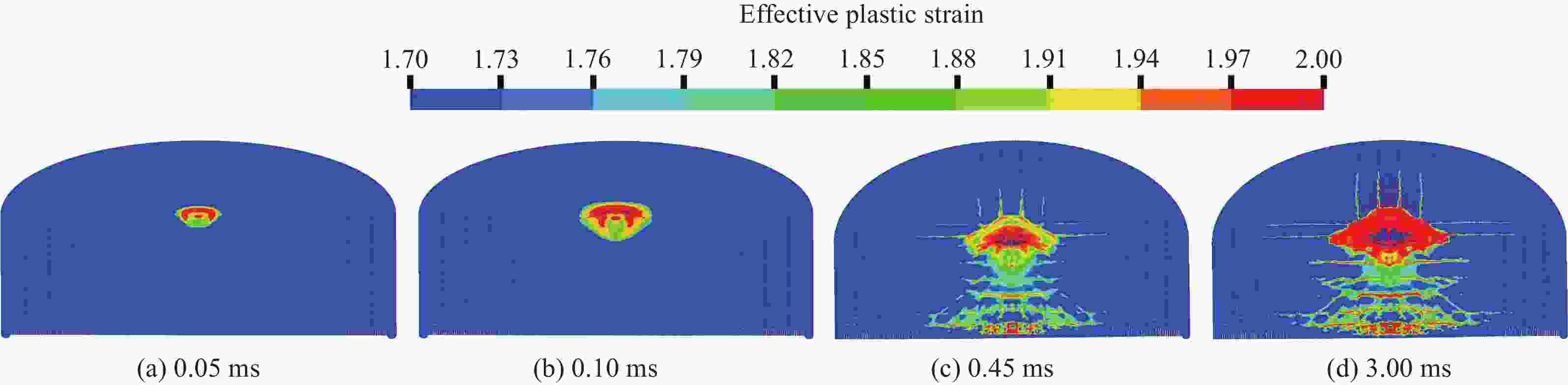

图 7 Q=11 kg、l/d=1时SFRC靶损伤发展过程

Figure 7. Damage evaluation in the SFRC target under Q=11 kg and l/d=1

下载: 全尺寸图片幻灯片

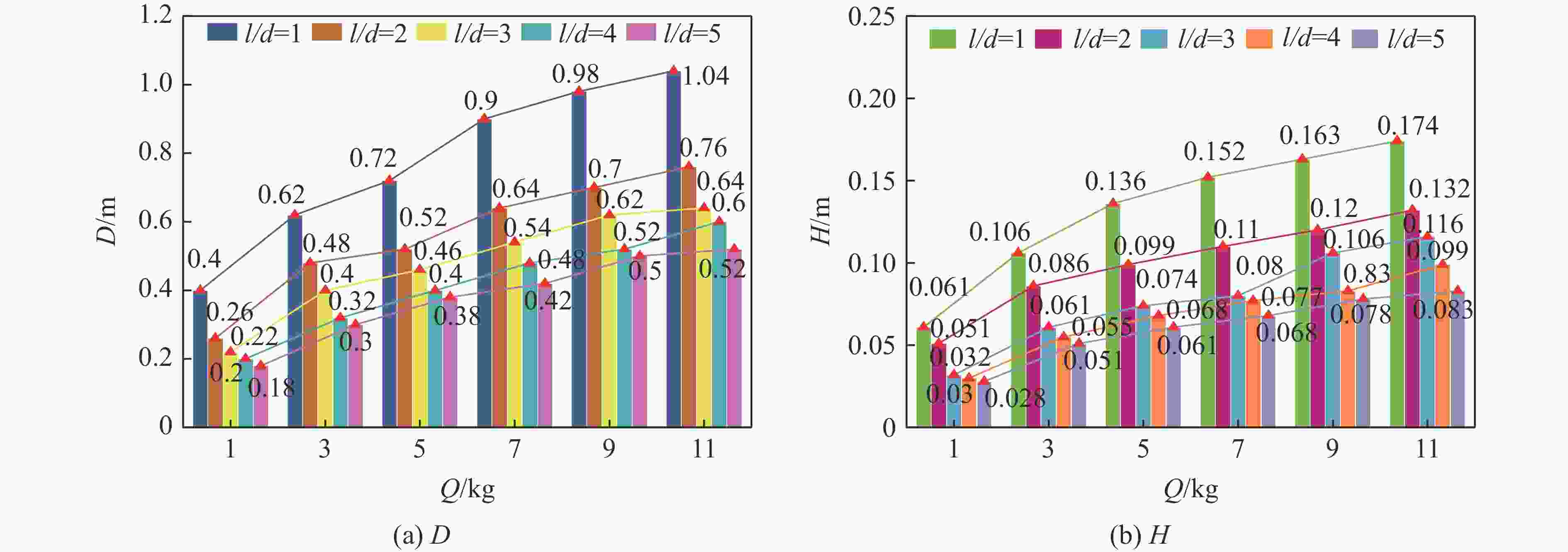

图 8 不同装药量Q和长径比l/d下SFRC靶爆坑尺寸对比

Figure 8. Comparison of diameter and depth of SFRC under different Q and l/d

下载: 全尺寸图片幻灯片

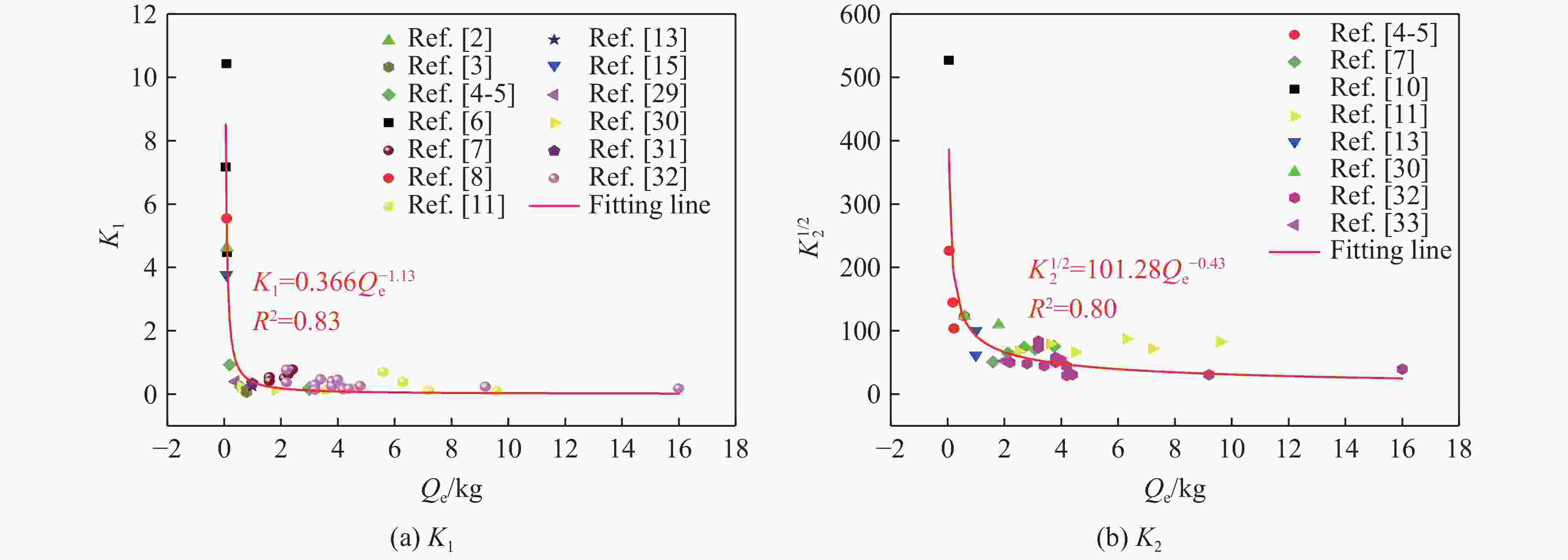

图 9 爆坑系数拟合结果

Figure 9. Fitting results of crater coefficient

下载: 全尺寸图片幻灯片

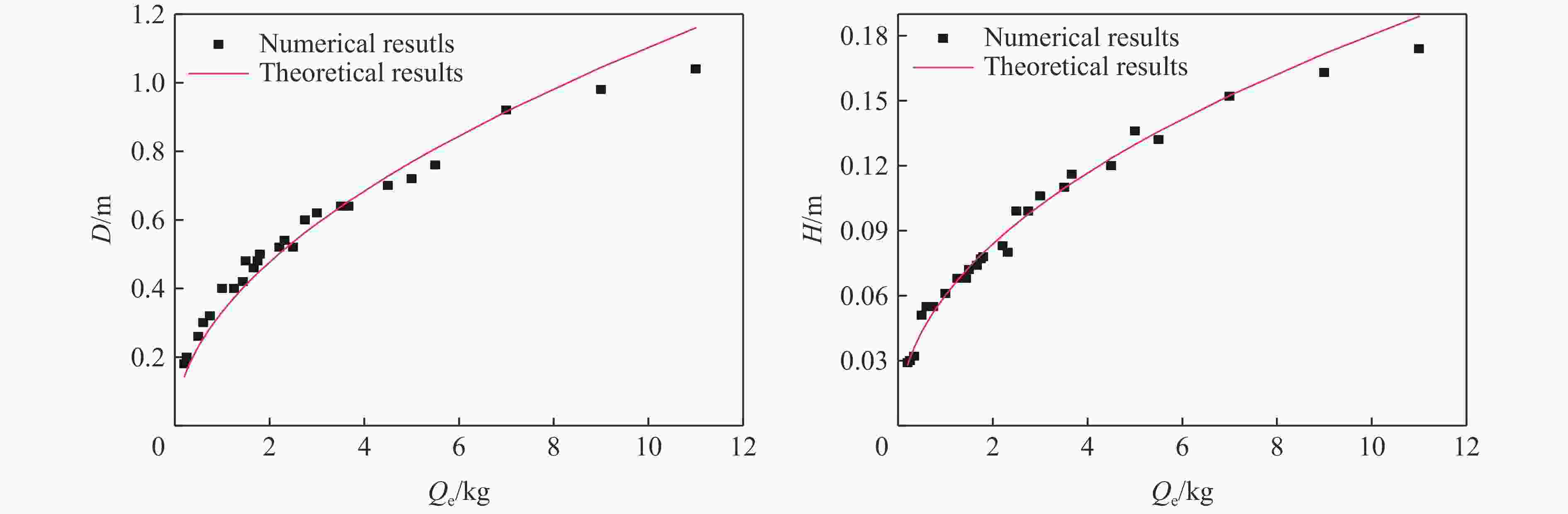

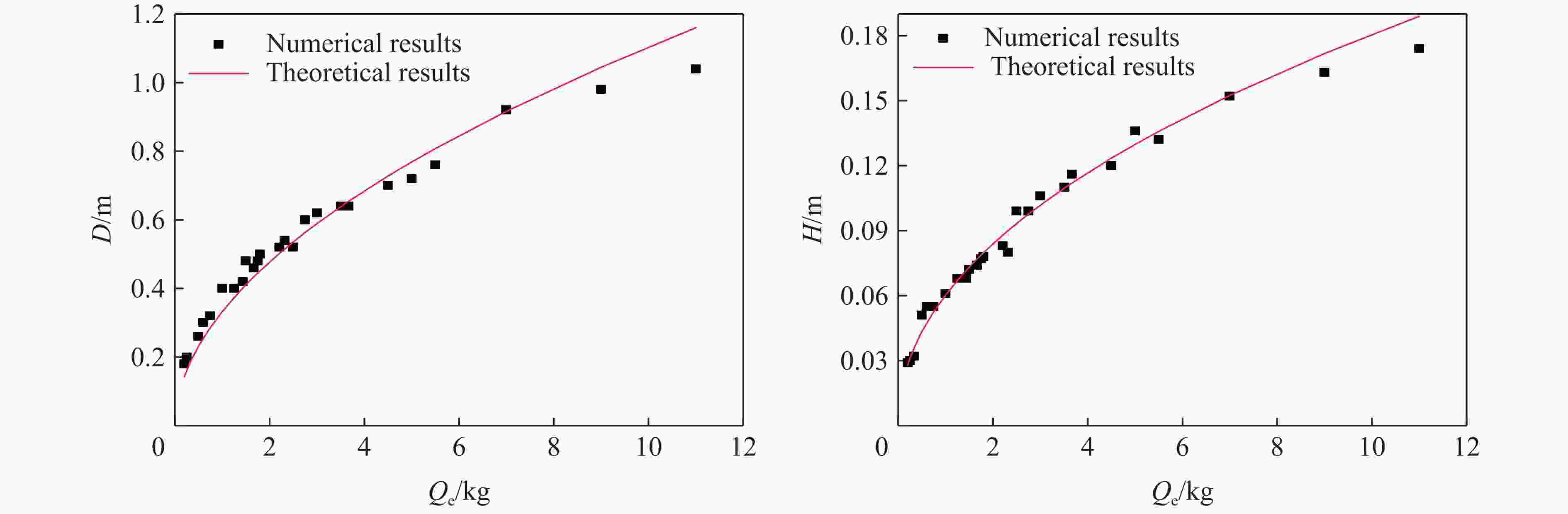

图 10 爆坑尺寸计算结果

Figure 10. Calculated results of crater dimension

下载: 全尺寸图片幻灯片

表 1 CF60 钢纤维混凝土K＆C模型参数^[21]

Table 1. Parameters of K＆C model for CF60 steel fiber concrete^[21]

ρ/(kg·m⁻³)	f_c/MPa	v	f_t/MPa	RSIZE	UFC	a₀	a_0y	a_0f
2440	65	0.24	4.95	39.37	1.45×10⁻⁴	−6.5×10⁷	1.703×10⁷	0

a₁	a_1y	a_1f	a₂	a_2y	a_2f	b₁	b₂	b₃
0.481	0.726	0.476	1.57×10⁻⁹	4.77×10⁻⁹	2.31×10⁻⁹	0.75	0.2	0.018
注：ρ为密度；f_c为抗压强度，f_t为抗拉强度，v为泊松比，RSIZE为长度单位转换因子，UFC为应力单位转换因子，a₀、a_0y、a_0f、a₁、a_1y、a_1f、a₂、a_2y、a_2f为强度面参数，b₁、b₂、b₃为损伤参数。

下载: 导出CSV

表 2 钢筋和钢板材料参数^[21]

Table 2. Parameters of steel^[21]

材料	ρ/(kg·m⁻³)	E/GPa	v	σ_y/MPa
HRB400钢筋	7 850	205	0.29	400
Q235钢板	7 850	210	0.3	310
注：E为弹性模量，σ_y为屈服强度。

下载: 导出CSV

表 3 空气及状态方程参数^[24]

Table 3. Air and equation of state parameters^[24]

ρ/(kg·m⁻³)	C₀	C₁	C₂	C₃	C₄	C₅	C₆	E₀/(GJ·m⁻³)	V₀
1.29	0	0	0	0	0.4	0	0	250	1
注：C₀～C₆为状态方程系数，E₀为初始内能，V₀为初始相对体积。

下载: 导出CSV

表 4 炸药及状态方程参数^[24]

Table 4. Explosive and equation of state parameters^[24]

ρ/(kg·m⁻³)	D₁/(m·s⁻¹)	p/GPa	A/GPa	B/MPa	R₁	R₂	ω	E₀/(GJ·m⁻³)
1 630	6 930	21	373	3 747	4.15	0.9	0.35	7
注：A、B、R₁、R₂、ω为炸药参数，E₀为初始内能，p为爆轰压力，D₁为爆速。

下载: 导出CSV

表 5 SFRC靶K＆C模型参数

Table 5. Parameters of K＆C model for SFRC target

ρ/(kg·m⁻³)	f_c/MPa	v	f_t/MPa	RSIZE	UFC	a₀	a_0y	a_0f
2440	107	0.24	9.3	39.37	1.45×10⁻⁴	−1.07×10⁸	3.17×10⁷	0

a₁	a_1y	a_1f	a₂	a_2y	a_2f	b₁	b₂	b₃
0.533	0.827	0.527	7.34×10⁻¹⁰	2.23×10⁻⁹	1.08×10⁻⁹	1.6	−2	1.15

下载: 导出CSV

表 6 不同装药量与长径比作用下SFRC靶体破坏形态

Table 6. Failure modes of SFRC targets under varying Q and l/d

l/d	SFRC靶体破坏形态
l/d	Q =1 kg	Q =3 kg	Q =5 kg	Q =7 kg	Q =9 kg	Q =11 kg
1
2
3
4
5

下载: 导出CSV
