Experimental study on the coupling of shock wave and temperature field during thermobaric explosive detonation in enclosed spaces
-

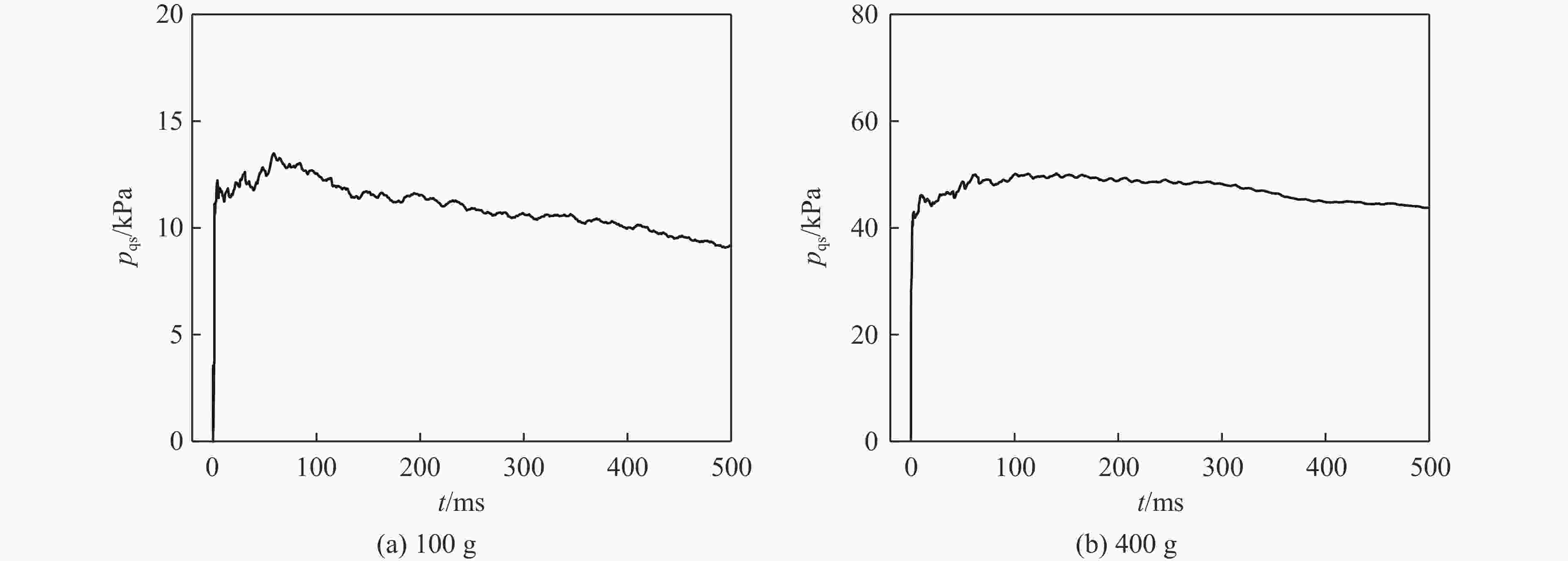

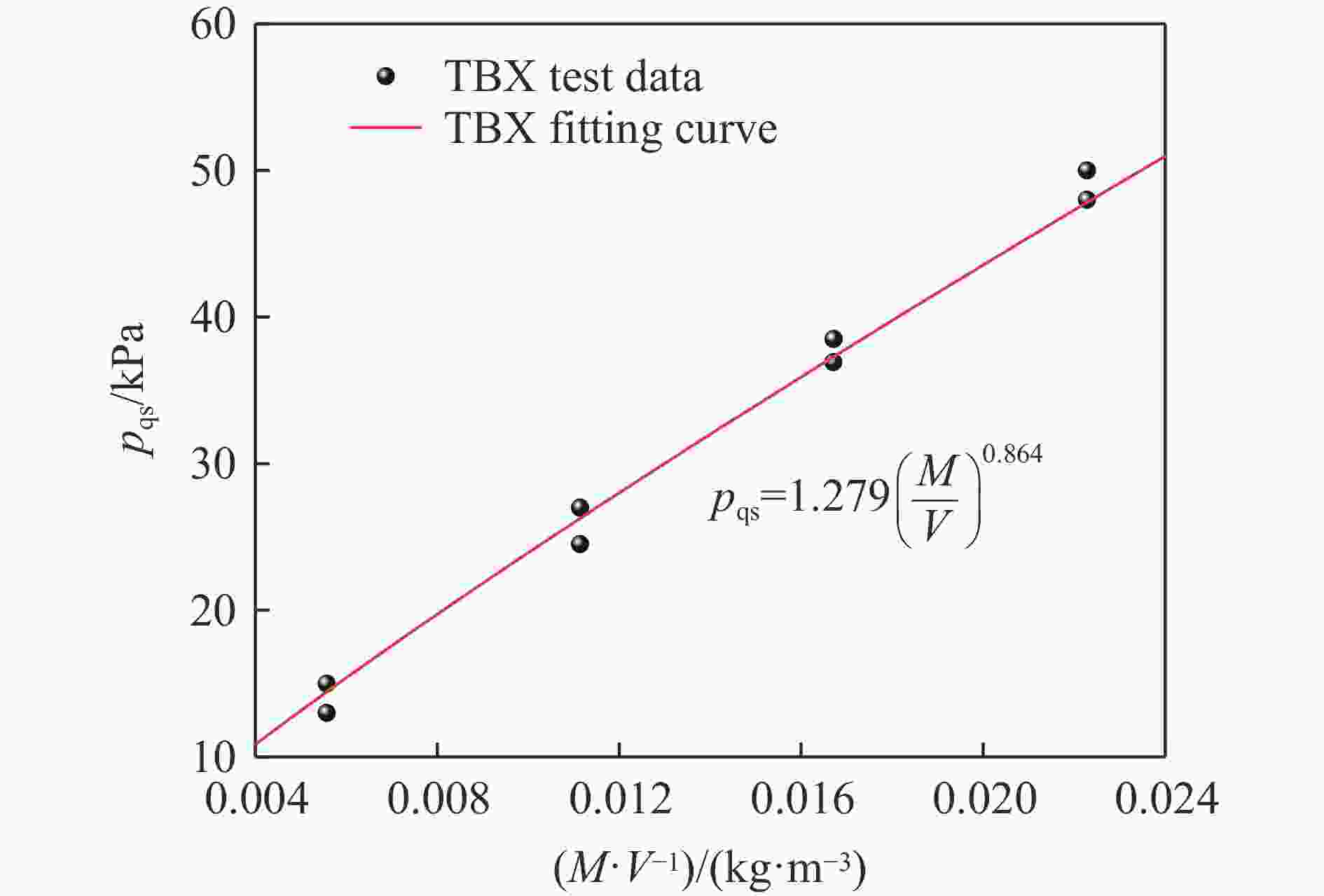

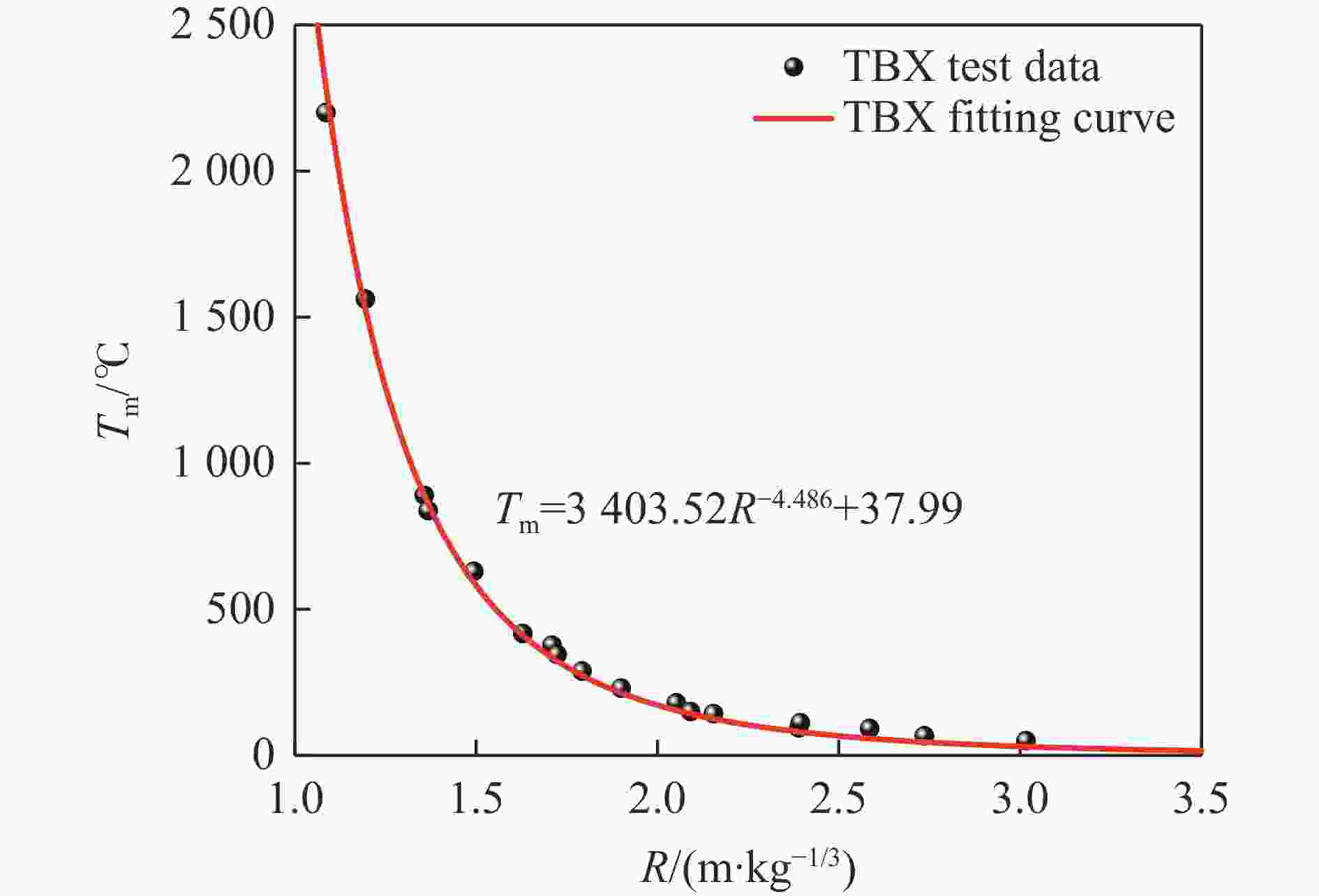

摘要: 为研究温压炸药在密闭空间内爆炸冲击波及温度的耦合增强效应,开展了100~400 g温压炸药密闭建筑空间内爆炸试验研究,利用压力传感器和热电偶获得了密闭空间不同位置处的爆炸压力和温度数据,揭示了温压炸药爆炸冲击波与温度场演变特征及传播规律。结果表明:温压炸药内爆炸温度场具有显著的二次升温和长持时特征,提出了基于比例距离的温度初始峰值预测模型。温压炸药内爆炸冲击波等效TNT当量系数随比例距离增大呈下凹双曲线变化趋势,在比例距离为1.7 m/kg1/3时TNT等效当量系数达到最小值1.4,该位置对应爆炸火球边界及冲击波冲量增长率转折点。建立了冲击波超压和冲量的两阶段预测模型,该模型能够更好的描述温压炸药非理想爆轰与铝粉后燃效应在不同区域下对冲击波的贡献。基于爆炸产物膨胀和后燃升温引起的压力上升,建立了温压炸药内爆炸准静态压力预测模型,随着装药质量从200 g增加到400 g,准静态压力相较于100 g从2.27增加到4.18倍,准静态压力在爆轰产物和后燃升温的耦合作用下表现为非线性增长。
-
关键词:

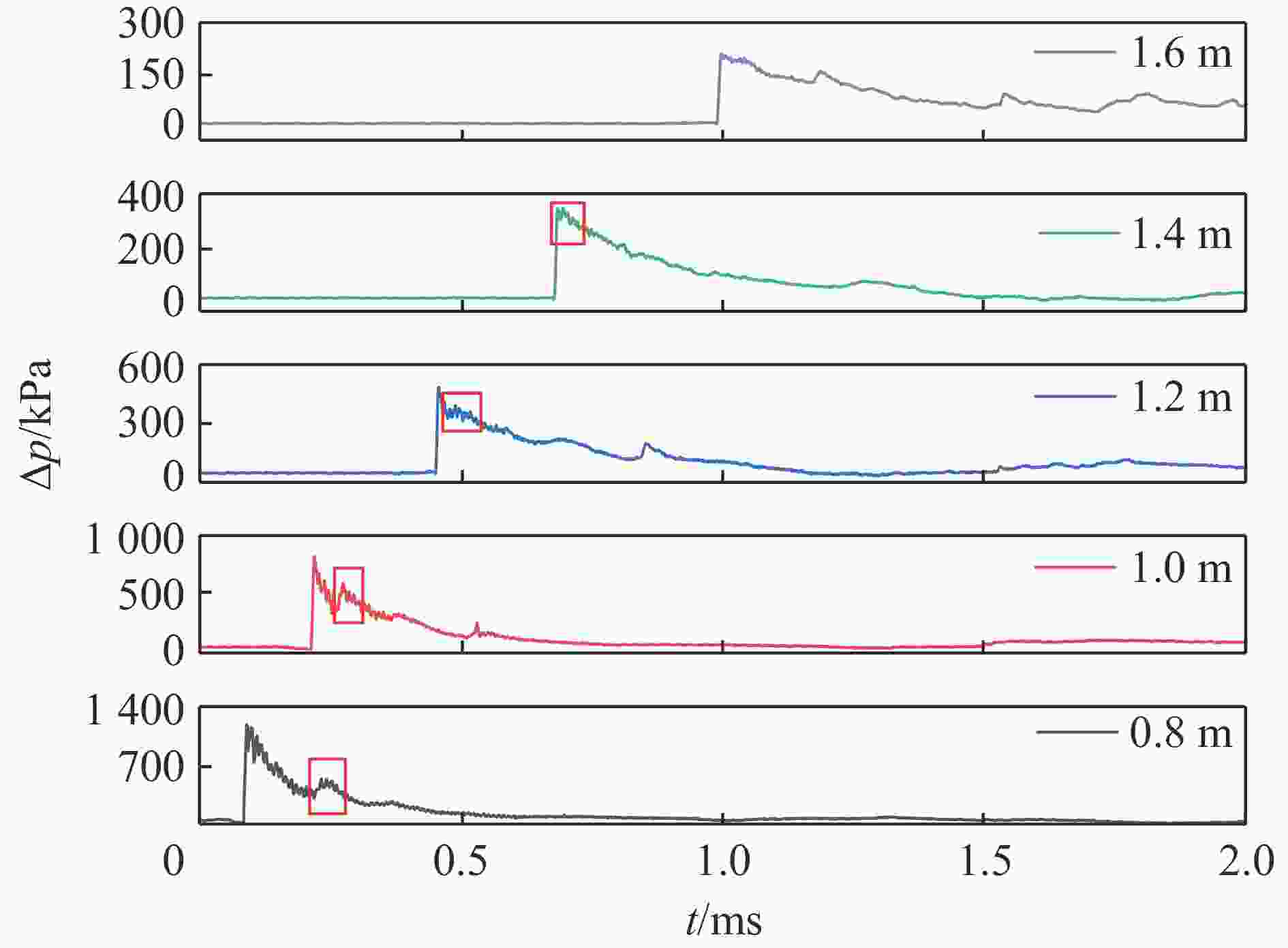

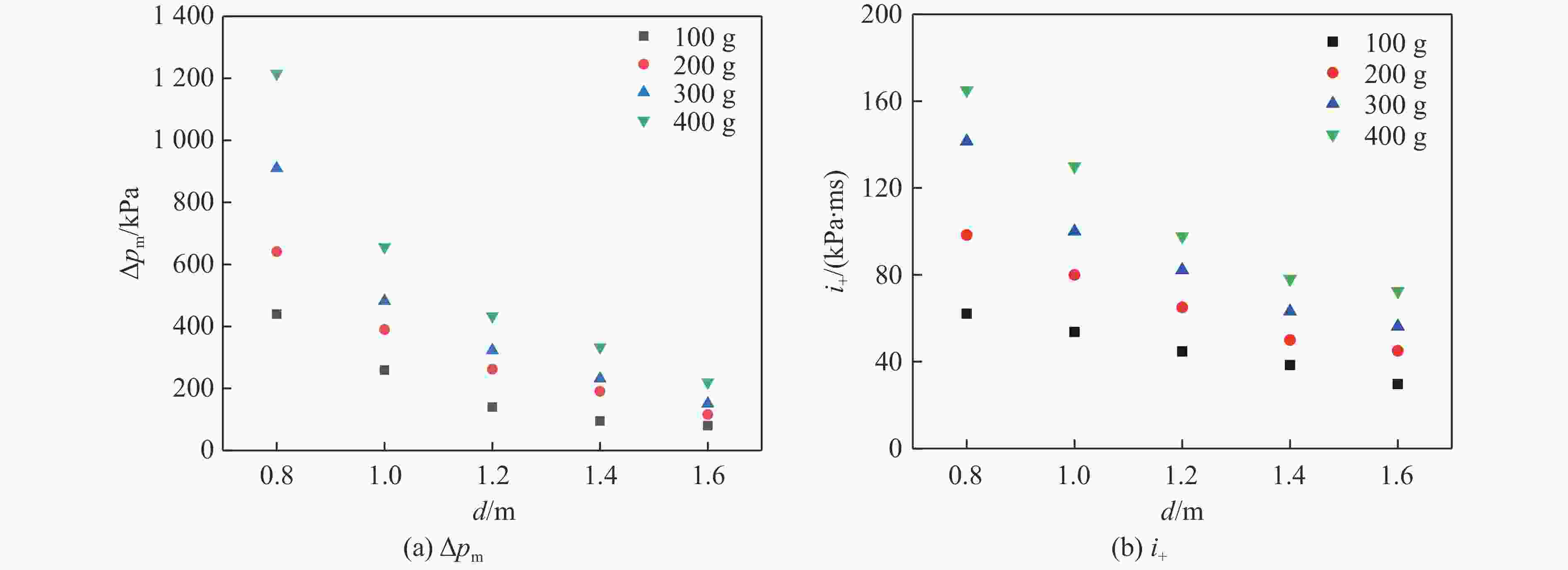

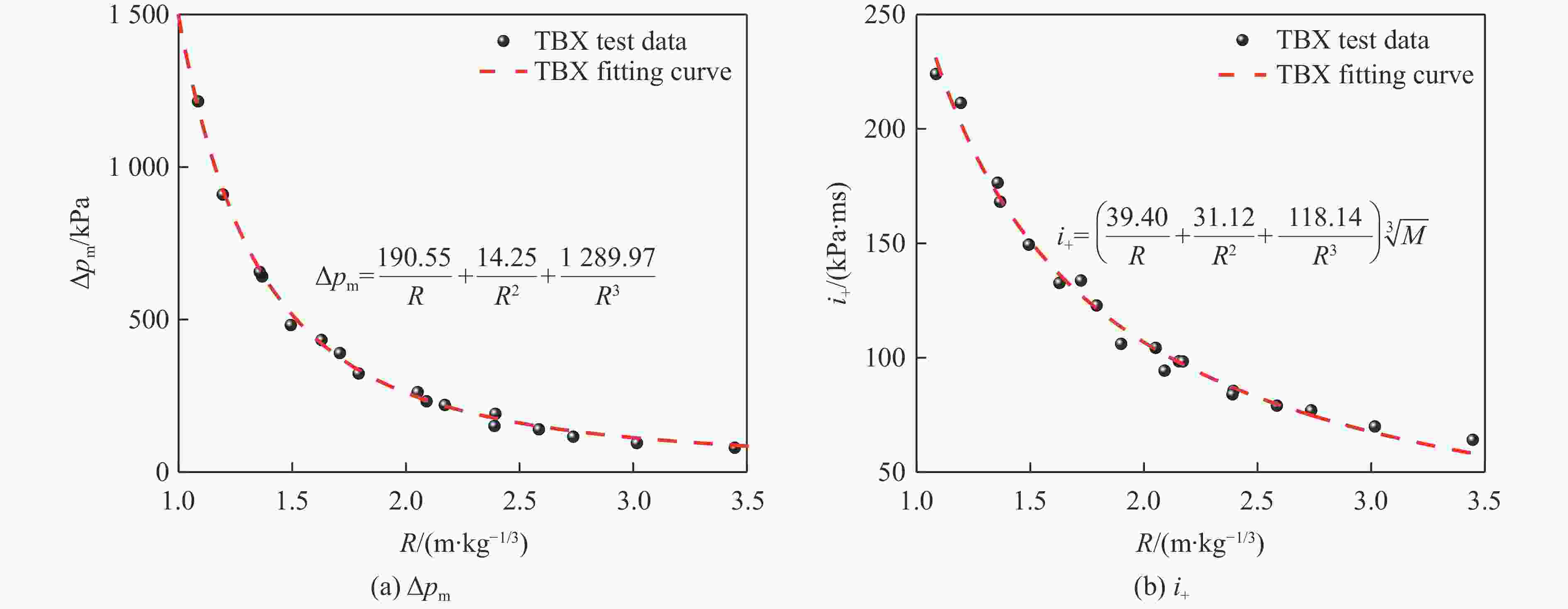

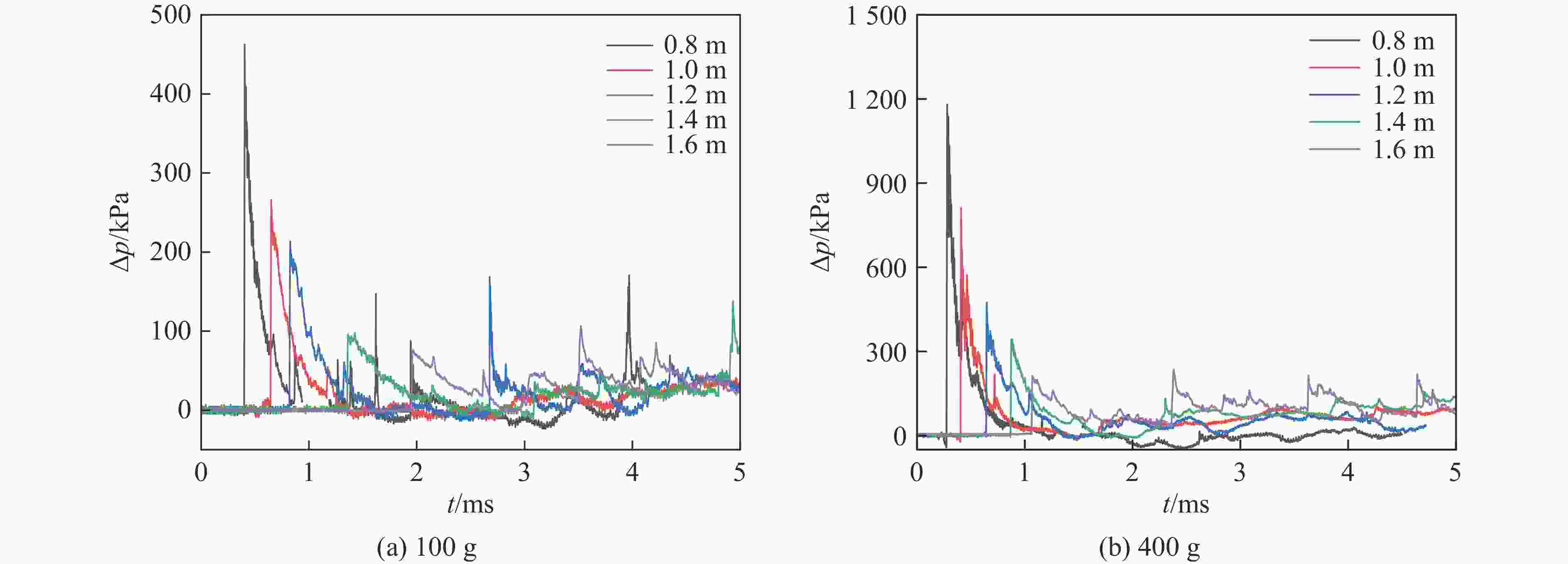

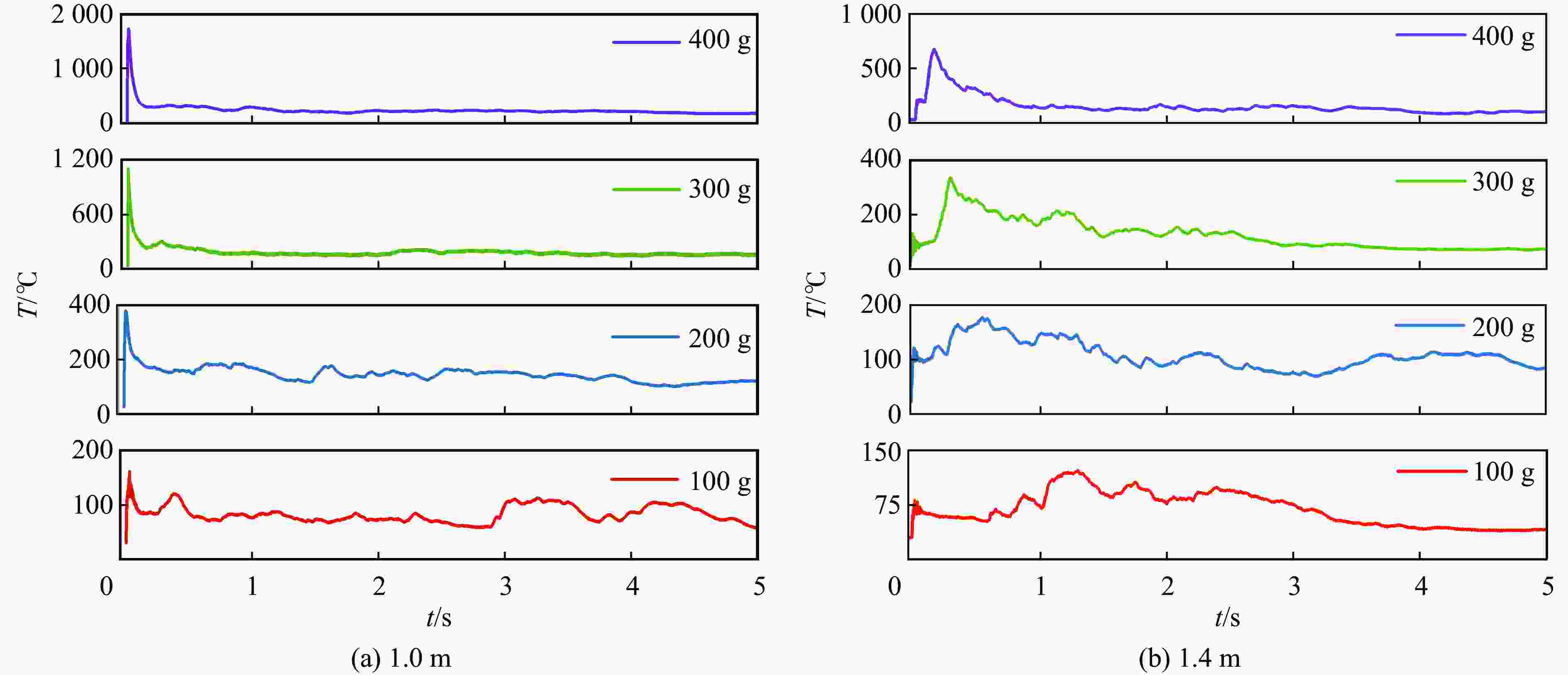

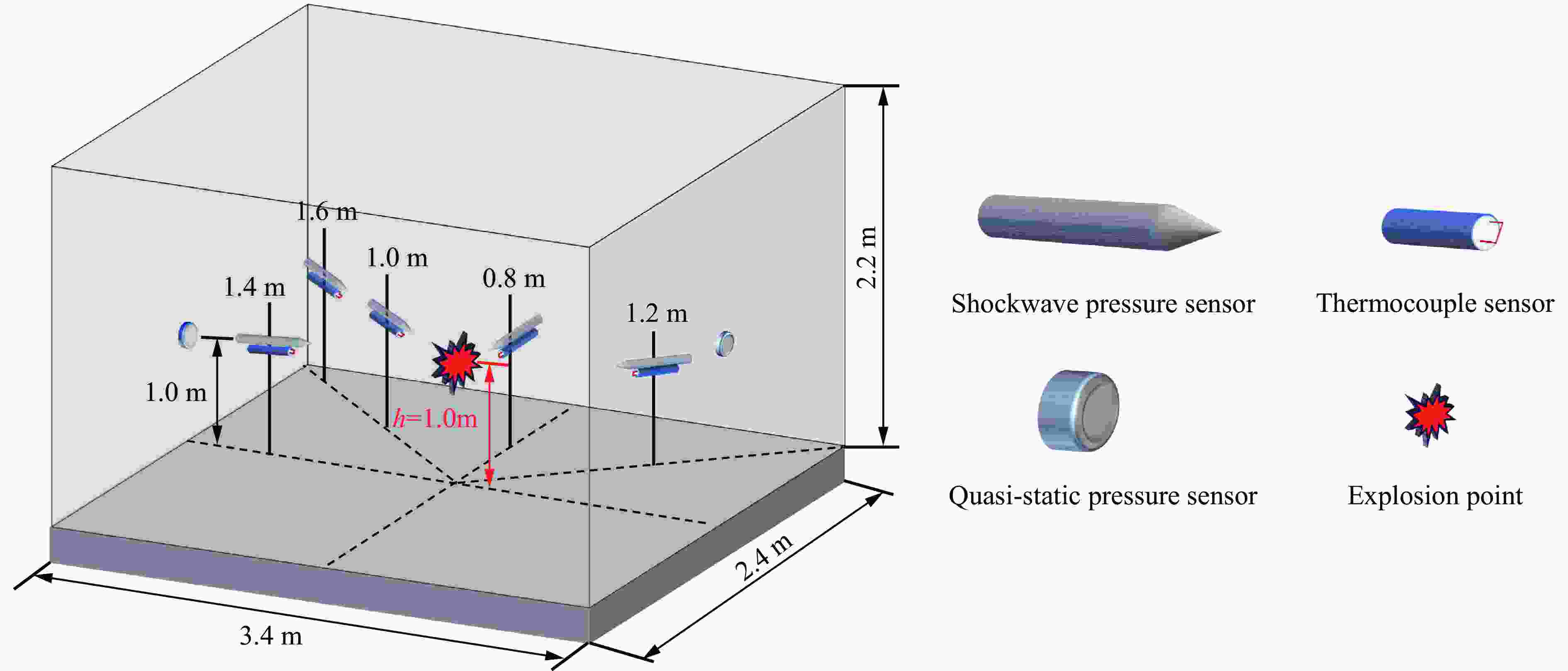

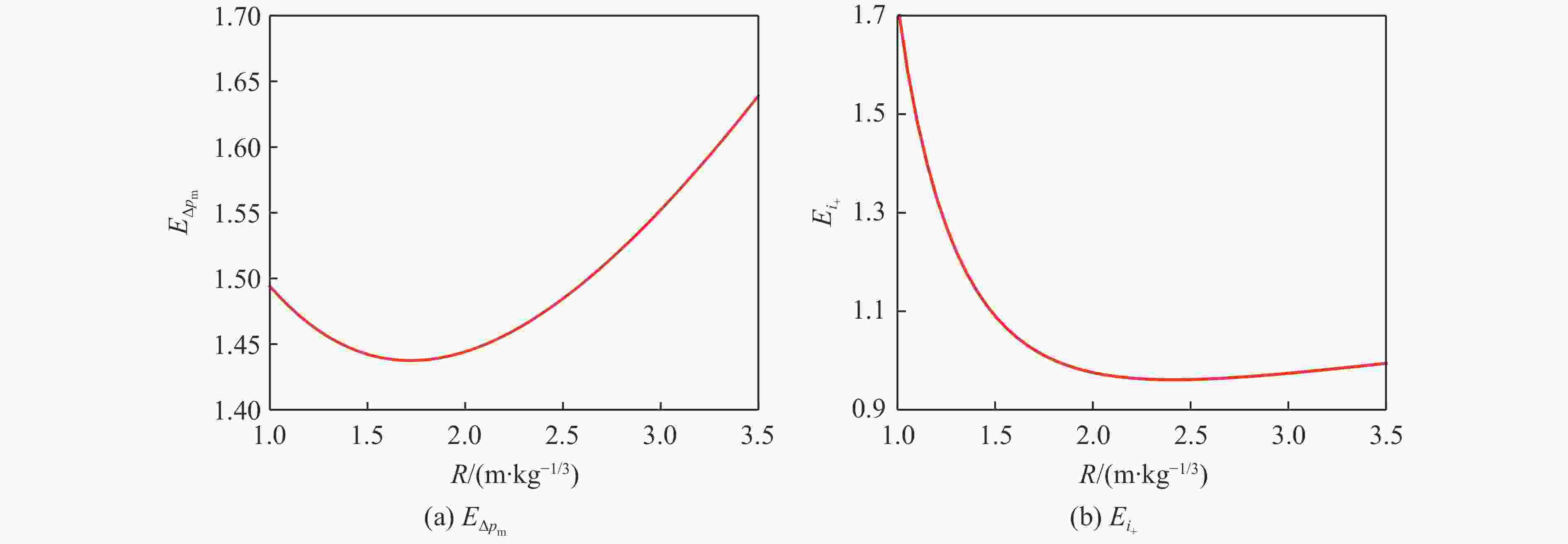

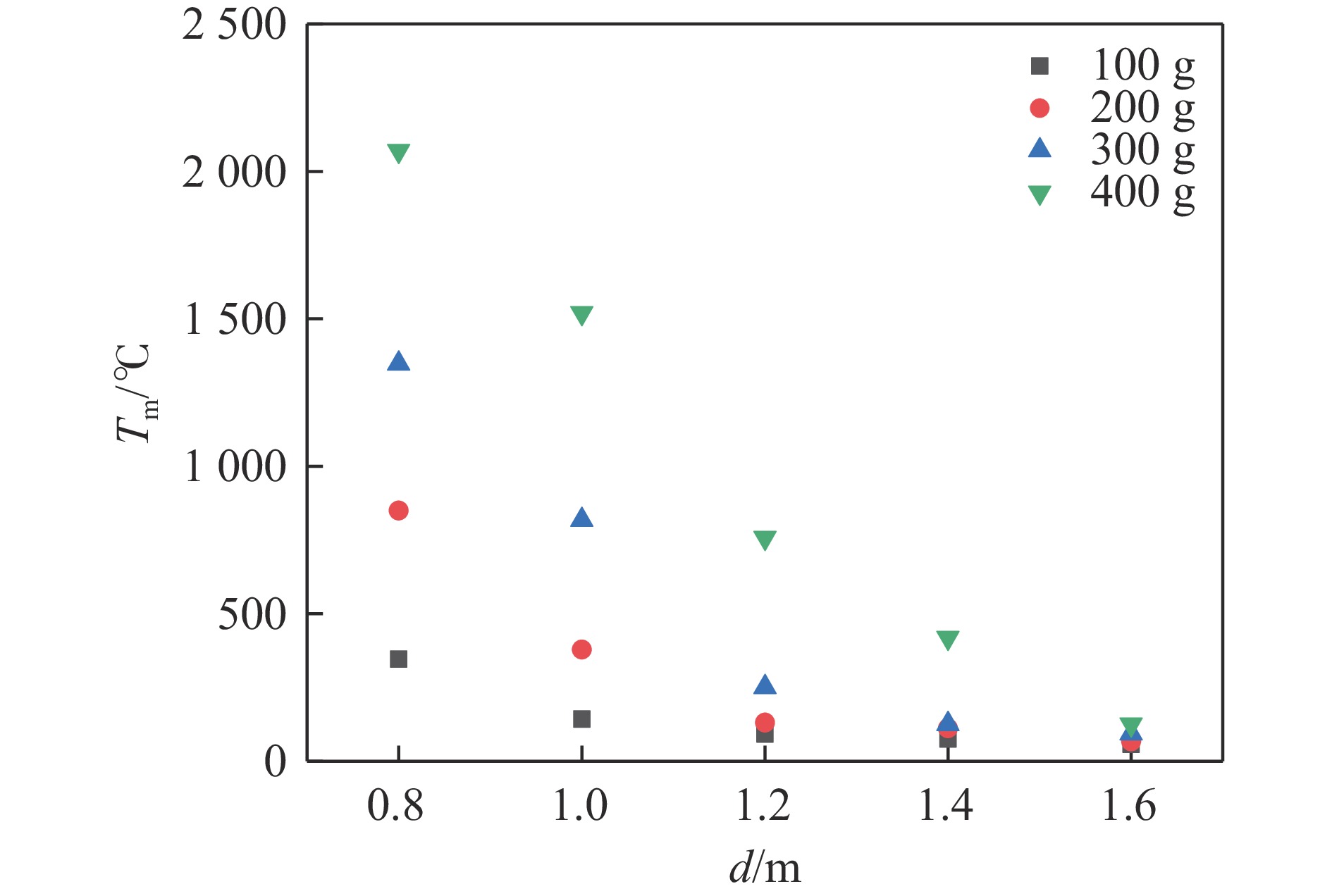

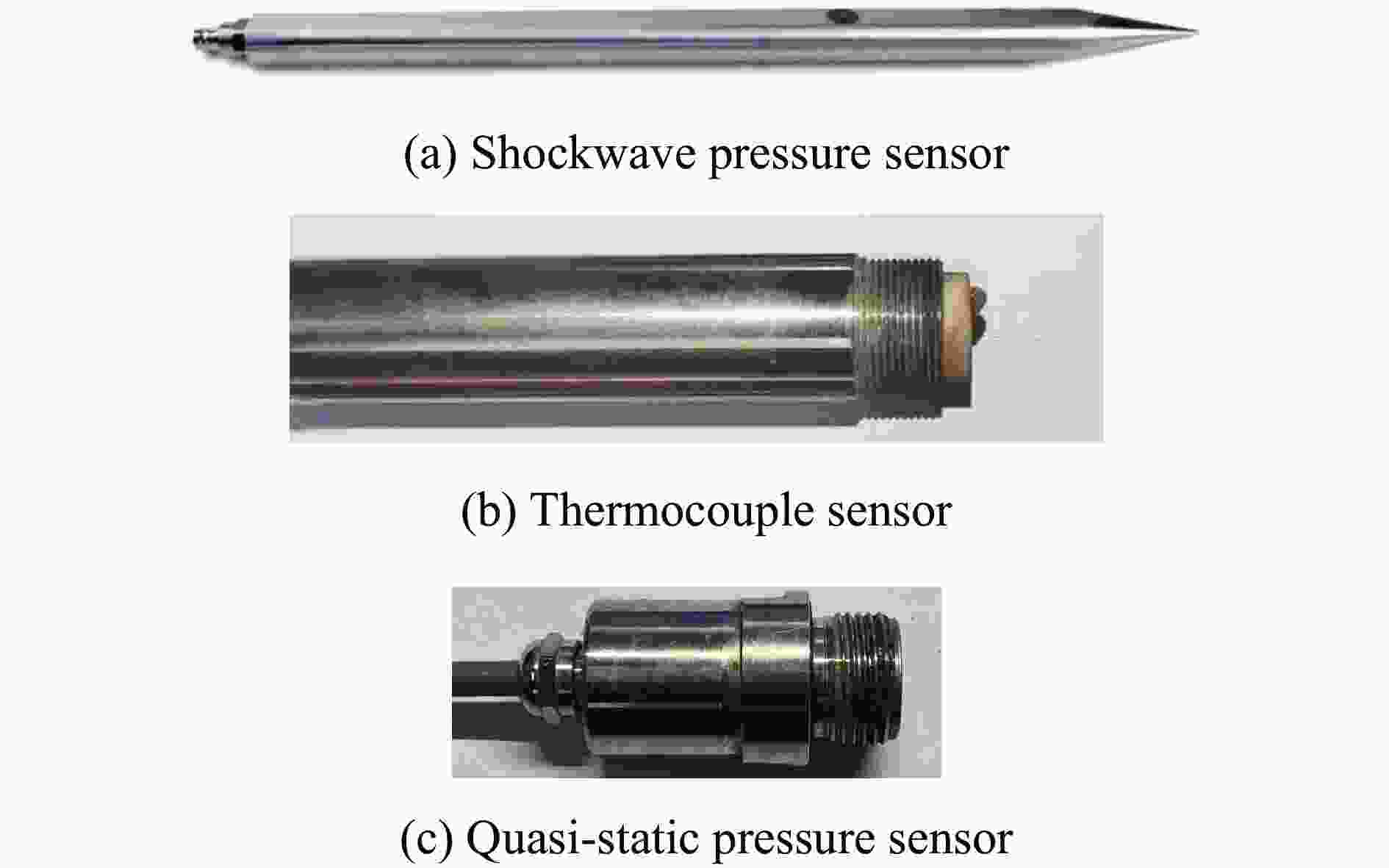

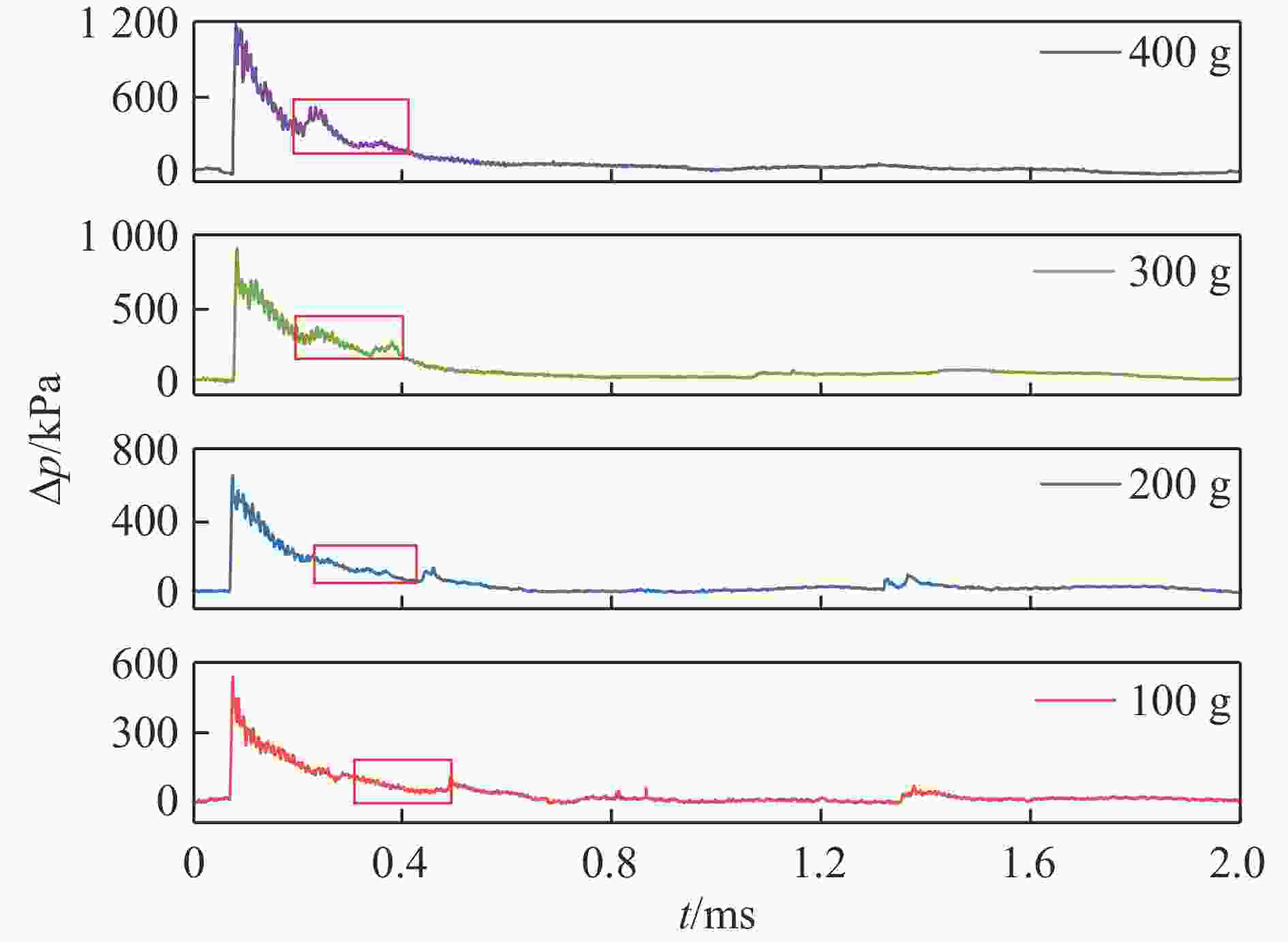

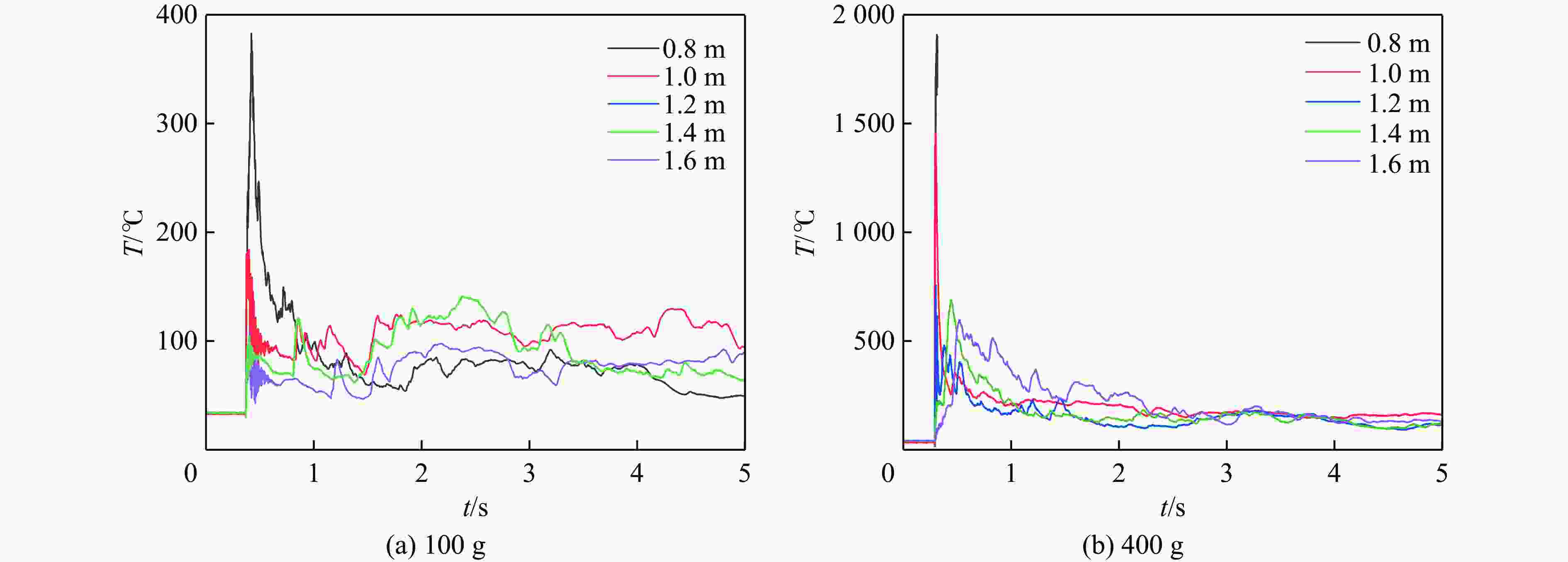

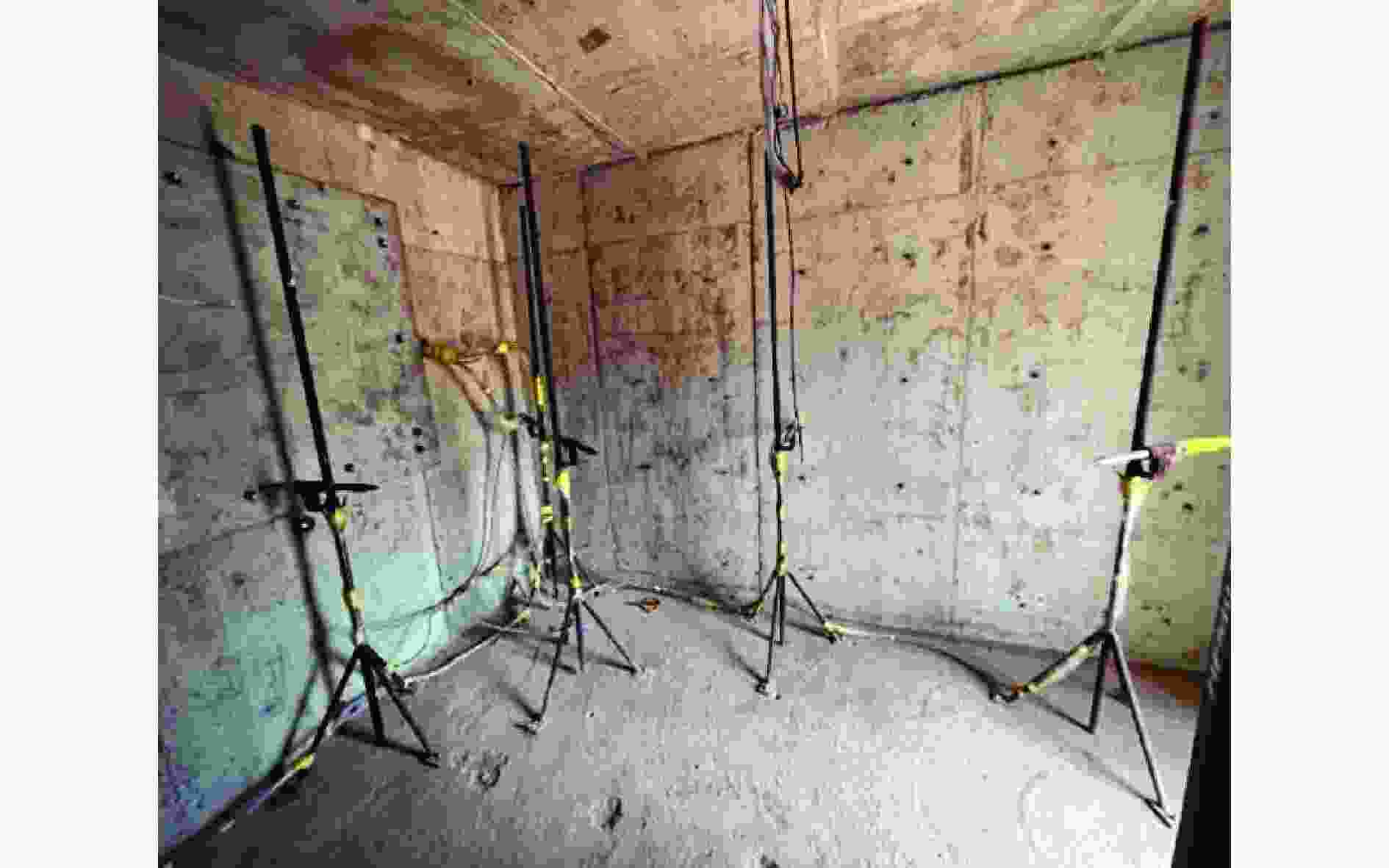

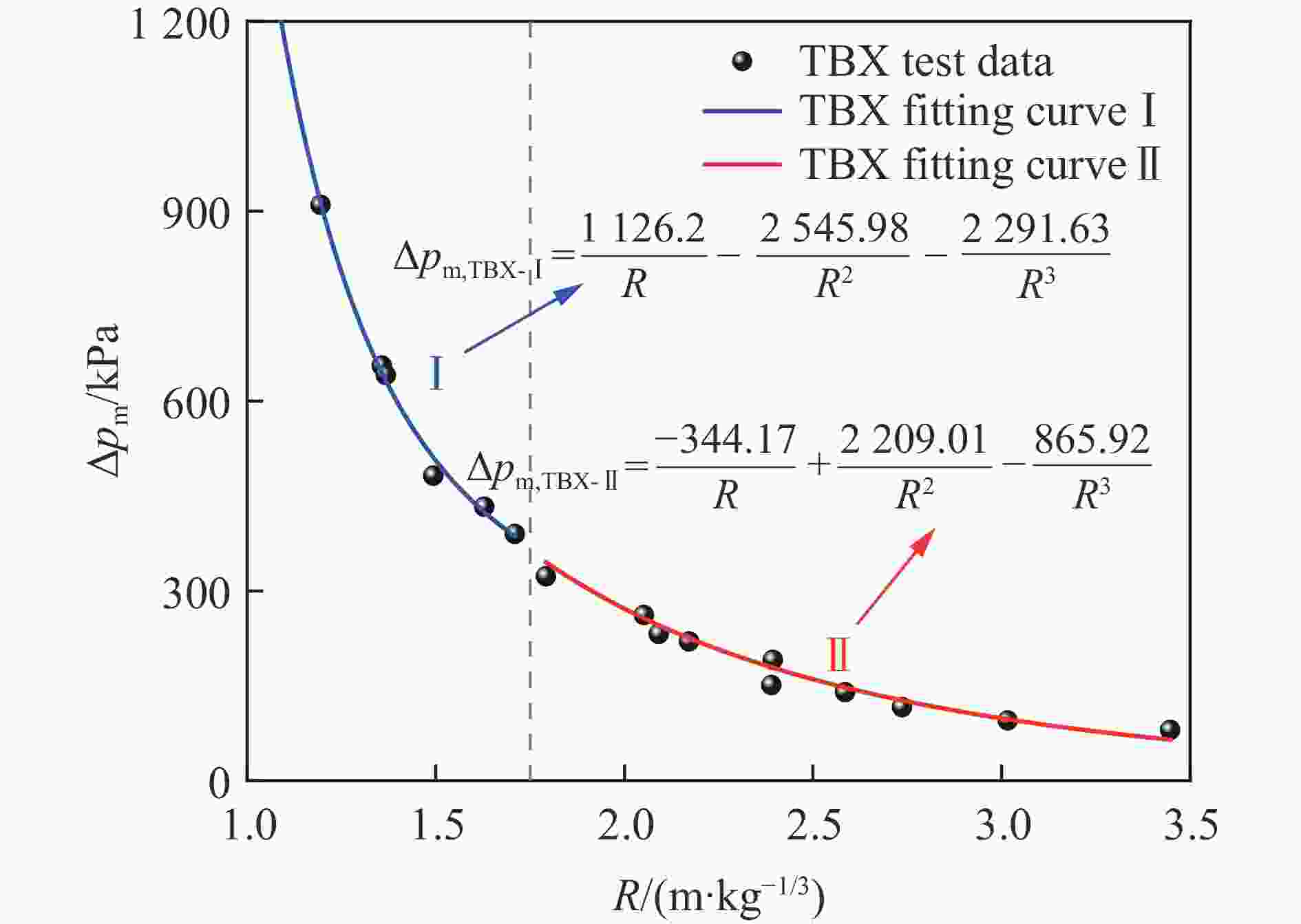

Abstract: To investigate the coupled enhancement effect of blast shock waves and temperature from thermobaric explosives in confined spaces, explosion experiments were conducted using 100–400 g thermobaric charges within a confined building environment. Pressure sensors and thermocouples were employed to measure explosion pressure and temperature at various locations inside the enclosure, revealing the evolution characteristics and propagation laws of the shock wave and temperature field. The results indicate that internal explosions of thermobaric explosives exhibit significant secondary temperature rise and long duration features. A predictive model for initial temperature peak based on scaled distance is proposed. The TNT equivalent coefficient of the shock wave from thermobaric explosions exhibits a concave hyperbolic trend with increasing scaled distance, reaching a minimum value of 1.4 at a scaled distance of 1.7 m/kg1/3—corresponding to the boundary of the explosion fireball and the inflection point in the shock wave impulse growth rate. A two-stage predictive model for shock wave overpressure and impulse is established, which better characterizes the contributions of non-ideal detonation and aluminum powder afterburning effects in different spatial regions. Furthermore, a quasi-static pressure prediction model is developed based on pressure rise induced by explosive product expansion and post-combustion heating. As the charge mass increases from 200 g to 400 g, the quasi-static pressure rises from 2.27 to 4.18 times that of the 100 g charge, demonstrating a nonlinear increase due to the coupled effects of detonation products and post-combustion thermal augmentation-
Key words:
- Thermobaric explosive /
- Enclosed space /
- Shock wave /
- Temperature field /
- Quasi-static pressure /
- Equivalent effect
-
