Blast performance of ultra-high performance concrete panels under intermediate-to-far-field explosive loading
-

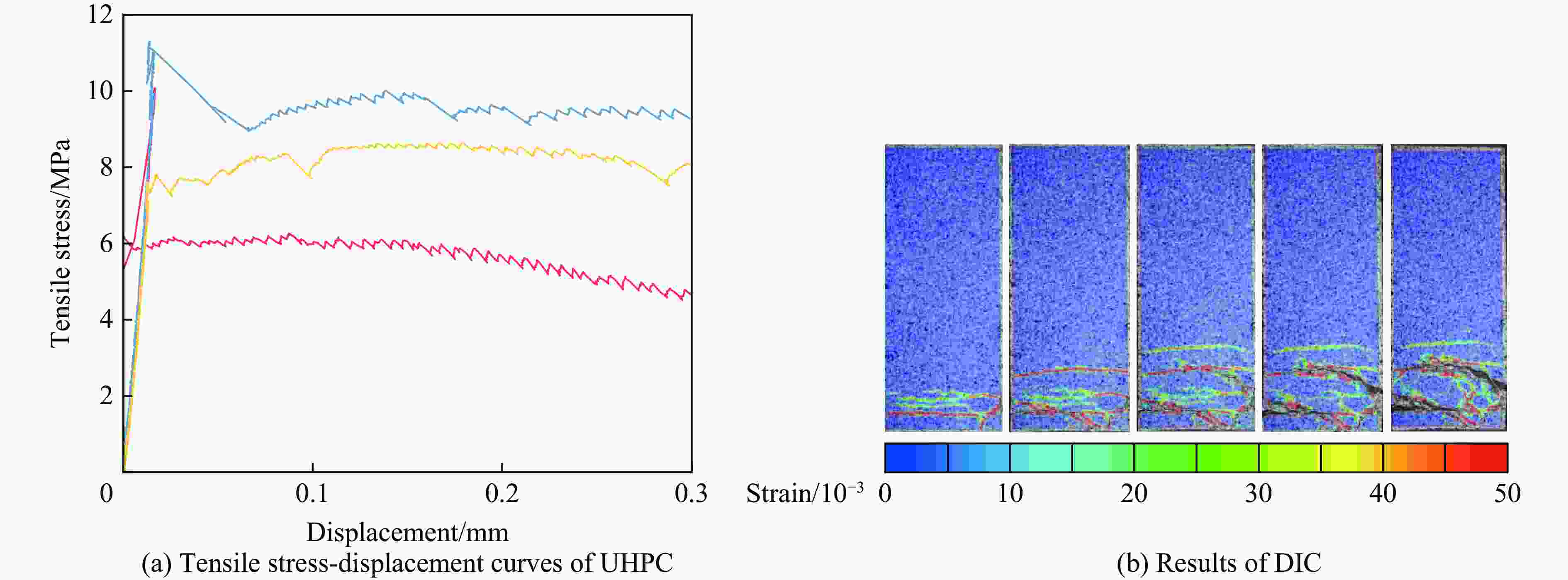

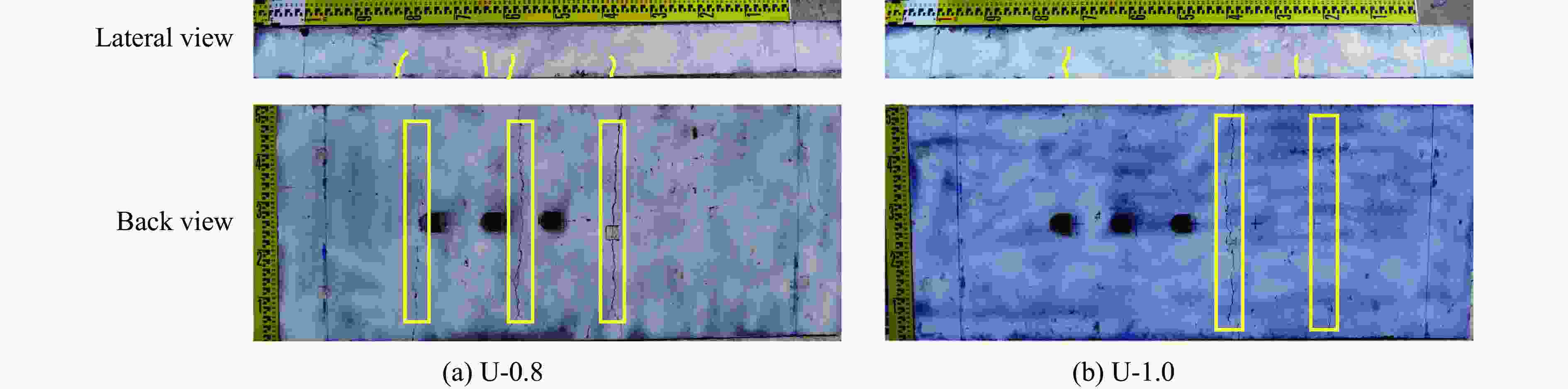

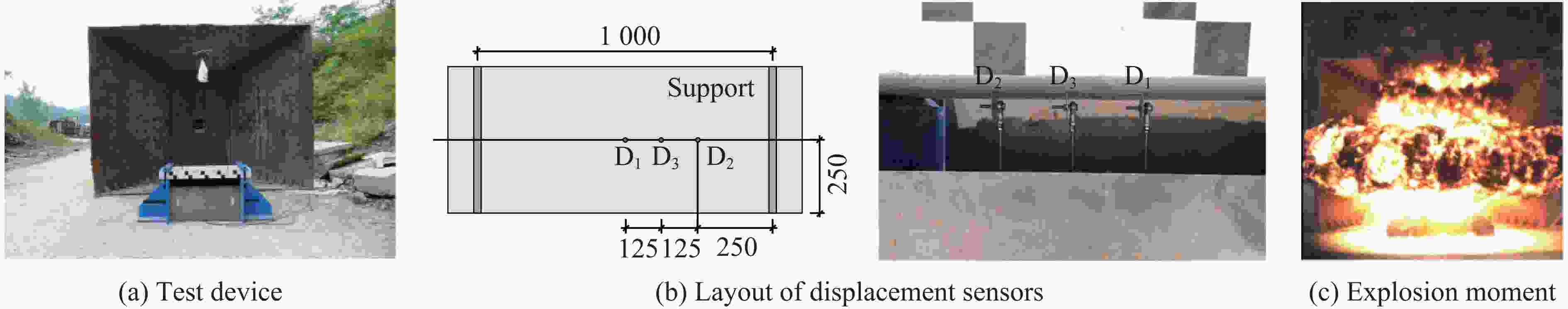

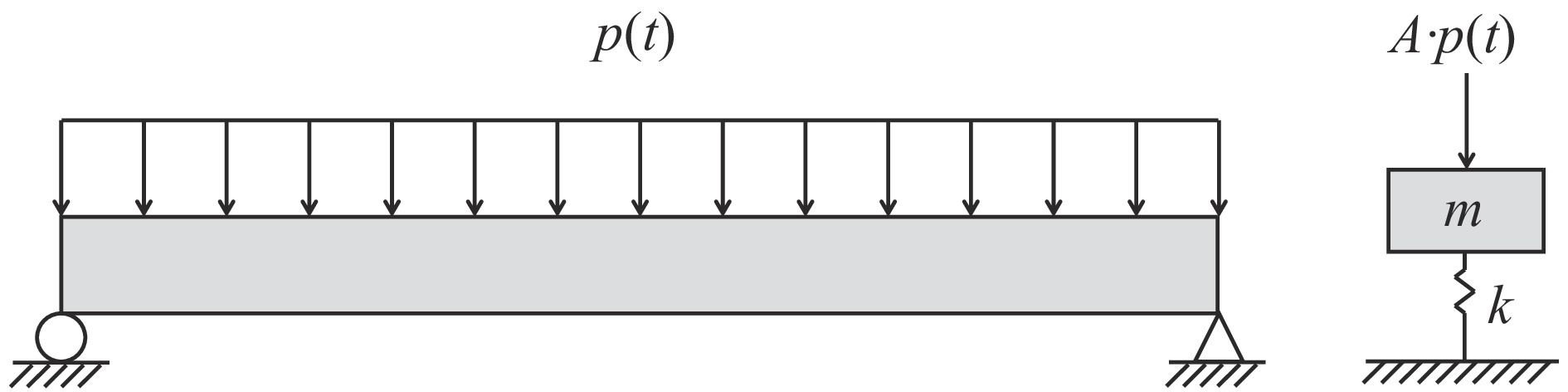

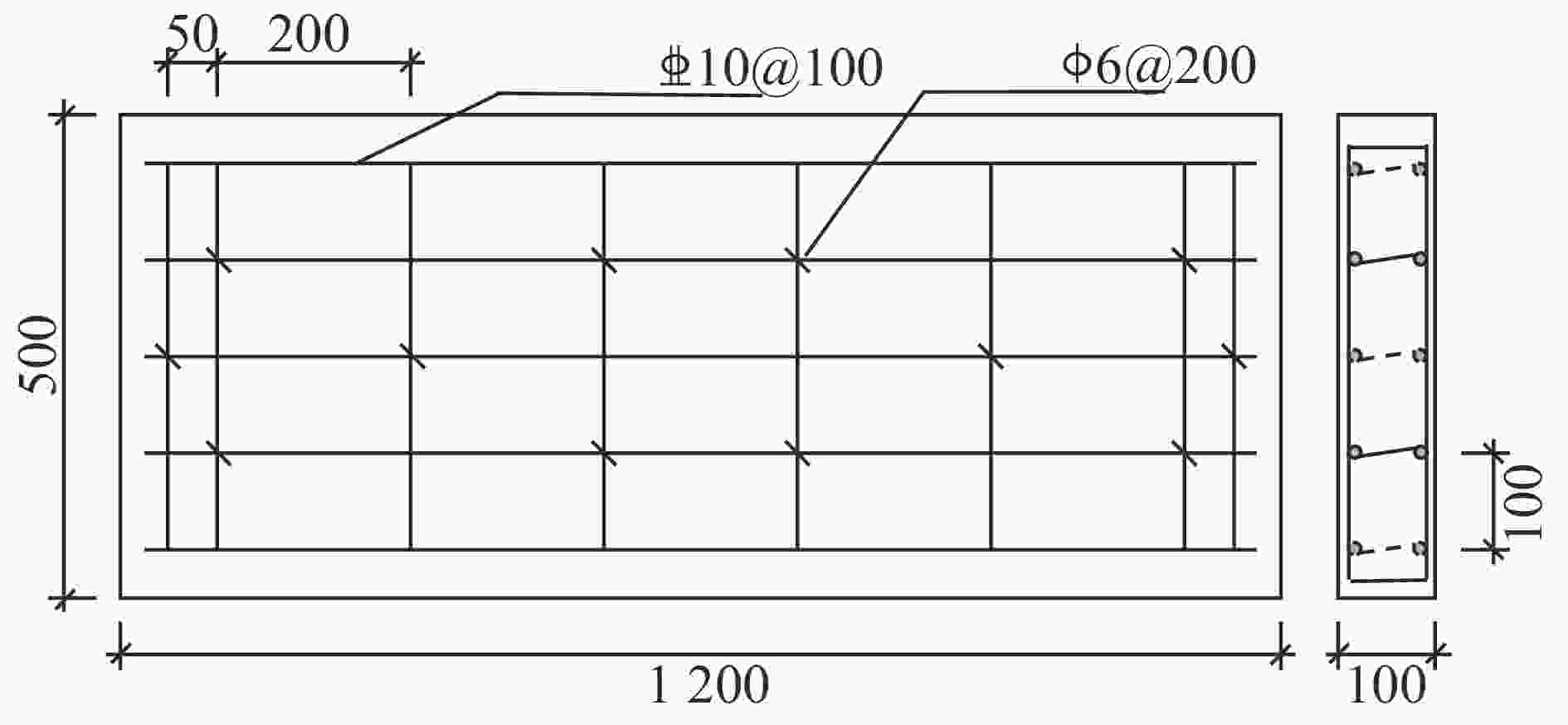

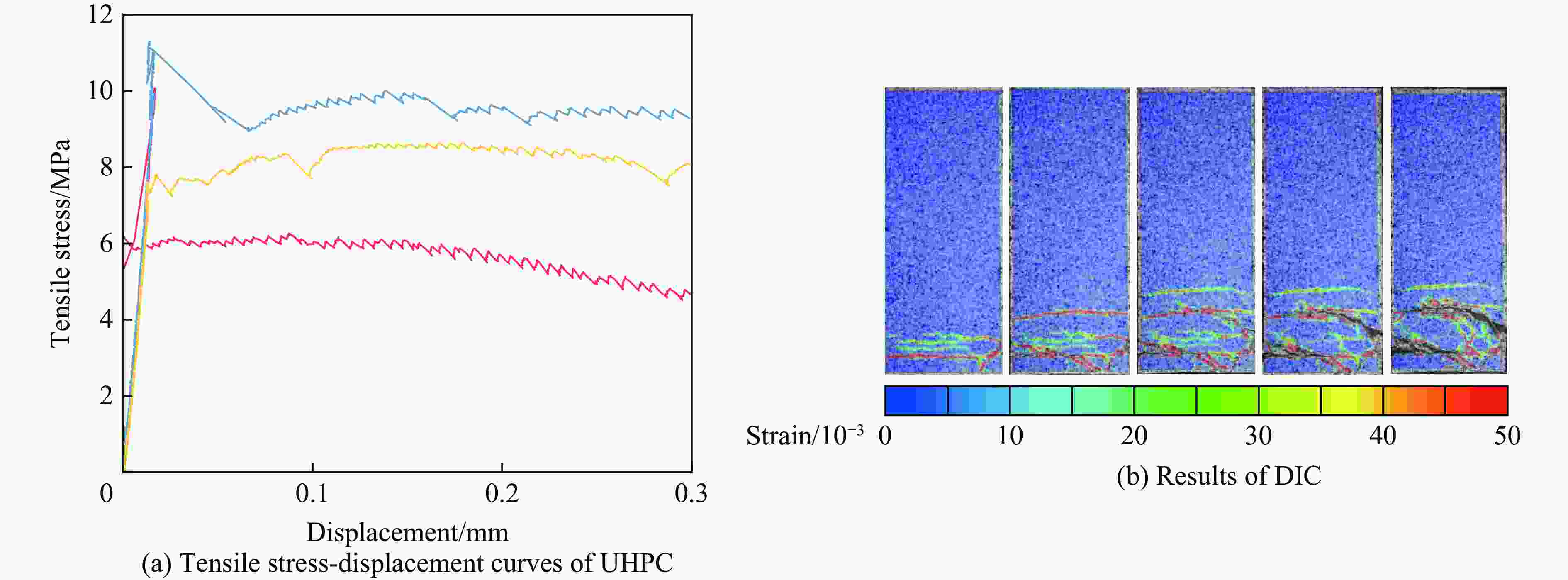

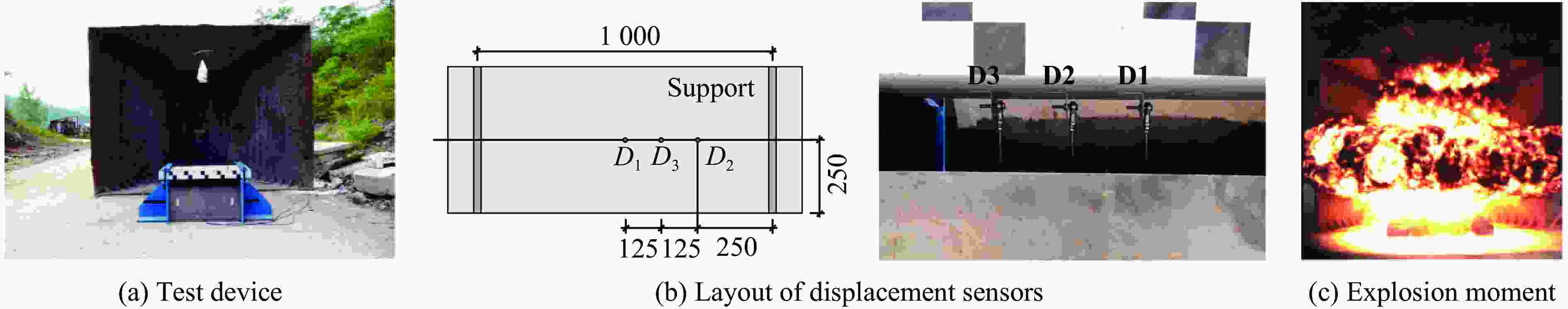

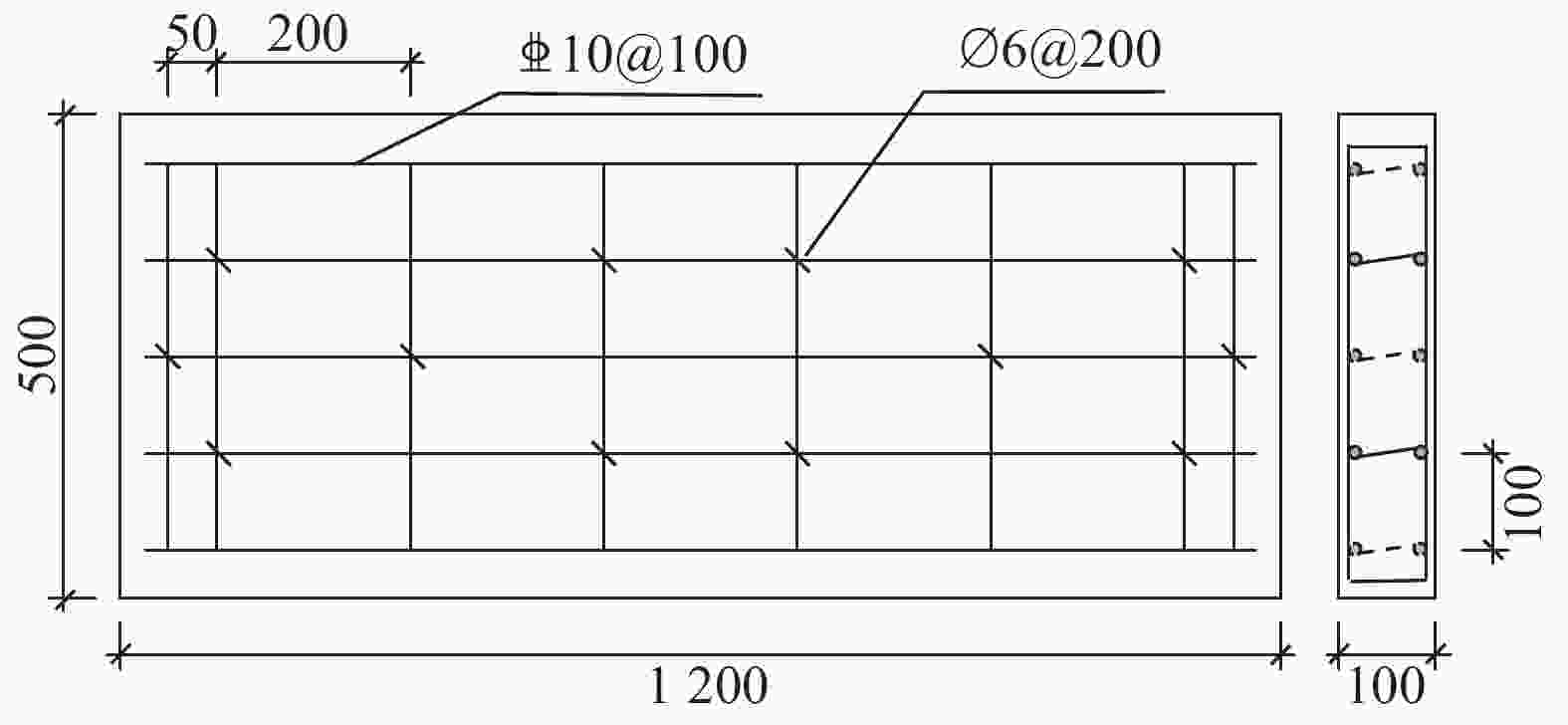

摘要: 为评估超高性能混凝土（ultra-high performance concrete, UHPC）板在中远距离爆炸荷载下的抗爆性能，开展了系列场地爆炸试验，系统分析了不同比例爆距对试件破坏模式的影响，并通过四点弯试验探讨了爆后残余承载力变化规律。试验结果表明，UHPC板在中远距离爆炸下整体结构保持完整，呈现典型弯曲损伤模式，背爆面损伤集中于跨中区域。为深入揭示UHPC板的动力响应机理，建立了等效单自由度（equivalent single-degree-of-freedom, SDOF）理论分析模型，对不同比例爆距下靶板的跨中峰值挠度进行了预测。理论分析表明，SDOF方法在预测跨中峰值挠度方面精度较高，但在损伤较轻时存在一定高估。为进一步研究UHPC板破坏机理，采用连续面帽盖模型（CSC）对UHPC板的爆炸响应进行了有限元模拟。模拟结果与试验结果高度吻合，验证了有限元模型的准确性。考虑到材料力学性能的不确定性，引入高斯自相关空间随机场建立随机有限元模型，当自相关长度为10~20 mm时，预测的损伤特征与实际高度一致。本研究验证了UHPC在中远距离爆炸下的优异抗爆性能，证明了随机有限元模型的有效性，并揭示了材料变异性对UHPC结构抗爆性能评估的重要影响。Abstract: In order to study the blast performance of ultra-high performance concrete (UHPC) panels under intermedium-to-far-field explosion loading, a series of field blast tests were conducted to systematically analyze the influence of scaled blast distances on the failure modes of the specimens. To evaluate the dynamic response of the panels, post-blast and residual strength were investigated through four-point bending tests. To understand the dynamic response mechanism, an equivalent single-degree-of-freedom (SDOF) model was established to predict the mid-span peak deflection under different scaled blast distances. Finite element simulations of the UHPC panels under blast loading were performed using the continuous surface cap (CSC) model to further explore the failure mechanism. Considering uncertainties in material mechanical properties, a stochastic finite element model was developed by introducing a Gaussian autocorrelated spatial random field. The results indicate that UHPC panels maintain structural integrity under intermedium-to-far-field explosion, exhibiting a typical flexural damage mode; damage on the back surface is concentrated in the mid-span region. As the scaled blast distance increased, the extent of damage in the UHPC panels decreased significantly. The deterministic finite element model accurately predicted the blast response of the UHPC panel. The analysis showed that the SDOF method provided accurate predictions of mid-span peak deflection though it tended to overestimate deflection in cases of minor damage where significant plastic deformation did not occur. The random finite element model, by incorporating Gaussian auto-correlated random fields, accounted for the uncertainty in mechanical properties of the material and demonstrated superior simulation results. An increase in the compressive strength of UHPC gradually reduces the mid-span peak deflection, highlighting the effect of material strength on panel deformation. Furthermore, when the auto-correlation length of the random field is within the range of 10 mm to 20 mm, the damage characteristics predicted by the model are highly consistent with the actual observations. This study verifies the excellent blast resistance of UHPC under intermedium-to-far-range explosions, demonstrates the effectiveness of the random finite element model, and reveals the significant influence of material variability on the blast resistance assessment of UHPC structures.
-

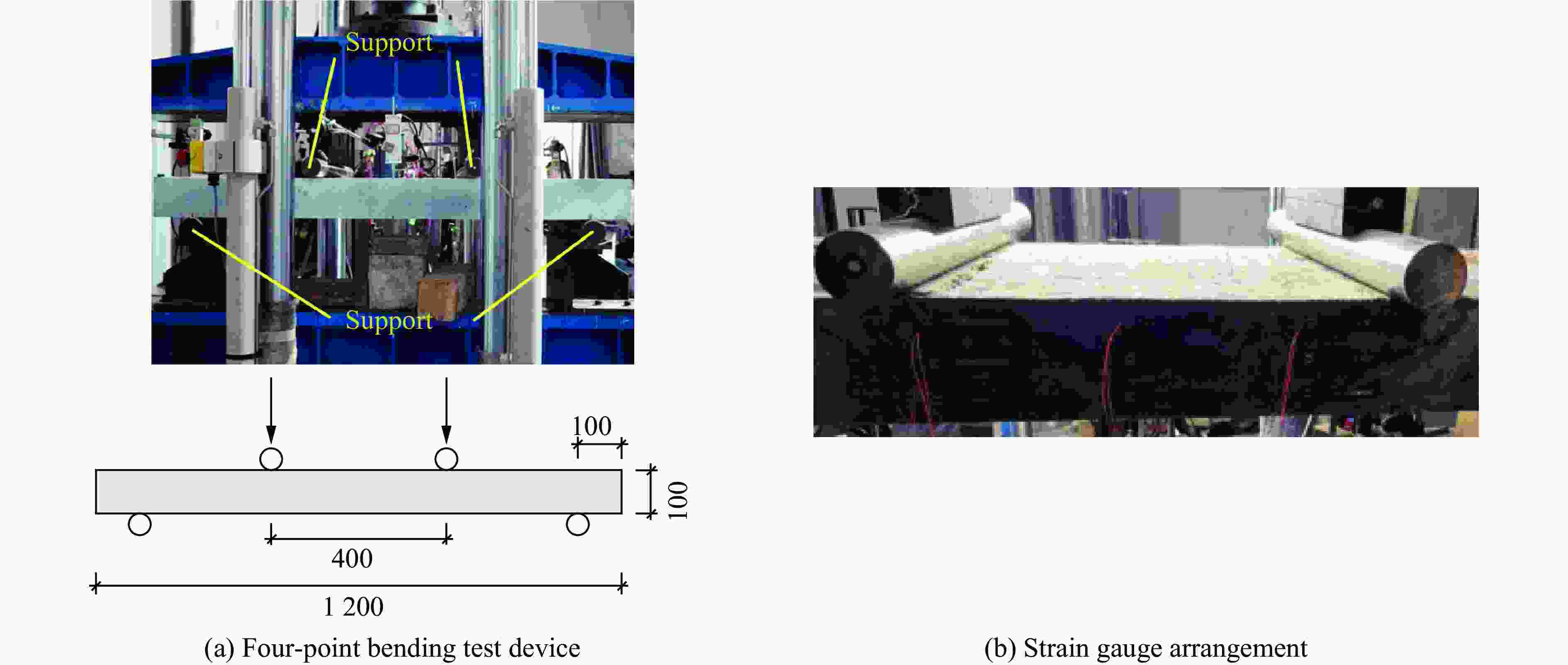

图 4 四点弯曲试验装置和几何尺寸标注（单位为mm）
Figure 4. Four-point bending test device and geometric dimensions (unit in mm)

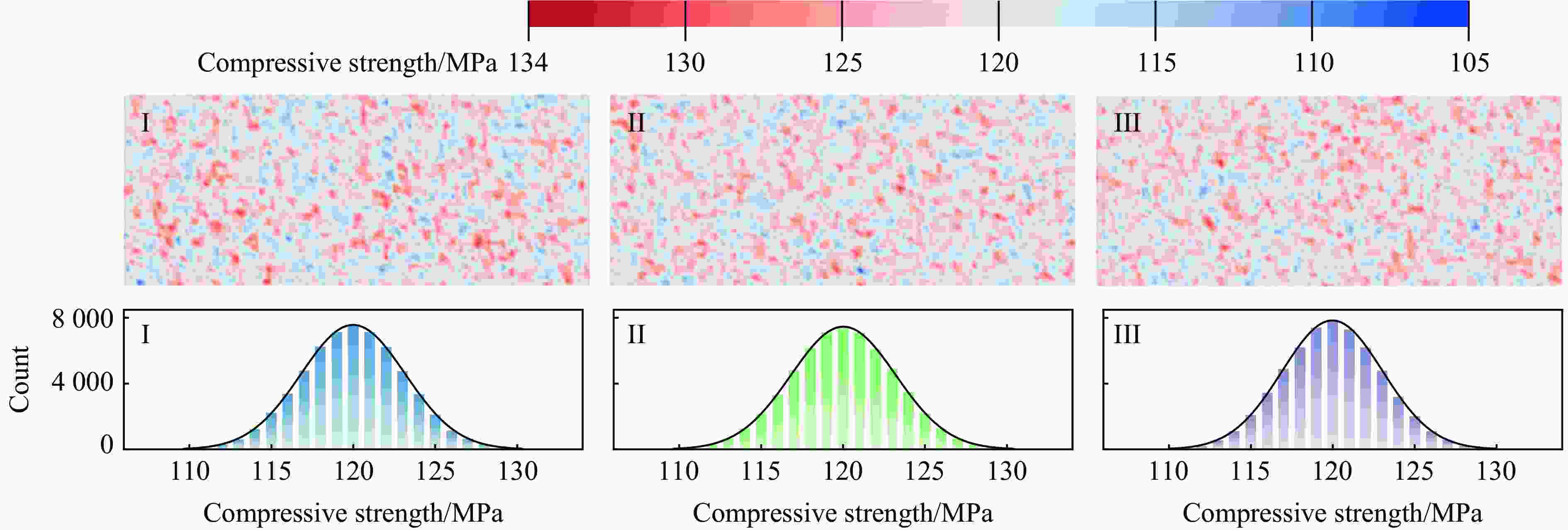

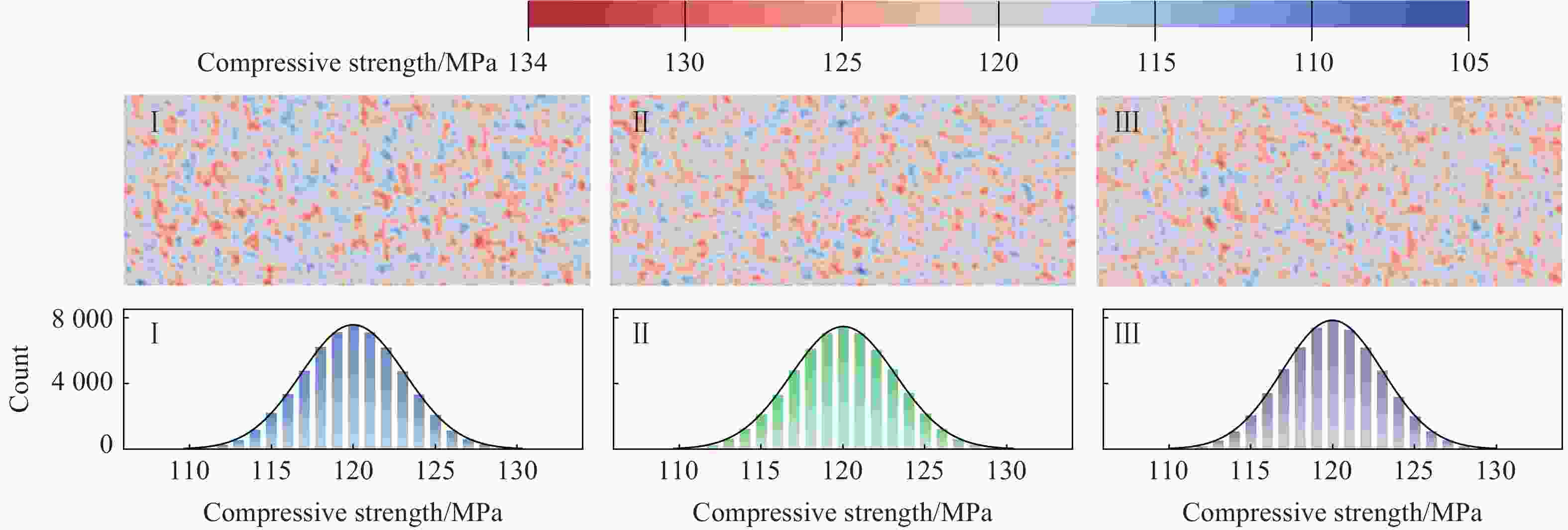

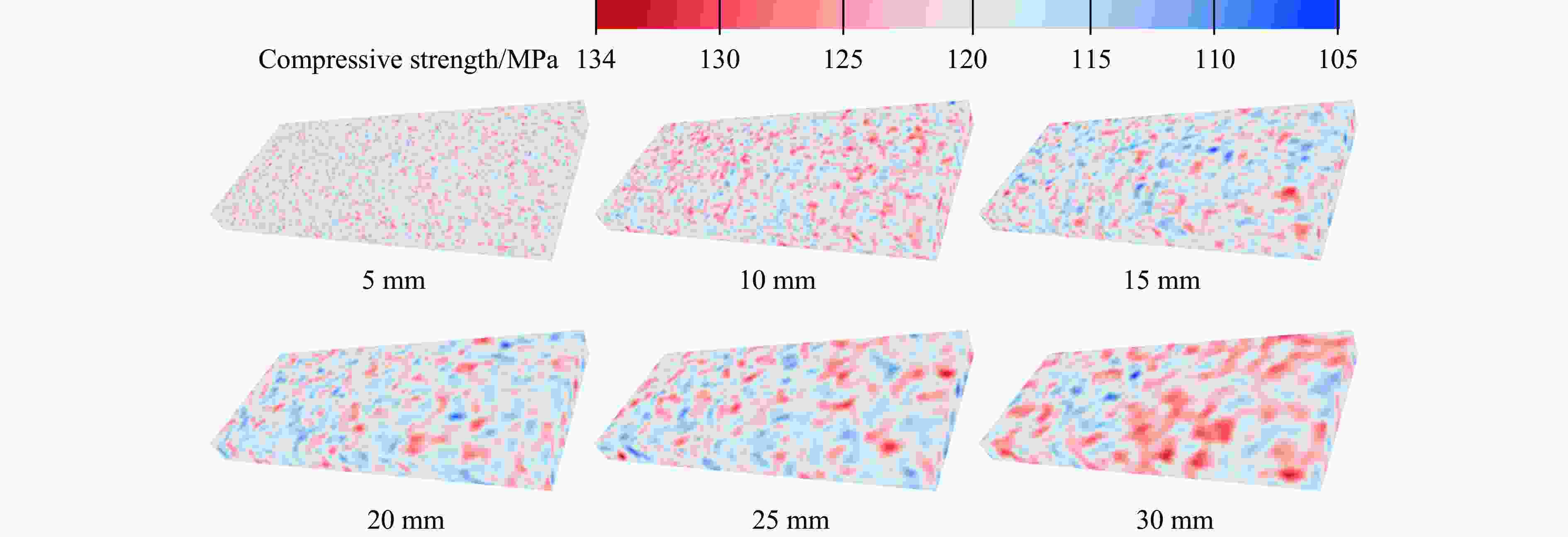

图 7 自相关三维随机场（俯视图）和统计分布
Figure 7. Auto-correlation three-dimensional random fields (top view) and statistical distributions

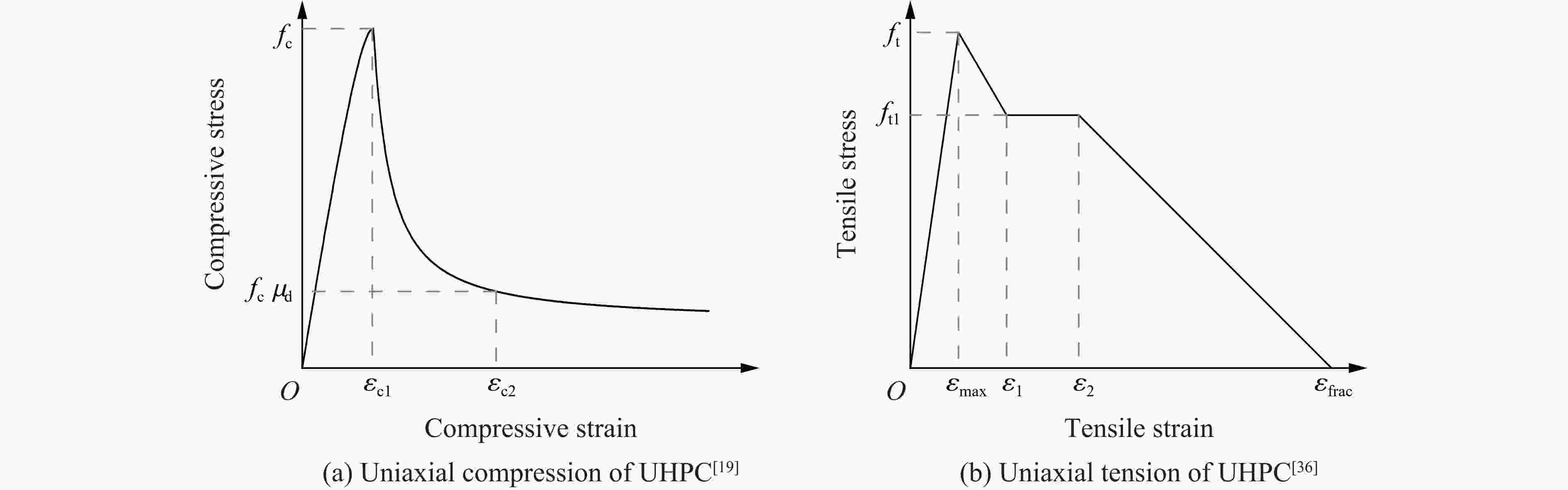

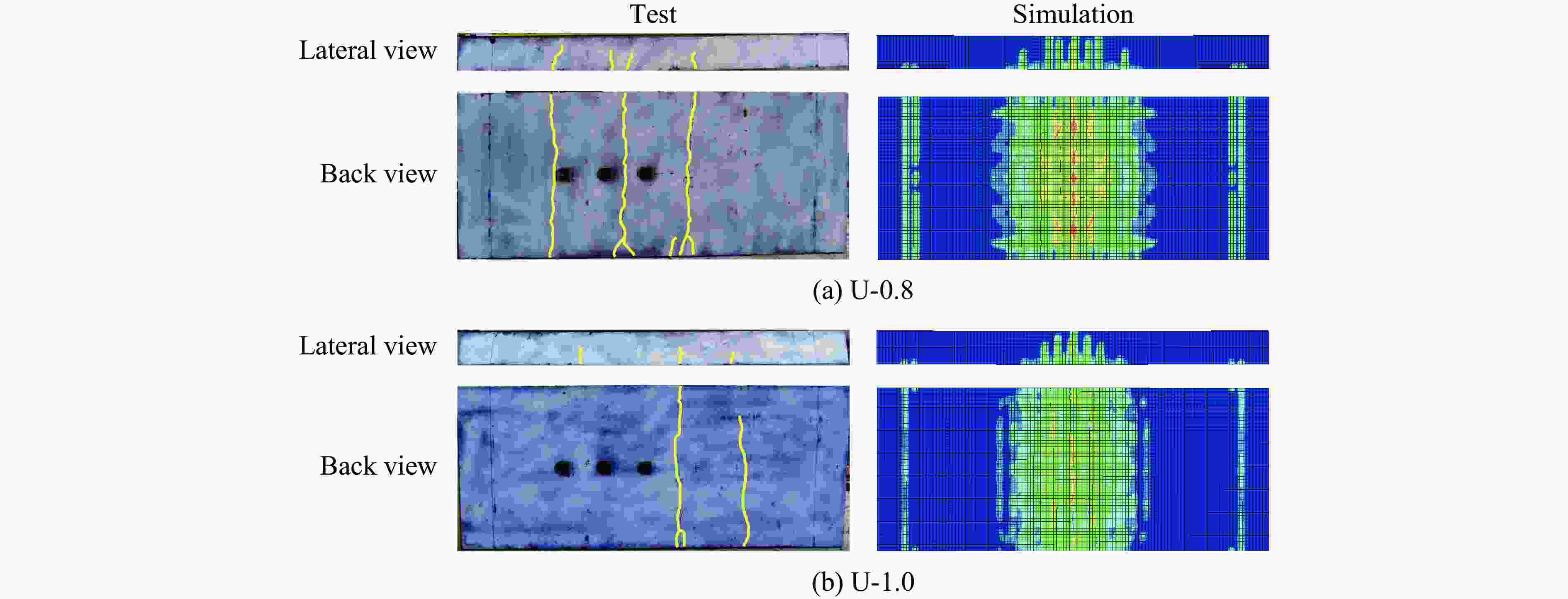

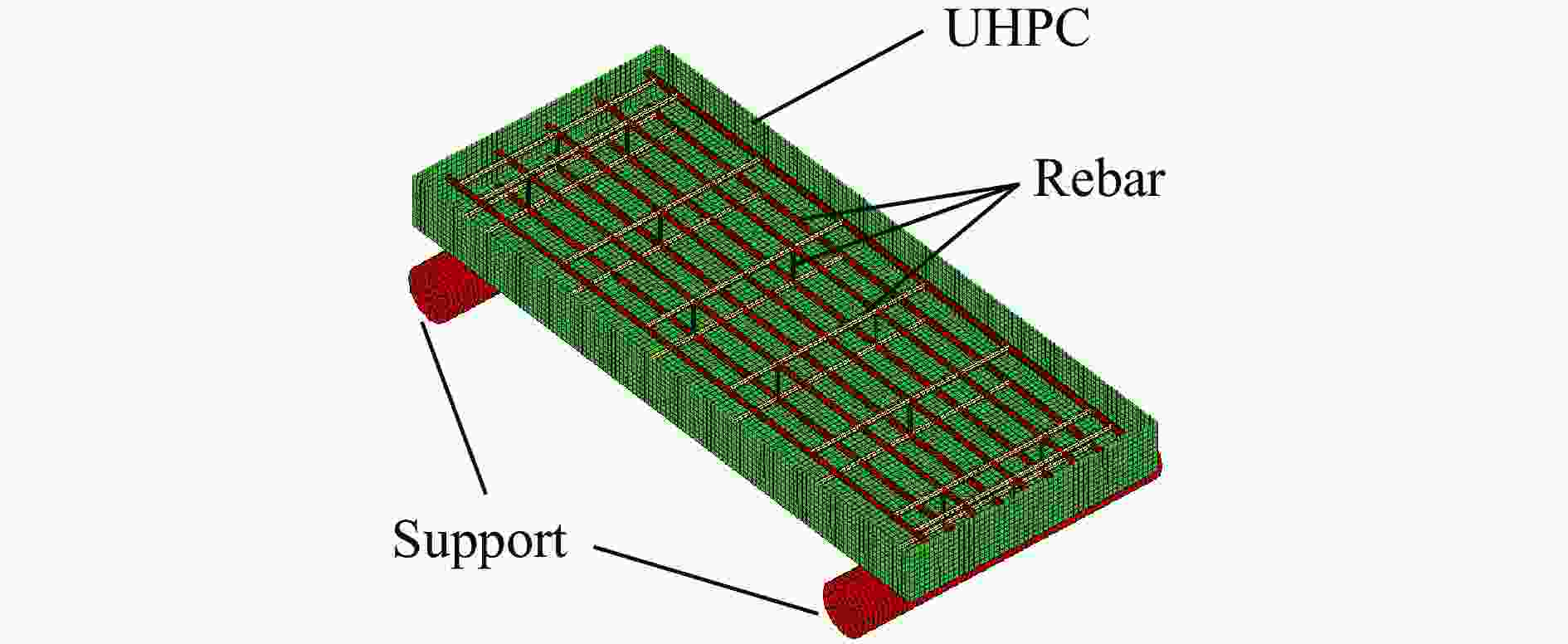

图 13 确定性有限元模型模拟结果
Figure 13. Simulation results of the deterministic finite element model

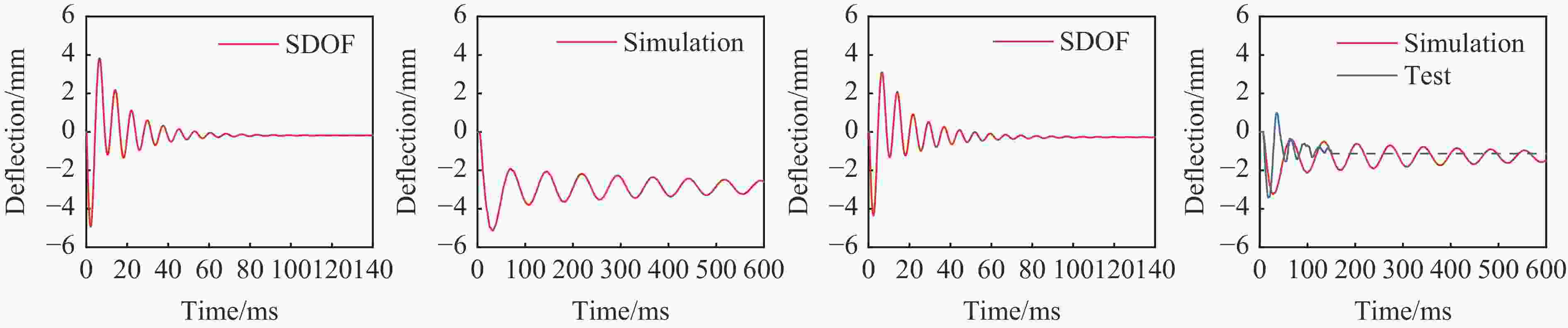

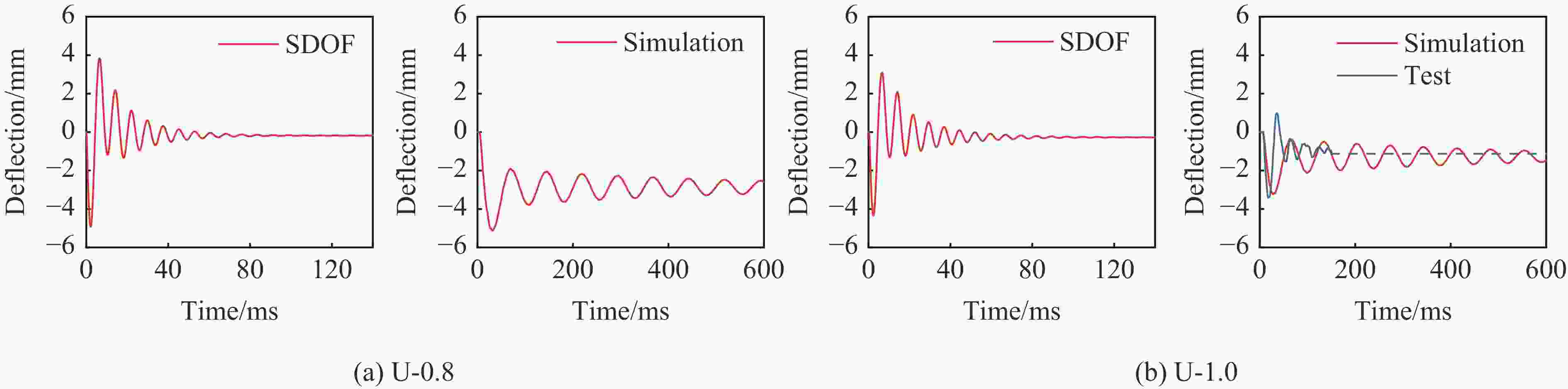

图 15 不同荷载条件下UHPC靶板跨中扰度随时间的变化
Figure 15. Mid-span deflection-time curves of UHPC panels under different load conditions

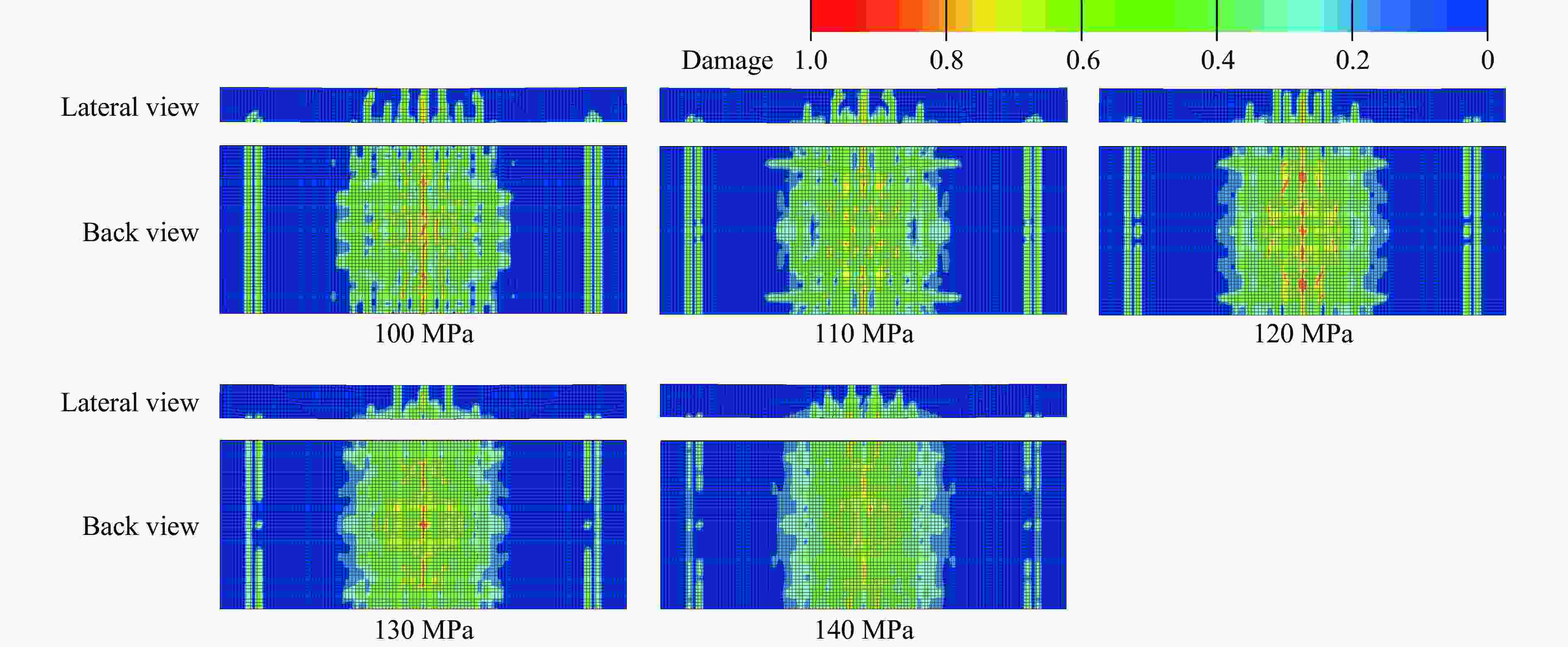

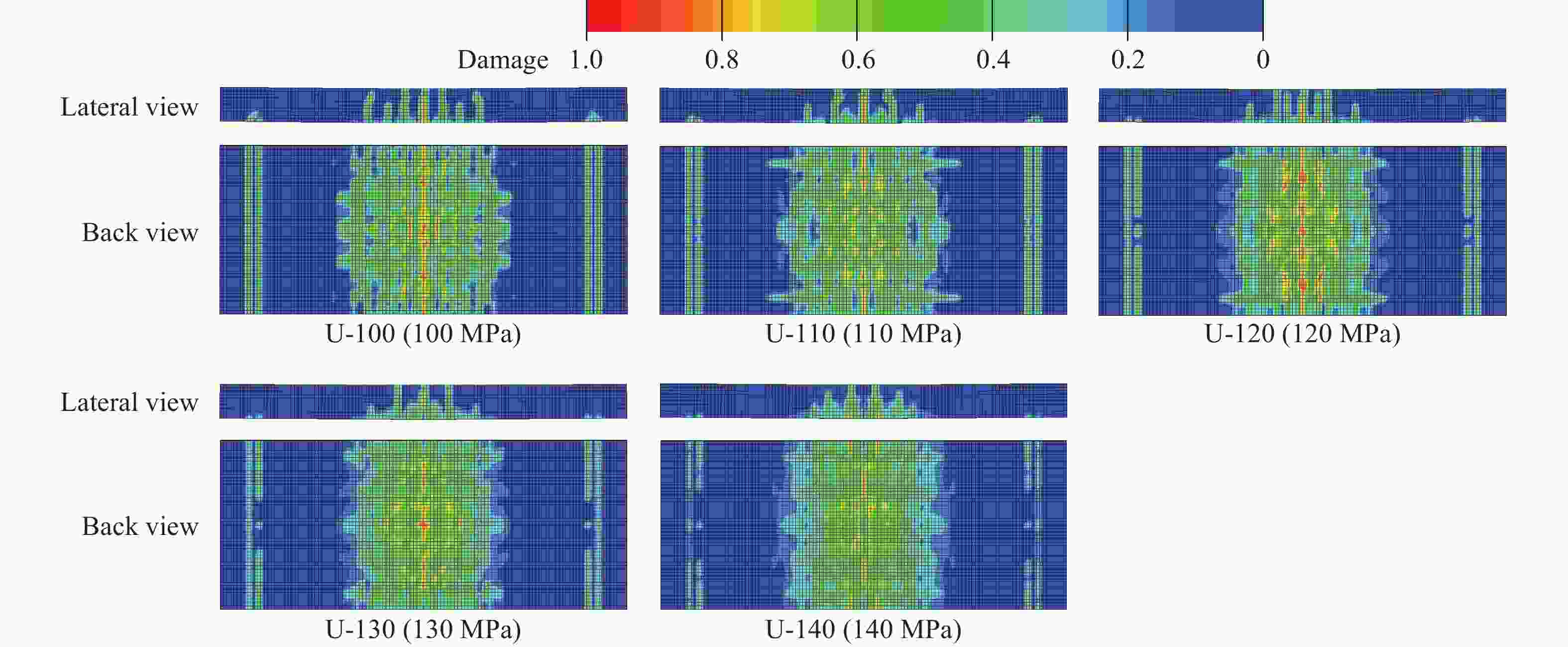

图 16 不同强度UHPC靶板数值模拟结果
Figure 16. Numerical simulation results of UHPC panels with different compressive strength

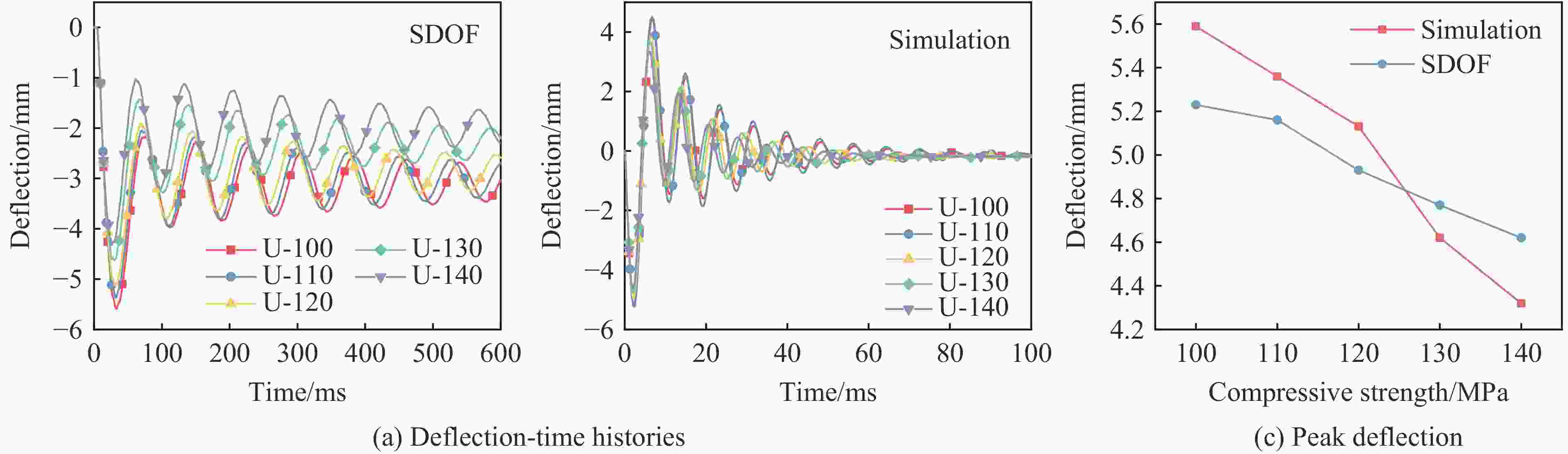

图 17 不同抗压强度UHPC靶板跨中挠度的比较
Figure 17. Comparison of deflection at mid-span for UHPC panels with different compressive strengths

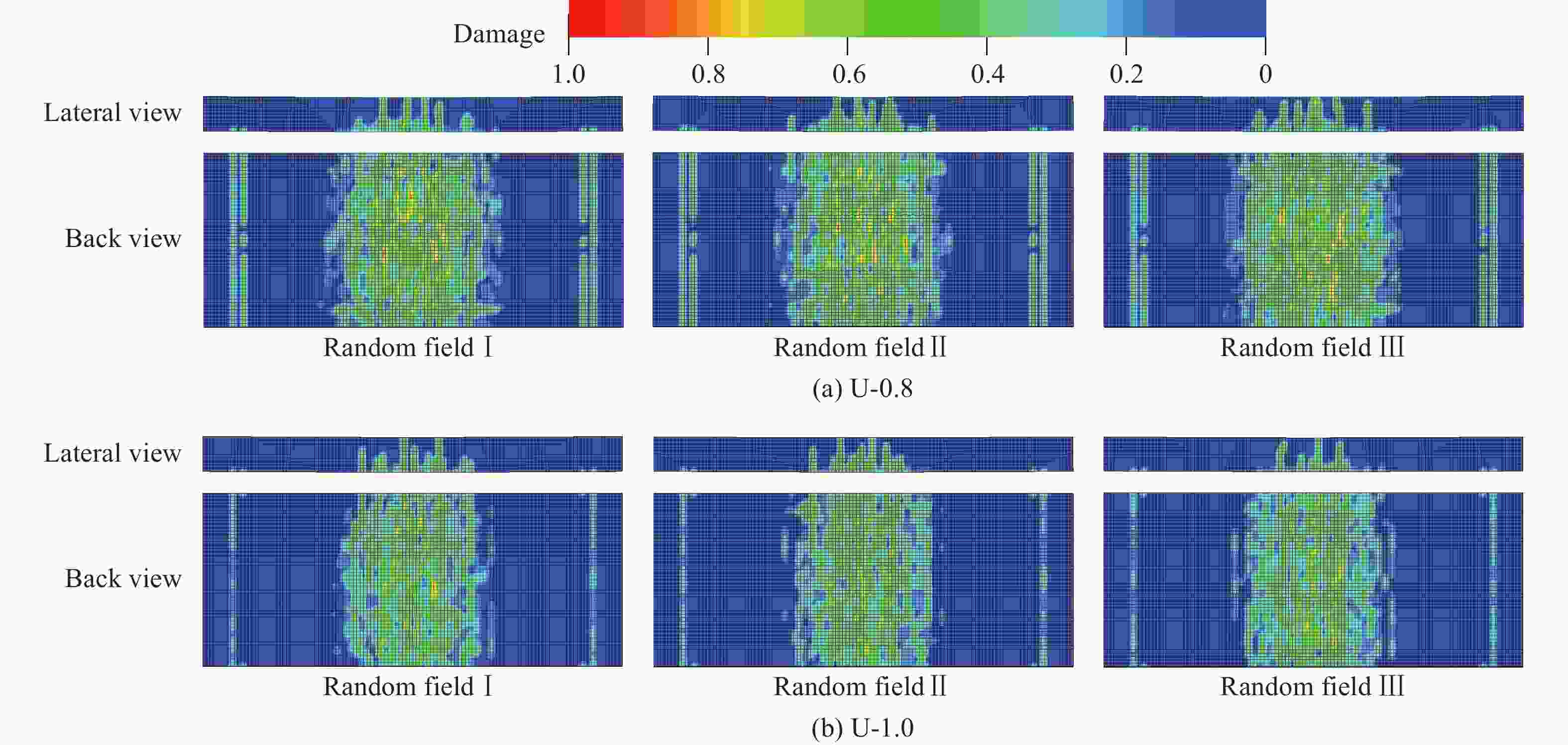

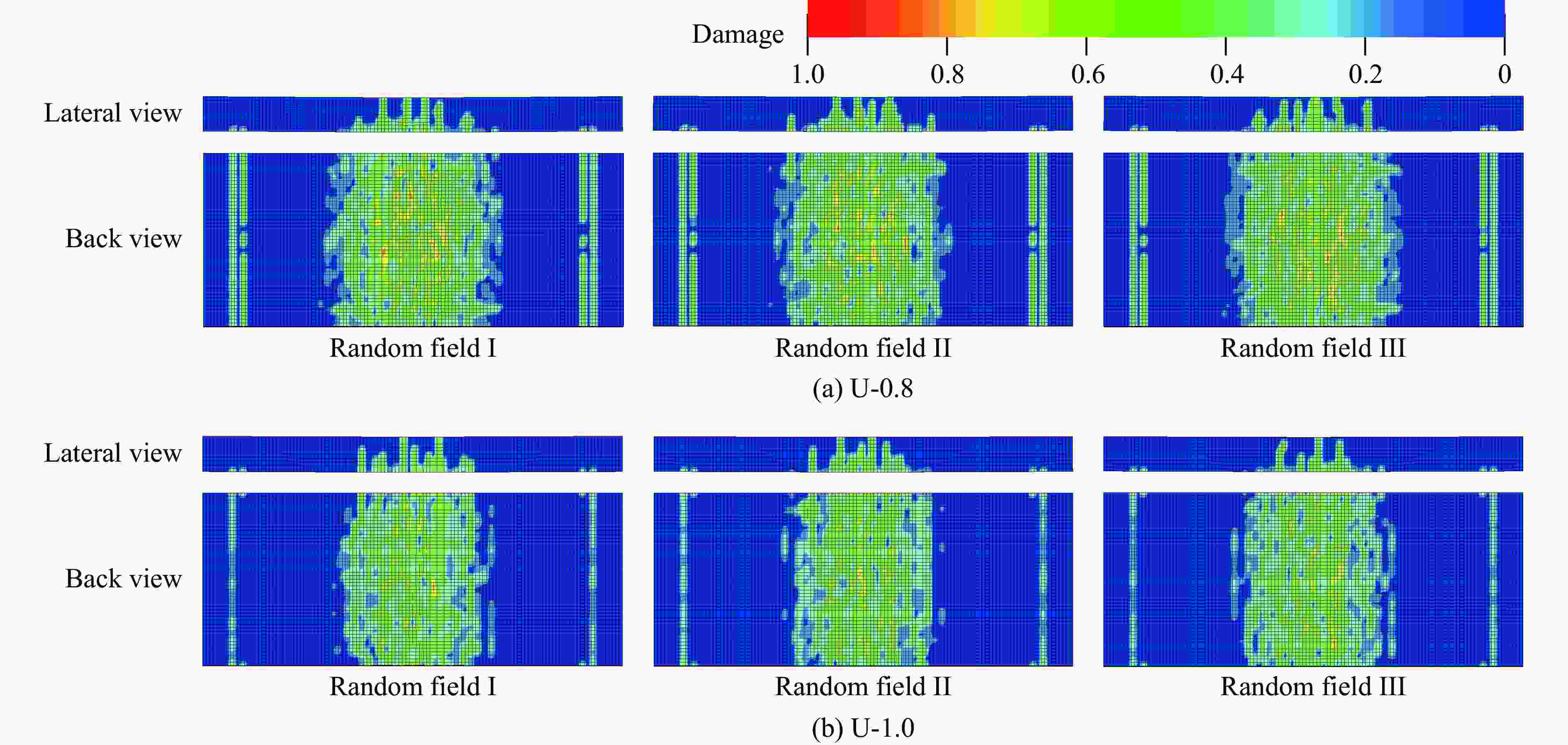

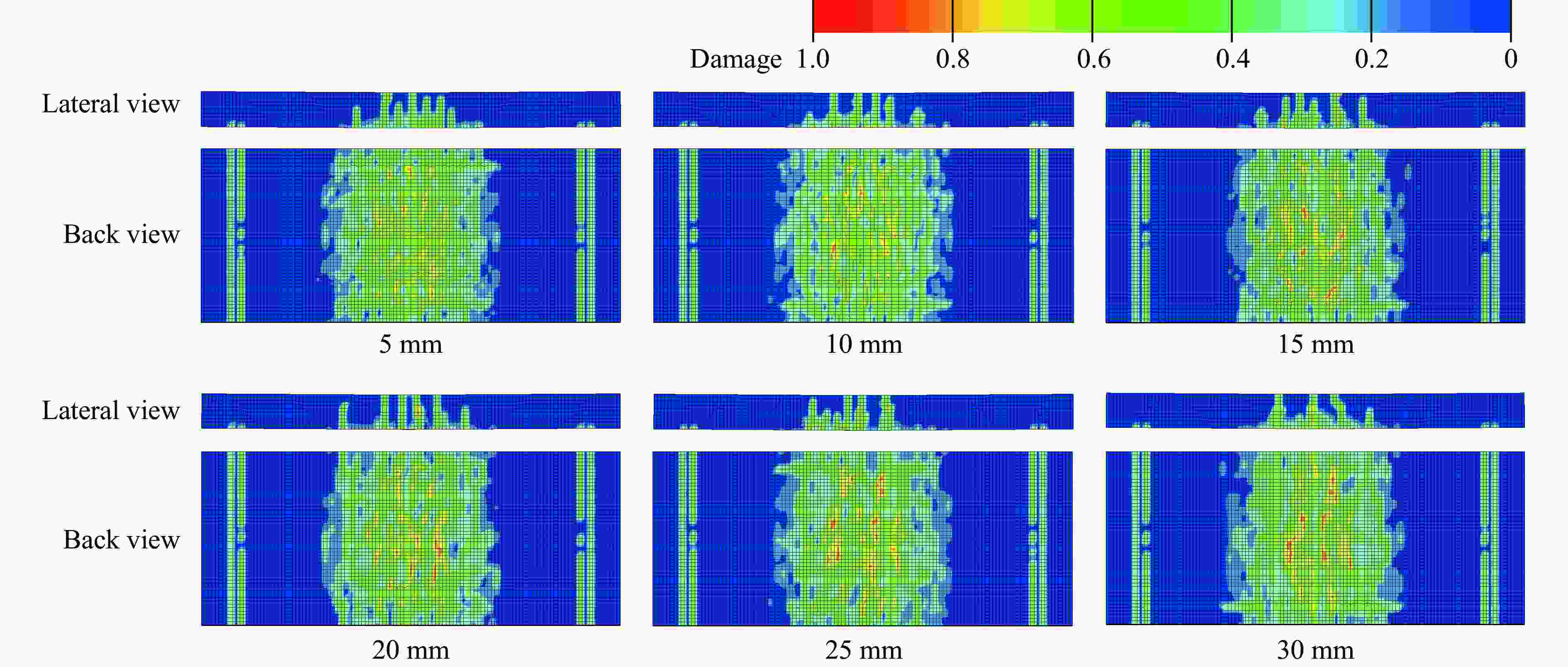

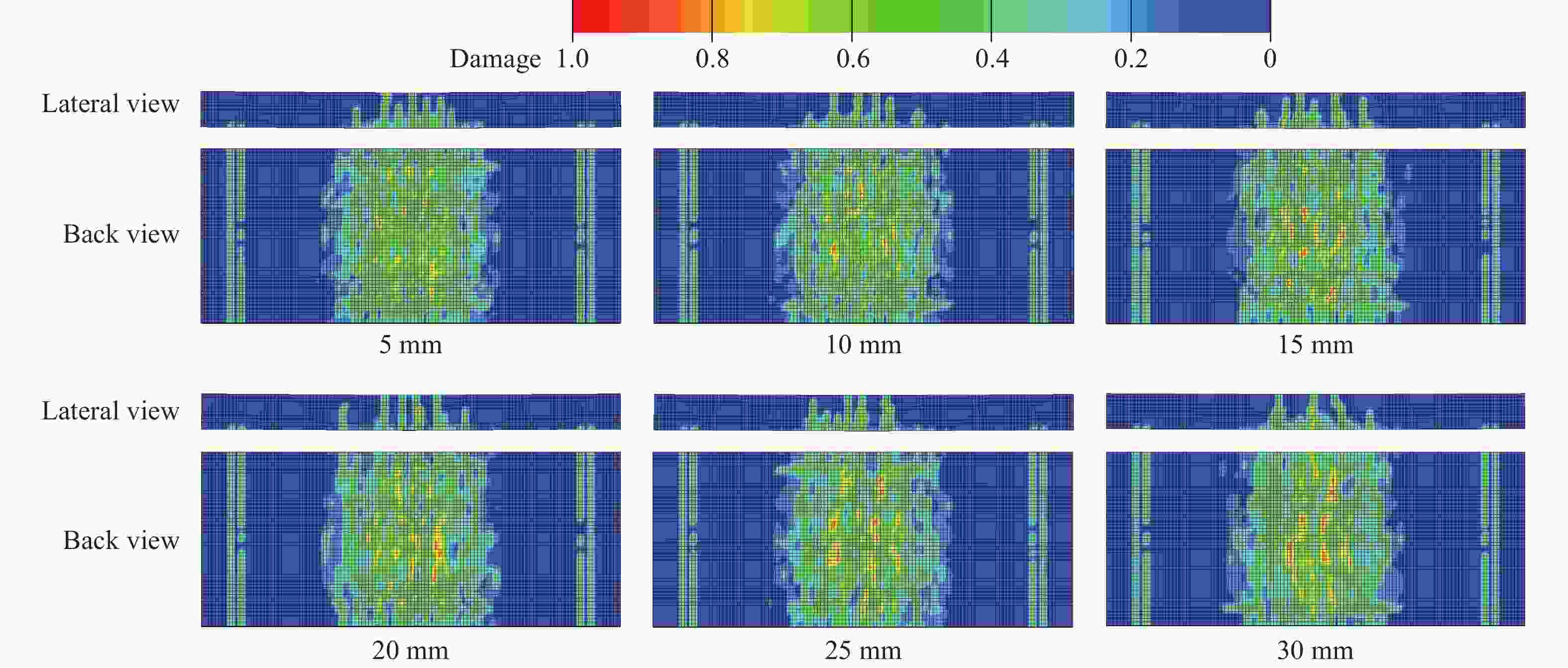

图 19 不同自相关长度UHPC靶板数值模拟结果
Figure 19. Numerical simulation results of UHPC panels with different auto-correlation length
表 1 UHPC材料配合比
Table 1. Mixing proportions of UHPC kg/m3
水泥 硅灰 精细砂 水 减水剂 钢纤维 1000 250 1100 200 50 180
下载: 导出CSV

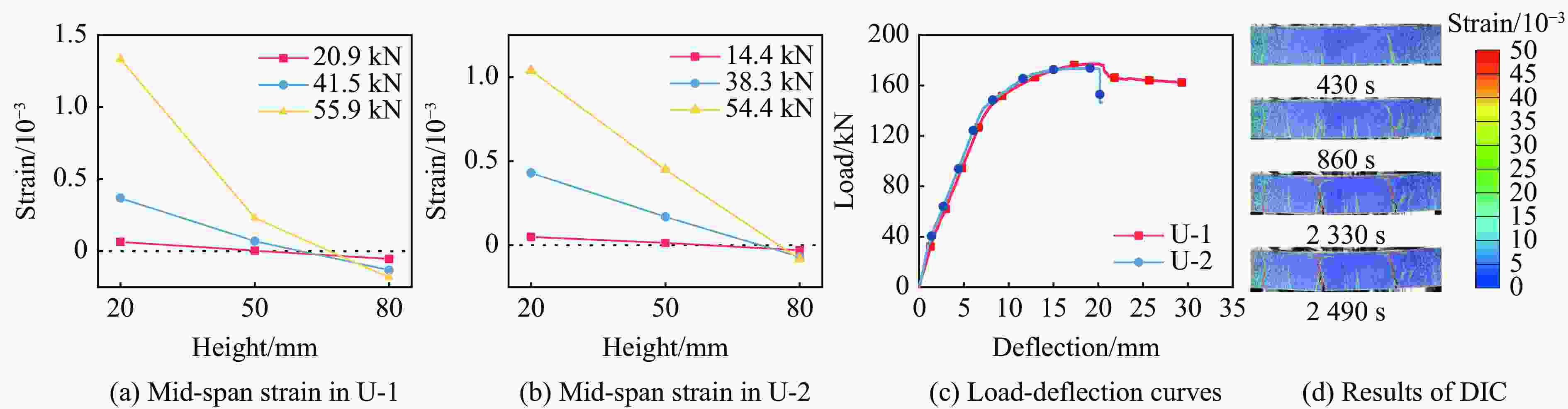

表 2 UHPC靶板初始承载力的极限荷载与跨中挠度
Table 2. Ultimate loads and mid-span deflections for initial load capacity of UHPC panels
试件编号 极限荷载/kN 极限荷载挠度/mm U-1 177.5 20.45 U-2 173.8 18.58
下载: 导出CSV

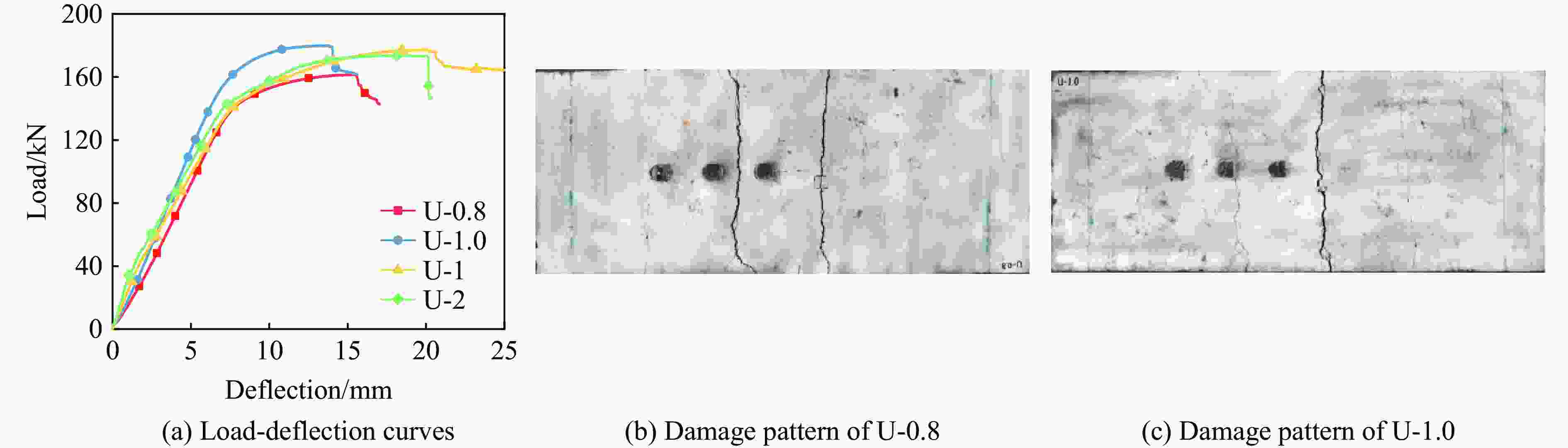

表 3 UHPC靶板残余承载力的极限荷载和跨中挠度
Table 3. Ultimate loads and mid-span deflections for residual load capacity of UHPC panels
试件编号 残余极限荷载/kN 初始极限荷载/kN 极限荷载挠度/mm U-0.8 161.7 177.5 15.28 U-1.0 179.9 173.8 13.28
下载: 导出CSV
表 4 UHPC靶板跨中峰值挠度对比
Table 4. Comparison of peak deflections at mid-span for UHPC panels
试件 峰值挠度/mm 误差/% 试件 试验 模拟 SDOF 模拟对试验 SDOF对试验 SDOF对模拟 U-0.8 − 5.13 4.93 − − −3.89 U-1.0 3.42 3.23 4.35 −5.6 27.20 34.67
下载: 导出CSV
表 5 不同强度UHPC靶板跨中峰值挠度对比
Table 5. Comparison of peak deflection at mid-span for UHPC panels with different compressive strength
试件编号 抗压强度/MPa 跨中峰值挠度 数值模拟值/mm SDOF计算值/mm SDOF计算值与模拟值之间的相对误差/% U-100 100 5.59 5.23 −6.4 U-110 110 5.36 5.16 −3.7 U-120 120 5.13 4.93 −3.9 U-130 130 4.62 4.77 3.2 U-140 140 4.32 4.62 6.9
下载: 导出CSV
-
[1] OTHMAN H, MARZOUK H. An experimental investigation on the effect of steel reinforcement on impact response of reinforced concrete plates [J]. International Journal of Impact Engineering, 2016, 88: 12–21. DOI: 10.1016/j.ijimpeng.2015.08.015. [2] ZINEDDIN M, KRAUTHAMMER T. Dynamic response and behavior of reinforced concrete slabs under impact loading [J]. International Journal of Impact Engineering, 2007, 34(9): 1517–1534. DOI: 10.1016/j.ijimpeng.2006.10.012. [3] ZHAO C F, ZHU Y F, ZHOU Z H. Machine learning-based approaches for predicting the dynamic response of RC slabs under blast loads [J]. Engineering Structures, 2022, 273: 115104. DOI: 10.1016/j.engstruct.2022.115104. [4] Unified facilities criteria (UFC): structures to resist the effects of accidental: UFC 3-340-02 [R]. 2014. [5] GAO H X, WANG Y H, ZHAI X M. Numerical and analytical studies of multi-cell steel-concrete-steel sandwich panels under blast load [J]. Structures, 2024, 63: 106452. DOI: 10.1016/j.istruc.2024.106452. [6] WANG W, ZHANG D, LU F Y, et al. Pressure-impulse diagram with multiple failure modes of one-way reinforced concrete slab under blast loading using SDOF method [J]. Journal of Central South University, 2013, 20(2): 510–519. DOI: 10.1007/s11771-013-1513-z. [7] SU Q, WU H, SUN H, et al. Experimental and numerical studies on dynamic behavior of reinforced UHPC panel under medium-range explosions [J]. International Journal of Impact Engineering, 2021, 148: 103761. DOI: 10.1016/j.ijimpeng.2020.103761. [8] RICHARD P, CHEYREZY M. Composition of reactive powder concretes [J]. Cement and Concrete Research, 1995, 25(7): 1501–1511. DOI: 10.1016/0008-8846(95)00144-2. [9] PREM P R, MURTHY A R, BHARATKUMAR B H. Influence of curing regime and steel fibres on the mechanical properties of UHPC [J]. Magazine of Concrete Research, 2015, 67(18): 988–1002. DOI: 10.1680/macr.14.00333. [10] YU R, SPIESZ P, BROUWERS H J H. Mix design and properties assessment of Ultra-High Performance Fibre Reinforced Concrete (UHPFRC) [J]. Cement and Concrete Research, 2014, 56: 29–39. DOI: 10.1016/j.cemconres.2013.11.002. [11] KANG S T, LEE Y, PARK Y D, et al. Tensile fracture properties of an ultra high performance fiber reinforced concrete (UHPFRC) with steel fiber [J]. Composite Structures, 2010, 92(1): 61–71. DOI: 10.1016/j.compstruct.2009.06.012. [12] 柴鑫伟, 谢群, 王欣, 等. 混杂纤维高韧性水泥基复合材料拉伸性能试验研究 [J]. 建筑结构学报, 2022, 43(S1): 353–361. DOI: 10.14006/j.jzjgxb.2022.S1.0038.CHAI X W, XIE Q, WANG X, et al. Experimental study on tensile performance of hybrid fiber high toughness cementitious composite [J]. Journal of Building Structures, 2022, 43(S1): 353–361. DOI: 10.14006/j.jzjgxb.2022.S1.0038. [13] 李庆华, 刘雪涵, 银星, 等. 循环压缩作用下高强高韧混凝土的力学性能与损伤演化模型研究 [J]. 东南大学学报(自然科学版), 2025, 55(5): 1236–1245. DOI: 10.3969/j.issn.1001-0505.2025.05.003.LI Q H, LIU X H, YIN X, et al. Mechanical properties and damage evolution modelling of HS-UHTCC under cyclic compression [J]. Journal of Southeast University (Natural Science Edition), 2025, 55(5): 1236–1245. DOI: 10.3969/j.issn.1001-0505.2025.05.003. [14] LI J, WU C Q, HAO H. Investigation of ultra-high performance concrete slab and normal strength concrete slab under contact explosion [J]. Engineering Structures, 2015, 102: 395–408. DOI: 10.1016/j.engstruct.2015.08.032. [15] 赖建中, 朱耀勇, 谭剑敏. 超高性能混凝土在埋置炸药下的抗爆试验及数值模拟 [J]. 工程力学, 2016, 33(5): 193–199. DOI: 10.6052/j.issn.1000-4750.2014.10.0874.LAI J Z, ZHU Y Y, TAN J M. Experiment and simulation of ultra-high performance concrete subjected to blast by embedded explosive [J]. Engineering Mechanics, 2016, 33(5): 193–199. DOI: 10.6052/j.issn.1000-4750.2014.10.0874. [16] SU Q, WU H, FANG Q. Calibration of KCC model for UHPC under impact and blast loadings [J]. Cement and Concrete Composites, 2022, 127: 104401. DOI: 10.1016/j.cemconcomp.2021.104401. [17] 贾鹏程, 吴昊, 方秦. 基于CSC模型的UHPC构件侧向低速冲击分析 [J]. 建筑结构学报, 2021, 42(8): 169–182. DOI: 10.14006/j.jzjgxb.2019.0703.JIA P C, WU H, FANG Q. Low-velocity lateral impact analyses of UHPC members based on CSC model [J]. Journal of Building Structures, 2021, 42(8): 169–182. DOI: 10.14006/j.jzjgxb.2019.0703. [18] HOU X M, CAO S J, RONG Q, et al. A P-I diagram approach for predicting failure modes of RPC one-way slabs subjected to blast loading [J]. International Journal of Impact Engineering, 2018, 120: 171–184. DOI: 10.1016/j.ijimpeng.2018.06.006. [19] 苏琼, 程月华, 吴昊. 爆炸荷载作用下UHPC板的弯曲损伤评估 [J]. 爆炸与冲击, 2023, 43(12): 125103. DOI: 10.11883/bzycj-2023-0160.SU Q, CHENG Y H, WU H. Flexural damage assessment for UHPC panels under blast loadings [J]. Explosion and Shock Waves, 2023, 43(12): 125103. DOI: 10.11883/bzycj-2023-0160. [20] 何子祺. 超高性能混凝土加固普通钢筋混凝土板抗爆抗冲击性能研究 [D]. 广州: 广州大学, 2024. DOI: 10.27040/d.cnki.ggzdu.2024.000436.HE Z Q. Investigation on blast and impact resistance of ordinary reinforced concrete slabs strengthened with ultra-high-performance concrete [D]. Guangzhou: Guangzhou University, 2024. DOI: 10.27040/d.cnki.ggzdu.2024.000436. [21] LI J, WU C Q, HAO H. An experimental and numerical study of reinforced ultra-high performance concrete slabs under blast loads [J]. Materials and Design, 2015, 82: 64–76. DOI: 10.1016/j.matdes.2015.05.045. [22] LI C J, AOUDE H. Blast retrofit of shear-deficient high-strength concrete beams with ultra-high performance concrete [J]. Engineering Structures, 2024, 304: 117619. DOI: 10.1016/j.engstruct.2024.117619. [23] 银星, 李庆华. 基于机器学习的超高韧性水泥基复合材料板在近场爆炸荷载作用下的损伤预测 [J]. 工程力学. DOI: 10.6052/j.issn.1000-4750.2024.10.0791.YIN X, LI Q H. Machine learning based damage prediction of ultra-high toughness cementitious composite panels under near range explosion [J]. Engineering Mechanics. DOI: 10.6052/j.issn.1000-4750.2024.10.0791. [24] JGJ/T 70-2009 建筑砂浆基本性能试验方法标准 [S]. [25] ROKUGO K, YOKOTA H, SAKATA N, et al. Overview of “recommendations for design and construction of high performance fiber reinforced cement composite with multiple fine cracks” published by JSCE [J]. Concrete Journal, 2007, 45(3): 3–9. DOI: 10.3151/coj1975.45.3_3. [26] SCHREIER H, ORTEU J J, SUTTON M A. Image correlation for shape, motion and deformation measurements: basic concepts, theory and applications [M]. New York: Springer, 2009. DOI: 10.1007/978-0-387-78747-3. [27] 黄谢平, 孔祥振, 陈祖煜, 等. 冲击爆炸荷载作用下混凝土材料两类弹塑性损伤本构模型的对比分析 [J]. 土木工程学报, 2022, 55(8): 35–45. DOI: 10.15951/j.tmgcxb.21080785.HUANG X P, KONG X Z, CHEN Z Y, et al. Comparative study on two kinds of elastic-plastic-damage constitutive models for concrete materials under impact and blast loadings [J]. China Civil Engineering Journal, 2022, 55(8): 35–45. DOI: 10.15951/j.tmgcxb.21080785. [28] MURRAY Y D. Users manual for LS-DYNA concrete material model 159: HR-05-062 [R]. McLean: Federal Highway Administration, 2007: 1-74. [29] RUBIN M B. Simple, convenient isotropic failure surface [J]. Journal of Engineering Mechanics, 1991, 117(2): 348–369. DOI: 10.1061/(ASCE)0733-9399(1991)117:2(348). [30] 银星. 高韧性混凝土-活性粉末混凝土复合板冲击性能研究 [D]. 杭州: 浙江大学, 2023. DOI: 10.27461/d.cnki.gzjdx.2023.002921.YIN X. Impact performance of high toughness concrete-reactive powder concrete composite slabs [D]. Hangzhou: Zhejiang University, 2023. DOI: 10.27461/d.cnki.gzjdx.2023.002921. [31] PENG Q, ZHOU D Y, WU H, et al. Experimental and numerical studies on dynamic behaviors of RC slabs under long-duration near-planar explosion loadings [J]. International Journal of Impact Engineering, 2022, 160: 104085. DOI: 10.1016/j.ijimpeng.2021.104085. [32] WU H, PENG Y L, FANG Q. Experimental and numerical study of ultra-high performance cementitious composites filled steel tube (UHPCC-FST) subjected to close-range explosion [J]. International Journal of Impact Engineering, 2020, 141: 103569. DOI: 10.1016/j.ijimpeng.2020.103569. [33] YIN X, LI Q H, WANG Q M, et al. Near range explosion resistance of UHPFRC panels in wide scaled distances: Experimental study and stochastic numerical modelling [J]. International Journal of Impact Engineering, 2024, 192: 105028. DOI: 10.1016/j.ijimpeng.2024.105028. [34] YIN X, LI Q H, WANG Q M, et al. Stochastic approach to modelling the structural failure of strain-hardening fibre-reinforced cementitious composites panels under far-field explosive loading [J]. Theoretical and Applied Fracture Mechanics, 2026, 141: 105285. DOI: 10.1016/j.tafmec.2025.105285. [35] BRUHL J C, VARMA A H, KIM J M. Static resistance function for steel-plate composite (SC) walls subject to impactive loading [J]. Nuclear Engineering and Design, 2015, 295: 843–859. DOI: 10.1016/j.nucengdes.2015.07.037. [36] ZHOU F, SU Q, CHENG Y H, et al. A novel dynamic constitutive model for UHPC under projectile impact [J]. Engineering Structures, 2023, 280: 115711. DOI: 10.1016/j.engstruct.2023.115711. [37] REN G M, WU H, FANG Q, et al. Effects of steel fiber content and type on dynamic compressive mechanical properties of UHPCC [J]. Construction and Building Materials, 2018, 164: 29–43. DOI: 10.1016/j.conbuildmat.2017.12.203. [38] WANG W, ZHANG D, LU F Y, et al. Experimental study on scaling the explosion resistance of a one-way square reinforced concrete slab under a close-in blast loading [J]. International Journal of Impact Engineering, 2012, 49: 158–164. DOI: 10.1016/j.ijimpeng.2012.03.010. [39] LI M H, ZONG Z H, HAO H, et al. Post-blast performance and residual capacity of CFDST columns subjected to contact explosions [J]. Journal of Constructional Steel Research, 2020, 167: 105960. DOI: 10.1016/j.jcsr.2020.105960. [40] LI M H, XIA M T, ZONG Z H, et al. Residual axial capacity of concrete-filled double-skin steel tube columns under close-in blast loading [J]. Journal of Constructional Steel Research, 2023, 201: 107697. DOI: 10.1016/j.jcsr.2022.107697. [41] 鞠杨, 樊承谋. 钢纤维混凝土的疲劳“锻炼效应” [J]. 土木工程学报, 1995, 28(3): 66–71. DOI: 10.15951/j.tmgcxb.1995.03.009.JU Y, FAN C M. Enhancement action in fatigue of steel fibre reinforced concrete [J]. China Civil Engineering Journal, 1995, 28(3): 66–71. DOI: 10.15951/j.tmgcxb.1995.03.009. [42] VANMARCKE E. Random fields: revised and expanded new [M]. Hackensack: World Scientific, 2010. DOI: 10.1142/5807. -
