基于统一强度理论的弹体侵彻天然气管道局部损伤塑性半径统一解

崔莹; 申瑞; 赵均海; 屈展

doi:10.11883/bzycj-2025-0379

基于统一强度理论的弹体侵彻天然气管道局部损伤塑性半径统一解

doi: 10.11883/bzycj-2025-0379

崔莹^{1, 2,},
申瑞^{1, 2},
赵均海^3, ,,
屈展^{1, 2}

1.
西安石油大学管道工程学院，陕西西安 710065
2.
西安石油大学陕西省油气井及储层渗流与岩石力学重点实验室，陕西西安 710065
3.
长安大学建筑工程学院，陕西西安 710061

基金项目: 陕西省自然科学基础研究计划面上项目（2023-JC-YB-296）；陕西省教育厅重点科学研究计划项目（22JT035）；四川省重点实验室开放基金（24kfck02）

详细信息

作者简介:
崔　莹（1979－　），男，博士，教授，cuiying126@xsyu.edu.cn

通讯作者:
赵均海（1960－　），男，博士，教授，zhaojh@chd.edu.cn

中图分类号: O389
计量
- 文章访问数: 232
- HTML全文浏览量: 29
- PDF下载量: 29
- 被引次数: 0
出版历程
- 收稿日期: 2025-11-21
- 修回日期: 2026-01-24
- 网络出版日期: 2026-01-30

The unified solution for plastic radius of local damage in gas pipeline under projectile penetration based on the unified strength theory

CUI Ying^{1, 2
,},
SHEN Rui^{1, 2},
ZHAO Junhai^{3
, ,},
QU Zhan^{1, 2}

1.
School of Pipeline Engineering, Xi’an Shiyou University, Xi’an 710065; China
2.
The Key Laboratory of Well Stability and Fluid & Rock Mechanics in Oil and Gas Reservoir of Shaanxi Province, Xi’an Shiyou University, Xi’an 710065, China
3.
School of Civil Engineering, Chang'an University, Xi'an 710061, China

摘要

摘要: 为揭示弹体高速侵彻下天然气管道的局部损伤机理，基于侵彻试验、数值模拟与理论推导，建立了一种基于统一强度理论的管道损伤塑性半径统一解。通过开展L415M管道钢的弹体侵彻试验，获取了管道着弹面撞击形态、塑性区范围及塑性半径等关键参数。基于试验结果和ANSYS/Workbench建立动力学模型，对管道的局部应力场和应变分布进行了数值模拟，并引入统一强度理论对中间主应力参数b的敏感性进行了系统分析，进而结合有限柱形空腔膨胀模型，推导建立了管道损伤塑性半径的解析表达式，并提出了弹体侵彻天然气管道局部损伤失效准则，当侵彻荷载下测量得到的塑性半径超过由材料单向拉伸断裂应变ε_f与模型参数A（含中间主应力参数b）所限定的临界值r_max时，可判定管道发生局部损伤失效。结果表明：当b=0.2时，理论预测与试验结果吻合最佳，相对误差小于10%，能较准确描述管道局部塑性变形及损伤规律。本研究为长输天然气管道在高速冲击载荷下的安全评估与防护设计提供理论依据和工程参考。
- 统一强度理论 /
- 有限柱形空腔膨胀理论 /
- 侵彻荷载 /
- 天然气管道 /
- 损伤统一解
Abstract: To reveal the local damage mechanism of natural gas pipelines subjected to high-velocity projectile penetration, a unified solution for the plastic radius of pipeline damage was established based on the unified strength theory, integrating penetration tests, numerical simulations, and theoretical analysis. Through projectile penetration tests on L415M pipeline steel, key parameters including impact feature on the impacted surface of the pipeline, plastic zone and plastic radius were obtained. Based on the experimental results and ANSYS/Workbench, a dynamic model was developed to numerically simulate the distribution of local stress fields and strains in the pipeline. Sensitivity analysis of the intermediate principal stress parameter $ b $ was conducted using unified strength theory. Furthermore, in conjunction with a finite cylindrical cavity expansion model, an analytical expression for the plastic radius of pipeline damage was derived, and a failure criterion for local damage of natural gas pipelines under projectile penetration was proposed. According to the criterion, when the plastic radius measured under penetration loading exceeds the critical value $ {r}_{\max } $ defined by the uniaxial tensile fracture strain $ {\varepsilon }_{f} $ of the material and the model parameter $ A $ (which incorporates the intermediate principal stress parameter $ b $), local damage failure of the pipeline can be determined. The results indicate that the theoretical predictions are in best agreement with experimental data when $ b=0.2 $, with a relative error of less than 10%. This approach accurately describes the local plastic deformation and damage behavior of the pipeline, providing a theoretical basis and engineering reference for the safety assessment and protection design of long-distance natural gas pipelines under high-velocity impact loading.
- unified strength theory /
- theoretical penetration load of finite cylindrical cavity expansion /
- taaaaaa /
- natural gas pipeline /
- unified damage solution

HTML全文

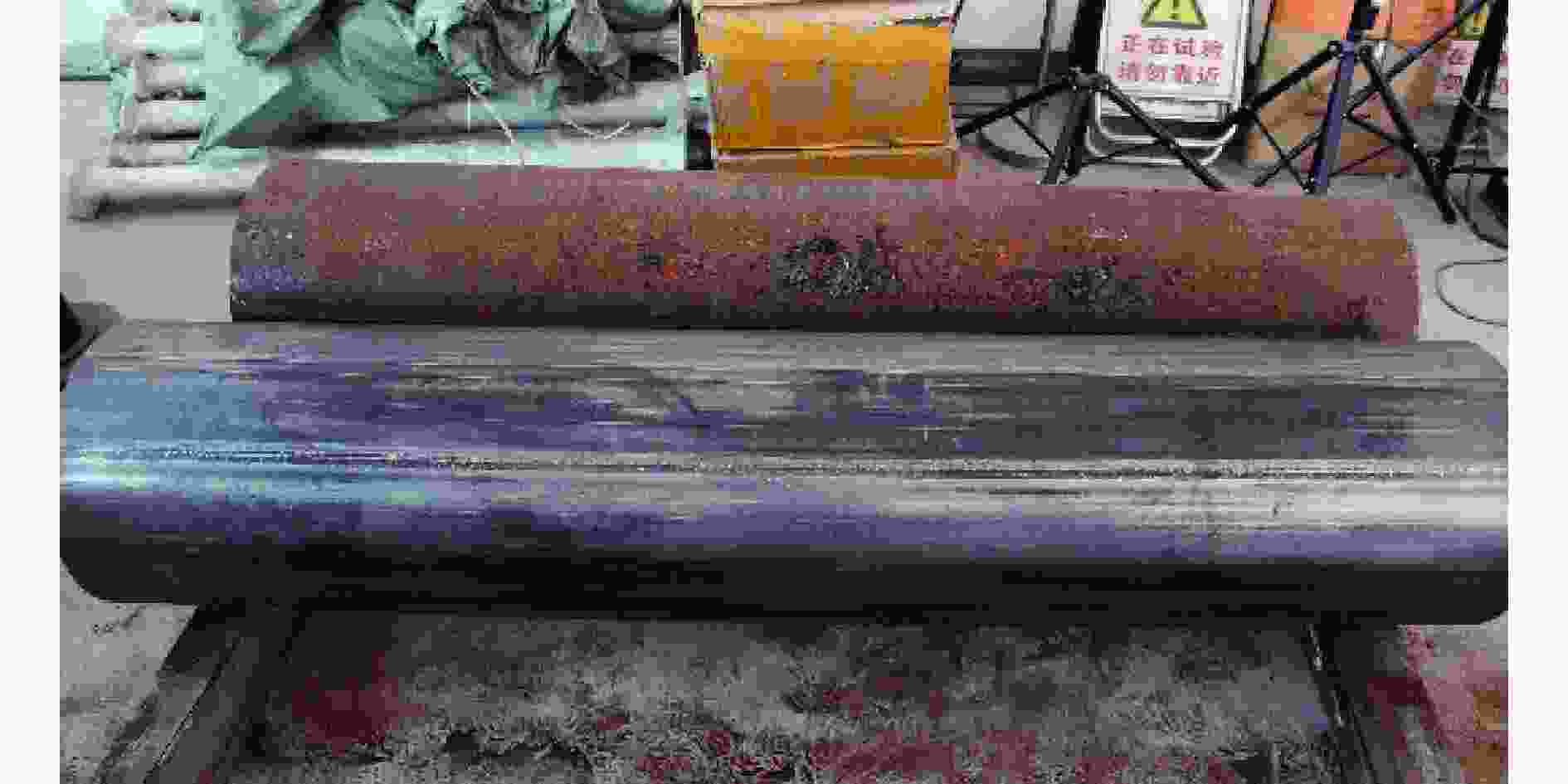

图 1 L415M管道试件

Figure 1. L415M pipeline specimen

下载: 全尺寸图片幻灯片

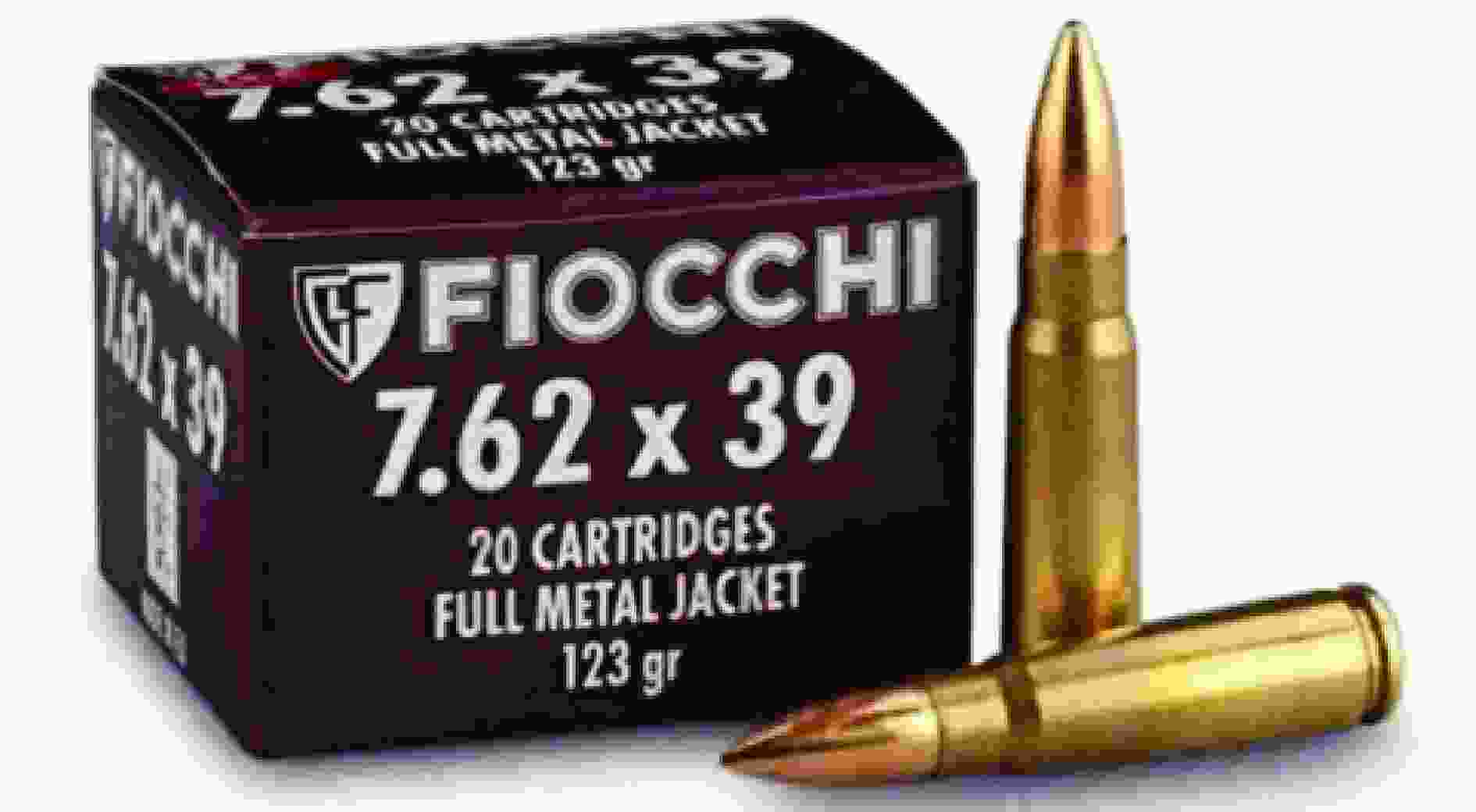

图 2 56式7.62 mm普通弹

Figure 2. 7.62 mm ordinary bullet of type 56

下载: 全尺寸图片幻灯片

图 3 试验场靶板示意图

Figure 3. Diagrammatic sketch of the target plate at the test site

下载: 全尺寸图片幻灯片

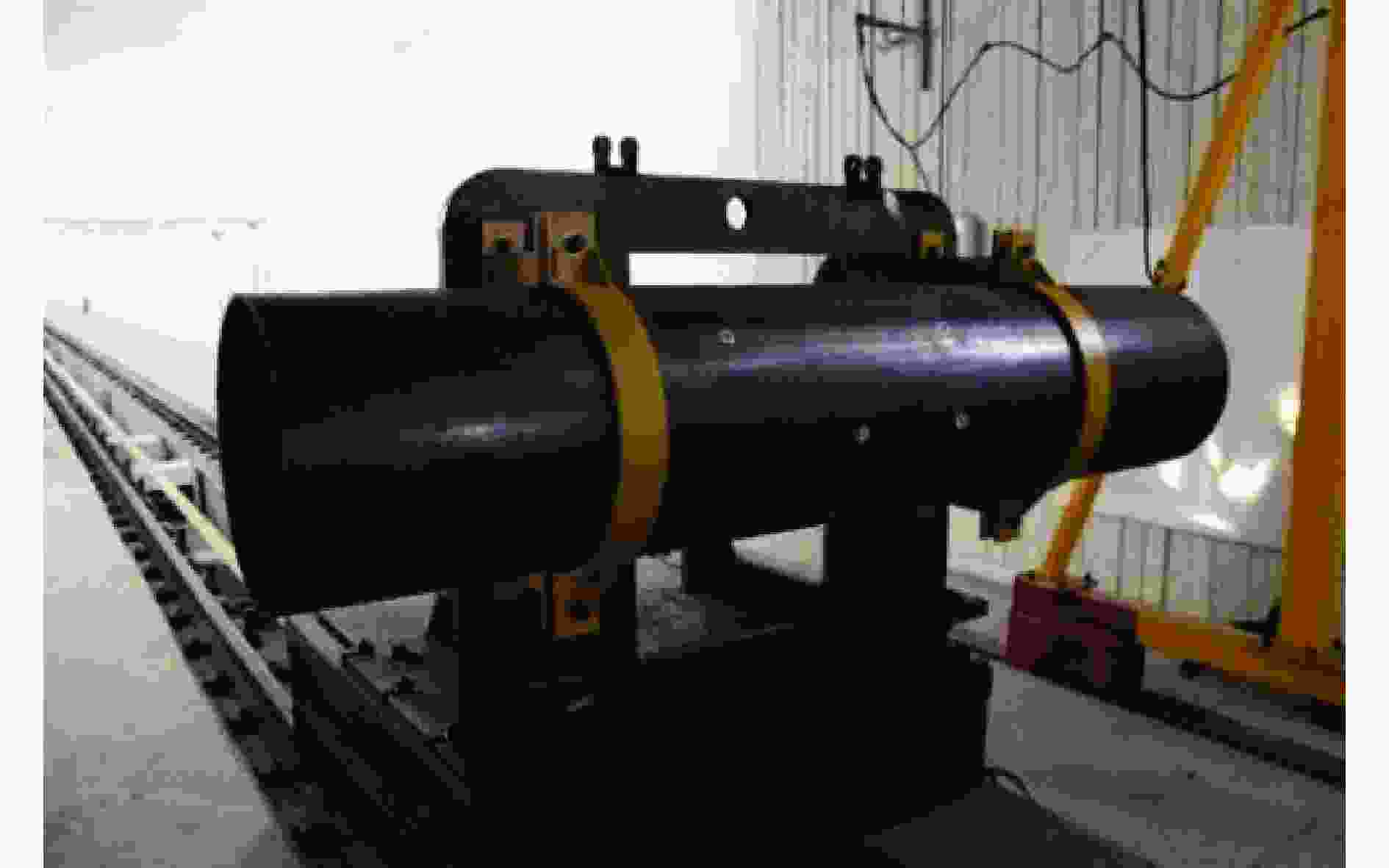

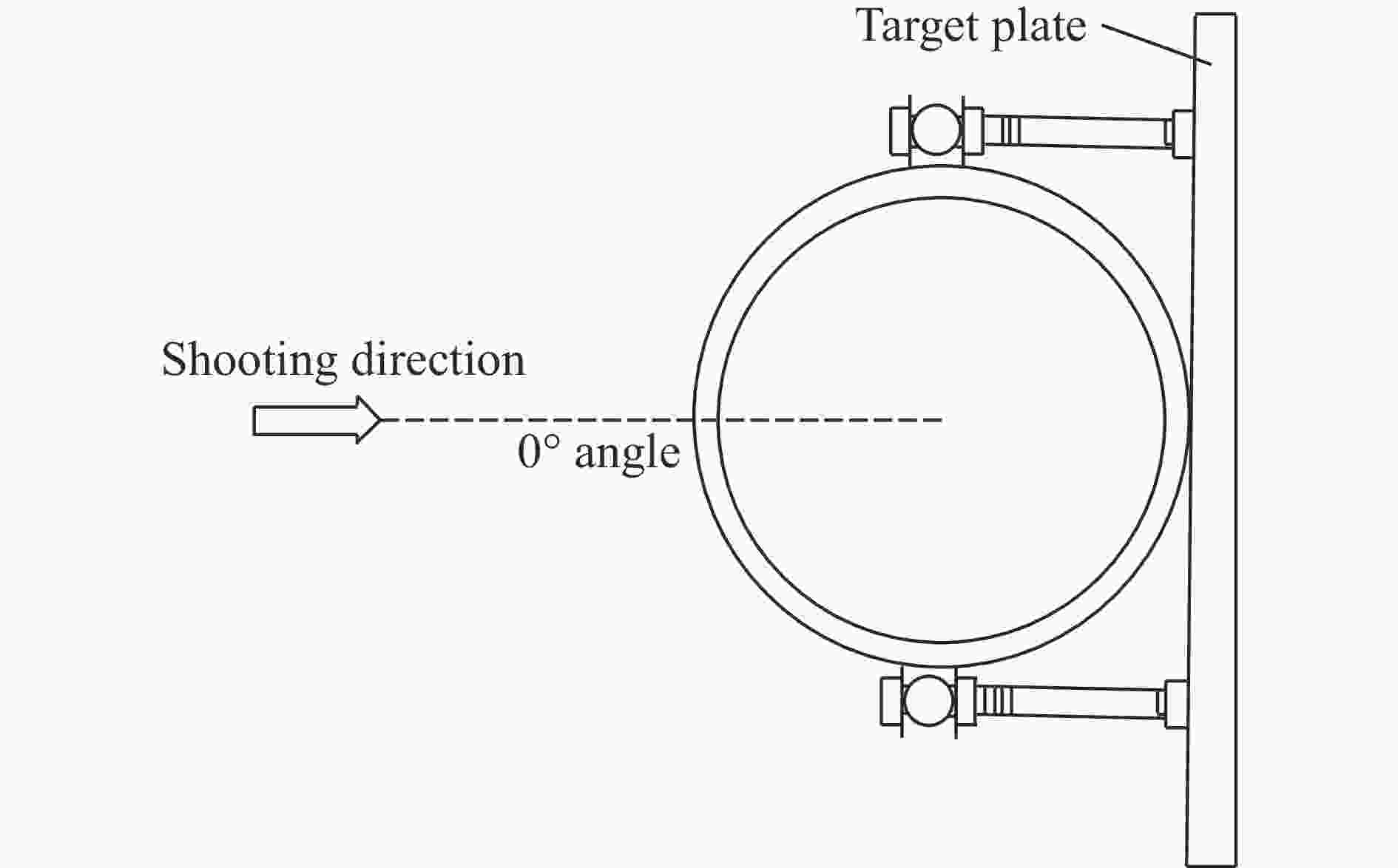

图 4 管道约束侧视图

Figure 4. Side view of pipeline constraint

下载: 全尺寸图片幻灯片

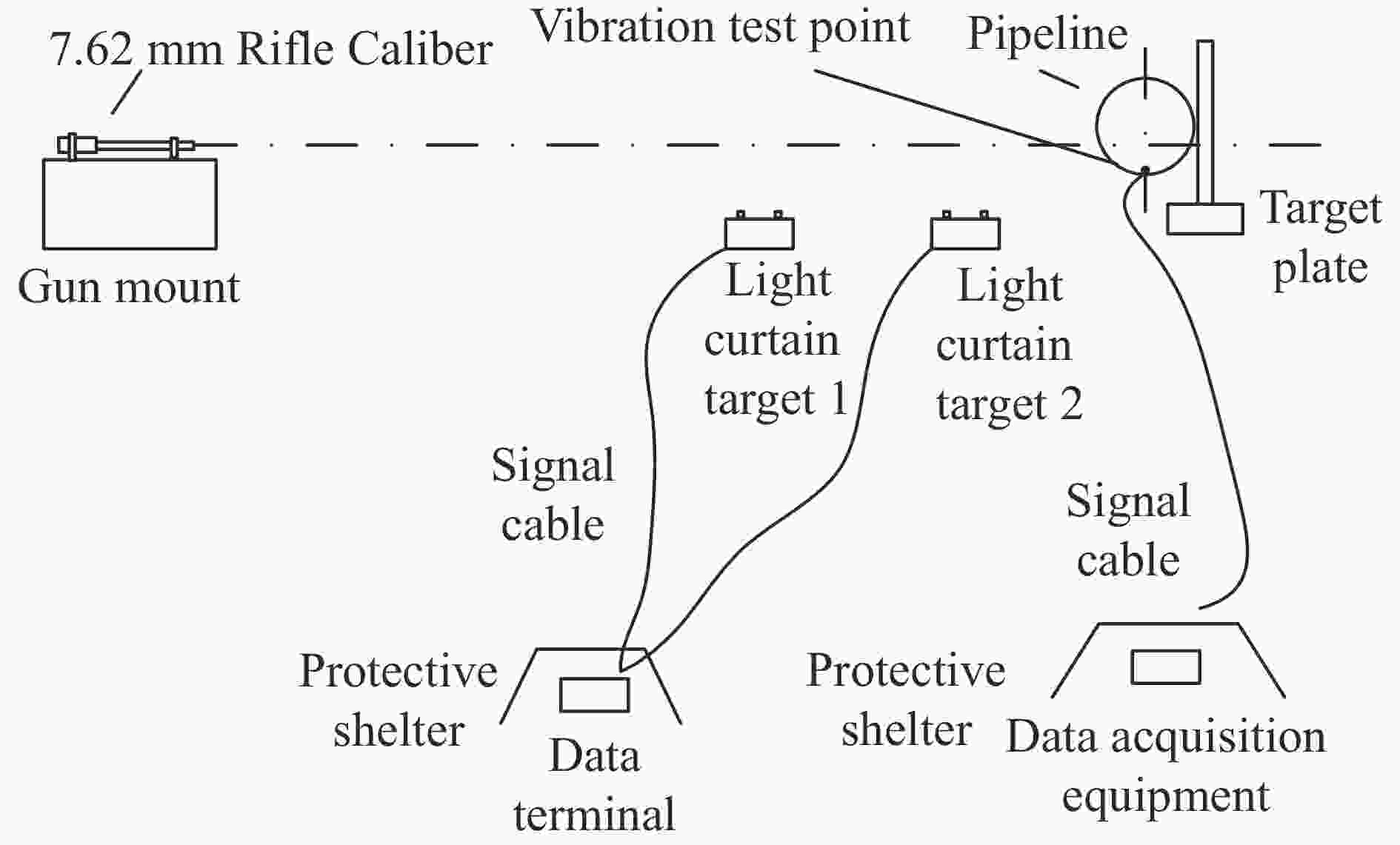

图 5 试验现场示意图

Figure 5. Schematic diagram of the test site

下载: 全尺寸图片幻灯片

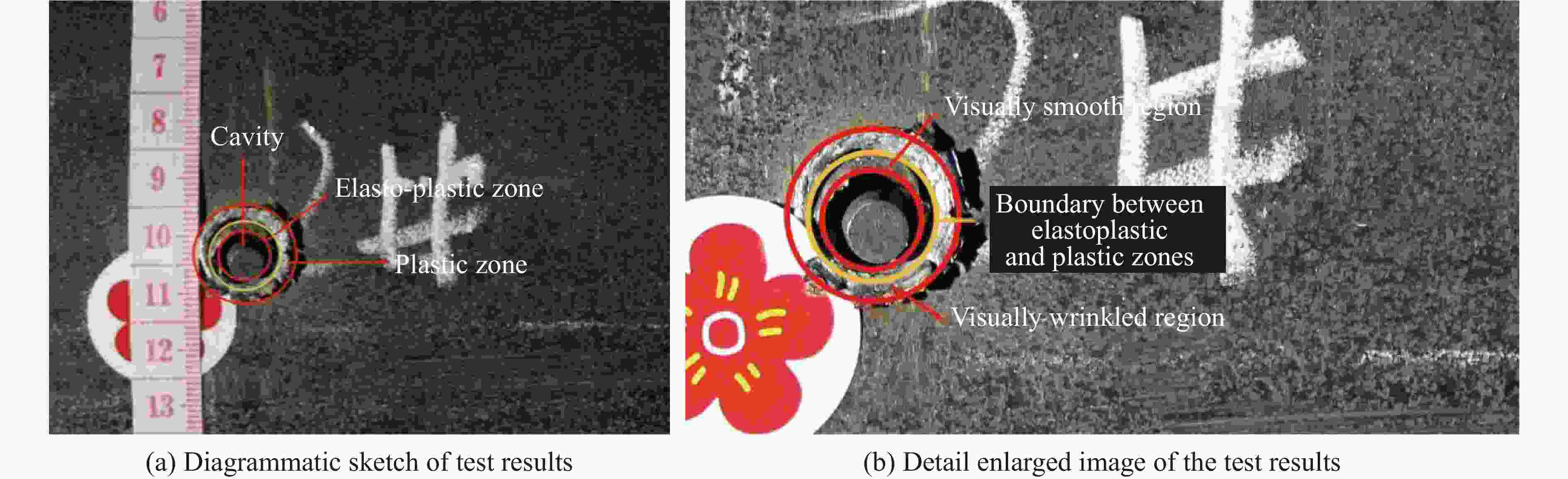

图 6 测量的试验结果

Figure 6. Test results of measurements

下载: 全尺寸图片幻灯片

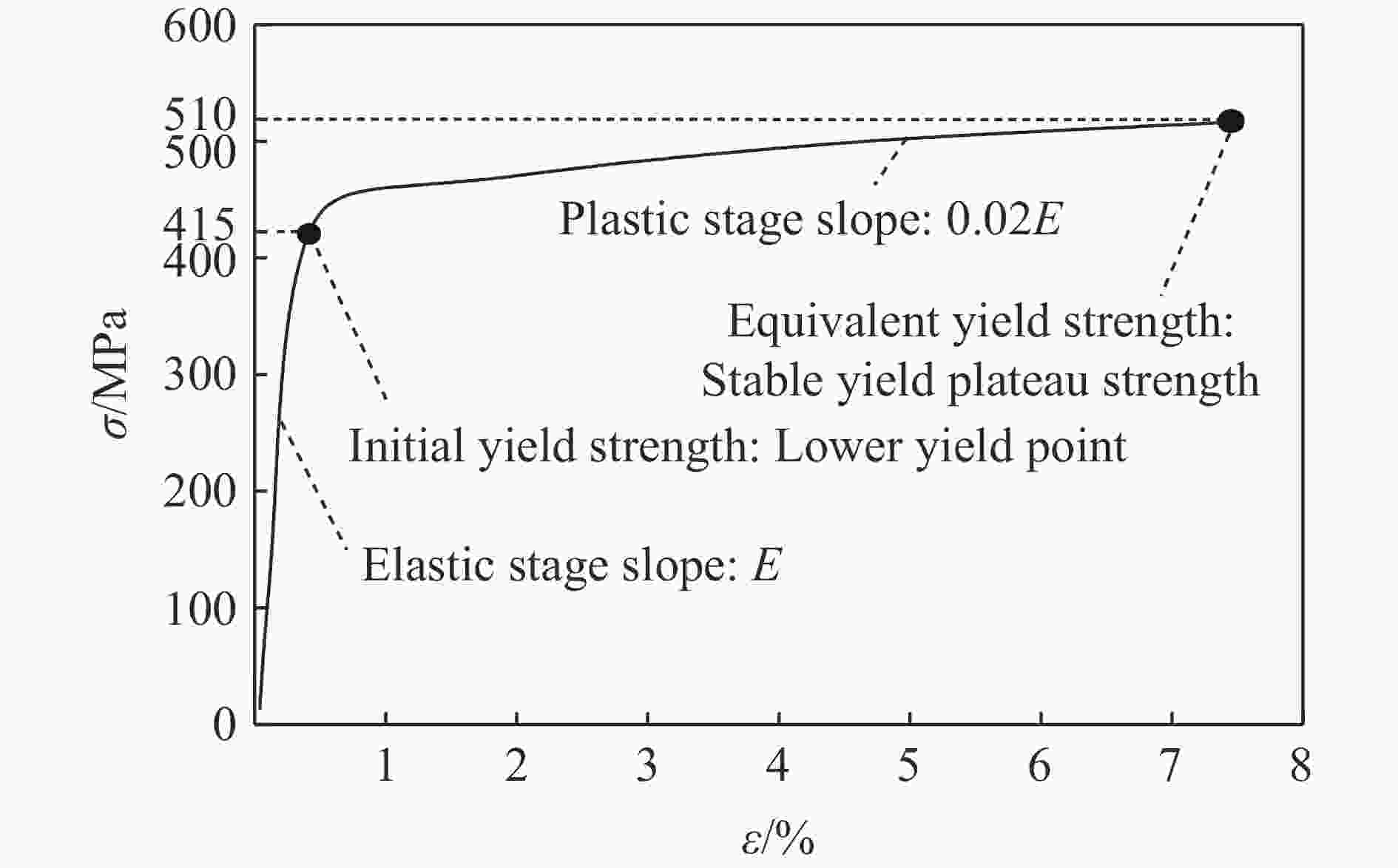

图 7 L415M管道材料的拉伸实验应力-应变曲线

Figure 7. The stress-strain curve of the L415M pipeline material during the tensile test

下载: 全尺寸图片幻灯片

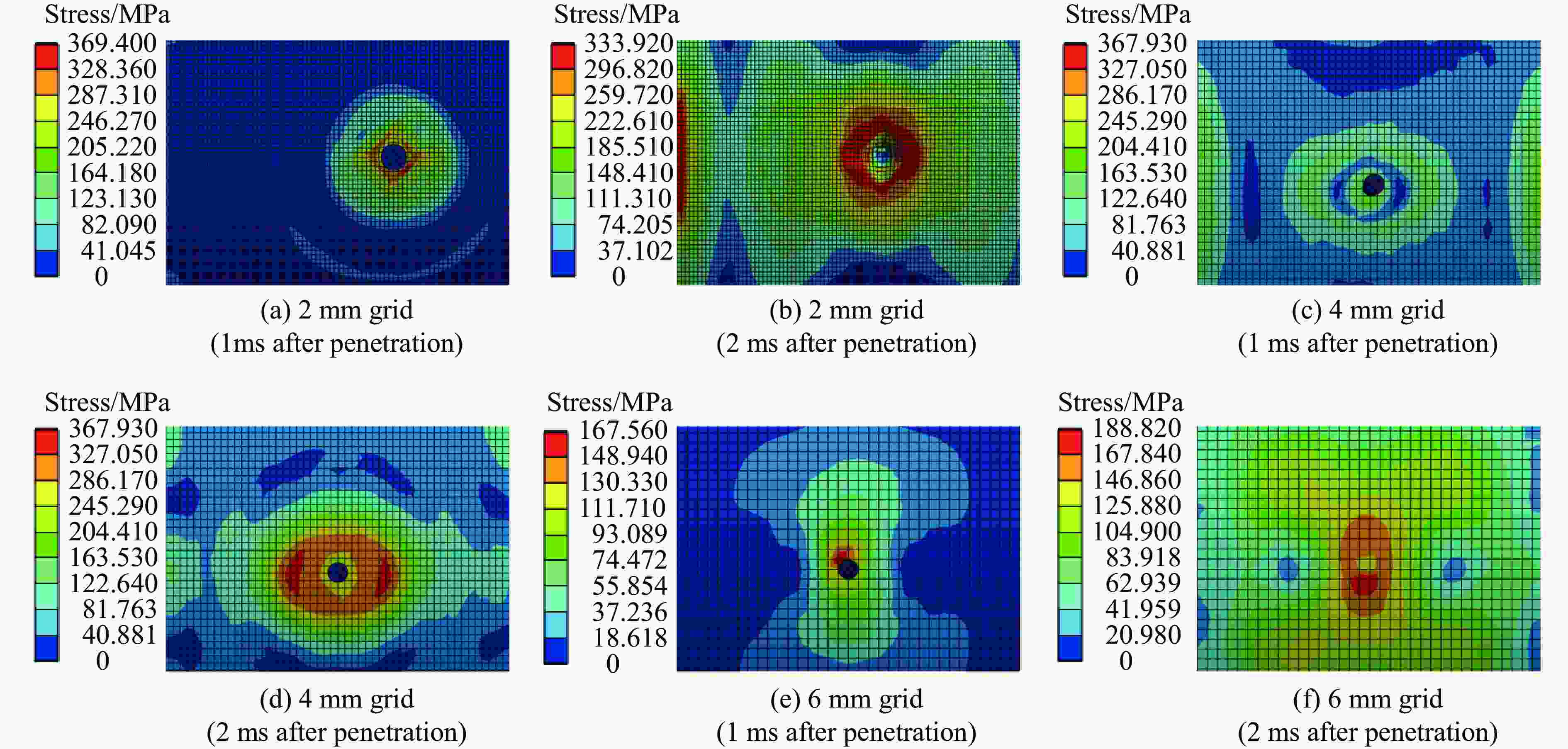

图 8 不同网格尺寸和不同时刻的弹体侵彻区局部应力云图

Figure 8. Stress contour maps of different grid sizes and at different times

下载: 全尺寸图片幻灯片

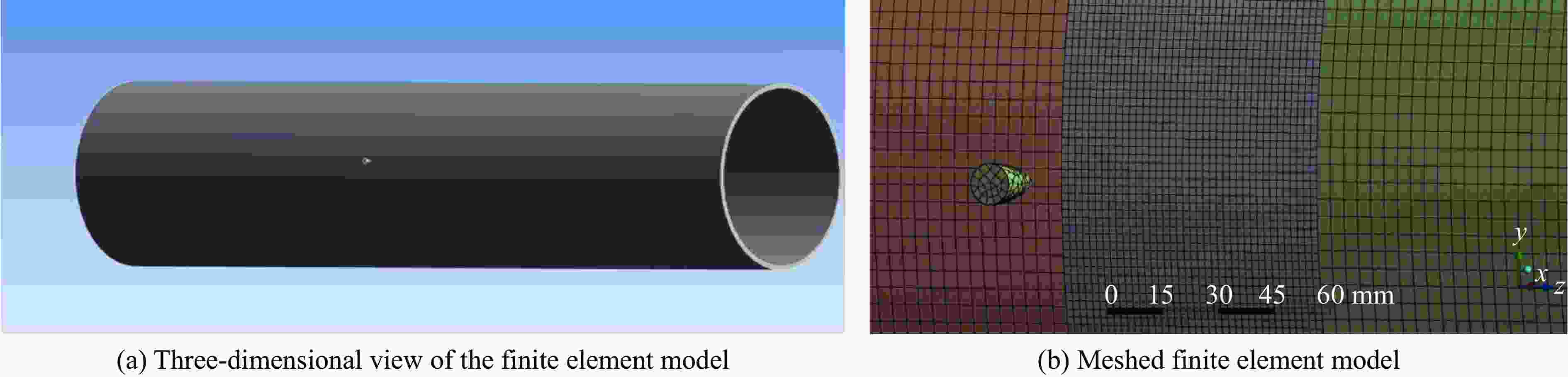

图 9 有限元模型

Figure 9. Finite element model

下载: 全尺寸图片幻灯片

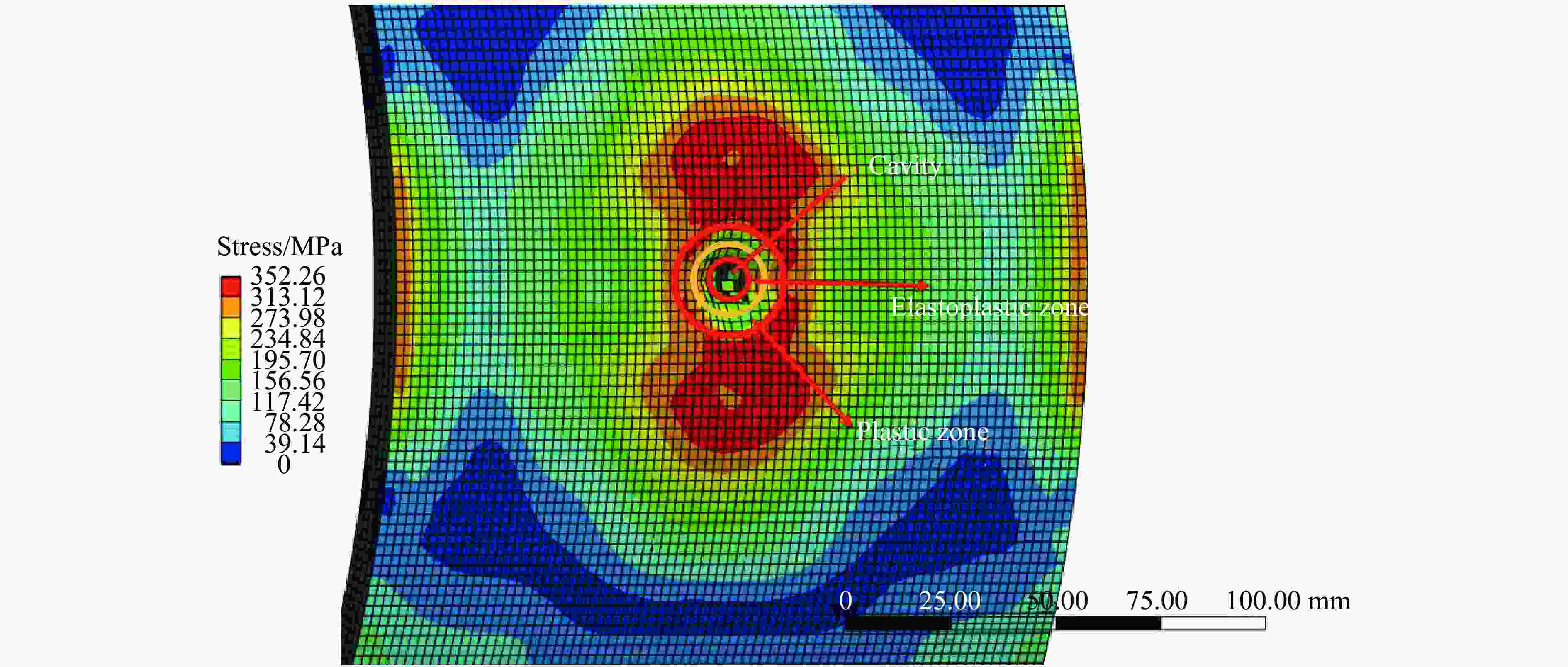

图 10 数值模拟结果

Figure 10. Numerical simulation results

下载: 全尺寸图片幻灯片

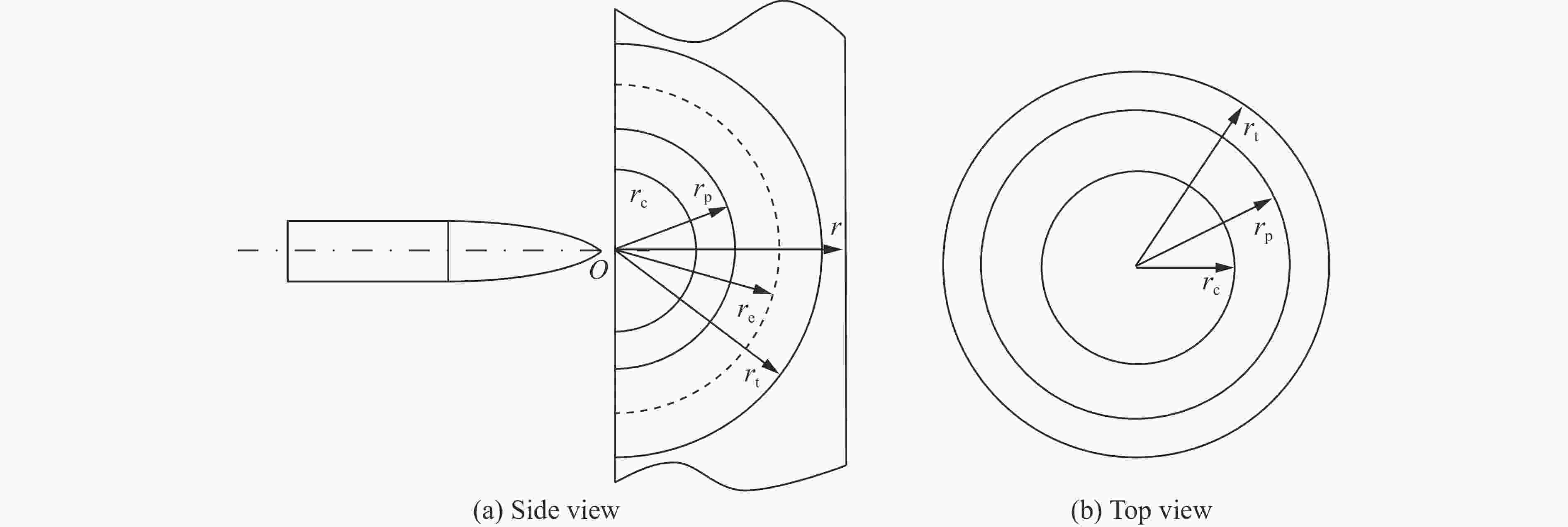

图 11 有限柱形空腔膨胀模型

Figure 11. Finite cylindrical cavity expansion model

下载: 全尺寸图片幻灯片

图 12 应力状态

Figure 12. Stress state

下载: 全尺寸图片幻灯片

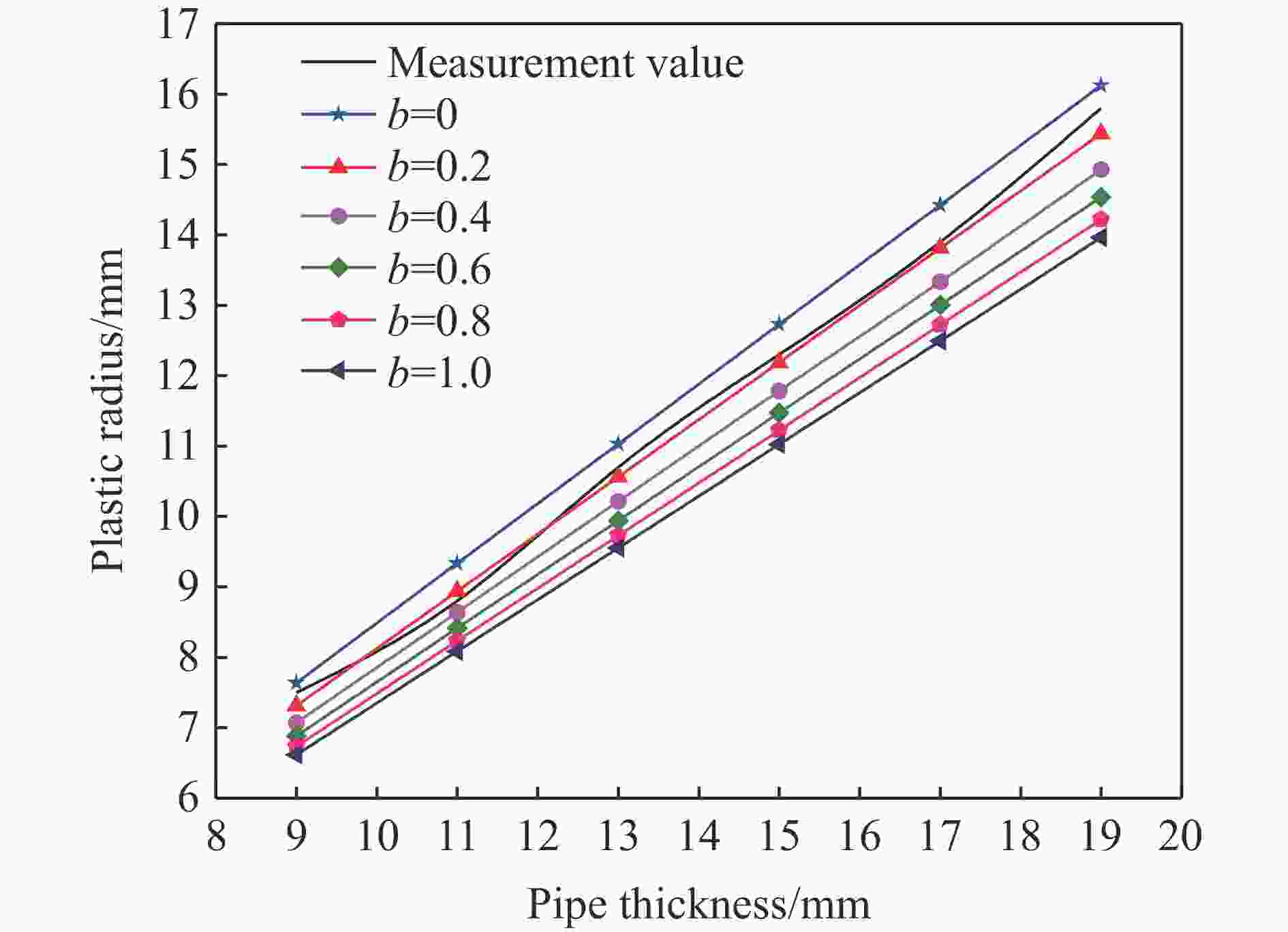

图 13 不同b时塑性半径理论值和测量值对比

Figure 13. Comparison of theoretical and measured values of plastic radius at different b

下载: 全尺寸图片幻灯片

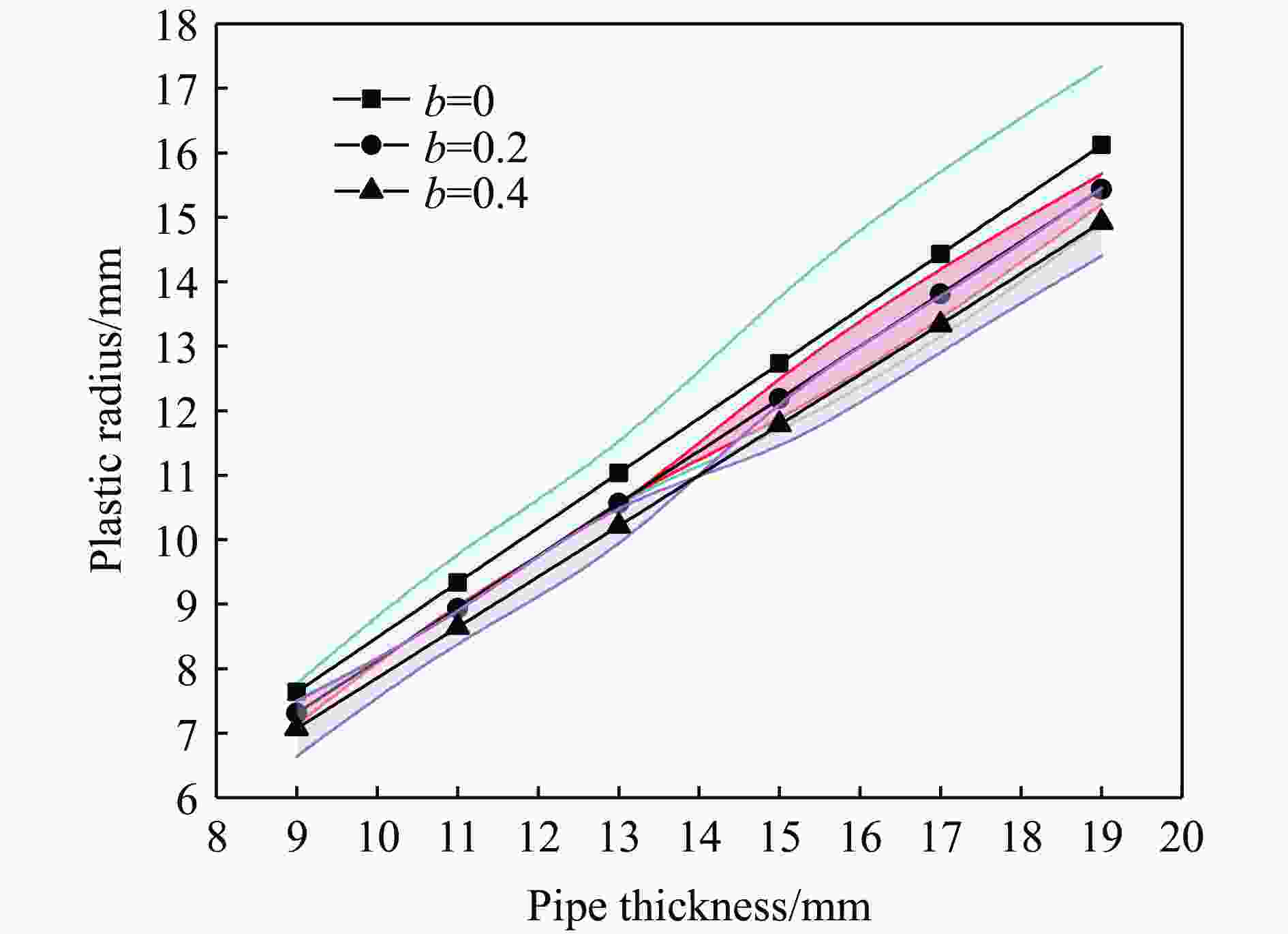

图 14 误差带对比

Figure 14. Comparison of error band

下载: 全尺寸图片幻灯片

表 1 L415M管道的基本参数

Table 1. Basic parameters of L415M pipeline

屈服强度/MPa	外径/mm	壁厚/mm	长度/mm	单向拉伸断裂应变$ {\varepsilon }_{\text{f}} $^[28]
415	457	9	2150	0.36

下载: 导出CSV

表 2 56式7.62 mm×39 mm步枪弹基本参数

Table 2. Basic parameters of 7.62 mm×39 mm ordinary round bullet of type 56

战斗部直径d₁/mm	底缘直径d₀/mm	弹头长度l₁/mm	全长l₀/mm	弹体质量m/g	战斗部（钢芯）强度/MPa
7.62	11.3	26.8	55.8	8.1	900

下载: 导出CSV

表 3 56式步枪弹侵彻天然气管道试验数据

Table 3. Penetration test data of type 56 rifle ammunition on natural gas pipelines

弹体质量m/g	管道厚度$ {r}_{\mathrm{th}} $/mm	撞击速度$ {v}_{0} $/(m·s⁻¹)	塑性半径r/mm
8.1	9	727.2	7.5

下载: 导出CSV

表 4 L415M管道双线性弹塑性本构参数

Table 4. Bilinear elastoplastic constitutive parameters of L415M pipe

材料	密度/(kg·m⁻³)	弹性模量/GPa	泊松比υ	初始屈服强度/MPa	等效屈服强度^[28]/MPa
L415M	7800	210	0.3	415	510

下载: 导出CSV

表 5 弹体侵彻天然气管道数值模拟数据汇总

Table 5. Summary of numerical simulation data of penetration

弹体半径 r_d/mm	管道厚度 r_t/mm	撞击速度 v₀/(m·s⁻¹)	塑性半径测量值/mm	塑性半径理论计算值/mm
弹体半径 r_d/mm	管道厚度 r_t/mm	撞击速度 v₀/(m·s⁻¹)	塑性半径测量值/mm	b=0	b=0.2	b=0.4	b=0.6	b=0.8	b=1.0
3.81	9	600	4.5	7.637	7.312	7.070	6.884	6.735	6.614
3.81	9	650	5.4	7.637	7.312	7.070	6.884	6.735	6.614
3.81	9	700	6.3	7.637	7.312	7.070	6.884	6.735	6.614
3.81	9	727	7.5	7.637	7.312	7.070	6.884	6.735	6.614
3.81	9	800	穿透	－	－	－	－	－	－
4.65	11	600	3.9	9.334	8.936	8.641	8.413	8.232	8.083
4.65	11	700	5.7	9.334	8.936	8.641	8.413	8.232	8.083
4.65	11	727	6.9	9.334	8.936	8.641	8.413	8.232	8.083
4.65	11	800	8.8	9.334	8.936	8.641	8.413	8.232	8.083
4.65	11	900	穿透	－	－	－	－	－	－
5.50	13	600	3.3	11.031	10.561	10.213	9.943	9.728	9.553
5.50	13	700	5.1	11.031	10.561	10.213	9.943	9.728	9.553
5.50	13	800	8.2	11.031	10.561	10.213	9.943	9.728	9.553
5.50	13	900	10.7	11.031	10.561	10.213	9.943	9.728	9.553
5.50	13	1000	穿透	－	－	－	－	－	－
6.35	15	600	2.8	12.728	12.186	11.784	11.473	11.225	11.023
6.35	15	700	4.6	12.728	12.186	11.784	11.473	11.225	11.023
6.35	15	800	7.7	12.728	12.186	11.784	11.473	11.225	11.023
6.35	15	900	9.3	12.728	12.186	11.784	11.473	11.225	11.023
6.35	15	1050	11.6	12.728	12.186	11.784	11.473	11.225	11.023
6.35	15	1100	穿透	－	－	－	－	－	－
7.20	17	700	4.1	14.425	13.811	13.335	13.003	12.722	12.492
7.20	17	800	7.1	14.425	13.811	13.335	13.003	12.722	12.492
7.20	17	1000	9.2	14.425	13.811	13.335	13.003	12.722	12.492
7.20	17	1100	11.6	14.425	13.811	13.335	13.003	12.722	12.492
7.20	17	1180	13.1	14.425	13.811	13.335	13.003	12.722	12.492
7.20	17	1250	穿透	－	－	－	－	－	－
8.04	19	700	3.6	16.122	15.436	14.926	14.532	14.218	13.962
8.04	19	800	6.6	16.122	15.436	14.926	14.532	14.218	13.962
8.04	19	1000	10.3	16.122	15.436	14.926	14.532	14.218	13.962
8.04	19	1200	12.4	16.122	15.436	14.926	14.532	14.218	13.962
8.04	19	1340	14.9	16.122	15.436	14.926	14.532	14.218	13.962
8.04	19	1400	穿透	－	－	－	－	－	－
注：当发生完全穿透时，管道局部塑性半径无法定义，因此不予给出理论值，用“－”标记。

下载: 导出CSV

表 6 b=0.2时计算结果误差值对比

Table 6. Comparison of calculation error values under the condition of b=0.2

管道厚度/mm	未穿透最大塑性半径/mm	塑性半径理论计算值/mm	误差值/%
9	7.5	7.312	2.5
11	8.8	8.936	1.5
13	10.7	10.561	1.2
15	11.6	12.186	5.1
17	13.1	13.811	5.4
19	15.2	15.436	1.5

下载: 导出CSV
