椭圆类截面弹体侵彻多层间隔钢靶的弹道特性

杨士林 高旭东 张先锋 王晓锋

杨士林, 高旭东, 张先锋, 王晓锋. 椭圆类截面弹体侵彻多层间隔钢靶的弹道特性[J]. 爆炸与冲击. doi: 10.11883/bzycj-2024-0096
引用本文: 杨士林, 高旭东, 张先锋, 王晓锋. 椭圆类截面弹体侵彻多层间隔钢靶的弹道特性[J]. 爆炸与冲击. doi: 10.11883/bzycj-2024-0096
YANG Shilin, GAO Xudong, ZHANG Xianfeng, WANG Xiaofeng. Trajectory characteristics of elliptical cross-section projectile penetrating multi-layer spaced steel targets[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2024-0096
Citation: YANG Shilin, GAO Xudong, ZHANG Xianfeng, WANG Xiaofeng. Trajectory characteristics of elliptical cross-section projectile penetrating multi-layer spaced steel targets[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2024-0096

椭圆类截面弹体侵彻多层间隔钢靶的弹道特性

doi: 10.11883/bzycj-2024-0096
详细信息
    作者简介:

    杨士林(2000- ),男,博士研究生,avatar0128@163.com

    通讯作者:

    高旭东(1975- ),男,博士,副研究员,dong930211@163.com

  • 中图分类号: O385

Trajectory characteristics of elliptical cross-section projectile penetrating multi-layer spaced steel targets

  • 摘要: 为了研究椭圆类截面弹体侵彻多层间隔钢靶的弹道特性,开展了典型弹体侵彻多层间隔Q355B钢靶试验,基于LS-DYNA软件开展有限元仿真研究,得到了弹体在侵彻过程中的姿态偏转和弹道参数,分析了弹体的偏转机制,获得了截面形状、截面压缩系数、初速、滚转角和着角等弹靶参数对椭圆类截面弹体侵彻弹道特性和姿态偏转特性的影响规律。研究结果表明:滚转角为0°时,圆截面弹体侵彻弹道稳定性优于椭圆类截面弹体;弹体截面压缩系数越大,弹体侵彻弹道稳定性越好;弹体初速越大,弹体姿态偏转越小,侵彻弹道越平稳;滚转角为90°时,椭圆截面和非对称椭圆截面弹体在入射平面内的侵彻弹道最稳定,并且两种弹体在水平面内的弹道偏移量分别在滚转角为45°和90°时达到最大,非对称椭圆截面弹体在滚转角为钝角时的侵彻弹道稳定性优于锐角时的情况;弹体着角在[0°,50°]范围内时,侵彻弹道稳定性随着角的增大先减弱后增强,着角在30°左右时姿态偏转和弹道失稳最严重;弹体以较正姿态贯穿薄钢靶时,在弹头部侵彻阶段就已经与靶体分离;弹体以较大攻角贯穿薄钢靶时,弹靶接触主要发生在弹体的上表面。

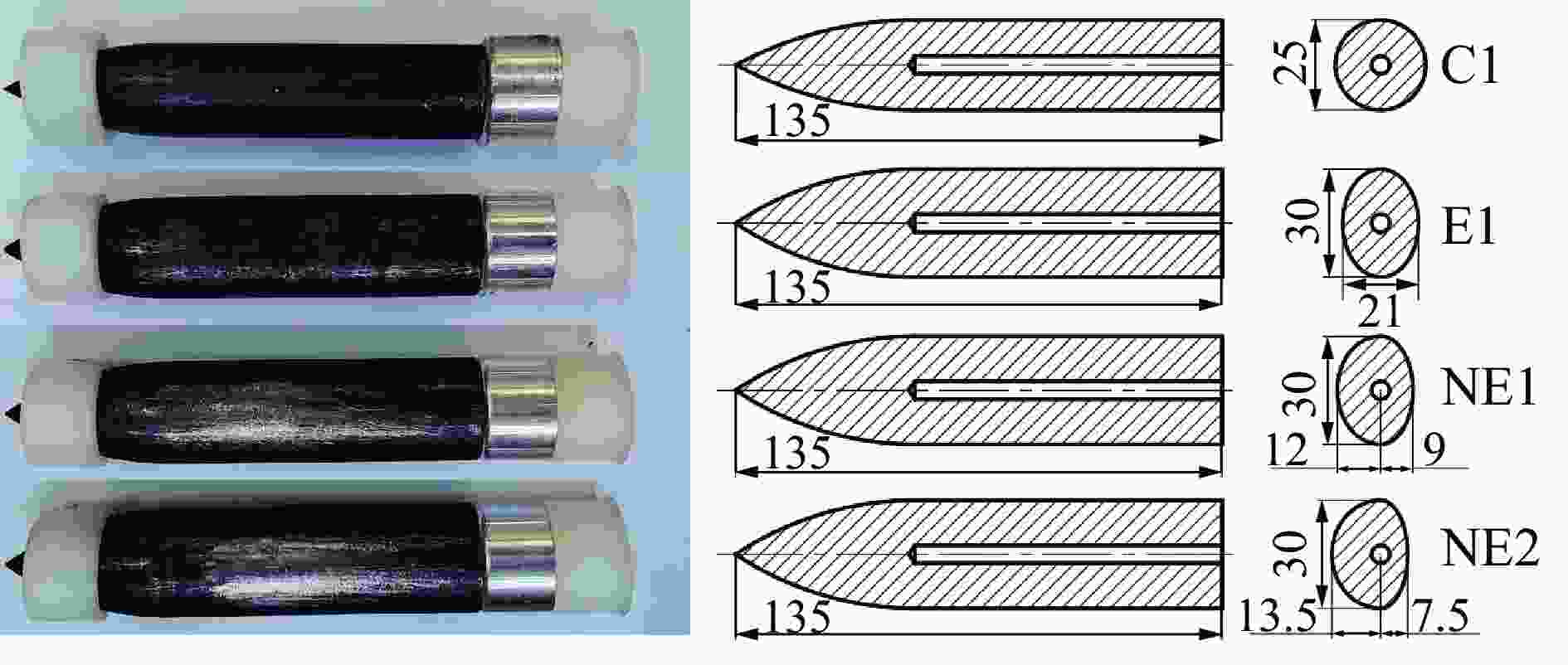

  • 图  1  试验用弹体(单位:mm)

    Figure  1.  Projectiles used in experiments(unit: mm)

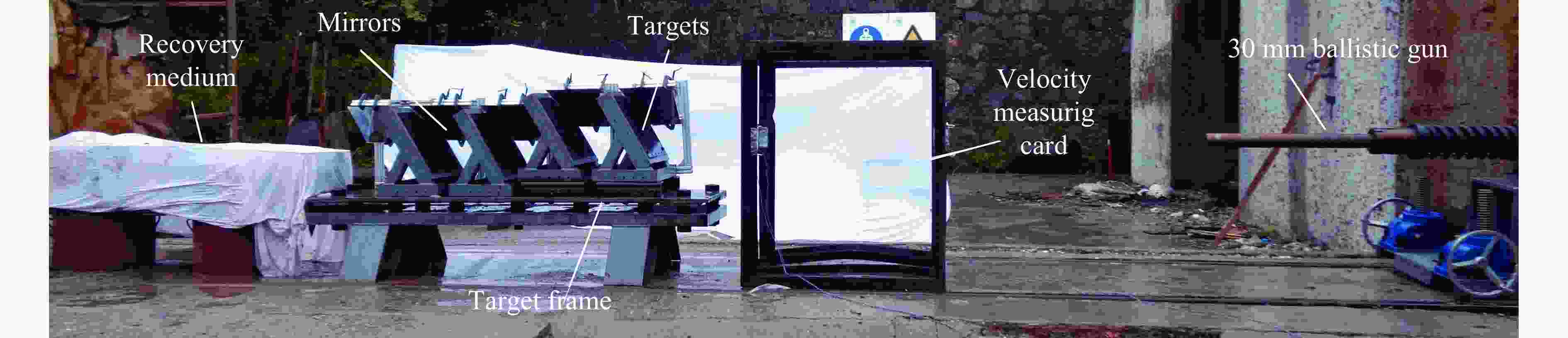

    图  2  试验现场布置

    Figure  2.  Experimental setup

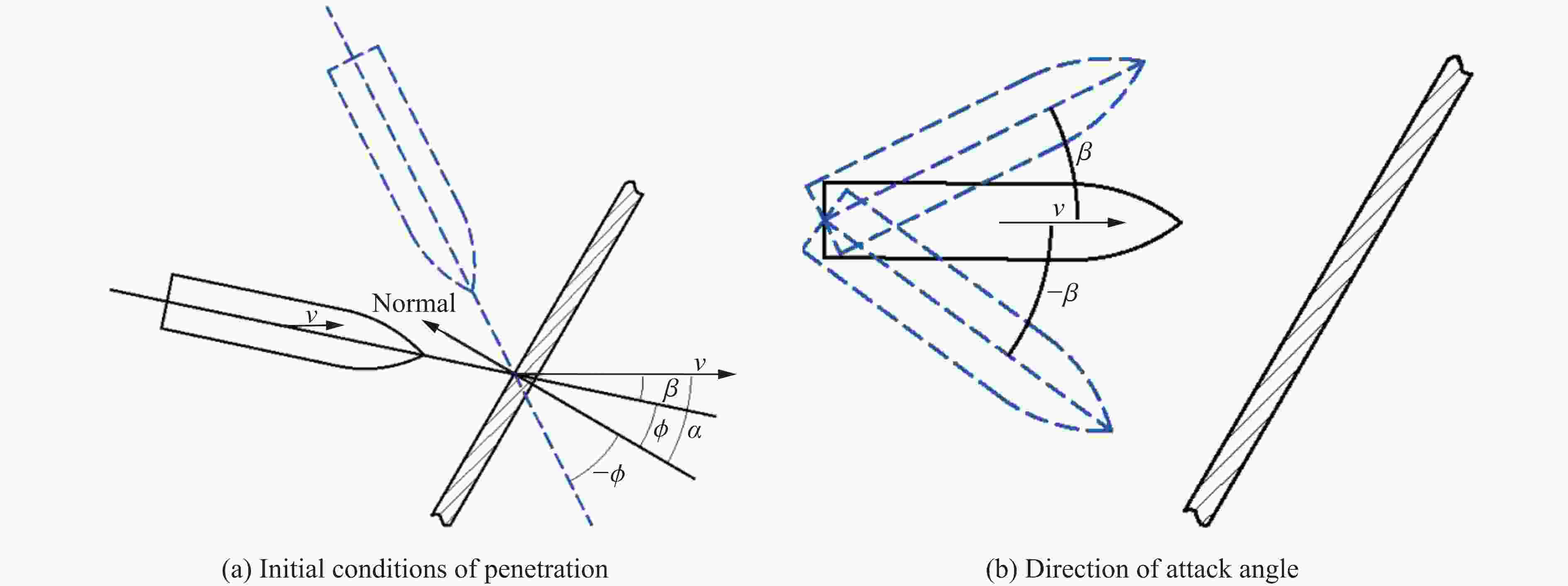

    图  3  弹体侵彻条件示意图

    Figure  3.  Schematic representation of conditions of projectile penetration

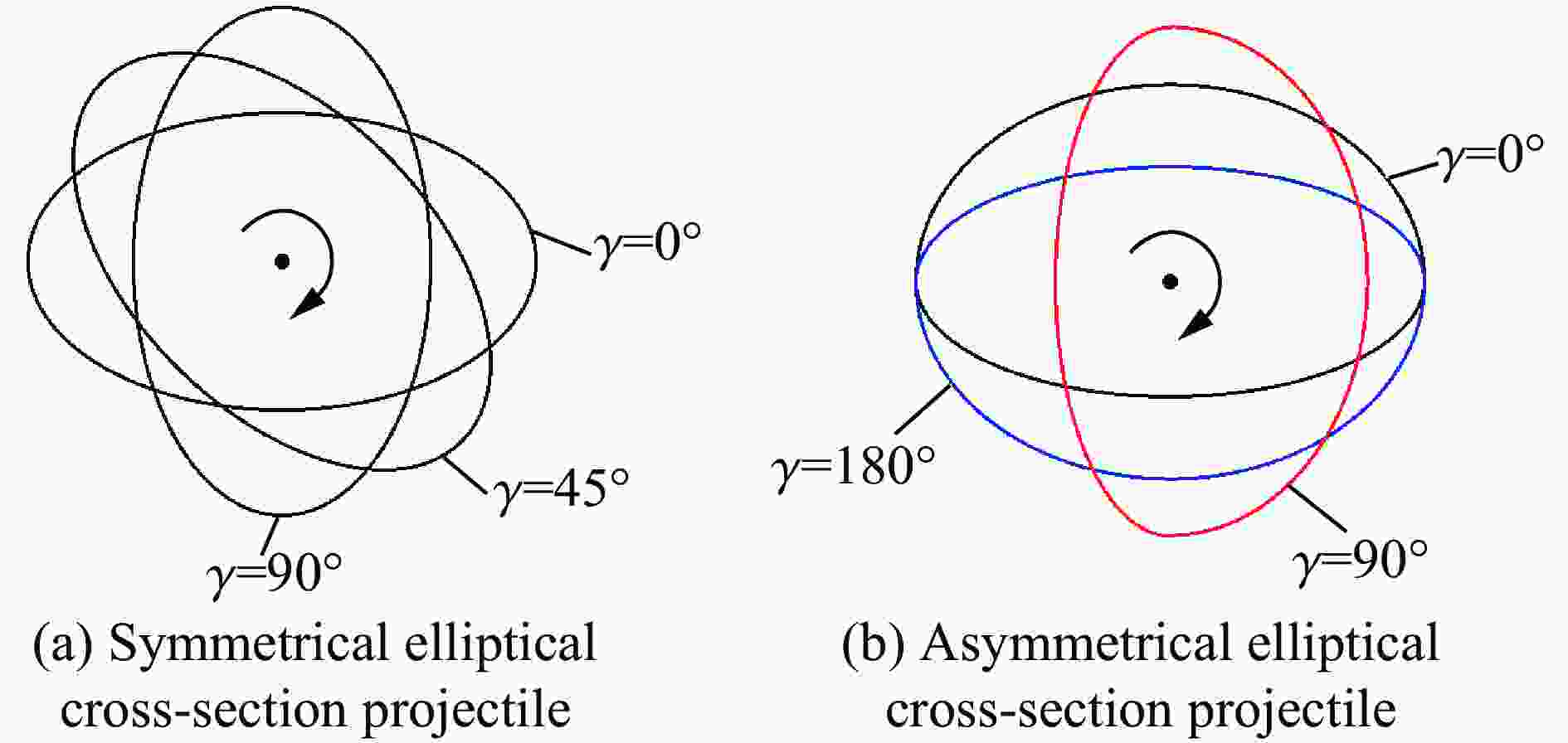

    图  4  滚转角示意图

    Figure  4.  Schematic representation of rotation angle

    图  5  不同初始条件下的侵彻弹道偏转

    Figure  5.  Penetration trajectory deflection under different initial conditions

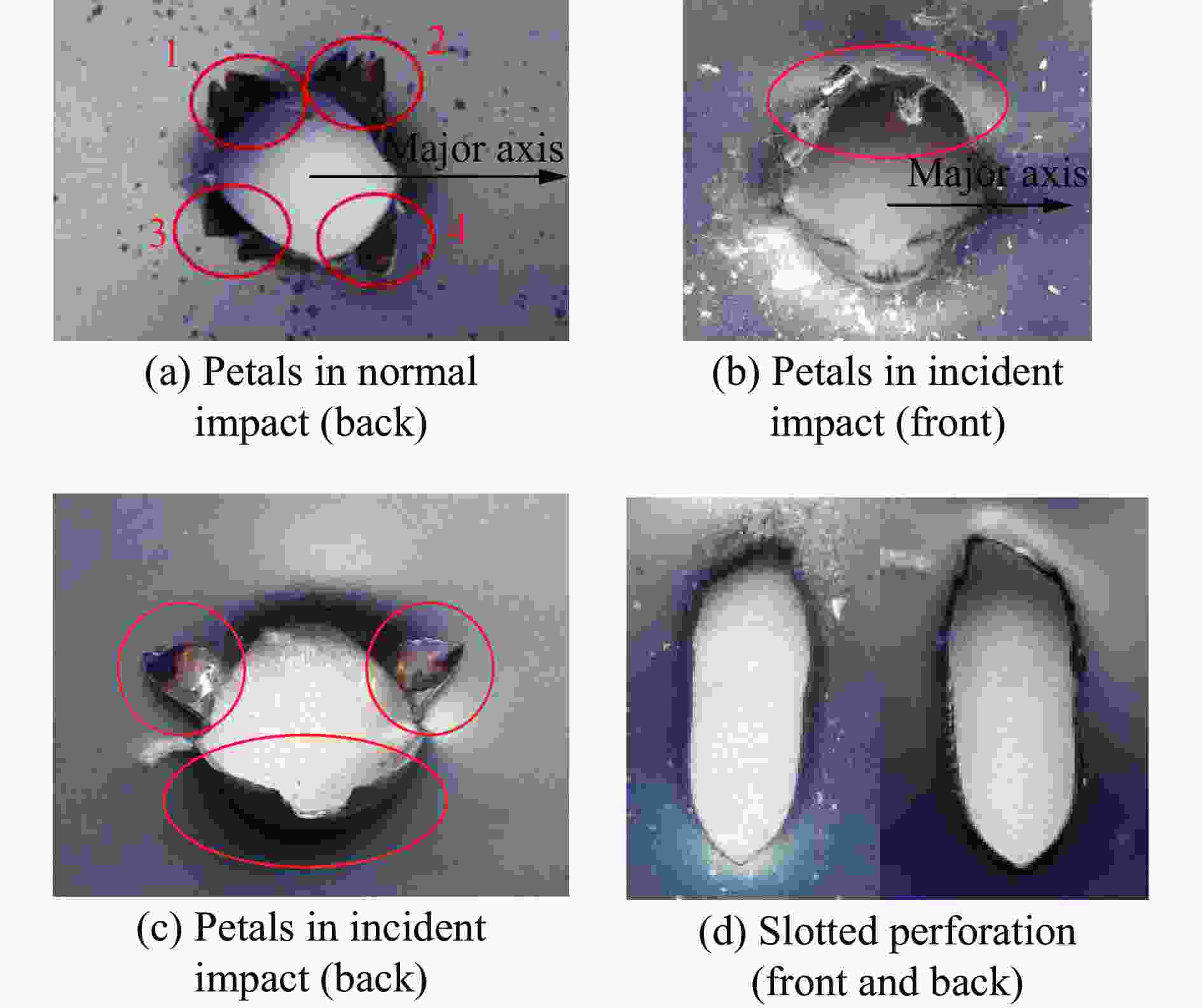

    图  6  靶板典型破坏形式

    Figure  6.  Typical destruction types of targets

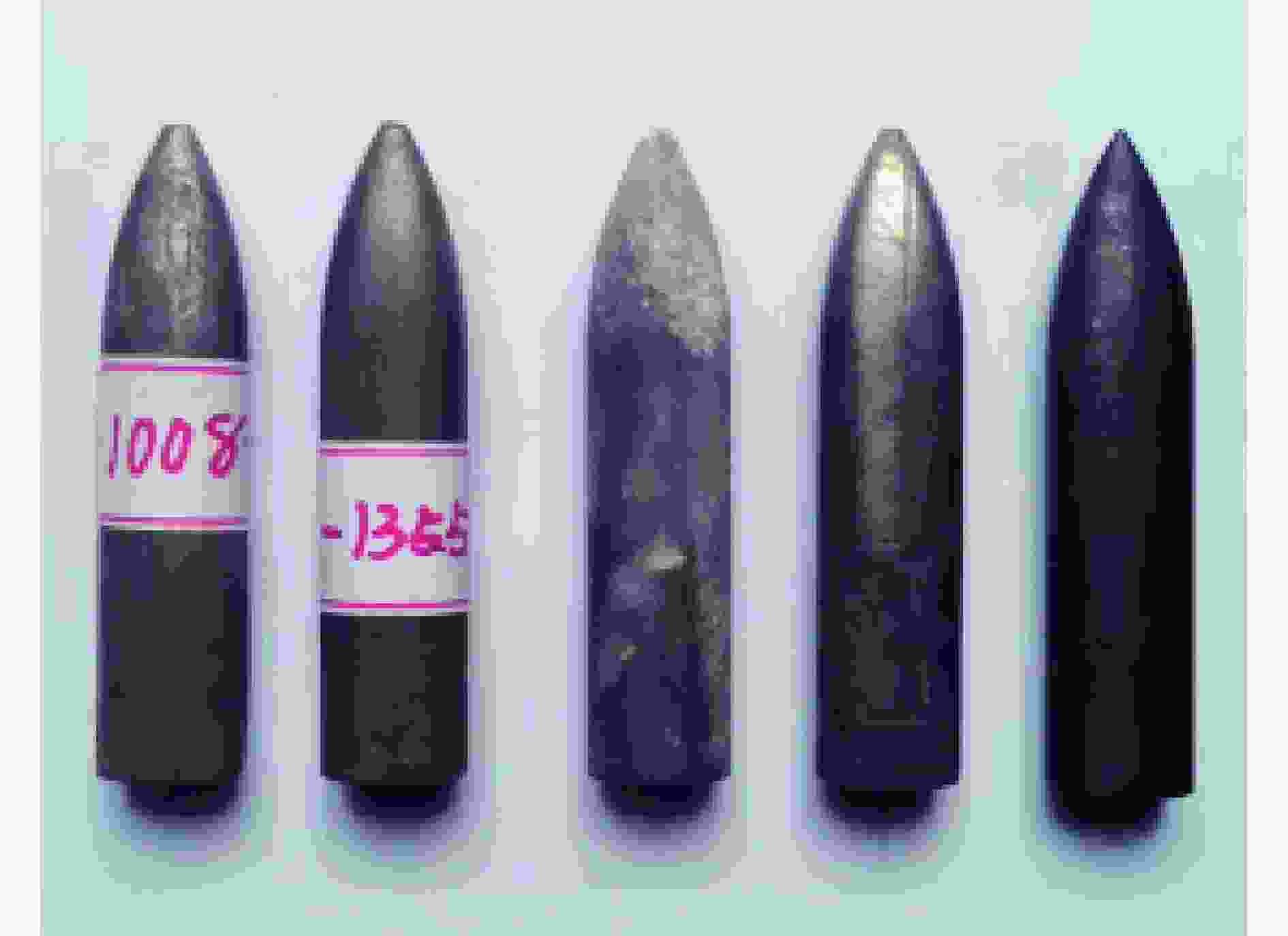

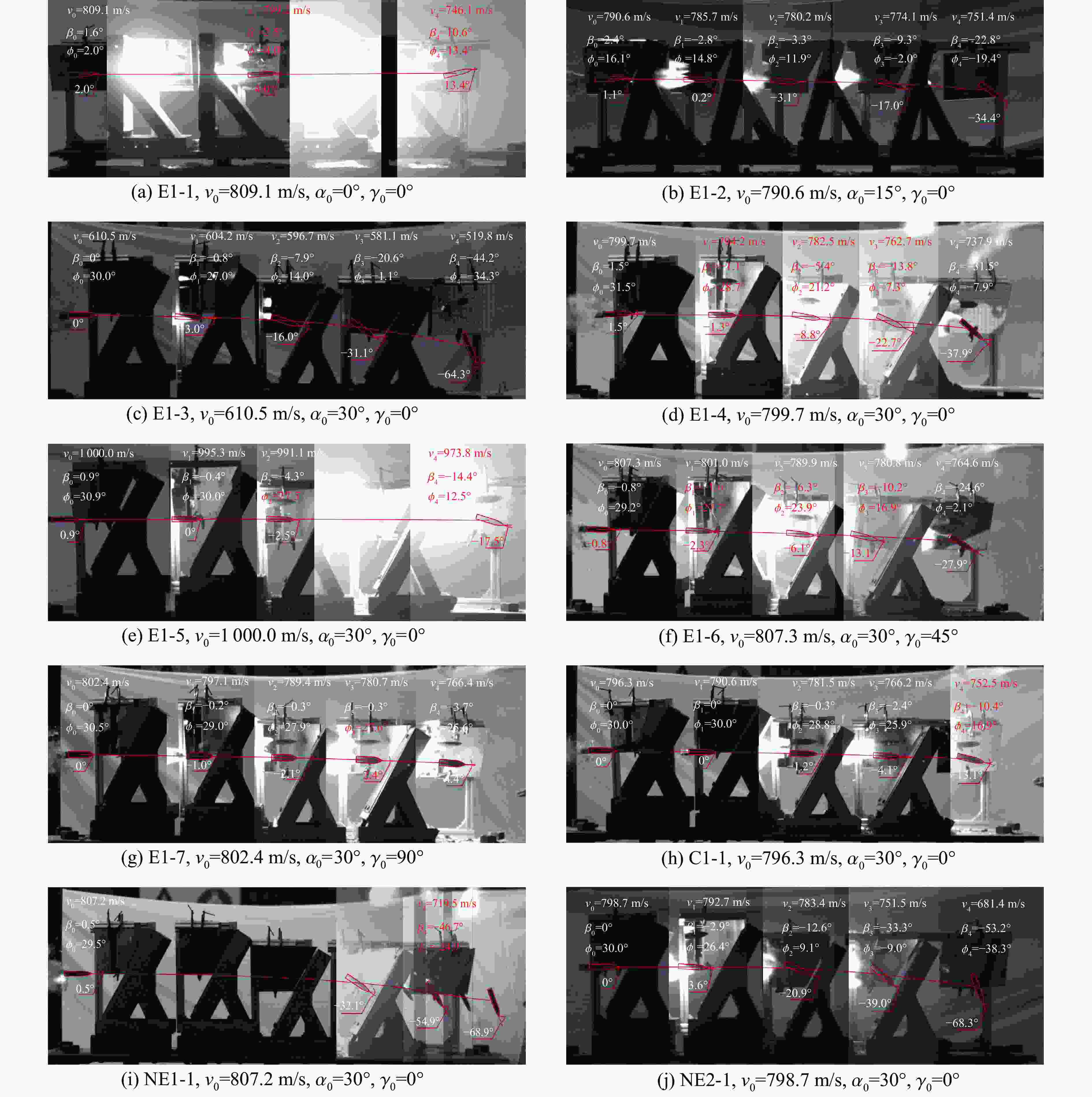

    图  7  回收到的4发弹体(左1~4)和原始弹体(右1)

    Figure  7.  The recovered 4 residual projectiles (1st to 4th from left) and original projectile (1st from right)

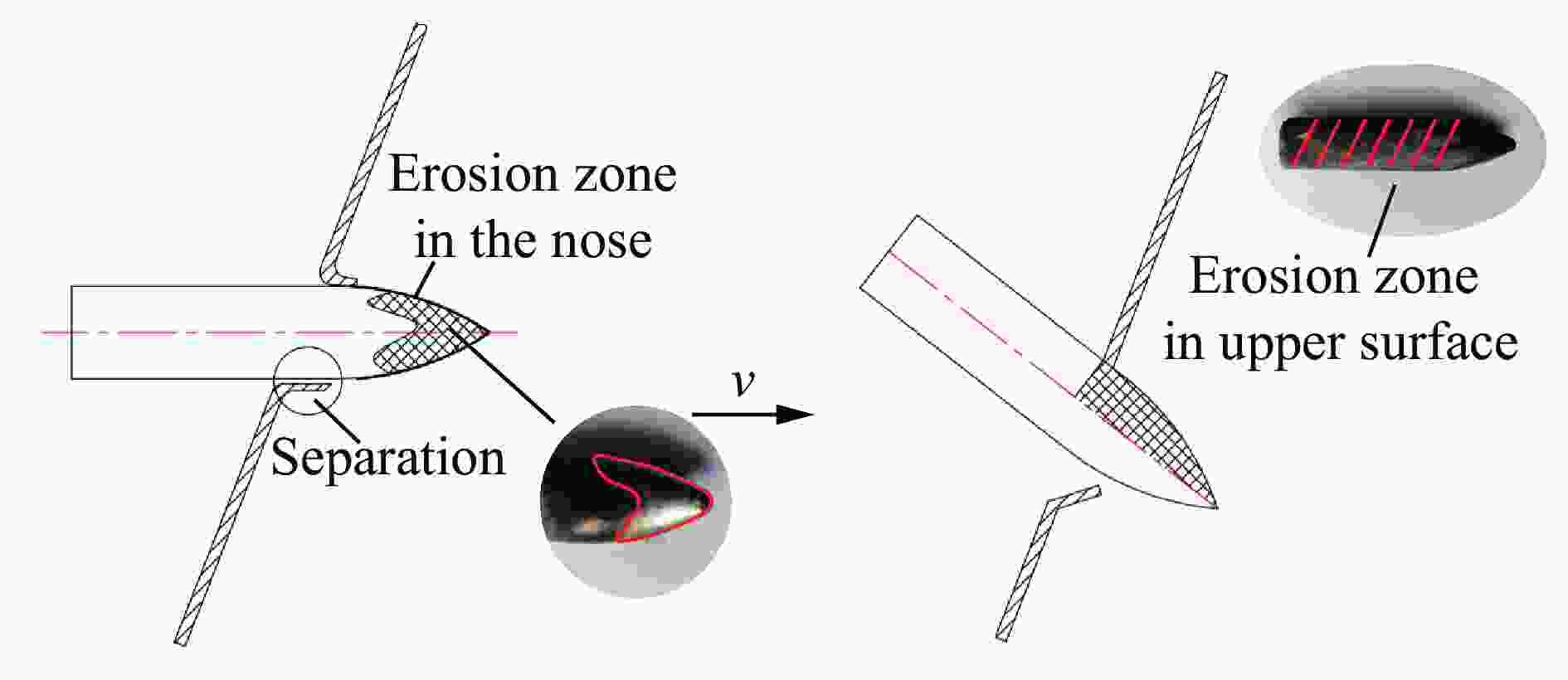

    图  8  弹体磨蚀示意图

    Figure  8.  Schematic representation of projectile erosion

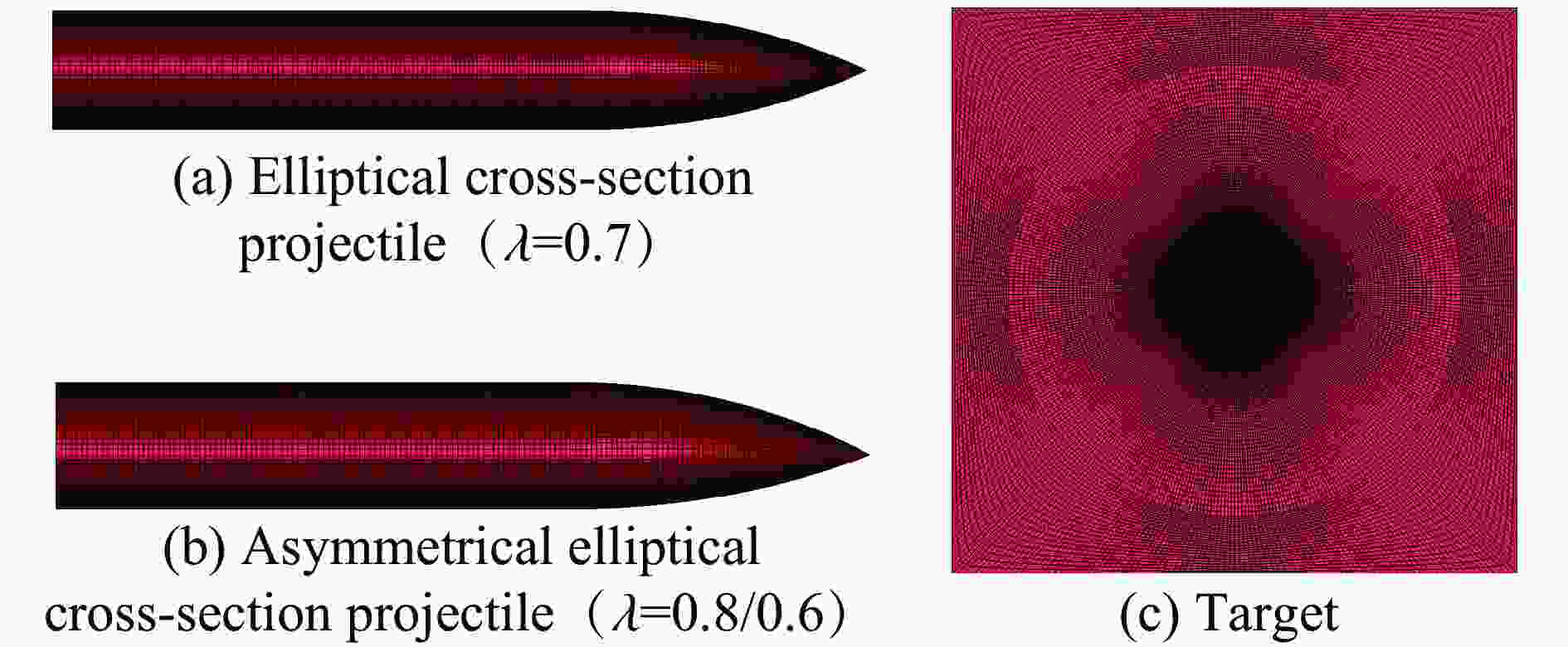

    图  9  有限元模型示意图

    Figure  9.  Finite element model

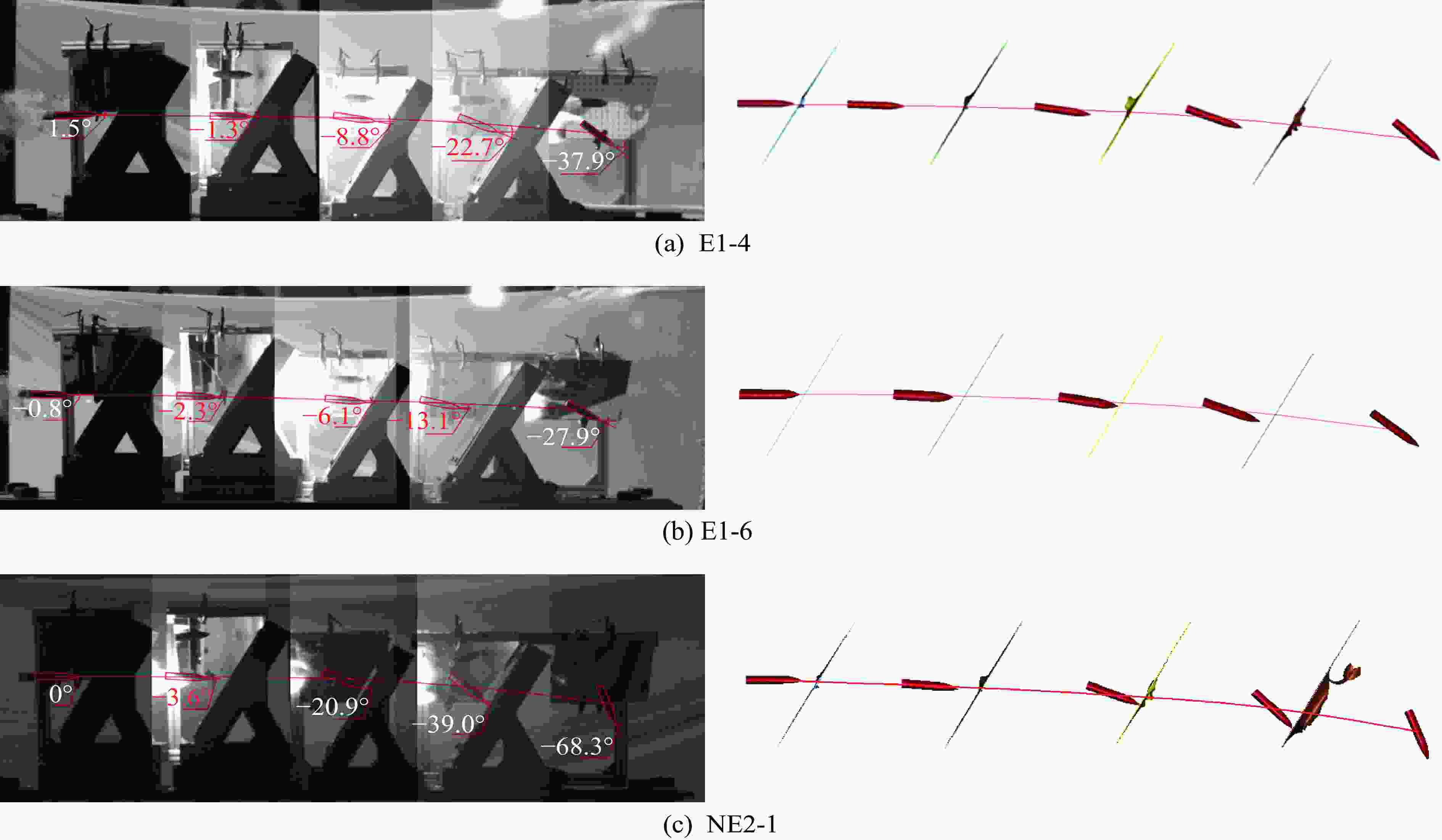

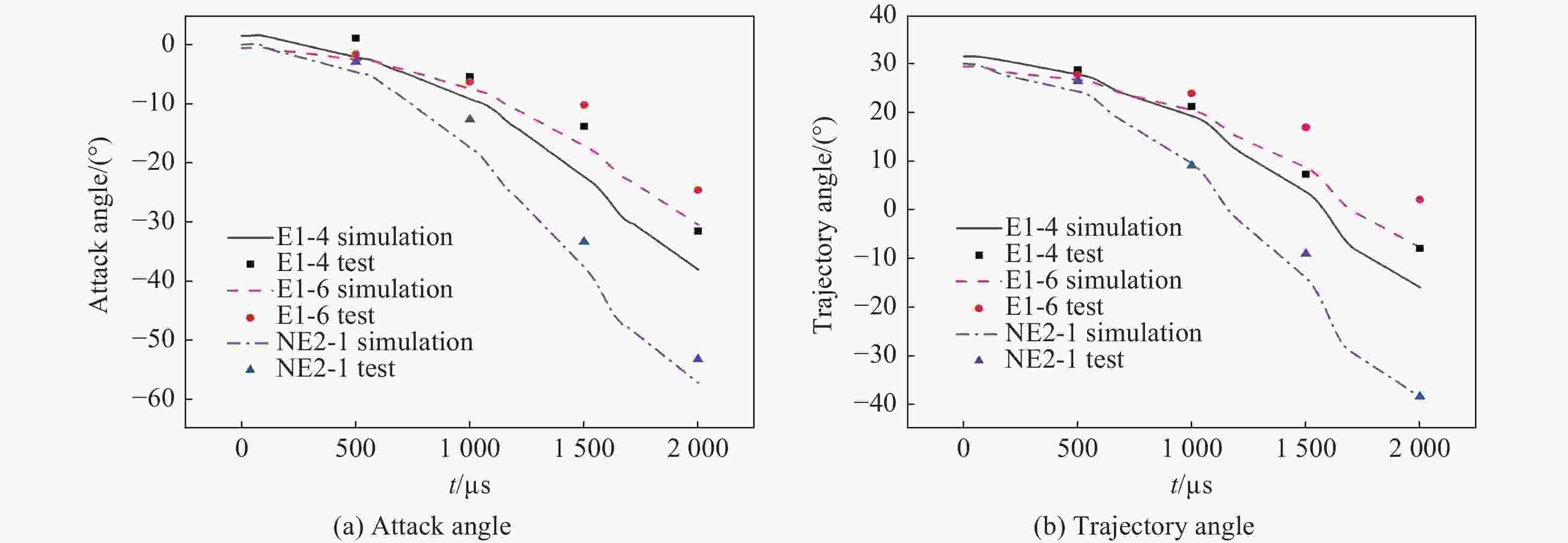

    图  10  姿态角、攻角变化试验与仿真结果对比

    Figure  10.  Comparison between simulations and experiments for trajectory angle and attack angle

    图  11  侵彻弹道试验与仿真结果对比

    Figure  11.  Comparison between simulations and experiments for penetration trajectory

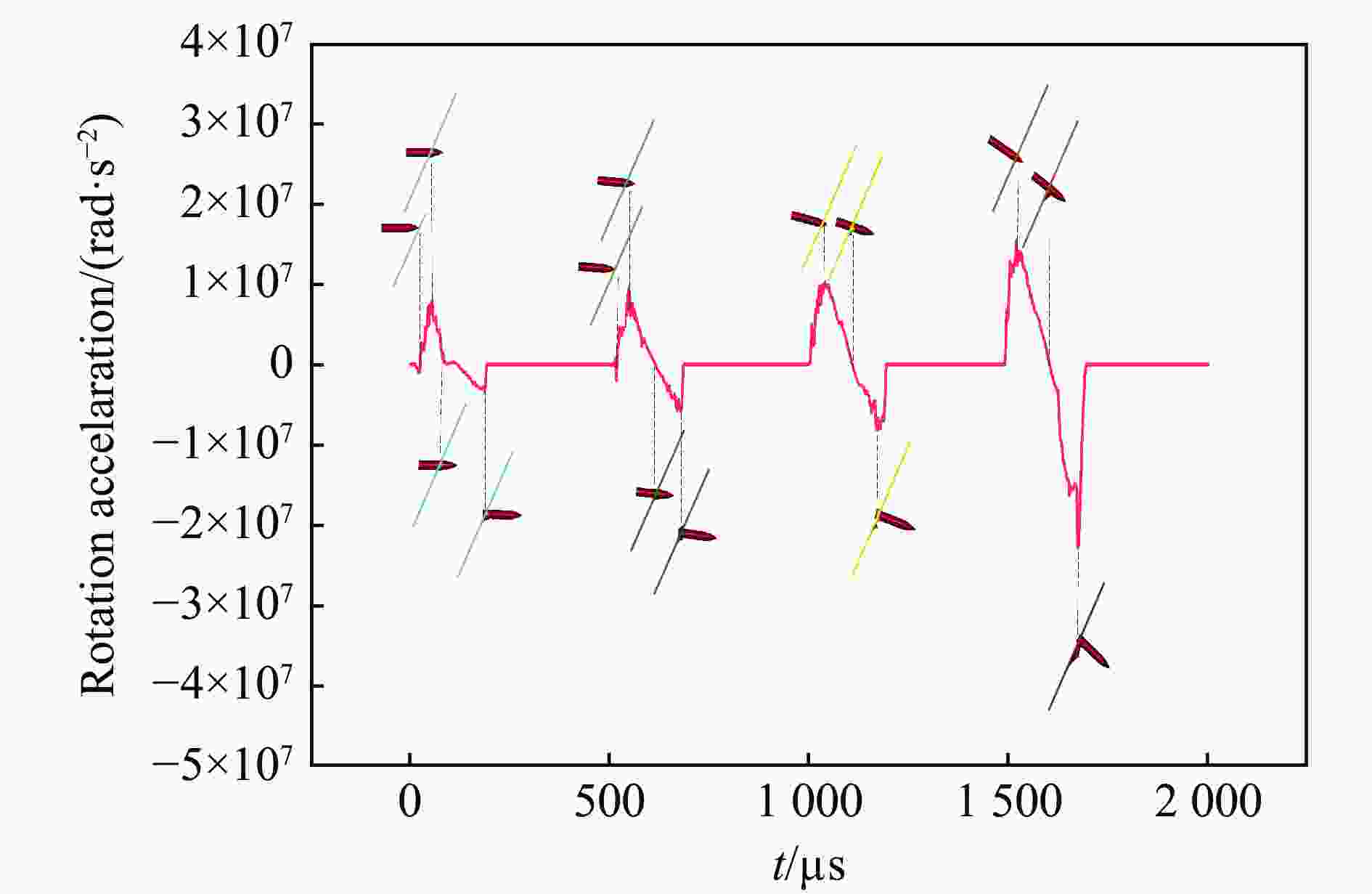

    图  12  弹体偏转角加速度曲线和对应侵彻过程

    Figure  12.  Rotation acceleration curve and corresponding penetration process

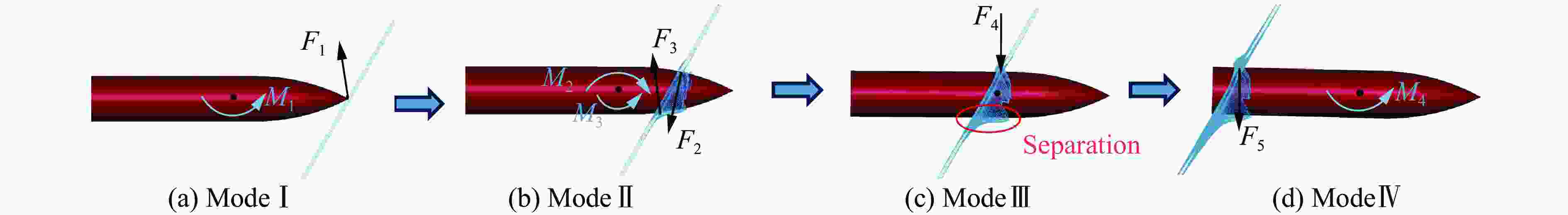

    图  13  侵彻过程中的4种偏转模式

    Figure  13.  Four deflection modes in penetration process

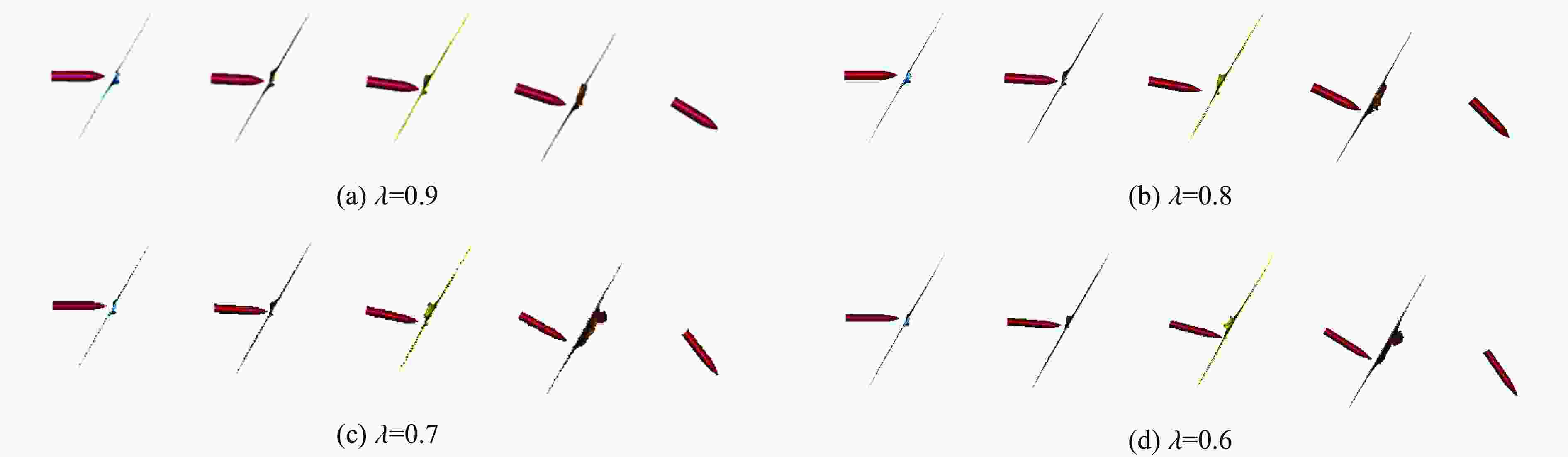

    图  14  不同截面压缩比下弹体侵彻弹道的仿真结果

    Figure  14.  Penetration trajectory simulation results of projectiles under different λ

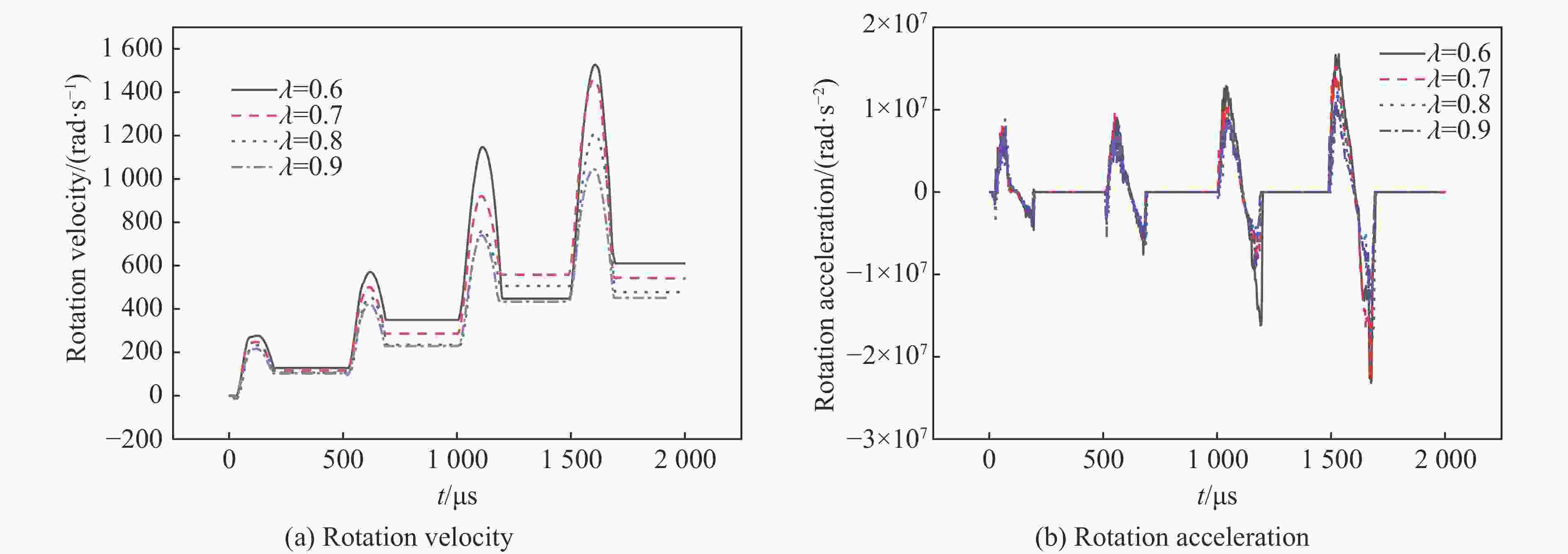

    图  15  不同截面压缩系数弹体偏转角速度和角加速度时程曲线

    Figure  15.  Time history curves of angular velocity and angular acceleration under different λ

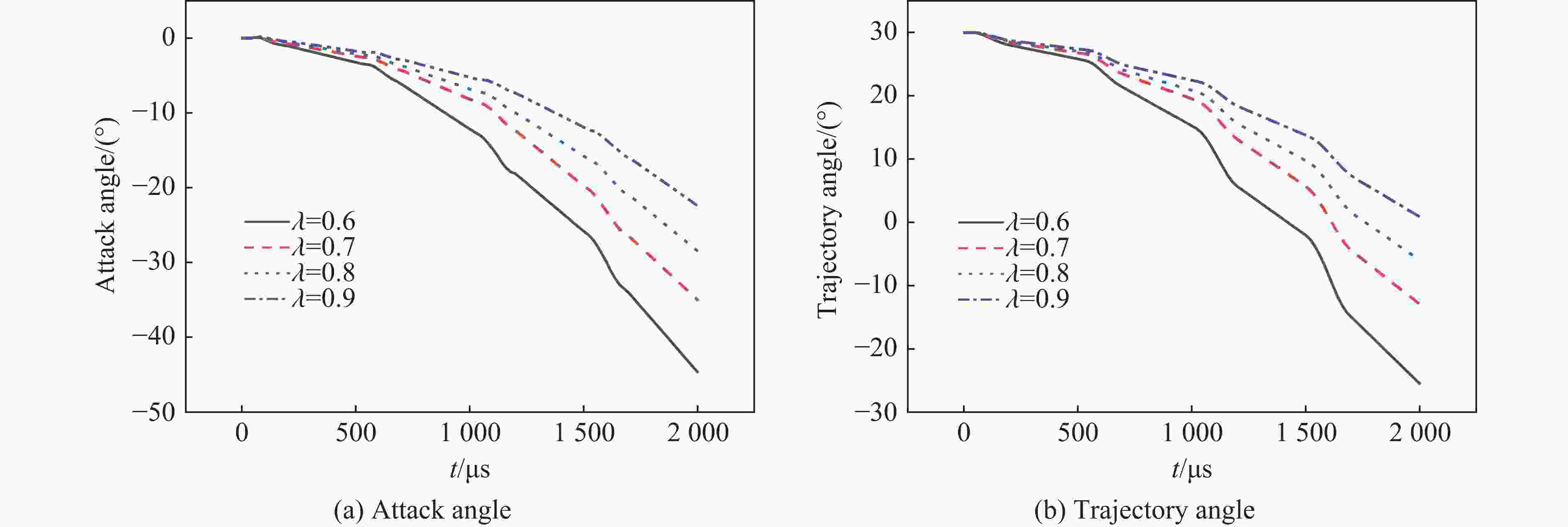

    图  16  不同截面压缩系数弹体攻角和姿态角时程曲线

    Figure  16.  Time history curves of attack angle and trajectory angle under different λ

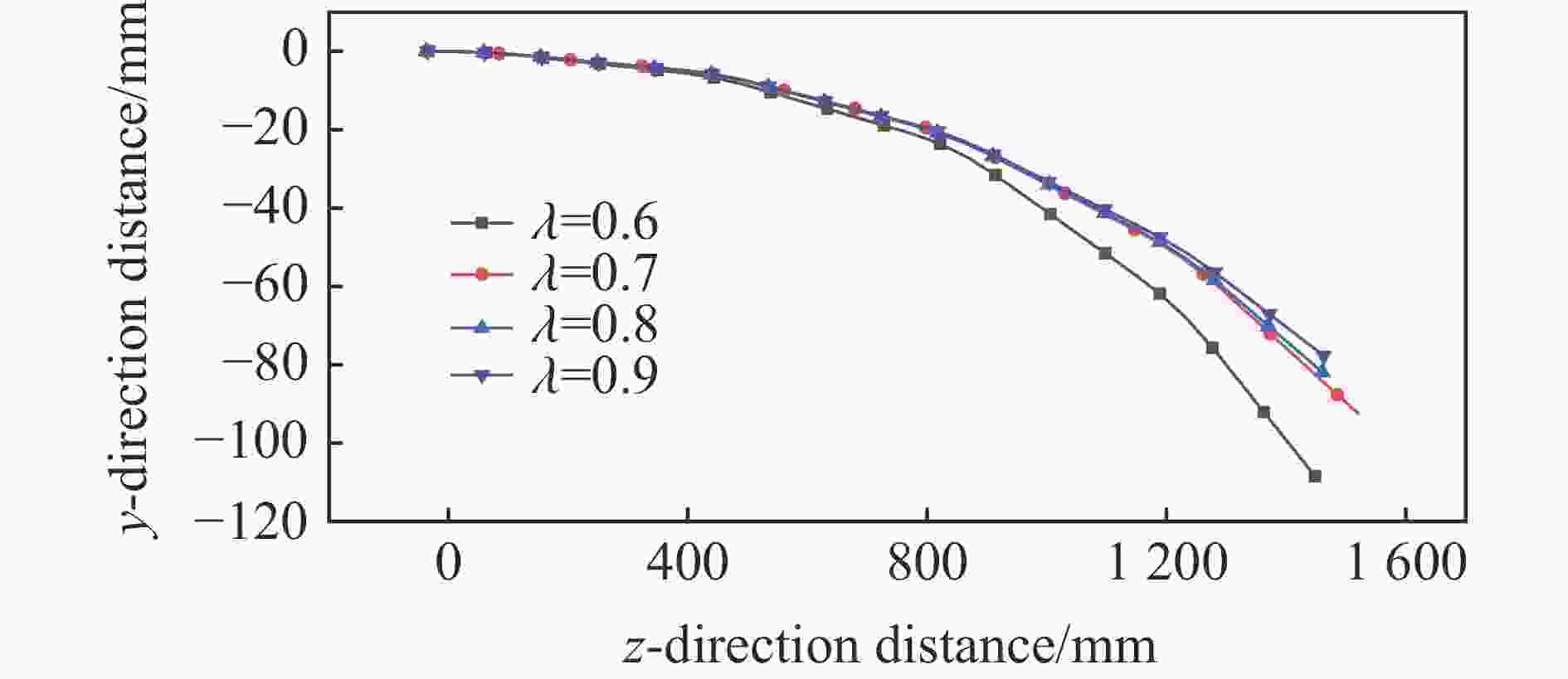

    图  17  不同截面压缩系数弹体侵彻弹道轨迹

    Figure  17.  Penetration trajectories under different λ

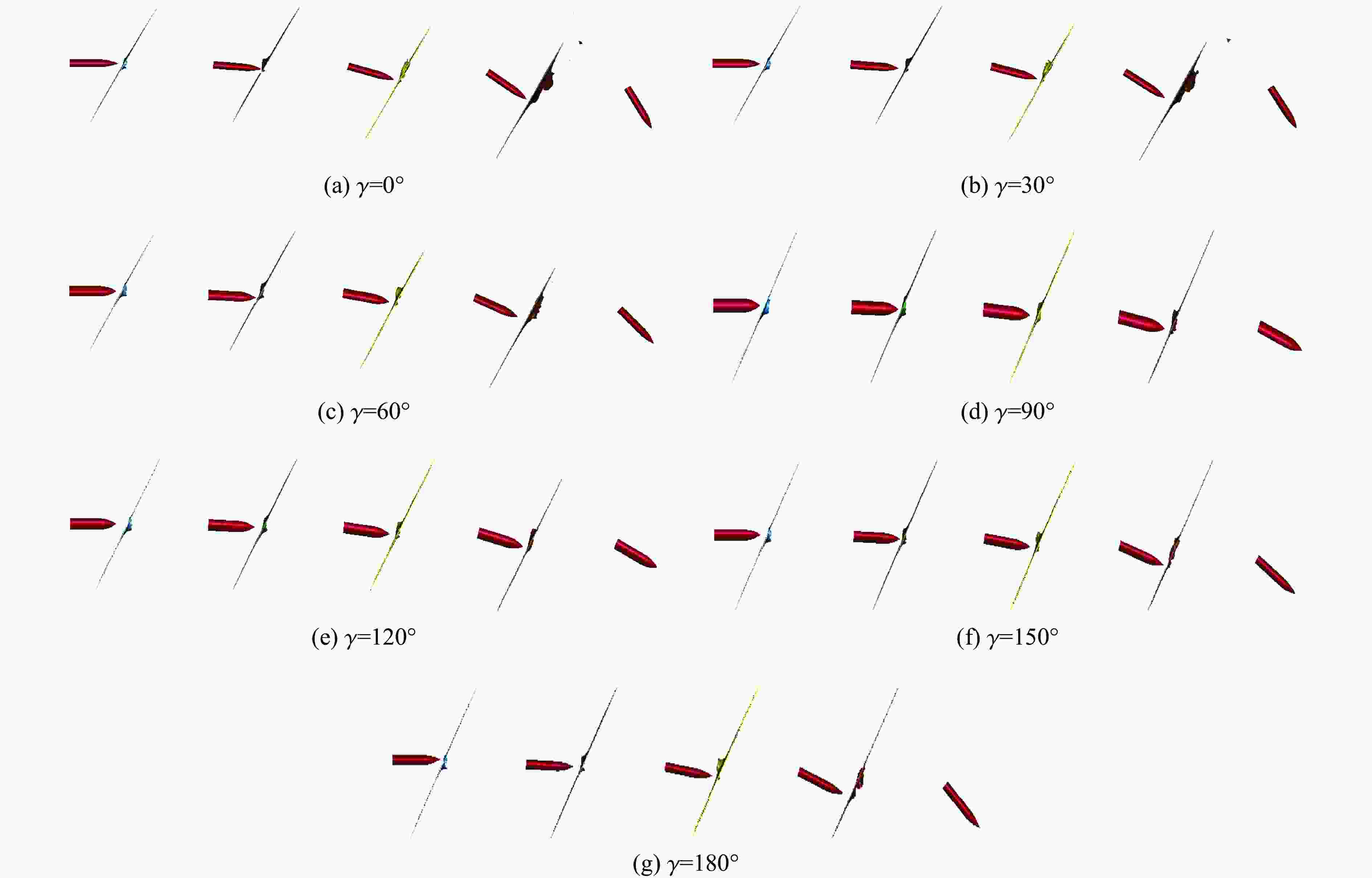

    图  18  不同滚转角下E1弹体侵彻弹道仿真结果

    Figure  18.  Penetration trajectory simulation results of E1 projectile under different rotation angles

    图  19  不同滚转角下NE1弹体侵彻弹道仿真结果

    Figure  19.  Penetration trajectory simulation results of NE1 projectile under different rotation angles

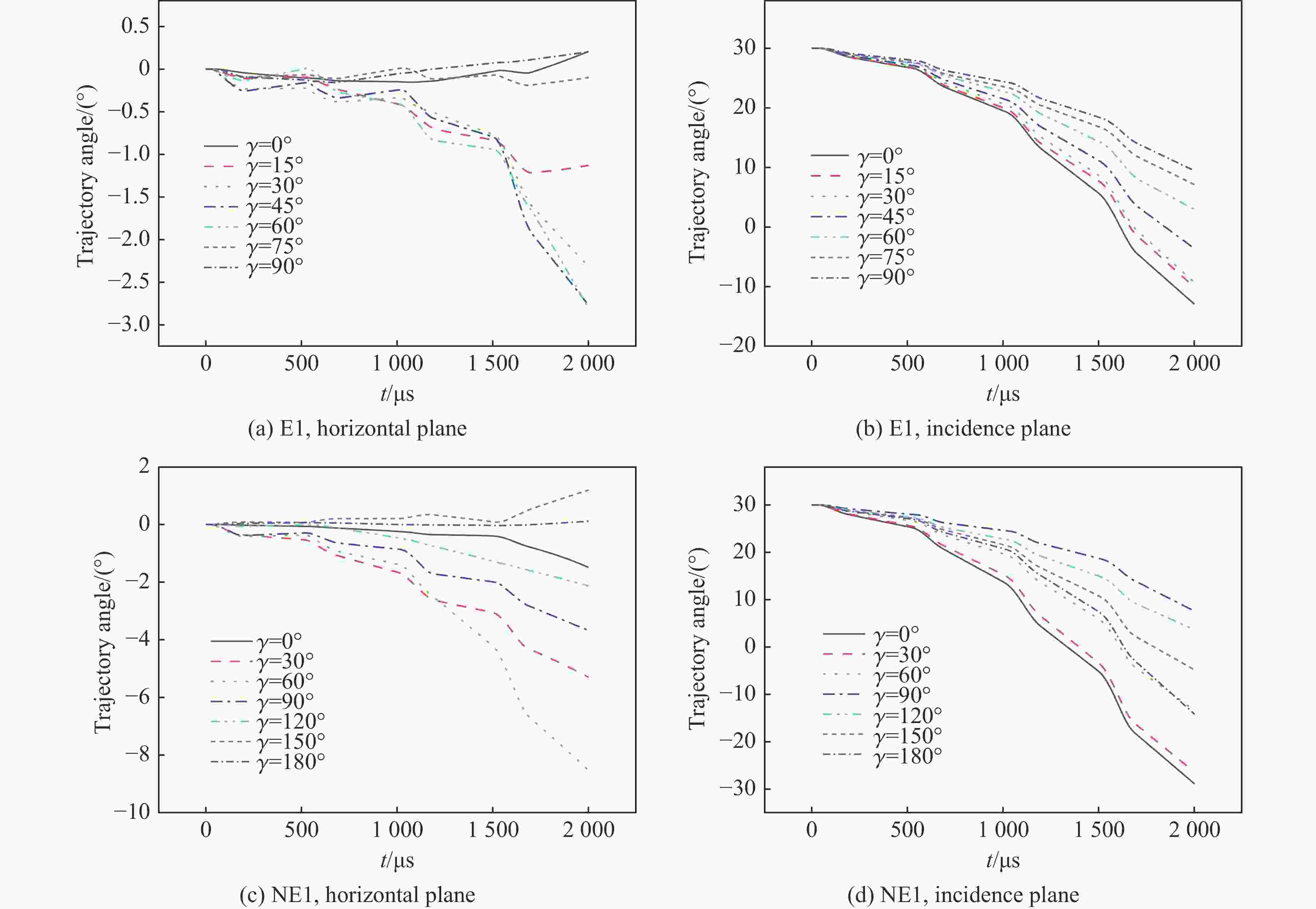

    图  21  不同滚转角下E1和NE1弹体在水平面和入射平面内的姿态角变化

    Figure  21.  Changes in the trajectory angle of E1 and NE1 projectiles under different rotation angles

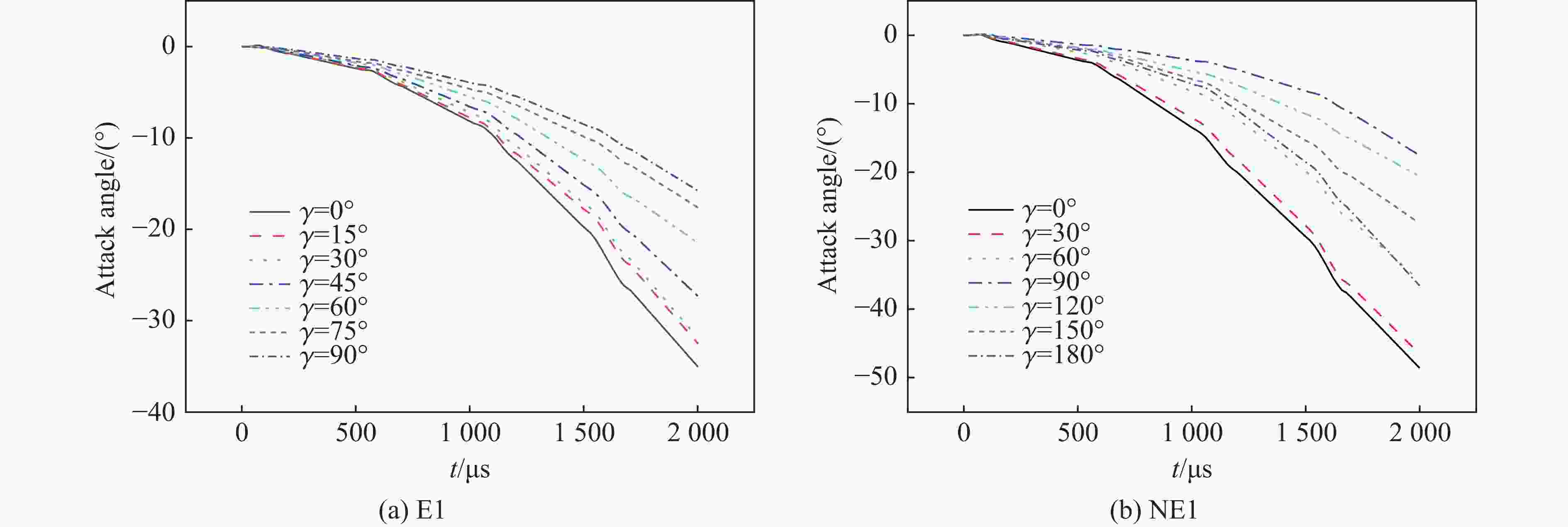

    图  20  不同滚转角下E1和NE1弹体攻角变化

    Figure  20.  Changes in the attack angle of E1 and NE1 projectiles under different rotation angles

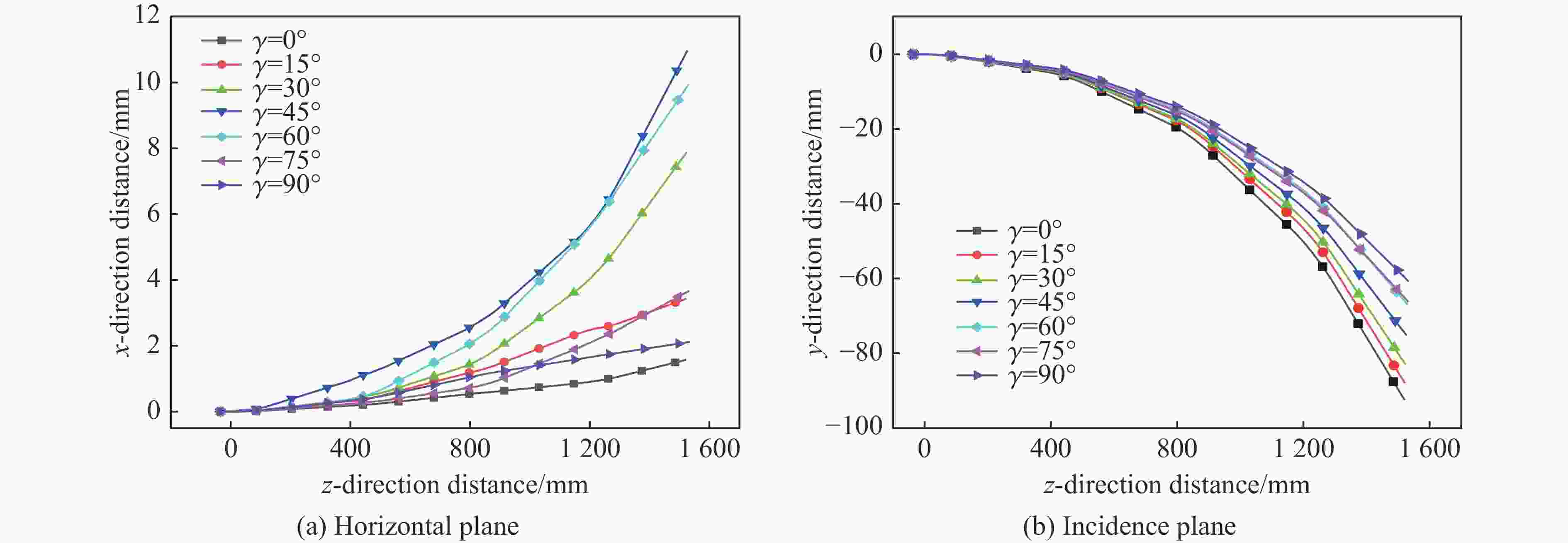

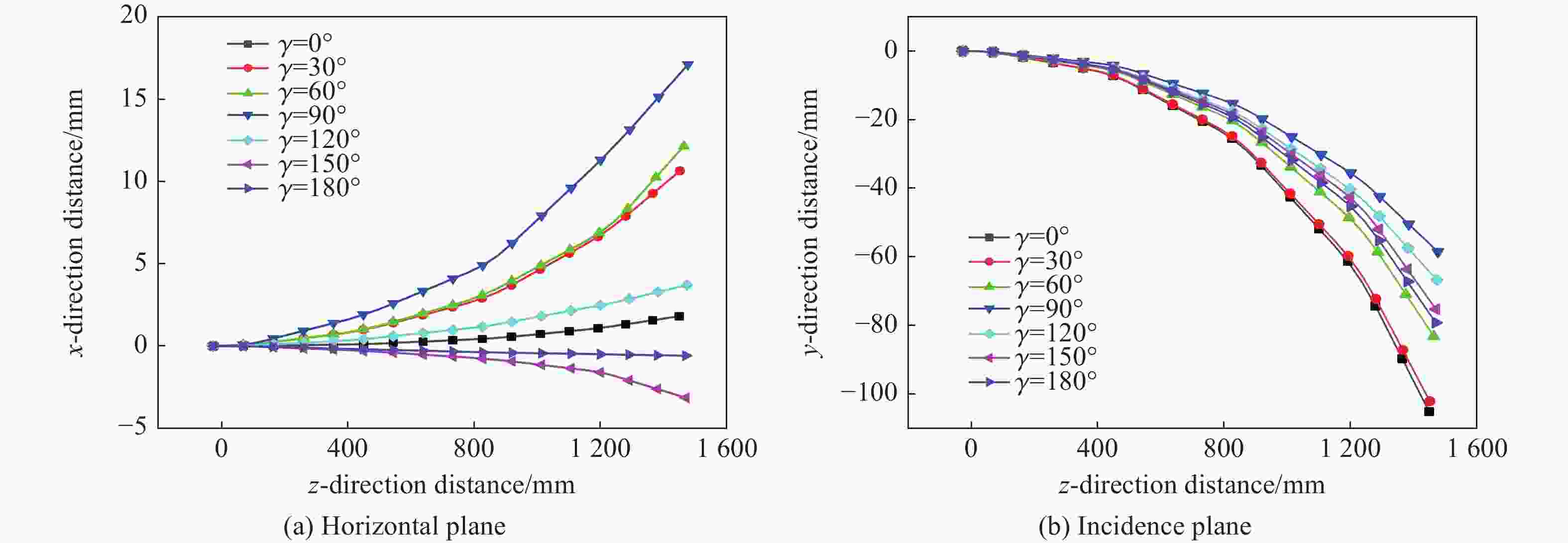

    图  22  不同滚转角下E1弹体在两个平面的侵彻弹道轨迹

    Figure  22.  Penetration trajectories of E1 projectile in different rotation angles (horizontal plane and incidence plane)

    图  23  不同滚转角下NE1弹体在两个平面内的弹道轨迹

    Figure  23.  Penetration trajectories of E1 projectile in different rotation angles (horizontal plane and incidence plane)

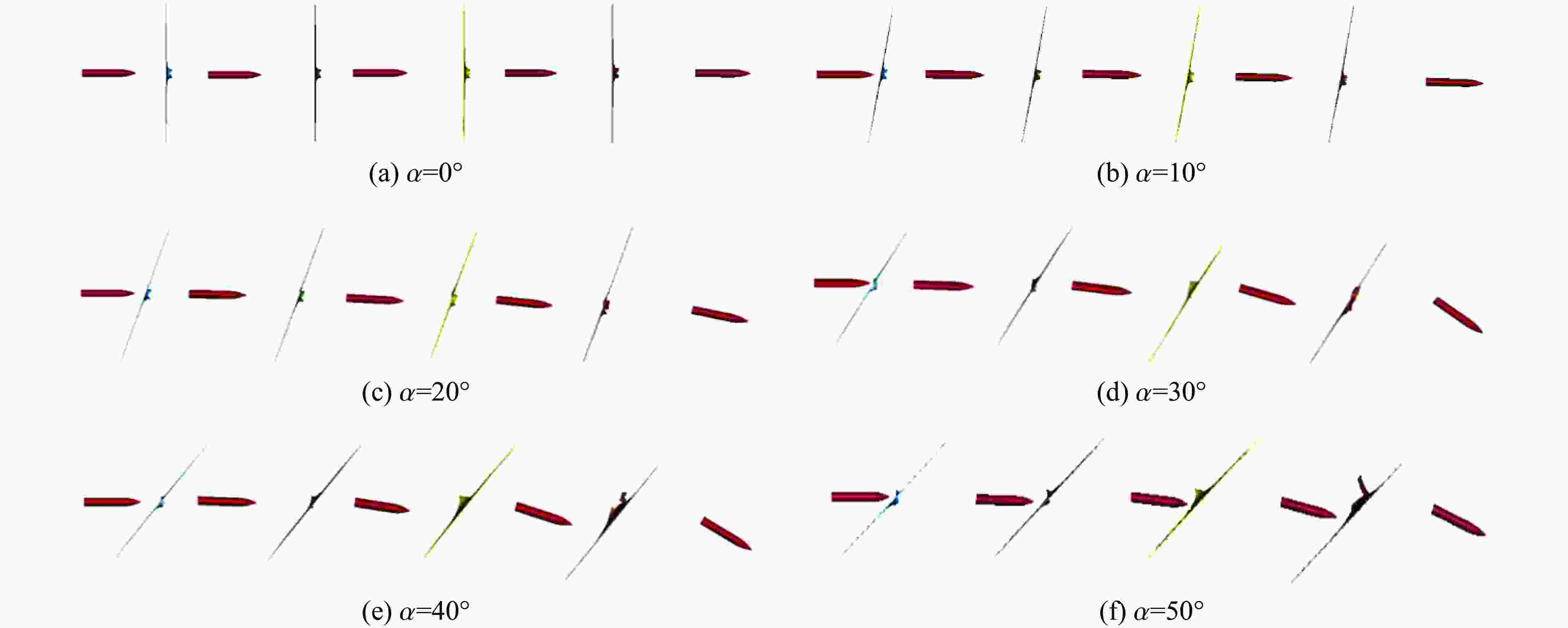

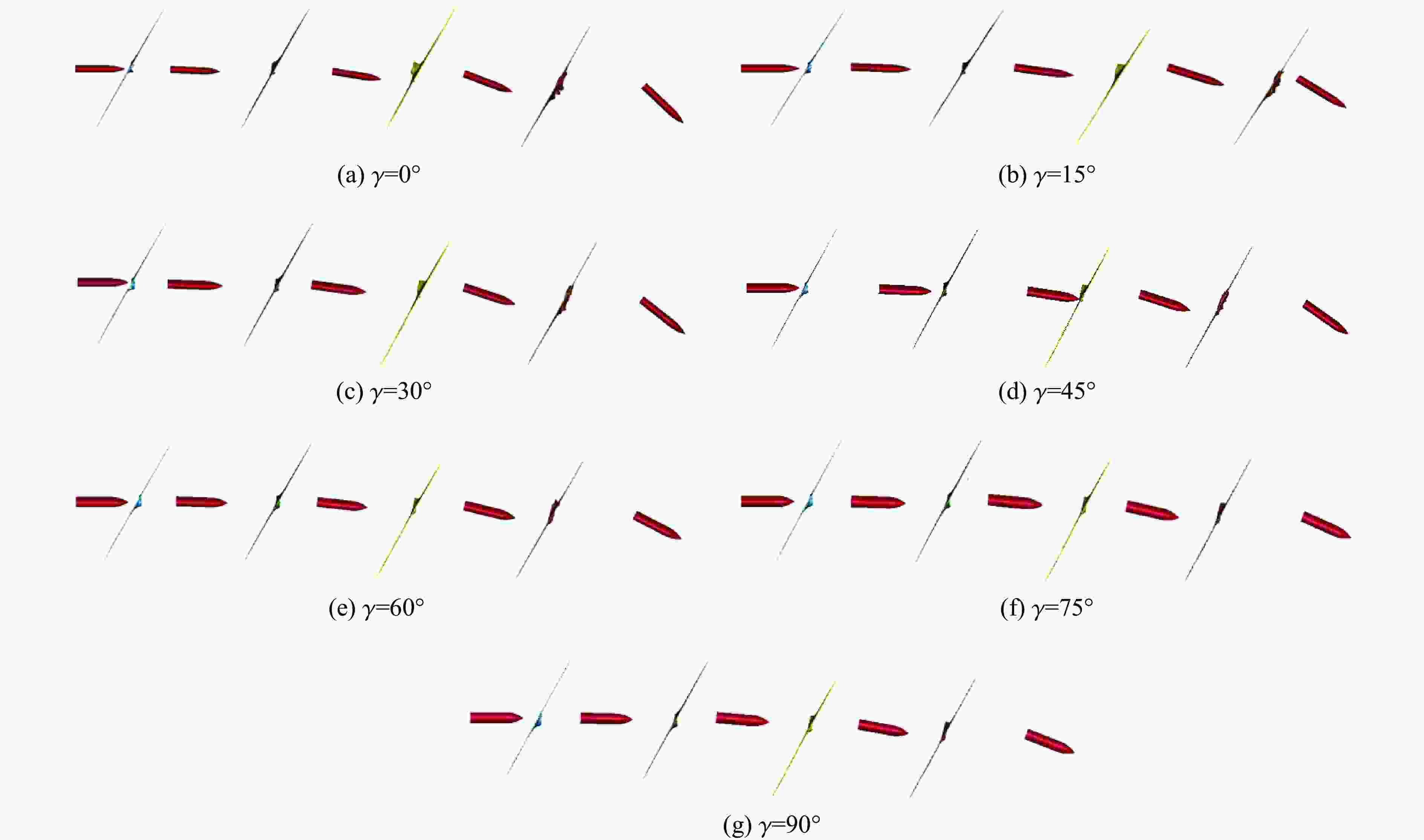

    图  24  不同着角下E1弹体侵彻弹道仿真结果

    Figure  24.  Penetration trajectory simulation results of E1 projectile with different incident angles

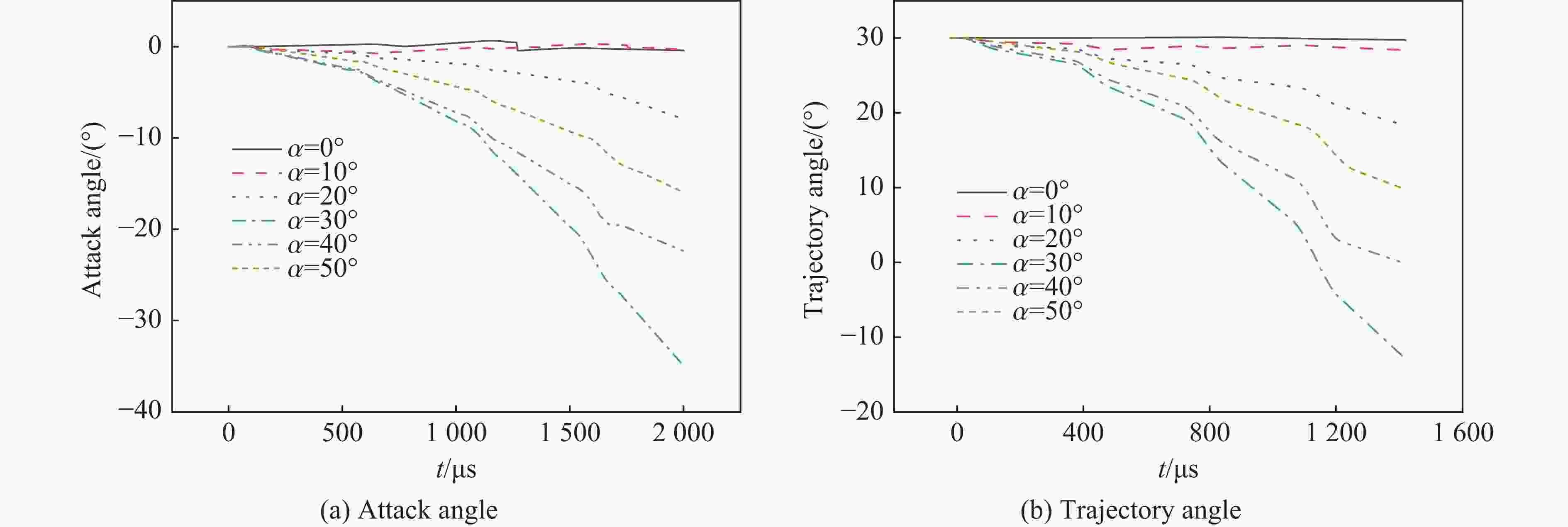

    图  25  不同着角下E1弹体攻角和姿态角时程曲线

    Figure  25.  The time history curves of attack angle and trajectory angle at different incident angles

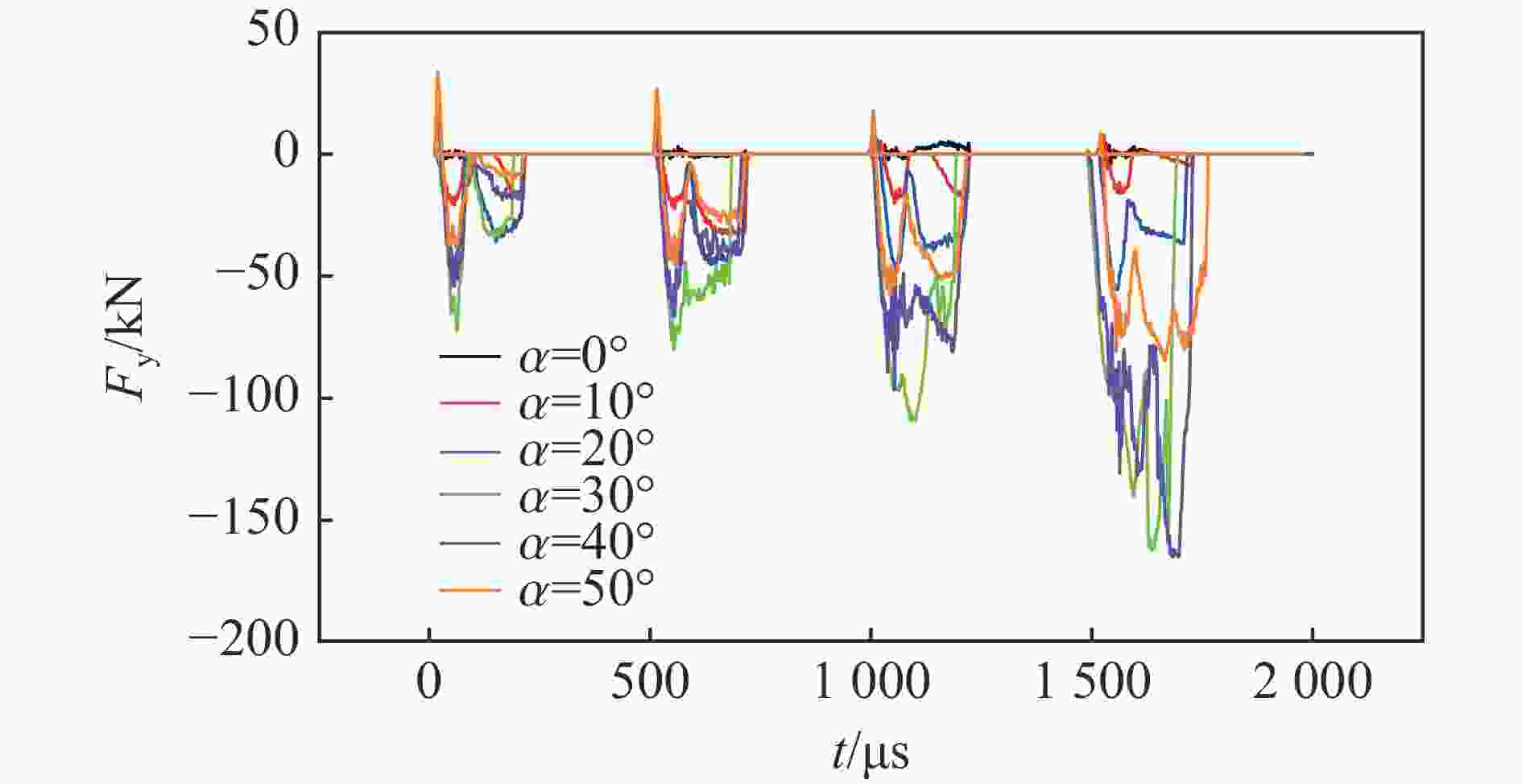

    图  26  弹体在y方向上的合力

    Figure  26.  Resultant force of projectile in y direction

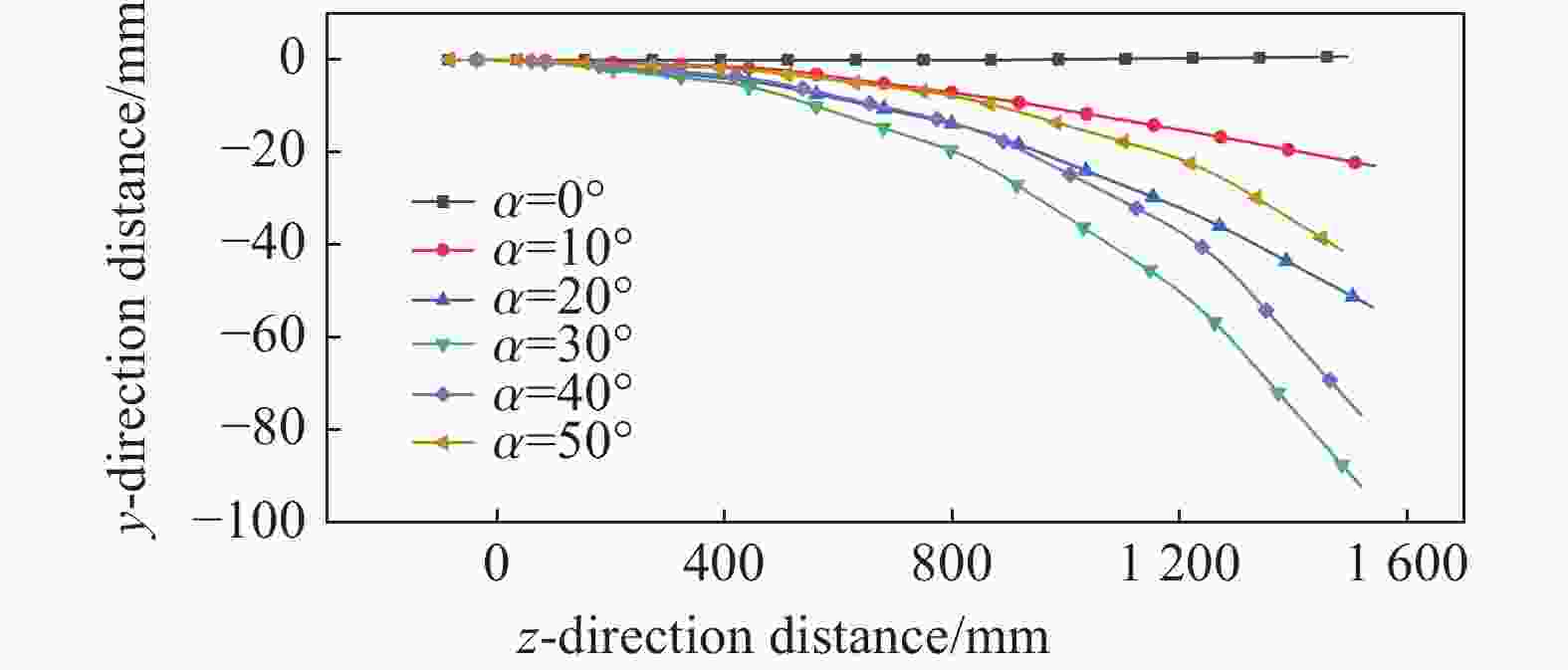

    图  27  不同着角下的侵彻弹道轨迹
