The influence of inert gas on the lower flammability limit of propane

doi: 10.11883/bzycj-2021-0231

School of Metallurgy, Northeastern University, Shengyang 110819, Liaoning, China

Received Date: 2021-06-07
Rev Recd Date: 2021-07-13

Available Online: 2022-01-13

Publish Date: 2022-02-28

Abstract

Abstract

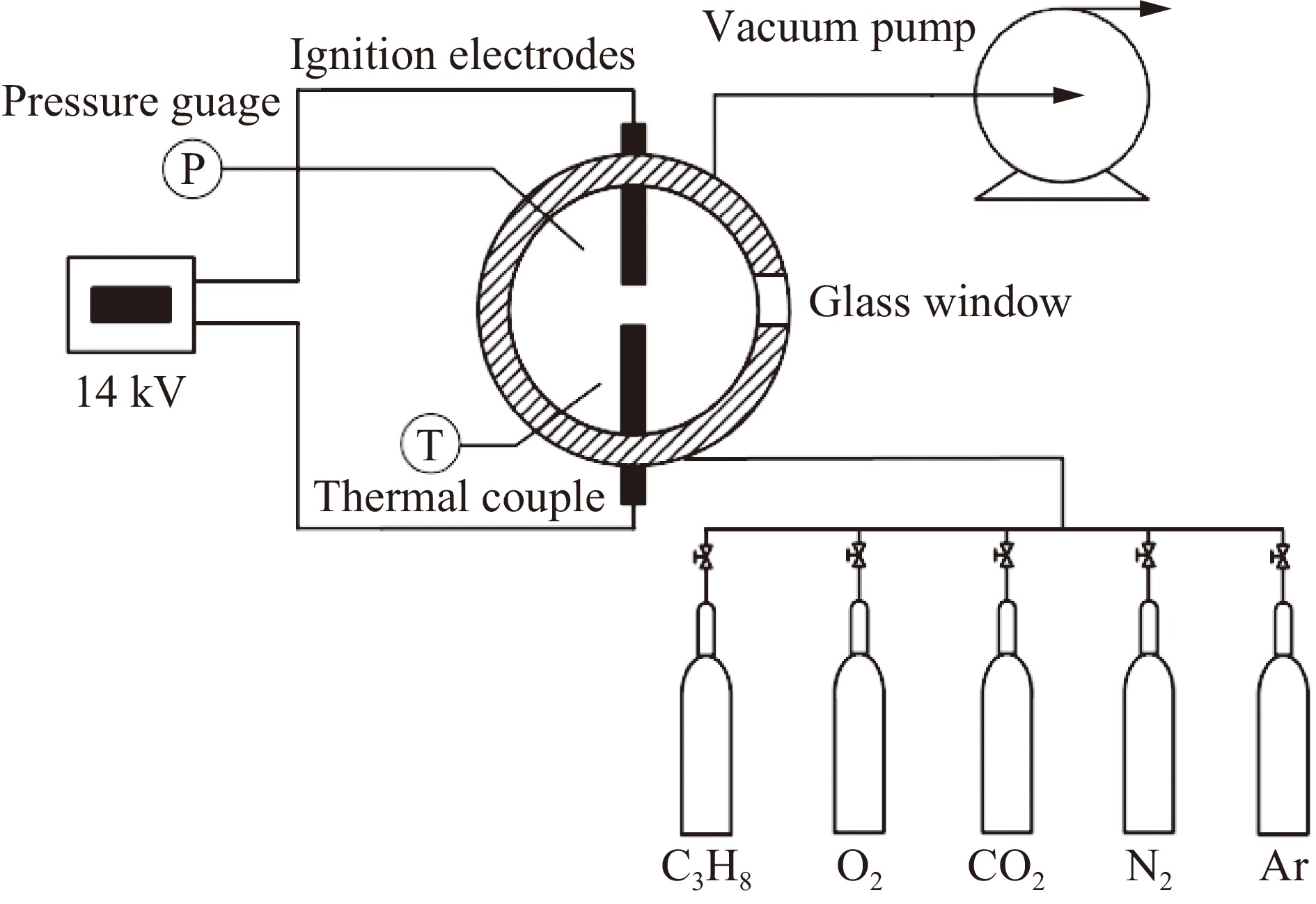

Propane is a main component of liquefied petroleum gas, and the lower flammability limit is an important indicator for evaluating the safety of combustible gases. The addition of diluent gas can affect the lower flammability limit and reduce the flammable range of propane, so as to achieve the purpose of explosion suppression. CO₂, N₂ and Ar are commonly used as diluents in the industry. In order to explore their influence on the lower flammability limit of C₃H₈, the lower flammability limits of C₃H₈ under O₂/CO₂, O₂/Ar and O₂/N₂ atmosphere were measured in a 5 L explosive container based on the American ASTM E681-09 standard. The gas mixture was configured according to the partial pressure of each gas, and a pair of high-voltage electrodes was used for ignition. The influences of dilution gas concentration, dilution gas type and O₂ concentration on the lower flammability limit of C₃H₈ was analyzed. The results show that CO₂ has the greatest impact on the lower flammability limit of C₃H₈, followed by N₂ and Ar. With the increase of O₂ concentration, the lower flammability limit under O₂/CO₂ atmosphere decreases significantly, and the lower flammability limit under O₂/N₂ and O₂/Ar atmosphere shows a gentle increase. An energy balance equation was established to calculate the radiative heat loss (Q_r) and endothermic loss (Q_t) of the mixed gas at the lower flammability limit. The effects of specific heat and radiation on the lower flammable limit were compared. The results show that the change in the specific heat of the mixture is the main reason for the change of the lower flammability limit of C₃H₈, and the radiant heat loss is an important factor in the change of the lower flammability limit. As the concentration of diluent increases, CO₂ has the largest impact on λ（Q_t） and λ（Q_r） followed by Ar and N₂. The adiabatic flame temperature is an important factor that affects the change of the lower flammability limit.
- O₂/CO₂ atmosphere,
- lower flammability limit,
- C₃H₈,
- radiant heat loss

FullText(HTML)

References(26)

References

[1]	ZHAO Y, LI H N, ZHANG S C, et al. Seismic analysis of a large LNG tank considering different site conditions [J]. Applied Sciences, 2020, 10(22): 8121. DOI: 10.3390/app10228121.
[2]	GOULD C F, URPELAINEN J. LPG as a clean cooking fuel: adoption, use, and impact in rural India [J]. Energy Policy, 2018, 122: 395–408. DOI: 10.1016/j.enpol.2018.07.042.
[3]	LOVACHEV L A. The theory of limits on flame propagation in gases [J]. Combustion and Flame, 1971, 17(3): 275–278. DOI: 10.1016/S0010-2180(71)80048-2.
[4]	FLACK J, BENNETT A J S, STRONG R, et al. Combution theory [M]. Menlo Park: Marine Combustion Practice, 1969: 126−140.
[5]	WAN X, ZHANG Q, SHEN S L. Theoretical estimation of the lower flammability limit of fuel-air mixtures at elevated temperatures and pressures [J]. Journal of Loss Prevention in the Process Industries, 2015, 36: 13–19. DOI: 10.1016/j.jlp.2015.05.001.
[6]	FENG B, YANG Z, LV Z J, et al. Effect of gas disturbance on combustion characteristics of flammable refrigerants near LFLs [J]. Journal of Hazardous Materials, 2019, 368: 21–32. DOI: 10.1016/j.jhazmat.2018.12.119.
[7]	KONDO S, TAKIZAWA K, TAKAHASHI A, et al. On the temperature dependence of flammability limits of gases [J]. Journal of Hazardous Materials, 2011, 187(1/2/3): 585–590. DOI: 10.1016/j.jhazmat.2011.01.037.
[8]	KIM N I, KATAOKA T, MARUYAMA S, et al. Flammability limits of stationary flames in tubes at low pressure [J]. Combustion and Flame, 2005, 141(1/2): 78–88. DOI: 10.1016/j.combustflame.2004.12.011.
[9]	CHEN J R, TSAI H Y, CHIEN J H, et al. Flow and flame visualization near the upper flammability limits of methane/air and propane/air mixtures at elevated pressures [J]. Journal of Loss Prevention in the Process Industries, 2011, 24(5): 662–670. DOI: 10.1016/j.jlp.2011.05.012.
[10]	LUO Z M, SU B, WANG T, et al. Effects of propane on the flammability limits and chemical kinetics of methane–air explosions [J]. Combustion Science and Technology, 2020, 192(9): 1785–1801. DOI: 10.1080/00102202.2019.1625041.
[11]	MENDIBURU A Z, DE CARVALHO J A JR, CORONADO C R. Method for determination of flammability limits of gaseous compounds diluted with N₂ and CO₂ in air [J]. Fuel, 2018, 226: 65–80. DOI: 10.1016/j.fuel.2018.03.181.
[12]	BLINT R J. Flammability limits for exhaust gas diluted flames [J]. Symposium (International) on Combustion, 1989, 22(1): 1547–1554. DOI: 10.1016/S0082-0784(89)80165-1.
[13]	BUHRE B J P, ELLIOTT L K, SHENG C D, et al. Oxy-fuel combustion technology for coal-fired power generation [J]. Progress in Energy and Combustion Science, 2005, 31(4): 283–307. DOI: 10.1016/j.pecs.2005.07.001.
[14]	FEDYAEVA O N, ARTAMONOV D O, VOSTRIKOV A A. Effect of H₂O and CO₂ on propane, propene, and isopropanol oxidation at elevated pressures [J]. Combustion and Flame, 2019, 199: 230–240. DOI: 10.1016/j.combustflame.2018.09.031.
[15]	GIURCAN V, MITU M, MOVILEANU C, et al. Influence of inert additives on small-scale closed vessel explosions of propane-air mixtures [J]. Fire Safety Journal, 2020, 111: 102939. DOI: 10.1016/j.firesaf.2019.102939.
[16]	PEKALSKI A A, ZEVENBERGEN J F, LEMKOWITZ S M, et al. A review of explosion prevention and protection systems suitable as ultimate layer of protection in chemical process installations [J]. Process Safety and Environmental Protection, 2005, 83(1): 1–17. DOI: 10.1205/psep.04023.
[17]	LI Y C, BI M S, HUANG L, et al. Hydrogen cloud explosion evaluation under inert gas atmosphere [J]. Fuel Processing Technology, 2018, 180: 96–104. DOI: 10.1016/j.fuproc.2018.08.015.
[18]	HU X Z, XIE Q H, YU Q B, et al. Effect of carbon dioxide on the lower flammability limit of propane in O₂/CO₂ atmosphere [J]. Energy & Fuels, 2020, 34(4): 4993–4998. DOI: 10.1021/acs.energyfuels.0c00601.
[19]	HU X Z, XIE Q H, ZHANG J, et al. Experimental study of the lower flammability limits of H₂/O₂/CO₂ mixture [J]. International Journal of Hydrogen Energy, 2020, 45(51): 27837–27845. DOI: 10.1016/j.ijhydene.2020.07.033.
[20]	PIO G, SALZANO E. The effect of ultra-low temperature on the flammability limits of a methane/air/diluent mixtures [J]. Journal of Hazardous Materials, 2019, 362: 224–229. DOI: 10.1016/j.jhazmat.2018.09.018.
[21]	HU X Z, YU Q B, SUN N, et al. Effects of high concentrations of CO₂ on the lower flammability limits of oxy-methane mixtures [J]. Energy & Fuels, 2016, 30(5): 4346–4352. DOI: 10.1021/acs.energyfuels.6b00492.
[22]	HU S T, WANG P Y, PITZ R W, et al. Experimental and numerical investigation of non-premixed tubular flames [J]. Proceedings of the Combustion Institute, 2007, 31(1): 1093–1099. DOI: 10.1016/j.proci.2006.08.058.
[23]	YAWS C L. Matheson气体数据手册 [M]. 7版. 陶鹏万, 黄建彬, 朱大方, 译. 北京: 化学工业出版社, 2001: 27−230.
[24]	张家荣, 赵廷元. 工程常用物质的热物理性质手册 [M]. 北京: 新时代出版社, 1987: 256-301.
[25]	KANGWANPONGPAN T, FRANCA F H R, DA SILVA R C, et al. New correlations for the weighted-sum-of-gray-gases model in oxy-fuel conditions based on HITEMP 2010 database [J]. International Journal of Heat and Mass Transfer, 2012, 55(25/26): 7419–7433. DOI: 10.1016/j.ijheatmasstransfer.2012.07.032.
[26]	HU X Z, YU Q B, SUN Y S. Effects of carbon dioxide on the upper flammability limits of methane in O₂/CO₂ atmosphere [J]. Energy, 2020, 208: 118417. DOI: 10.1016/j.energy.2020.118417.
