Influence of trajectory and pitch angle on the deflection characteristics of projectiles into thin concrete targets

LIANG Junxuan; LIU Chuang; LI Pengcheng; SHEN Taoran; ZHANG Xianfeng

doi:10.11883/bzycj-2025-0129

Article Contents

Article Navigation > Explosion And Shock Waves > 2026 > Accepted Manuscript

LIANG Junxuan, LIU Chuang, LI Pengcheng, SHEN Taoran, ZHANG Xianfeng. Influence of trajectory and pitch angle on the deflection characteristics of projectiles into thin concrete targets[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2025-0129

Citation:

LIANG Junxuan, LIU Chuang, LI Pengcheng, SHEN Taoran, ZHANG Xianfeng. Influence of trajectory and pitch angle on the deflection characteristics of projectiles into thin concrete targets[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2025-0129

Citation:

LIANG Junxuan, LIU Chuang, LI Pengcheng, SHEN Taoran, ZHANG Xianfeng. Influence of trajectory and pitch angle on the deflection characteristics of projectiles into thin concrete targets[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2025-0129

PDF( 9466 KB)

Influence of trajectory and pitch angle on the deflection characteristics of projectiles into thin concrete targets

doi: 10.11883/bzycj-2025-0129

1.
School of Mechanical Engineering, Nanjing University of Science and Technology, Nanjing 210094, Jiangsu, China
2.
School of Civil Engineering and Architecture, Southwest University of Science and Technology, Sichuan Mianyang 621000, China

Received Date: 2025-04-29
Rev Recd Date: 2025-07-08

Available Online: 2025-07-10

Abstract

Abstract

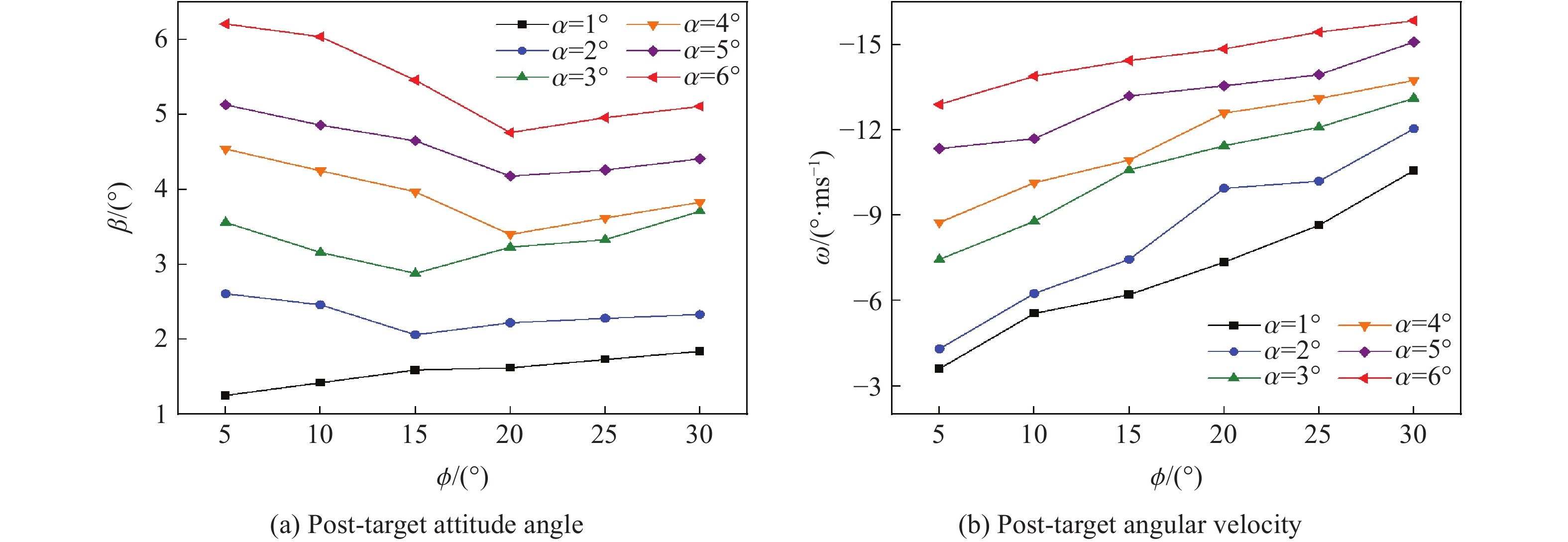

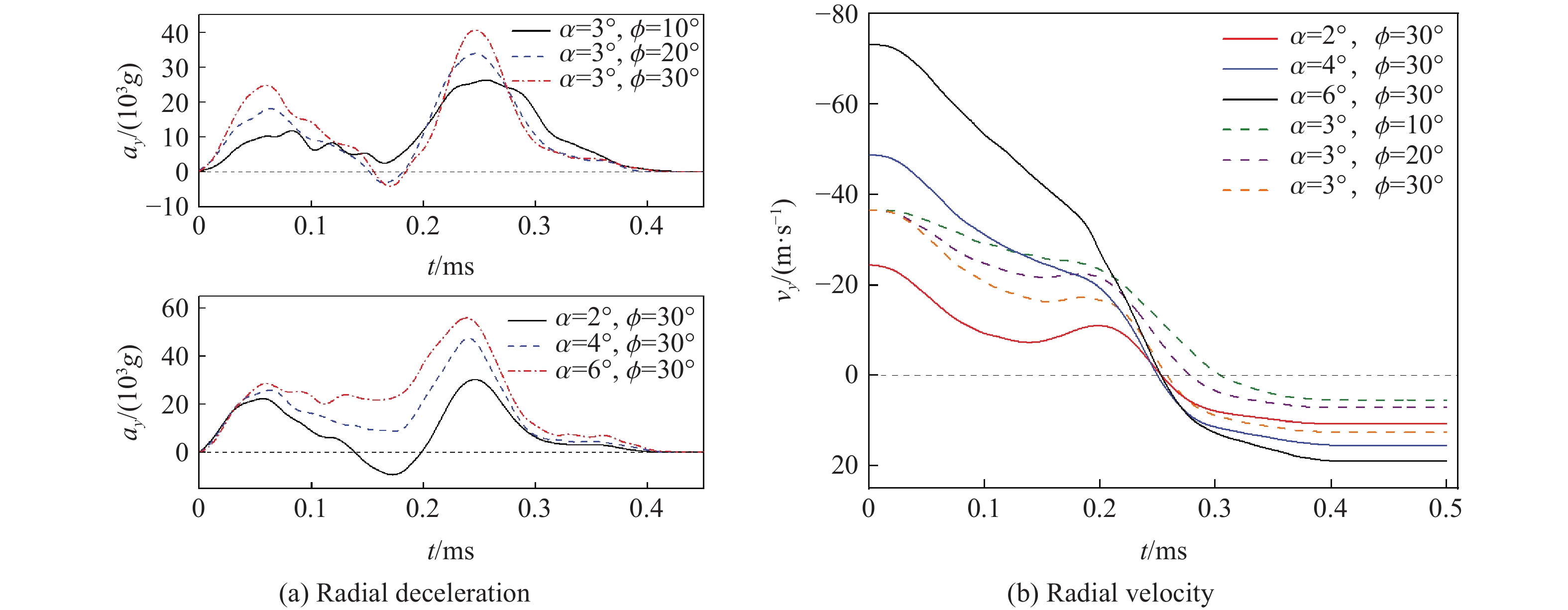

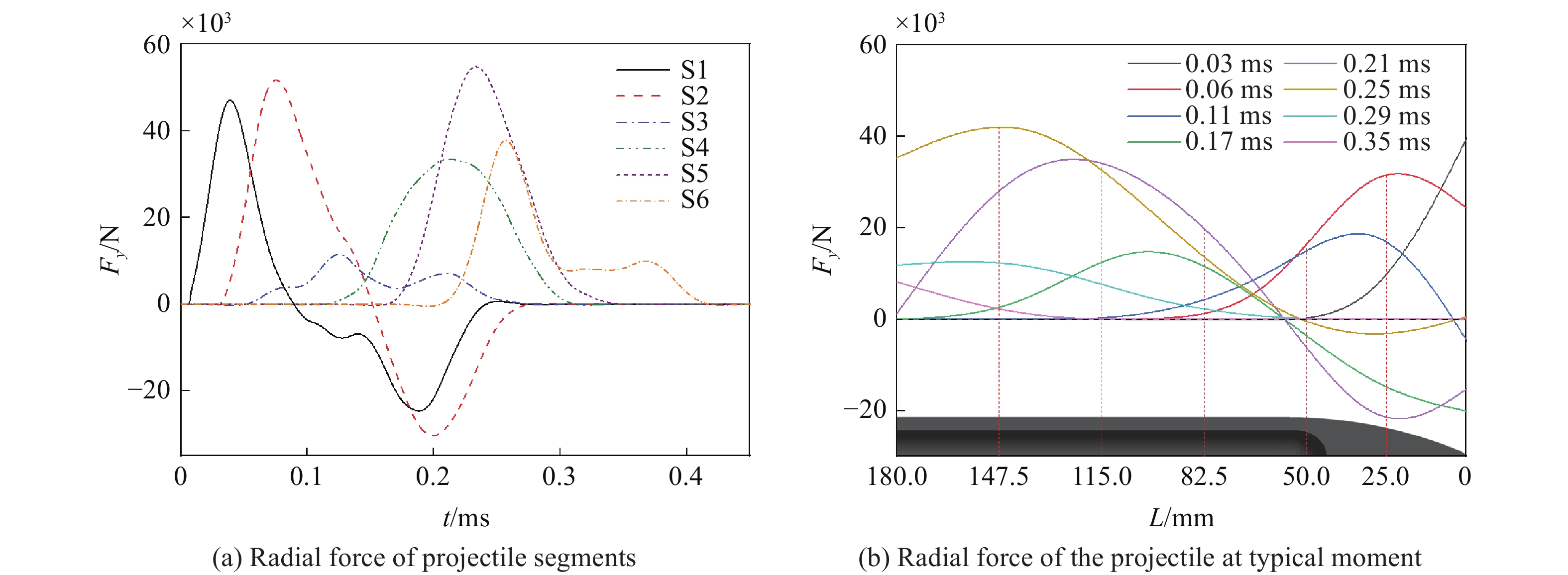

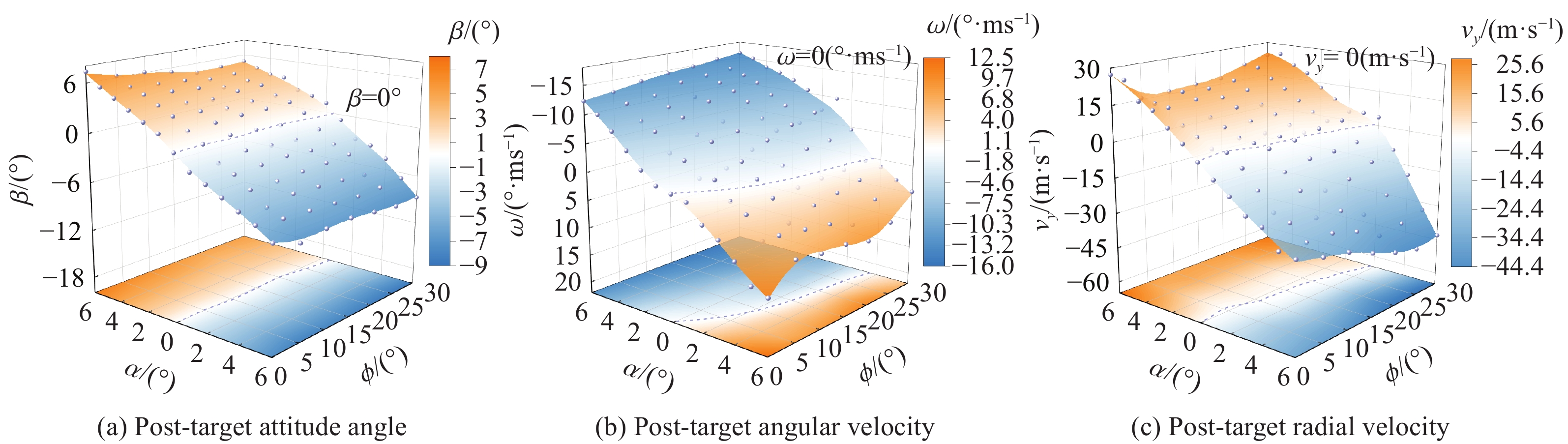

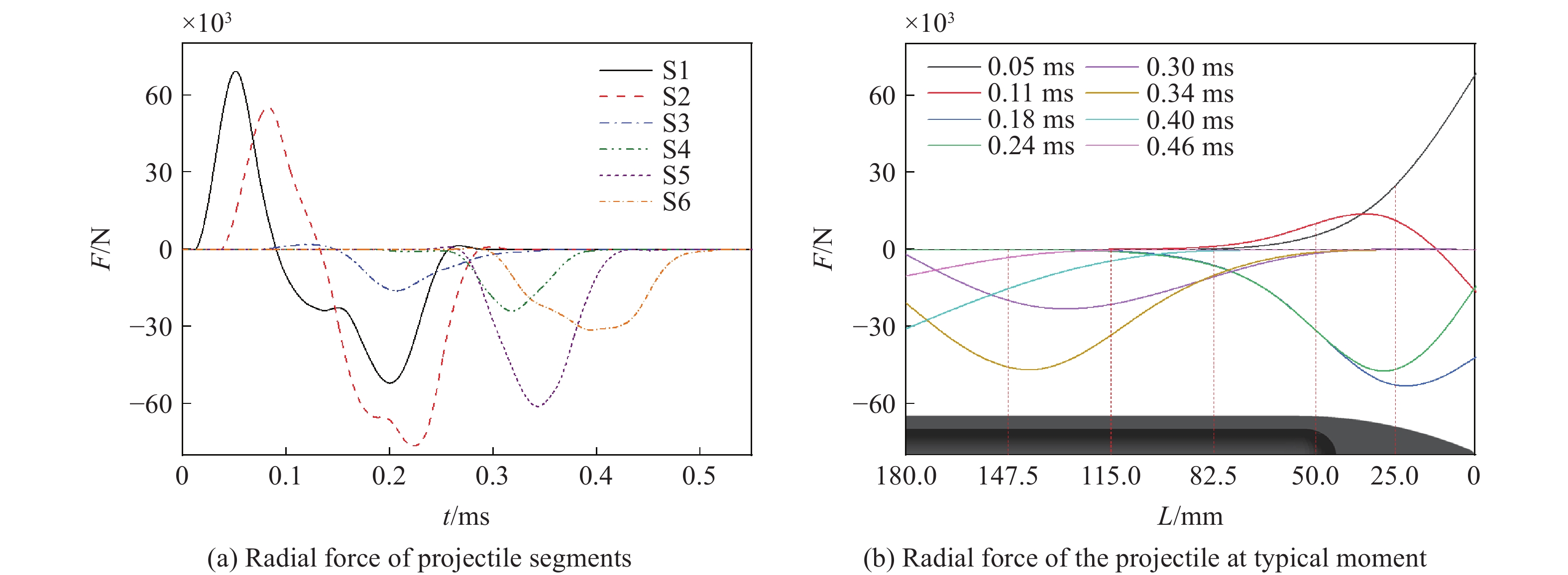

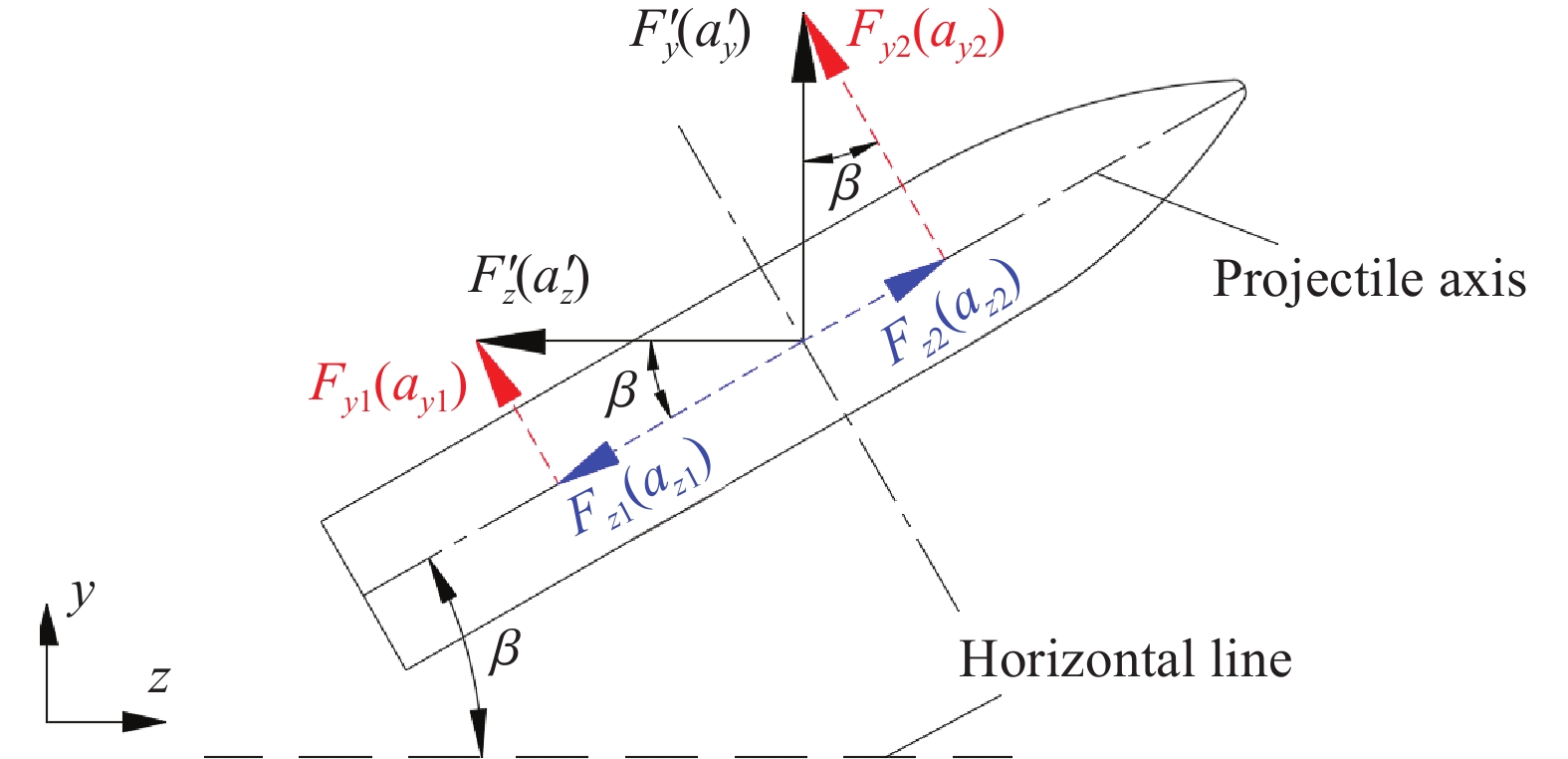

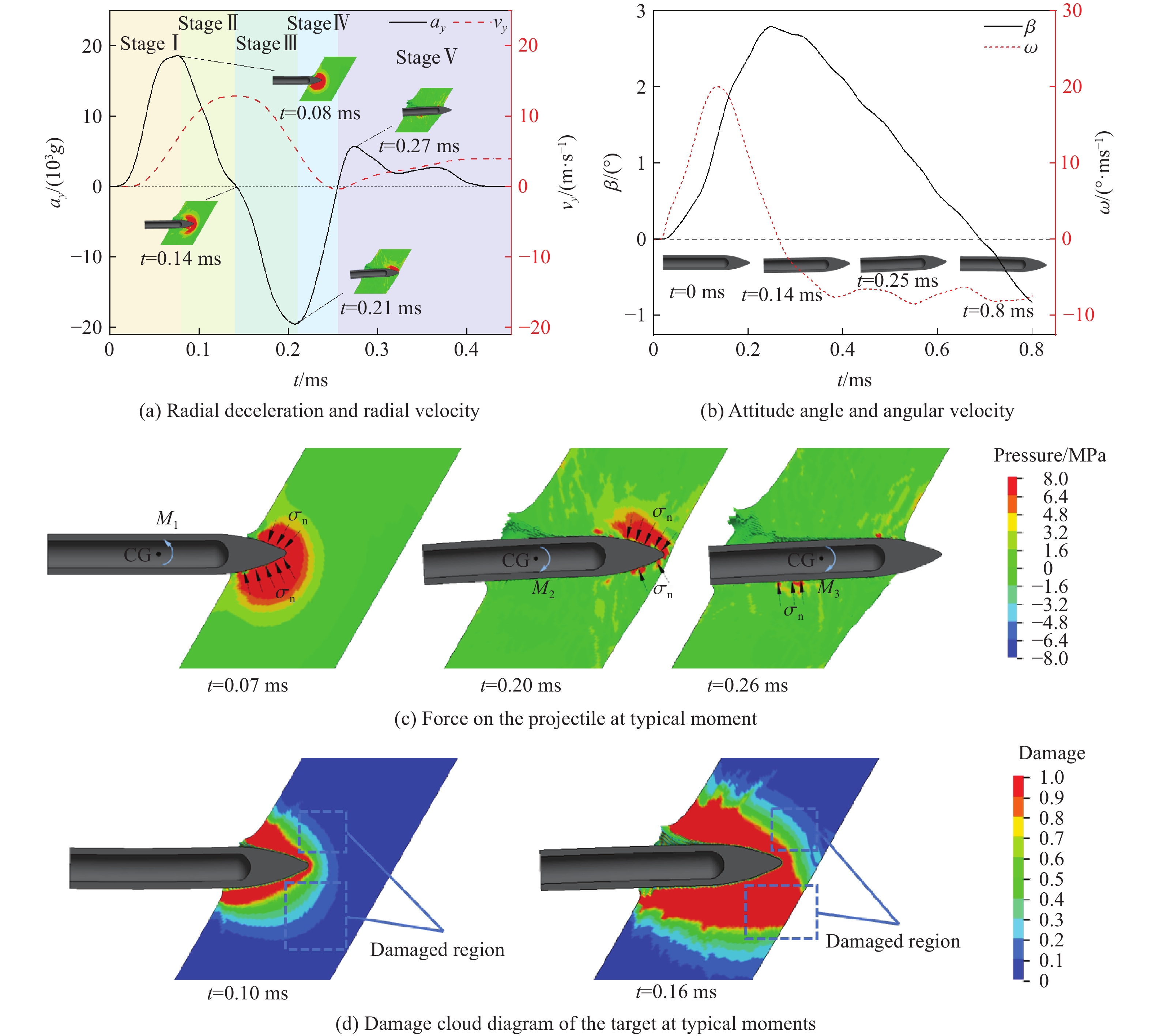

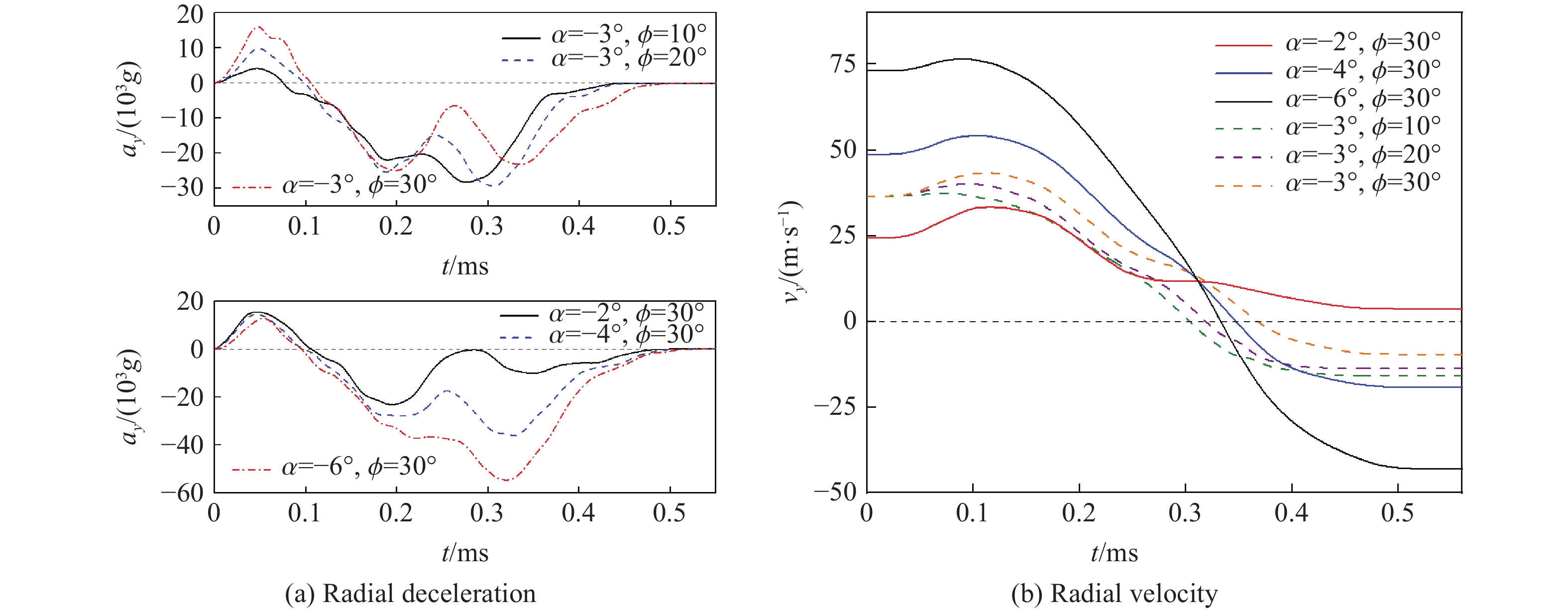

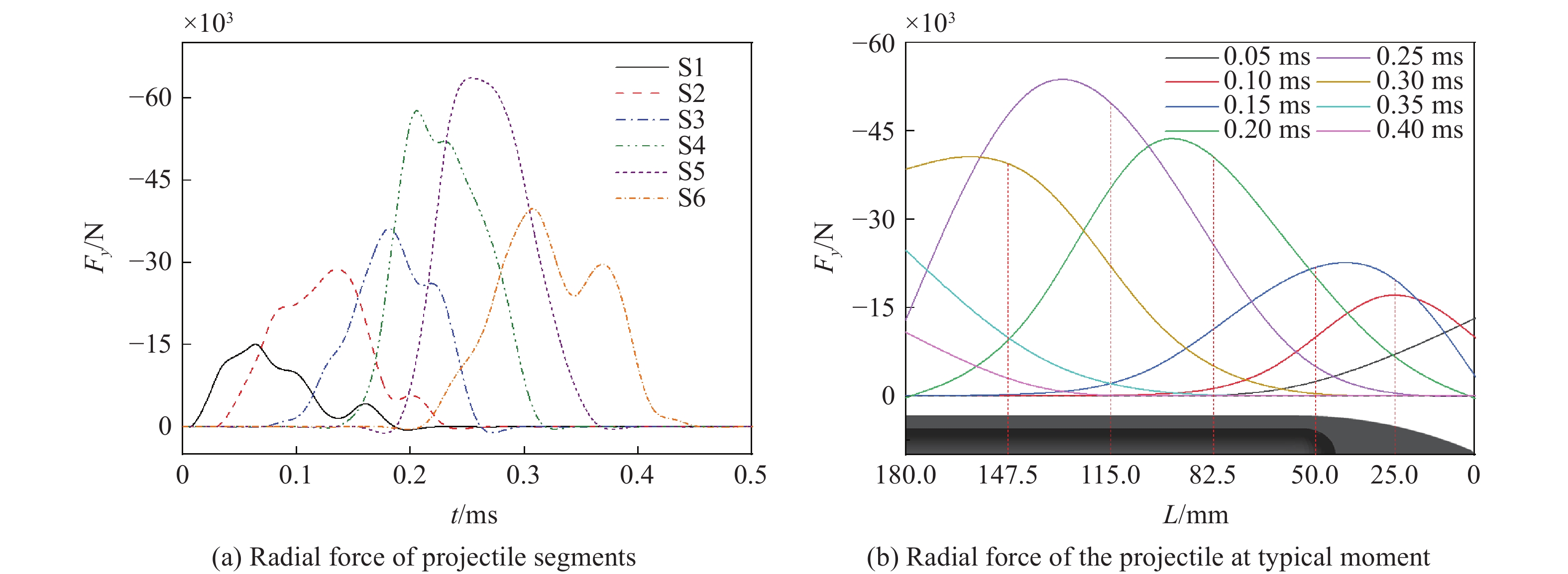

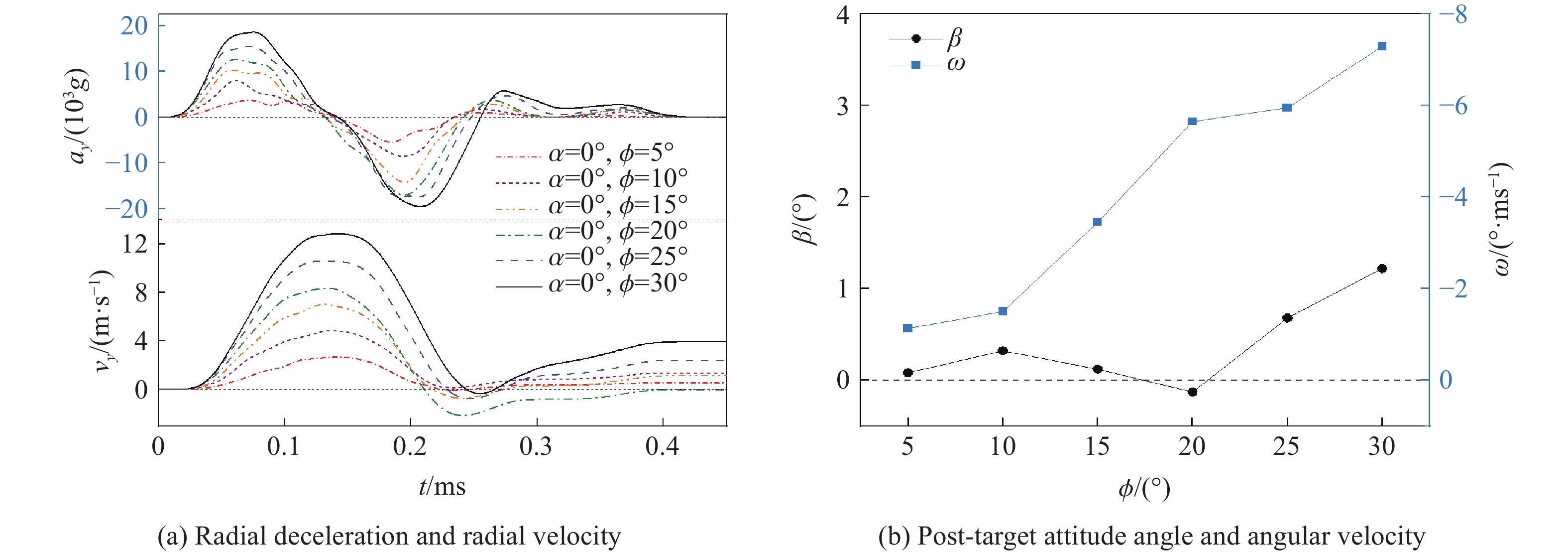

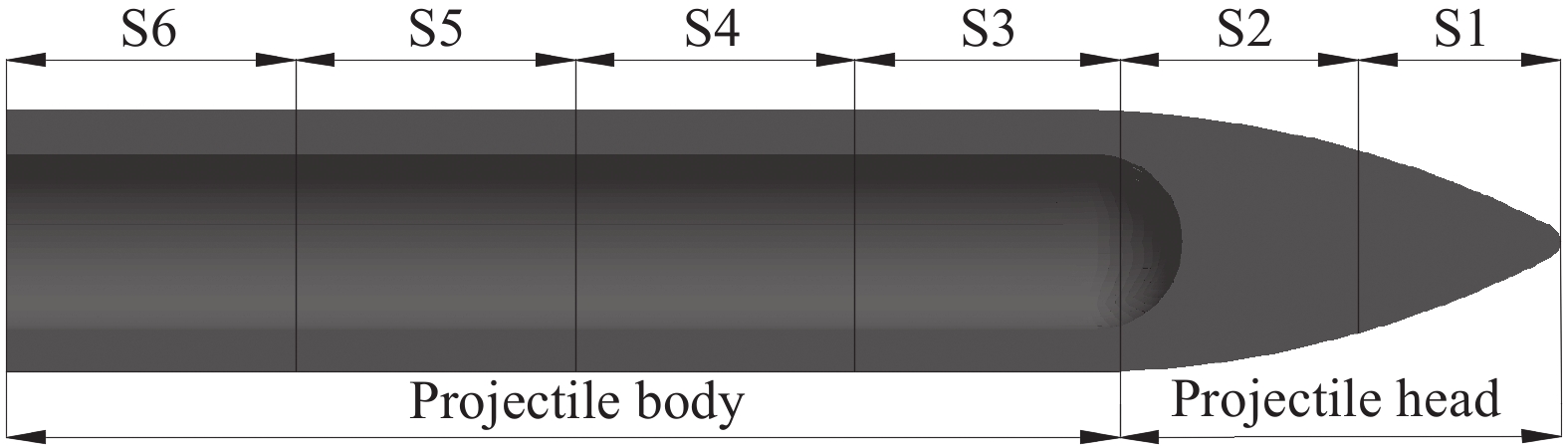

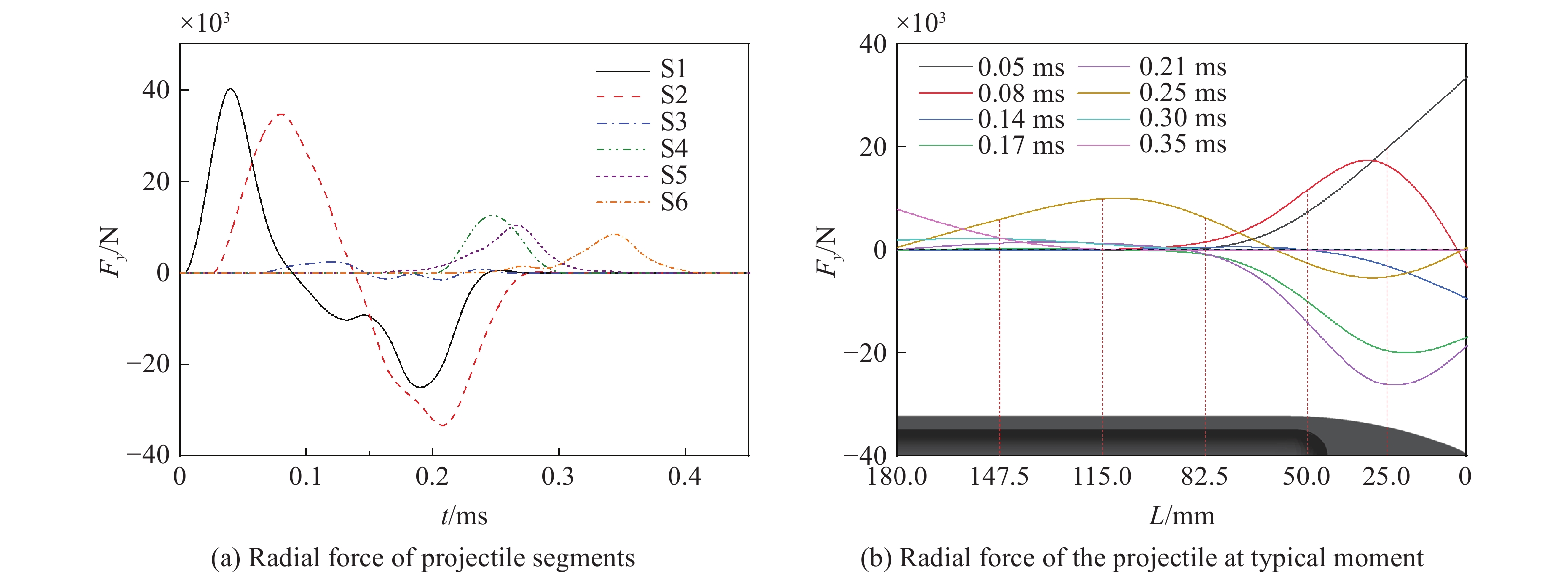

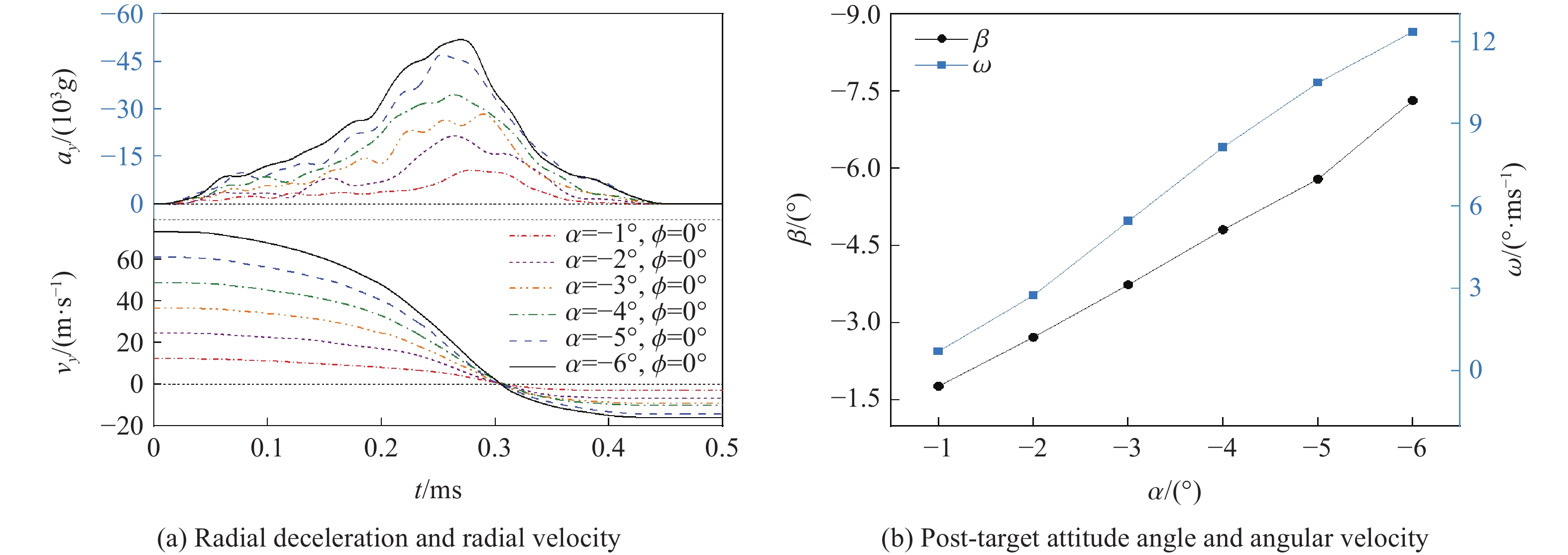

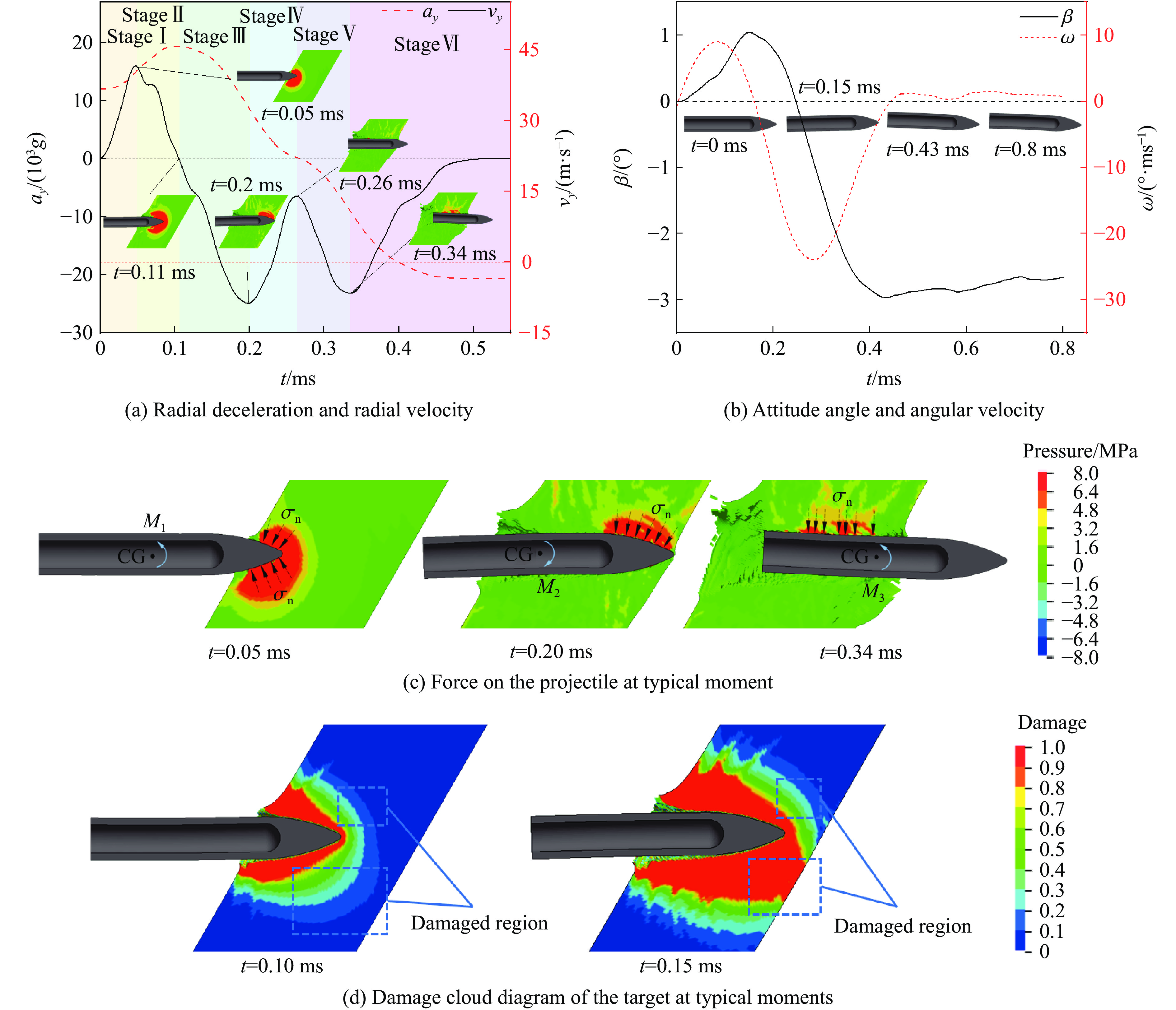

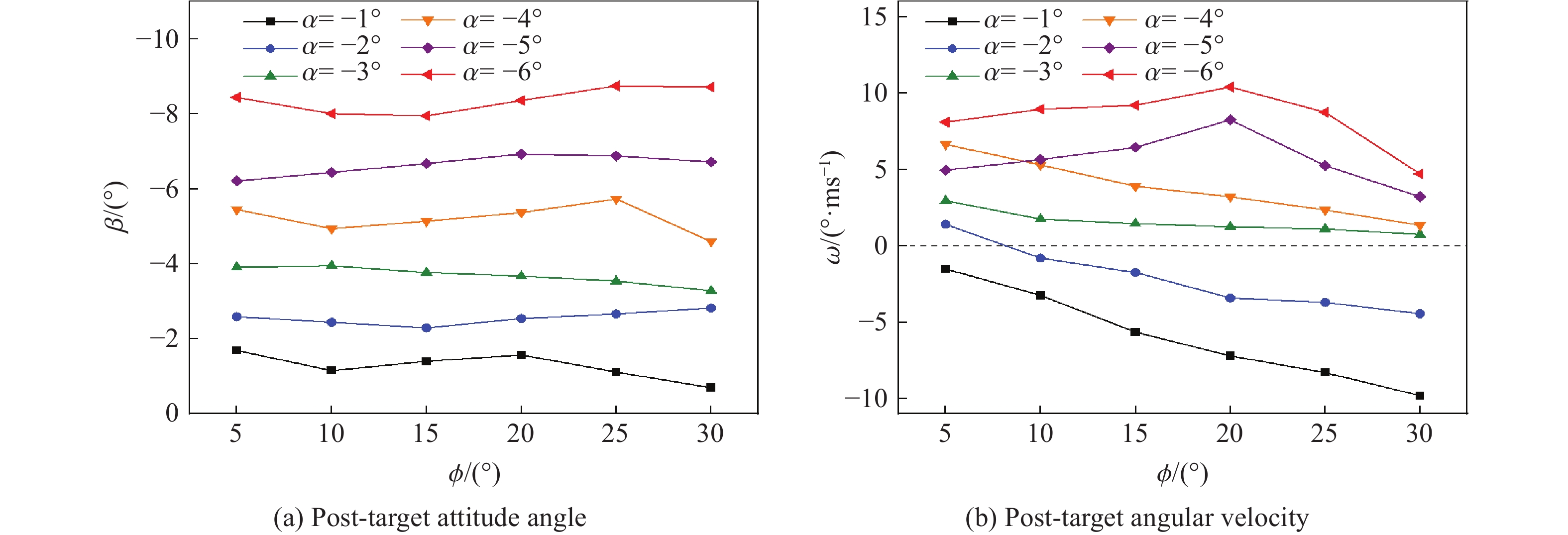

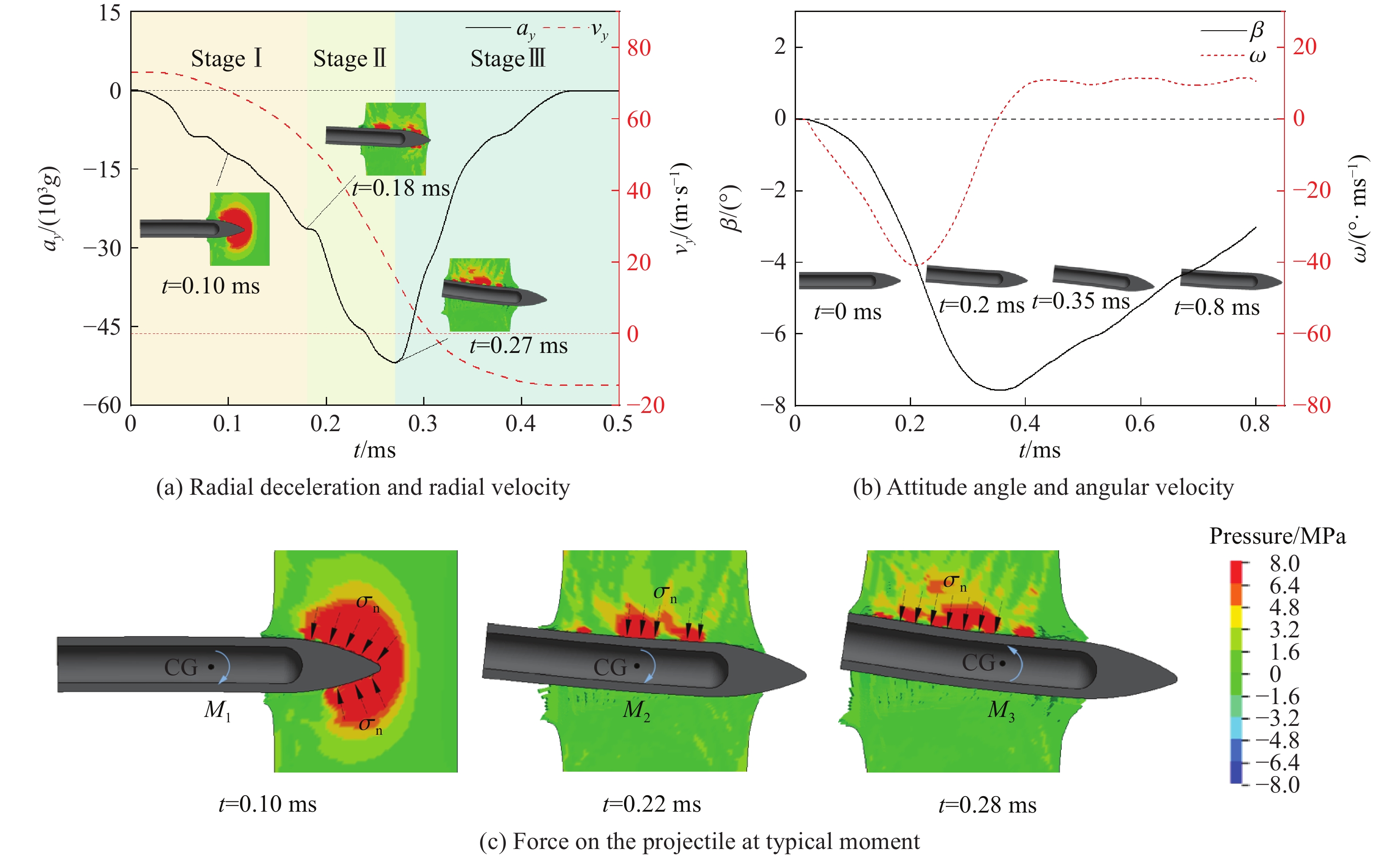

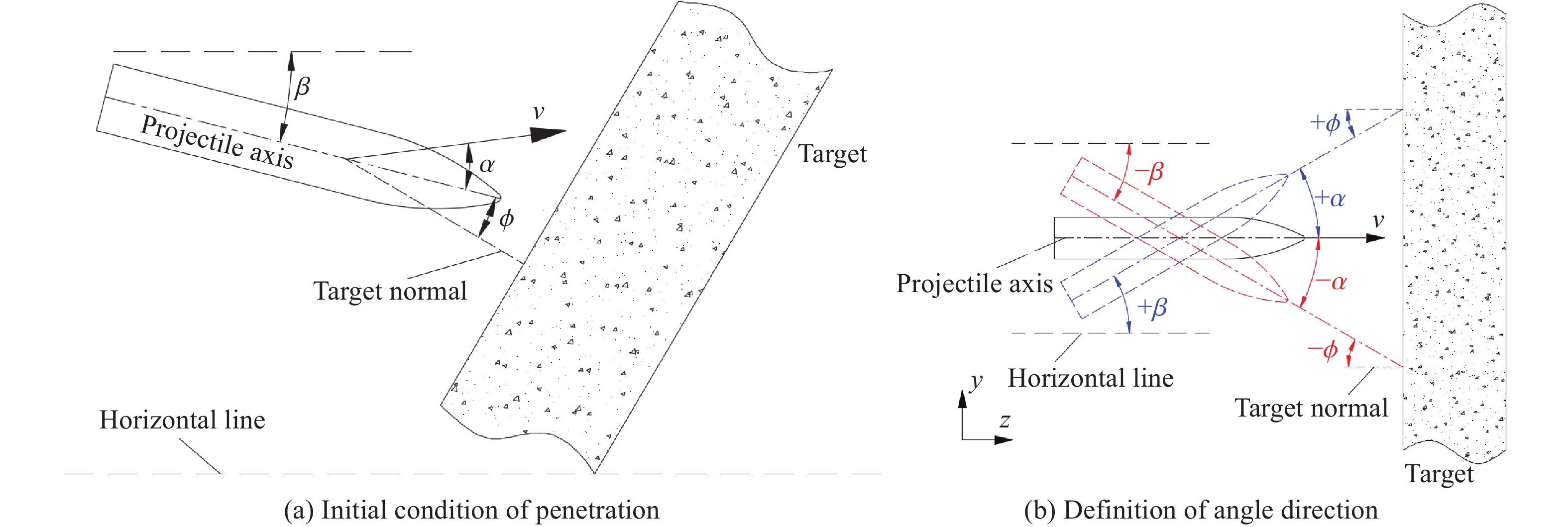

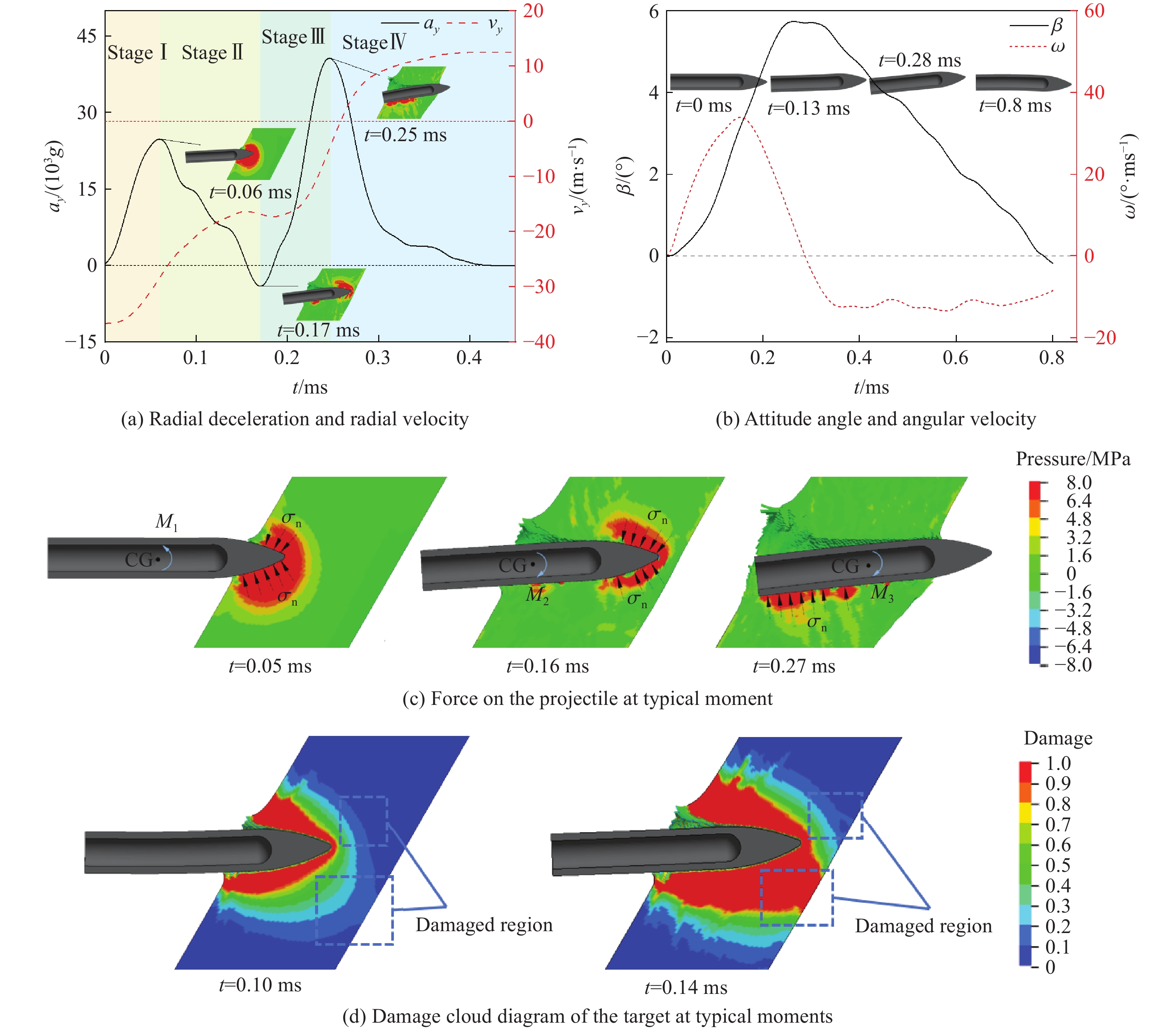

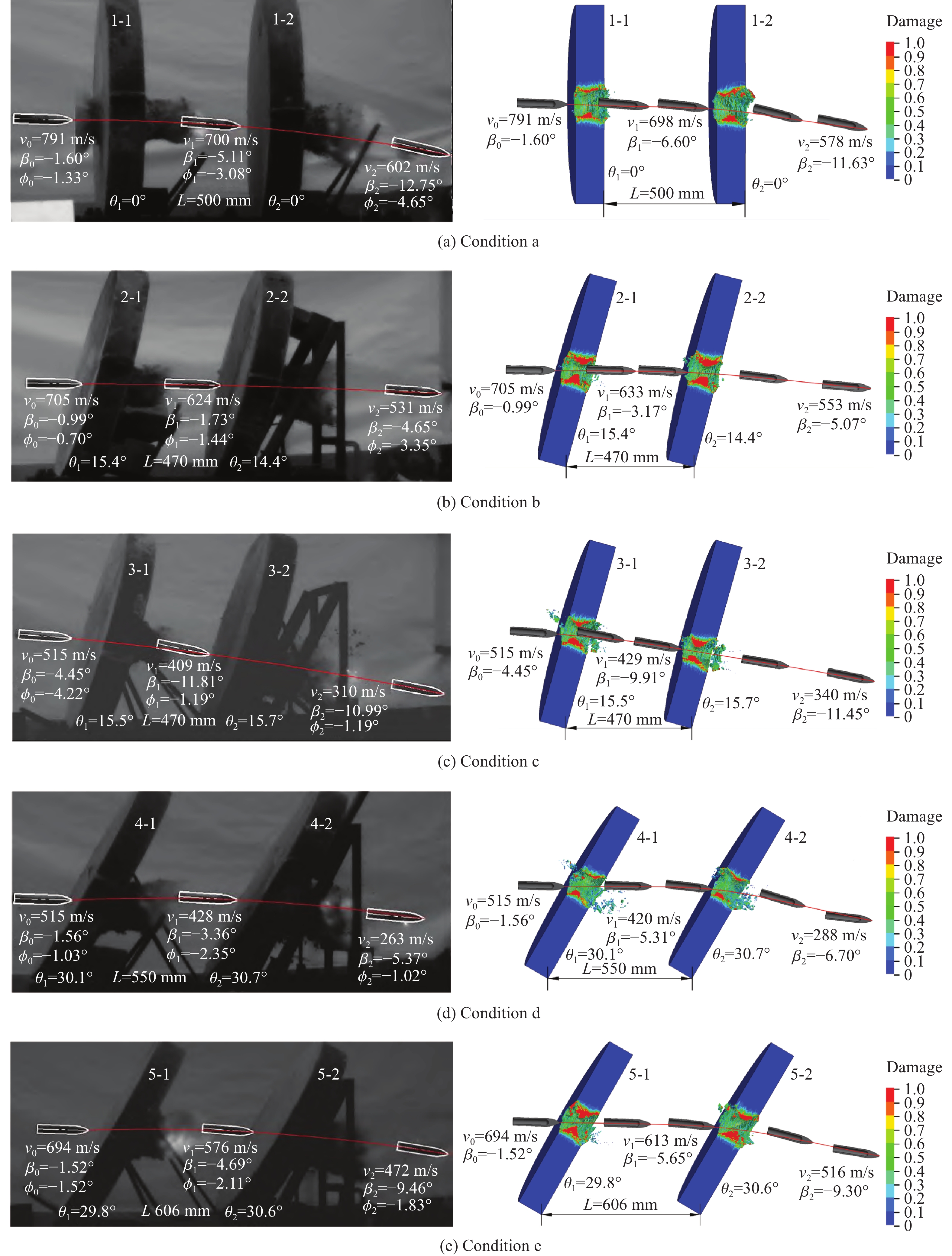

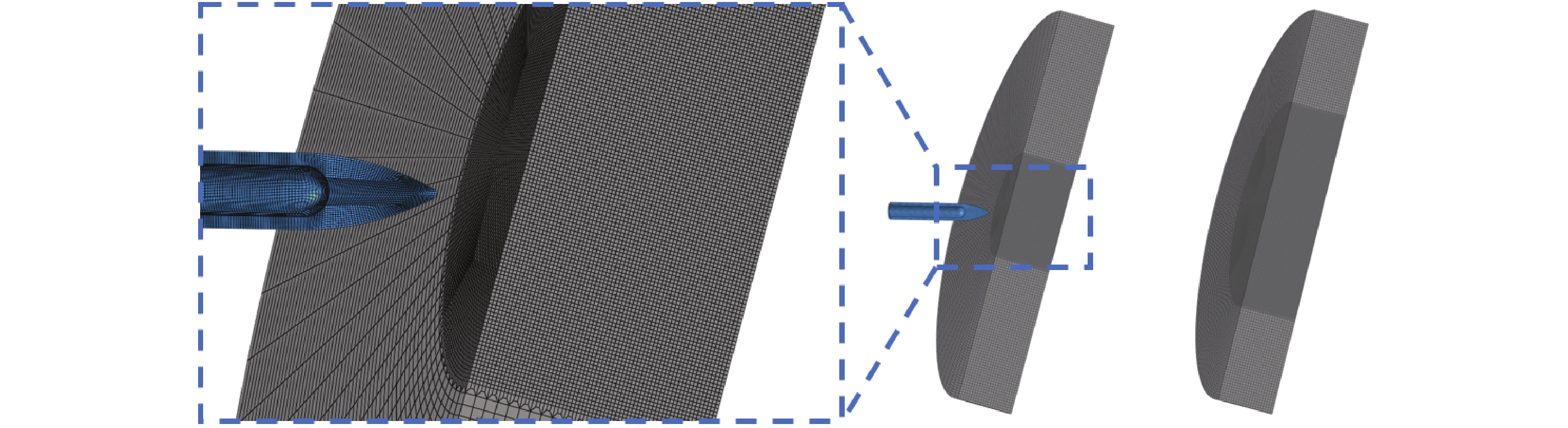

To investigate the influence of trajectory angle and pitch angle on the deflection characteristics of a projectile penetrating concrete thin targets, numerical simulation methods were validated by comparing parameters such as projectile velocity, attitude, and trajectory deflection with experimental data from multi-layered concrete thin-target penetration tests. This verification methodology ensured the accuracy and reliability of the numerical model for subsequent parametric studies.Based on this validation, the projectile was divided into six axial segments (the nose section comprising 2 segments and the body section divided into 4 segments) to systematically analyze the force distribution characteristics and overall motion behavior under both individual and combined effects of different trajectory angles (ranging from 5° to 30°) and pitch angles (ranging from −6° to 6°). The results show that the direction of the resultant force acting on the projectile body maintains stability across all tested impact conditions, demonstrating consistent patterns regardless of angle variations.While the reversal of the force direction on the projectile nose and the change in the deflection moment caused by the forward motion of the projectile body jointly contribute to the projectile's deflection. Under a positive trajectory angle, the trajectory exhibits an upward deflection. When a pitch angle is introduced, the deflection direction is dominated by the trajectory angle if the negative pitch angle is less than 2° and the trajectory angle exceeds 20°; otherwise, the pitch angle determines the deflection direction. When the trajectory angle and pitch angle are in the same direction, the projectile's attitude angle first decreases after exiting the target and then reverses to increase. When they are in opposite directions, a small pitch angle causes the attitude angle to continuously increase after exiting the target, while a larger trajectory angle induces three deflection reversals during penetration. If the pitch angle exceeds 2°, the attitude angle initially decreases after exiting the target before reversing to increase.
- projectile,
- concrete targets,
- penetration,
- deflection characteristics,
- trajectory angle,
- pitch angle
